oronfel2911 Posted November 17, 2022 Share Posted November 17, 2022 (edited) I have Dell Precision 5550 macos Monterey 12.3.1 with Intel Wi-Fi 6 AX201 2x2 (Gig+) + Bluetooth 5.1 I'm using AirportItlwm.kext - IntelBluetoothFirmware.kext - BlueToolFixup.kext with the wifi is s unstable Keeps disconnecting. as i know OpenCore guide the Intel Wi-Fi 6 AX201 is supported https://openintelwireless.github.io/itlwm/Compat.html#mvm-gen-1-iwm MVM Gen 2 (IWX) Section. EFI https://ufile.io/awgvo7zk IOReg file https://ufile.io/6r9ab6vf Please Help Edited November 18, 2022 by Allan Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/ Share on other sites More sharing options...
Allan Posted November 18, 2022 Share Posted November 18, 2022 Try using the itlwm.kext, look what the dev said about the AirportItlwm.kext "AirportItlwm.kext uses Apple's IO80211Family. It provides certain Airport features but lacks stability compared with itlwm.kext due to the ambiguity of reverse engineering." Source: https://openintelwireless.github.io/itlwm/Installation.html#itlwm 2 Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2797399 Share on other sites More sharing options...
oronfel2911 Posted November 18, 2022 Author Share Posted November 18, 2022 Thanks Allan I did tried itlwm.kext with HeliPort and it’s unstable keep disconnecting. Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2797400 Share on other sites More sharing options...
STLVNUB Posted November 18, 2022 Share Posted November 18, 2022 Don't Have ANY Issues With AirportItlwm.kext works FINE In Both Big Sur and Monterey Using The Monterey AirportItlwm.kext For Ventura Only Works Once Or Twice 1 Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2797403 Share on other sites More sharing options...
Allan Posted November 18, 2022 Share Posted November 18, 2022 8 hours ago, oronfel2911 said: Thanks Allan I did tried itlwm.kext with HeliPort and it’s unstable keep disconnecting. Did you tried this troubleshooting? https://openintelwireless.github.io/itlwm/Troubleshooting.html#troubleshooting Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2797426 Share on other sites More sharing options...
STLVNUB Posted November 19, 2022 Share Posted November 19, 2022 (edited) On 11/18/2022 at 2:02 PM, STLVNUB said: Don't Have ANY Issues With AirportItlwm.kext works FINE In Both Big Sur and Monterey Using The Monterey AirportItlwm.kext For Ventura Only Works Once Or Twice Actually Ventura is working fine here, bluetooth too Edit: Bluetooth Working As Well Edit: In Ventura BETA AirportItlwm.kext Sometimes Takes A While To Come Up If At All When It Does Its Solid As A Rock Edited November 21, 2022 by STLVNUB Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2797478 Share on other sites More sharing options...
oronfel2911 Posted November 22, 2022 Author Share Posted November 22, 2022 Hello @Allan @STLVNUBThanks but i did everything and still disconnecting and it is not sable. By the way wifi card is soldered in motherboard, please help 1 Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2797583 Share on other sites More sharing options...
oronfel2911 Posted November 23, 2022 Author Share Posted November 23, 2022 (edited) any help @Allan @STLVNUBwith the soldered Intel 201 wifi/bt card. Edited November 27, 2022 by oronfel2911 Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2797674 Share on other sites More sharing options...
Allan Posted November 27, 2022 Share Posted November 27, 2022 Hello man Can you confirm if you followed these steps? https://openintelwireless.github.io/itlwm/Troubleshooting.html#troubleshooting Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2797878 Share on other sites More sharing options...

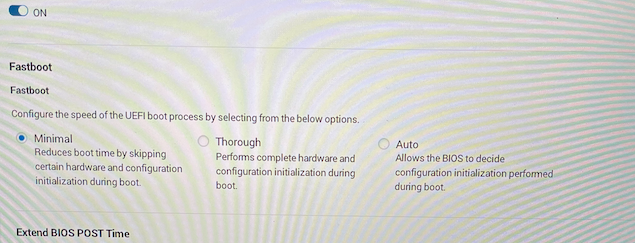

oronfel2911 Posted November 28, 2022 Author Share Posted November 28, 2022 (edited) Hello @Allan I can not disable the fast boot in BIOS as I don't have this option avalable see the image bellow and I got No variant specified, falling back to release in "terminal command" Terminal Saved Output Edited November 28, 2022 by oronfel2911 Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2797906 Share on other sites More sharing options...

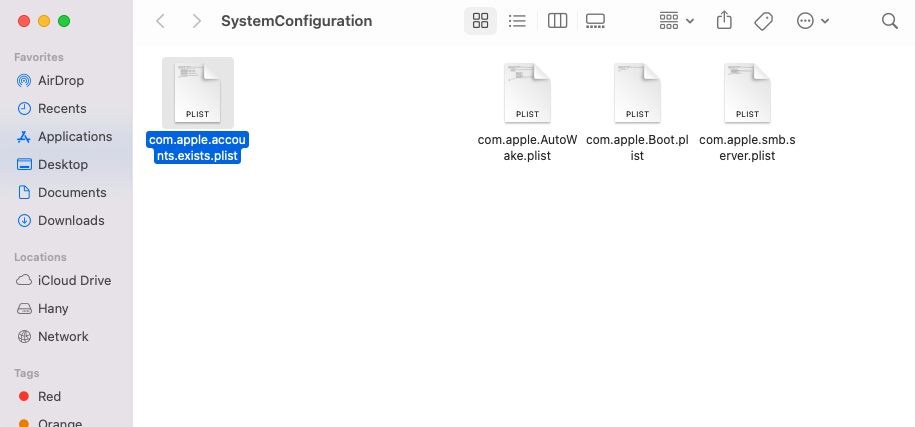

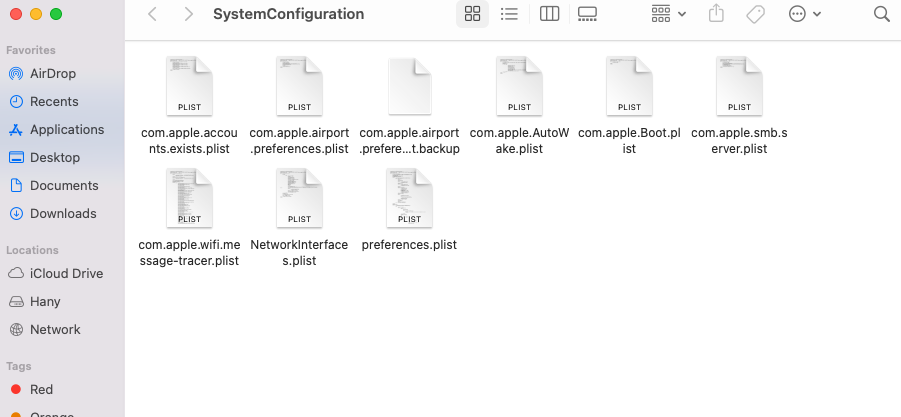

Allan Posted November 28, 2022 Share Posted November 28, 2022 And this too? Resetting System Preferences - Network Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2797916 Share on other sites More sharing options...
oronfel2911 Posted November 28, 2022 Author Share Posted November 28, 2022 I did Resetting System Preferences Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2797930 Share on other sites More sharing options...
deeveedee Posted December 10, 2022 Share Posted December 10, 2022 @oronfel2911 Sorry I can't help with the Wi-Fi, but you want to change your BIOS Fastboot setting to "Thorough" 2 Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2798568 Share on other sites More sharing options...
STLVNUB Posted January 3, 2023 Share Posted January 3, 2023 (edited) Use The Monterey File (Airport*) Rock Solid In Ventura(HighWay) beta 2 Edited January 3, 2023 by STLVNUB Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2799555 Share on other sites More sharing options...

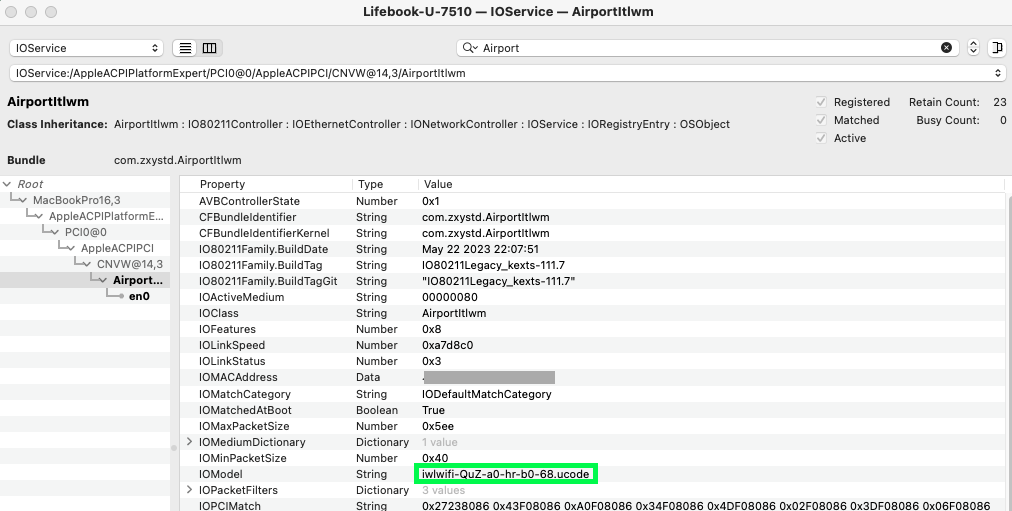

schrup21 Posted November 22, 2025 Share Posted November 22, 2025 (edited) One thing I would generally recommend: Set different SSIDs for 2.4 GHz and 5 GHz on your Wi-Fi router and only use the 5 GHz network in macOS. This can help avoid or reduce Wi-Fi/Bluetooth coexistence problems. don't know if this helps: I don't have issues with my AX201 and never had - but I built my own Intel Wifi KEXTs with the latest Firmware from the Linux Repository. https://git.kernel.org/pub/scm/linux/kernel/git/iwlwifi/linux-firmware.git You can determine firmware model of your module with IoRegistryExplorer: Spoiler ...and put the one from the linux repository in the firmware folder of the cloned Itlwm repository folder: Spoiler Because you only need the one for your module, all the rest of the firmware files can be deleted, which drastically reduces the file size of the KEXTs - The Debug Version of Lilu has to be placed in the Itlwm Repository folder as well as MacKernelSDK - Built the KEXTs within the Itlwm folder (terminal): xcodebuild -project itlwm.xcodeproj -configuration Release -alltargets build This is not entirely true: "Intel Wi-Fi 6 AX201" WiFi 6 is not possible as it's "currently disabled" according the developer. IntelBluetooth can be compiled using the same method. However, the required firmware must be determined using dmesg (DebugEnhancer): sudo dmesg | grep IntelFirmware Edited November 22, 2025 by schrup21 Link to comment https://www.insanelymac.com/forum/topic/354814-intel-wi-fi-6-ax201-160mhz-is-unstable-keeps-disconnecting/#findComment-2844030 Share on other sites More sharing options...
