SSDT patch for instant wake (LG SD550 - HM77)


illyfs
 Share

5 posts in this topic

Recommended Posts

hello,

I have installed Catalina 10.15.7 on my laptop and most of the features are working.

There was a problem with the sleep function, so I tried patching it, but it didn't solve the problem.

I'd like to get some help on whether my patch is correct.



2022-08-14 16:11:37.820194+0900  localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: GLAN



cpu - ivy bridge i5-3230m

mb - HM77



install os - catalina 10.15.7

smbios - MacBookPro10,2



bootloader - Opencore 0.8.3



extract dsdt from windows10

    Scope (_SB.PCI0)

    {

        Device (GLAN)

        {

            Name (_ADR, 0x00190000)  // _ADR: Address

            Method (_PRW, 0, NotSerialized)  // _PRW: Power Resources for Wake

            {

                If (WOLE)

                {

                    Return (Package (0x02)

                    {

                        0x0D,

                        0x05

                    })

                }

                Else

                {

                    Return (Package (0x02)

                    {

                        0x0D,

                        Zero

                    })

                }

            }


            Method (_PSW, 1, NotSerialized)  // _PSW: Power State Wake

            {

                LNPW = Arg0

            }

        }



my patch

DefinitionBlock ("", "SSDT", 2, "CORP ", "SsdtGLAN", 0x00001000)

{

    External (\_SB.PCI0, DeviceObj)

    External (\_SB.PCI0.GLAN, DeviceObj)


    Scope (\_SB.PCI0)

    {

        Device (GLAN)

        {

          Name (_ADR, 0x00190000)  // _ADR: Address

            Method (_PRW, 0, NotSerialized)  // _PRW: Power Resources for Wake

            {

                    Return (Package (0x02)

                    {

                        0x09,

                        0x04

                    })


            }


        }

    }

}



Edited by Allan
Code tag
Link to comment
Share on other sites

Thank you,



With your help, GLAN problerm was solved!!!



but,,,



2022-08-14 22:22:47 +0900 Wake                Wake from Normal Sleep [CDNVA] : due to EH01 EH02 XHC/UserActivity Assertion Using AC



anyway, thank you

Link to comment
Share on other sites

Try adding _DSM USB. Ioreg true mac same as your SMBios.

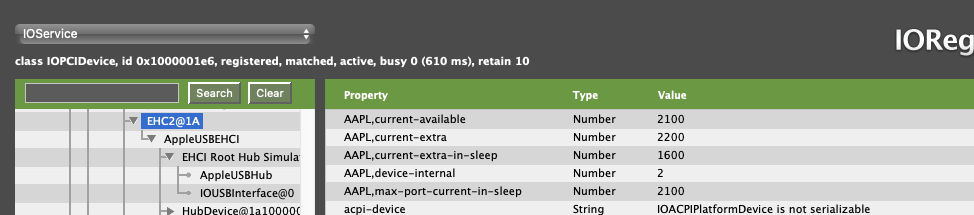

Screenshot 2022-08-15 alle 17.50.10.png



Give me the whole EFI thanks.

Describe the brand model of the laptop.
Post ioreg please , you could disable and swichare the USB 2.0 on XHC and solve various problems.

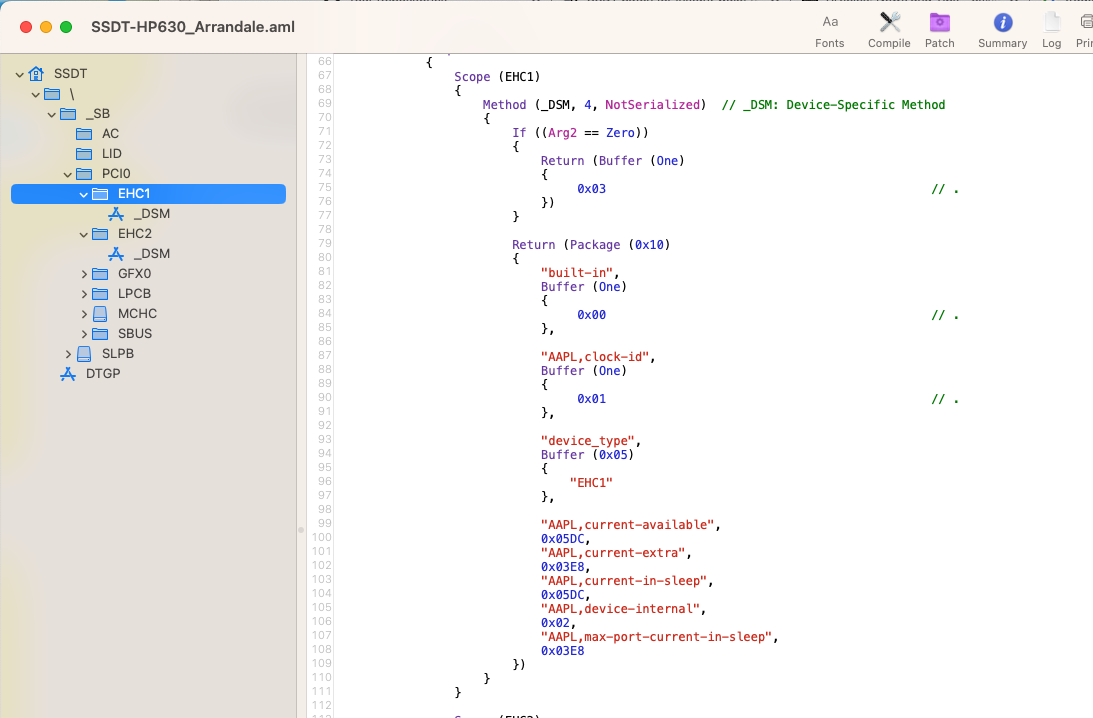

Example: take care of HP 630 SMBios MacbookPro 6.2, you need other values.

1125025177_Screenshot2022-08-15alle17_59_00.thumb.png.868f85e0fa85363c145798b2c394e580.png

Edited by Baio77
Link to comment
Share on other sites

Here is my EFI folder.



By adding 060D rename patch, sleeping seems to work.



─ CPU
  └── Intel(R) Core(TM) i5-3230M CPU @ 2.60GHz
      ├── Cores: 2
      ├── Threads: 4
      ├── SSE: SSE4.2
      ├── SSSE3: Supported
      └── Codename: Ivy Bridge

─ Motherboard
  ├── Model: LG4C
  └── Manufacturer: Quanta

─ GPU
  └── Intel(R) HD Graphics 4000
      ├── Device ID: 0x0166
      ├── Vendor: 0x8086
      ├── PCI Path: PciRoot(0x0)/Pci(0x2,0x0)
      └── ACPI Path: \_SB.PCI0.GFX0

─ Memory
  ├── M471B5273DH0-CH9 (Part-Number)
  │   ├── Type: DDR3
  │   ├── Slot
  │   │   ├── Bank: BANK 0
  │   │   └── Channel: DIMM0
  │   ├── Frequency (MHz): 1333 MHz
  │   ├── Manufacturer: Samsung
  │   └── Capacity: 4096MB
  └── M471B5273DH0-CH9 (Part-Number)
      ├── Type: DDR3
      ├── Slot
      │   ├── Bank: BANK 2
      │   └── Channel: DIMM1
      ├── Frequency (MHz): 1333 MHz
      ├── Manufacturer: Samsung
      └── Capacity: 4096MB

─ Network
  ├── AR928X Wireless Network Adapter (PCI-Express)
  │   ├── Device ID: 0x002A
  │   ├── Vendor: 0x168C
  │   ├── PCI Path: PciRoot(0x0)/Pci(0x1c,0x0)/Pci(0x0,0x0)
  │   └── ACPI Path: \_SB.PCI0.RP01.PXSX
  └── AR8161 Gigabit Ethernet
      ├── Device ID: 0x1091
      ├── Vendor: 0x1969
      ├── PCI Path: PciRoot(0x0)/Pci(0x1c,0x1)/Pci(0x0,0x0)
      └── ACPI Path: \_SB.PCI0.RP02.PXSX

─ Audio
  ├── Unknown Sound Device
  │   ├── Device ID: 0x2806
  │   └── Vendor: 0x8086
  └── Realtek ALC269
      ├── Device ID: 0x0269
      └── Vendor: 0x10EC

─ Storage
  ├── Samsung SSD 860 EVO 250GB
  │   ├── Type: Solid State Drive (SSD)
  │   ├── Connector: Serial ATA (SATA)
  │   └── Location: Internal
  └── JetFlash Transcend 16GB
      ├── Type: Unspecified
      ├── Connector: USB
      └── Location: External

EFI.zip
