Monterey and MSI x570 Gaming Edge Wifi

[uzmi]

Hello everyone:

I have an MSI x570 Gaming Edge Wifi motherboard and a Ryzen 3600x

I have installed Monterey and it works fine with Bios 7C37v18.

But when I update to the following bios it is impossible to install Monterey.

I have already read that the new MSI and Monterey bios give problems.





I updated the bios to the latest version 7C37v1H and tried Monterey and I have advanced further, so much that I have reached the installation screen.

However here the problem arises:

Utility disk Does not detect the hard disk where I must have it installed.

Let's see if you can help me in case I miss something.



Record.

Image of Olarila with the corresponding and modified EFI folder for my team, THANK YOU MALDON!



Download image 12.3.1 several times and also 12.3.0 in case there was any error when downloading it or when saving it to the usb

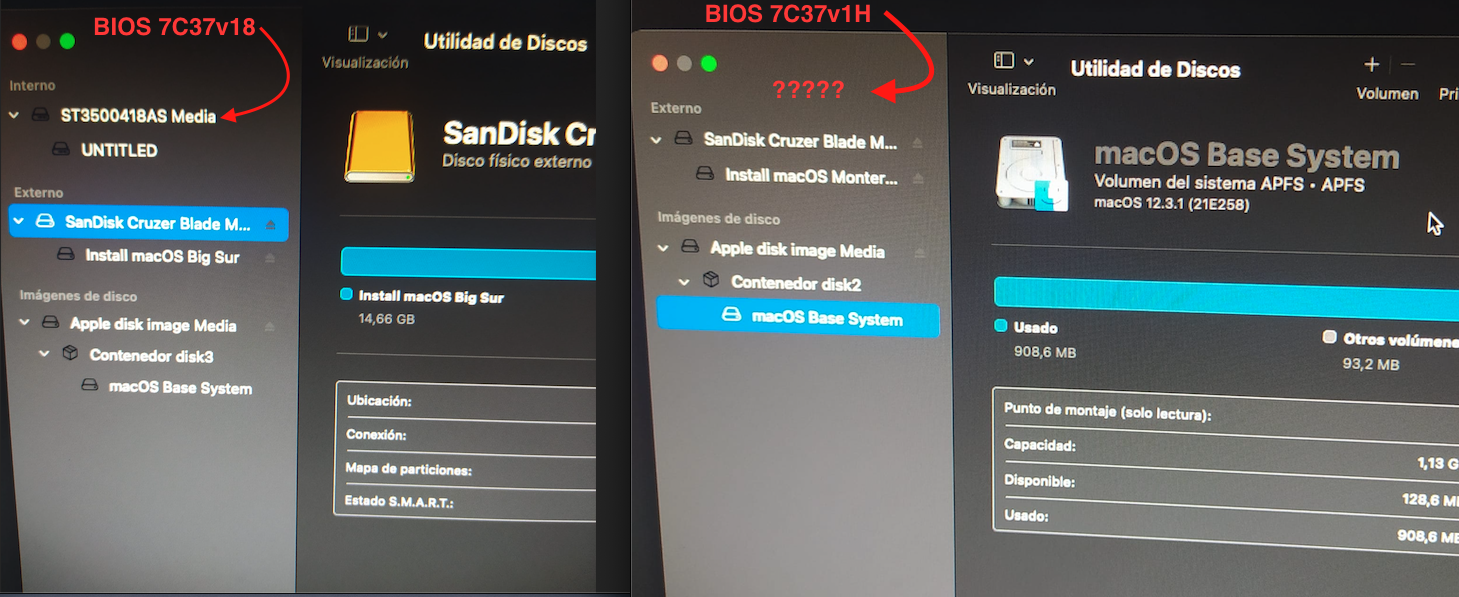

I tried the installers with bios 7C37v18 and Disk Utility detects the hard disk perfectly.



I tried a BIG SUR installer with bios 7C37v1H and disk utility sees the hard drive perfectly.



I feel frustrated being so close and not being able to move forward



Thank you very much for your time



Config.plist.zip

[Allan]

@uzmi please do the following: [Video] How to add a signature.



And after the BIOS update, did you clear the NVRam?

[uzmi]

Hi Allan

Yes, I did. I always do it each time I update Bios.

[Allan]

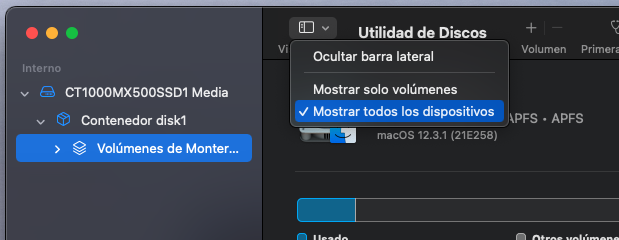

Double check if at the Disk Utility > Visualization menu, the option to "see" all the disks are enabled?

[uzmi]

you say this?
then yes

[Allan]

Ok



And which version of OC are you using?

[Aluveitie]

Nobody knows what MSI borked up when they implemented Zen 3 support...

[uzmi]

I’m using 0,80 version.

User POMPIS suggested trying NVMe due to it is not controlled by SATA.

I’ll try it tonight. I’ll let you know.

[uzmi]

Bad news



Disk utility also does not detect the NVMe



But... I have discovered that the problem is that it doesn't "see" neither NVMe nor sata1 (I don't think sata2 either, I haven't tried it) but sata3 does work

Windows does detect everything but the Monterey installer doesn’t.





I've been trying different config.plist for several days, it lets me install (sata 3 works) but after the first reboot to finish installing, it stays in an infinite loop that never ends.

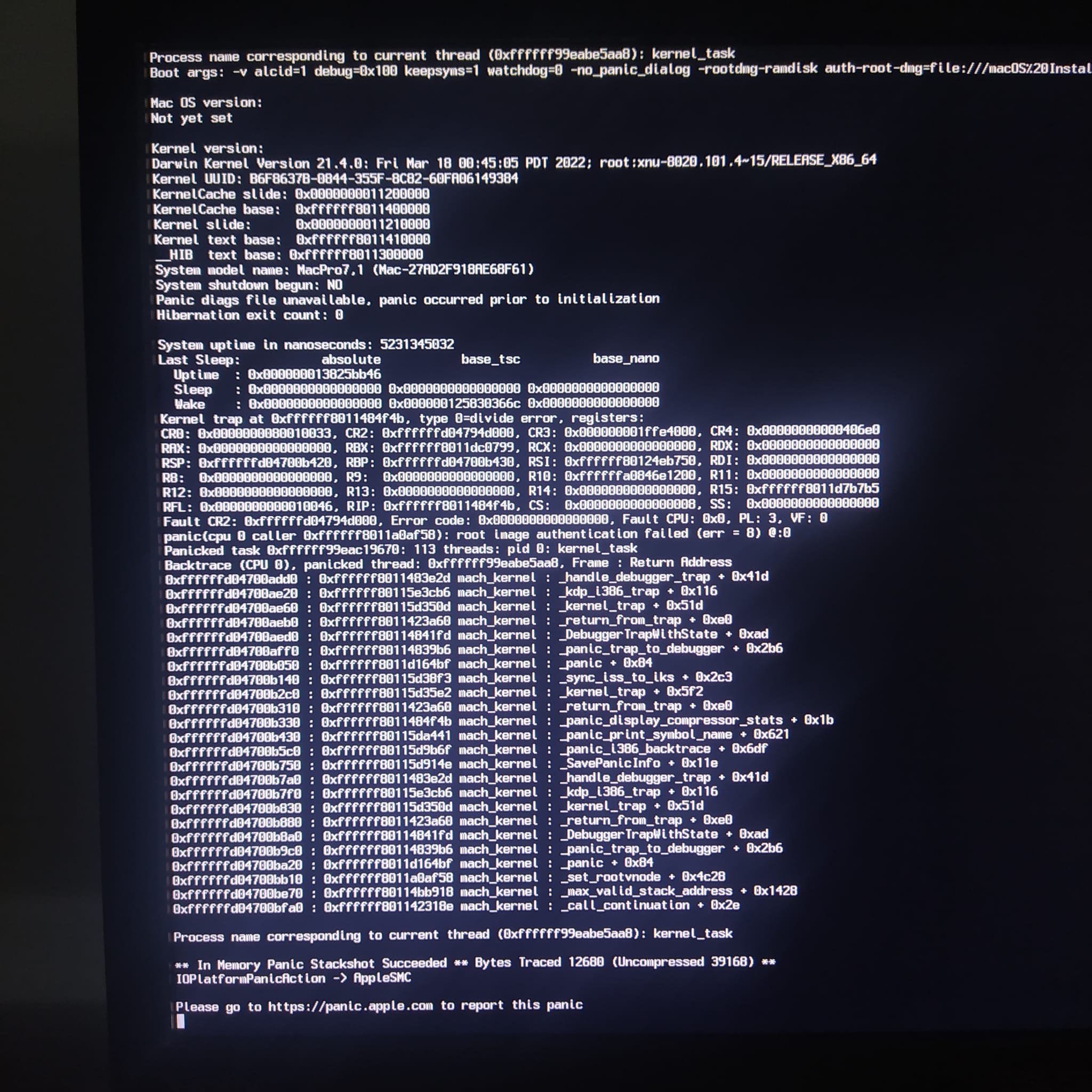

Now it gives me a KP.

I don't know what else should I try.



P.S.

I'm not going to try anymore.

Thank you for your time



Edited May 20, 2022 by uzmi
