john jairo garcia garcia Posted February 17, 2022 Share Posted February 17, 2022 hello, I am trying to install MONTEREY, in my pc with these specifications but I have not been able to upload the system I leave the error that gives me do not know much of the subject I hope I can help or guide me Specs macOS MONTEREY CPU: Intel Core™ i7-11700KF Motherboard: MSI H510I PRO RAM: OLOy DDR4 2x16GB UDIMM, total 32 GB, 3000 MHz CL16. Graphics Card:MSI Gaming AMD Radeon RX 6600 XT 8GB GDDR6 128-Bit HDMI/DP Torx Fan RGB Wifi Card: WiFi Plug & Play M.2 NGFF BCM94360NG 802.11ac Bluetooth 4.0, WiFi 500 GB Crucial MX500 Sequential reads/writes up to 560/510MB/s1 SEKC SM250512G NVMe M.2 2280 PCIe Gen 3x4 512GB Errror Spoiler opencore-2022-02-16-21 00:000 00:000 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 00:056 00:056 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 00:112 00:056 AAPL: #[EB|H:IS] 0 00:168 00:056 AAPL: #[EB|LOG:INIT] 2022-02-16T21:22:54 00:225 00:056 AAPL: #[EB|VERSION] <"boot.efi 540.80.2~11 (Official), built 2021-12-17T18:41:20-0800"> 00:281 00:056 AAPL: #[EB|BUILD] <"BUILD-INFO[298]:{"DisplayName":"boot.efi","DisplayVersion":"540.80.2~11","RecordUuid":"4C1050E5-0AC2-49AF-A6E3-E8F54238A54E","BuildTime":"2021-12-17T18:41:20-0800","ProjectName":"efiboot","ProductName":"boot.efi","SourceVersion":"540.80.2","BuildVersion":"11","BuildConfiguration":"Release","BuildType":"Official"}"> 00:338 00:056 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82 00:394 00:056 AAPL: #[EB|CFG:DEV] r5 0x0 0x0 00:451 00:056 AAPL: #[EB|H:IS] 0 00:507 00:056 AAPL: #[EB|WL:MODE] 0 00:563 00:056 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default 00:619 00:056 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default 00:675 00:056 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default 00:732 00:056 AAPL: #[EB|CFG:ARG] serial 0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default 00:788 00:056 AAPL: #[EB|CFG:ARG] preoslog 0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default 00:844 00:056 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default 00:901 00:056 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default 00:957 00:056 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 01:013 00:056 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default 01:069 00:055 AAPL: #[EB|H:IS] 0 01:125 00:056 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00 01:181 00:056 AAPL: #[EB|BRD:NV] Mac-CFF7D910A743CAAF 01:238 00:056 AAPL: #[EB|B:VAw] 01:294 00:056 AAPL: #[EB|B:IAw] 01:351 00:056 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00 01:408 00:056 AAPL: #[EB|B:RRVAR] <909090909090> 01:464 00:056 AAPL: #[EB.BST.IDT|+] 01:521 00:056 AAPL: #[EB|BM] J185AP 01:579 00:058 AAPL: #[EB.BST.IDT|-] 01:635 00:055 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00 01:691 00:056 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00 01:748 00:056 AAPL: #[EB|BRD:NV] Mac-CFF7D910A743CAAF 01:804 00:056 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00 01:860 00:056 AAPL: #[EB.H.CHK|BM] 0x0000000000000000 01:917 00:056 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 01:973 00:056 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E 02:029 00:056 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:086 00:056 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E 02:142 00:056 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:199 00:056 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:255 00:056 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:312 00:056 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:368 00:056 AAPL: #[EB|H:NOT] 02:424 00:056 AAPL: #[EB|SB:P] 0x1 02:481 00:056 AAPL: #[EB.B.MN|BM:+SB] 02:537 00:056 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(17|0)/SATA(0,FFFF)/HD(Part2,SigEF3BF3D3-126B-4C92-B701-DD938770E15A)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842) 02:594 00:056 AAPL: #[EB|LIMG:FP] \B768B97A-0227-4B93-BEA7-C1FAEFFB0C31\System\Library\CoreServices\boot.efi 02:940 00:346 AAPL: #[EB|LIMG:OPT] 02:997 00:056 AAPL: #[EB.OPT.LXF|F] <"\\B768B97A-0227-4B93-BEA7-C1FAEFFB0C31\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 03:053 00:055 AAPL: #[EB.LD.LF|IN] 0 1 <"\\B768B97A-0227-4B93-BEA7-C1FAEFFB0C31\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0"> 03:109 00:056 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\B768B97A-0227-4B93-BEA7-C1FAEFFB0C31\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 03:165 00:056 AAPL: #[EB.OPT.LXF|LF!] Err(0xE) 03:222 00:056 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> 03:278 00:056 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0"> 03:335 00:056 AAPL: #[EB|KF] <""> 03:391 00:056 AAPL: #[EB|MBA:CL] <""> 03:447 00:056 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 slide=170"> 03:504 00:056 AAPL: #[EB|MBA:KF] <""> 03:560 00:056 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 slide=170 chunklist-security-epoch=0 -chunklist-no-rev2-dev"> 03:617 00:056 AAPL: #[EB|LOG:VERBOSE] 2022-02-16T21:22:57 03:674 00:056 AAPL: #[EB.CSR.S|VAR] 0x00000040 03:730 00:056 AAPL: #[EB|OPT:BM] 0x280102 03:787 00:056 AAPL: #[EB.OPT.LXF|F] <"\\B768B97A-0227-4B93-BEA7-C1FAEFFB0C31\\System\\Library\\CoreServices\\PlatformSupport.plist"> 03:843 00:056 AAPL: #[EB.LD.LF|IN] 0 1 <"\\B768B97A-0227-4B93-BEA7-C1FAEFFB0C31\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0"> 03:900 00:057 AAPL: #[EB|P:CPR] N 03:956 00:056 AAPL: #[EB|P:MPI] N 04:012 00:056 AAPL: #[EB|P:BPI] N 04:068 00:056 AAPL: #[EB|KMR] 216113152 04:125 00:056 AAPL: #[EB.CS.CSKSD|+] 04:181 00:056 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF 04:237 00:056 AAPL: #[EB|WL] 0 0 0x01 0x01 6 0x0E 04:293 00:056 AAPL: #[EB.CS.LFC|+] 04:349 00:056 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\Caches\\com.apple.corestorage\\EncryptedRoot.plist.wipekey"> <"0"> 04:414 00:064 AAPL: #[EB.FS.AGSVH|PU] B768B97A-0227-4B93-BEA7-C1FAEFFB0C31 04:470 00:055 AAPL: #[EB.FS.AGSVH|!] Err(0xE) <- BS.LocHB 59D76AE4-37E3-55A7-B460-EF13D46E6020 04:526 00:055 AAPL: #[EB.G.CS|-?] Ok(0) 04:583 00:056 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1"> 04:642 00:058 AAPL: #[EB.B.SBS|SZ] 727608 04:704 00:062 AAPL: #[EB|B:SHA] <807ed9ab9a8409a4f3362a9d4fc438fa4ca48018> 04:761 00:057 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82 04:818 00:056 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV 04:874 00:056 AAPL: #[EB.WL.PWLFRTC|NONE] 04:931 00:057 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFRTC 04:989 00:057 AAPL: #[EB.LD.LKC|D] <"boot\System\Library\KernelCollections\BootKernelExtensions.kc.development"> 05:047 00:057 AAPL: #[EB.LD.LF|IN] 0 1 <"boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> <"0"> 05:107 00:059 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> 05:164 00:057 AAPL: #[EB.LD.LKC|R.2] <"boot\System\Library\KernelCollections\BootKernelExtensions.kc"> 05:221 00:057 AAPL: #[EB.LD.LF|IN] 0 1 <"boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc"> <"0"> 06:241 01:019 AAPL: #[EB|SB:P] 0x1 06:307 00:066 AAPL: #[EB|SB:SBGMFNS] j185ap.im4m 06:365 00:057 AAPL: #[EB|SB:MF] boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc.j185ap.im4m 06:423 00:057 AAPL: #[EB.LD.LF|IN] 0 1 <"boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc.j185ap.im4m"> <"0"> 06:619 00:196 AAPL: #[EB|SB:MKRN] 06:682 00:062 AAPL: #[EB.LD.LKFS|-?] Ok(0) 06:739 00:056 AAPL: #[EB.LD.LKC|-?] Ok(0) 06:796 00:056 AAPL: #[EB|BST:REV1] 06:852 00:056 AAPL: #[EB|CSR:OUT] 0x00000040 06:908 00:056 AAPL: #[EB.BST.FBS|+] 06:965 00:057 AAPL: #[EB.BST.FBS|ADSZ] 0 07:022 00:056 AAPL: #[EB.BST.FBS|KSSZ] 0 07:079 00:056 AAPL: #[EB|SB:SBGMFNS] j185ap.im4m 07:135 00:056 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash 07:193 00:057 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j185ap.im4m"> 07:250 00:056 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0"> 07:310 00:060 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash.j185ap.im4m"> <"0"> 07:368 00:057 AAPL: #[EB.BST.FBS|RHPSZ] 229 07:779 00:411 AAPL: #[EB.BST.FBS|RHMSZ] 3626 07:836 00:056 AAPL: #[EB|LOG:DT] 2022-02-16T21:23:01 07:892 00:056 AAPL: #[EB|LOG:EXITBS:START] 2022-02-16T21:23:01 Quote Link to comment https://www.insanelymac.com/forum/topic/350833-help-to-install-monterey-h510i-pro-wifi/ Share on other sites More sharing options...
MaLd0n Posted February 17, 2022 Share Posted February 17, 2022 Use EFI folder from link bellowhttps://www.olarila.com/topic/5676-hackintosh-efi-folders-for-all-chipsets-clover-and-opencore/ Check tutorialhttps://www.olarila.com/topic/20908-guide-easy-fast-and-perfect-hackintosh-vanilla-step-by-step-clover-and-opencore-bootloader/ Some Basic Information -Use USB2 port for easy installation with no remap USB -Delete old EFI folder and paste new. Don't use merge files -Don't use Drag and Drop into EFI partition. Use Copy/Paste instead -Reset NVRAM one time - OpenCore use entry "Reset Nvram" / Clover use F11 key on boot screen Bios/UEFI Configuration -Sata = AHCI mode -Secure Boot = Disable if need -CSM = Disable with AMD cards -If you have only IGPU use -igfxvesa bootarg for easy installation Quote Link to comment https://www.insanelymac.com/forum/topic/350833-help-to-install-monterey-h510i-pro-wifi/#findComment-2776986 Share on other sites More sharing options...
john jairo garcia garcia Posted February 20, 2022 Author Share Posted February 20, 2022 hello friend, I have tried everything in the tutorial. but the pc always stays in the apple and does not go up to install. On 2/17/2022 at 11:02 AM, MaLd0n said: Use EFI folder from link bellowhttps://www.olarila.com/topic/5676-hackintosh-efi-folders-for-all-chipsets-clover-and-opencore/ Check tutorialhttps://www.olarila.com/topic/20908-guide-easy-fast-and-perfect-hackintosh-vanilla-step-by-step-clover-and-opencore-bootloader/ Some Basic Information -Use USB2 port for easy installation with no remap USB -Delete old EFI folder and paste new. Don't use merge files -Don't use Drag and Drop into EFI partition. Use Copy/Paste instead -Reset NVRAM one time - OpenCore use entry "Reset Nvram" / Clover use F11 key on boot screen Bios/UEFI Configuration -Sata = AHCI mode -Secure Boot = Disable if need -CSM = Disable with AMD cards -If you have only IGPU use -igfxvesa bootarg for easy installation Quote Link to comment https://www.insanelymac.com/forum/topic/350833-help-to-install-monterey-h510i-pro-wifi/#findComment-2777098 Share on other sites More sharing options...
MaLd0n Posted February 20, 2022 Share Posted February 20, 2022 post one photo in error screen Quote Link to comment https://www.insanelymac.com/forum/topic/350833-help-to-install-monterey-h510i-pro-wifi/#findComment-2777100 Share on other sites More sharing options...

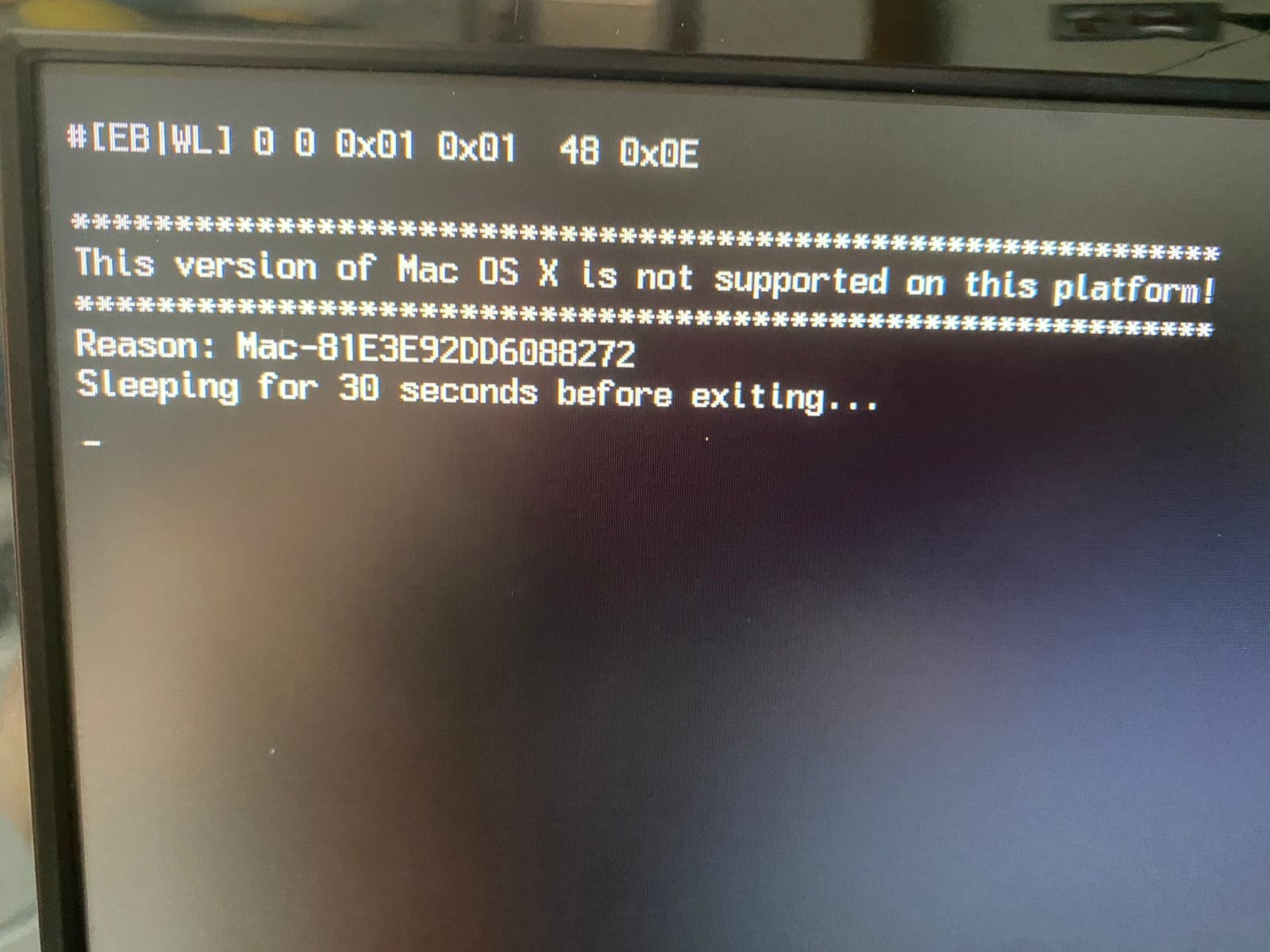

john jairo garcia garcia Posted February 20, 2022 Author Share Posted February 20, 2022 3 hours ago, MaLd0n said: post one photo in error screen Quote Link to comment https://www.insanelymac.com/forum/topic/350833-help-to-install-monterey-h510i-pro-wifi/#findComment-2777104 Share on other sites More sharing options...
MaLd0n Posted February 20, 2022 Share Posted February 20, 2022 2 hours ago, john jairo garcia garcia said: just use correct folder https://tinyurl.com/ecar44y5 Quote Link to comment https://www.insanelymac.com/forum/topic/350833-help-to-install-monterey-h510i-pro-wifi/#findComment-2777110 Share on other sites More sharing options...
john jairo garcia garcia Posted February 20, 2022 Author Share Posted February 20, 2022 32 minutes ago, MaLd0n said: solo usa la carpeta correcta https://tinyurl.com/ecar44y5 friend with this folder I don't recognize anything on the usb. why can this happen? Quote Link to comment https://www.insanelymac.com/forum/topic/350833-help-to-install-monterey-h510i-pro-wifi/#findComment-2777112 Share on other sites More sharing options...
MaLd0n Posted February 20, 2022 Share Posted February 20, 2022 7 minutes ago, john jairo garcia garcia said: friend with this folder I don't recognize anything on the usb. why can this happen? u need a correct procedure bios/uefi in default, disable only csm if have amd gpu delete old efi folder and paste new. dont merge files. dont use drag and drop into efi partition, use copy/paste instead Check here https://www.olarila.com/topic/12857-hackintosh-how-to-mount-efi-partition-on-macos-or-windows/ Quote Link to comment https://www.insanelymac.com/forum/topic/350833-help-to-install-monterey-h510i-pro-wifi/#findComment-2777113 Share on other sites More sharing options...
john jairo garcia garcia Posted February 21, 2022 Author Share Posted February 21, 2022 (edited) Hace 7 horas, MaLd0n dijo: necesitas un procedimiento correcto bios/uefi por defecto, deshabilite solo csm si tiene amd gpu elimine la carpeta efi anterior y pegue la nueva. no fusionar archivos. no use arrastrar y soltar en la partición efi, use copiar / pegar en su lugar Consulte aquí https://www.olarila.com/topic/12857-hackintosh-how-to-mount-efi-partition-on-macos-or-windows/ Thank you it has worked, I updated the bios of my board and it works, as I can see my windows disk, and how to remove it so that I don't get the letters at the beginning of the mac. Edited February 21, 2022 by john jairo garcia garcia Quote Link to comment https://www.insanelymac.com/forum/topic/350833-help-to-install-monterey-h510i-pro-wifi/#findComment-2777123 Share on other sites More sharing options...

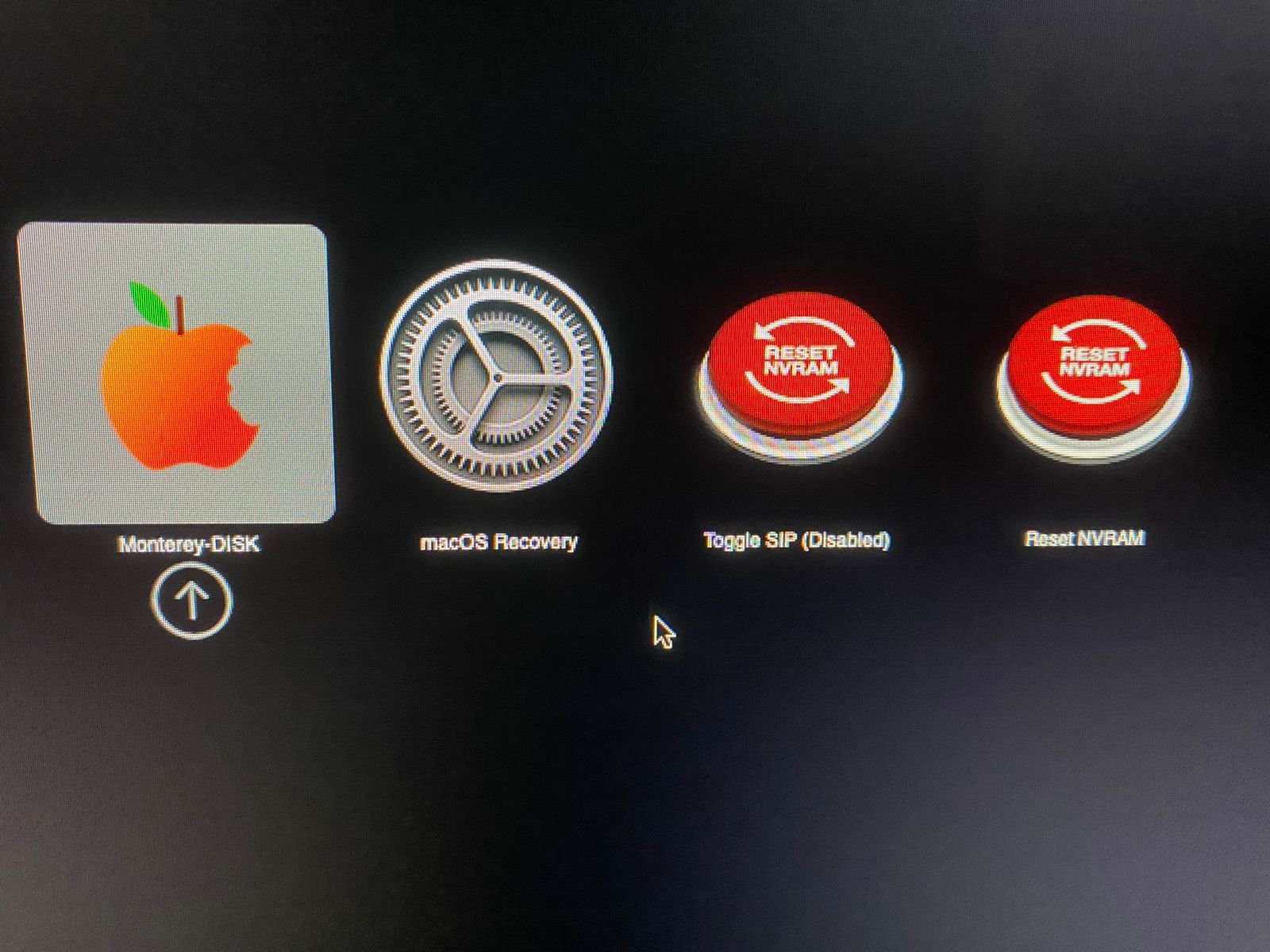

john jairo garcia garcia Posted February 28, 2022 Author Share Posted February 28, 2022 (edited) On 2/20/2022 at 4:20 PM, MaLd0n said: u need a correct procedure bios/uefi in default, disable only csm if have amd gpu delete old efi folder and paste new. dont merge files. dont use drag and drop into efi partition, use copy/paste instead Check here https://www.olarila.com/topic/12857-hackintosh-how-to-mount-efi-partition-on-macos-or-windows/ please help how can i view my windows disk in the menu Edited February 28, 2022 by john jairo garcia garcia Quote Link to comment https://www.insanelymac.com/forum/topic/350833-help-to-install-monterey-h510i-pro-wifi/#findComment-2777453 Share on other sites More sharing options...
Anto65 Posted February 28, 2022 Share Posted February 28, 2022 Verify that ScanPolicy is set to 0 Quote Link to comment https://www.insanelymac.com/forum/topic/350833-help-to-install-monterey-h510i-pro-wifi/#findComment-2777454 Share on other sites More sharing options...
MaLd0n Posted February 28, 2022 Share Posted February 28, 2022 3 hours ago, john jairo garcia garcia said: please help how can i view my windows disk in the menu here EFI 02.zip Quote Link to comment https://www.insanelymac.com/forum/topic/350833-help-to-install-monterey-h510i-pro-wifi/#findComment-2777457 Share on other sites More sharing options...
