Guide to install Ventura 13 Beta 5 in a Acer Aspire ES1-572 - All Working Wi-Fi & Bluetooth - Opencore 0.8.4 - BCM94360NG

[fernando.c.neves]

Install Guide to install Ventura 13 Beta 5 in Acer Aspire ES1-572 with everything working Out-Off-The-Box



1. Download macOS Ventura 13 Beta 5 from Olaria
2. format an USB 16Gb or Bigger
3. Type in Terminal:
   • diskutil eraseDisk JHFS+ "macOS Ventura Installer" /dev/pathtoUSB
   • cd /Applications/Install macOS Ventura/Content/Resources
   • ./createinstallmedia --volumes /Volumes/"macOS Ventura Installer"
4. After completion, use this EFI folder:
   • mkdir /Volumes/EFI
   • mount -t msdos /dev/disk?s1 /Volumes/EFI
5. Open Finder (/Volumes/EFI)
6. copy EFI directory provided in this folder
7. Restart and boot macOS Ventura Installer



https://drive.google.com/file/d/1yhoRlD8YdGtrvB6NlpsF3jYesZLbi0p5/view?usp=sharing ==> EFI Ventura 13 Beta 5 folder with Opencore 0.8.4 - All Working



AppleALC => boot-args => alcid=15 - ALC235 (Works Laptop Speaker + Microphone + HDMI)



Wi-Fi & Bluetooth => BCM94360NG m.2 (Replaced from Original) works Out-Off-The-Box.



LCD 1366x768 replaced by 1920x1080p LCD.



Battery Status Working.



Siri working.



Screen Mirroring working.



Hibernation working.



USB 3.0 working.



AirPlay 2 Working.

AirDrop Working.



What is working?

Everything!!!



What's not working?

Nothing!!!

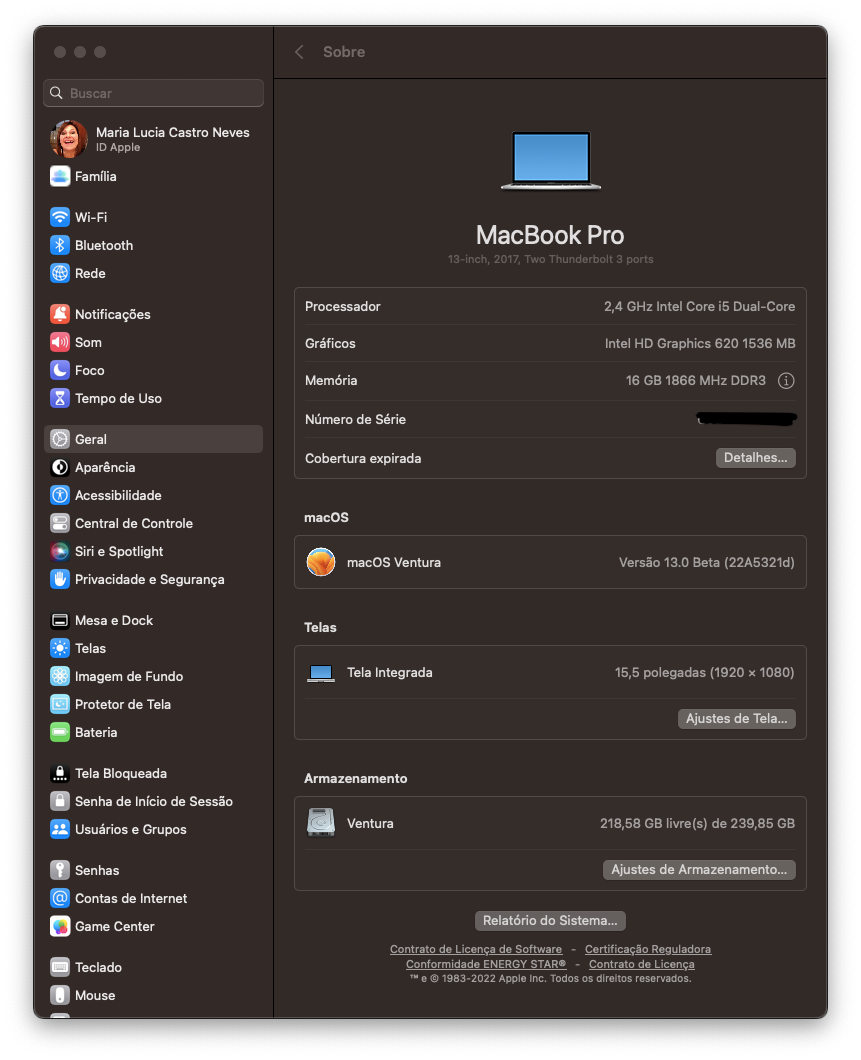

Now working with Ventura 13 beta 5. All working OOB, and a patch to video acceleration. Spoofed as 16590000 in OpenCore 0.8.4 (Intel HD Graphics 620) (Kabylake).



Successfully Hackintosh with dual-boot with Latest Windows 11 Home single language PT-BR 21H2. Used Rufus to build an USB with Windows 11 installation without TPM 2.0 Check.

OpenCore 0.8.4 + DSDT.



Geekbench 4 score (7148) https://browser.geekbench.com/v4/cpu/16447850



Acer Aspire ES1-572 - i5 6200U - 16GB Ram 1866Mhz - Intel HD Graphics 520 - Display: 15.6" 1920x1080p - 2x SSD Kingston 240GB each

MacOS Ventura Beta 5 - Everything works - BCM94360NG m.2 Wi-Fi + Bluetooth Plug&Play + SideCar. Dual Boot with

Windows 11 Home Single Language.



iPhone 7 128Gb - IOS 15.6

iPad mini 2 - iPadOS 12.5.5

Apple Watch Series SE - WatchOS 8.7



MacBook Pro 13 Retina (Early 2015) - macOS Monterey 12.5 - 512GB Nvme SSD (3gb/s Read & 1.4gb/s Write) - 8GB 1866Mhz Ram Dual Boot (BootCamp) with Windows 11 Home Single Language.



Desktop i5 10400F 2.9Ghz (4.3Ghz Turbo Boost) - 6 Core, Motherboard Gigabyte B560M-H, 16Gb Ram DDR4 3200mhz XMP Profile 1, AMD Radeon RX 570 4GB DDR5 3840x2160 60hz HDR, NVME PCIe 4.0 Samsung Pro 980 1Tb (7000mb/s Read and 5500mb/s Write), Network Gigabyte Realtek 8111, Sound ALC897 with alcid=66 working, USB 3.2 working, DRM working, Bluetooth 4.0 Dongle CSR 8510 working, everything is working. macOS Ventura Beta 5. Dual boot with Windows 11 Home Single Language.

Edited August 9, 2022 by fernando.c.neves
New version of Ventura 13 Beta 5

[taga]

please link EFI folder with OpenCore 0.7.6 - All Working. error ?



post new link. , thanks

[fernando.c.neves]

On 12/20/2021 at 9:06 AM, taga said:

please link EFI folder with OpenCore 0.7.6 - All Working. error ?



post new link. , thanks

The new link is on.

[fernando.c.neves]

[fernando.c.neves]

[fernando.c.neves]

[fernando.c.neves]

[fernando.c.neves]

Now working with Ventura 13 beta 4. All working OOB, and a patch to video acceleration. Spoofed as 16590000 in OpenCore 0.8.4 (Intel HD Graphics 620) (Kabylake).



The link for EFI (OpenCore 0.8.4 - Ventura Beta 4) With acceleration Q/E. Metal 3.



https://drive.google.com/file/d/1yhoRlD8YdGtrvB6NlpsF3jYesZLbi0p5/view?usp=sharing

Edited August 3, 2022 by fernando.c.neves

[fernando.c.neves]

[ativi]

Thanks for your guide and EFI, i have a different brand of laptop but your EFI and guide just works for me after compares of your Laptop hardware and Mine (Dell Latitude E7470)  just some few modification such as Audio and mouse kext got me going smoothly. i must say thank you for sharing.

Edited August 13, 2022 by ativi
complete sentences
