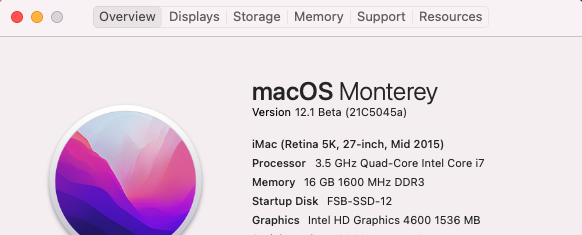

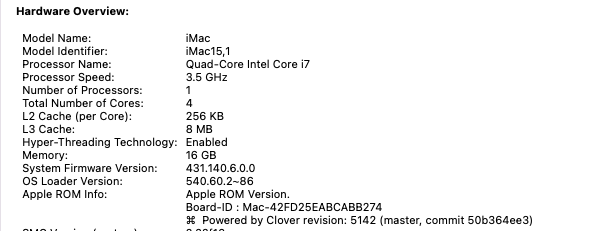

jsl2000 Posted December 13, 2021 Share Posted December 13, 2021 (edited) Hi, Slice: I need your help to fix my sleep/wake issue by Clover 5142 in Asus B85M-G hackintoshs. All of my other 10 hackintoshs had no such an issue by Clover 5142 or OpenCore 0.7.5. No such an issue in Windows 11 or 10 either. Signature: MB ASUS B85M-G; GPU Intel HD 4600; DRAM 1600MHz DDR3 16GB When I try to force it sleep it always automatically wake up about 5~10 sec after screen off. Change SMBIOS to iMac17,1 or iMac19,1 not working to fix it. Add SSDT-GPRW.aml, SSDT-UPRW.aml neither working. Patch ACPI 06/0D in vain too. config.plist Edited January 24, 2022 by jsl2000 Link to comment https://www.insanelymac.com/forum/topic/349943-solved-unable-to-sleep-in-b85m-g/ Share on other sites More sharing options...
Baio77 Posted December 13, 2021 Share Posted December 13, 2021 GPRW could work, if the ACPI Bios have this entry, the Origin folder extracted with Clover would be needed to analyze the acpi . Use F1 and F4 in GUI Clover for ACPI Debug. Remove SSDT-GPRW and SSDT-UPRW and rename in config test this file USBWakeFixup.kext.zipSSDT-USBW.aml Link to comment https://www.insanelymac.com/forum/topic/349943-solved-unable-to-sleep-in-b85m-g/#findComment-2773492 Share on other sites More sharing options...
Slice Posted December 13, 2021 Share Posted December 13, 2021 @jsl2000, I am on trip and can't help you now. I can propose to patch RTC some of possible ways and look carefully on DSDT methods _WAK and _PTS they are responsible for sleep and wake. Sometimes the reason for wake is USB (for example XHC device). Look carefully a way to correctly make USB working. Link to comment https://www.insanelymac.com/forum/topic/349943-solved-unable-to-sleep-in-b85m-g/#findComment-2773493 Share on other sites More sharing options...
jsl2000 Posted December 13, 2021 Author Share Posted December 13, 2021 58 minutes ago, Baio77 said: GPRW could work, if the ACPI Bios have this entry, the Origin folder extracted with Clover would be needed to analyze the acpi . Use F1 and F4 in GUI Clover for ACPI Debug. Remove SSDT-GPRW and SSDT-UPRW and rename in config test this file USBWakeFixup.kext.zipSSDT-USBW.aml Thanks for your prompt reply and help. I have added SSDT-USBW.aml & USBWakeFixup.kext in proper way and remove SSDT-GPRW.aml & SSDT-UPRW.aml, but got the same issue (unable go to sleep for more than 10 sec.) with Clover 5142 and OpenCore 0.7.5. Link to comment https://www.insanelymac.com/forum/topic/349943-solved-unable-to-sleep-in-b85m-g/#findComment-2773494 Share on other sites More sharing options...
jsl2000 Posted December 13, 2021 Author Share Posted December 13, 2021 43 minutes ago, Slice said: @jsl2000, I am on trip and can't help you now. I can propose to patch RTC some of possible ways and look carefully on DSDT methods _WAK and _PTS they are responsible for sleep and wake. Sometimes the reason for wake is USB (for example XHC device). Look carefully a way to correctly make USB working. Thanks for your prompt reply. Currently I did not apply DSDT.aml in this B85M-G hackintosh with both Clover 5142 and OpenCore 0.7.5. I'll follow your advice to solve it. Link to comment https://www.insanelymac.com/forum/topic/349943-solved-unable-to-sleep-in-b85m-g/#findComment-2773496 Share on other sites More sharing options...
Guest 5T33Z0 Posted December 13, 2021 Share Posted December 13, 2021 @jsl2000 I think this might fix it: https://github.com/5T33Z0/OC-Little-Translated/tree/main/04_Fixing_Sleep_and_Wake_Issues Link to comment https://www.insanelymac.com/forum/topic/349943-solved-unable-to-sleep-in-b85m-g/#findComment-2773510 Share on other sites More sharing options...
jsl2000 Posted December 14, 2021 Author Share Posted December 14, 2021 (edited) On 12/14/2021 at 1:17 AM, 5T33Z0 said: @jsl2000 I think this might fix it: https://github.com/5T33Z0/OC-Little-Translated/tree/main/04_Fixing_Sleep_and_Wake_Issues Thanks for your guidance and I'll follow this guide trying to fix this issue. [Solved] 1. Update to Clover 5143 it can sleep and wake-up normally now. 2.Update to OpenCore 0.7.8 it also was fixed too. [Edit on 2022-01-23] I must disconnect USB-Wifi adaptor (just disabled it is not enough) and only USB-Keyboard /USB Mouse connected, otherwise it always interfered sleep function in this B85M-G hackintosh. config-5143-B85M.plist config-OC-B85M.plist Edited January 24, 2022 by jsl2000 Link to comment https://www.insanelymac.com/forum/topic/349943-solved-unable-to-sleep-in-b85m-g/#findComment-2773535 Share on other sites More sharing options...
