GEMY Posted June 20, 2021 Share Posted June 20, 2021 Hi guysI want to install Big Sur on my device, but we know that Nvidia support has stopped on new versions of Mac after 10.3.6I'm hoping for help Can I use IGPU 630 and do a dual boot as I use Windows with 3080 RTX and use MacOS on intel UHD630And if it is possible and there is a way, what are the Bois settings on MB and what is the use of the optimum EFIPlease provide any help regarding this and thank you Link to comment Share on other sites More sharing options...
miliuco Posted June 20, 2021 Share Posted June 20, 2021 2 hours ago, galaxy888 said: Hi guys I want to install Big Sur on my device... Please complete your signature (user > profile). Do you already have an EFI that boots macOS on your PC? Just ask how to configure it so that Windows uses the Nvidia and macOS uses the Intel iGPU? Link to comment Share on other sites More sharing options...
Allan Posted June 20, 2021 Share Posted June 20, 2021 1 Link to comment Share on other sites More sharing options...
GEMY Posted June 20, 2021 Author Share Posted June 20, 2021 4 hours ago, miliuco said: Please complete your signature (user > profile). Well please help Unfortunately I don't have it. I'm looking for a file that is ready to work because I tried a lot of it that freezes on the Apple logo and restarts I hope to get something. I have an attached file. I think it needs to add an Intel driver in order for it to boot. Is it possible to look at it and help me? EFI iMac19.2.zip Link to comment Share on other sites More sharing options...
miliuco Posted June 20, 2021 Share Posted June 20, 2021 @GEMY Please complete you signature. See mine or Allan’s one. Allan has posted instructions. After that, we can try to help you. Link to comment Share on other sites More sharing options...
GEMY Posted June 21, 2021 Author Share Posted June 21, 2021 9 hours ago, miliuco said: @GEMY Please complete you signature. See mine or Allan’s one. Allan has posted instructions. After that, we can try to help you. complated done .. please help Link to comment Share on other sites More sharing options...

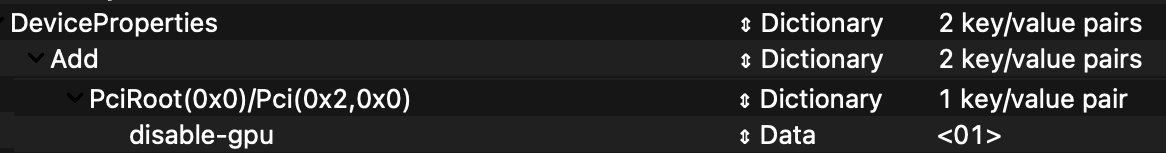

miliuco Posted June 21, 2021 Share Posted June 21, 2021 (edited) To have 2 graphics cards and use one with Windows and the other with macOS, you have to: connect 1 cable to the monitor from each GPU (2 x HDMI or one HDMI and one DisplayPort) to avoid changing the cable from one GPU to another when changing systems disable the GPU you don't want to use in Windows disable the GPU you don't want to use on macOS. I don't know how to disable a GPU in Windows but to do it in macOS there are sites with instructions. Disabling desktops unsupported GPUs (SSDT-GPU-DISABLE) Option 2: Blocking discrete GPUs from MacOS The easiest way to do this is with WhateverGreen's disable-gpu switch. You have to know the PCI path to the GPU that you want to disable. For example, if it's PciRoot(0x0)/Pci(0x2,0x0) DeviceProperties looks like this: Edited June 21, 2021 by miliuco 2 Link to comment Share on other sites More sharing options...
GEMY Posted June 21, 2021 Author Share Posted June 21, 2021 (edited) 58 minutes ago, miliuco said: To have 2 graphics cards and use one with Windows and the other with macOS, you have to: Thank you for the help and attention I did it in Windows But the second method on the Mac, I do not understand it or do it Can you help me in installing and configuring a EFI file that deals with my PC I hope for help. I know that I make many requests, but I trust you. Thank you, brother. Edited June 21, 2021 by GEMY Link to comment Share on other sites More sharing options...
miliuco Posted June 21, 2021 Share Posted June 21, 2021 @GEMY In ACPi folder there is a SSDT-RX 5700 XT-Version 1.0.aml file. Do you have a RX 5700 plugged into your machine? In ACPi folder there is SSDT-UIAC.aml and in Kexts folder there is USBMap.kext> is it an USB ports map specific for your mother board? In Kexts folder there is DAGPM.kext> it's not useful for Intel iGPUs. What device is PciRoot(0x0)/Pci(0x1b,0x0) located at DeviceProperties with a layout-id = 05000000? agdpmod=pikera in boot-args is for RX 5700 card. Question: do you want to use Intel iGPU with macOS as single card? Disabling GeForce RTX 3080? I'll do changes in config.plist after reading your answers. 1 Link to comment Share on other sites More sharing options...
GEMY Posted June 22, 2021 Author Share Posted June 22, 2021 (edited) Hello bro @miliuco Quote In ACPi folder there is a SSDT-RX 5700 XT-Version 1.0.aml file. Do you have a RX 5700 plugged into your machine? not have this card please remove Quote In ACPi folder there is SSDT-UIAC.aml and in Kexts folder there is USBMap.kext> is it an USB ports map specific for your mother board? Yes Quote In Kexts folder there is DAGPM.kext> it's not useful for Intel iGPUs. ok i delete Quote What device is PciRoot(0x0)/Pci(0x1b,0x0) located at DeviceProperties with a layout-id = 05000000? I don't understand how I can know it because I'm new to the world of Mac Quote agdpmod=pikera in boot-args is for RX 5700 card. please slove it Quote Question: do you want to use Intel iGPU with macOS as single card? Disabling GeForce RTX 3080? Yes, I want to use an intel VGA card in a macOS And if I need use a 3080 card on a Windows gaming system Please help, I know I'm tired of you because of my problems Edited June 22, 2021 by GEMY Link to comment Share on other sites More sharing options...
GEMY Posted June 23, 2021 Author Share Posted June 23, 2021 Any help bro @miliuco Link to comment Share on other sites More sharing options...
miliuco Posted June 23, 2021 Share Posted June 23, 2021 2 hours ago, GEMY said: Any help bro @miliuco Wait, I'm busy, as soon as I can I'll study your EFI. Link to comment Share on other sites More sharing options...
GEMY Posted June 23, 2021 Author Share Posted June 23, 2021 Ok thank you Link to comment Share on other sites More sharing options...
miliuco Posted June 23, 2021 Share Posted June 23, 2021 (edited) @GEMY This is your EFI with changes: SSDT-RX 5700 XT-Version 1.0.aml removed DAGPM.kext removed device PciRoot(0x0)/Pci(0x1b,0x0) located at DeviceProperties with layout-id=05000000 removed added properties for iGPU in device PciRoot(0x0)/Pci(0x2,0x0) added boot-args: igfxonln=1 -disablegfxfirmware -wegnoegpu, the first 2 for the iGPU to be the main card and the third to disable dGPU modified USBMap.kext, it was set for iMac19.1 but you are using iMac19.2. Try and comment. If this EFI doesn't work, I don't have anything else for you. Note: at first boot with a new EFI, always do ResetNVRAM. Note: it's to be used with iGPU as main card in BIOS and cable from iGPU to display. GEMY iMac19.2.zip Edited June 23, 2021 by miliuco Link to comment Share on other sites More sharing options...
GEMY Posted June 23, 2021 Author Share Posted June 23, 2021 1 hour ago, miliuco said: @GEMY This is your EFI with changes: SSDT-RX 5700 XT-Version 1.0.aml removed DAGPM.kext removed device PciRoot(0x0)/Pci(0x1b,0x0) located at DeviceProperties with layout-id=05000000 removed added properties for iGPU in device PciRoot(0x0)/Pci(0x2,0x0) added boot-args: igfxonln=1 -disablegfxfirmware -wegnoegpu, the first 2 for the iGPU to be the main card and the third to disable dGPU modified USBMap.kext, it was set for iMac19.1 but you are using iMac19.2. Try and comment. If this EFI doesn't work, I don't have anything else for you. Note: at first boot with a new EFI, always do ResetNVRAM. Note: it's to be used with iGPU as main card in BIOS and cable from iGPU to display. GEMY iMac19.2.zip 2.2 MB · 1 download the old file no new edit @miliuco Link to comment Share on other sites More sharing options...
miliuco Posted June 24, 2021 Share Posted June 24, 2021 9 hours ago, GEMY said: the old file no new edit @miliuco No, it’s a new pack with changes, don’t be confused. Link to comment Share on other sites More sharing options...
GEMY Posted June 24, 2021 Author Share Posted June 24, 2021 7 hours ago, miliuco said: No, it’s a new pack with changes, don’t be confused. hello not work when boot apple logo restart 1 Link to comment Share on other sites More sharing options...
