Professor Posted June 9, 2021 Share Posted June 9, 2021 Hey, I installed Monterey successfully on GA-Z87X-UD3H. I used OpenCore 0.7.0. The only thing important to mention is: You need to download and compile the latest versions of kexts with Hackintool. On my machine there are only two problems to solve: Sleep was working before in Big Sur. But I think Monterey changed something in Power Management. Sleep is not working anymore. I have a Magic Keyboard and Magic Mouse 2. Both used to work in Bios and in OpenCore Picker. Since Monterey those do not work anymore in BIOS, Windows and OpenCore Boot picker. Cheers, Professor© 4 Link to comment https://www.insanelymac.com/forum/topic/348083-installation-successful-on-ga-z87x-ud3h-with-opencore-070/ Share on other sites More sharing options...
naiclub Posted June 9, 2021 Share Posted June 9, 2021 My spec is the motherboard, can I have your latest EFI version? Thanks. Link to comment https://www.insanelymac.com/forum/topic/348083-installation-successful-on-ga-z87x-ud3h-with-opencore-070/#findComment-2760379 Share on other sites More sharing options...
Professor Posted June 9, 2021 Author Share Posted June 9, 2021 Here it is, my processor is a i7 Haswell, and you need to get the EFI/OC/Resources Folder from https://github.com/acidanthera/OcBinaryData, it was too big to upload here. EFI.zip 1 Link to comment https://www.insanelymac.com/forum/topic/348083-installation-successful-on-ga-z87x-ud3h-with-opencore-070/#findComment-2760385 Share on other sites More sharing options...
Professor Posted June 9, 2021 Author Share Posted June 9, 2021 The Sleep issue is resolved by adding -wegbeta to boot arg according to this post: 1 Link to comment https://www.insanelymac.com/forum/topic/348083-installation-successful-on-ga-z87x-ud3h-with-opencore-070/#findComment-2760386 Share on other sites More sharing options...
naiclub Posted June 9, 2021 Share Posted June 9, 2021 thank you very much I suggest you upload it here drive.google.com. Link to comment https://www.insanelymac.com/forum/topic/348083-installation-successful-on-ga-z87x-ud3h-with-opencore-070/#findComment-2760387 Share on other sites More sharing options...

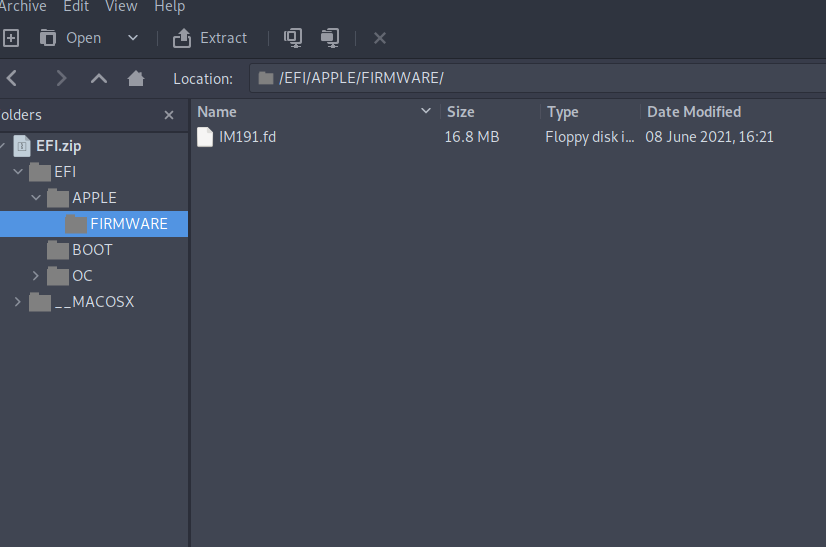

1Ale1 Posted June 20, 2021 Share Posted June 20, 2021 (edited) On 6/9/2021 at 5:24 PM, Professor said: it was too big to upload here. it's because you've included EFI/APPLE/EXTENSIONS/iMac191.fd which is apple's firmware update for their official macs which is irrelevant on generic PCs. Edited June 20, 2021 by 1Ale1 1 Link to comment https://www.insanelymac.com/forum/topic/348083-installation-successful-on-ga-z87x-ud3h-with-opencore-070/#findComment-2761335 Share on other sites More sharing options...
Professor Posted November 9, 2021 Author Share Posted November 9, 2021 Hey :-) I was asked to upload the latest EFI Opencore 0.7.5 that runs on my board. Here it is. The latest modification was the solution for the yellow drive icon on my NVMe startup drive in DeviceProperties. Now all my drives show correctly as internal. The solution was found here: EFI.zip Link to comment https://www.insanelymac.com/forum/topic/348083-installation-successful-on-ga-z87x-ud3h-with-opencore-070/#findComment-2771489 Share on other sites More sharing options...
