Apple Bluetooth Keyboard (MC184LL/A) unable to connect after sleep


vamose
 Share

4 posts in this topic

Recommended Posts

Apple Bluetooth Keyboard (MC184LL/A) is behaving strange.

On system start/ restart, the keyboard works fine. If I put the system to sleep, upon wake up the keyboard is not identified nor can I pair it. But if I put the computer to sleep again and upon wake the keyboard is fully operational.



I have tried the following:

Deleted /Library/Preference all the Bluetooth related .plist.
Deleted /.Library/Preference all the Bluetooth related .plist.
no success



Tried to reset the module, as well as factory reset, no success either.





In OpenCore 0.6.9, tried
USBInjectAll kext and xhciportlimit set to True
Discover ports using USBMap tool, plugging in a USB 3/USB 2 hub to map ports
Select SS and HS ports so total is under 15
Create Kext of new USB map
Remove USBInjectAll kext and replace with USBMap kext, update config.plist
Set xhciportlimit to False
Reboot

no success



Have also tried to change S2/ S3 state in BIOS for USB. no success



Logitech mouse connected to the USB via its own receiver works flawless throughout.



For port mapping followed: https://dortania.github.io/OpenCore-Post-Install/usb/intel-mapping/intel.html



Any other solution possible?

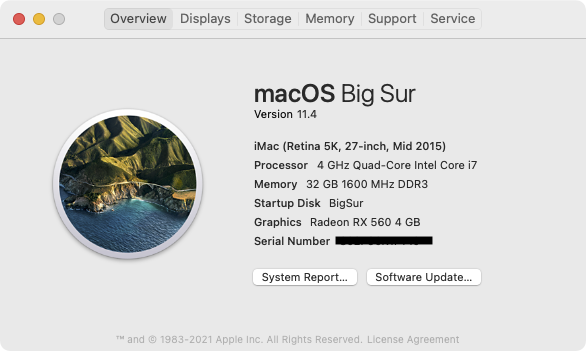

Hardware

CPU: Intel® Core™ i7-4790K Processor (Haswell), 32GB RAM

MOBO: Gigabyte B85M-D3H ver. F9

GPU: Radeon RX560

macOS BigSur Ver 11.4 (Build 20F71)

iMAC15,1

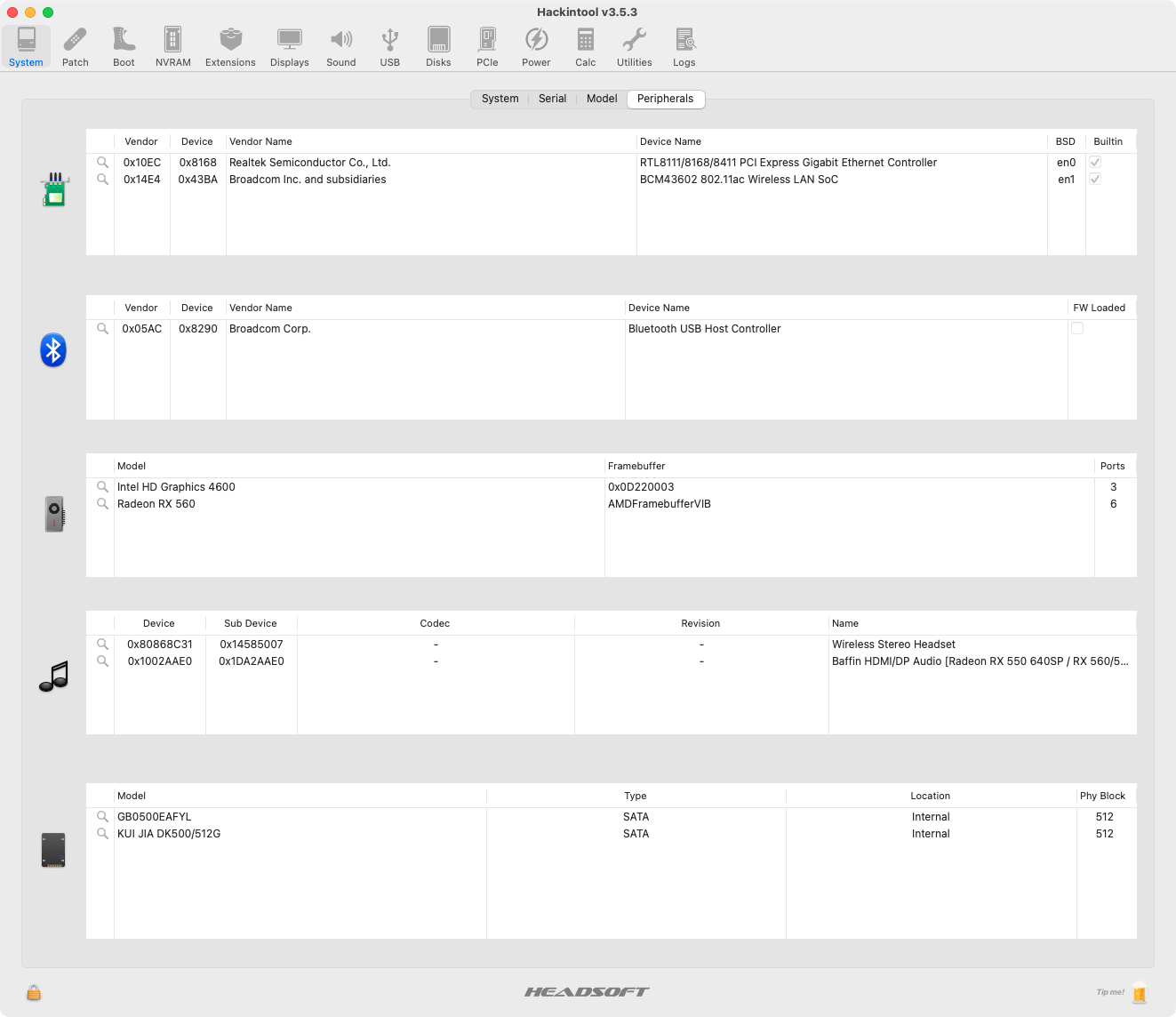

Screen Shot 2021-05-27 at 6.33.54 PM.png

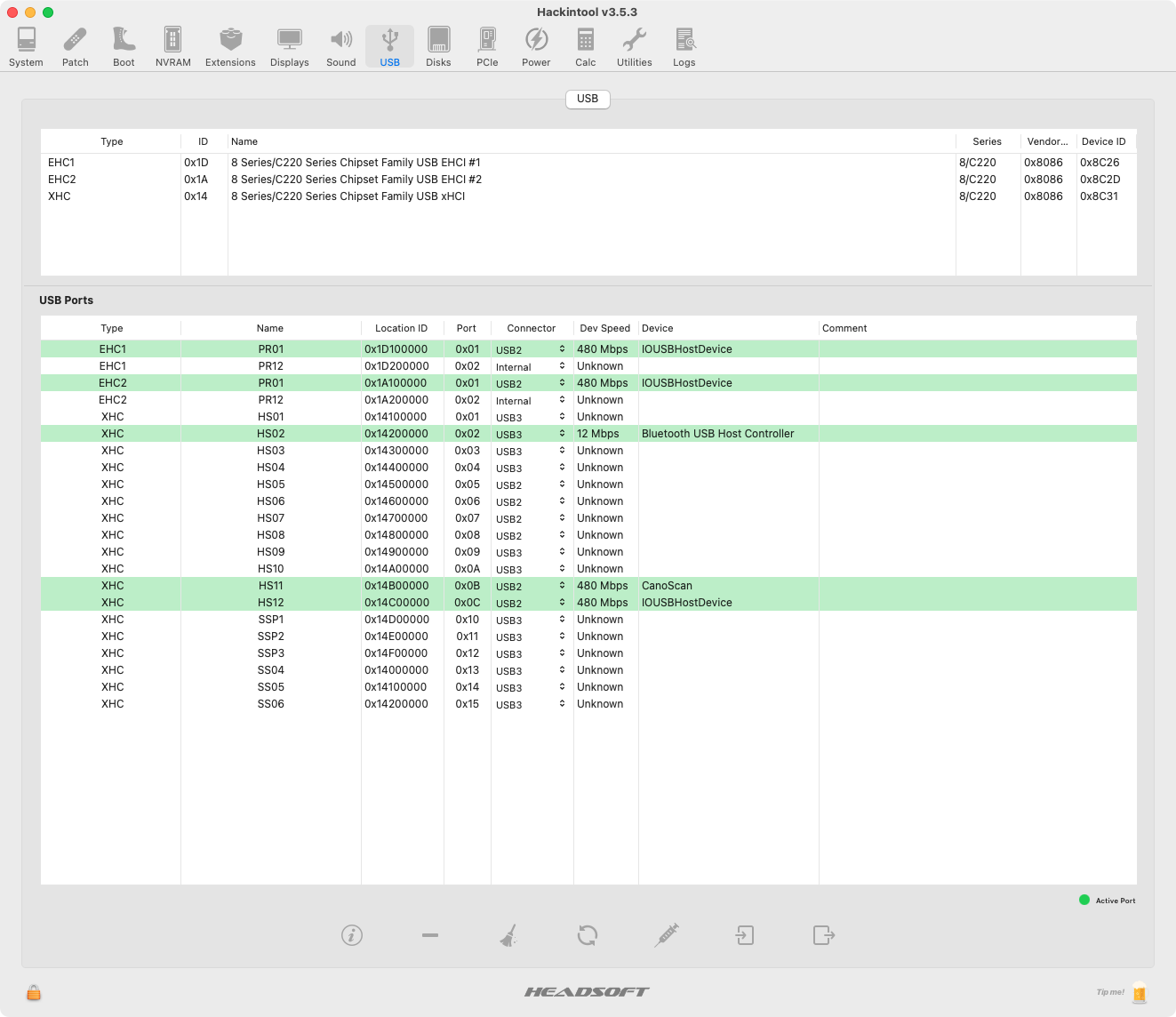

Screen Shot 2021-05-27 at 6.34.08 PM.png

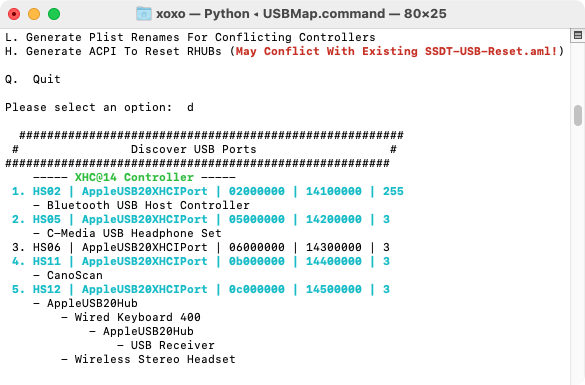

Screen Shot 2021-05-28 at 5.58.45 AM.png

0_6_9_OpenCore_iMac15_1_EFI.zip

Edited by vamose
Additional Info
Link to comment
Share on other sites

@vamose

Please write your hardware in your signature (user > profile) as per forum rules.

I don't know what to answer, I have an Apple bluetooth keyboard and it works fine when it comes out of sleep. From what I see, you have already tried many things and the problem has not been fixed. I hope someone who reads the post contributes something to help you.

Link to comment
Share on other sites
