sojab0on0005 Posted March 17, 2021 Share Posted March 17, 2021 Hi my verry snappy 15inch HP laptop with the following specs Intel I7 10th gen 1065G7 16GB DDR4 ram 1TB NVME SSD Nvidia MX250 and Intel Iris Plus gpus I want to run Mac os on this i know Intel wifi chip will mostlikly doesnt work I can Supply a DSDT.aml if needed Quote Link to comment Share on other sites More sharing options...
Slice Posted March 17, 2021 Share Posted March 17, 2021 I think you have a chance but this is not trivial task. This CPU, Intel WiFi and Iris Plus are compatible with macOS 11 using several tricks and files can be found on our forum. Quote Link to comment Share on other sites More sharing options...
sojab0on0005 Posted March 17, 2021 Author Share Posted March 17, 2021 (edited) I know but i cant get the usb to boot I have attached a DSDT created with a windows cmd script SSDTTime Creation of usb with goes normally but clover has issues booting also has opencore I already have the beta intelwifi drivers Big sur i will have to check on creating a usb with big sur DSDT.aml Edited March 17, 2021 by sojab0on0005 Used tool names that are not suported Quote Link to comment Share on other sites More sharing options...

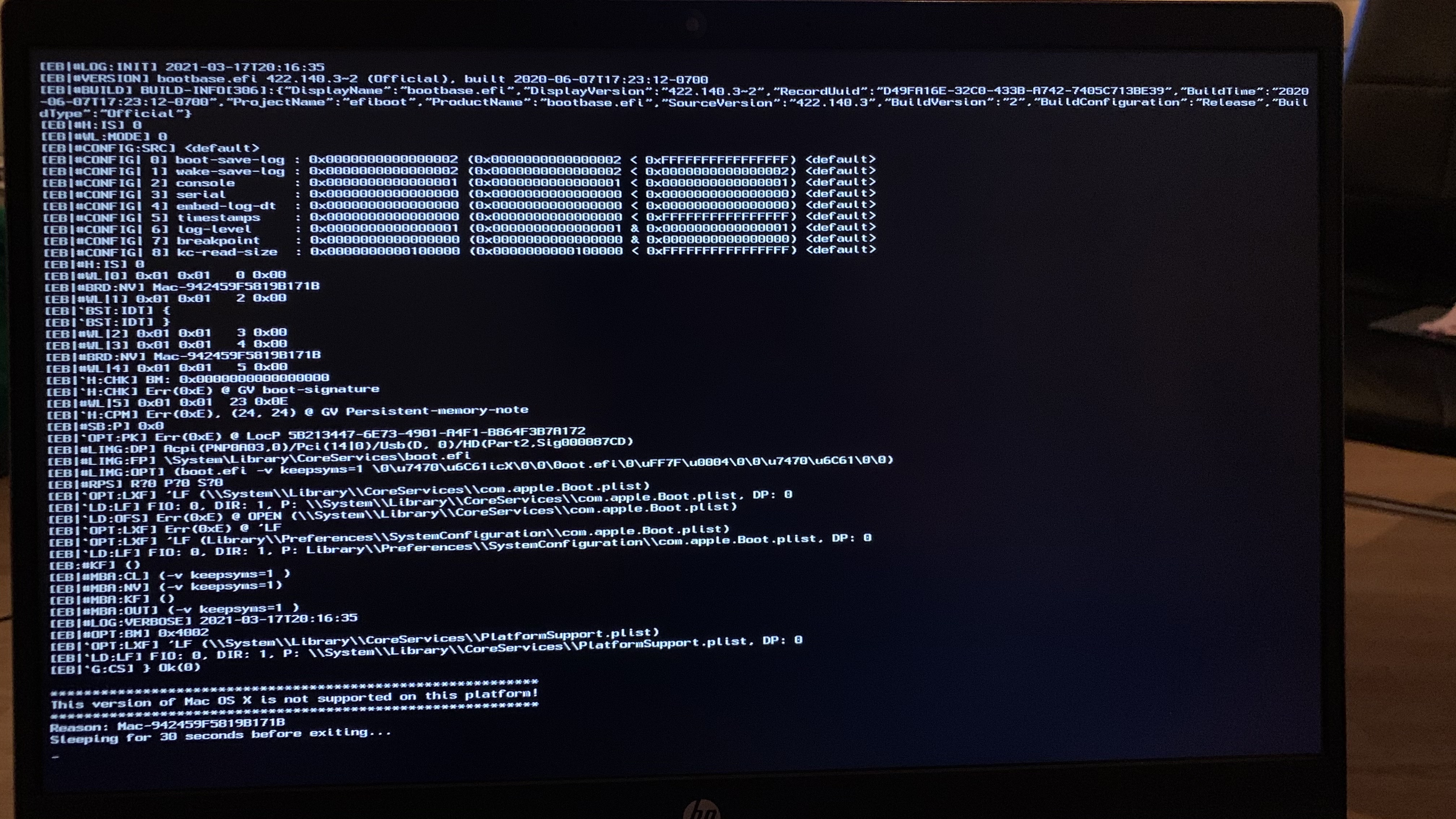

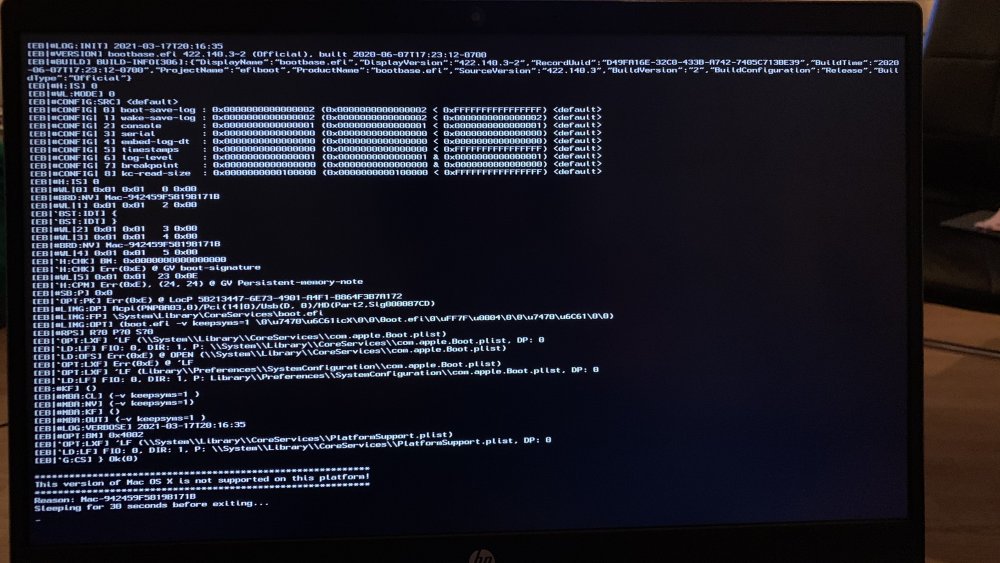

sojab0on0005 Posted March 17, 2021 Author Share Posted March 17, 2021 Any advice to create a big sur usb drive with working bootloader I have the BDU tool but when i boot clover that it downloads and put on it i get a bunch error texts on boot See attached screenshot Opencore does error out i a simmular way. Quote Link to comment Share on other sites More sharing options...
Slice Posted March 18, 2021 Share Posted March 18, 2021 This error means that the version of macOS you try to install can't be installed on the computer with Board-ID=Mac-942... See your config.plist -> SMBIOS section. Quote Link to comment Share on other sites More sharing options...

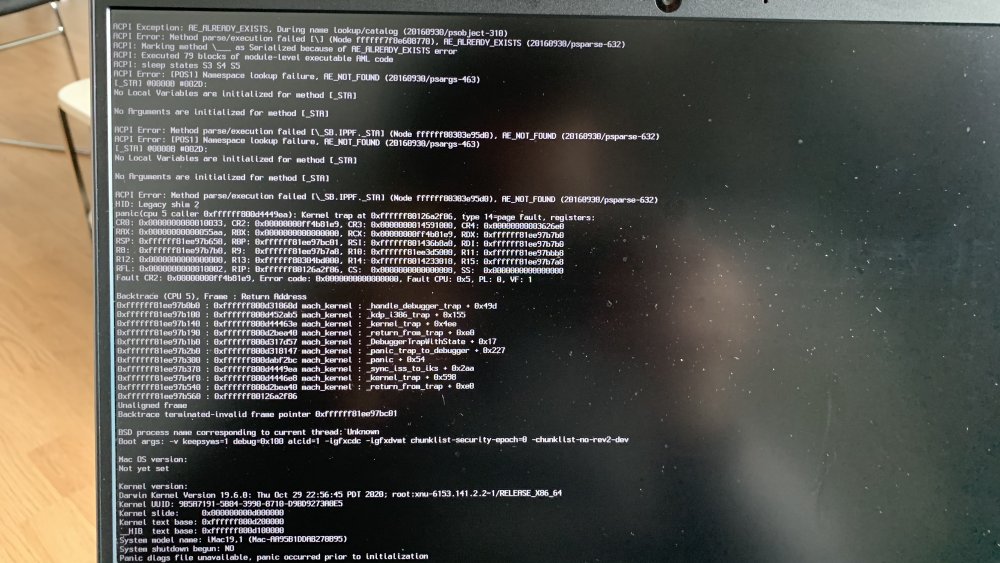

sojab0on0005 Posted March 18, 2021 Author Share Posted March 18, 2021 (edited) After some fideling with opencore and the icelake ssdts i gotnit to a kernel panic see attached smbios set to MacBookAir9,1 as advised in opencore guide opencore-2021-03-18-130955.txt opencore-2021-03-18-131749.txt opencore-2021-03-18-131823.txt opencore-2021-03-18-120508.txt opencore-2021-03-18-121618.txt opencore-2021-03-18-122121.txt Edited March 18, 2021 by sojab0on0005 Smbios setting not given added multiple open core logs Quote Link to comment Share on other sites More sharing options...

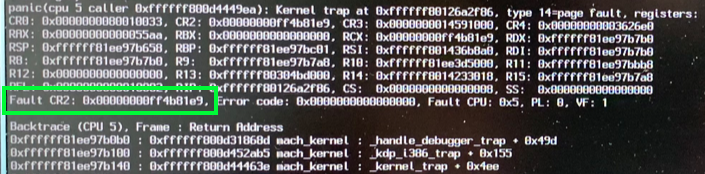

shl628 Posted March 18, 2021 Share Posted March 18, 2021 (edited) You may need to set the DevirtualiseMmio option to True and set the MmioWhitelist for a specific MMIO. https://dortania.github.io/OpenCore-Install-Guide/troubleshooting/extended/kernel-issues.html#kernel-panic-on-invalid-frame-pointer See also my reply in the topic below, which has a similar problem. Or, convert 0xFF4B81E9 address into decimal and add it to the MmioWhitelist in the Booter section of Config.plist. Of course, this also requires the DevirtualiseMmio option to be set to True. Edited March 18, 2021 by shl628 Quote Link to comment Share on other sites More sharing options...
sojab0on0005 Posted March 18, 2021 Author Share Posted March 18, 2021 Will tey that when i can do it, i have rebuild the usb drive woth same smbios settings and opencore now it pannics like i have de dsdt files for icelake and for set the values for hp in the config with propertree. Quote Link to comment Share on other sites More sharing options...
Slice Posted March 18, 2021 Share Posted March 18, 2021 Vendor HP usually requires quirk Lapic to be set. Quote Link to comment Share on other sites More sharing options...

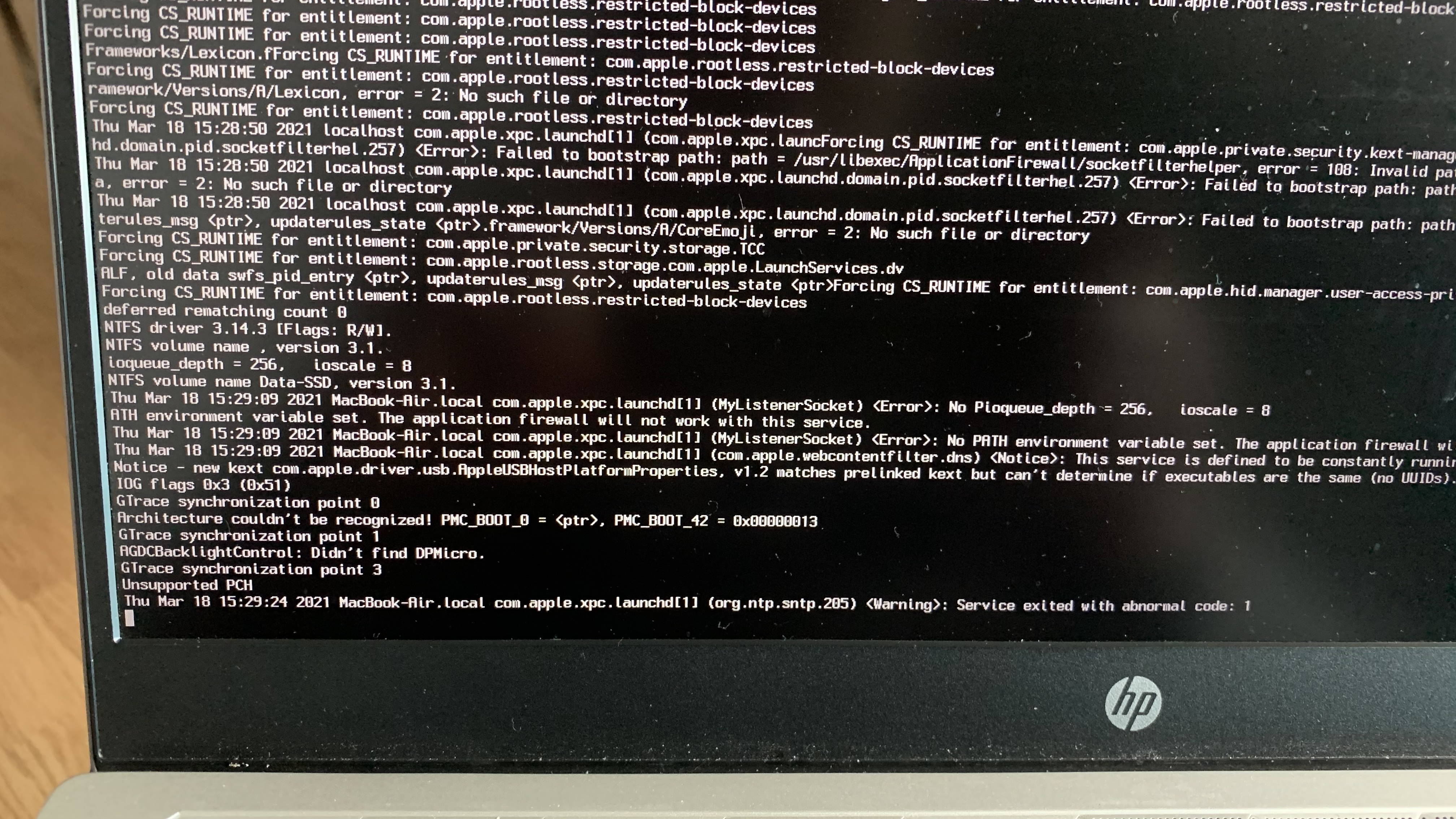

sojab0on0005 Posted March 18, 2021 Author Share Posted March 18, 2021 (edited) i hd that option on as well <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>LapicKernelPanic</key> <true/> </dict> </plist> copied directly from my config.plist file After some fiddeling with the config.plist in opencore configurator to set the CR2 fault adress it now goes allot furhter in booting but it blocks at unsuported PCH service exited with abnormal code 1 Added boot hang picture Edited March 18, 2021 by sojab0on0005 did the CR2 adress change hnags at unsuported PCH Quote Link to comment Share on other sites More sharing options...
sojab0on0005 Posted March 18, 2021 Author Share Posted March 18, 2021 Got it booting but the installer doesnt ask a language it straight gies rusian/cyrilic language is there a way to get it in dutch or english in the installer Quote Link to comment Share on other sites More sharing options...

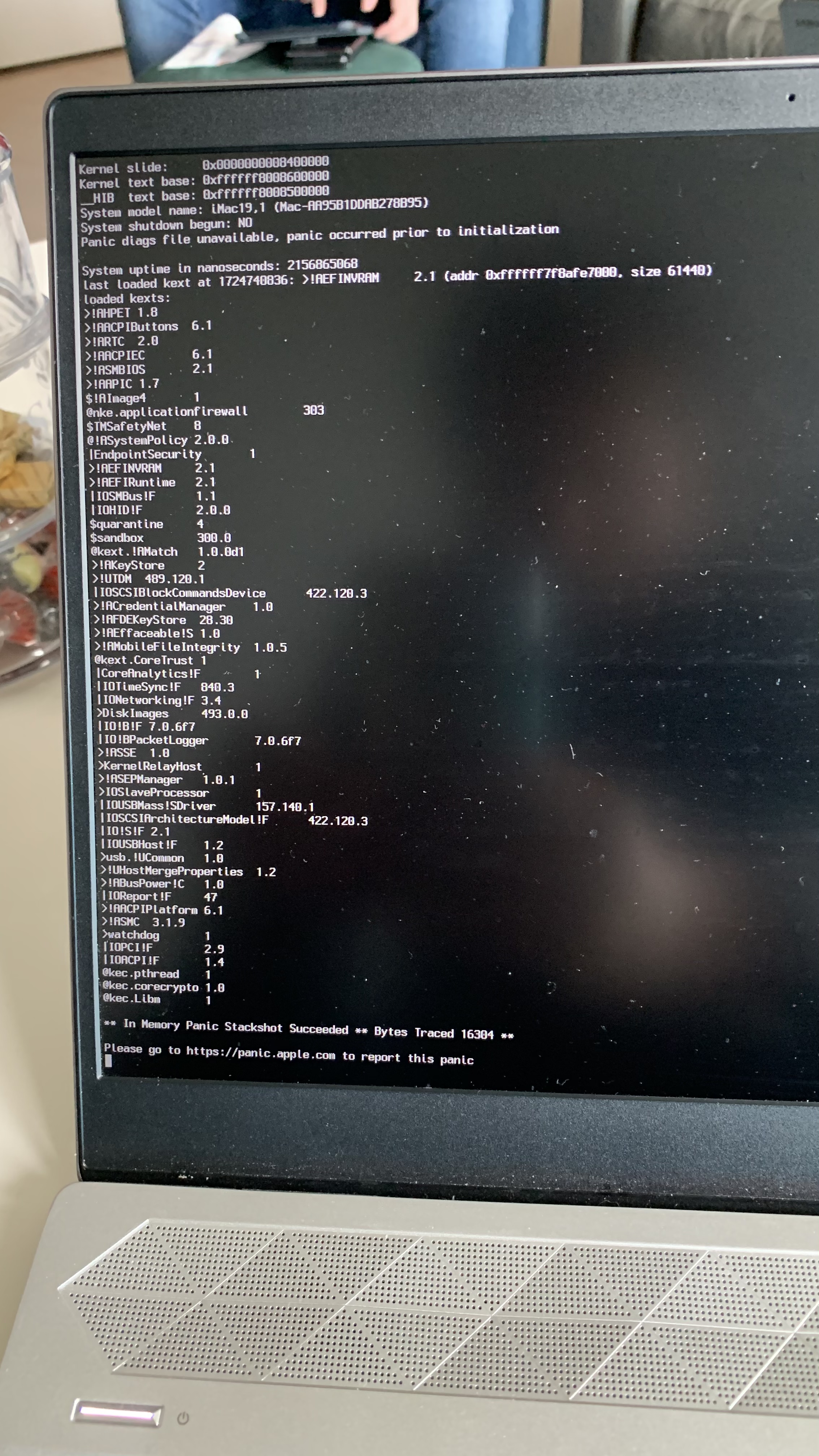

sojab0on0005 Posted March 18, 2021 Author Share Posted March 18, 2021 (edited) Very strange After installing from usb it boot to the installer part where it estiamtes timed goes trough with that part but when I try to boot the next run from the m.2 ssd it panics and creates a kernel dump some where but where and how can I get that dump to see what is goon on Cant seen to find the reason, except for the aml files it spits contant errors with reading faults during boot Edited March 18, 2021 by sojab0on0005 Quote Link to comment Share on other sites More sharing options...
sojab0on0005 Posted March 19, 2021 Author Share Posted March 19, 2021 (edited) I got it as far as booting to a apple logo but on every keystroke my screen flashes and the bar won't fill up any advise on where to look in the config have attached current config plist without the Platform uuid and serials config.plist Edited March 19, 2021 by sojab0on0005 attached most current Config.plist Quote Link to comment Share on other sites More sharing options...
HenryV Posted March 21, 2021 Share Posted March 21, 2021 EFI.zip Here is an Open Core EFI that will boot Intel Skylake and 520 graphics laptop. You can modify for your hardware. Itlwm.kext 1.2.0 works for intel 3165 wifi with Heliport.app in both Catalina and Big Sur. You can add a hardware profile of choice to the config.plist. Change the NVRAM csr-active-config to 67080000 for Big Sur updates. Lapic is enabled in config.plist. Look here for working configs: https://github.com/topics/hackintosh?o=desc&s=updated more: https://github.com/1hbb/OpenIntelWireless-Factory/releases Quote Link to comment Share on other sites More sharing options...
sojab0on0005 Posted March 23, 2021 Author Share Posted March 23, 2021 I have it working to the point that audio is not coming up, as well as the SMbios settings are not pushed. I have heliport as tool to fix the wifi setup I ran this to check things like the guiide says for audio but I can't seen to find the ALC id kextstat | grep -E "AppleHDA|AppleALC|Lilu" 42 8 0xffffff7f831a0000 0x2b000 0x2b000 as.vit9696.Lilu (1.4.7) 141DD55D-6559-32B6-8DBF-7DA82899F24C <8 6 5 3 2 1> 48 0 0xffffff7f84099000 0x16e000 0x16e000 as.vit9696.AppleALC (1.5.8) 1A32BE2A-36E2-36F6-A16F-B8CDFE904F26 <42 13 8 6 5 3 2 1> 133 1 0xffffff7f81ec8000 0x1d000 0x1d000 com.apple.driver.AppleHDAController (283.15) 18E9D42A-B1F4-3332-9D50-EAF28AF632E6 <132 113 89 13 8 7 6 5 3 1> 145 0 0xffffff7f852fc000 0xe6000 0xe6000 com.apple.driver.AppleHDA (283.15) 0C7317DB-ED4E-395D-9517-6AEA788732BE <144 133 132 118 113 89 7 6 5 3 1> I have also ran /gfxutil -f HDEF zsh: no such file or directory: ./gfxutil michel@Mac Downloads % cd gfxutil-1 michel@Mac gfxutil-1 % ./gfxutil -f HDEF 00:1f.3 8086:34c8 /PCI0@0/HDEF@1F,3 = PciRoot(0x0)/Pci(0x1F,0x3) Based in the device ids its an Ice Lake-LP Smart Sound Technology Audio Controller but if I check windows under audio it states its Realtek HD audio If someone can point me to a ALC id or witch audio drivers in need that wil help me fix my audio I will post my Config plist maybe its mis configured bij OpenCore configurator taken out the generated serials and uuids config.plist Quote Link to comment Share on other sites More sharing options...
HenryV Posted March 24, 2021 Share Posted March 24, 2021 Here is some excerpted audio config information from the web that may help others: Use AppleALC/AppleHDA , avoid VoodooHDA. Use AppleALC with Open Core layoutid as opposed to boot argument ALCID. Configuring your Audio Device Audio devices are much simpler to configure than they used to be thanks to the development of AppleALC. AppleALC is a kernel extension that provides native Apple audio capabilites. To use it, the first thing you will need to know is what audio codec your laptop uses. If you don't already know, or if you're unsure, you can use a Linux live USB to do a codec dump. A codec dump provides a treasure trove of information about your device and the paths it uses to connect things like internal amplifiers to speakers or headphones. Creating a Codec Dump If you do need a codec dump for whatever reason, boot from your Linux live USB and find the nearest terminal or command line. The following command will display the details of your codec on screen with a pause so you can read it. cat /proc/asound/card0/codec#0 | less The first line should provide your codec. It will look something like this: Codec: Realtek ALC294 If you would like to save the codec to a file so you can reference it again when you're back in macOS, cat it to a file instead and save the file to the boot partition of the USB drive, on another USB drive, or somewhere on your network. cat /proc/asound/card0/codec#0 > /mnt/MyOtherUSBDrive/codec.txt Now that you're familiar with your codec, let's install AppleALC. AppleALC Prerequisites If you're dual booting with Windows or Linux, you should enable the Devices/Audio/ResetHDA property which will reset the audio device on startup to flush any configuration . Installing AppleALC Installing AppleALC is simple. You just need to download the AppleALC kext from the project's release page and add the kext to OC/K. You can find it here. You may have it already if you installed it when making the USB. If you do add it, make sure to edit your config.plist Download AppleALC @ Github Your new AppleALC kext path should look like it does in the tree below. EFI └── OC └── Kexts └── AppleALC.kext Before rebooting, let's configure it! Configuring AppleALC This is where things can get a little tricky, as just about every implementation of the same codec is different. Knowing your codec makes things somewhat easier as you can look it up in the AppleALC WIKI and find all of the layouts that could work with it. AppleALC Supported Codecs If you don't find your codec listed, you might find that it's just a rebranded version of another so it wouldn't hurt to search for "AppleALC {your codec}". Once you have a list of layouts, but you don't know which is the right one you can test them one by one. Just configure the layout id in config.plist with your favorite plist editor and reboot. If audio works, congratulations! Otherwise, repeat until you've found it. Open up your plist editor and the config.plist, then browse to DeviceProperties/Add and set the alc-layout-id parameter to your layout id. It should look something like this. None of the Layout IDs Worked! Well, you still have some options although none of them will be fun. The first option would be to take that codec dump that we made earlier and build a new layout for your device, or you could try using VoodooHDA instead. Let's talk about both options. Creating a New Layout for AppleALC This nets the best benefit for you and for everyone else because you'll end up with native support and others with the same device can use it too. It's the most difficult option though. Here's some documentation to help get you started. HDA Fix - HaC Mini Hackintosh - by osy (Great guide on how to make your own HDA patches) AppleALC: Adding Codec Support Using VoodooHDA VoodooHDA is an alternative to AppleALC, and it works pretty well but rather than adding native support, VoodooHDA provides its own audio solution. Installing it is pretty straightforward. Simply download the kext, preference pane, and settings loader and add them to your system. The kext goes in C/k/O, if you have AppleALC installed you'll want to remove it. Open (execute) the preferences pane and it should prompt you to install, if it doesn't drag it onto System Preferences and it'll install that way. The settings loader should be installed to Applications, and you should run it once to enable it. They can be downloaded here. Download VoodooHDA @ SourceForge As with AppleALC, it should follow the same pattern in the tree. EFI └── OC └── Kexts └── VoodooHDA.kext Quote Link to comment Share on other sites More sharing options...
sojab0on0005 Posted March 25, 2021 Author Share Posted March 25, 2021 (edited) tried this it detects the speakers but no audio output coming from them ALC295 Layout 3 trying layout 24 as shown in the ALC295 config on GitHub still no audio from speakers at the point of giving up Edited March 25, 2021 by sojab0on0005 layout 24 does work either Quote Link to comment Share on other sites More sharing options...
sojab0on0005 Posted March 25, 2021 Author Share Posted March 25, 2021 Audio is working over internal speakers and external port now , but battery percentage and time remaining isn not Have ACPI battery management and SMC version tested ACPI doesn't detect the battery SMC gives errors about bit length or something Quote Link to comment Share on other sites More sharing options...
sojab0on0005 Posted March 25, 2021 Author Share Posted March 25, 2021 After trying to get the smbios data corrected lilu suddenly broke everytime i boot it states lilu dev: @ failed to obtain model information Consrant and wont boot further. do i really need to recreate a usb with a clean opencore or clover and the right kexts to inject and put up the right boot flags. Quote Link to comment Share on other sites More sharing options...

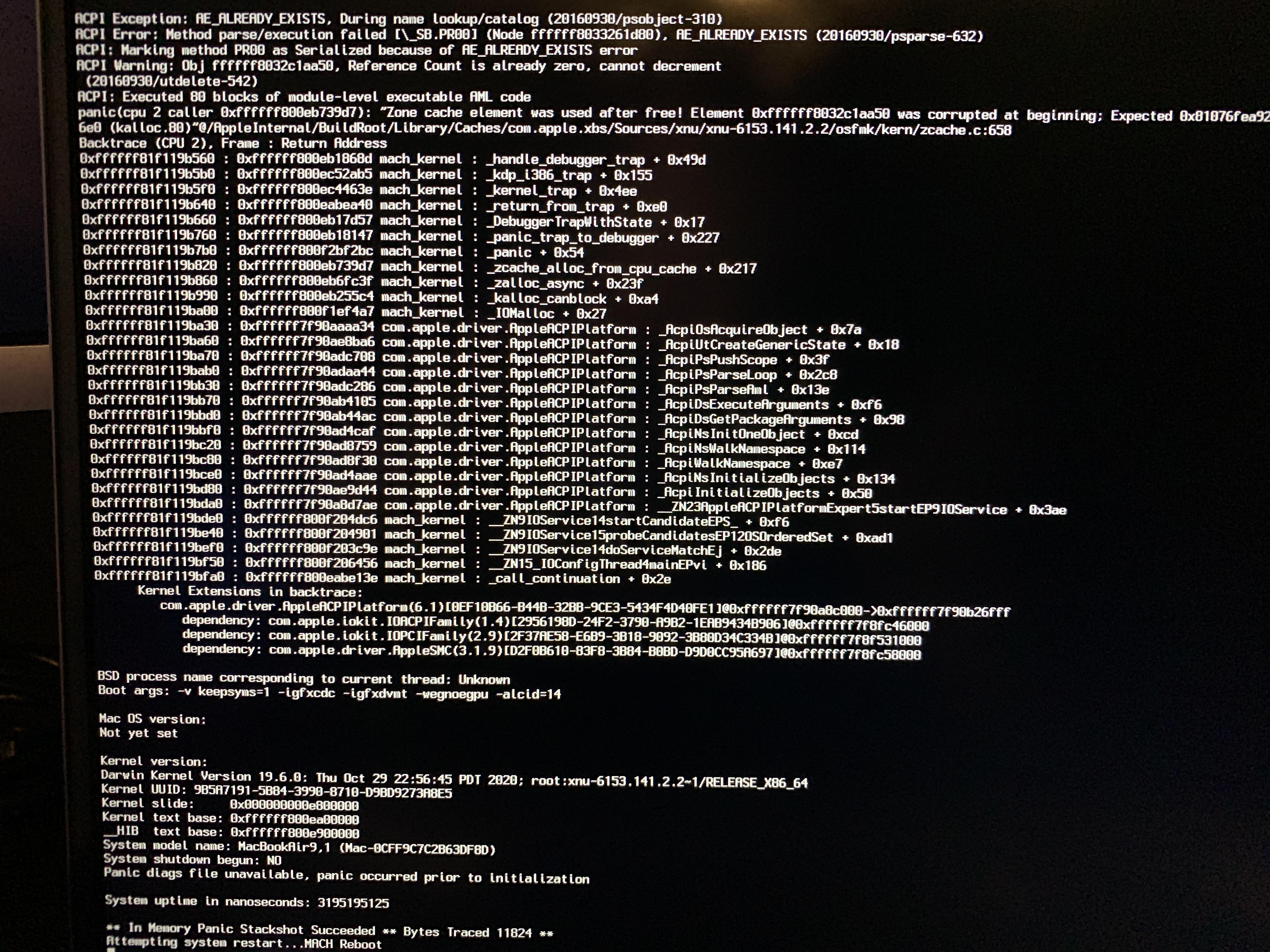

sojab0on0005 Posted March 25, 2021 Author Share Posted March 25, 2021 (edited) After making a clean opencore usb with the right kexts and dadt files it does this now Edited March 25, 2021 by sojab0on0005 Quote Link to comment Share on other sites More sharing options...
