HackBeast Z490 VISION G - Full DSDT patches - Clover or OpenCore - Guide and Discussion

MaLd0n

By MaLd0n,
in Installation Guides

 Share
15 posts in this topic

Recommended Posts

MaLd0n
MaLd0n
Posted
Posted

A very custom DSDT for best experience under macOS. Removed all unused devices, injected all Apple devices, essentials, cosmetics, real improvements.



-OpenCore Vanilla TUTORIAL-





-USB Port Mapping TUTORIAL-





-Bios/UEFI Settings-

Serial Port = Disable

CFG Lock = Disable



-Hardware-

Mobo - Ga Z490 Vision G



Processor - i9 10th Intel



GPU - RX 580, 590, VEGA 56, VEGA64, 5600XT, 5700XT or RADEON VII



Cooler - CoolerMaster Masterliquid ML360R RGB



NVME - Corsair MP600




-EFI folders-

-EFI OpenCore Folder

https://tinyurl.com/ybr968w3

-EFI Clover Folder

https://tinyurl.com/ybr968w3



Paste EFI folder into EFI partition, reboot and extract one SendMe. Post this dump here for full ACPI solution!

Download RunMe.app dumper



-DSDT Patches-

Quote






-FIX ACPI ERRORS
-REMOVE UNUSED SCOPES / DEVICES
-HIGH PRECISION EVENT TIMER
-SATA
-DMAC
-REMOVE PROBLEMATIC AND UNUSED DEVICES
-FIX K.P in REBOOT
-SLPB
-DARWIN / WINDOWS 2015
-XHCI
-PLUGIN TYPE
-HDEF
-REAL TIME CLOCK
-ARTC
-IRQs
-SBUS
-BUS1
-MCHC
-ALS0
-SHUTDOWN
-LAN
-FWHD
-USBX
-PMCR
-XSPI
-CNVW
-IMEI
-EC
-PNLF
-ARPT
-GFX0
-NVME
-DTGP
-HDMI / HDAU



-Screenshots-


























-Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!



Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others!


We're all here to have fun and learn from each other!

  • Like 10
  • Thanks 1
Link to comment
Share on other sites
  • 2 months later...
Alexlex
Alexlex
Posted
Posted

Thank you so much for this. Could you help me with ACPI solution?



I can't seem to get sleep working.



I am running Big Sur with USB mapped and SMBIOS. iMac20,2 on the following specs:



Z490 Vision G

Intel i9-10850K Unlocked

Sapphire Radeon RX 580 8GB Pulse

Samsung 960 EVO NVMe M.2 SSD 250GB

Broadcom BCM943602CS 802.11AC WiFi + Bluetooth 4.0 PC Desktop WLAN Card PCI E 1X
Crucial Ballistix DDR4-3200 C16 DC - Black - 64GB



Best Alex

Send me Aleksanders-Mac-Pro.zip

Link to comment
Share on other sites
Alexlex
Alexlex
Posted
Posted

Thanks a lot. Everything is running smoothly except sleep. Auto wake after fans shut down. Any ideas?



Followed SchmockLords guide for both sleep and BIOS settings.  https://github.com/SchmockLord/Hackintosh-Intel-i9-10900k-Gigabyte-Z490-Vision-D

Settings are for Vision D, but they seem to apply to Z490 Vision G as well.



Forgot to say that I am also running two Sata disks in OS Raid 0 on this setup.



Attaching zipped EFI, and export from IORegistryExplorer if you have the time to take a look. Changed computer name to IMac btw.



Best Alex

EFI.zip Aleksander’s Imac.ioreg

Link to comment
Share on other sites
jd69
jd69
Posted
Posted (edited)

@MaLdOn:



i like the dsdt options that have and also I want to thank you very much for the time you toke to make it,



but I want to ask you if you can to add to the dsdt ( Pcie x16 so that my card can be showing correctly in my hackintosh I’m trying now for days to get it to show in pci cards in the hardware info but no luck

i have the same MB Z490 vision G



can you help please



thanks in advance

Edited by jd69
Link to comment
Share on other sites
Alexlex
Alexlex
Posted
Posted
19 hours ago, Alexlex said:

Thanks a lot. Everything is running smoothly except sleep. Auto wake after fans shut down. Any ideas?



Followed SchmockLords guide for both sleep and BIOS settings.  https://github.com/SchmockLord/Hackintosh-Intel-i9-10900k-Gigabyte-Z490-Vision-D

Settings are for Vision D, but they seem to apply to Z490 Vision G as well.



Forgot to say that I am also running two Sata disks in OS Raid 0 on this setup.



Attaching zipped EFI, and export from IORegistryExplorer if you have the time to take a look. Changed computer name to IMac btw.



Best Alex

EFI.zip 3.88 MB · 1 download Aleksander’s Imac.ioreg 6.05 MB · 0 downloads

Apparently it's is my Broadcom BCM943602CS Bluetooth Internal USB connection that is waking up sleep. I tried without it connected and sleep works fine, but naturally I have no Bluetooth without it connected. I have both Bluetooth usb and enclosure USB 2 hub mapped to HS02, marked as internal. I tried with just the Bluetooth connector connected but still no sleep, also tried  darkwake=10 as bootflag, but still no sleep. Any tips at fixing Bluetooth usb instant sleep wake would be really appreciated. Thanks a lot in advance.

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
On 4/11/2021 at 2:52 PM, jd69 said:

@MaLdOn

Post one Full Dump with Ioreg.
https://www.olarila.com/topic/10301-olarila-runme-dumper/
https://olarila.com/files/Utils/RunMe.app.zip
https://olarila.com/files/Utils/IORegistryExplorer.app.zip

13 hours ago, Alexlex said:

Apparently it's is my Broadcom BCM943602CS Bluetooth Internal USB connection that is waking up sleep. I tried without it connected and sleep works fine, but naturally I have no Bluetooth without it connected. I have both Bluetooth usb and enclosure USB 2 hub mapped to HS02, marked as internal. I tried with just the Bluetooth connector connected but still no sleep, also tried  darkwake=10 as bootflag, but still no sleep. Any tips at fixing Bluetooth usb instant sleep wake would be really appreciated. Thanks a lot in advance.

remap ur usb. use ssdt uiac instead usbports.kext

https://www.olarila.com/topic/9390-video-guide-usb-port-mapping-with-hackintool/



Link to comment
Share on other sites
Alexlex
Alexlex
Posted
Posted
15 hours ago, MaLd0n said:



remap ur usb. use ssdt uiac instead usbports.kext

https://www.olarila.com/topic/9390-video-guide-usb-port-mapping-with-hackintool/

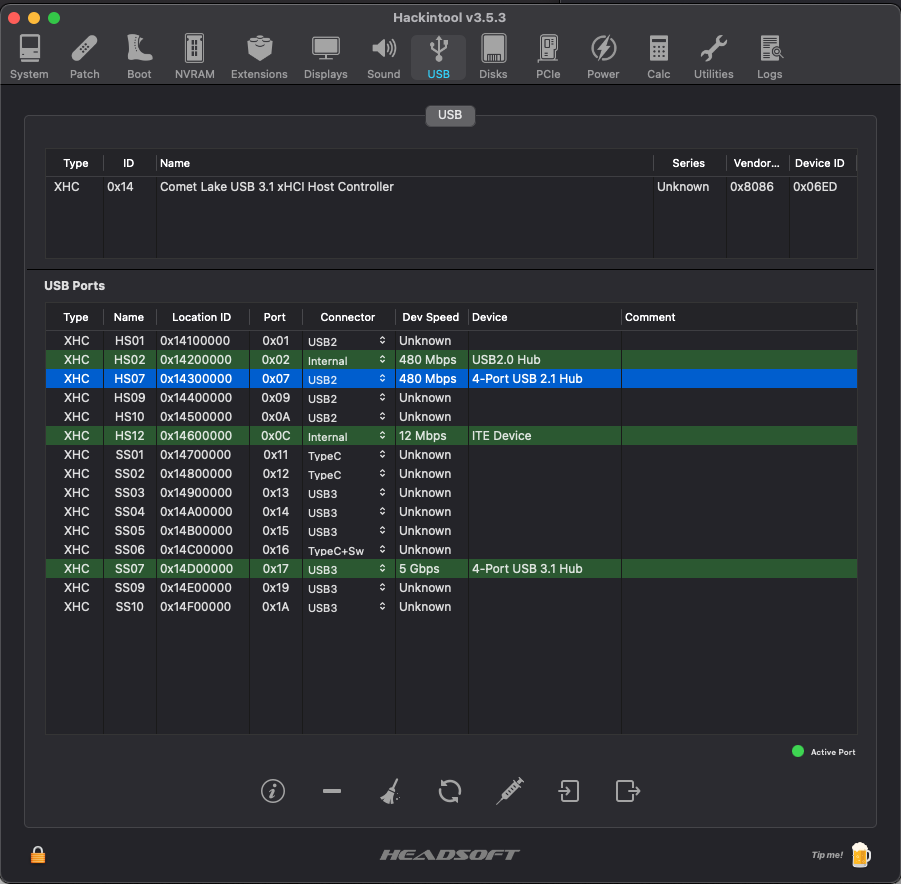

Thank you, but still instant wake on sleep. I tried different combinations using only ssd uiac and usbinjectall.kext or USBports.kext with and without the internal ITE Device (HS12) in the mapping,1876727471_ScreenShot2021-04-13at18_28_15.thumb.png.d2a4f7287a6acb2b3b2962c540d7095c.png



But it must be something with this Wifi/blutooth combo card (HS02) that's messing things up. Maybe I should have some Broadcom Fixup kext?

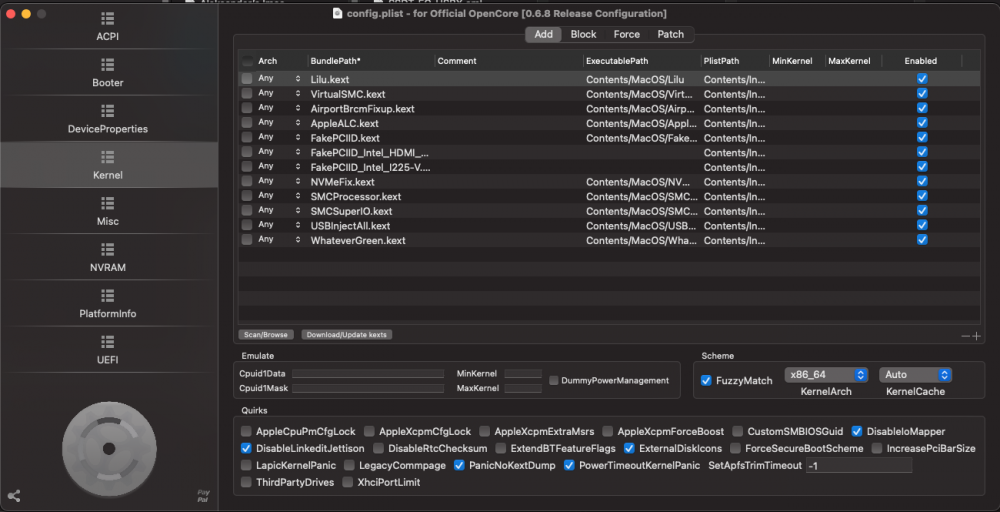

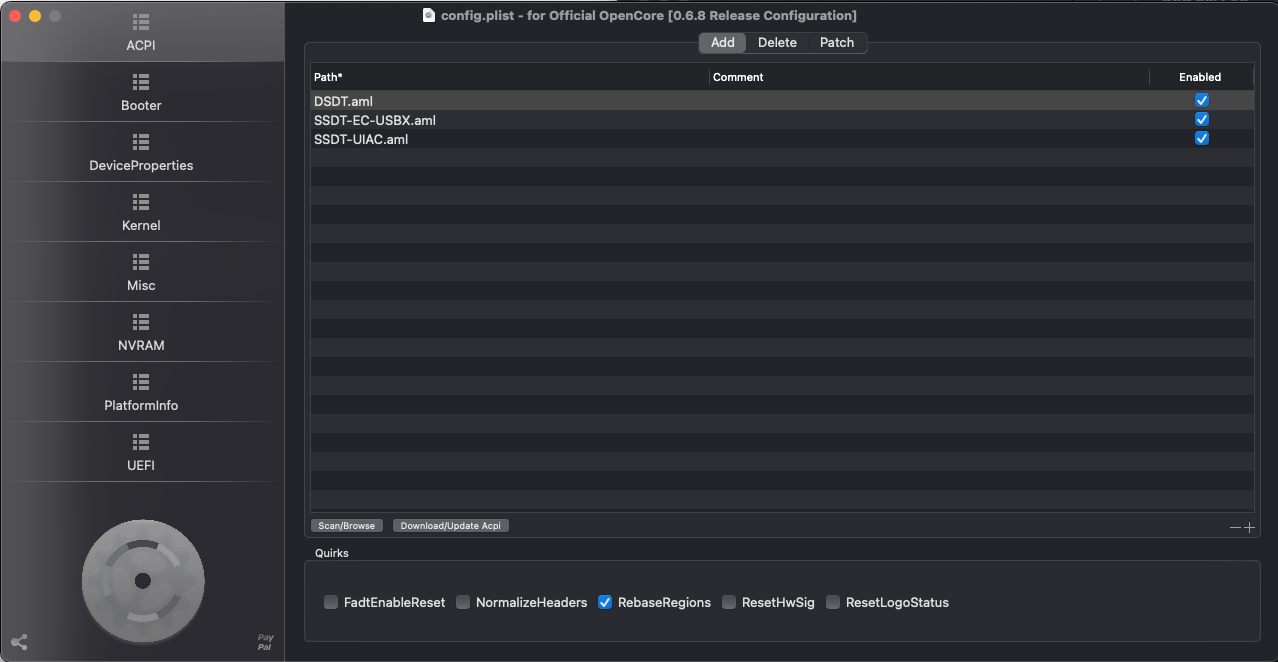

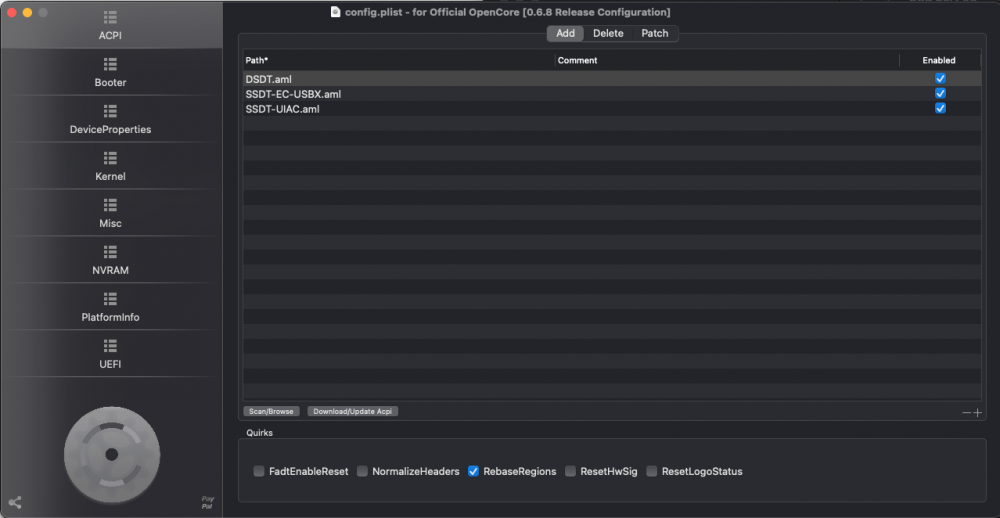

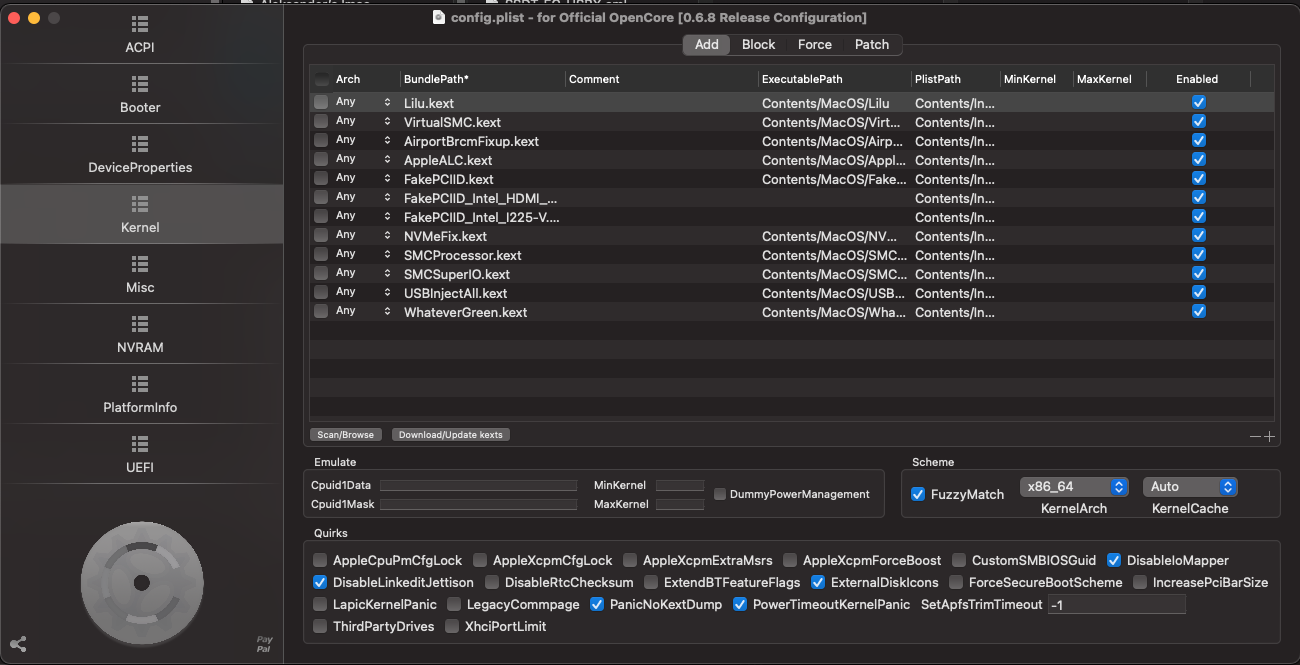

502983760_ScreenShot2021-04-13at19_05_18.thumb.png.297f83f63312b47b4ac5045f28c11900.png610298381_ScreenShot2021-04-13at18_43_55.thumb.png.a0cccdaf9dfe9b33969c5451af8ee462.png





Thank you for all suggestions.

Link to comment
Share on other sites
Alexlex
Alexlex
Posted
Posted
51 minutes ago, MaLd0n said:

DSDT.aml.zip 44.78 kB · 1 download

u dont need ssdt ec

use power button for wake

Thank you so much. This is perfect. It's actually better for me to start from sleep from power button. I was about to go down this route: https://www.ebay.com/itm/9pin-Male-to-External-USB-A-Male-PC-Mainboard-Internal-Data-Extension-Cable/393033250660



Really grateful for the DSDT MaLd0n, and I have made a donation for you!

  • Like 1
Link to comment
Share on other sites
