fefaz

[HELP] ETD0108 Touchpad not working with VoodooPS2Controller

10 posts in this topic

Recommended Posts

I have a laptop with the specifications below:

Processor:Intel Core i3-4005u

Graphic Card: Nvidia GeForce 930M (disabled) + IntelHD 4400

Audio Device: Conexant 20751/2

Wifi Card: Atheros AR9565

Memory: 6 GB (4GB + 2GB)

Storage: SSD 240GB VGen + HDD 500GB Hitachi HGST HTS545050A7E680

Touchpad: Elan PS2 Interface (ETD0108)

Mac OS Installed: Big Sur 11.0.1 Beta (20B5012d)

Bootloader: OpenCore 0.6.4



My keyboard is working, but not for touchpad (using VoodooPS2Controller  kext).

What's am I miss for my config?
My OC and IO Registry output attached below.

Thank's in advance.
OC: OC.zip

IO Registry output: Feri’s MacBook Pro.zip

Edited by fefaz
Share this post

Thanks for your reply. I am using VoodooPS2Controller by SergeySlice in provided OC file. But before using VoodooPS2Controller by SergeySlice, I was using Acidanthera's VoodooPS2. And still have the same problem.

I will upload IORegistry output after using Acidanthera's VoodooPS2 ASAP.

Share this post

Can you disable VoodooPS2Mouse?
That's currently attaching rather than VoodooPS2Trackpad
You may have better luck using the debug version as well and getting logs after boot using `log show --last boot | grep -i ps2` in terminal. Should show any errors with trying to attach VoodooPS2Trackpad to the trackpad.

Share this post

I was disabled VoodooPS2Mouse and run `log show --last boot | grep -i ps2` in terminal both using release and debug version.

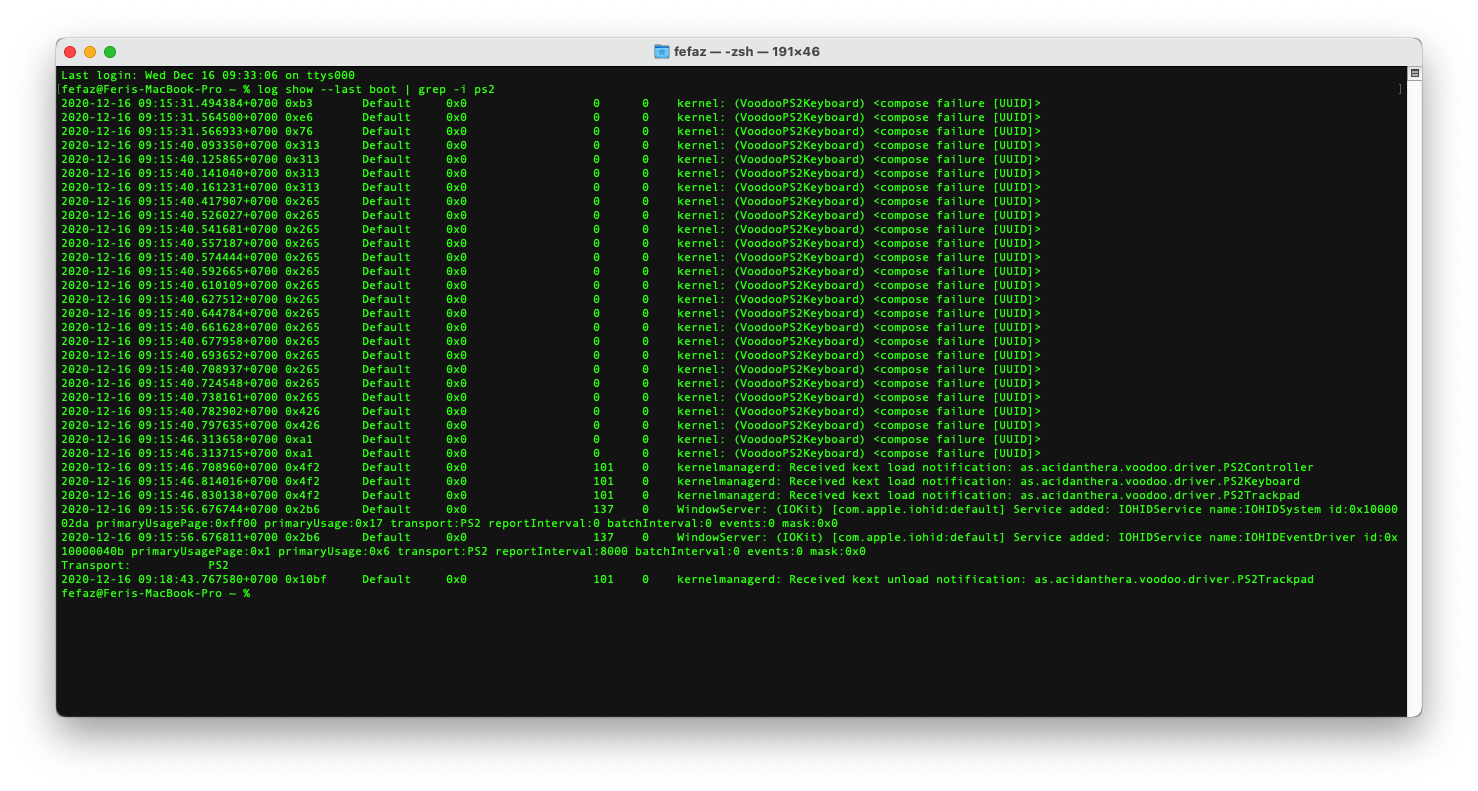

Release Version:

780369721_ScreenShot2020-12-16at09_35_19.thumb.png.feb18ef7839af2561bb59996178b59a2.png

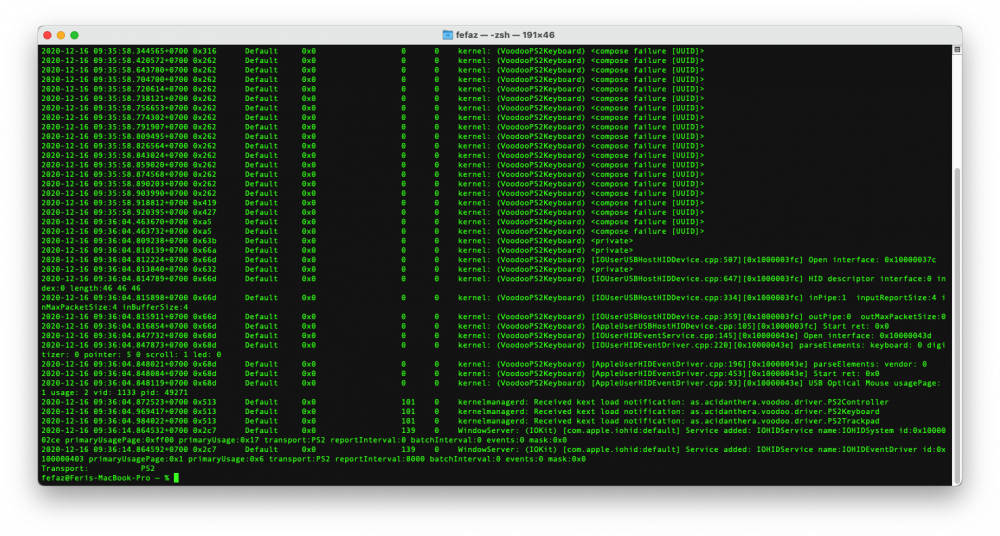

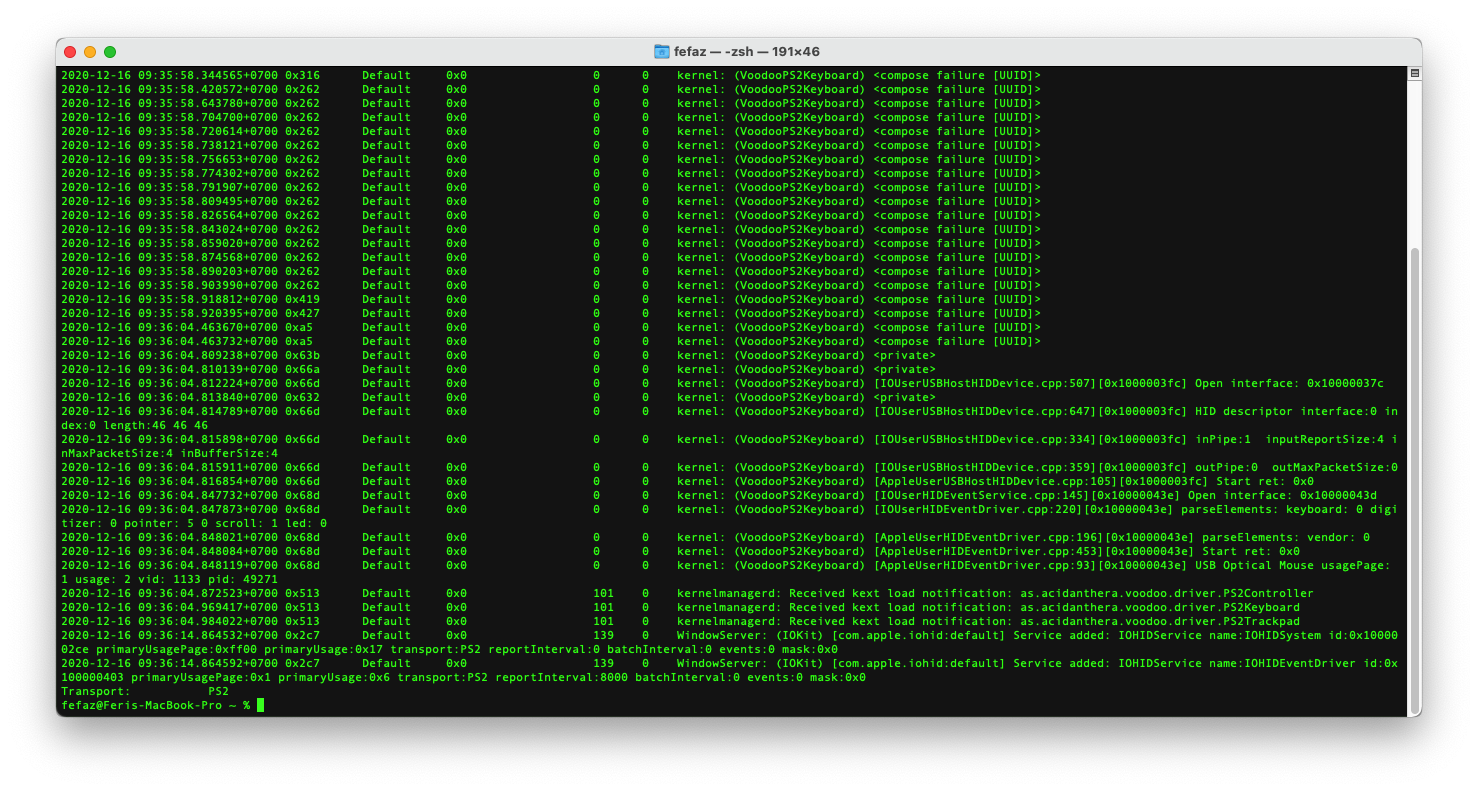

Debug version:

1657147956_ScreenShot2020-12-16at09_37_43.thumb.png.17a3e899f8b491c3ccf399cd847497ed.png

What should I do next?

Share this post

Can't really help you much, no such hardware therefore no experience on the matter. All I can suggest is that you experiment with the driver developed by BAndysc...

https://github.com/BAndysc/VoodooPS2

https://github.com/BAndysc/VoodooPS2/releases



We used to have a developper at OSXL who did a lot of work on smart TouchPads but, unfortunately, he's left the Hackintosh scene for some time. You'll find old stuff here and maybe some of Dineshs's old work may work out for you.

https://osxlatitude.com/forums/forum/77-smart-touchpad/

Share this post

On 12/21/2020 at 6:34 PM, Hervé said:

Can't really help you much, no such hardware therefore no experience on the matter. All I can suggest is that you experiment with the driver developed by BAndysc...

https://github.com/BAndysc/VoodooPS2

https://github.com/BAndysc/VoodooPS2/releases



We used to have a developper at OSXL who did a lot of work on smart TouchPads but, unfortunately, he's left the Hackintosh scene for some time. You'll find old stuff here and maybe some of Dineshs's old work may work out for you.

https://osxlatitude.com/forums/forum/77-smart-touchpad/

Thank's for your answer. I was considering to back to ApplePS2SmartTouchpad. I hope, ETD0108 will be supported by VoodooPS2.

9 hours ago, HenryV said:

Try ApplePS2SmartTouchPad.kext



It is working. Thank you.

Share this post
