Laptop: Asus Vivobook F510UA

CPU: Intel Core i5-8250U

Graphic: Intel UHD 620

Wifi: Intel Dual Band Wireless-AC 8265 (no kexts for intel wifi) :(

Card Reader: Realtek_CardReader(RTL8411B_RTS5226_RTS5227)

Camera: ASUS UVC HD 7.Audio: Conexant Audio CX8050

Touchpad: ELAN1300



 by parkrypto: thank you tctien342 for the amazing guide.



https://github.com/tctien342/Asus-Vivobook-S510UA-High-Sierra-10.13-Hackintosh



Ebayed the laptop for $290 + tax = $350

added: 16gb RAM + existing 8GB = 24GB          Timetec Hynix IC 16GB DDR4 2400MHz PC4-19200 Non ECC Unbuffered 1.2V CL17 2Rx8 Dual Rank 260 Pin SODIMM Laptop Notebook Computer Memory Ram Module Upgrade S Series (16GB)

added: cheap wifi         TP-Link USB Wifi Adapter for PC N150 Wireless Network Adapter for Desktop - Nano Size Wifi Dongle Compatible with Windows 10/7/8/8.1/XP/Vista Mac OS 10.9-10.15 Linux Kernel 2.6.18-4.4.3 (TL-WN725N)

added: NAND 1TB Internal PC SSD https://www.amazon.com/gp/product/B073SB2MXT/ref=ppx_yo_dt_b_asin_title_o01_s01?ie=UTF8&psc=1

Gadget Reviews upgraded too, video: https://www.youtube.com/watch?v=39EquX5PTkQ



I just installed. Everything works fine. I'll test final cut pro, premiere pro with 4k footage and get back with you on performance.

For now moves like a performant Mac book pro.

I installed Catalina first but I could not make the Intel UHD 620 Graphics get proper QE/CI.

Mojave is just fine. I want to use this system for quick video editing on the go.

Geekbench in my signature.

If you need any files or have any questions pls ask.

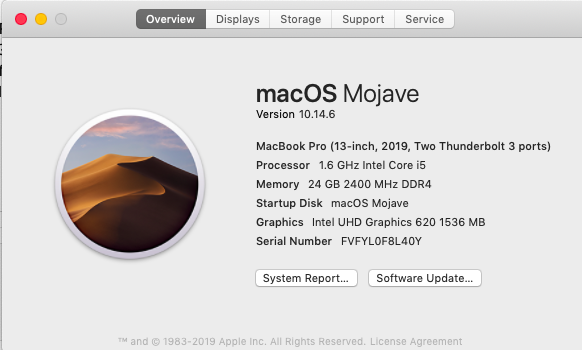

Screen Shot 2020-03-20 at 5.40.12 PM.png

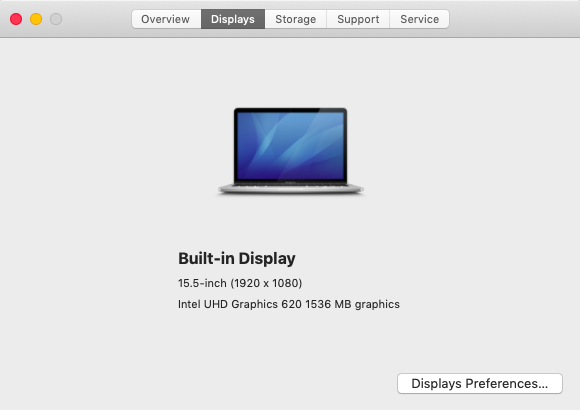

Screen Shot 2020-03-20 at 5.40.28 PM.png

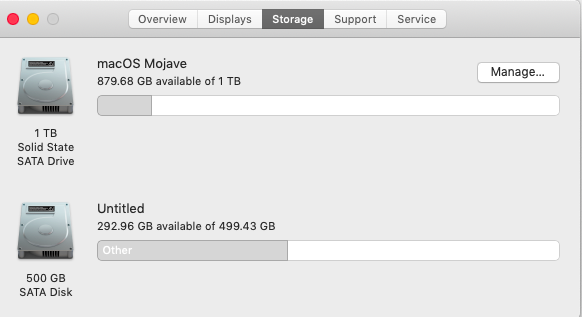

Screen Shot 2020-03-20 at 5.40.34 PM.png

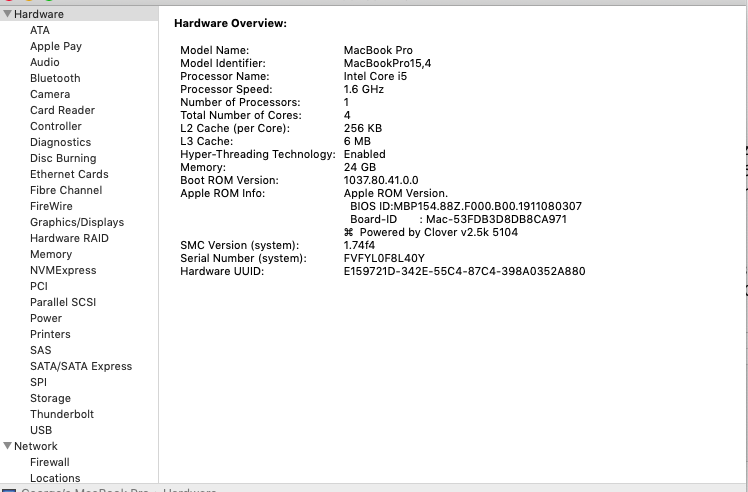

Screen Shot 2020-03-20 at 5.41.01 PM.png

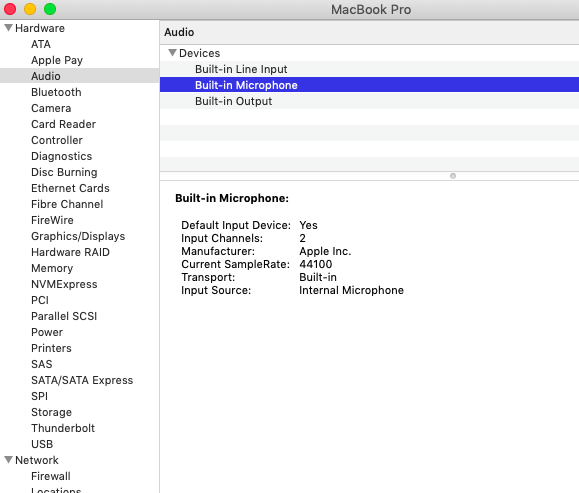

Screen Shot 2020-03-20 at 5.41.15 PM.png

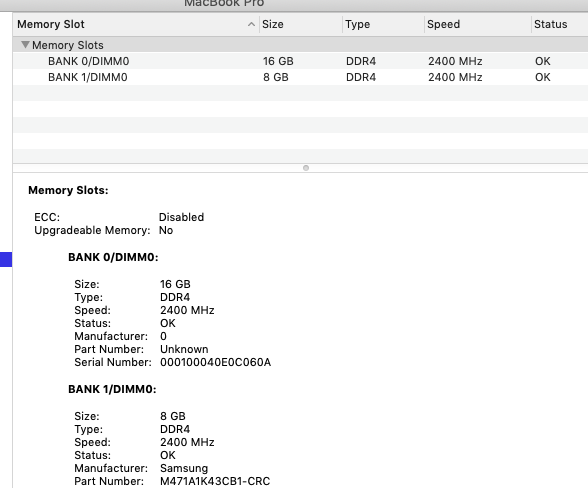

Screen Shot 2020-03-20 at 5.41.48 PM.png

asus f510u mojave.zip
