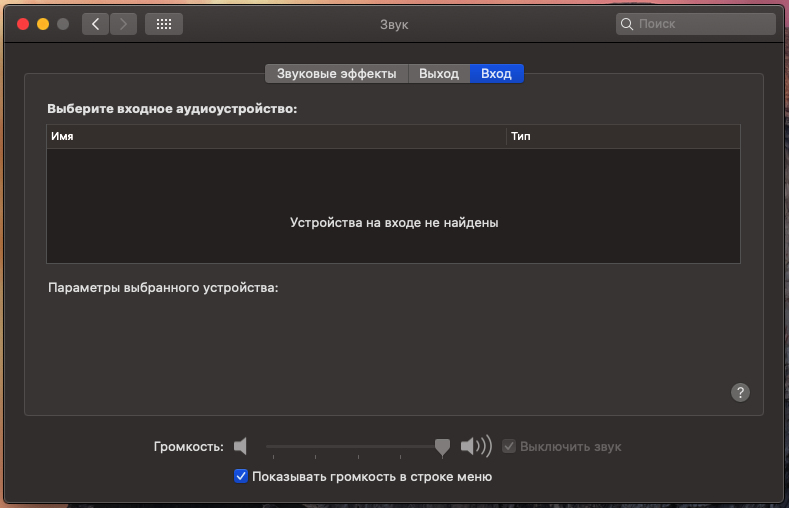

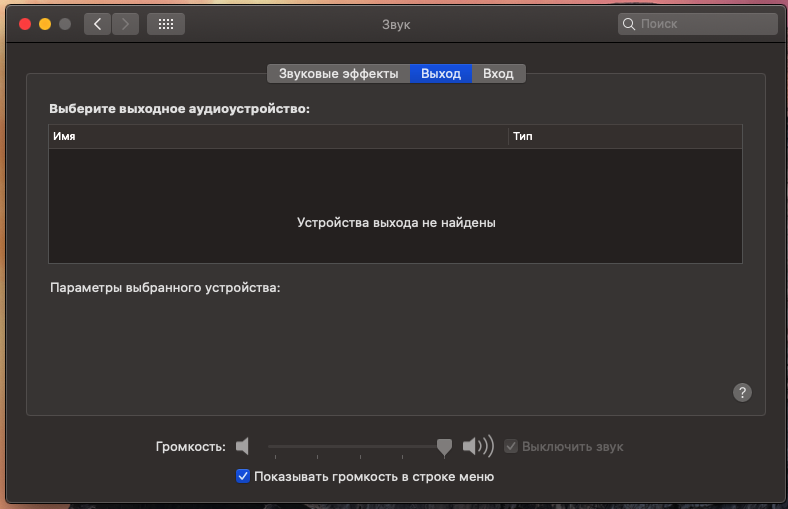

mikezexter Posted February 10, 2020 Share Posted February 10, 2020 (edited) (Dear moderators please replace this topic to another category if I made a mistake in choosing it) Hello everybody. I need some help in trying to fix native AppleHDA sound on my X230T. VoodooHDA works perfectly but without needed HDMI audio channel so I need to try fix my sound in native mode. AppleALC told us here (README) that in v1.2.1 Added ALC269 layout-id 18 for Thinkpad X230 by Hypereitan. And if it works I didn't need to create this topic. Unfortunately layout ids 1,2,3,18 and 55 didn't help me to fix sound issue. My Clover: https://drive.google.com/open?id=1FuGS7iE59ydgiMsxZcDMarlAFH3FliNE (it's 2 MB bigger than I could upload for now) I've also uploaded some screenshots of what I've seen after 5 reboots in a row changing layout ids. Please help me to fix this issue. Spoiler Edited February 10, 2020 by mikezexter Link to comment https://www.insanelymac.com/forum/topic/342534-alc269-on-lenovo-thinkpad-x230t-catalina-10153/ Share on other sites More sharing options...
iCanaro Posted February 10, 2020 Share Posted February 10, 2020 0x67 inject analog audio device --> properties 1 Link to comment https://www.insanelymac.com/forum/topic/342534-alc269-on-lenovo-thinkpad-x230t-catalina-10153/#findComment-2707776 Share on other sites More sharing options...

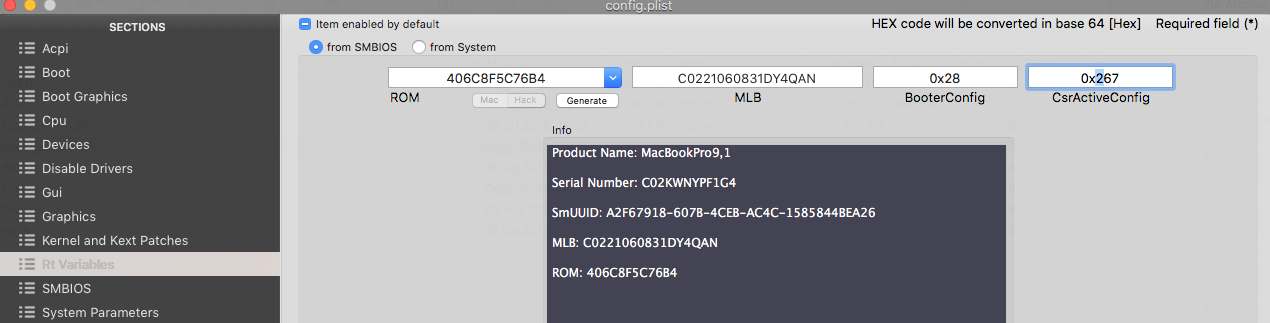

mikezexter Posted February 10, 2020 Author Share Posted February 10, 2020 4 minutes ago, iCanaro said: 0x67 inject analog audio device --> properties Thanks for your reply. I've changed CsrActiveConfig to 0x67 and injected layout 18. Unfortunately it doesn't help - no audio devices after reboot. Am I doing something wrong? Link to comment https://www.insanelymac.com/forum/topic/342534-alc269-on-lenovo-thinkpad-x230t-catalina-10153/#findComment-2707778 Share on other sites More sharing options...
iCanaro Posted February 10, 2020 Share Posted February 10, 2020 you're not doing anything wrong, the point is that sometimes with the method you use, it doesn't work, you need to inject the audio from device> properties see you can help this guide, you will have to use the translators 1 Link to comment https://www.insanelymac.com/forum/topic/342534-alc269-on-lenovo-thinkpad-x230t-catalina-10153/#findComment-2707780 Share on other sites More sharing options...

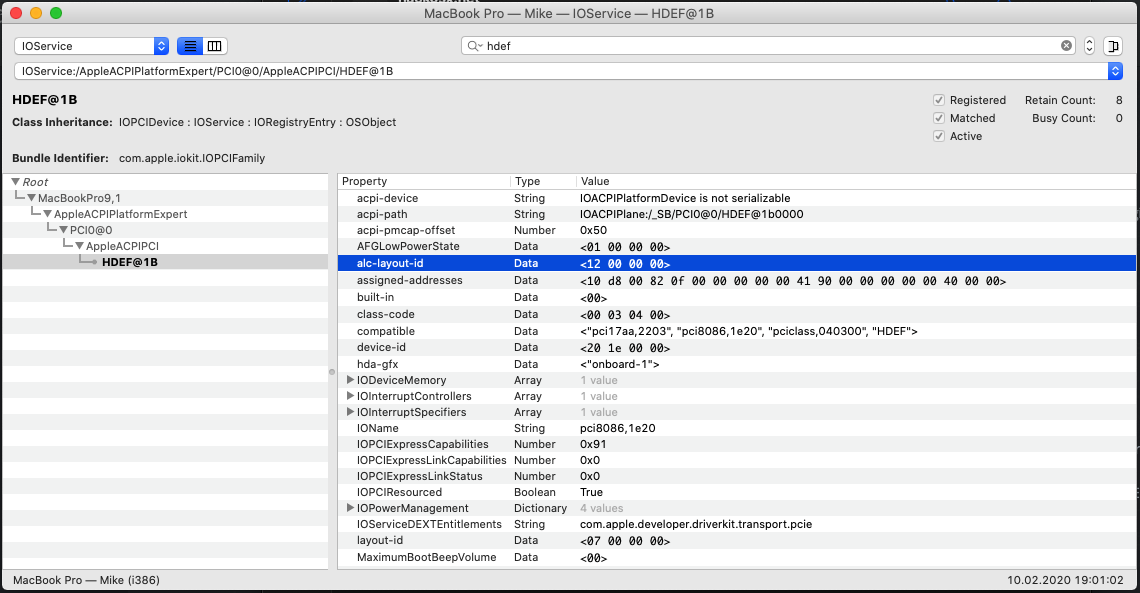

mikezexter Posted February 10, 2020 Author Share Posted February 10, 2020 21 minutes ago, iCanaro said: you're not doing anything wrong, the point is that sometimes with the method you use, it doesn't work, you need to inject the audio from device> properties see you can help this guide, you will have to use the translators It seems like my "18" injected successfully. Do I really need to inject it manually by PCI ID? Link to comment https://www.insanelymac.com/forum/topic/342534-alc269-on-lenovo-thinkpad-x230t-catalina-10153/#findComment-2707782 Share on other sites More sharing options...
Andrey1970 Posted February 10, 2020 Share Posted February 10, 2020 I see you from Russia, read the first post. https://applelife.ru/threads/applealc-dinamicheskij-patching-applehda.1171672/ 1 Link to comment https://www.insanelymac.com/forum/topic/342534-alc269-on-lenovo-thinkpad-x230t-catalina-10153/#findComment-2707798 Share on other sites More sharing options...
mikezexter Posted February 11, 2020 Author Share Posted February 11, 2020 11 hours ago, Andrey1970 said: I see you from Russia, read the first post. https://applelife.ru/threads/applealc-dinamicheskij-patching-applehda.1171672/ Thanks a lot but I've uploaded my Clover in the top. You can see everything's great. :) Thank you for the reply but I don't need common instructions. The main problem is that they don't work with my laptop. :) 1. I don't have any HDA patches and I didn't apply them. 2. Of course I've injected layout-id and nothing else. I'll review my Clover but Idk what exactly can cause the issues. Link to comment https://www.insanelymac.com/forum/topic/342534-alc269-on-lenovo-thinkpad-x230t-catalina-10153/#findComment-2707840 Share on other sites More sharing options...
mikezexter Posted February 12, 2020 Author Share Posted February 12, 2020 So... Any ideas? I've checked everything for my mistakes but everything seems to be right. Link to comment https://www.insanelymac.com/forum/topic/342534-alc269-on-lenovo-thinkpad-x230t-catalina-10153/#findComment-2707937 Share on other sites More sharing options...
