OpenCore: Panic , Mach Reboot

[tanmahah]

I have i7 8700k with ASUS ROG z370e mobo and 40gb of RAM. Everything works with Clover.

Then I made a shift to OpenCore. I was able to use it and my system booted faster than Clover.

But, after few days it refused to boot and continuously gives kernel panic.

I've updated OC files and re-configured config.plist. But, it is still not booting.

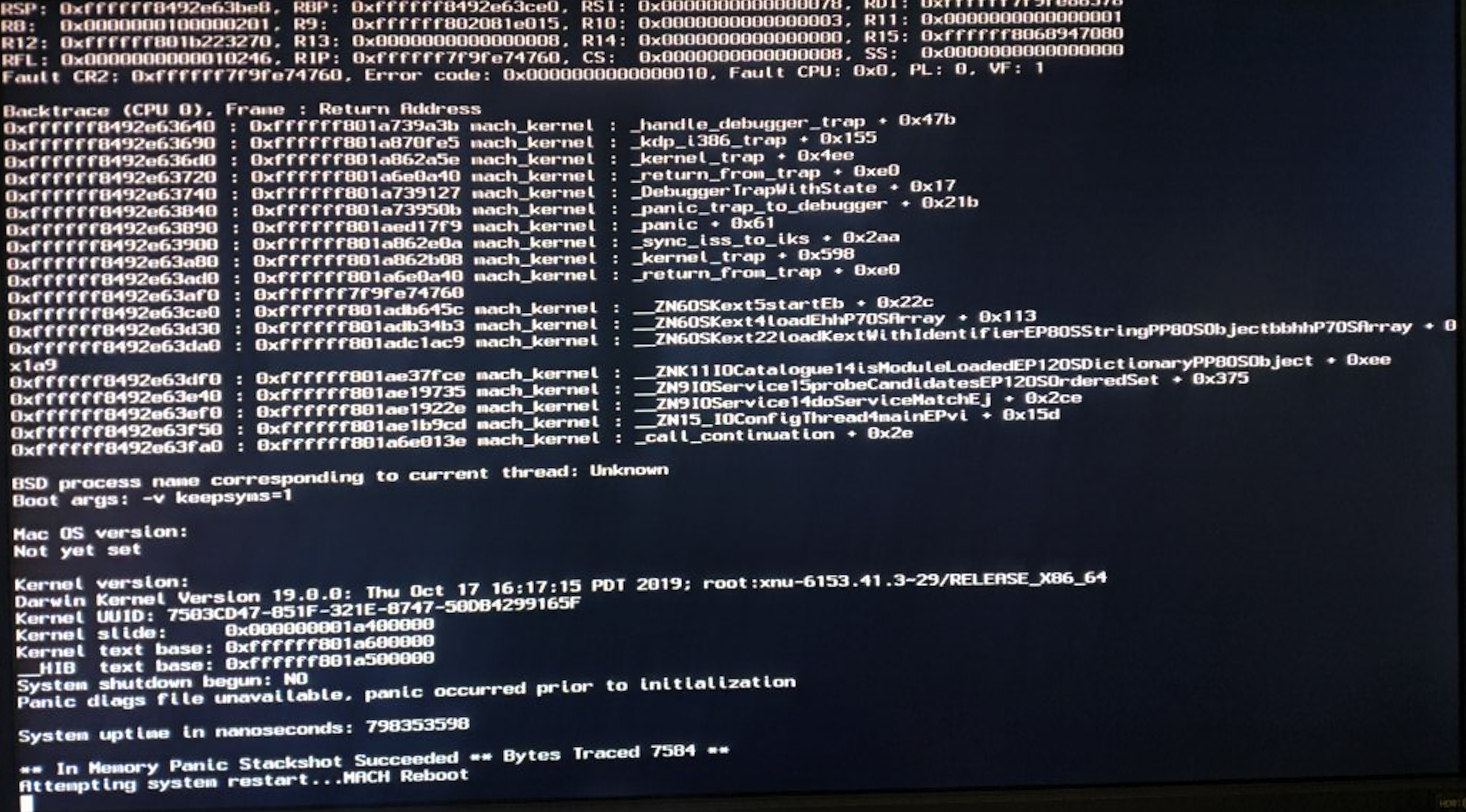

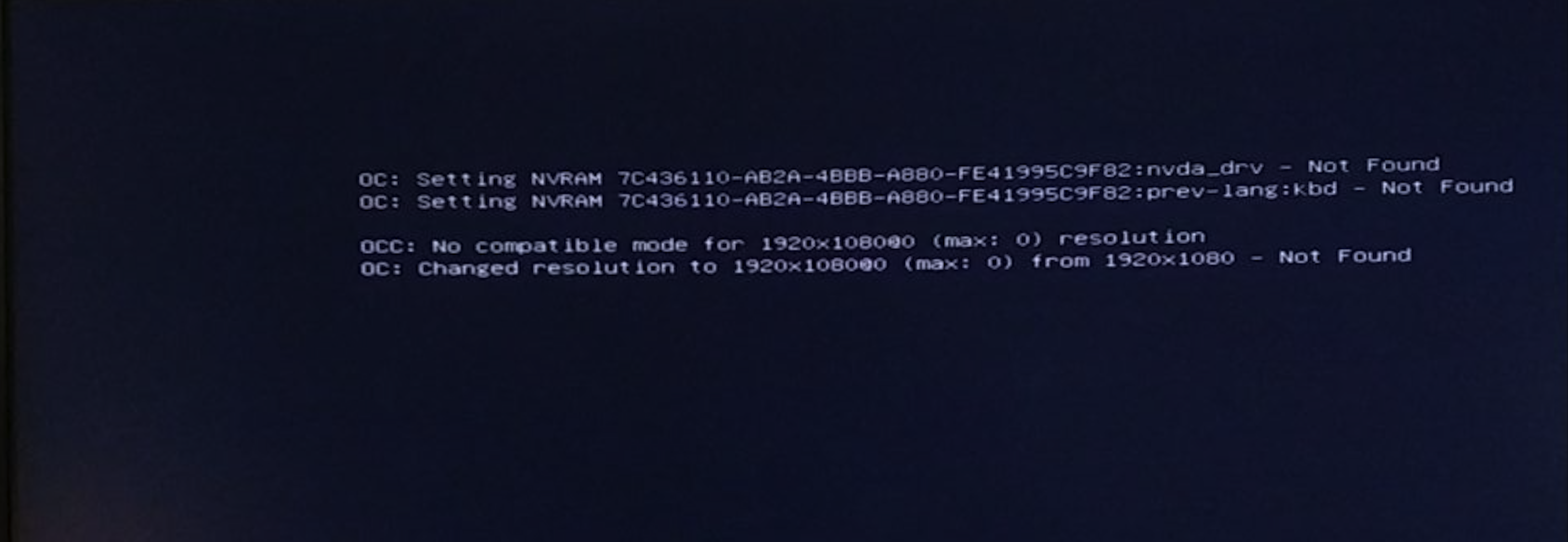

I'm unable to grab the video since my phone refused to stay focused on monitor. I'm attaching the image though.

Although, I can catch that Lilu and AirportBrcmFixup are rejected like

Refusing new kext as.vlt.9696.Lilu, v1.4: already have prelinked v1.3.9

And, then

Security policy loaded: Lilu Kernel Extension 1.3.9(Lilu)
panic(cpu0 caller ..........

And then whatever is  printed is in the screenshot.



I'm also attaching my config.plist. config.plist



Any help is appreciated.

Since starting this draft, I've tried many variations in config.plist file. The one which I used to install is also not working now. I've attached the same.

[tanmahah]

OK.

So, it appears that the problem was with EFI partition of SSD.

I've formatted that and everything works, installation key also works.



[thlivsqaz]

On 12/9/2019 at 1:06 PM, tanmahah said:

OK.

So, it appears that the problem was with EFI partition of SSD.

I've formatted that and everything works, installation key also works.



hello,i have the same problem,how you solve that?formatted disk?

[tanmahah]

yes. Removed all partitions and then formatted as HFS+. Then it was recognized.

One more thing, remove extra drives while doing installation.

[HmO]

EFI partitions must be FAT32 not HFS+
