jsl2000 Posted November 23, 2019 Share Posted November 23, 2019 (edited) After many hours of try and error it worked by OpenCore at 10.12.6/10.13.6/10.14.x/10.15x in my Z77 hackintosh. The only issue was incorrect showing of PCI in System Information. config.plist Edited November 24, 2019 by jsl2000 3 1 Link to comment Share on other sites More sharing options...

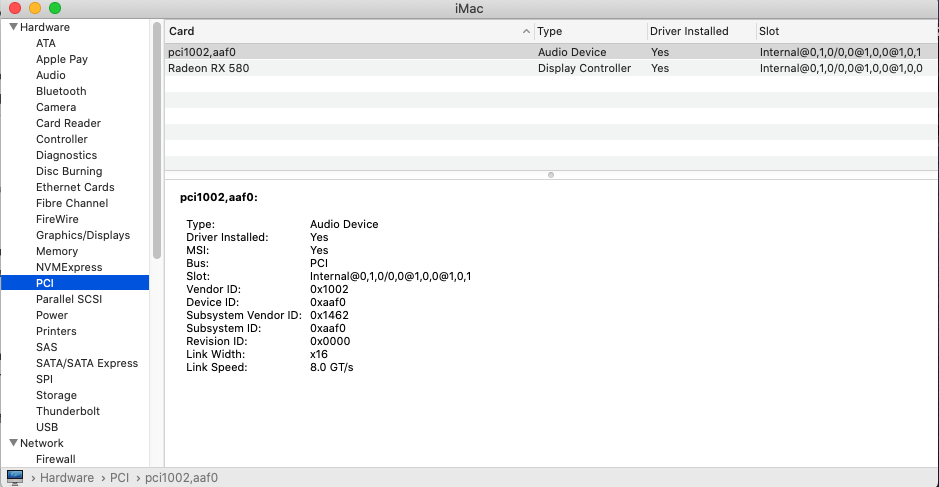

jsl2000 Posted November 25, 2019 Author Share Posted November 25, 2019 On 11/23/2019 at 10:08 PM, jsl2000 said: After many hours of try and error it worked by OpenCore at 10.12.6/10.13.6/10.14.x/10.15x in my Z77 hackintosh. The only issue was incorrect showing of PCI in System Information. config.plist I had fixed this issue by the new config.plist. config.plist Link to comment Share on other sites More sharing options...
Arun M Posted December 8, 2019 Share Posted December 8, 2019 (edited) Even I am using the ASUS Z97 - Similar one to yours - But OpenCore loads to a black screen for me Can you confirm if OC works for you in that setup too? config.plist Edited December 8, 2019 by Arun M Link to comment Share on other sites More sharing options...
jsl2000 Posted December 10, 2019 Author Share Posted December 10, 2019 On December 8, 2019 at 11:06 AM, Arun M said: Even I am using the ASUS Z97 - Similar one to yours - But OpenCore loads to a black screen for me Can you confirm if OC works for you in that setup too? config.plist Please show your hardware signature if yours is compatible to mine, I can provide my config.plist for your reference. Link to comment Share on other sites More sharing options...
BiggestCookie Posted January 1, 2020 Share Posted January 1, 2020 I have a gigabyte GA-Z77-DS3H. i7-3770K using HD4000. If I use the right Kexts, how close is your config.plist? Thanks Dennis Link to comment Share on other sites More sharing options...
jsl2000 Posted January 1, 2020 Author Share Posted January 1, 2020 1 hour ago, BiggestCookie said: I have a gigabyte GA-Z77-DS3H. i7-3770K using HD4000. If I use the right Kexts, how close is your config.plist? Thanks Dennis It should work without major problem I guess. Please try my config.plist and show what you got if any problem occurred. Link to comment Share on other sites More sharing options...
hoffsta Posted January 9, 2020 Share Posted January 9, 2020 Hi there, I'm trying to get my Z77 (Gigabyte Z77X-UD5H) board up and running on my first go at OpenCore. I took a look at your config and noticed you don't have your DSDT.aml file enabled, nor many of the SSDTs. I'm curious why you don't use them and how you determine which ones you need? Thanks Link to comment Share on other sites More sharing options...
jsl2000 Posted January 10, 2020 Author Share Posted January 10, 2020 16 hours ago, hoffsta said: Hi there, I'm trying to get my Z77 (Gigabyte Z77X-UD5H) board up and running on my first go at OpenCore. I took a look at your config and noticed you don't have your DSDT.aml file enabled, nor many of the SSDTs. I'm curious why you don't use them and how you determine which ones you need? Thanks Usually OpenCore did not require these *.aml. I tested it one by one. Link to comment Share on other sites More sharing options...
Apple Hunter Posted March 18, 2020 Share Posted March 18, 2020 (edited) I am using Clover boot loader which working everything Fine. Now need some change so I try for Opencore I done every configuration in config.plist of Opencore but freeze after from open core boot menu selection. I don't know whether missing something. I have mention both working Clover and OpenCore. Please Help Me how to Fix it. System:- Intel i7 3770k Intel z77 Motherboard 16GB RAM AMD RX580 8G Fenvi FV-T919, Broadcom BCM94360CD Wifi Card OpenCore-20200318T043854Z-001.zip Clover-20200318T043745Z-001.zip Edited March 18, 2020 by Apple Hunter Link to comment Share on other sites More sharing options...
jsl2000 Posted March 24, 2020 Author Share Posted March 24, 2020 On 3/18/2020 at 6:01 PM, Apple Hunter said: I am using Clover boot loader which working everything Fine. Now need some change so I try for Opencore I done every configuration in config.plist of Opencore but freeze after from open core boot menu selection. I don't know whether missing something. I have mention both working Clover and OpenCore. Please Help Me how to Fix it. System:- Intel i7 3770k Intel z77 Motherboard 16GB RAM AMD RX580 8G Fenvi FV-T919, Broadcom BCM94360CD Wifi Card OpenCore-20200318T043854Z-001.zip Clover-20200318T043745Z-001.zip You may try my config.plist posted above on Nov 25, 2019 at first. Then show your errors or KP. Link to comment Share on other sites More sharing options...

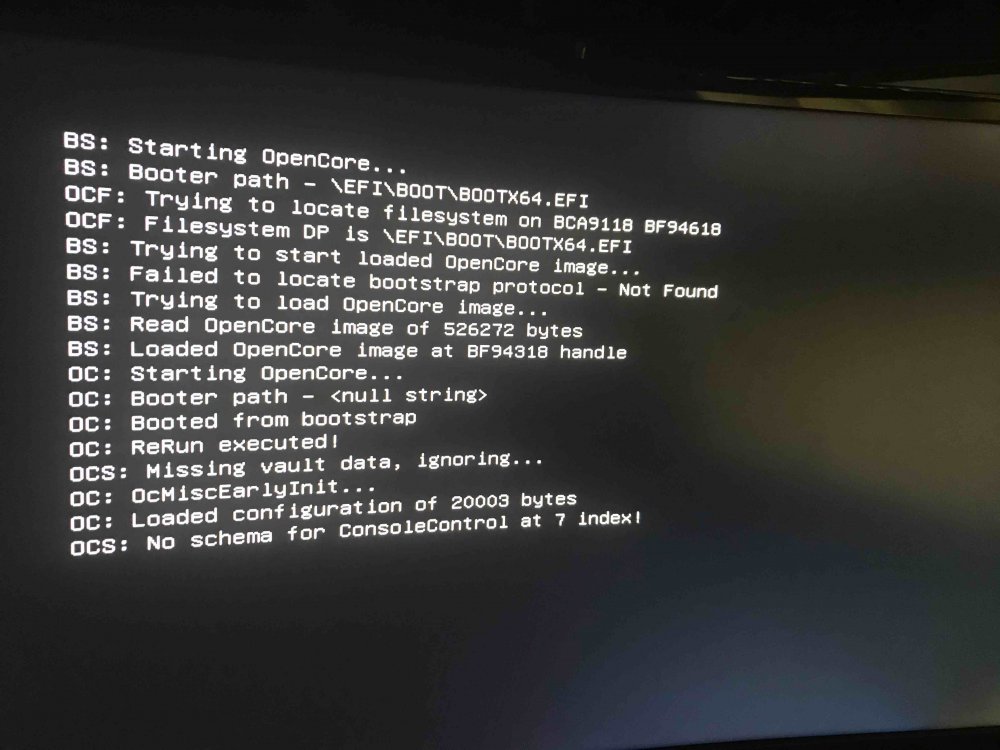

Apple Hunter Posted March 26, 2020 Share Posted March 26, 2020 (edited) I HAVE USE YOUR config.plist IT FREEZE HERE. I HAVE ATTACH MY config.plist it Freeze Here. i have attached config.plist and log report please check config.plist opencore-2020-03-26-085517.txt i have attached config.plist and log report please check Edited March 26, 2020 by Apple Hunter Link to comment Share on other sites More sharing options...

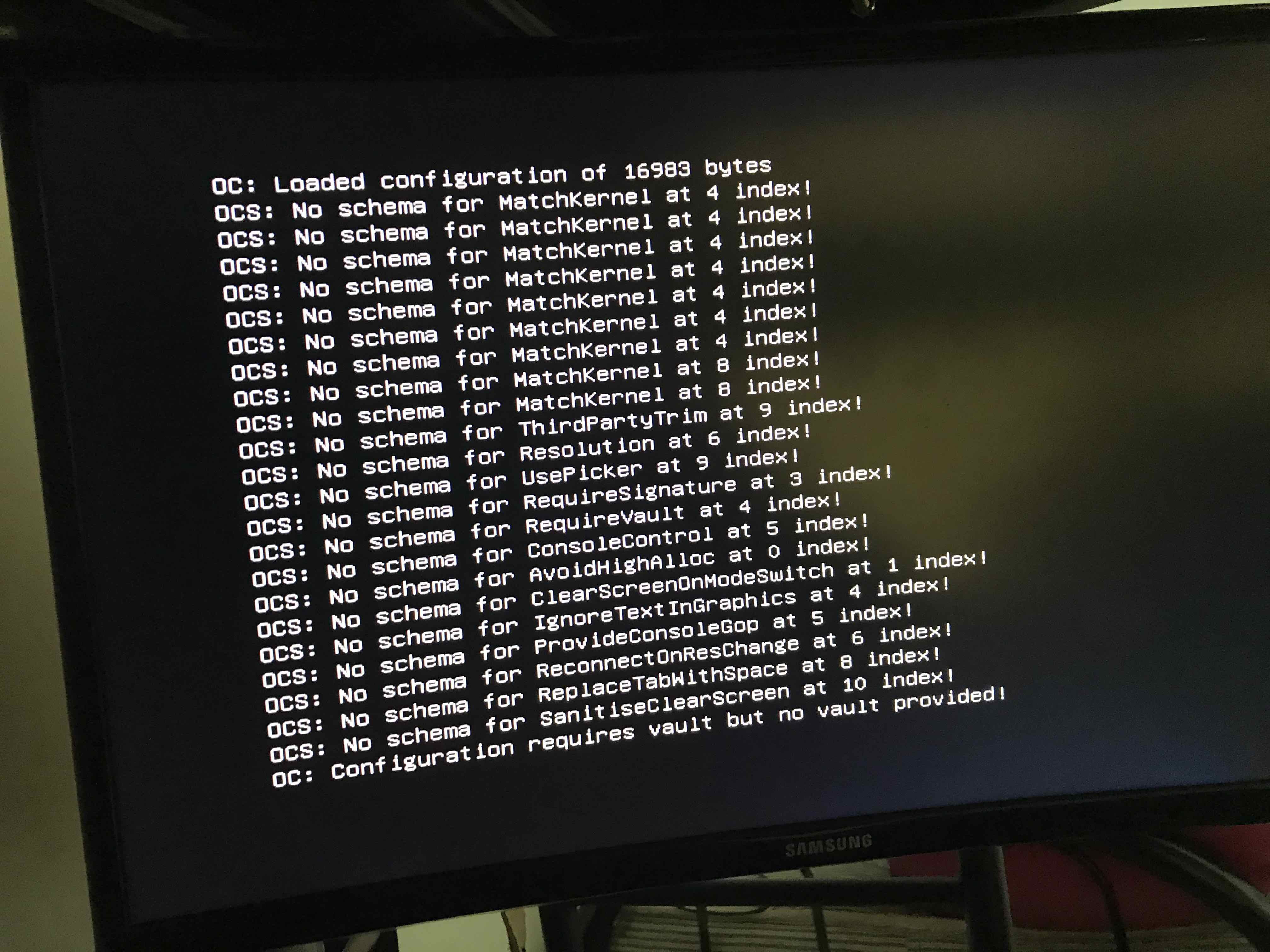

MacNB Posted March 26, 2020 Share Posted March 26, 2020 (edited) 5 hours ago, Apple Hunter said: I HAVE USE YOUR config.plist IT FREEZE HERE. I HAVE ATTACH MY config.plist it Freeze Here. i have attached config.plist and log report please check config.plist opencore-2020-03-26-085517.txt i have attached config.plist and log report please check That first screenshot shows that you are using config.plist that is for a different version of OpenCore than what is installed in your EFI folder. Remember, OpenCore is in beta and it's features are changing regularly and so the config.plist must match the version you download or build. Can you successfully boot using Clover ? What is the make & model of your motherboard ? Add your spec in your profile signature (e.g like mine) Edited March 26, 2020 by MacNB additional question Link to comment Share on other sites More sharing options...
Apple Hunter Posted March 27, 2020 Share Posted March 27, 2020 Clover is working fine for me without any problem. now i want to try Opencore. tested lots of way but no success. Since 7 years successful using Hackintosh started from OSX Mountain Lion till now Catalina. worked fine in this System. Intel i7-3770K Biostar TZ77XE4 Realtek RTL811E AMD Sapphire Pulse RX 580 8G with IGPU HD 4000 Kingston 240GB SSD SATA Fenvi FV-T919 Broadcom BCM94360CD Wifi Card Link to comment Share on other sites More sharing options...
MacNB Posted March 27, 2020 Share Posted March 27, 2020 (edited) 8 hours ago, Apple Hunter said: Clover is working fine for me without any problem. now i want to try Opencore. tested lots of way but no success. Since 7 years successful using Hackintosh started from OSX Mountain Lion till now Catalina. worked fine in this System. Intel i7-3770K Biostar TZ77XE4 Realtek RTL811E AMD Sapphire Pulse RX 580 8G with IGPU HD 4000 Kingston 240GB SSD SATA Fenvi FV-T919 Broadcom BCM94360CD Wifi Card If your working Clover config is the one you posted earlier, then it does not quite map to your OC config. Several comments: If you use Whatevergreen.kext, there's no need to inject device properties in OC as that kext will take care. You are not using SSDT.aml in OC which you were in Clover. That's needed for CPU PM You are using SSDT-EHCx_OFF.aml which is only really needed if your UEFI BIOS cannot Enable XHC handoff You are using XhciDxe.efi but for your motherboard it should not really be needed as it should be included in FW You are using USBInjectAll.kext in OC but not in Clover you're using USBPorts.kext You did not copy the same board-id and serial in OC - may effect iCloud & Messages. I've tried to map your Clover EFI to OC EFI. Rename your existing EFI folder to EFI-BACKUP, and copy the attached EFI and check it before booting. EFI.zip Edited March 27, 2020 by MacNB Link to comment Share on other sites More sharing options...

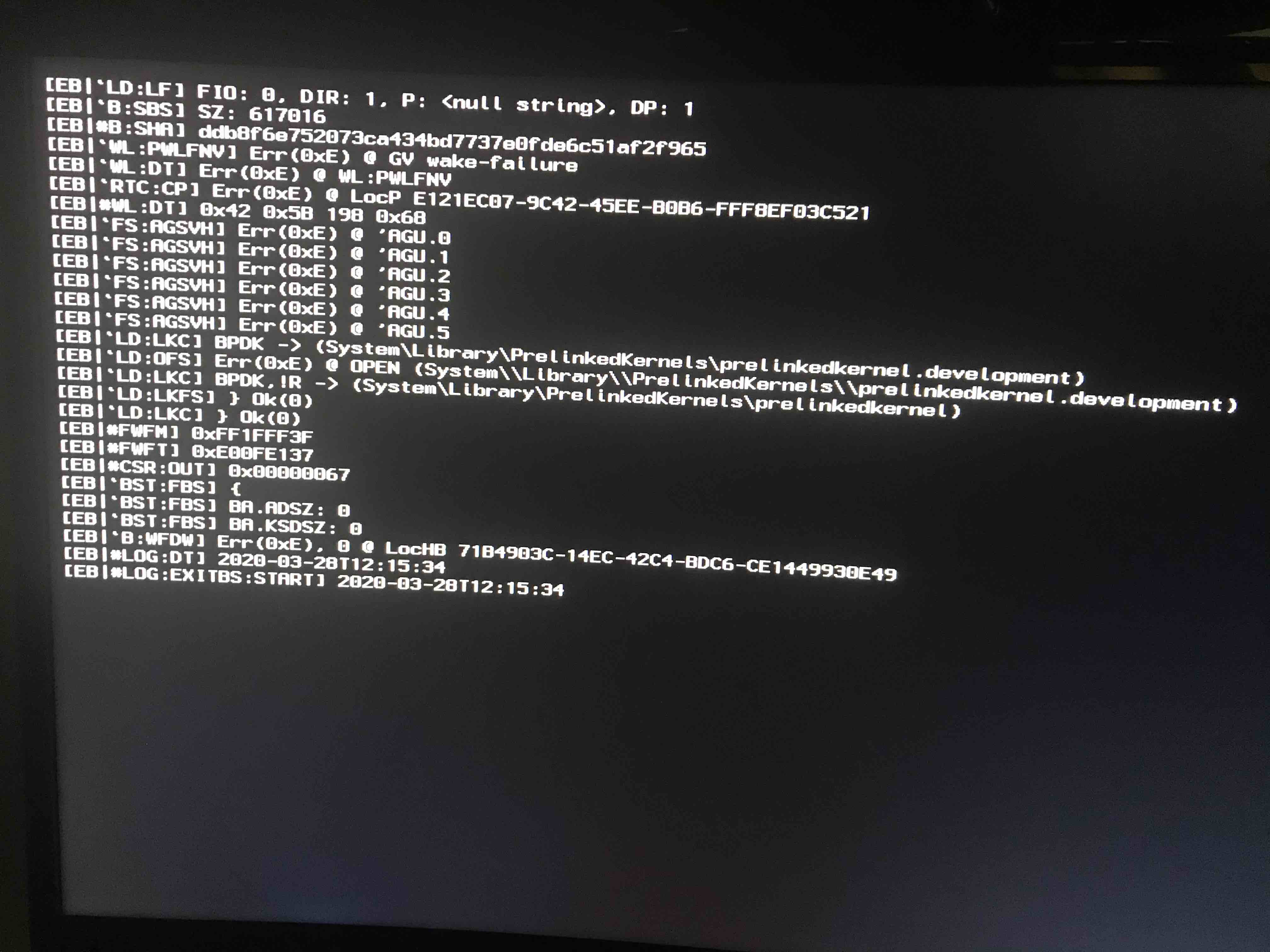

Apple Hunter Posted March 28, 2020 Share Posted March 28, 2020 (edited) 1st of all thank you for help. I have mounted EFI which you have edited and I have followed your step as you comments. But still it showing me some error like i mention in picture even opencore log report freeze. I have created DSDT now its working fine in Clover same method I have applied to Opencore but same issues. I have 1 more doubt on FwRuntimeServices.efi. I have added FwRuntimeServices.efi to clover it freeze at same loading. but AptioMemoryFix.efi works fine in Clover. I have try to add Opencore it showed nonsupporting error on startup. I have attached DSDT Working Clover And Issus Opencore. Clover.zip open.zip opencore-2020-03-28-131318.txt Edited March 28, 2020 by Apple Hunter Link to comment Share on other sites More sharing options...
MacNB Posted March 30, 2020 Share Posted March 30, 2020 On 3/28/2020 at 2:04 PM, Apple Hunter said: 1st of all thank you for help. I have mounted EFI which you have edited and I have followed your step as you comments. But still it showing me some error like i mention in picture even opencore log report freeze. I have created DSDT now its working fine in Clover same method I have applied to Opencore but same issues. I have 1 more doubt on FwRuntimeServices.efi. I have added FwRuntimeServices.efi to clover it freeze at same loading. but AptioMemoryFix.efi works fine in Clover. I have try to add Opencore it showed nonsupporting error on startup. I have attached DSDT Working Clover And Issus Opencore. Clover.zip open.zip opencore-2020-03-28-131318.txt The first screenshot is normal - except the line about ConsoleControl. It's not important but just delete the ConsoleControl entry in your config.plist. The second screenshot I do not recognise. I do not see it and don't recognise anything. You say that you have created a DSDT.aml but in the folder "with DSDT", the config.plist does not use it (you have not added it as an entry in ACPI->Add) so it is not being used. You also should not need it or any of those patches that you added. It may well be an issue to FwRuntimeservice.efi on your motherboard. In config.plist try setting: ACPI->Quirks->NormalizeHeaders=true and ACPI->Quirks->RebaseRegions=true (with any DSDT.aml) Also, you have not stated where your monitor is connected (motherboard or the AMD graphics card). It should be connected to the AMD GPU. If not, did you check that if you have any output on any of the AMD ports and the system is not really frozen ? Link to comment Share on other sites More sharing options...
Apple Hunter Posted April 1, 2020 Share Posted April 1, 2020 My onboard iGPU is enabled. should i disable that. Link to comment Share on other sites More sharing options...
Apple Hunter Posted April 1, 2020 Share Posted April 1, 2020 I have Added FwRuntimeServices.efi to Clover. boot error is show like this. may be FwRuntimeServices.efi file need to update. IMG_5929.mp4 Link to comment Share on other sites More sharing options...

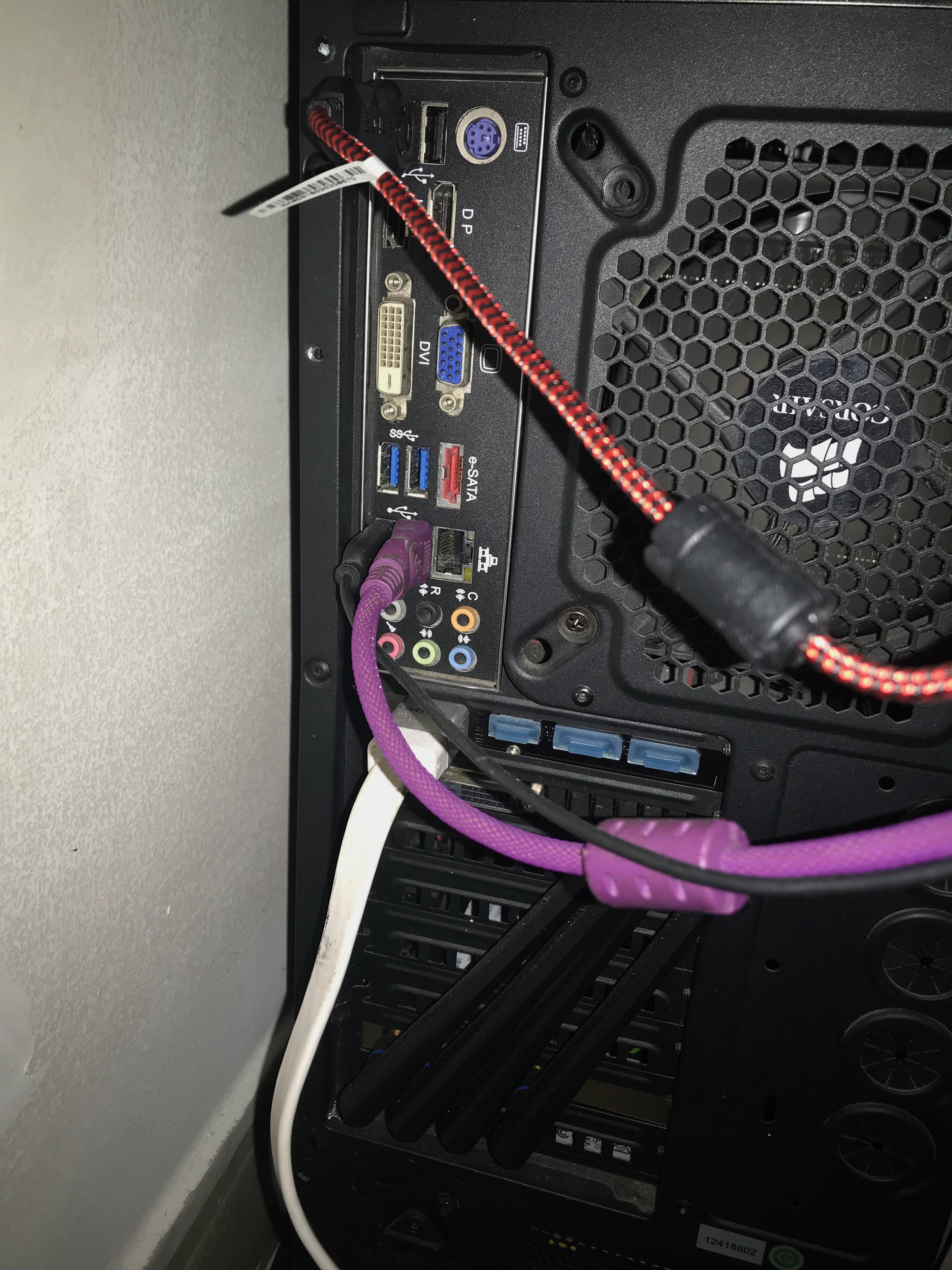

MacNB Posted April 1, 2020 Share Posted April 1, 2020 4 hours ago, Apple Hunter said: My onboard iGPU is enabled. should i disable that. So your is connected to AMD GPU all the time ?? You can try and disable your iGPU (in BIOS) but I think it will not make a big difference on your system. I disable it because I use iMacPro1,1 as the SMBIOS model ID (not iMac13,2) so that I can use the AMD GPU for encoding/decoding video. I would not use Fwruntimeservices.efi with clover. There some problems with it but that's for the newer Z370 & 390 motherboards. If your system boots with Clover, post your IOREG file. Link to comment Share on other sites More sharing options...
Apple Hunter Posted April 2, 2020 Share Posted April 2, 2020 10 hours ago, MacNB said: So your is connected to AMD GPU all the time ?? You can try and disable your iGPU (in BIOS) but I think it will not make a big difference on your system. I disable it because I use iMacPro1,1 as the SMBIOS model ID (not iMac13,2) so that I can use the AMD GPU for encoding/decoding video. I would not use Fwruntimeservices.efi with clover. There some problems with it but that's for the newer Z370 & 390 motherboards. If your system boots with Clover, post your IOREG file. My IOREG FILE.. iMac.ioreg Link to comment Share on other sites More sharing options...

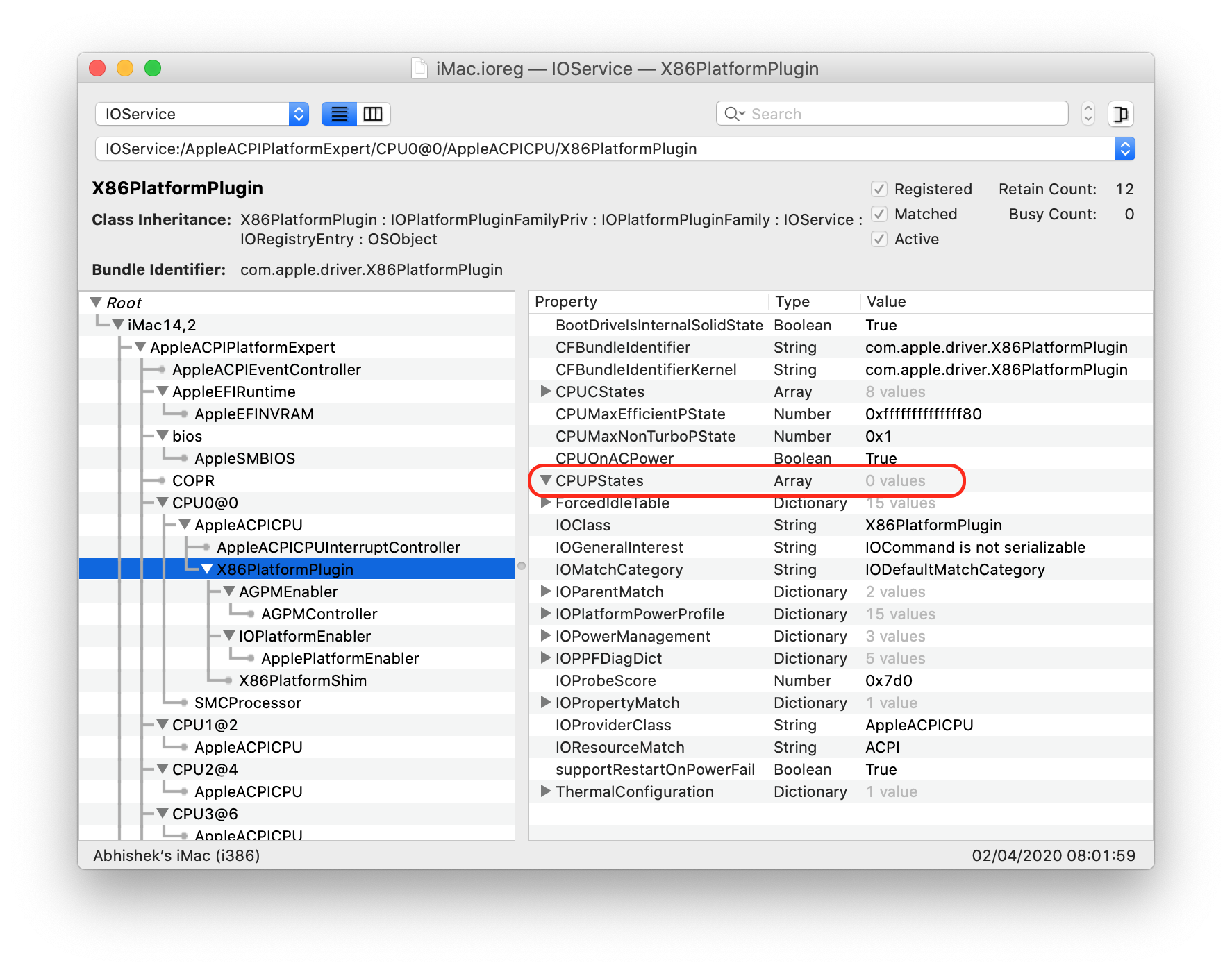

MacNB Posted April 2, 2020 Share Posted April 2, 2020 8 hours ago, Apple Hunter said: My IOREG FILE.. iMac.ioreg Your IOREG shows that the IGPU is in headless mode which should be the same when booting with OC (as long as Whatevergreen.kext is used). Did you do this following as I had suggested ??? : ACPI->Quirks->NormalizeHeaders=true and ACPI->Quirks->RebaseRegions=true BTW, your IOREG shows that you do not have proper CPU power management. That is, your SSDT.aml is not being used as you have know P-States: Link to comment Share on other sites More sharing options...
Apple Hunter Posted April 5, 2020 Share Posted April 5, 2020 On 4/2/2020 at 8:09 PM, MacNB said: Your IOREG shows that the IGPU is in headless mode which should be the same when booting with OC (as long as Whatevergreen.kext is used). Did you do this following as I had suggested ??? : ACPI->Quirks->NormalizeHeaders=true and ACPI->Quirks->RebaseRegions=true BTW, your IOREG shows that you do not have proper CPU power management. That is, your SSDT.aml is not being used as you have know P-States: i have not added ssdt in shortlist now i checked its showing. iMac.ioreg Link to comment Share on other sites More sharing options...

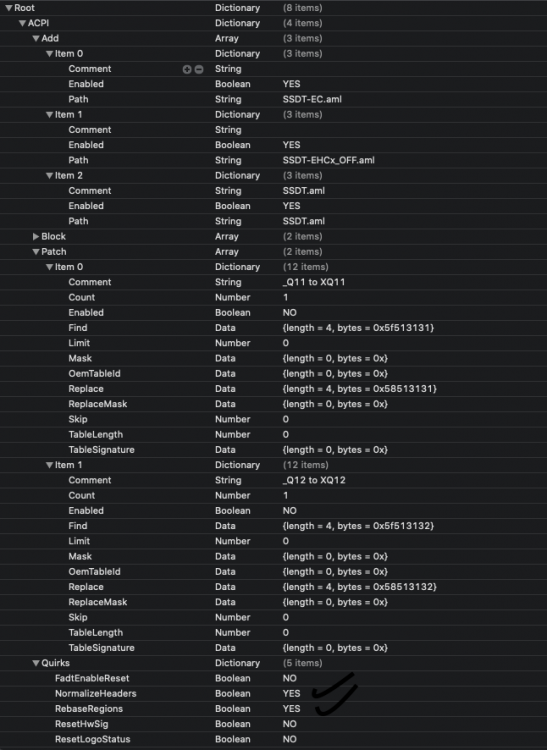

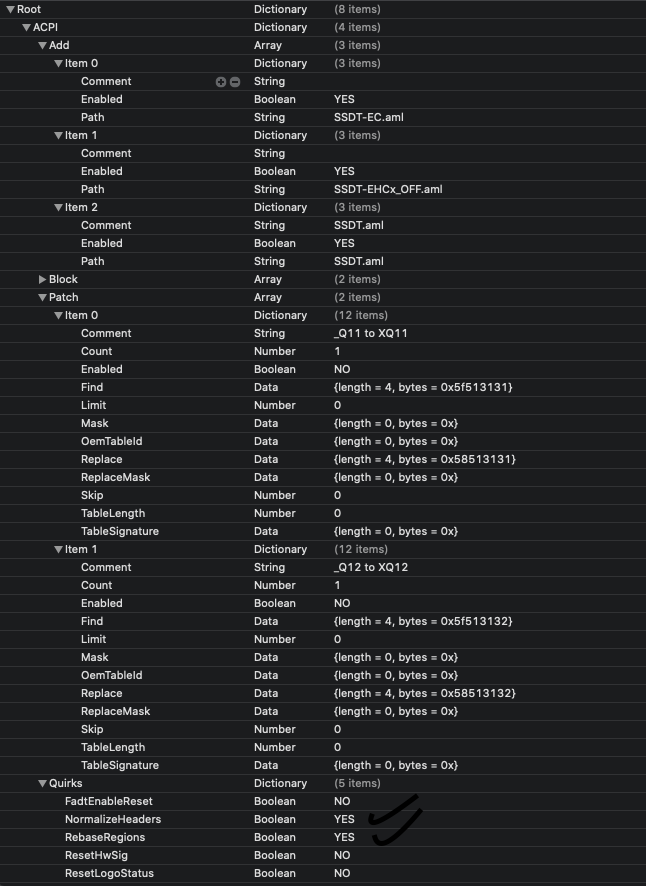

MacNB Posted April 5, 2020 Share Posted April 5, 2020 6 hours ago, Apple Hunter said: i have not added ssdt in shortlist now i checked its showing. iMac.ioreg You do not seem to follow any suggestions Did you do this following as I had suggested ??? : ACPI->Quirks->NormalizeHeaders=true and ACPI->Quirks->RebaseRegions=true Link to comment Share on other sites More sharing options...

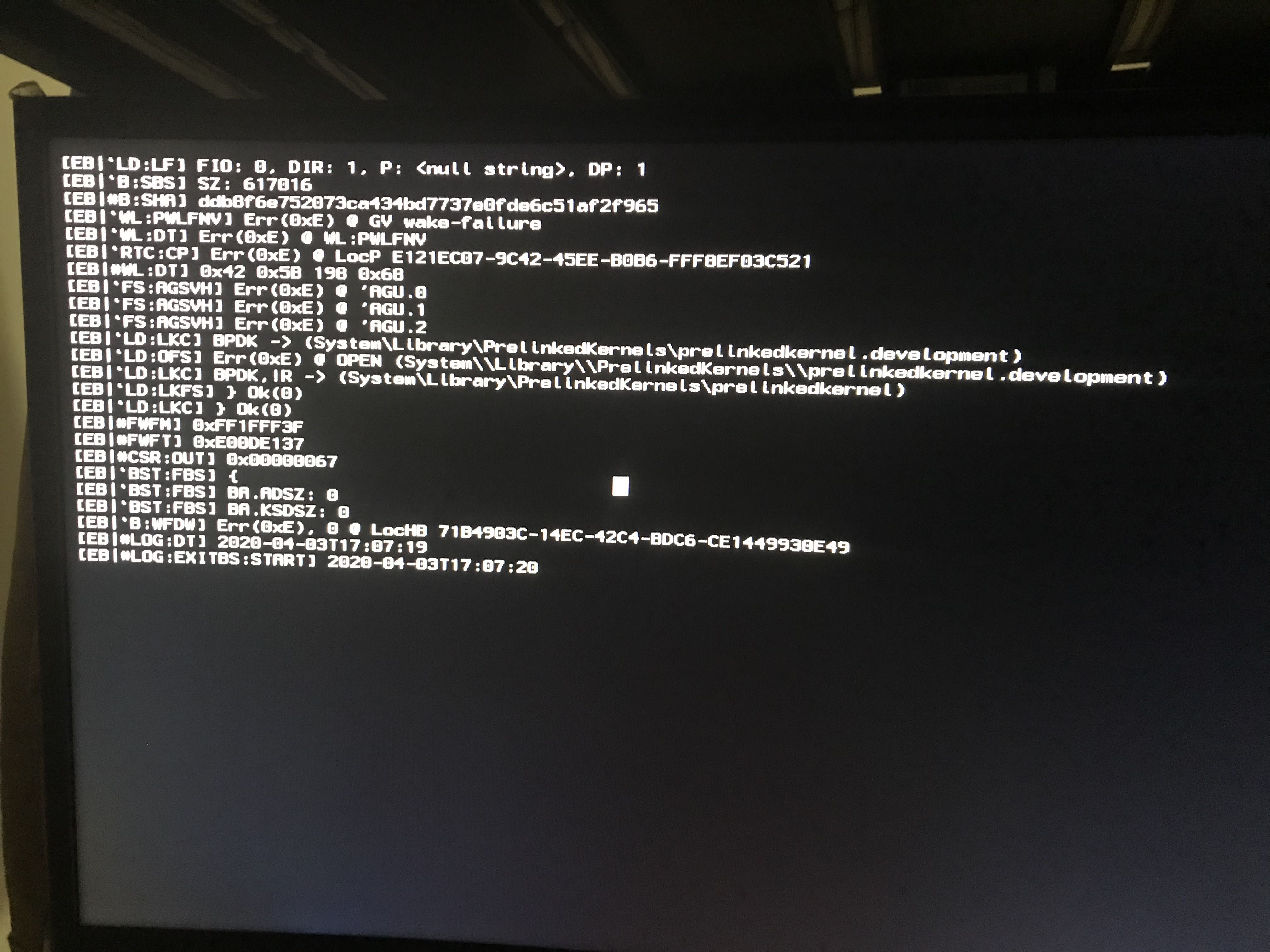

Apple Hunter Posted April 5, 2020 Share Posted April 5, 2020 (edited) As you given i have already done e Still same Result i have updated to 0.5.7 with OpenRuntime.efi. no change same.. freeze on this error. opencore-2020-04-05-062046.txt Edited April 5, 2020 by Apple Hunter Link to comment Share on other sites More sharing options...
Apple Hunter Posted April 5, 2020 Share Posted April 5, 2020 Check My BIOS Setup whether there is mistake. or need to change settings. I have zipped BIOS_Screen_SHOTS.zip Link to comment Share on other sites More sharing options...
