Success Mac Pro 7.1 i9-9900K + Aorus Extrem Z390 + RX580

5 posts in this topic

Recommended Posts

hello Everybody


I use Hackintosh many years , I enjoy building system that work smooth and stable

with this config , all the time I have freezing system once a day or once in 3 days its random

no solution found to fix the problem , start to check for hardware failure but that was not the problem


and after many hours spending to fix the problem , i start everything from scratch step by step from bios config to post install

remove all DSDT and Clean Clover , For 2 Days it works stable and also Apple TV+ start working


Also Geekbeench Score better than iMac 19,1

no need to inject intel hd connector just full graphic and GVA working


I will upload later full instruction of install , and post install

for now one problem with smbios Mac Pro 7.1 , After login system alert say the misconfigured memory still working on it


best regards

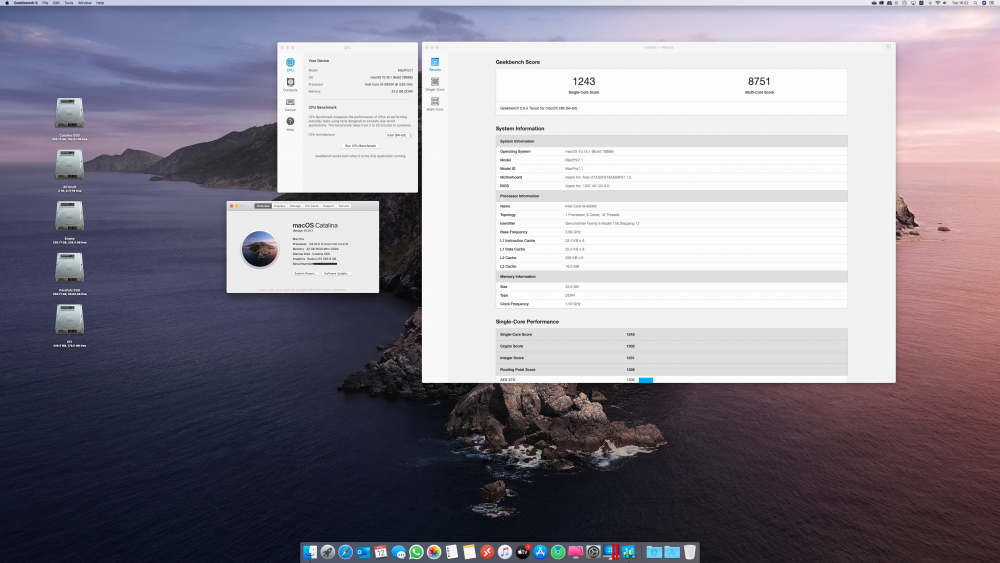

Screen Shot 2019-11-12 at 16.52.35.png

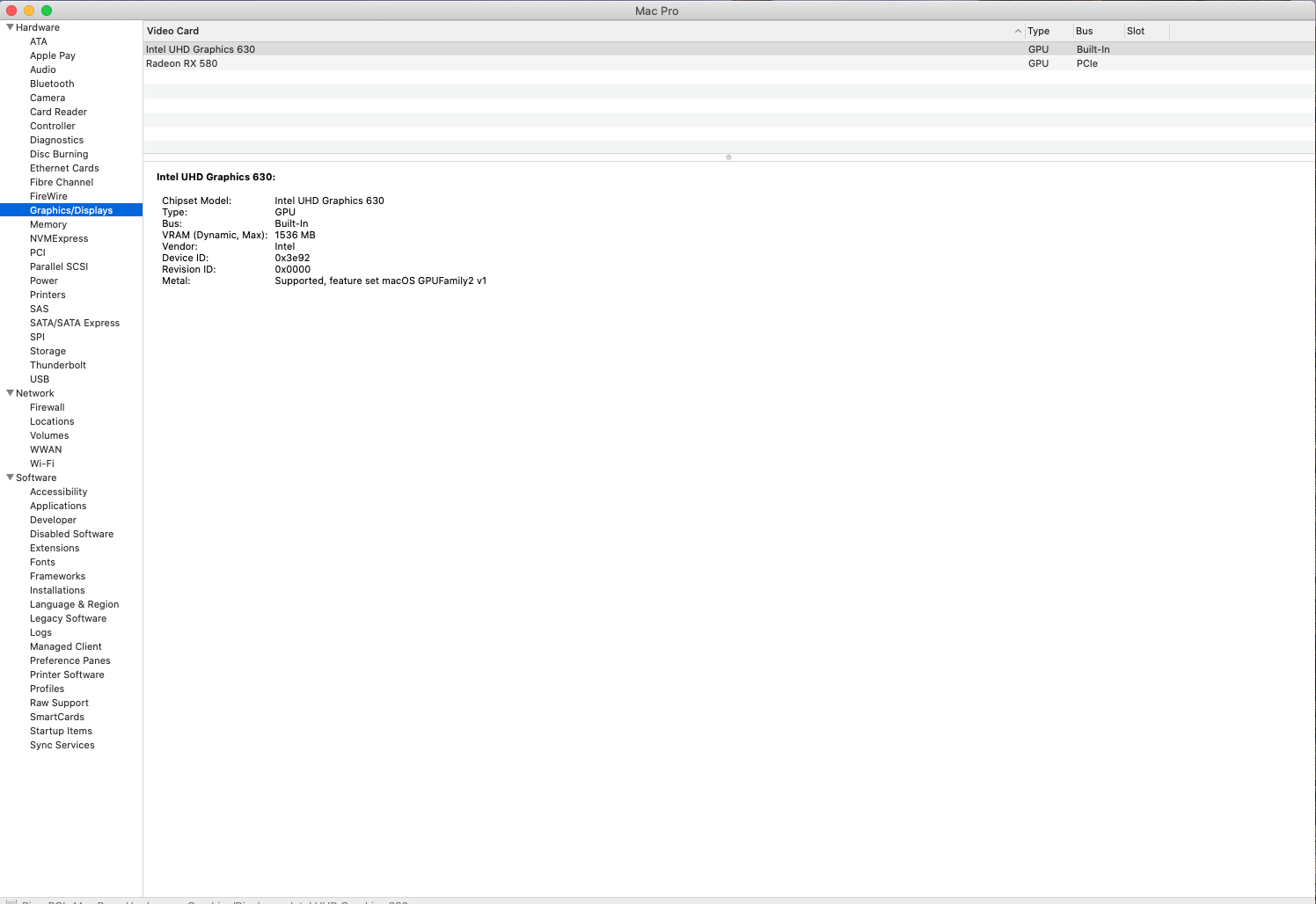

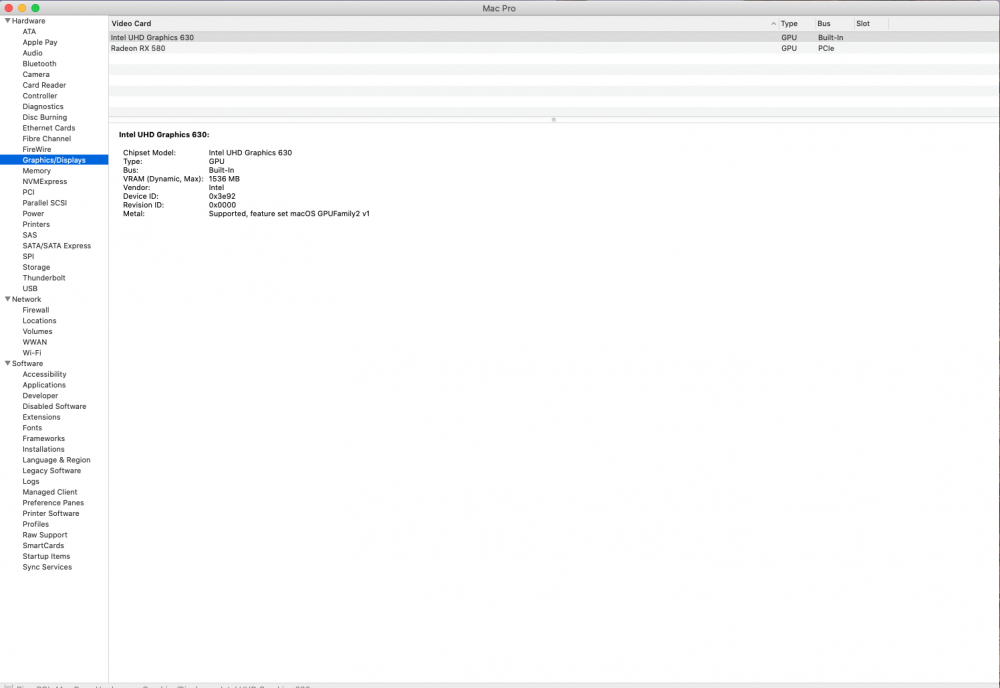

Screen Shot 2019-11-12 at 16.54.13.png

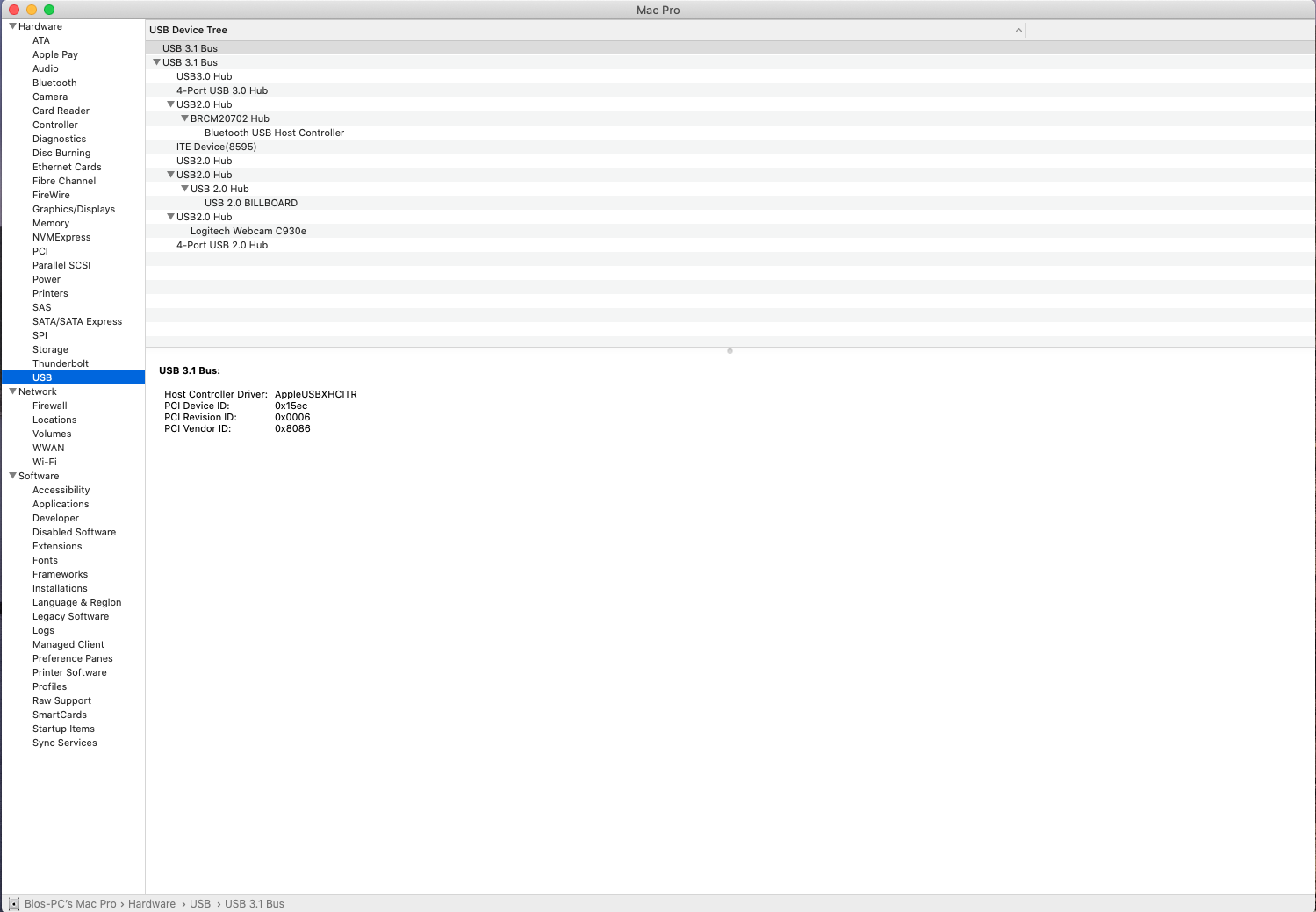

Screen Shot 2019-11-12 at 16.54.35.png

Share this post

Link to post
Share on other sites



[Success] Catalina 10.15.2 Gigabyte Z390 Aorus Extreme, i9 9900K and Asus Strix Rog RX580



  • Processor : Intel Core i9-9900K
  • Motherboard : Gigabyte Z390 Aorus Extrem Rev 1
  • RAM : 32GB DDR4 PC3000
  • GPU : Radeon RX580 8GB Asus Strix Rog
  • IGPU : Intel UHD630 graphics 630
  • Storage : Samsung Evo960 NVME 256GB
  • Ethernet : Intel I219V Ethernet Gigabit Port
    • Aquantia AQC107 10Gbit
  • Wifi : Broadcom BCM43xx 1.0
  • USB : Intel Chipset
  • Audio Codec : ALC1200
  • Display Size : Philips Ultraclear Brilliance 28 inch
  • Monitor Resolution : Full HD 3840 x 2160
  • Boot Mode : UEFI
  • SMBIOS : Mac Pro 7.1



everything is working , smbios 7.1 solve freezing issue with rx580 . also Apple TV+ work without any problem with DRM
not work:
trim for SATA not work but for NVME is working
restart some time not woking , still working on it
memory error , but the system is stable and show the correct memory.




Screen Shot 2019-11-19 at 14.31.26.png




Edited by Bios-PC

Share this post

Link to post
Share on other sites
2 hours ago, Bios-PC said:

help with DSDT and memory issue?



For DSDT, you've got this topic to request a DSDT



Few week ago, I read some post for your memory issue but I don't remember where in this forum.

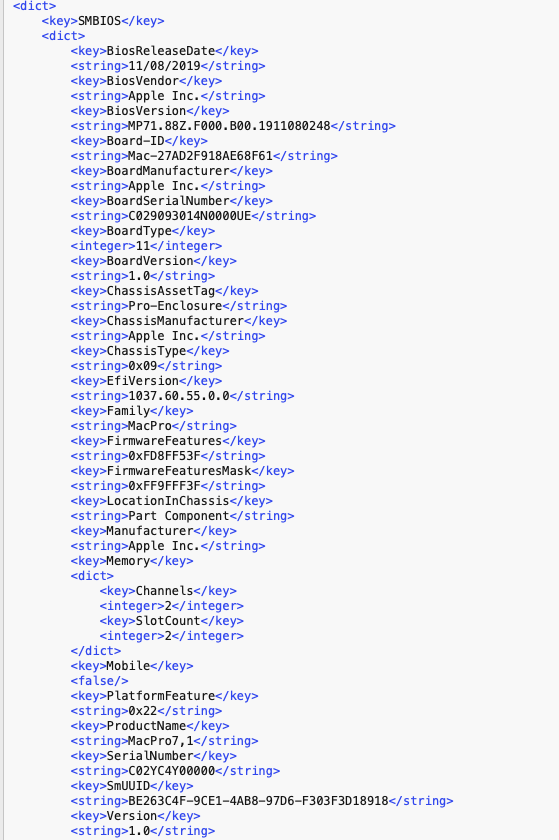

Take a look in your config.plist, specially <key>Memory</key> (SMBIOS section) maybe


For example, below





Capture d’écran 2019-11-30 à 14.31.45.png

Edited by Matgen84

Share this post

Link to post
Share on other sites

I did read this post about memory and tried a lot of config on clover

but still the same problem.



Share this post

Link to post
Share on other sites
