Problem with Intel HD 3000 Mojave 10.14.6


thunder94
 Share

25 posts in this topic

Recommended Posts

Hi everyone, I need a hand on my hackintosh. My pc is made up of an i7 2700k, Asus P8H61M-LX, 8GB DDR3 RAM and the integrated Intel HD 3000 graphics card. I managed to install Mac OS Mojave 10.14.6, everything works except the video card which is recognized as HD 2000 with 7mb. I have followed several guides but without success. I am not a very experienced hackintosh user but I hope to find someone to help me.

Link to comment
Share on other sites

I understand thanks for the very detailed answer but at the moment I don't have much money to acquire a video card even from the paltry cost, I wanted to try to adapt the HD 3000 just for this reason. For better or worse, the system works, only slowing down when the graphics card is obviously needed. Is there really nothing that can be done?

Link to comment
Share on other sites

chris1111 thanks but I have already tried and nothing to do, set the config.plist with injectintel, ig platform and also another device ID but nothing, at most I recognize the HD 3000 but always with 7mb of VRAM. Basically the Device id of my graphics card is 0x0122, the only one that works is putting 0x0126 but nothing always 7mb

Link to comment
Share on other sites

On 9/9/2019 at 6:38 AM, thunder94 said:

chris1111 thanks but I have already tried and nothing to do, set the config.plist with injectintel, ig platform and also another device ID but nothing, at most I recognize the HD 3000 but always with 7mb of VRAM. Basically the Device id of my graphics card is 0x0122, the only one that works is putting 0x0126 but nothing always 7mb

No ig Platform is required, post a complete EFI Folder here

if you have Install kext or trying other things before using the patch thats not good, you have to reinstall from scratch and use only the patch thats it



EDIT test ************* NOW

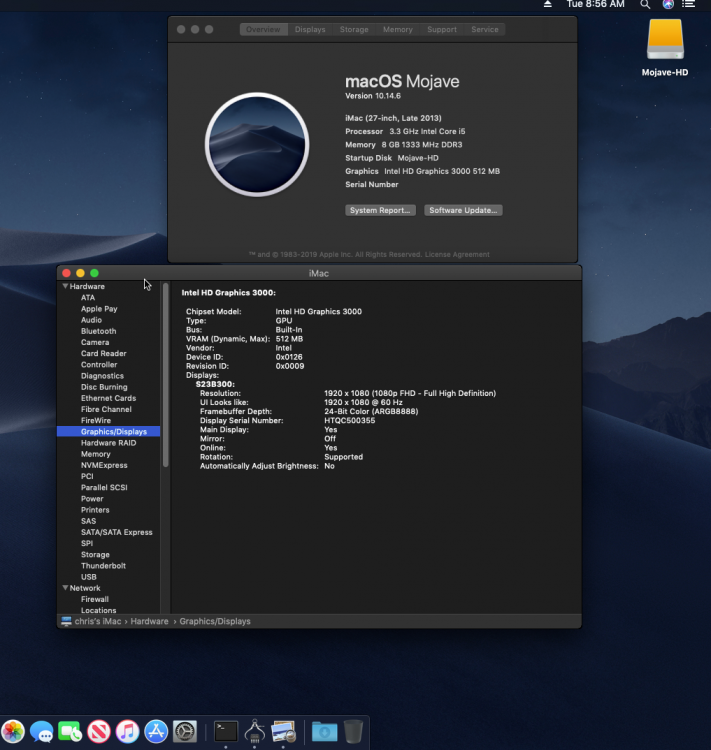

See my result to a Dell Optiplex 790 CPU i5 2500k




Edited by chris1111
Test 10.14.6
Link to comment
Share on other sites

I send the screen that shows the EFI partition, the screen that shows the information of the system and I send the link to download the EFI folder of that partition. However, I've tried other guides as well as this one so you could tell me how to uninstall all the kext I tried to do a clean installation of yours? Ah i would like to point out that the connection with the monitor is via RGB cable as the motherboard has only that output



Link EFI folder: http://www.mediafire.com/file/bd42emn5jx6a3m7/EFI.zip/file

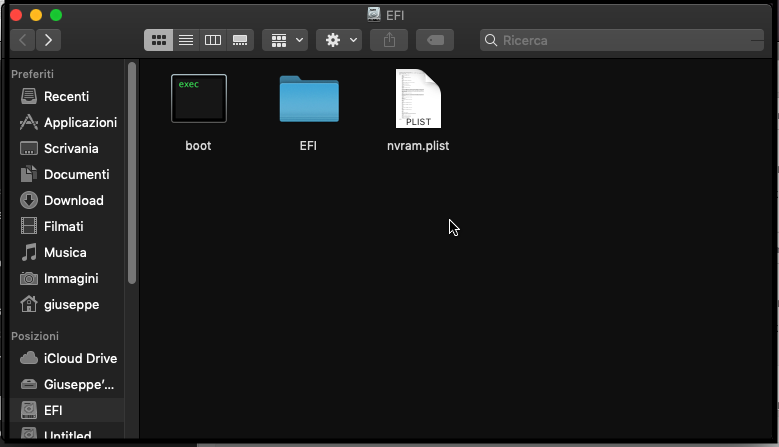

Schermata 2019-09-10 alle 18.11.45.png

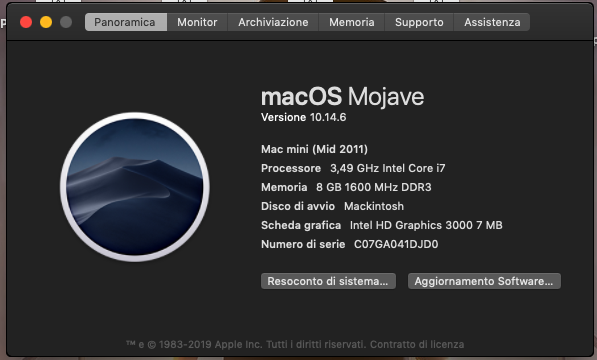

Schermata 2019-09-10 alle 18.25.11.png

Edited by thunder94
Link to comment
Share on other sites

1 hour ago, thunder94 said:

I send the screen that shows the EFI partition, the screen that shows the information of the system and I send the link to download the EFI folder of that partition. However, I've tried other guides as well as this one so you could tell me how to uninstall all the kext I tried to do a clean installation of yours? Ah i would like to point out that the connection with the monitor is via RGB cable as the motherboard has only that output



Link EFI folder: http://www.mediafire.com/file/bd42emn5jx6a3m7/EFI.zip/file



Schermata 2019-09-10 alle 18.25.11.png



See my post  ➜ ➜  here







No need to use the FAKE ID because @Sherlocks has already patched the Clover code for the Intel HD 3000 B)



See the config I use, there is no Fake ID and its work perfect :D



Edited by chris1111
  • Like 1
Link to comment
Share on other sites

16 minutes ago, Hervé said:

One can easily be confused by the graphics settings of your posted config @chris1111...




No confusion

This config works for Intel HD 3000 and the GeForce 210 on Dell Optiplex 790

I just test new Framworks from AsentientBot For Mac OS Catalina

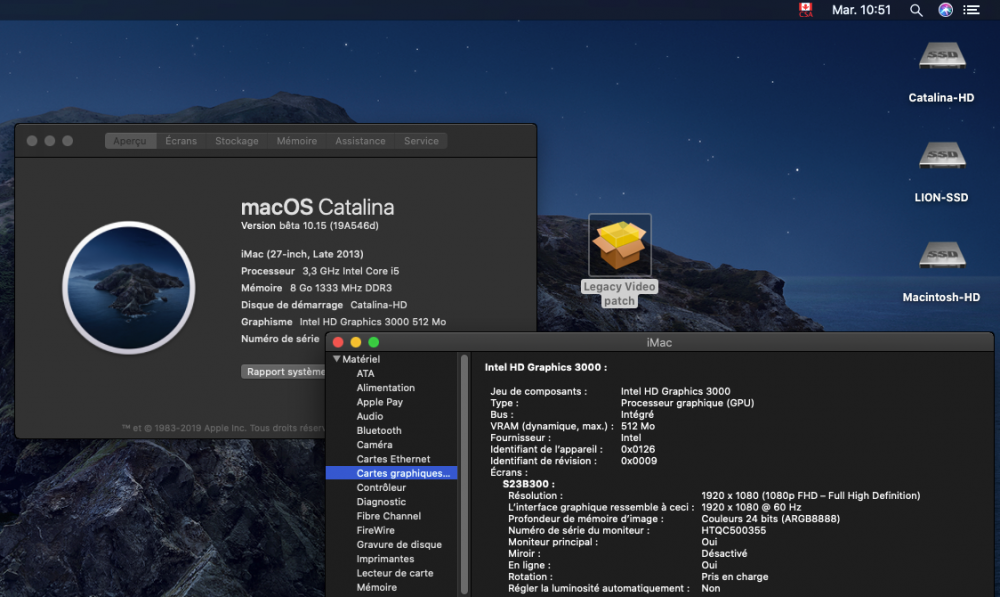

See result

Tomorow I will put my Geforce 210 on the PC because I iiil go to work now:D



➜ Patch Update here








Edited by chris1111
  • Like 1
Link to comment
Share on other sites

Thanks guys, really very kind, it's almost all clear to me, I have only a few things to be sure about. @chris1111 in addition to the files you posted to me do I also have to apply the patch indicated in the last post? Do I also have to follow the suggestions of @Hervé? @Hervé with regard to the fake id was not my mistake, simply if I put 0x01268086 the system does not start, if I put 0x0126 yes for this I left it like this.

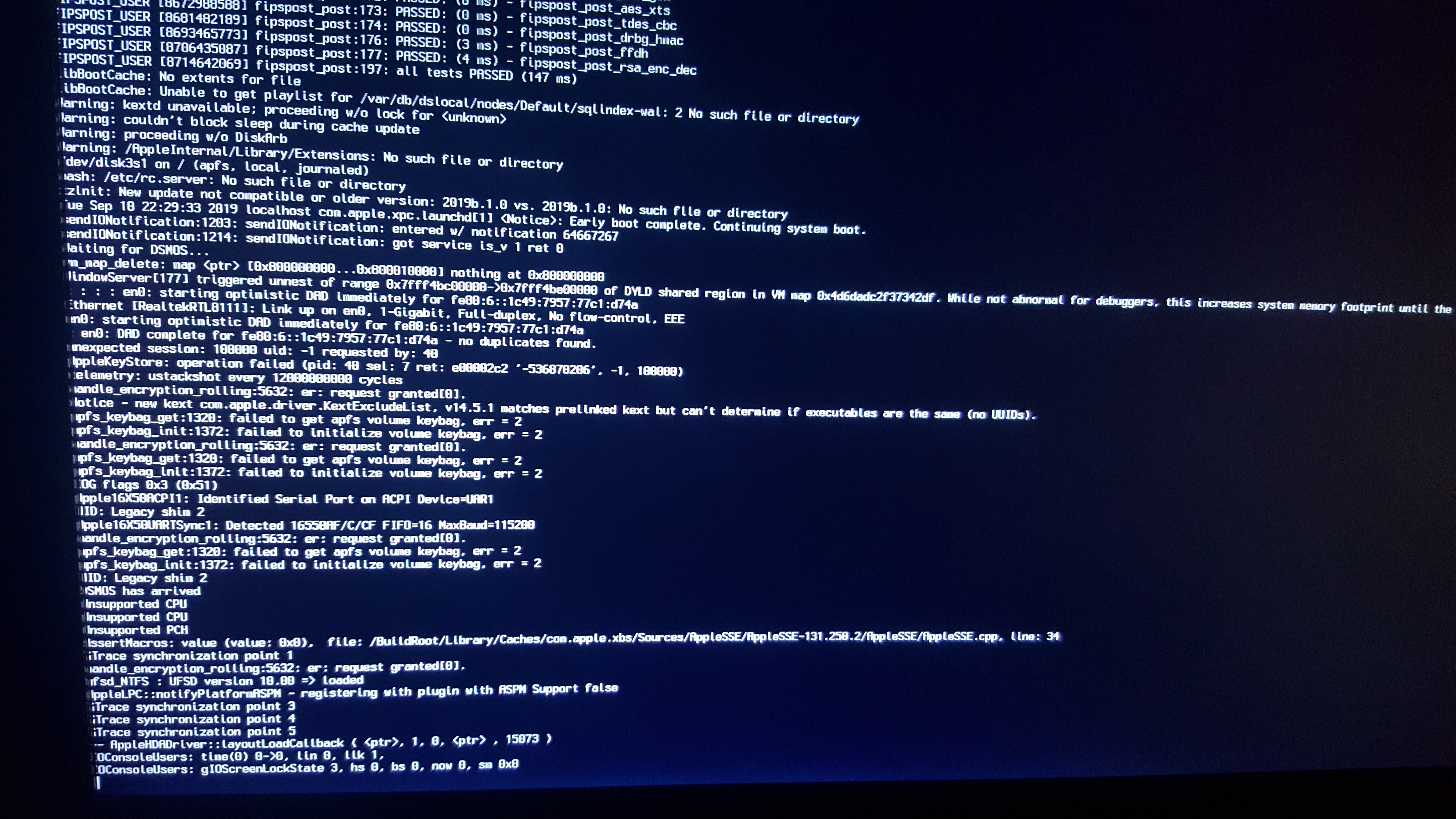

UPDATE: I tried with the files that @chris1111 kindly offered me but the system does not start, I attach the photo to show you where it crashes, if I remove inject intel or insert ig platform and the fake id that I have always used the system yes starts but always gives me HD 3000 with 7MB of VRAM. Maybe I know I should format, in the latter case can you help me prepare everything i need to format and insert a clean system?


Edited by thunder94
Link to comment
Share on other sites

After several attempts always the same old story, so I decided to open a topic I hope for in the right section to help me install Mojave correctly or even another version of MacOS more compatible with my system. if you want the link this is it: https://www.insanelymac.com/forum/topic/340276-help-for-mojave-10146-on-intel-sandy-bridge-desktop-system/



Link to comment
Share on other sites

Since your main question in that topic is about your graphics, for which you already created this topic, may I ask why you've created it?

According to your last picture your system does start, but the iGPU doesn't do its job. Most likely due to the fact that the needed kexts/frameworks aren't (correctly) installed or due to a faulty config.

Link to comment
Share on other sites

I created the other topic because, given the various attempts that didn't lead to a good result, I know that the problem is at the base and I asked if someone could help me to install from scratch the system with the right tricks and directives , or who knows I have the wrong version of the system and I have to put another or even change its system and try high sierra or sierra. Sorry if I created too many topics related to the topic :(

Link to comment
Share on other sites

Running High Sierra on the HD 3000 should work without issues.

E.g. on my HD 3000 system (which I actually got to work with help of both Hervé and Chris1111) I only selected "inject intel" with some kext patches:


1875151621_Schermafbeelding2019-09-14om15_53_42.png.ebef4c46bc9d071423994718038ad3cd.png

IIRC other than "Inject Intel" I did not add any platform-id or whatsoever; these were picked up per default by Clover.

I never used the HD 3000 on Mojave+, but I guess once you get it to work under High Sierra it won't be much trouble to make it work under Mojave (albeit with limitations).

Edited by ricoc90
Link to comment
Share on other sites

  • 1 month later...

Hello Guys. Hi @thunder94

I have faced the same problem with i3 2600k and integrated Intel HD 3000 and Mojave.

All was work perfect before I have updated from High Sierra to Mojave. Update was success, all things work, except VRAM, which was indicates as 7 mb instead of 512 mb. Screen lags too much.



I have installed this patch
https://github.com/chris1111/Fix-Graphics-HD-3000-Mojave-10.14

But this didn't help.



After that I found this thread. I try chris1111 config, but it didn't change anything too.

config didn't help. with drivers my Clover even can't boot. so I have moved back to my config and drivers which was OK on High Sierra.

After that I started to playing with Clover Configurator and after some attempts I got success.



I do not understand which config settings give that result. I just uploading my config as is. Mb it will help somebody.



config.plist



^^^^^^^ CONFIG TO DOWNLOAD ^^^^^^^



Systemreport.zip



^^^^^^^ System Report ^^^^^^^









Edited by ARGAMX
Link to comment
Share on other sites

  • 2 months later...
On 11/15/2019 at 4:25 PM, ARGAMX said:

Hello Guys. Hi @thunder94

I have faced the same problem with i3 2600k and integrated Intel HD 3000 and Mojave.

All was work perfect before I have updated from High Sierra to Mojave. Update was success, all things work, except VRAM, which was indicates as 7 mb instead of 512 mb. Screen lags too much.



I have installed this patch
https://github.com/chris1111/Fix-Graphics-HD-3000-Mojave-10.14

But this didn't help.



After that I found this thread. I try chris1111 config, but it didn't change anything too.

config didn't help. with drivers my Clover even can't boot. so I have moved back to my config and drivers which was OK on High Sierra.

After that I started to playing with Clover Configurator and after some attempts I got success.



I do not understand which config settings give that result. I just uploading my config as is. Mb it will help somebody.



config.plist



^^^^^^^ CONFIG TO DOWNLOAD ^^^^^^^



Systemreport.zip



^^^^^^^ System Report ^^^^^^^











On 11/15/2019 at 4:25 PM, ARGAMX said:

Hello Guys. Hi @thunder94

I have faced the same problem with i3 2600k and integrated Intel HD 3000 and Mojave.

All was work perfect before I have updated from High Sierra to Mojave. Update was success, all things work, except VRAM, which was indicates as 7 mb instead of 512 mb. Screen lags too much.



I have installed this patch
https://github.com/chris1111/Fix-Graphics-HD-3000-Mojave-10.14

But this didn't help.



After that I found this thread. I try chris1111 config, but it didn't change anything too.

config didn't help. with drivers my Clover even can't boot. so I have moved back to my config and drivers which was OK on High Sierra.

After that I started to playing with Clover Configurator and after some attempts I got success.



I do not understand which config settings give that result. I just uploading my config as is. Mb it will help somebody.



config.plist



^^^^^^^ CONFIG TO DOWNLOAD ^^^^^^^



Systemreport.zip



^^^^^^^ System Report ^^^^^^^










thanks, it helped me. Friezes and logs are gone

Link to comment
Share on other sites

  • 1 month later...
On 9/9/2019 at 6:41 AM, chris1111 said:

Check this out ➼ Fix HD 3000 Mojave

Make sure using a basic Config.plist inject intel= true



Good luck B)

hi, I used this on mojave 10.14.1. my hackintosh refused to boot.
had to reinstall it. can you please guide me where did I go wrong?

what files of my hackintosh do you need to check to understand my hackintosh issue, I am ready to provide.



Thanks







Link to comment
Share on other sites

  • 1 month later...

Herve' and Chris1111

I have been trying many options in Clover Config to scale down the artifacts and sudden freezes.  in Mojave.



I was given a new idea and tried this way without having to write in many different tabs in the config.plist.



In Devices>Properties> using Audio and Graphics for HD3000 and HDMI and HDEF.

This eliminates having to write in >KextstoPatch.



Then I used the ACPIPM patch to Patch the MSR blocking to remove the the two checks.



Used Chris1111 latest HD3000 Mojave kexts.



The VRAM patch is for High Sierra to increase 512mb to 1024mb but this does not work.

I placed this patch in

Devices>Properites> snb-platform-id: section Graphics



I read where also the AppleIntelHD3000.kext need a Info.plist patch.

But where does this go and what values to insert?



I am using AppleALC.kext for Audio insertion which takes the place of having to patch the HDA.kext

Using Whatevergreen.kext to patch the Graphics

Using Lilu.kext to patch the system.


But, the artifacts increase as time goes by. Memory issues I suspect.



Plus the DSDT is so ancient and EHCI cannot convert to EHO1 or 2.  No USB 2.0.



Console issue grabbing the write factors in registry.  hard to figure out when the wrong ones are placed.



I had created a DSDT according to instructions way back when in Sierra days. have used this one to date.  So it is quite messed up.

With Whatevergreen.kext, no need to change the names, renaming scheme. Causes problems.



Same with AppleALC.kext.  have to change the DSDT to GFX0

and remove the Audio.  But when removing the HDMI and audio for sandybridge in DSDT

no audio nor HDMI.  Strange.



Could you please take a look at these?







DSDT.aml.zip

config.plist.zip

Link to comment
Share on other sites

  • 1 month later...

Hi,

is the latest Mojave (10.14.6 + Security Updates) still works on HD3000 ?

So far, I boot to a black screen. I can remote login via ssh and reboot, means the computer is not crashed, but no graphics at all.

It a Lenovo X220 with 16GB memory.



Thanks.

  • Confused 1
Link to comment
Share on other sites

  • 2 years later...
On 9/14/2019 at 8:57 PM, Guest ricoc90 said:

Running High Sierra on the HD 3000 should work without issues.

E.g. on my HD 3000 system (which I actually got to work with help of both Hervé and Chris1111) I only selected "inject intel" with some kext patches:


1875151621_Schermafbeelding2019-09-14om15_53_42.png.ebef4c46bc9d071423994718038ad3cd.png

IIRC other than "Inject Intel" I did not add any platform-id or whatsoever; these were picked up per default by Clover.

I never used the HD 3000 on Mojave+, but I guess once you get it to work under High Sierra it won't be much trouble to make it work under Mojave (albeit with limitations).

thank, I will try to test glitches in High Sierra HD3000

Link to comment
Share on other sites

Thanks, Mojave has issues with HD3000.  Best to run Sierra.

I no longer have this laptop.  to the grave. RIP.



Too many glitches with the graphics.  It degrades over time.  and does not resurrect.

in Windows the graphics slowed down significantly.  Sandybridge, difficult to run and maintain above Sierra.

The glitches are intermittent at first then it gets worse.



El Captain -- Sierra runs best for HD3000 other than that good for the grave.
