This guide is a work in progress and will be updated as I refine the installation.
This is my first "modern" hack supporting UEFI and my first hack using Clover "on-the-fly" patches. My previous hacks
Laptop: Thinkpad T61 / Nvidia NVS 140m Laptop: Dell Latitude E6410 / Nvidia G3100m Desktop: Gigabyte G31 / GeForce 9600 Desktop: Biostar TH55HD / Sapphire Pulse RX580 (Google "Catalina Biostar TH55HD" and look for user name deeveedee)
are all perfectly running Catalina and I patched them all "manually" - all DSDT patches applied with MaciSL with virtually no Clover on-the-fly patching and all booted Legacy Clover. This UEFI hack was MUCH easier and took about 20 hours vs. a combined hundreds of hours for the old hacks. I wanted a hack that was a little more future proof and I think this is it. I hope you enjoy this as much as I am enjoying it. It is a perfect MacMini8,1.
My system specs
HP EliteDesk 800 G4 Mini (I7-8700T / UHD 630 / Q370 Chipset / 32GB DDR4 RAM) 3 x DP Ports (connected to monitors using DP -> DVI adapters) 6 x USB 3.1 1 x USB Type-C 3.1 2 x NVMe SSD (M.2 PCIe x4 2280/2230 combo ports) 1 x SATA6 SSD 1 x Intel Ethernet RJ-45 Conexant CX20632 Audio Codec SMBIOS MacModel MacMini 8,1 Unsupported M.2 PCIe x1 2230 Intel Wi-Fi (currently disabled in BIOS). I may replace this with Brcm, but am using only Ethernet (IntelMausi) for now.
Installation Steps: To be provided
See attached EFI and /L/E kexts in EliteDesk.zip archive See installation methodology here See references here
What is not working
Wi-Fi / Bluetooth (intentional since I have not yet replaced my Intel card).
What is not tested
USB c 3.1 port Microphone port
What is working
Everything not mentioned above Sleep / Wake Multiple displays with IGPU graphics acceleration, hot pluggable display ports and DP->DVI adapters USB 3.1 ports Audio (internal speaker and headphone jack) Ethernet Auto-sensing headphone jack automatically switches to internal speaker when headphones removed
Known Issues and their solutions
(Solved. Cycle power on the new display) A new display may not be detected if the new display is plugged into an unused display port while the HP EliteDesk 800 G4 Mini is sleeping. Solution is to cycle power on the new display after waking the EliteDesk 800 G4 Mini. Cycling display power on the newly added display causes displays to be re-detected. (Solved. Problem resolves itself after a few boot cycles) After applying the Catalina 10.15.5.02 supplemental update, Catalina booted to a single display. After a few boot cycles, multi-display operation was restored to normal. (Solved and included in the attached EliteDesk.zip archive) Unable to upgrade from 10.15.4 to 10.15.5 when using IntelMausiEthernet.kext. Solution is to switch to IntelMausi.kext (Rev 1.0.2 here). (Solved and included in the attached EliteDesk.zip archive) Some USB devices were not recognized. My SSDT-UIAC.aml was incomplete and did not specify all required USB port types (missing SSxx ports). The attached EliteDesk.zip archive includes this fix. (Reported this as a possible Clover issue - no solution yet) Clover boot loader may default to Recovery volume after a normal shutdown. Work-around is to select your normal macOS volume. This may only happen when Clover is configured to boot LastBootedVolume and may be "fixable" by explicitly setting a boot volume (haven't tested this). (No longer observed) At least one display blanks (sleeps) when plugging / unplugging USB device (observed in front USB 3.1 ports). Display wakes immediately on keyboard and mouse activity, so this is a minor issue but may be indicative of another issue. (Solved - this is a BIOS setting and requires no macOS changes) Safari has problems loading insanelymac web pages after sleep / wake. I suspect that the problem is with the embedded video on the pages. Also observed video problem in AppStore after sleep/wake. Console: VideoDecodersUnavailable. Solution is to enable Intel ME in BIOS. (Solved and included in the attached EliteDesk.zip archive) Display does not fully wake after resuming from sleep (needs an extra mouse or keyboard stimulus to fully wake). Solution is to change boot arg darkwake=0 to darkwake=2. Other values of darkwake may work as well, but this is the first I tried and it worked. (Solved and included in the attached EliteDesk.zip archive) -disablegfxfirmware boot arg is not required with WEG. I inadvertently left this boot arg after I encountered an endless gfx firmware update boot loop while working on my FB patching. This boot arg is no longer necessary after completing FB patching with WEG. (Solved and included in the attached EliteDesk.zip archive): Sometimes, CMOS time is lost on shutdown or restart. Solution is to enable Clover's Apple RTC fix in config.plist. (Solved and included in the attached EliteDesk.zip archive) headphone jack doesn't work. Solution is to change HDEF layout-id to 28. (Solved and included in the attached EliteDesk.zip archive) System freezes on wake from sleep because of a kernel panic related to hda-gfx (my system does not have HDMI and my DP->DVI adapters do not drive monitor speakers). Solution is to add No-hda-gfx property to HDEF as described here. This property is recognized as a Lilu flag and prevents loading hda-gfx. (Solved and included in the attached EliteDesk.zip archive) Device (PMCR) is not defined. Solution is a SSDT that "injects" the missing device. (Solved and included in the attached archive) eficheck is loaded (not sure why this is bad, but may be a privacy issue - see here). Solution is to add updated EFICheckDisabler kext that include Q370 chipset. See here.
BIOS Version / Configuration: To be provided
Version: 02.11.01 Rev.A Intel ME must be enabled for proper sleep / wake of UHD 630
Clover for UEFI booting only Install Clover in the ESP UEFI Drivers Recommended drivers AudioDxe DataHubDxe FSInject SMCHelper File System drivers ApfsDriverLoader VBoxHfs Memory fix drivers AptioMemoryFix Additional drivers NvmExpressDxe Install RC scripts on target volume Themes Choose your desired theme Install Clover Preference Pane (option not available when installing on USB thumb drive)
UHD 630 Framebuffer Patching: To be provided
Catalina 10.15.5.02 Clover (UEFI) r5119 Lilu.kext 1.4.5 WhateverGreen.kext 1.4.0 AppleALC.kext 1.5.0 IntelMausi 1.0.3 (Not IntelMausiEthernet)
Credits To be provided
EliteDesk800 G4 Mini - Rev 0.82.zip
Do you want to quickly find your boot log, or ever wanted to know which version of bootloader is installed on your disk(s), had the need to dump your BIOS from OS X, just curious about your own system setup or been asked to provide your setup information to others when asking for assistance?
DarwinDumper is a useful collection of readily available tools, and scripts wrapped in an application framework giving you a convenient method to quickly gather a system overview of your hack or Mac. And rest assured that enabling the privacy option will mask sensitive data like the IOPlatformSerialNumber, IOPlatformUUID, IOMACAddress(s), USB Serial Number(s), SystemSerialNumber, serial-number, fmm-mobileme-token-FMM, MLB and ROM efi vars and CustomUUID in the dumped files and report.
Latest beta is 3.1.0b8
Current Release Version: 3.0.4.
The system dumps are saved to a folder or your choice, but defaulting to the same directory as the main application. You can choose to setup a symlink to make it simple to run DarwinDumper from the Terminal.
There is an option to create an html report showing a complete overview of the dumps. This report will mostly just contain the text dumps as you'll find in the main dump directory, but for some dumps there is extra processing to try to present the information in a better way. For example, the Disk Partitions and Unique ID's dump will show a visual map of the disk layout, and the DMI Tables (SMBIOS) dump will show the data split by table type.
Note: The html report does not contain all files from a complete dump so if seeking assistance for a problem and you wish to send someone a DarwinDump then you will want to send the complete dump directory and not just the .html report file.
The following can be read and dumped by DarwinDumper:
- ACPI tables.
- Audio codec and further info.
- Boot loaders and configuration files.
- CPU info.
- Disk partition structure / info.
- Disk sectors (hex).
- DMI (SMBIOS).
- I/O Kit Registry.
- EFI Memory Map.
- EFI vars (some).
- Kernel information
- Kexts - (list of currently loaded kexts).
- NVRAM (both Apple specific and UEFI firmware variables).
- SMC Keys.
- LSPCI (PCI vendor & device codes) dumps.
- Power (Sleep/Hibernate) settings.
- System Profiler.
- System BIOS.
- System Log(s).
- Video BIOS.
DarwinDumper is licensed under GNU General Public License, version 3.0 (GPLv3).
Copyright: Not Known. License: Not known Source: http://www.insanelymac.com/forum/topic/211294-information-on-vesa-modes-in-atinvidia-bios/ Alt Link: https://www.dropbox.com/s/dnp903x2z9pqf8k/AnalyseVBIOS.zip?dl=0 AppleIntelInfo Copyright: © 2012-2017 Pike R. Alpha. All rights reserved. License: Creative Commons Attribution-NonCommercial https://github.com/Piker-Alpha/AppleIntelInfo atomdis Copyright: Michael Larabel @ Phoronix.com License: GPL Version 2 Source: http://www.phoronix.com/scan.php?page=article&item=amd_atombios_dumper bgrep Copyright 2009 Felix Domke <email@example.com>. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL <COPYRIGHT HOLDER> OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. The views and conclusions contained in the software and documentation are those of the authors and should not be interpreted as representing official policies, either expressed or implied, of the copyright holder. Source: https://github.com/tmbinc/bgrep bdmesg Copyright 2010 by Islam M. Ahmed Zaid. All rights reserved. License: GPL Version 2 Source: http://forge.voodooprojects.org/p/chameleon/source/tree/HEAD/trunk/i386/util/bdmesg.c Alt Link: https://sourceforge.net/p/cloverefiboot/code/1905/tree/CloverPackage/utils/bdmesg/bdmesg.c cmosDumperForOsx Created by rafirafi, revised extensively by STLVNUB License: Information not available Source: http://www.projectosx.com/forum/index.php?showtopic=2432&st=0&p=21522&&do=findComment&comment=21522 csrstat Created by Piker-Alpha Copyright: © 2015-2017) by Pike R. Alpha License: Information not available Source: https://github.com/Piker-Alpha/csrstat dmidecode License: GPL Version 2 Source: https://github.com/acidanthera/dmidecode dumpACPI Created by blackosx. Idea taken from PHPdev32's MacIASL. Source: https://bitbucket.org/blackosx/dumpacpi edid-decode Created by Adam Jackson, revised by Andy Vandijck License: Information not available Original Source: http://cgit.freedesktop.org/xorg/app/edid-decode Revised Source: http://bit.ly/1qAzqxb fdisk440 Apple Computer, Inc. License: APSL v2.0 Source: http://forge.voodooprojects.org/p/chameleonApplications/source/tree/HEAD/trunk/fdisk.tproj FirmwareMemoryMap script Amit Singh (showbootermemorymap) License: Information not available flashrom http://flashrom.org/Flashrom License: GPL Version 2 Source: https://www.dropbox.com/s/gfmqx2t7lvofs1v/flashrom.zip?dl=0 getcodecid Copyright © 2012 AnV Software. All rights reserved. License: Information not available Source: http://www.insanelymac.com/forum/topic/285277-getcodecid-command-line-tool-to-detect-codec-id/ Alt Link: https://www.dropbox.com/s/lkio427x3py0cyx/getcodecid.zip?dl=0 getdump Created by fassl?, modifications by Slice and AutumnRain? License: Information not available Source: https://svn.code.sf.net/p/voodoohda/code/tranc/getdump.c gfxutil Copyright 2008 mcmatrix. All rights reserved. License: Information not available Source: https://github.com/acidanthera/gfxutil Historic detail can be found at forum.netkas.org iasl Copyright © 2000 – 2014 Intel Corporation. License: Information not available Source for v20200110: https://www.acpica.org/node/176 ioregwv Apple Computer, Inc. License: APSL v2.0 Source: https://bitbucket.org/blackosx/ioregwv lzma Copyright © 2013 Igor Pavlov. License: GNU Lesser General Public License Source: http://www.7-zip.org/sdk.html This build by Slice at insanelymac.com: https://www.insanelymac.com/forum/topic/311786-updated-lzma-utility-v1514/ lzvn Copyright: © 2014 Apple Computer, Inc. All rights reserved. License: APSL Credit: Piker-Alpha, Andy Vandijck, MinusZwei. https://github.com/Piker-Alpha/LZVN MacGap2 Created by Tim Debo. All rights reserved. License: MIT Source: https://github.com/MacGapProject/MacGap2 nvram Apple Computer, Inc. License: APSL v2.0 Source: https://bitbucket.org/blackosx/nvram oclinfo Copyright © 2009 cmf License: GPL Version 2 Source: http://www.insanelymac.com/forum/topic/170796-opencl-info/ pciutils driver (DirectHW.kext) DirectHW is Copyright © 2008-2010 coresystems GmbH License: GPL Version 2 Source: http://www.projectosx.com/forum/index.php?showtopic=2480 pciutils lspci Copyright © 1997--2008 Martin Mares License: GPL Version 2 Source Code: https://git.kernel.org/pub/scm/utils/pciutils/pciutils.git Macpmem driver (Macpmem.kext) Copyright © 2007-2011 Volatile Systems. Copyright 2013-2014 Google Inc. All Rights Reserved. License: GPL Version 2 Source Code: https://github.com/google/rekall/tree/master/tools/osx/MacPmem]https://github.com/google/rekall/tree/master/tools/osx/MacPmem RadeonDump Created by Dong Luo. Copyright 2008. All rights reserved. Modified by Andy Vandijck License: Information not available Source: http://www.insanelymac.com/forum/topic/282794-darwindumper/page__st__120?do=findComment&comment=1920068 Alt Link: https://www.dropbox.com/s/5drpckxlmaot732/RadeonPCI.zip?dl=0 radeon_bios_decode Created by Dong Luo. Copyright 2008. All rights reserved. License: Information not available Source: http://www.insanelymac.com/forum/topic/282794-darwindumper/page__st__120?do=findComment&comment=1920068 smbios-reader http://www.nongnu.org/dmidecode/ License: GPL Version 2 Source: http://www.projectosx.com/forum/index.php?showtopic=2208 SMC_util_FansOnly Copyright © 2006 devnull License: GPL Version 2 Source: https://www.dropbox.com/s/ra9h6gbjj6yhgol/SMC_util_FansOnly.zip?dl=0 smcutil Copyright © 2006 devnull License: GPL Version 2 Source: https://www.dropbox.com/s/0dgvexijx4oewfr/smcutil.zip?dl=0 VoodooHDA.kext Created by fassl?, modifications by Slice and AutumnRain? License: https://sourceforge.net/p/voodoohda/code/HEAD/tree/tranc/License.h]https://sourceforge.net/p/voodoohda/code/HEAD/tree/tranc/License.h Source: https://sourceforge.net/p/voodoohda/code/HEAD/tree/]https://sourceforge.net/p/voodoohda/code/HEAD/tree/ x86info Written to succeed CPUID by Phil Karn (KA9Q). Contributed to by various people. OS X compatability by Slice License: GPL Version 2 Original Source: https://github.com/kernelslacker/x86info Revised Source: https://github.com/CloverHackyColor/x86info
Running DarwinDumper from the command line:
From Terminal, you can initiate DarwinDumper by running the following script directly.
/DarwinDumper.app/Contents/Resources/public/bash/script.sh To help with this, the UI has a Symlink option which you can click to create a symbolic link which points to the above script. DarwinDumper can then be subsequently run from the command-line by loading a new Terminal window and typing darwindumper followed by return.
Credits (in alphabetical order):
Adam Jackson, Amit Singh, Andy Vandijck, Apple Inc., arsradu, bcc9, blackosx, cmf, DieBuche, dmazar, Dong Luo, droplets, ErmaC, Felix Domke, Google Inc., Intel Corporation, InsanelyDeepak, JrCs, Kabyl, Kynnder, Martin Mareš, mcmatrix, Michael Larabel, Mickey1979, phcoder, Phil Karn, Piker-Alpha, rafirafi, гык-sse2, Slice ,sonotone, STLVNUB, THe KiNG, Trauma, Volatile Systems, xsmile, !Xabbu.
DarwinDumper was originally inspired as an open project by Trauma, it has remained an open project and please keep it an open project, so if you make any changes or additions to it then please share your work here.
Please report any feedback, requests or bugs.
DarwinDumper v3 requires OS X 10.9 and newer to run in the Finder, though it should work from the command line okay on older OS versions.
The following link retains the download for v126.96.36.199 for older OS versions.
Finaly Success to boot on Sierra 10.12.6 (16G29) with Touchscreen working theres still things to fix but everything is almost working. During the Corvid StayAtHome Period I was able and have time to make this laptop boot on MacOS after a lot of attemps before going back to job. It was the hardest laptop hackintosh install attemp i've done so far and Sierra OS is the only that works. I tried El Capitan and Mojave and its never boot so I not even tested Catalina. I searched on the web and theres no install guide for this specific laptop or no Success install post on this laptop its look like a not very well supported laptop by hackintosh. Maybe some of you can help me correct the things that still not work. Audio work but with voodo (low sound and low quality) I want to make it work with AppleALC to get better quality sound. Thanks in advance
Things that work:
-Trackpad (not the gesture for now) - Backlight Keyboard
-EthernetPort and Wireless (with a wifi dongle. I will change to a broadcom wifi mini-pci chip)
-Brightness Controls with FN key
-Audio Voodoo ''low sound'' (will tried to change to AppleALC or AppleHDA fix method)
Things that not work or need to be fixed:
-Weird double long booting screen-first loading bar on the right. after real loading bar is visible ?
-Audio (Voodoo) work but with low volume sound- still not success to make work AppleALC.kext method
-SENSORS -CPU-HDD Temperatures, BATTERY LEVEL, ETC…
- Sleep (Disabled): USB ports not works after wake from sleep
CPU: Intel Core i7-3687U, 2100 MHz
GPU: Intel HD Graphics 4000
RAM: 12 GB (4GB soldered + 8 GB Samsung DDR3 1600)
Motherboard/Laptop model: Intel Panther Point QM77, Intel Ivy Bridge - (HP Revolve 810 G1)
Audio Codec: IDT 92HD91BXX @ Intel Panther Point PCH - High Definition Audio Controller
Ethernet Card: Intel(R) 82579LM Gigabit Network Connection
Wifi/BT Card: Intel(R) Centrino(R) Advanced-N 6235
HP hs2350 HSPA+ MobileBroadband Network Adapter
I am new in Hackintosh and i try to make my hp laptop a hackintosh but am not able to boot in Installation menu i don't know why please help as am new in hackintosh world so i really need your help if some can. I really be very thankful to you. Please Help me.
installation stuck at (Please go to https://panic.apple.com to report this panic)
MY Laptop Specs :
Laptop : HP cs2082tx
Mobo : HP84C1
Southbridge : Coffee Lake-U/Y PCH
CPU : Intel Core i5 8265U @ 1.60GHz Kaby Lake- U/Y
Ram : 8 Gb
HDD : 256GB SSD & 1TB HDD
Graphics : Intel UHD Graphic 620 with nvidia MX250

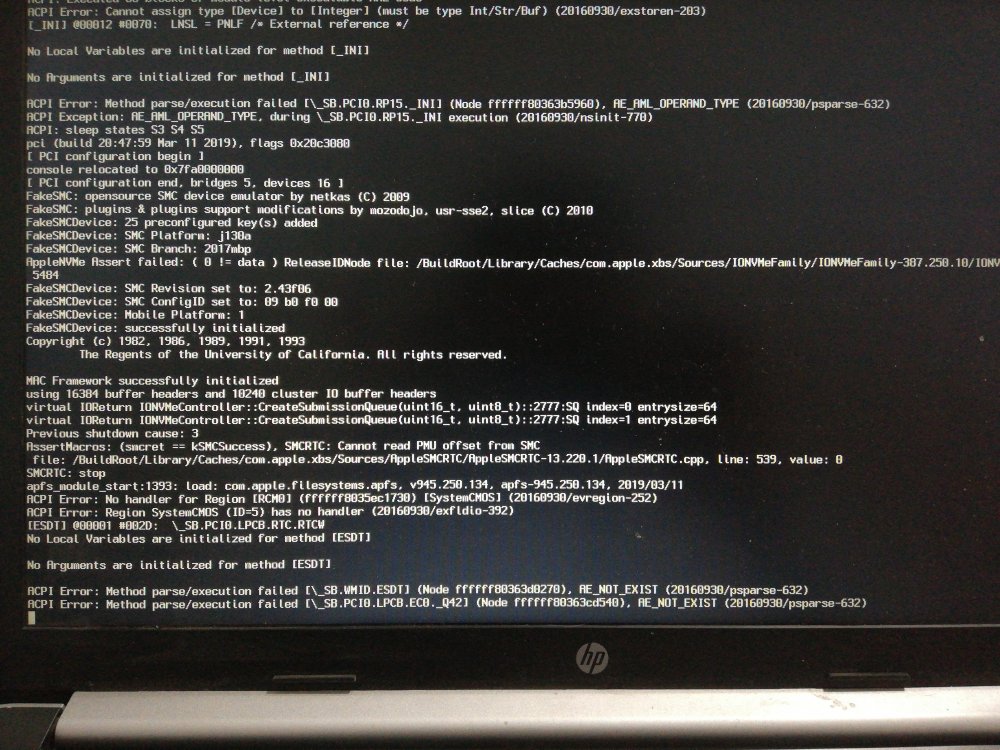

And here is the screenshot attachment and my EFI folder:
