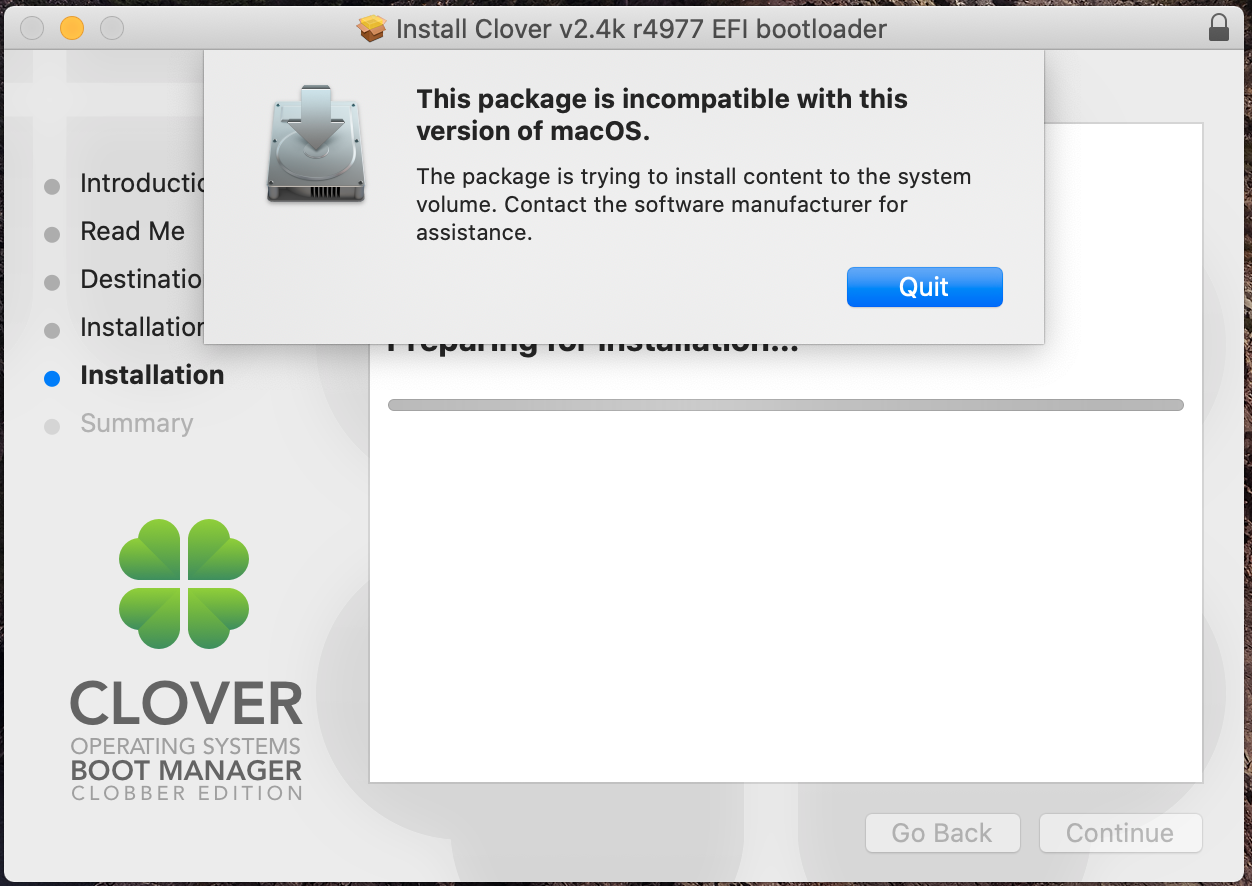

manmo71 Posted June 28, 2019 Share Posted June 28, 2019 (edited) I am running macOS Mojave on a m.2 ssd, using which I successfully created a bootable USB macOS Catalina Public Beta disk. 1. On my first attempt to boot from the USB and install I was getting a black screen and using lilubetall and wegbeta I managed to get beyond that issue. 2. After that I successfully did a clean install os macOS Catalina PB on a different m.2 SSD. 3. Clover Bootloader would not install with this error. 4. Managed to get over this by booting to my macOS Mojave disk and installing Clover onto my Catalina disk which went through successfully. 5. Now my system boots fine with iGPU and my Sapphire RX580 6. Couple of minutes into the Desktop my system freezes, nothing works, not even the keyboard or mouse. 7. I think it is a kernel panic situation but system doesn't reboot because I have debug=0x100 in my clover boot options. How can i figure out what is causing the freeze and rectify it, any guidance is much appreciated. Edited June 28, 2019 by manmo71 Correct typo errors Link to comment https://www.insanelymac.com/forum/topic/339317-macos-catalina-public-beta-1-freezes/ Share on other sites More sharing options...
Stefan Milev Posted June 28, 2019 Share Posted June 28, 2019 Hi I have a similar configuration and similar problem. Maybe someone knows how to resolve this. I will be watching this tread. Most of the time I’m away from my computer and I don’t think i can contribute a lot. Sent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/339317-macos-catalina-public-beta-1-freezes/#findComment-2679498 Share on other sites More sharing options...
MaLd0n Posted June 28, 2019 Share Posted June 28, 2019 post ur full EFI folder here Link to comment https://www.insanelymac.com/forum/topic/339317-macos-catalina-public-beta-1-freezes/#findComment-2679530 Share on other sites More sharing options...
manmo71 Posted June 28, 2019 Author Share Posted June 28, 2019 Hello MaLd0n Here is my EFI folder attached . There is one thing that I tried which made some difference and that is to change my SMBIOS to iMac 14,2 and it was stable for quiet some time, but with the default iMac 18,3 it keeps freezing, but Mojave works perfectly fine with the same EFI. EFI.zip Link to comment https://www.insanelymac.com/forum/topic/339317-macos-catalina-public-beta-1-freezes/#findComment-2679543 Share on other sites More sharing options...
Stefan Milev Posted June 28, 2019 Share Posted June 28, 2019 And here is mine. I'm booting with DSDT that you made for me. EFI.zip Link to comment https://www.insanelymac.com/forum/topic/339317-macos-catalina-public-beta-1-freezes/#findComment-2679576 Share on other sites More sharing options...
manmo71 Posted July 5, 2019 Author Share Posted July 5, 2019 Here is the fault report from my system after a reboot, if this would help. Quote Anonymous UUID: 7BB83F9F-98FE-56F1-643A-47A13FD5C850 Fri Jul 5 06:40:58 2019 *** Panic Report *** panic(cpu 6 caller 0xffffff8009798318): "a freed zone element has been modified in zone kalloc.12288: expected 0xdeadbeefdeadbeef but found 0x7254a0ae21, bits changed 0xdeadbe9d8a0d10ce, at offset 248 of 12288 in element 0xffffff80b4dea000, cookies 0x3f0011845c7e4728 0x53521193485ee67"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-6153.0.13.131.3/osfmk/kern/zalloc.c:1229 Backtrace (CPU 6), Frame : Return Address 0xffffffa776a93520 : 0xffffff800973f64b mach_kernel : _handle_debugger_trap + 0x47b 0xffffffa776a93570 : 0xffffff8009876705 mach_kernel : _kdp_i386_trap + 0x155 0xffffffa776a935b0 : 0xffffff800986824b mach_kernel : _kernel_trap + 0x4fb 0xffffffa776a93600 : 0xffffff80096e5bb0 mach_kernel : _return_from_trap + 0xe0 0xffffffa776a93620 : 0xffffff800973ed37 mach_kernel : _DebuggerTrapWithState + 0x17 0xffffffa776a93720 : 0xffffff800973f11b mach_kernel : _panic_trap_to_debugger + 0x21b 0xffffffa776a93770 : 0xffffff8009ece319 mach_kernel : _panic + 0x61 0xffffffa776a937e0 : 0xffffff8009798318 mach_kernel : _zone_find_largest + 0x128 0xffffffa776a93810 : 0xffffff800979719b mach_kernel : _zalloc_async + 0xe9b 0xffffffa776a93940 : 0xffffff800974c3d4 mach_kernel : _kalloc_canblock + 0xa4 0xffffffa776a939b0 : 0xffffff8009daa837 mach_kernel : __ZN8OSObjectnwEm + 0x27 0xffffffa776a939e0 : 0xffffff7f8d333bd8 com.apple.kext.AMDRadeonX4000 : __ZN37AMDRadeonX4000_AMDGraphicsAccelerator13newBlockFenceEv + 0x10 0xffffffa776a93a00 : 0xffffff7f8bd32cd5 com.apple.iokit.IOAcceleratorFamily2 : __ZN19IOAccelCommandQueue21submit_command_bufferEjjyy + 0x57 0xffffffa776a93a60 : 0xffffff7f8bd32b79 com.apple.iokit.IOAcceleratorFamily2 : __ZN19IOAccelCommandQueue22submit_command_buffersEPK29IOAccelCommandQueueSubmitArgs + 0x33b 0xffffffa776a93ab0 : 0xffffff7f8bd31bc3 com.apple.iokit.IOAcceleratorFamily2 : __ZN19IOAccelCommandQueue24s_submit_command_buffersEPS_PvP25IOExternalMethodArguments + 0xf9 0xffffffa776a93af0 : 0xffffff8009e658cb mach_kernel : __ZN12IOUserClient14externalMethodEjP25IOExternalMethodArgumentsP24IOExternalMethodDispatchP8OSObjectPv + 0x1db 0xffffffa776a93b40 : 0xffffff8009e6e723 mach_kernel : _is_io_connect_method + 0x223 0xffffffa776a93c80 : 0xffffff8009826322 mach_kernel : _iokit_server_routine + 0x4e62 0xffffffa776a93d90 : 0xffffff8009745448 mach_kernel : _ipc_kobject_server + 0x238 0xffffffa776a93df0 : 0xffffff800971b8f5 mach_kernel : _ipc_kmsg_send + 0x145 0xffffffa776a93e70 : 0xffffff8009732d65 mach_kernel : _mach_msg_overwrite_trap + 0x2e5 0xffffffa776a93f00 : 0xffffff800984e975 mach_kernel : _mach_call_munger64 + 0x205 0xffffffa776a93fa0 : 0xffffff80096e6396 mach_kernel : _hndl_mach_scall64 + 0x16 Kernel Extensions in backtrace: com.apple.iokit.IOAcceleratorFamily2(438.1.11)[9A6D5DCF-D2DF-3236-96E7-3775A9898126]@0xffffff7f8bcf0000->0xffffff7f8bdb2fff dependency: com.apple.driver.AppleMobileFileIntegrity(1.0.5)[5EE18C47-53E8-304D-8D4B-677EFBA24106]@0xffffff7f8a223000 dependency: com.apple.iokit.IOPCIFamily(2.9)[DCBB043F-AE8B-3294-A921-6BC753B9C619]@0xffffff7f8a37c000 dependency: com.apple.iokit.IOSurface(269.3)[2D5E86CB-6A2E-3B77-B030-40CC604ED887]@0xffffff7f8b4f7000 dependency: com.apple.iokit.IOGraphicsFamily(557)[21B2E1AE-9952-3C62-B79A-F44C9D333EF4]@0xffffff7f8bca0000 dependency: com.apple.iokit.IOReportFamily(47)[8A456F86-9DC7-3659-9690-DF50846852BA]@0xffffff7f8a2ae000 com.apple.kext.AMDRadeonX4000(3.0)[ED2156F4-AB8E-3C14-B18B-17493CDF79FD]@0xffffff7f8d32d000->0xffffff7f8d864fff dependency: com.apple.iokit.IOPCIFamily(2.9)[DCBB043F-AE8B-3294-A921-6BC753B9C619]@0xffffff7f8a37c000 dependency: com.apple.iokit.IOSurface(269.3)[2D5E86CB-6A2E-3B77-B030-40CC604ED887]@0xffffff7f8b4f7000 dependency: com.apple.iokit.IOGraphicsFamily(557)[21B2E1AE-9952-3C62-B79A-F44C9D333EF4]@0xffffff7f8bca0000 dependency: com.apple.iokit.IOAcceleratorFamily2(438.1.11)[9A6D5DCF-D2DF-3236-96E7-3775A9898126]@0xffffff7f8bcf0000 BSD process name corresponding to current thread: Resolve Boot args: -v dart=0 darkwake=8 debug=0x100 keepsyms=1 -wegbeta -lilubetaall Mac OS version: 19A501i Kernel version: Darwin Kernel Version 19.0.0: Thu Jun 27 20:18:24 PDT 2019; root:xnu-6153.0.13.131.3~1/RELEASE_X86_64 Kernel UUID: AA900358-FC13-3397-967D-53620547364B Kernel slide: 0x0000000009400000 Kernel text base: 0xffffff8009600000 __HIB text base: 0xffffff8009500000 System model name: iMac18,3 (Mac-BE088AF8C5EB4FA2) System uptime in nanoseconds: 491061716388 last loaded kext at 18905613990: com.apple.driver.AppleUpstreamUserClient 3.6.8 (addr 0xffffff7f8ea73000, size 28672) loaded kexts: ru.joedm.SMCSuperIO 1.0.5 as.vit9696.SMCProcessor 1.0.5 as.vit9696.AppleALC 1.3.9 com.rehabman.driver.USBInjectAll 0.7.1 as.vit9696.WhateverGreen 1.3.0 ru.usrsse2.SMCBatteryManager 1 ru.usrsse2.SMCLightSensor 1 as.vit9696.VirtualSMC 1.0.5 as.vit9696.Lilu 1.3.7 com.apple.driver.AppleUpstreamUserClient 3.6.8 com.apple.driver.AppleMCCSControl 1.10 com.apple.kext.AMDFramebuffer 3.0.0 com.apple.driver.AudioAUUC 1.70 com.apple.kext.AMDRadeonX4000 3.0.0 com.apple.kext.AMDRadeonServiceManager 3.0.0 com.apple.driver.AppleGraphicsDevicePolicy 4.1.30 com.apple.AGDCPluginDisplayMetrics 4.1.30 com.apple.fileutil 20.036.15 com.apple.filesystems.autofs 3.0 com.apple.driver.AppleHV 1 com.apple.iokit.IOUserEthernet 1.0.1 com.apple.iokit.IOBluetoothSerialManager 7.0.0d97 com.apple.driver.pmtelemetry 1 com.apple.driver.AGPM 111.1.16 com.apple.driver.ApplePlatformEnabler 2.7.0d0 com.apple.driver.X86PlatformShim 1.0.0 com.apple.driver.AppleHDAHardwareConfigDriver 283.13 com.apple.driver.AppleIntelKBLGraphics 14.0.0 com.apple.Dont_Steal_Mac_OS_X 7.0.0 com.apple.driver.AppleHDA 283.13 com.apple.kext.AMD9500Controller 3.0.0 com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0 com.apple.driver.AppleIntelPCHPMC 2.0.1 com.apple.driver.AppleGFXHDA 100.1.418 com.apple.driver.AirPort.BrcmNIC 1400.1.1 com.apple.driver.AppleIntelKBLGraphicsFramebuffer 14.0.0 com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0 com.apple.driver.AppleFIVRDriver 4.1.0 com.apple.private.KextAudit 1.0 com.apple.filesystems.ntfs 3.13 com.apple.iokit.SCSITaskUserClient 422 com.apple.iokit.IOBluetoothUSBDFU 7.0.0d97 com.apple.driver.AppleFileSystemDriver 3.0.1 com.apple.driver.AppleVirtIO 1.0 com.apple.filesystems.hfs.kext 517 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1 com.apple.BootCache 40 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0 com.apple.filesystems.apfs 1402.0.0 com.apple.driver.AppleAHCIPort 341.0.1 com.apple.driver.AppleACPIButtons 6.1 com.apple.driver.AppleRTC 2.0 com.apple.driver.AppleHPET 1.8 com.apple.driver.AppleSMBIOS 2.1 com.apple.driver.AppleAPIC 1.7 com.apple.security.AppleImage4 1 com.apple.nke.applicationfirewall 301 com.apple.security.TMSafetyNet 8 com.apple.AppleSystemPolicy 2.0.0 com.apple.iokit.EndpointSecurity 1 com.apple.driver.AppleSMBusController 1.0.18d1 com.apple.kext.AMDRadeonX4000HWLibs 1.0 com.apple.kext.AMDRadeonX4000HWServices 3.0.0 com.apple.driver.AppleGraphicsControl 4.1.30 com.apple.kext.triggers 1.0 com.apple.iokit.IOAVBFamily 800.12 com.apple.plugin.IOgPTPPlugin 800.11 com.apple.iokit.IOEthernetAVBController 1.1.0 com.apple.driver.AppleSSE 1.0 com.apple.driver.DspFuncLib 283.13 com.apple.kext.OSvKernDSPLib 529 com.apple.AppleGPUWrangler 4.1.30 com.apple.driver.IOPlatformPluginLegacy 1.0.0 com.apple.driver.AppleHDAController 283.13 com.apple.iokit.IOHDAFamily 283.13 com.apple.iokit.IOAudioFamily 300.2 com.apple.vecLib.kext 1.2.0 com.apple.iokit.IONDRVSupport 557 com.apple.driver.usb.IOUSBHostHIDDevice 1.2 com.apple.iokit.IO80211Family 1200.12.2b1 com.apple.driver.mDNSOffloadUserClient 1.0.1b8 com.apple.driver.corecapture 1.0.4 com.apple.iokit.IOSkywalkFamily 1 com.apple.driver.AppleSMBusPCI 1.0.14d1 com.apple.kext.AMDSupport 3.0.0 com.apple.AppleGraphicsDeviceControl 4.1.30 com.apple.iokit.IOAcceleratorFamily2 438.1.11 com.apple.iokit.IOGraphicsFamily 557 com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0 com.apple.driver.X86PlatformPlugin 1.0.0 com.apple.driver.IOPlatformPluginFamily 6.0.0d8 com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 7.0.0d97 com.apple.iokit.IOBluetoothHostControllerUSBTransport 7.0.0d97 com.apple.iokit.IOBluetoothHostControllerTransport 7.0.0d97 com.apple.iokit.IOBluetoothFamily 7.0.0d97 com.apple.iokit.IOBluetoothPacketLogger 7.0.0d97 com.apple.driver.usb.cdc 5.0.0 com.apple.driver.usb.networking 5.0.0 com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2 com.apple.driver.usb.AppleUSBHub 1.2 com.apple.iokit.IOSerialFamily 11 com.apple.iokit.IOSurface 269.3 com.apple.filesystems.hfs.encodings.kext 1 com.apple.driver.usb.AppleUSBHostPacketFilter 1.0 com.apple.iokit.IOUSBFamily 900.4.2 com.apple.driver.AppleXsanScheme 3 com.apple.iokit.IOAHCIBlockStorage 316.0.3 com.apple.iokit.IONVMeFamily 2.1.0 com.apple.iokit.IOAHCIFamily 290.0.1 com.apple.driver.usb.AppleUSBXHCIPCI 1.2 com.apple.driver.usb.AppleUSBXHCI 1.2 com.apple.driver.AppleEFINVRAM 2.1 com.apple.driver.AppleEFIRuntime 2.1 com.apple.iokit.IOHIDFamily 2.0.0 com.apple.security.quarantine 4 com.apple.security.sandbox 300.0 com.apple.kext.AppleMatch 1.0.0d1 com.apple.iokit.IOSMBusFamily 1.1 com.apple.driver.DiskImages 493.0.0 com.apple.driver.AppleFDEKeyStore 28.30 com.apple.driver.AppleEffaceableStorage 1.0 com.apple.driver.AppleKeyStore 2 com.apple.driver.AppleUSBTDM 487 com.apple.iokit.IOSCSIBlockCommandsDevice 422 com.apple.driver.AppleCredentialManager 1.0 com.apple.driver.KernelRelayHost 1 com.apple.driver.AppleSEPManager 1.0.1 com.apple.driver.IOSlaveProcessor 1 com.apple.iokit.IOTimeSyncFamily 800.11 com.apple.iokit.IONetworkingFamily 3.4 com.apple.iokit.IOUSBMassStorageDriver 156 com.apple.iokit.IOSCSIArchitectureModelFamily 422 com.apple.iokit.IOStorageFamily 2.1 com.apple.iokit.IOUSBHostFamily 1.2 com.apple.driver.AppleUSBHostMergeProperties 1.2 com.apple.driver.usb.AppleUSBCommon 1.0 com.apple.driver.AppleBusPowerController 1.0 com.apple.iokit.CoreAnalyticsFamily 1 com.apple.driver.AppleMobileFileIntegrity 1.0.5 com.apple.kext.CoreTrust 1 com.apple.iokit.IOReportFamily 47 com.apple.driver.AppleACPIPlatform 6.1 com.apple.driver.AppleSMC 3.1.9 com.apple.driver.watchdog 1 com.apple.iokit.IOPCIFamily 2.9 com.apple.iokit.IOACPIFamily 1.4 com.apple.kec.pthread 1 com.apple.kec.Libm 1 com.apple.kec.corecrypto 1.0 EOF Model: iMac18,3, BootROM 173.0.0.0.0, 4 processors, Intel Core i7, 4.20 GHz, 64 GB, SMC 2.41f1 Graphics: Radeon RX 580, Radeon RX 580, spdisplays_pcie_device, 8 GB Memory Module: BANK 0/DIMM0, 16 GB, DDR4, 2400 MHz, Corsair, CMK32GX4M2B3000C15 Memory Module: BANK 1/DIMM0, 16 GB, DDR4, 2400 MHz, Corsair, CMK32GX4M2B3000C15 Memory Module: BANK 0/DIMM1, 16 GB, DDR4, 2400 MHz, Corsair, CMK32GX4M2B3000C15 Memory Module: BANK 1/DIMM1, 16 GB, DDR4, 2400 MHz, Corsair, CMK32GX4M2B3000C15 AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x112), Broadcom BCM43xx 1.0 (7.77.61.2 AirPortDriverBrcmNIC-1305.8) Bluetooth: Version 6.0.14d3, 3 services, 27 devices, 1 incoming serial ports Network Service: Wi-Fi, AirPort, en1 Serial ATA Device: WDC WDS500G2B0B-00YS70, 500.11 GB Serial ATA Device: ST4000DX001-1CE168, 4 TB Serial ATA Device: WDC WD4003FZEX-00Z4SA0, 4 TB Serial ATA Device: ST8000DM004-2CX188, 8 TB Serial ATA Device: WDC WDS500G2B0B-00YS70, 500.11 GB USB Device: USB 3.0 Bus USB Device: BRCM20702 Hub USB Device: Bluetooth USB Host Controller USB Device: ASM107x USB Device: 4-Port USB 2.0 Hub USB Device: USB DONGLE USB Device: USB Receiver USB Device: USB 3.1 Bus Thunderbolt Bus: Link to comment https://www.insanelymac.com/forum/topic/339317-macos-catalina-public-beta-1-freezes/#findComment-2680224 Share on other sites More sharing options...
Barry_dhb52 Posted October 20, 2019 Share Posted October 20, 2019 adgpmod=pikera catalina root is read only, so you cant install into / dir. I mount efi, rename the Efi folder, and install clover the esp way. now you got the new clover file. And the easier way is to download the cloverx64.efi directly from github release. while bootx64.efi actually inditical to cloverx64.efi Link to comment https://www.insanelymac.com/forum/topic/339317-macos-catalina-public-beta-1-freezes/#findComment-2694411 Share on other sites More sharing options...
