ludufre Posted June 8, 2019 Share Posted June 8, 2019 (edited) Hello friends, I have a curious problem. Since I set up my Hackintosh in October of last year I'm having a strange problem when I use AppleALC. Although the sound works perfectly, the screen flashes randomly, as if disconnecting the HDMI cable and reconnecting. I put the video below as an example. My system works everything perfectly. 4K, Sleep, DRM, etc. Every time I install AppleALC, the screen will blink randomly. What I've tried so far: - Replace HDMI cable; - Tried another HDMI port; - Tried another monitor; - Use older versions of AppleALC; - Started without WhateverGreen; - Started without graphics acceleration; - Tried others layout-ids; - Tested in High Sierra (same issue); - Compiled Lilu.kext and AppleALC.kext from Sources; I also appended the report of my system. My configuration: - Display: Phillips 288P6L 28" 4K - Motherboard: Gigabyte GA-Z370N-WIFI - Processor: Intel i7 8700K - Storage: 500GB NVME Samsung 970 - RAM: 32GB DDR4 2400Mhz [System reporting] https://cv.ludufre.com/debug_24566.zip (It happens at 15 seconds. Note that the screen flashes green quickly) Edited June 8, 2019 by ludufre Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/ Share on other sites More sharing options...
Guest millusions Posted June 8, 2019 Share Posted June 8, 2019 try DP i tend to use HDMI as last resort, it looks a lot better with DP or DVI on hacks/macs Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677013 Share on other sites More sharing options...
ludufre Posted June 9, 2019 Author Share Posted June 9, 2019 1 hour ago, millusions said: try DP i tend to use HDMI as last resort, it looks a lot better with DP or DVI on hacks/macs I guess I was not clear. I have HDMI sound working with AppleALC. The problem is that the screen randomly gives these bugs. (see video). Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677022 Share on other sites More sharing options...
crusher Posted June 9, 2019 Share Posted June 9, 2019 Did u test without AppleALC? Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677069 Share on other sites More sharing options...
ludufre Posted June 9, 2019 Author Share Posted June 9, 2019 2 hours ago, crusher said: Did u test without AppleALC? Yeah, the problem stop without AppleALC. With no doubt he is the culprit. Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677079 Share on other sites More sharing options...
ludufre Posted June 11, 2019 Author Share Posted June 11, 2019 I realized today that when the screen blinks green the sound of a little pause and back. It looks like some kind of conflict with HDMI audio ... Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677303 Share on other sites More sharing options...
ludufre Posted June 13, 2019 Author Share Posted June 13, 2019 Today I realized that this happens only with HDMI 2.0 with my 4K monitor. The second HDMI port connected on a 1080p TV does not happen this ... If it's worth anything, in Windows this does not happen. I am currently using VoodooHDA to be able to use my PC on a daily basis. Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677544 Share on other sites More sharing options...
Stompyy Posted June 13, 2019 Share Posted June 13, 2019 Why arent you using DisplayPort instead of HDMI ? Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677549 Share on other sites More sharing options...
ludufre Posted June 13, 2019 Author Share Posted June 13, 2019 Because my two monitors don't have DP, only HDMI. But the problem is not HDMI-Audio is GFX artifacts (like in video above) Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677552 Share on other sites More sharing options...

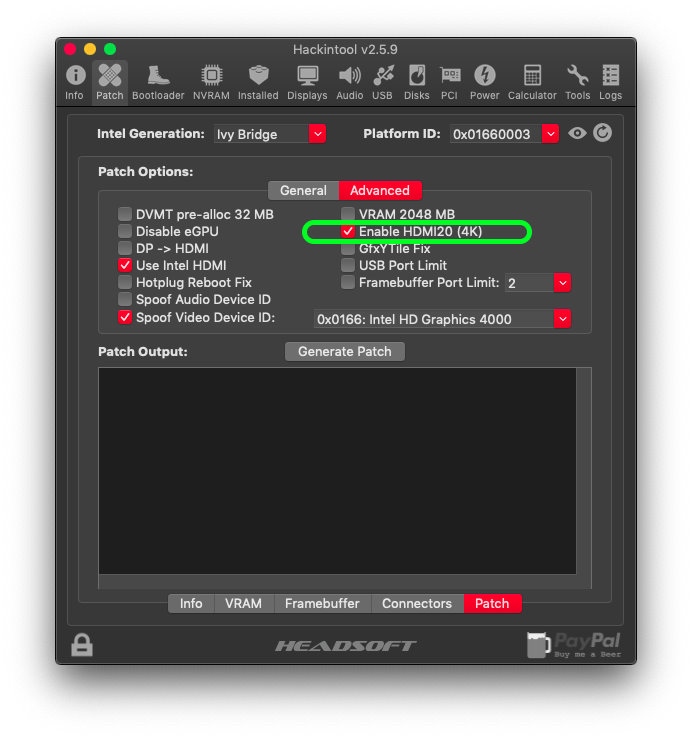

Allan Posted June 13, 2019 Share Posted June 13, 2019 Did you tried use this patch? Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677631 Share on other sites More sharing options...
ludufre Posted June 13, 2019 Author Share Posted June 13, 2019 (edited) @Allan yeap. My 4K works perfectly. The graphics issues is only with AppleALC. With VoodooHDA it's fine. I'm using Macmini8,1 profile, so I can get 4k without Device Properties too. Now I'm patching the vanilla AppleHDA with AppleHDA Patcher 1.9.2 (aDummy.kext + KextToPatchs). Already make the onboard sound work without graphics issues. Now I need to make the HDMI work... [EDIT] To be clear. I'm not satisfied with VoodooHDA because the sound gets too low, have to use PrefPane and the microphone does not work ... So now I started doing the old method (aDummy.kext + Kext) to get rid of graphics issues... Edited June 13, 2019 by ludufre Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677636 Share on other sites More sharing options...
Allan Posted June 13, 2019 Share Posted June 13, 2019 2 hours ago, ludufre said: Now I need to make the HDMI work... @MaLd0n has patched your DSDT? Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677652 Share on other sites More sharing options...

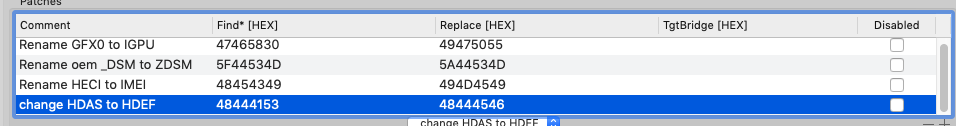

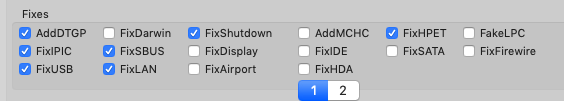

ludufre Posted June 13, 2019 Author Share Posted June 13, 2019 No, the only patches I have are: And only these SSDTs for USBInjectAll: SSDT-EC.aml SSDT-UIAC.aml SSDT-USBX.aml I've tried these SSDTs too unsuccessfully: ssdt_hdef-1-100-hdas.aml ssdt_hdef-2-100-hdas.aml ssdt_hdef-3-100-hdas.aml from Toleda. If Maldon was able to fix my DSDT for HDMI to work with aDummy.kext I would be very grateful. On 6/8/2019 at 4:42 PM, ludufre said: [System reporting] https://cv.ludufre.com/debug_24566.zip ^ DSDT.aml HERE Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677654 Share on other sites More sharing options...
MaLd0n Posted June 14, 2019 Share Posted June 14, 2019 7 hours ago, ludufre said: No, the only patches I have are: replace full efi, reboot EFI.zip why u use kexts in system folder? Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677686 Share on other sites More sharing options...
ludufre Posted June 14, 2019 Author Share Posted June 14, 2019 1 hour ago, MaLd0n said: Replace full efi, reboot Same thing with AppleALC. See video: (At begin and at 30 seconds) 1 hour ago, MaLd0n said: why u use kexts in system folder? I saw in several places that custom Kexts have to be in /Library/Extensions, so I put all there and run this: sudo chmod -R 755 /Library/Extensions/ sudo chown -R root:wheel /Library/Extensions/ sudo kextcache -i / Some news: 11 hours ago, ludufre said: Now I'm patching the vanilla AppleHDA with AppleHDA Patcher 1.9.2 (aDummy.kext + KextToPatchs). Already make the onboard sound work without graphics issues. Now I need to make the HDMI work... Since yesterday I'm using the AppleHDA Patcher guide, using the aDummy.kext + Device Properties 0x1f, 0x3 + config.plist - KextsToPatch method. I found that to work on Mojave I needed an additional patch 70A1 -> F0A2. With this I finished yesterday with sound working without using VoodooHDA or AppleALC, only with the native Kext. But no HDMI. Today I realized that the entry "hda-gfx: onboard-1" in IGPU was missing. I added and I also got the HDMI audio to work, HOWEVER, I immediately had exactly the same problems as when using AppleALC. The screen flashing/blinking with green artifacts as I showed in the two Youtube videos above. So far the only one that works without this bugs with the video was VoodooHDA, I think I'll have to settle for it and the lack of the microphone. @MaLd0n Sou brasileiro também, se preferir posso explicar melhor em Português por DM o que está acontecendo e o que eu fiz até agora pra tentar resolver. Inglês não é meu forte e pode parecer confuso. Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677689 Share on other sites More sharing options...
MaLd0n Posted June 14, 2019 Share Posted June 14, 2019 7 hours ago, ludufre said: @MaLd0n Sou brasileiro também, se preferir posso explicar melhor em Português por DM o que está acontecendo e o que eu fiz até agora pra tentar resolver. Inglês não é meu forte e pode parecer confuso. BLZ, me manda via PM Link to comment https://www.insanelymac.com/forum/topic/339104-gigabyte-z370n-wifi-applealc-screen-glitch/#findComment-2677711 Share on other sites More sharing options...
