[SOLVED] Help solve Mystery of Mac that won´t sleep!

2 posts in this topic

Recommended Posts

Hey guys,

I hope you can help me solve a mystery.
Even the amazing Mald0n has been working hard to help me find a solution, but now were are both stuck.
Creative thinking or maybe just help to see the forest for the trees would be highly appreciated.



PROBLEM:
Mac will not sleep.
Monitors sleep fine, and come back on with touch of keyboard.
GPU and CPU coolers are constantly running on idle to low load and will not go on standby no matter what we have tried.
Even when using full “Shut down” via apple menu the lights from the MoBo or GPU are pulsing slowly, which they normally dont as far as I recall.
(This specific issue could possibly be solved by using ErP Ready in BIOS. Haven´t tested this since that´s a smaller issue ATM)


Everything else seems to be working fine.
This problem started appr a week ago, and I have no idea why.
No major installs, updates or changes that I can think of.


GOALS:
• To be able to activate sleep via apple menu.
• To have it sleep within 15-30 secs and wake up quickly (like it did before) via push on Power button


TECH SPEC:
• Running 10.13.6
• Asus Maximus X Hero Wifi
• Gtx 1080 Ti
• 32 GB Corsair RAM
• Intel i7 8700K
• 2 monitors via Displayport
• 6 internal disks (2 HDD, 4 SSD)
• 1 external backup
• 1 internal USB hub/SD reader
• 3rd party Bluetooth and Wifi (Asus MB not compatible)
• No Blutooth mouse, KB etc


WHAT I HAVE DONE SO FAR:
• Used Mald0n’s custom DSDT with latest config
• IUpdated to latest Security Update
• Updated to latest BIOS
• Updated NVIDIA webdriver and CUDA to latest
• Disconnected LED monitors and tested with old Mac monitor via DVI to see if Displayports were the issue
• Disabled Adobe CC Sync
• Run CleanMyMac

• No start-up apps or extensions in System Prefs
• Disk Utility: checked all disks
• Terminal: no info on wake reason at all. (Possibly because it doesn´t sleep, hence nothing is interrupting it).
• Blutooth allowed to wake sleep: set to OFF
• Power manager: only setting is “never switch off monitors”. The rest are off/unchecked
• BIOS: Tested by setting "ErP ready" to S5 > no difference

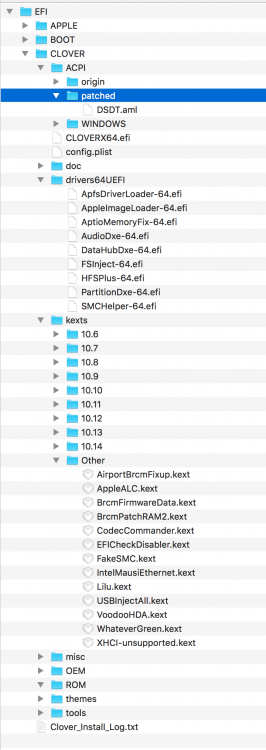

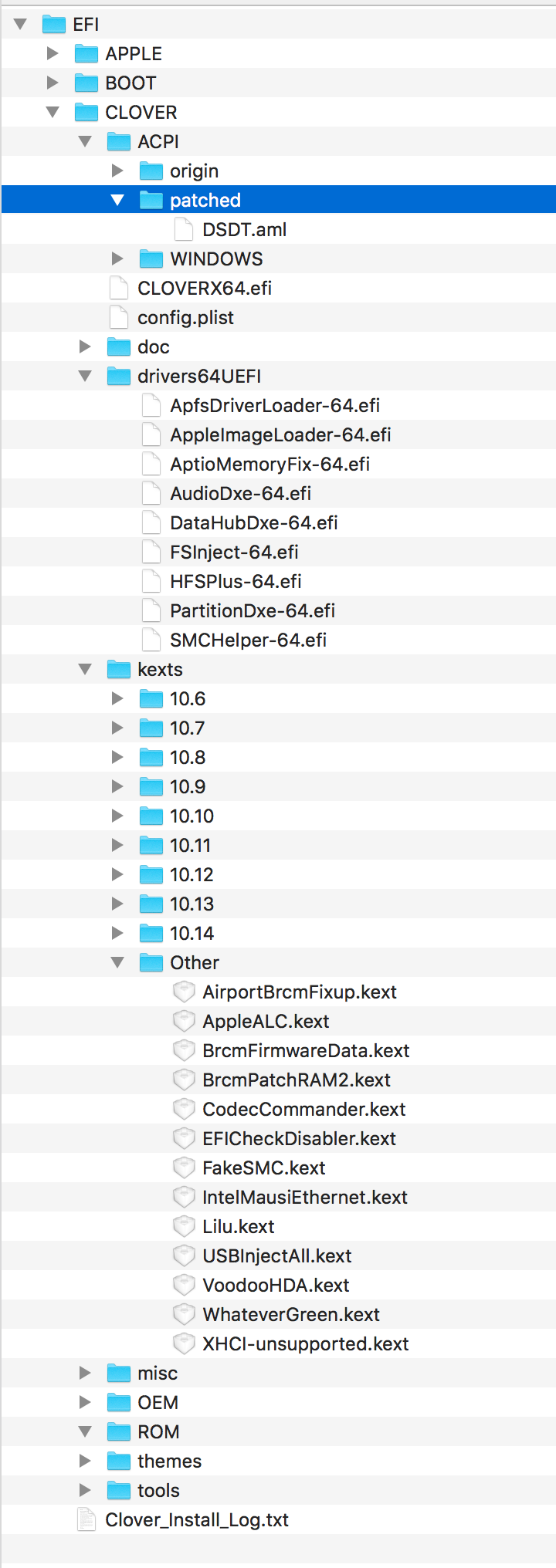

• DSDT and EFI folder screenshot attached.


I think that’s it - otherwise just ask :)

I have read a lot of articles on this type of issue, but none with a clear answer.
So if anyone can solve this mystery, it would be amazing!
Thank you in advance! :thumbsup_anim:


Bauermac DSDT.aml.zip

Skærmbillede 2019-05-06 kl. 15.09.11.png


UPDATE:
Of course it was something seemingly insignificant and stupid that prevented sleep: An unfinished PRINTER job.... :ph34r:
After clearing the printer queue, it went to sleep but woke up immediately after due to a USB power issue. Possibly an internal USB/SD hub.
Mald0n used his magic and made a new DSDT file to fix that, and now the machine is running almost perfectly apart from a fickle Bluetooth (fingers crossed).

Hope this can help others out there with issues.



Edited by BauerMac

Share this post


Link to post
Share on other sites
Advertisement

NVM, skipped over the update at the bottom of your post.  o_O

Edited by JackRabbitSlim

Share this post


Link to post
Share on other sites
