Strange CPU PM issue

1 post in this topic

Recommended Posts

Ok so i'm not sure when it started but i've noticed that when i have the Intel Power Gadget running along with the new corsair iCue software IPG shows my cpu running at 4ghz (first half of graph) and then when i quit iCue IPG drops and shows the proper cpu graph (second half of graph).

Now it doesn't always do this, when X86PlatformPlugin is not loaded IPG behaves as it should even with iCue running but my CPU will not go under 1.3ghz (0.80 is lowest). I have tried a few different things but still ends up the same, either IPG shows 4ghz or no lower than 1.3ghz.

I am hoping that somewhere in my clover folder and ioreg (attached) someone will be able to shed some light on why this is all happening.

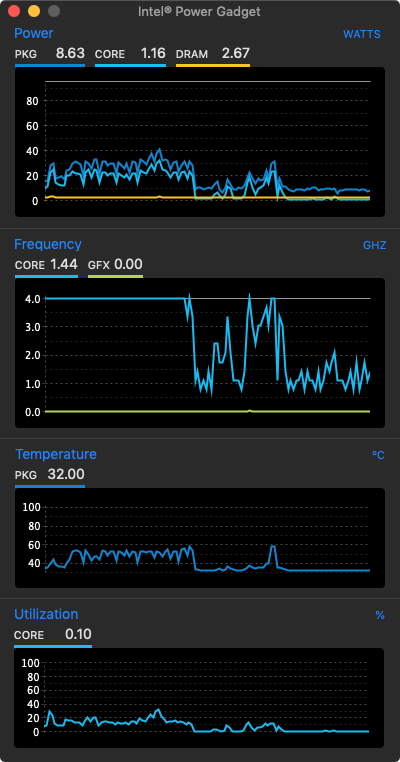

Screen Shot 2019-01-17 at 7.29.01 pm.png



So far ive managed to get most pstates working without iCue running but i'm missing 9 & 10?

AppleIntelInfo.kext v2.9 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

enableHWP................................: 0



Settings:

------------------------------------------

logMSRs..................................: 1

logIGPU..................................: 1

logCStates...............................: 1

logIPGStyle..............................: 1

InitialTSC...............................: 0x1f390ab05566 (858 MHz)

MWAIT C-States...........................: 1319200



Processor Brandstring....................: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz



Processor Signature..................... : 0x506E3

------------------------------------------

 - Family............................... : 6

 - Stepping............................. : 3

 - Model................................ : 0x5E (94)



Model Specific Registers (MSRs)

------------------------------------------



MSR_IA32_PLATFORM_ID.............(0x17)  : 0x4000000000000

------------------------------------------

 - Processor Flags...................... : 1



MSR_CORE_THREAD_COUNT............(0x35)  : 0x40008

------------------------------------------

 - Core Count........................... : 4

 - Thread Count......................... : 8



MSR_PLATFORM_INFO................(0xCE)  : 0x80838F1012800

------------------------------------------

 - Maximum Non-Turbo Ratio.............. : 0x28 (4000 MHz)

 - Ratio Limit for Turbo Mode........... : 1 (programmable)

 - TDP Limit for Turbo Mode............. : 1 (programmable)

 - Low Power Mode Support............... : 0 (LMP not supported)

 - Number of ConfigTDP Levels........... : 0 (only base TDP level available)

 - Maximum Efficiency Ratio............. : 8

 - Minimum Operating Ratio.............. : 8



MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8000

------------------------------------------

 - I/O MWAIT Redirection Enable......... : 0 (not enabled)

 - CFG Lock............................. : 1 (MSR locked until next reset)

 - C3 State Auto Demotion............... : 0 (disabled/unsupported)

 - C1 State Auto Demotion............... : 0 (disabled/unsupported)

 - C3 State Undemotion.................. : 0 (disabled/unsupported)

 - C1 State Undemotion.................. : 0 (disabled/unsupported)

 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)

 - Package C-State Undemotion........... : 0 (disabled/unsupported)



MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x0

 - C-state Range........................ : 0 (C-States not included, I/O MWAIT redirection not enabled)



IA32_MPERF.......................(0xE7)  : 0x29AF979EE3

IA32_APERF.......................(0xE8)  : 0x272DD279C1



MSR_FLEX_RATIO...................(0x194) : 0xE0000



MSR_IA32_PERF_STATUS.............(0x198) : 0x26BA00002800

------------------------------------------

 - Current Performance State Value...... : 0x2800 (4000 MHz)



MSR_IA32_PERF_CONTROL............(0x199) : 0x2A00

------------------------------------------

 - Target performance State Value....... : 0x2A00 (4200 MHz)

 - Intel Dynamic Acceleration........... : 0 (IDA engaged)



IA32_CLOCK_MODULATION............(0x19A) : 0x0



IA32_THERM_INTERRUPT.............(0x19B) : 0x0



IA32_THERM_STATUS................(0x19C) : 0x883F0000

------------------------------------------

 - Thermal Status....................... : 0

 - Thermal Log.......................... : 0

 - PROCHOT # or FORCEPR# event.......... : 0

 - PROCHOT # or FORCEPR# log............ : 0

 - Critical Temperature Status.......... : 0

 - Critical Temperature log............. : 0

 - Thermal Threshold #1 Status.......... : 0

 - Thermal Threshold #1 log............. : 0

 - Thermal Threshold #2 Status.......... : 0

 - Thermal Threshold #2 log............. : 0

 - Power Limitation Status.............. : 0

 - Power Limitation log................. : 0

 - Current Limit Status................. : 0

 - Current Limit log.................... : 0

 - Cross Domain Limit Status............ : 0

 - Cross Domain Limit log............... : 0

 - Digital Readout...................... : 63

 - Resolution in Degrees Celsius........ : 1

 - Reading Valid........................ : 1 (valid)



MSR_THERM2_CTL...................(0x19D) : 0x0



IA32_MISC_ENABLES................(0x1A0) : 0x850089

------------------------------------------

 - Fast-Strings......................... : 1 (enabled)

 - FOPCODE compatibility mode Enable.... : 0

 - Automatic Thermal Control Circuit.... : 1 (enabled)

 - Split-lock Disable................... : 0

 - Performance Monitoring............... : 1 (available)

 - Bus Lock On Cache Line Splits Disable : 0

 - Hardware prefetch Disable............ : 0

 - Processor Event Based Sampling....... : 0 (PEBS supported)

 - GV1/2 legacy Enable.................. : 0

 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)

 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)

 - Adjacent sector prefetch Disable..... : 0

 - CFG Lock............................. : 0 (MSR not locked)

 - xTPR Message Disable................. : 1 (disabled)



MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x641400

------------------------------------------

 - Turbo Attenuation Units.............. : 0

 - Temperature Target................... : 100

 - TCC Activation Offset................ : 0



MSR_MISC_PWR_MGMT................(0x1AA) : 0x1CC1

------------------------------------------

 - EIST Hardware Coordination........... : 1 (hardware coordination disabled)

 - Energy/Performance Bias support...... : 1

 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)

 - Thermal Interrupt Coordination Enable : 0 (thermal interrupt not rerouted)

 - SpeedShift Technology Enable......... : 1 (enabled)

 - SpeedShift Interrupt Coordination.... : 1 (enabled)

 - SpeedShift Energy Efficient Perf..... : 1 (enabled)

 - SpeedShift Technology Setup for HWP.. : Yes (setup for HWP)



MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2828282A

------------------------------------------

 - Maximum Ratio Limit for C01.......... : 2A (4200 MHz)

 - Maximum Ratio Limit for C02.......... : 28 (4000 MHz)

 - Maximum Ratio Limit for C03.......... : 28 (4000 MHz)

 - Maximum Ratio Limit for C04.......... : 28 (4000 MHz)



IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1

------------------------------------------

 - Power Policy Preference...............: 1 (highest performance)



MSR_POWER_CTL....................(0x1FC) : 0x3C005F

------------------------------------------

 - Bi-Directional Processor Hot..........: 1 (enabled)

 - C1E Enable............................: 1 (enabled)



MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03

------------------------------------------

 - Power Units.......................... : 3 (1/8 Watt)

 - Energy Status Units.................. : 14 (61 micro-Joules)

 - Time Units .......................... : 10 (976.6 micro-Seconds)



MSR_PKG_POWER_LIMIT..............(0x610) : 0x42FFD0001AEA82

------------------------------------------

 - Package Power Limit #1............... : 3408 Watt

 - Enable Power Limit #1................ : 1 (enabled)

 - Package Clamping Limitation #1....... : 0 (disabled)

 - Time Window for Power Limit #1....... : 13 (20480 milli-Seconds)

 - Package Power Limit #2............... : 4090 Watt

 - Enable Power Limit #2................ : 1 (enabled)

 - Package Clamping Limitation #2....... : 0 (disabled)

 - Time Window for Power Limit #2....... : 33 (10 milli-Seconds)

 - Lock................................. : 0 (MSR not locked)



MSR_PKG_ENERGY_STATUS............(0x611) : 0x1C5C2B0

------------------------------------------

 - Total Energy Consumed................ : 1815 Joules (Watt = Joules / seconds)



MSR_PP0_POWER_LIMIT..............(0x638) : 0x0



MSR_PP0_ENERGY_STATUS............(0x639) : 0x14B033F

------------------------------------------

 - Total Energy Consumed................ : 1324 Joules (Watt = Joules / seconds)



MSR_PP0_POWER_LIMIT..............(0x638) : 0x0



MSR_PP0_ENERGY_STATUS............(0x639) : 0x14B03F2

------------------------------------------

 - Total Energy Consumed................ : 1324 Joules (Watt = Joules / seconds)



MSR_PP1_POWER_LIMIT..............(0x640) : 0x0



MSR_PP1_ENERGY_STATUS............(0x641) : 0xA63

------------------------------------------

 - Total Energy Consumed................ : 0 Joules (Watt = Joules / seconds)



MSR_PP1_POLICY...................(0x642) : 0x18

------------------------------------------

 - Priority Level....................... : 24



MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x28

MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x0

MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x0

MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x80000000

MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0

MSR_PKGC3_IRTL...................(0x60a) : 0x0

MSR_PKGC6_IRTL...................(0x60b) : 0x0

MSR_PKGC7_IRTL...................(0x60c) : 0x0

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0

MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0

MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

MSR_PKG_C7_RESIDENCY.............(0x3fa) : 0x0

MSR_PKG_C8_RESIDENCY.............(0x630) : 0x0

MSR_PKG_C9_RESIDENCY.............(0x631) : 0x0

MSR_PKG_C10_RESIDENCY............(0x632) : 0x0

MSR_PKG_C8_LATENCY...............(0x633) : 0x0

MSR_PKG_C9_LATENCY...............(0x634) : 0x0

MSR_PKG_C10_LATENCY..............(0x635) : 0x0



MSR_PLATFORM_ENERGY_COUNTER......(0x64D) : 0x0 (not supported by hardware/BIOS)



MSR_PPERF........................(0x64E) : 0x269929338D

------------------------------------------

 - Hardware workload scalability........ : 165778371469



MSR_CORE_PERF_LIMIT_REASONS......(0x64F) : 0x30001000

------------------------------------------

 - PROCHOT Status....................... : 0

 - Thermal Status....................... : 0

 - Residency State Regulation Status.... : 0

 - Running Average Thermal Limit Status. : 0

 - VR Therm Alert Status................ : 0

 - VR Therm Design Current Status....... : 0

 - Other Status......................... : 0

 - Package/Platform-Level #1 Power Limit : 0

 - Package/Platform-Level #2 Power Limit : 0

 - Max Turbo Limit Status............... : 1 (frequency reduced below OS request due to multi-core turbo limits)

 - Turbo Transition Attenuation Status.. : 0

 - PROCHOT Log.......................... : 0

 - Thermal Log.......................... : 0

 - Residency State Regulation Log....... : 0

 - Running Average Thermal Limit Log.... : 0

 - VR Therm Alert Log................... : 0

 - VR Thermal Design Current Log........ : 0

 - Other Status Log..................... : 0

 - Package/Platform-Level #1 Power Limit : 0

 - Package/Platform-Level #2 Power Limit : 0

 - Max Turbo Limit Log.................. : 1 (status bit has asserted)

 - Turbo Transition Attenuation Log..... : 1 (status bit has asserted)

HDC Supported



IA32_PKG_HDC_CTL.................(0xDB0) : 0x0



IA32_PM_CTL1.....................(0xDB1) : 0x1

------------------------------------------

HDC Allow Block..................(0xDB1) : 1 (HDC blocked)



IA32_THREAD_STALL................(0xDB2) : 0x0



MSR_PKG_HDC_CONFIG...............(0x652) : 0x2

------------------------------------------

Pkg Cx Monitor ..................(0x652) : 2 (count package C3 and deeper)

MSR_CORE_HDC_RESIDENCY...........(0x653) : 0x0



MSR_PKG_HDC_SHALLOW_RESIDENCY....(0x655) : 0x0



MSR_PKG_HDC_DEEP_RESIDENCY.......(0x656) : 0x0



IA32_TSC_DEADLINE................(0x6E0) : 0x1F3911FED59B



IA32_PM_ENABLE...................(0x770) : 0x0 (HWP Supported but not, yet, enabled)



CPU Ratio Info:

------------------------------------------

Base Clock Frequency (BLCK)............. : 100 MHz

Maximum Efficiency Ratio/Frequency.......:  8 ( 800 MHz)

Maximum non-Turbo Ratio/Frequency........: 40 (4000 MHz)

Maximum Turbo Ratio/Frequency............: 42 (4200 MHz)



IGPU Info:

------------------------------------------

IGPU Current Frequency...................:    0 MHz

IGPU Minimum Frequency...................:  350 MHz

IGPU Maximum Non-Turbo Frequency.........:  350 MHz

IGPU Maximum Turbo Frequency.............: 1150 MHz

IGPU Maximum limit.......................: 3000 MHz



P-State ratio * 100 = Frequency in MHz

------------------------------------------

CPU P-States [ 37 (40) ] iGPU P-States [ ]

CPU C6-Cores [ 0 4 5 6 7 ]

CPU P-States [ (8) 26 37 40 ] iGPU P-States [ ]

CPU C6-Cores [ 0 1 2 4 5 6 7 ]

CPU P-States [ 8 25 26 37 (40) ] iGPU P-States [ ]

CPU C6-Cores [ 0 1 2 3 4 5 6 7 ]

CPU P-States [ (8) 20 25 26 37 40 ] iGPU P-States [ ]

CPU P-States [ 8 19 20 25 26 37 (40) ] iGPU P-States [ ]

CPU P-States [ 8 19 20 23 25 26 37 (40) ] iGPU P-States [ ]

CPU P-States [ 8 19 20 23 25 26 30 37 40 (42) ] iGPU P-States [ ]

CPU P-States [ (8) 19 20 23 25 26 30 31 37 40 42 ] iGPU P-States [ ]

CPU P-States [ (8) 19 20 23 25 26 29 30 31 37 40 42 ] iGPU P-States [ ]

CPU P-States [ (8) 19 20 23 25 26 29 30 31 35 37 40 42 ] iGPU P-States [ ]

CPU P-States [ (8) 19 20 23 25 26 29 30 31 32 35 37 40 42 ] iGPU P-States [ ]

CPU P-States [ 8 19 20 23 25 26 27 29 30 31 32 35 37 (40) 42 ] iGPU P-States [ ]

CPU P-States [ (8) 19 20 21 23 25 26 27 29 30 31 32 35 37 40 42 ] iGPU P-States [ ]

CPU P-States [ 8 19 20 21 23 24 25 26 27 29 30 31 32 35 37 (40) 42 ] iGPU P-States [ ]

CPU P-States [ 8 19 20 21 22 23 24 25 26 27 29 30 31 32 35 37 (40) 42 ] iGPU P-States [ ]

CPU P-States [ (8) 19 20 21 22 23 24 25 26 27 29 30 31 32 35 37 38 40 42 ] iGPU P-States [ ]

CPU P-States [ 8 19 20 21 22 23 24 25 26 27 28 29 30 31 32 35 37 38 (40) 42 ] iGPU P-States [ ]

CPU P-States [ 8 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 35 37 38 40 (42) ] iGPU P-States [ ]

CPU P-States [ 8 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 35 36 37 38 (40) 42 ] iGPU P-States [ ]

CPU P-States [ (8) 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 35 36 37 38 40 42 ] iGPU P-States [ ]

CPU P-States [ 8 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 35 36 37 38 (40) 42 ] iGPU P-States [ ]

CPU P-States [ (8) 13 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 35 36 37 38 40 42 ] iGPU P-States [ ]

CPU P-States [ (8) 12 13 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 35 36 37 38 40 42 ] iGPU P-States [ ]

CPU P-States [ (8) 12 13 14 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 35 36 37 38 40 42 ] iGPU P-States [ ]

CPU P-States [ (8) 12 13 14 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 35 36 37 38 40 42 ] iGPU P-States [ ]

CPU P-States [ (8) 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 35 36 37 38 40 42 ] iGPU P-States [ ]

CPU P-States [ (8) 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 42 ] iGPU P-States [ ]

CPU P-States [ 8 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 (40) 42 ] iGPU P-States [ ]

CPU P-States [ 8 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 (40) 41 42 ] iGPU P-States [ ]

CPU P-States [ (8) 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 ] iGPU P-States [ ]



Send me iMac.zip

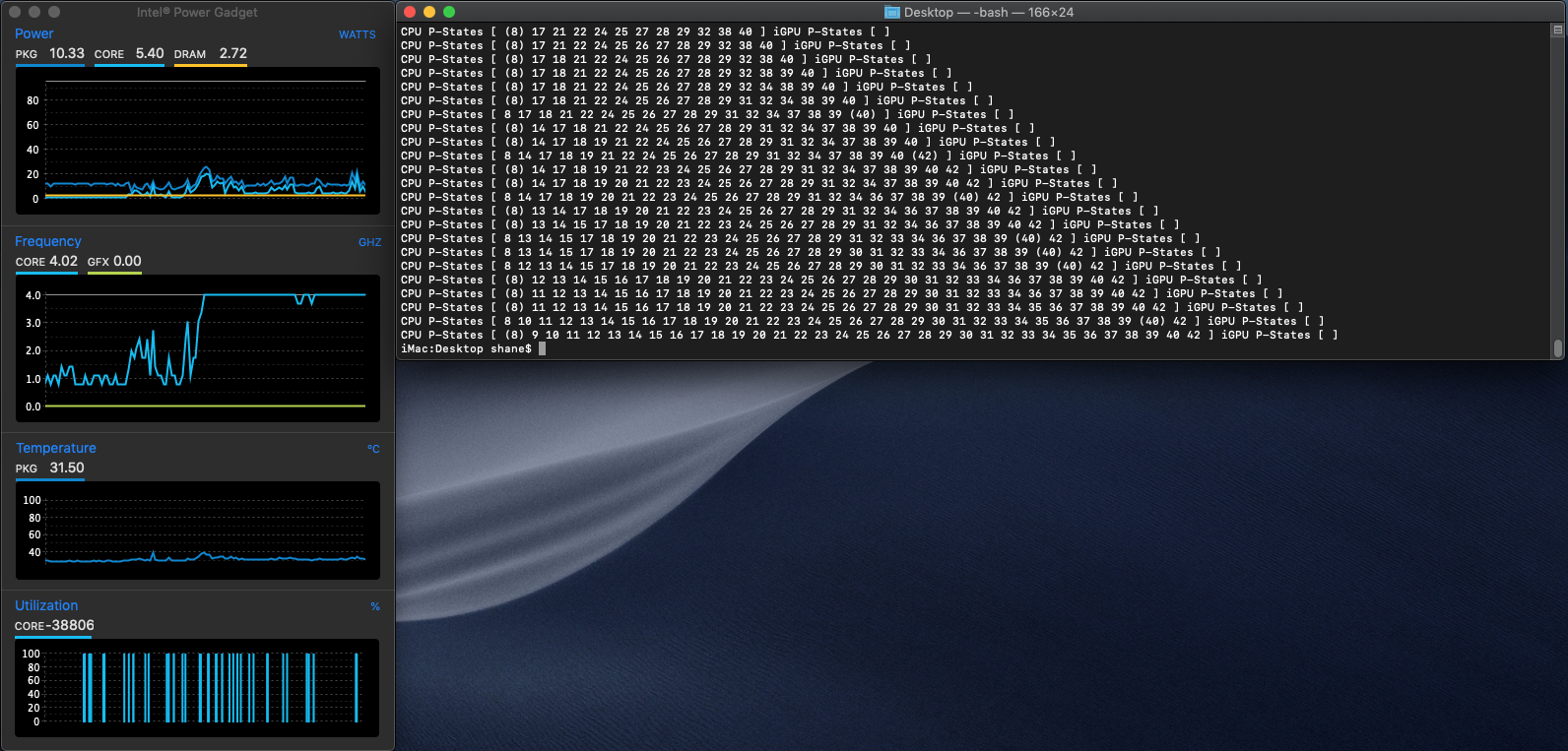

Is it only cosmetic if IPG is reading 4Ghz but AppleIntelInfo shows pstate at 8?

363781835_ScreenShot2019-01-20at8_13_34pm.thumb.png.efa4673ebe5d9a43416ce9465f99e1b2.png

Edited by SavageAUS

Share this post


Link to post
Share on other sites
Advertisement

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

×
