noisegate Posted January 5, 2019 Author Share Posted January 5, 2019 1 minute ago, MaLd0n said: enjoy I will, thank you Link to comment Share on other sites More sharing options...
Boforums Posted January 12, 2019 Share Posted January 12, 2019 Hi all, I seem to still be stuck with the same exact issue. I got a great deal on a Sapphire Nitro+ RX580 4GB. It still goes straight to black screen, even though the system is running just fine, as seen via VNC. I was hoping a newer card would work better than my previous attempts with my 7950 and nvidia combo. @MaLd0n, I appreciate your help over on Olarila when I was attempting this with the 7950. Somehow it seems you guys were able to help @noisegate get everything working. Any ideas for my BioStar x79 board? What files should I upload? Currently I am not using any DSDT. Thanks much! Cheers! Link to comment Share on other sites More sharing options...
noisegate Posted January 15, 2019 Author Share Posted January 15, 2019 On 1/12/2019 at 2:47 AM, Boforums said: Hi all, I seem to still be stuck with the same exact issue. I got a great deal on a Sapphire Nitro+ RX580 4GB. It still goes straight to black screen, even though the system is running just fine, as seen via VNC. I was hoping a newer card would work better than my previous attempts with my 7950 and nvidia combo. @MaLd0n, I appreciate your help over on Olarila when I was attempting this with the 7950. Somehow it seems you guys were able to help @noisegate get everything working. Any ideas for my BioStar x79 board? What files should I upload? Currently I am not using any DSDT. Thanks much! Cheers! @Boforums Here is the EFI folder I'm currently using, thanks to @MaLd0n and @Pavo's time and effort EFI.7z I updated AppleIntelE1000e My board is also a X79, see if it helps Link to comment Share on other sites More sharing options...
noisegate Posted January 15, 2019 Author Share Posted January 15, 2019 On 1/5/2019 at 4:43 PM, MaLd0n said: enjoy Hi @MaLd0n, I can't boot with hyper threading enabled, is there a way to fix it? Thank you Link to comment Share on other sites More sharing options...
Apple Hunter Posted January 16, 2019 Share Posted January 16, 2019 After adding New discrete GPU (SAPPHIRE Pulse RX 580 8GB ) and adding kext WhateverGreen.kext and lilu.kext recent update to efi/clover/kexts/other/ folder boot screen goes Black I tried 2nd step by adding to /Library/Extensions/ but same issue. On integrated HD 4000 works Fine.Now How to fix THIS ISSUE ?My system:- OS MOJAVE 10.14.2 Z77 with i7 3770k 16G RAM SAPPHIRE Pulse RX 580 8GB EFI.zip Link to comment Share on other sites More sharing options...
noisegate Posted January 16, 2019 Author Share Posted January 16, 2019 1 hour ago, Apple Hunter said: After adding New discrete GPU (SAPPHIRE Pulse RX 580 8GB ) and adding kext WhateverGreen.kext and lilu.kext recent update to efi/clover/kexts/other/ folder boot screen goes Black I tried 2nd step by adding to /Library/Extensions/ but same issue. On integrated HD 4000 works Fine.Now How to fix THIS ISSUE ?My system:- OS MOJAVE 10.14.2 Z77 with i7 3770k 16G RAM SAPPHIRE Pulse RX 580 8GB EFI.zip I don't have an iGPU but many RX580 owners reported they had to disable it Link to comment Share on other sites More sharing options...
Apple Hunter Posted January 16, 2019 Share Posted January 16, 2019 3 hours ago, noisegate said: I don't have an iGPU but many RX580 owners reported they had to disable it I have done that too Link to comment Share on other sites More sharing options...
Boforums Posted January 16, 2019 Share Posted January 16, 2019 On 1/15/2019 at 5:21 AM, noisegate said: @Boforums Here is the EFI folder I'm currently using, thanks to @MaLd0n and @Pavo's time and effort EFI.7z I updated AppleIntelE1000e My board is also a X79, see if it helps Thanks @noisegate. I'll give it a try when I get a chance. But to be honest, I got tired of trying to figure out the x79 system, so pulled out a Z77/3770k machine I had sitting around and went forward with that. OMG, so much less headache ;-) Everything pretty much came up on one try. Although, DisplayPort does not seem to work on the RX580, but I am using the HDMI. I didn't have to do anything, it was like installing Windows. I just followed @MaLd0n basic steps for installing on Ivy Bridge, and viola, all good. Sleep, power management, sound via HDMI, etc. The 3770k is still a great chip and I am going to overclock the {censored} out of it to make up a bit for the 2 core deficit compared to the x79 machine. New Specs: Mojave 10.14.2 i7-3770k BioStar TZ77XE3 Mobo Sapphire Nitro+ RX580 4GB 240GB Kingston SSD I'm still curious about the x79 EFI you provided. I'll see when I can pull the GPU from the new build and try it on the x79. 2 hours ago, Apple Hunter said: I have done that too For my Z77 mobo, I had to disable IGPU, set primary to PEG. And also make sure CSM is disabled. But for my Sapphire Nitro+ RX580, the DP port did not work. I had to use the HDMI. DP was giving me black screen. DVI and HDMI work fine, even HDMI audio. Link to comment Share on other sites More sharing options...
Apple Hunter Posted January 17, 2019 Share Posted January 17, 2019 Here HDMI and DVI both boot to black. Link to comment Share on other sites More sharing options...
Apple Hunter Posted January 17, 2019 Share Posted January 17, 2019 Here HDMI and DVI both boot to black. 13 hours ago, Boforums said: Thanks @noisegate. I'll give it a try when I get a chance. But to be honest, I got tired of trying to figure out the x79 system, so pulled out a Z77/3770k machine I had sitting around and went forward with that. OMG, so much less headache ;-) Everything pretty much came up on one try. Although, DisplayPort does not seem to work on the RX580, but I am using the HDMI. I didn't have to do anything, it was like installing Windows. I just followed @MaLd0n basic steps for installing on Ivy Bridge, and viola, all good. Sleep, power management, sound via HDMI, etc. The 3770k is still a great chip and I am going to overclock the {censored} out of it to make up a bit for the 2 core deficit compared to the x79 machine. New Specs: Mojave 10.14.2 i7-3770k BioStar TZ77XE3 Mobo Sapphire Nitro+ RX580 4GB 240GB Kingston SSD I'm still curious about the x79 EFI you provided. I'll see when I can pull the GPU from the new build and try it on the x79. For my Z77 mobo, I had to disable IGPU, set primary to PEG. And also make sure CSM is disabled. But for my Sapphire Nitro+ RX580, the DP port did not work. I had to use the HDMI. DP was giving me black screen. DVI and HDMI work fine, even HDMI audio. Link to comment Share on other sites More sharing options...

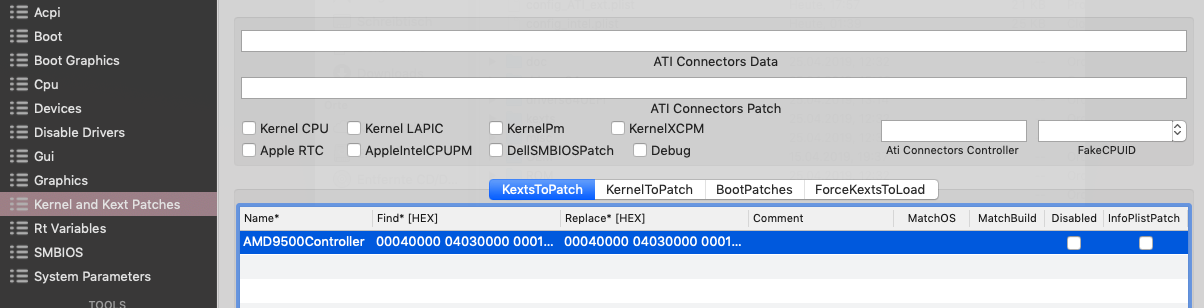

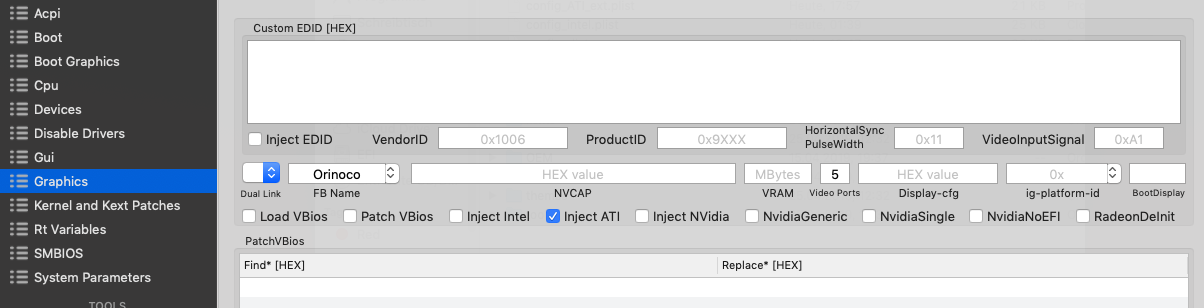

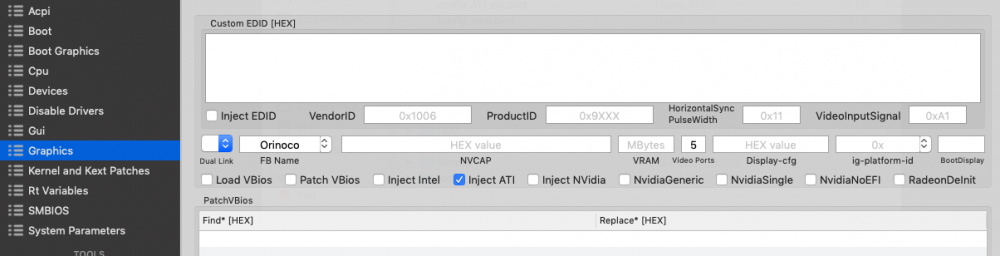

noserider Posted July 11, 2019 Share Posted July 11, 2019 I got my GIGABYTE RX 580 (Device ID 0x67DF) working with all video ports active, including HDMI, not only DVI like most users report ! Use Clover and configure the following: a) Graphics: activate 'InjectATI' AND select Framebuffer (FB) 'Orinoco' b) Kernel & Kext Patches: KextToPatch -> New entry (+) -> AMD9500Controller Under 'Find' and ''Replace' use the following text (copy / paste): Find: 000400000403000000010101000000001204060100000000 000400000403000000010201000000002205040300000000 000800000402000000010300000000001102010200000000 000800000402000000010400000000002103050400000000 040000000400000000010500000000000000030600000000 Replace: 000400000403000000010001000000001204060100000000 000400000403000000010001000000002205040300000000 000400000403000000010001000000001102010200000000 000800000402000000010000000000002103050400000000 040000000402000000010000000000000000030600000000 c) Put Lilu.kext and WhateverGreen.kext into EFI->Clover->kext->Other All ports are being activated. If you switch ports, reboot is necessary. Link to comment Share on other sites More sharing options...

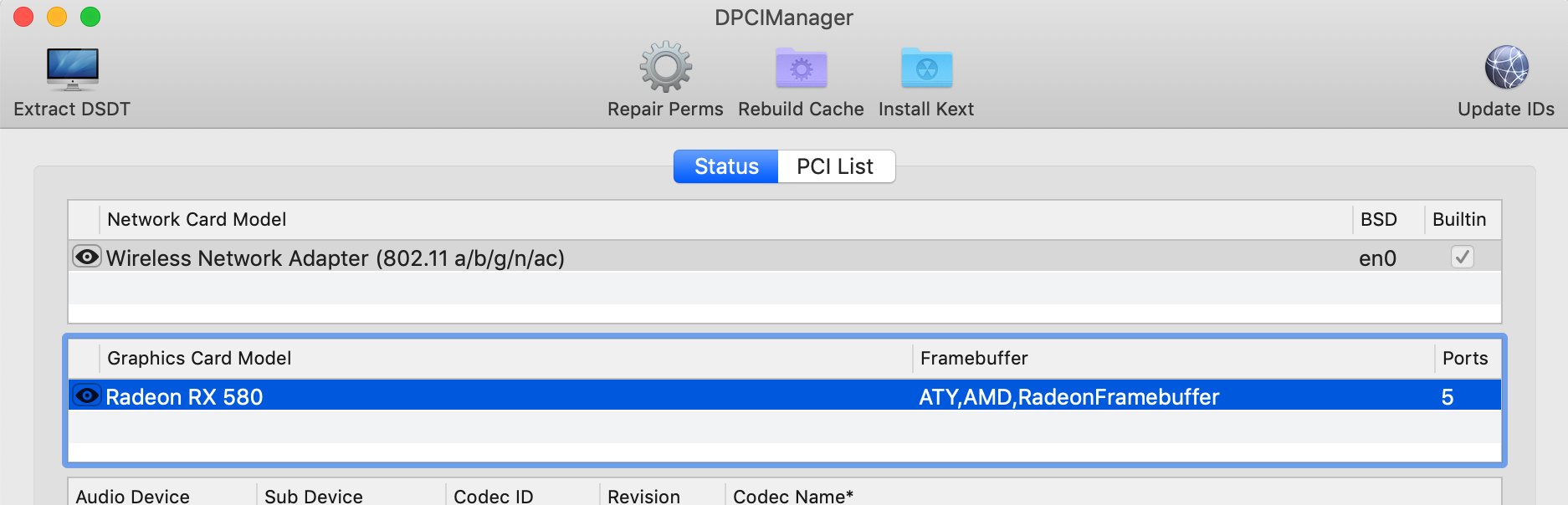

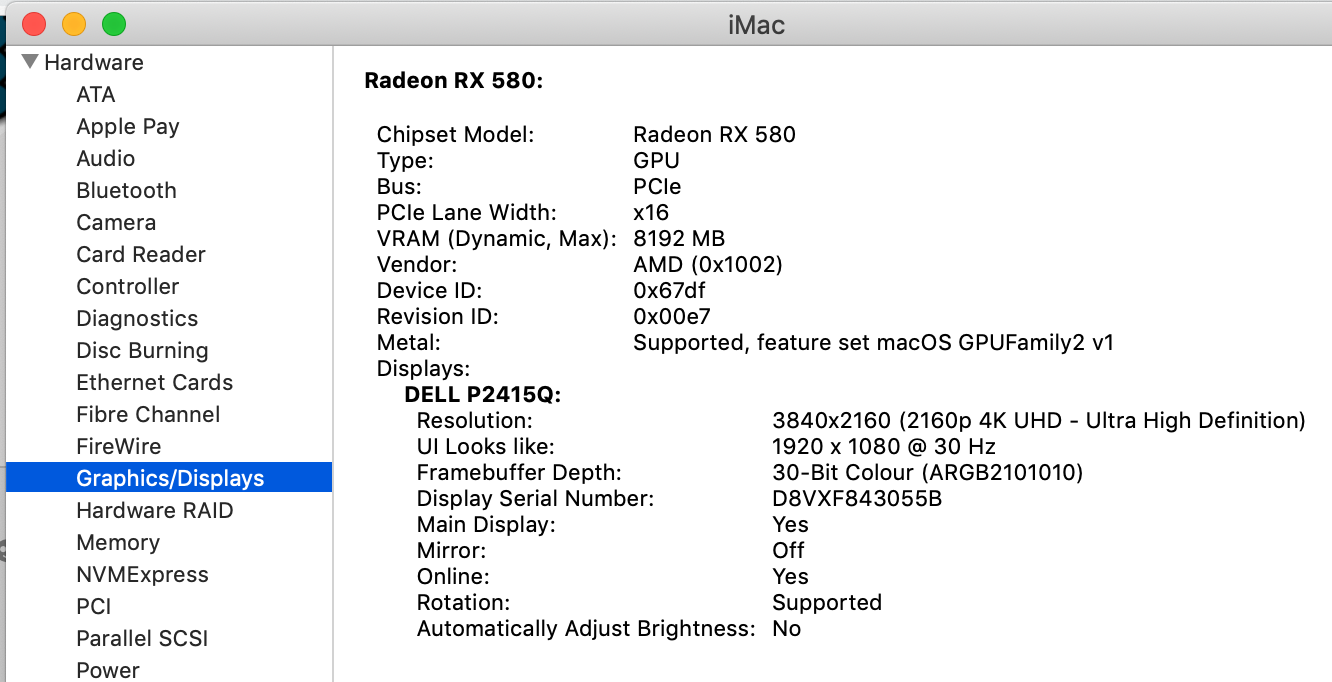

Max-gyzmo Posted July 17, 2019 Share Posted July 17, 2019 Hi, everybody. I have a problem with RX580 Pulse, DP port does not work (HDMI work). After downloading the Clover, the first boot screen with Apple logo, and at the moment of switching-mode get black screen. If you immediately switch to HDMI you can see the login window. Installed kexts Lillu and Green in kext/other. Changing SMBIOS to 14.1 17.1 18.3 does not affect the result. Changing in Clover RadeinDelNit on/off does not affect the result. If i remove green from system hangs within 5 minutes after load. Green enables Radeon FB and correctly determines the number of ports. Forced on FB Orinoco does not help. My RX580 Pulse has 2 BIOS (113-4E353BU-O50/113-4E353BU-TSE). I can not turn off the CSM mode, the BIOS goes to reload and turns it on again. I made patch AMD9500Controller, but did not helped. System Mojave 10.14.3 ASUS ROG STRIX Z370-G GAMING (WI-FI AC) i7-8700 RX580 Pulse Where to find the reason? Link to comment Share on other sites More sharing options...
