i9-9900K iGPU not working (headless mode)


2 posts in this topic

Recommended Posts

I am on 10.13.6 (17G4015). I use a GTX 1080 as main graphic card but trying to use the iGPU for compute tasks like video (de)coding. I am using SMBIOS 18,3. WhatEverGreen and Lilu are loaded through clover.

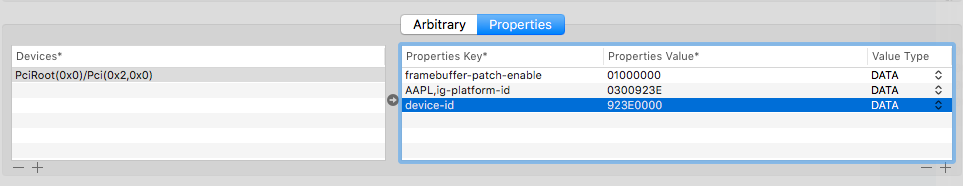

This is my configuration in clover configurator:

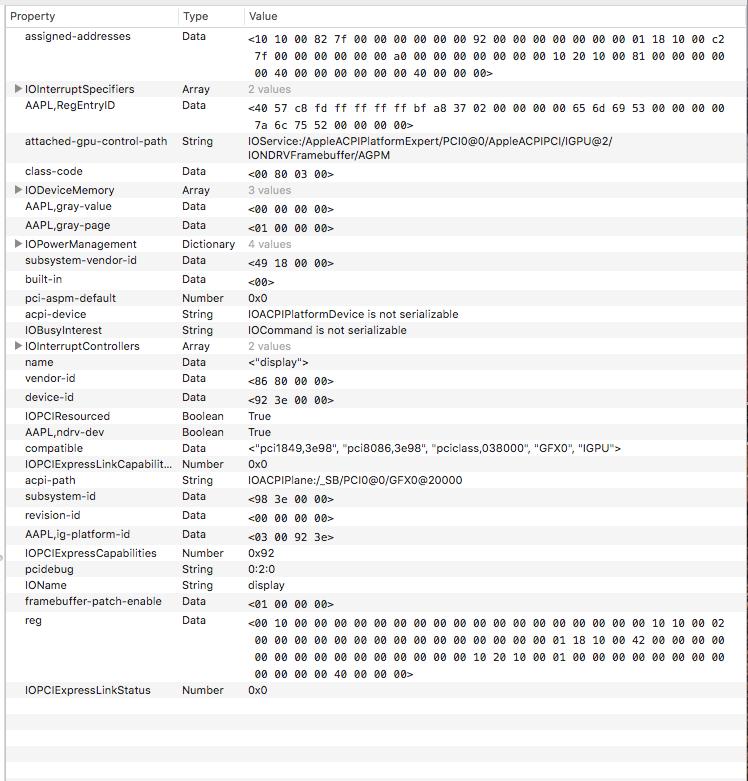

Result (IGPU in IORegistryExplorer):

534445883_ScreenShot2018-12-16at14_23_36.thumb.png.89886c7d2bcb609618c82f5c518790e4.png





Still the card does not work (not loaded by the driver). Relevant entries from bootlog (filtered by "IGPU"):

(AppleGraphicsPowerManagement) [AGPM Controller] build gpuDict by GPU IGPU.
(AppleIntelKBLGraphics) [IGPU] Graphics driver failed to load: could not register with Framebuffer driver!
busy timeout[0], (60s): 'IGPU'
(IONDRVSupport) IGPU: Not usable



Full config.plist and bootlog and bdmesg attached.



boot.log

bdmesg.log

config.plist

Edited by r!ppz
×
×
