HP Compaq 8200 Elite SFF - STUCK at Attempting system restart MACH Reboot

[ramtech]

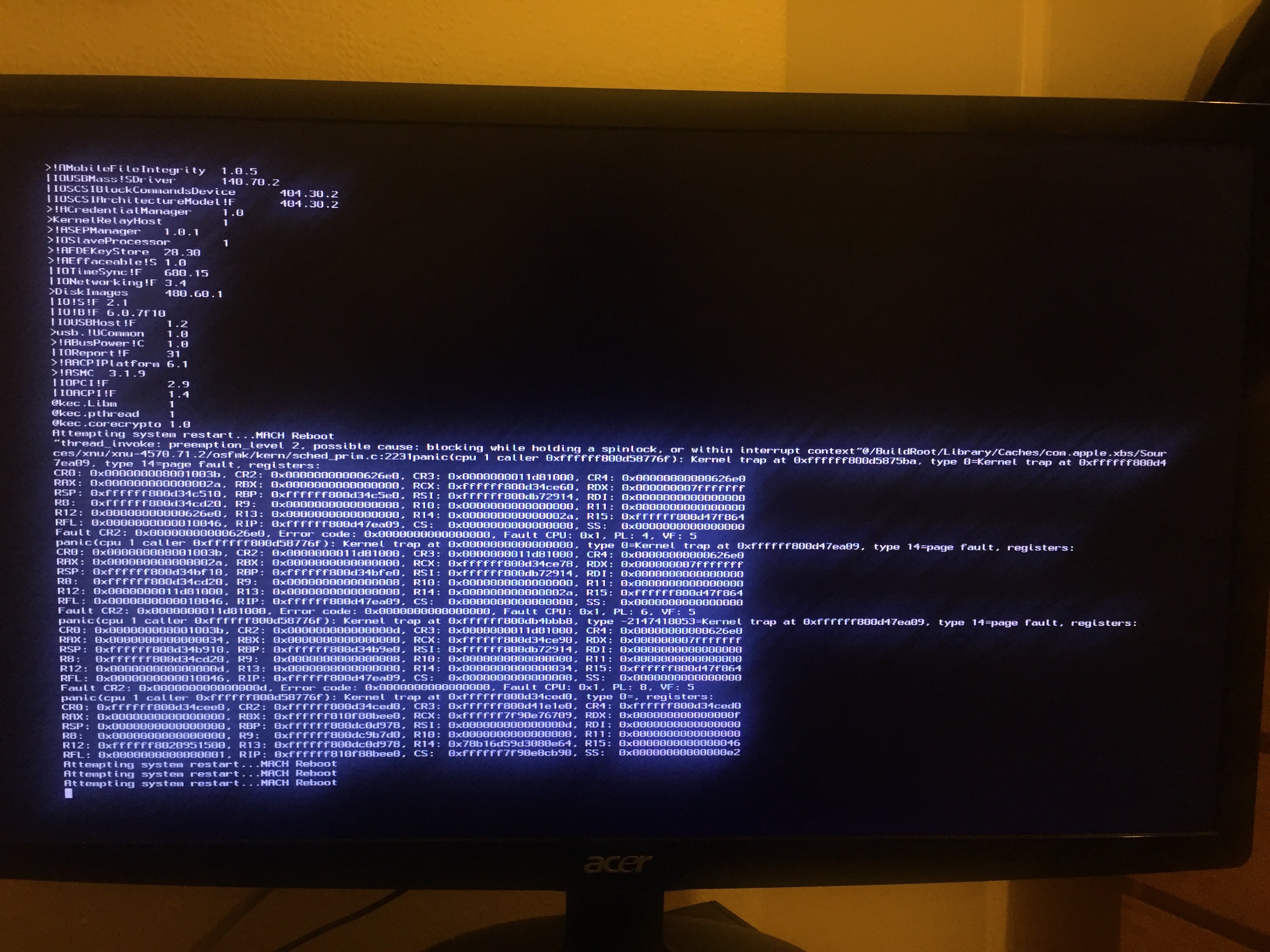

Having trouble getting past the USB Installation. What happens is that I can boot to the USB and clover is shown, I then boot in verbose to watch out for errors and it hangs on "Attempting system restart MACH Reboot" I used the vanilla method to create the install and selected these settings ONLY Clover Bootloader. I have not configured the config.plist as I don't know how and couldn't find a config.plist for my Sandy Bride system, if someone can please help me with this it would be much appreciated as I want to document this for other users too.



Specs:

HP Compaq 8200 SFF

CPU: i5 2500

GPU: Geforece G100 (works with Invidia Injection)



Clover Bootloader selections:

Install Clover in the ESP

Install boot0af in MBR

Clover EFI 64-bits SATA

ApfsDriverLoader-64

ApfsDriverLoader-64

AptioMemoryFix-64

HFSPlus



I can't upload my EFI folder as it's too large?





config.plist

Edited November 30, 2018 by ramtech

[d620osx]

Hi



Have you tried Sierra as opposed to high Sierra?



Edit:

For high Sierra you may have to use this method



http://dosdude1.com/highsierra/









[ramtech]

24 minutes ago, d620osx said:

Hi



Have you tried Sierra as opposed to high Sierra?



Edit:

For high Sierra you may have to use this method



http://dosdude1.com/highsierra/



Sierra works but using a tool that shall not be named here. I want to use vanilla method only.
