Mojave, Audio and USB 3.1 HDMI adapter, Z370 Gaming WIFI

[boesbo]

I installed Mojave very well by following this guide.

This guide is about a motherboard similar to mine but not mine so I have some problems.

1. The audio does not work, the internal sound of the motherboard does not detect me. FIXED

2. The USB 3.1 Type-C port connected to a monitor with a Type-C HDMI cable does not work (it is not detected as a thunderboald port)

3. USB 3.0 Don't work.

4. Wifi does not work, but maybe this is known and can not be resolved, not this card.





Does anyone know which KEXTs are used to fix these problems?



Gigabyte Z370 AORUS Gaming WIFI (Codec audio is Creative)

Intel I7 8700K

16x2 gb Corsair 3000mhz

No External GPU



Thankyou!!

EFI 2.tgz

Edited November 17, 2018 by boesbo

[SavageAUS]

Which wifi card is it?

Have you tried either a direct hdmi cable or display port? No GPU?

It will also be helpful to put system specs in your signature and post your clover folder minus serials and themes if you have lots.





Sent from my iPhone using Tapatalk



Edited November 17, 2018 by SavageAUS

[boesbo]

2 hours ago, SavageAUS said:

Which wifi card is it?
Have you tried either a direct hdmi cable or display port? No GPU?

It will also be helpful tp put system specs in your signature and post your clover folder minus serials and themes if you have lots.


Sent from my iPhone using Tapatalk

Update post.



I don't have external GPU.

Dont work USB 3.0 (externals hdd) e dont word USB 3.1 with adapter USB-C HDMI.

Edited November 17, 2018 by boesbo

[SavageAUS]

Update post.



I don't have external GPU.

Dont work USB 3.0 (externals hdd) e dont word USB 3.1 with adapter USB-C HDMI.



Once more

Which Wifi card is in your machine?

Have you created an custom SSDT/Kext for USB?

For more specific help you need to upload your clover folder as requested previously.



Edit:

1. Intel wifi will never work.

2. You have 2 ethernet kexts but 1 port? Keep the intel one, remove the other.

3. For USB search Intel Fbpatcher on these forums and you will find a way to create a custom kext for your USB ports.





Sent from my iPhone using Tapatalk



[boesbo]

9 minutes ago, SavageAUS said:

Once more

Which Wifi card is in your machine?

Have you created an custom SSDT/Kext for USB?

For more specific help you need to upload your clover folder as requested previously.



Edit:

1. Intel wifi will never work.

2. You have 2 ethernet kexts but 1 port? Keep the intel one, remove the other.

3. For USB search Intel Fbpatcher on these forums and you will find a way to create a custom kext for your USB ports.





Sent from my iPhone using Tapatalk





Thankyou for the reply.

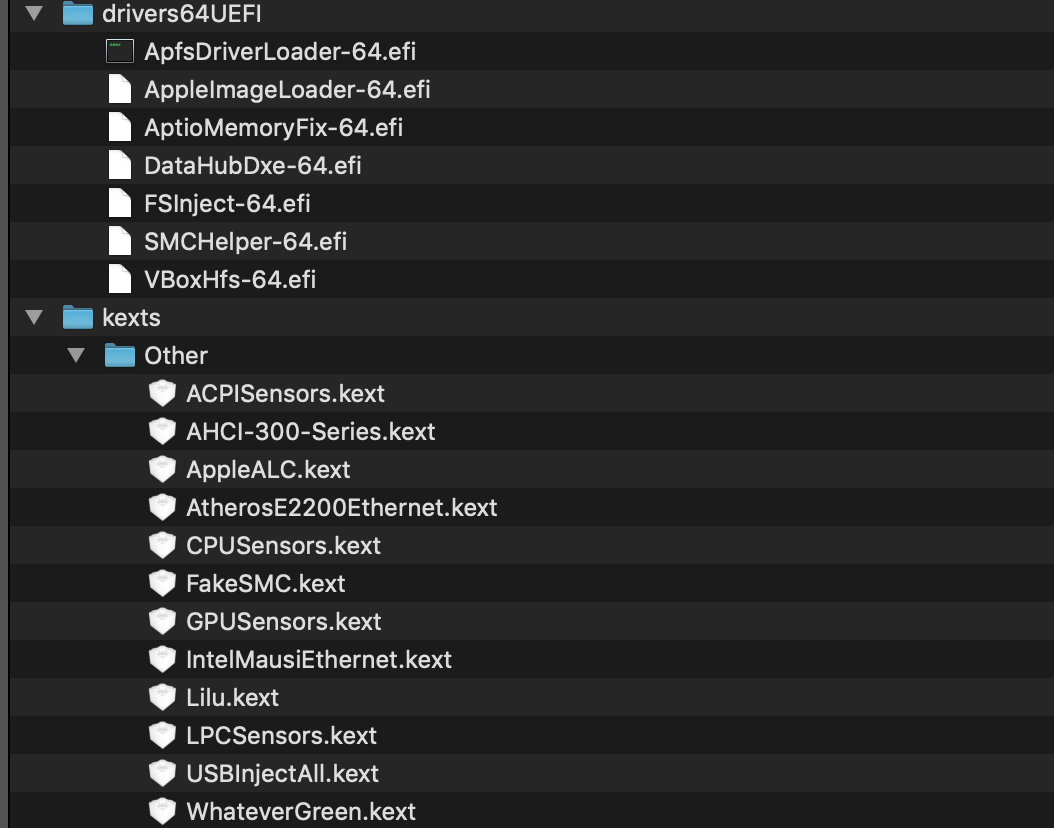

I have add Clover directory.
I have't created a custom KEXT for my USB.



My wify card is: Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band (but so already that it will not work, that's okay)

[SavageAUS]

37 minutes ago, boesbo said:



Thankyou for the reply.
I have add Clover directory.
I have't created a custom KEXT for my USB.



My wify card is: Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band (but so already that it will not work, that's okay)

Does your audio work? If so what are you using?



Edit:

Try this clover folder attached.

Back up yours to a USB to use just in case or put this one on a USB and boot from it.

CLOVER.zip

See here for USB

https://www.insanelymac.com/forum/topic/335018-intel-fb-patcher-v165/

Edited November 17, 2018 by SavageAUS

[boesbo]

22 minutes ago, SavageAUS said:

Does your audio work? If so what are you using?



Edit:

Try this clover folder attached.

Back up yours to a USB to use just in case or put this one on a USB and boot from it.

CLOVER.zip

See here for USB

https://www.insanelymac.com/forum/topic/335018-intel-fb-patcher-v165/

For audio use: config.list /devices/audio/inject : 1

Now i try with your zip.
What did you change in the Clover folder?
(I'll let you know)
Thz!!

Edited November 17, 2018 by boesbo

[SavageAUS]

1 minute ago, boesbo said:

For audio use: config.list /devices/audio/inject : 1

Now i try with your zip. I'll let you know. Thz!!

Use my clover folder but replace config.plist with this one.

config.plist

[boesbo]

3 hours ago, SavageAUS said:

Use my clover folder but replace config.plist with this one.

config.plist

I'm trying your Clover folder, of course, USB 3.0 does not work as we know, but everything else works fine.
But something strange happened before I changed Clover (with my Clover folder). I left the PC to work, went into suspension and once resumed from the suspension saw the HDD USB 3.0 connected. Strange!
Restarting... same problem, not detected.

Edited November 17, 2018 by boesbo

[boesbo]

6 hours ago, SavageAUS said:

Does your audio work? If so what are you using?



Edit:

Try this clover folder attached.

Back up yours to a USB to use just in case or put this one on a USB and boot from it.

CLOVER.zip

See here for USB

https://www.insanelymac.com/forum/topic/335018-intel-fb-patcher-v165/



I followed the guide step by step, and I must say that it is very clear.
I have also added the XHCI-unsupported.kext file because my Controller is: 8086:A2AF

Starting with -uia_exclude_sh and starting Intel FB-Patcher I can see the ports, connecting and reconnecting USB3 devices I see correctly that they are used.

I export the Kext file to the correct location but it still does not work.

The problem I repeat: All USB ports work with USB2.0 sticks and not with USB3.0. The only USB port that works with USB3 sticks is the USB 3.1 that makes HUB.

The strange thing is that this problem is also present with: USBInjectAll.kext and XHCI-unsupported.kext inserted (usually it works even only with these)

Ideas?

Edited November 17, 2018 by boesbo

[SavageAUS]


I followed the guide step by step, and I must say that it is very clear.
I have also added the XHCI-unsupported.kext file because my Controller is: 8086:A2AF
Starting with -uia_exclude_sh and starting Intel FB-Patcher I can see the ports, connecting and reconnecting USB3 devices I see correctly that they are used.
I export the Kext file to the correct location but it still does not work.
The problem I repeat: All USB ports work with USB2.0 sticks and not with USB3.0. The only USB port that works with USB3 sticks is the USB 3.1 that makes HUB.
The strange thing is that this problem is also present with: USBInjectAll.kext and XHCI-unsupported.kext inserted (usually it works even only with these)
Ideas?

Are you changing the port type as needed? From USB 2 to USB 3 or vice versa if needed? USB 2 ports (HS) plugged into USB 3 (SS) or (SSP) should be marked as USB 3.
Are you eliminating ports to keep the total number at 15 or under?


Sent from my iPhone using Tapatalk

[boesbo]

8 hours ago, SavageAUS said:

Are you changing the port type as needed? From USB 2 to USB 3 or vice versa if needed? USB 2 ports (HS) plugged into USB 3 (SS) or (SSP) should be marked as USB 3.
Are you eliminating ports to keep the total number at 15 or under?


Sent from my iPhone using Tapatalk

Yes, But I only highlight the HS ports, not the SS

[SavageAUS]

Yes, But I only highlight the HS ports, not the SS

You need to boot with the correct boot flags, make sure the first boot excludes all except HS and only highlight the ones you NEED and remove the rest, then reboot to include your mouse and keyboard ports but exclude HS ports and include SS ports and so forth. Sometimes it helps upon first boot to remove all ports from fb patcher, close the program then reopen it to only detect HS ports. Then go through the steps.


Sent from my iPhone using Tapatalk
