DapperDuck Posted October 29, 2018 Share Posted October 29, 2018 Hello dear Insanelymac users, I just got an RX 580 card from Sapphire after ditching my old GTX 1080 card because of the lack of Nvidia web drivers. I only have the slight problem that I'm just unable to boot from my USB thumb drive. I made one using InsanelMac's MBR USB installer and of course the clover Bootloader installer. After I select boot MacOS install from USB Drive the screen turns black. Are their special steps required for my build or the RX 580? Specs: Intel i7 8700K Gigabyte AORUS UG z370 motherboard Sapphire RX 580 Pulse GPU I attached my old clover folder which originally contains kexts for my old GTX 1080. Lilu, shikh and Nvidiafixup, but I deleted those before I copied all the kexts to the installer USB. CLOVER.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted October 29, 2018 Share Posted October 29, 2018 CLOVER.zip Link to comment Share on other sites More sharing options...
DapperDuck Posted October 29, 2018 Author Share Posted October 29, 2018 29 minutes ago, MaLd0n said: CLOVER.zip Hello dear MaLd0n. I placed your Clover folder on my USB Drive and booted from it But it results into a kernel panic...hopefully you can help me further with this. Link to comment Share on other sites More sharing options...
MaLd0n Posted October 29, 2018 Share Posted October 29, 2018 post one photo Link to comment Share on other sites More sharing options...

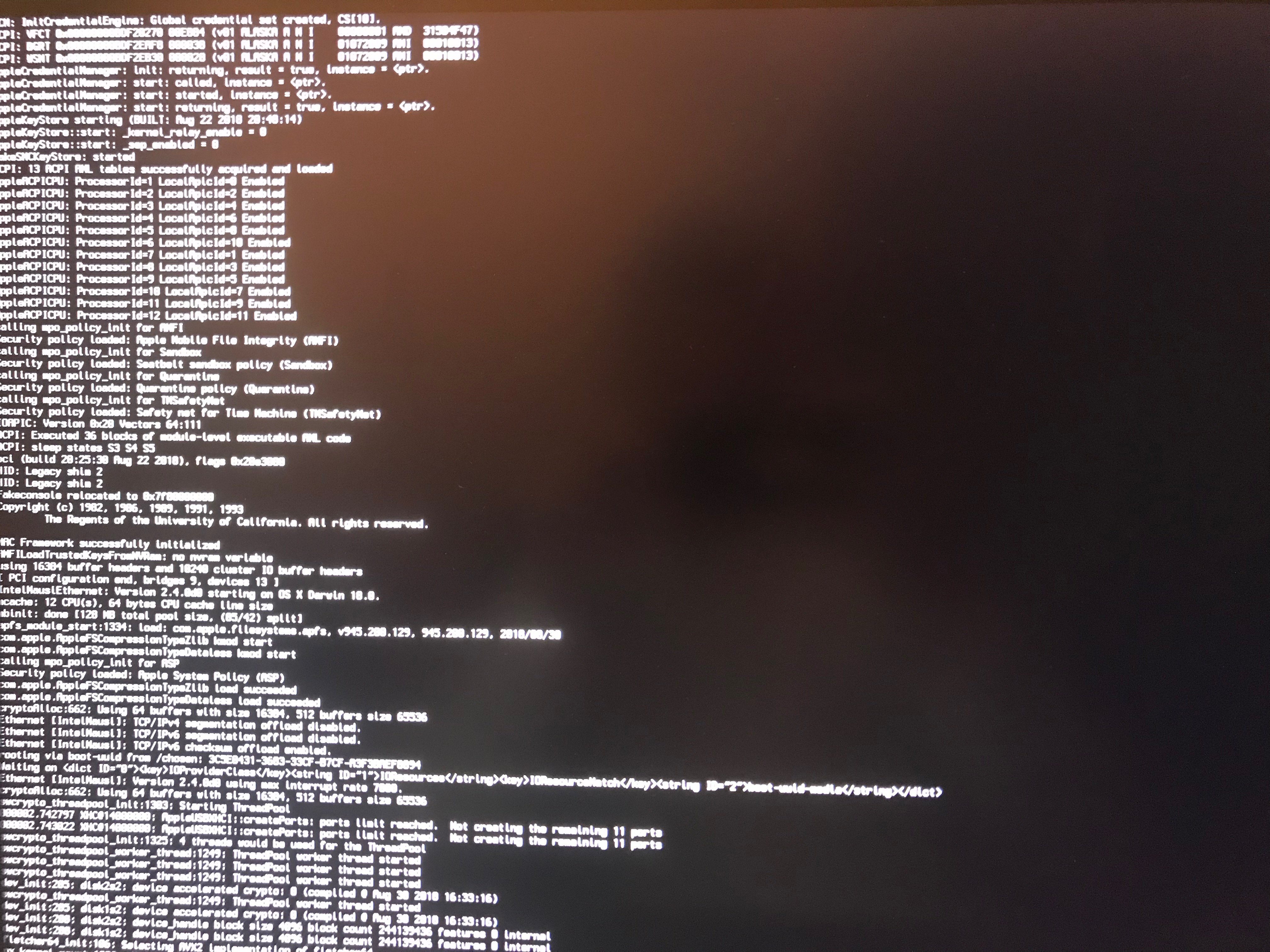

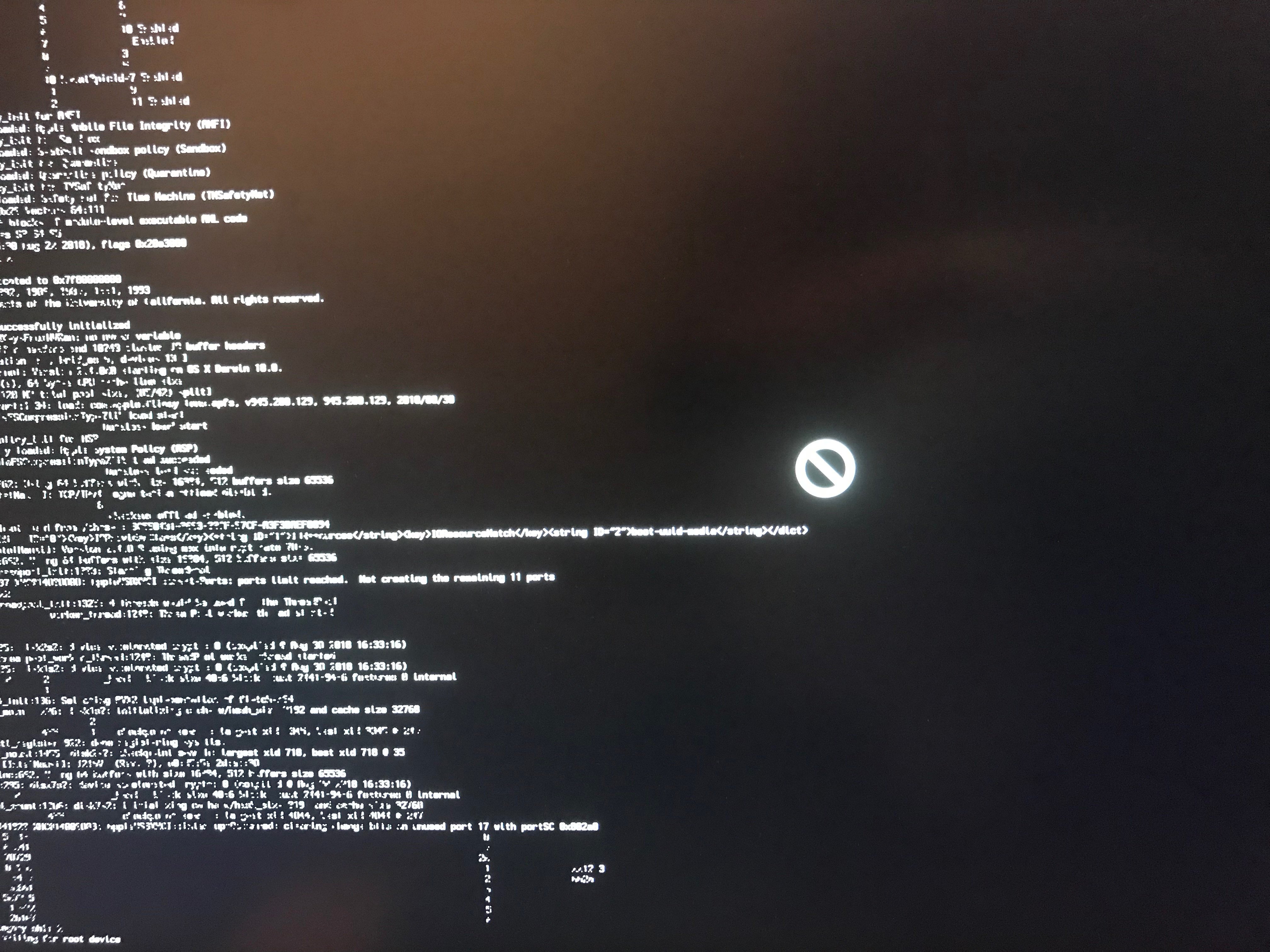

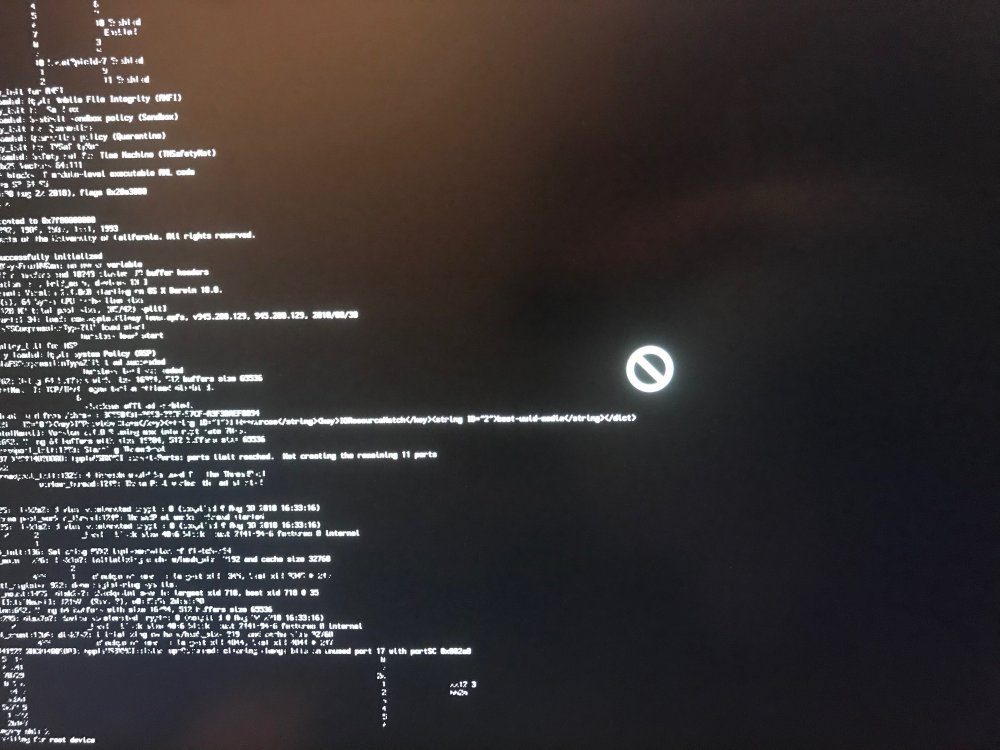

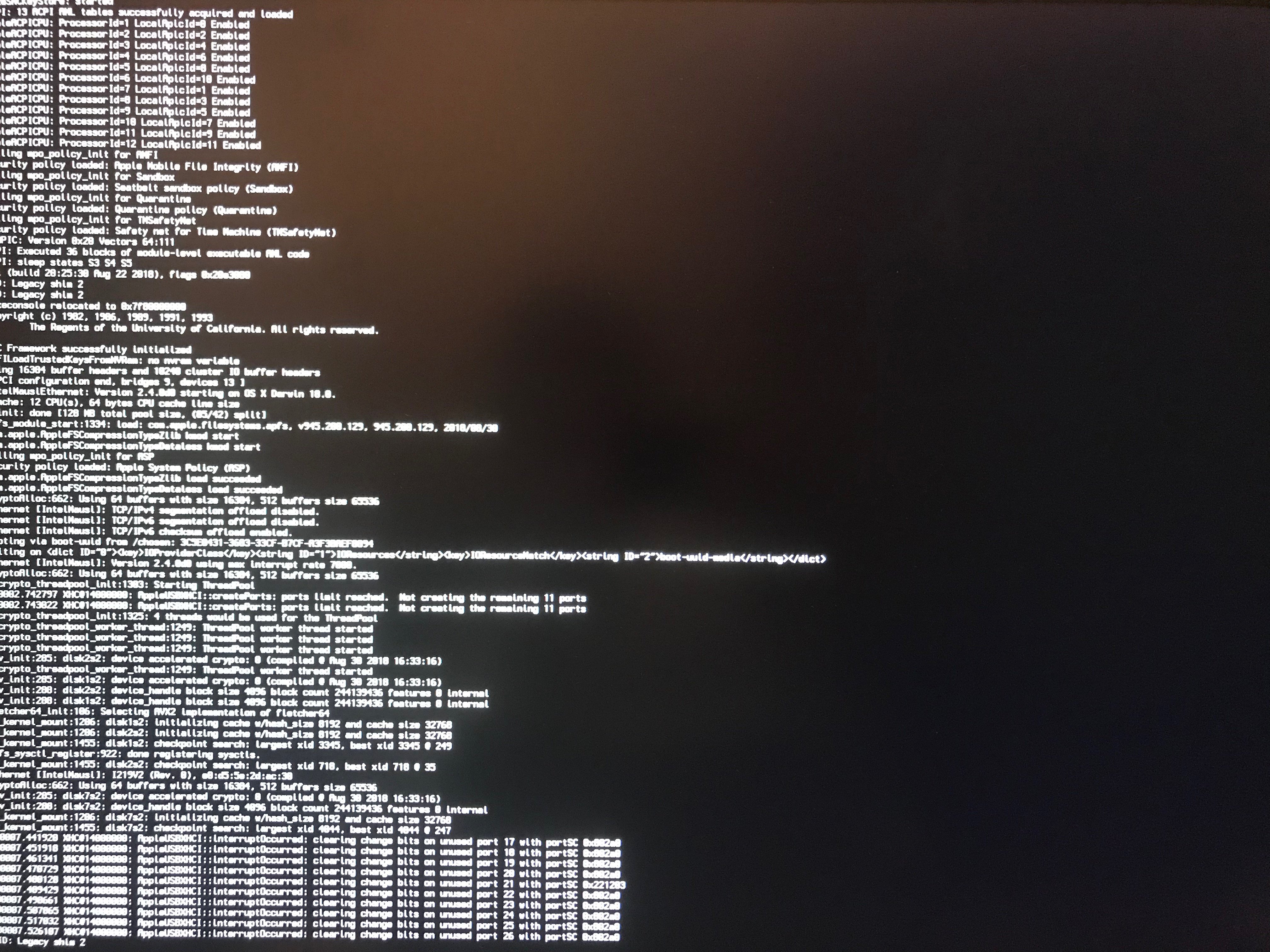

DapperDuck Posted October 29, 2018 Author Share Posted October 29, 2018 20 minutes ago, MaLd0n said: post one photo Hi MaLd0n. I have never seen anything like this before lol. First I get a normal kernel panic, then all the text turns blurry and I see the spot line as presented on the last picture. Really don't know where things go wrong. I also added the Clover folder. CLOVER.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted October 29, 2018 Share Posted October 29, 2018 update ur bios to last version, remove dsdt, reboot and extract one send me for me RunMe.app Link to comment Share on other sites More sharing options...
DapperDuck Posted October 29, 2018 Author Share Posted October 29, 2018 34 minutes ago, MaLd0n said: update ur bios to last version, remove dsdt, reboot and extract one send me for me RunMe.app Hi MaLd0N I updated my BIOS and ran the installer USB without the DSDT.aml file but it still results into a kernel panic when booting the installer. Where do I need to run the RunMe app? Link to comment Share on other sites More sharing options...
MaLd0n Posted October 30, 2018 Share Posted October 30, 2018 use other usb port Link to comment Share on other sites More sharing options...

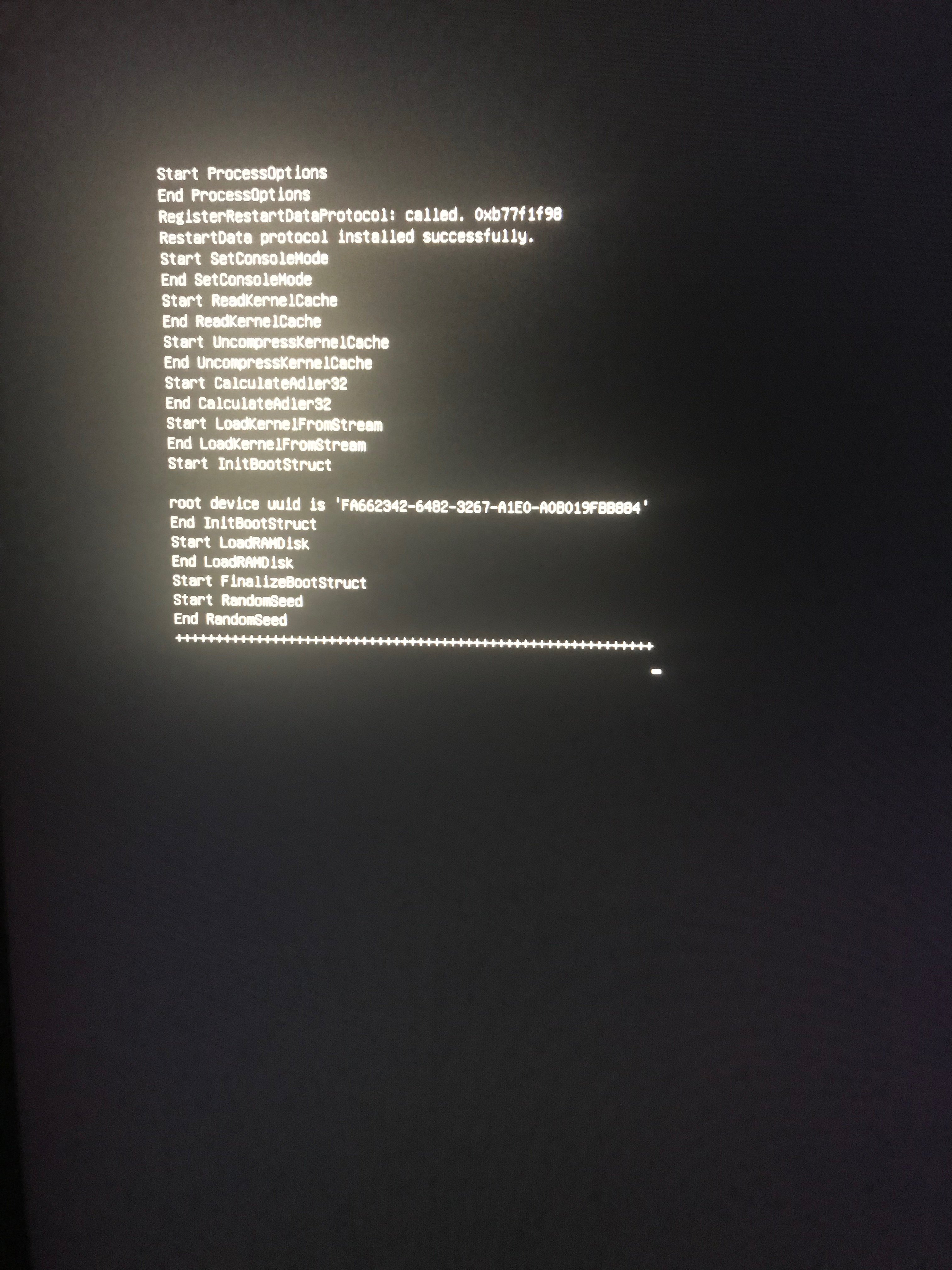

DapperDuck Posted October 30, 2018 Author Share Posted October 30, 2018 (edited) 10 hours ago, MaLd0n said: use other usb port Hi MaLd0n, I got the same screen again but after waiting for like 2 minutes I got into the Mojave installer. After installing, everything was working OOB. Sound, the RX 580. Only problem is that my USB 3.0 drives won't work in the front USB 3.0 ports but that's not a big issue. Thanks for your help so far! However, I get the block of text every time I boot into my MacOS SSD, which I posted earlier at every single boot which takes booting the PC longer.... Do you know how I can get rid of it? It starts with the lines of text in the image I attached to this post and it continues with the text lines from my third post. Hopefully you can still help me out! EDIT: That was the -V boot flag for Verbose mode. After removing the -V flag, it boots as it should. So the only thing that remains are my USB 3.0 ports not working. Do you know what could be the issue of that? Back when I had my GTX 1080 I also had problems with USB 3.0 ports but that was a problem most people had with High Sierra (and Mojave atm). Edited October 30, 2018 by DapperDuck Link to comment Share on other sites More sharing options...

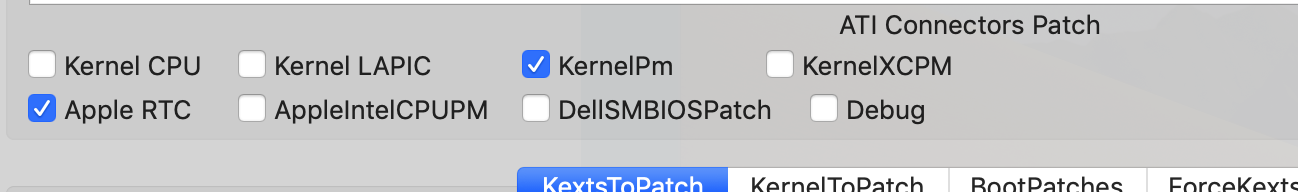

Donw35 Posted October 30, 2018 Share Posted October 30, 2018 is KernelPM checked ?i Link to comment Share on other sites More sharing options...
MaLd0n Posted October 30, 2018 Share Posted October 30, 2018 2 hours ago, DapperDuck said: Hi MaLd0n, I got the same screen again but after waiting for like 2 minutes I got into the Mojave installer. After installing, everything was working OOB. Sound, the RX 580. Only problem is that my USB 3.0 drives won't work in the front USB 3.0 ports but that's not a big issue. Thanks for your help so far! However, I get the block of text every time I boot into my MacOS SSD, which I posted earlier at every single boot which takes booting the PC longer.... Do you know how I can get rid of it? It starts with the lines of text in the image I attached to this post and it continues with the text lines from my third post. Hopefully you can still help me out! EDIT: That was the -V boot flag for Verbose mode. After removing the -V flag, it boots as it should. So the only thing that remains are my USB 3.0 ports not working. Do you know what could be the issue of that? Back when I had my GTX 1080 I also had problems with USB 3.0 ports but that was a problem most people had with High Sierra (and Mojave atm). disable hibernate https://olarila.com/files/Utils/disablehibernate.command.zip run it too https://olarila.com/files/Utils/RepairPermissions.zip reboot Link to comment Share on other sites More sharing options...
DapperDuck Posted October 30, 2018 Author Share Posted October 30, 2018 52 minutes ago, Donw35 said: is KernelPM checked ?i Yes it's checked. 32 minutes ago, MaLd0n said: disable hibernate https://olarila.com/files/Utils/disablehibernate.command.zip run it too https://olarila.com/files/Utils/RepairPermissions.zip reboot I ran the two command files and rebooted the machine but USB 3.0 is still not working. USB 2.0 devices in the 3.0 ports work just fine but my external HDD USB 3.0 and USB 3.0 sticks are simply not working in the 3.0 ports. I really don't understand what's causing this as I've got the USB/XCHI patches in Clover configurator. Link to comment Share on other sites More sharing options...
Donw35 Posted October 30, 2018 Share Posted October 30, 2018 do you have any USB3.0 ports that do work Link to comment Share on other sites More sharing options...
DapperDuck Posted October 30, 2018 Author Share Posted October 30, 2018 8 minutes ago, Donw35 said: do you have any USB3.0 ports that do work Not one. Only USB 2.0 devices work in the USB 3.0 ports. USB 3.0 devices in the front USB 3.0 or back ports simply don't work. And I don't know why. I added a new "patch" to clover for Mojave for USB 3.0 support but it only results in the same but I get the message that I need additional power for the USB Device... Link to comment Share on other sites More sharing options...
MaLd0n Posted October 30, 2018 Share Posted October 30, 2018 In mojave u need exclude unused ports, limit port patch don't work more check rehabman tutorial or use it https://www.insanelymac.com/forum/topic/335018-intel-fb-patcher-v157/ Link to comment Share on other sites More sharing options...
DapperDuck Posted October 30, 2018 Author Share Posted October 30, 2018 4 hours ago, MaLd0n said: In mojave u need exclude unused ports, limit port patch don't work more check rehabman tutorial or use it https://www.insanelymac.com/forum/topic/335018-intel-fb-patcher-v157/ Hmm that looks very difficult. Hopefully I'm able to fix it this way. Shame nobody got a pre-made DSDt for this motherboard. Link to comment Share on other sites More sharing options...
MaLd0n Posted October 30, 2018 Share Posted October 30, 2018 U just need what unused ports and excluded with flag example used ports, tested with usb stick 2 and 3 unused ports excluded with flag uia_exclude=HS01;HS02;HS05;HS06;HS13;HS14;SS01;SS02;SS05;SS06;SS09;SS10;USR1;USR2 Check alternation ports SS03, SS04, SS07 and SS08 is same as HS03, HS04, HS07 and HS08 is same, but if u connect with USB 3 device appears in SS(super speed), if u use usb 2 device appears in HS(high speed) Link to comment Share on other sites More sharing options...
DapperDuck Posted October 30, 2018 Author Share Posted October 30, 2018 6 minutes ago, MaLd0n said: U just need what unused ports and excluded with flag example used ports, tested with usb stick 2 and 3 unused ports excluded with flag uia_exclude=HS01;HS02;HS05;HS06;HS13;HS14;SS01;SS02;SS05;SS06;SS09;SS10;USR1;USR2 Check alternation ports SS03, SS04, SS07 and SS08 is same as HS03, HS04, HS07 and HS08, if u connect with USB 3 device appears in SS(super speed), if u use usb 2 device appears in HS(high speed) Hi mate where can I find this? What program do you use to achieve all this? Rehabman's guide is for the more advanced users. I'm still a rookie at this lol! Link to comment Share on other sites More sharing options...
MaLd0n Posted October 30, 2018 Share Posted October 30, 2018 ioreg and usb devices(usb 2 and 3) for check what ports u need Link to comment Share on other sites More sharing options...
DapperDuck Posted November 12, 2018 Author Share Posted November 12, 2018 I got my problem surrounding the USB ports fixed by following this guide: http://www.legallou.com/HackIntosh/CloverTuto/USBinjector.html Thanks a bunch @MaLd0n. I did end up using a completely different Clover set-up but I really appreciate all your help as well. Link to comment Share on other sites More sharing options...
