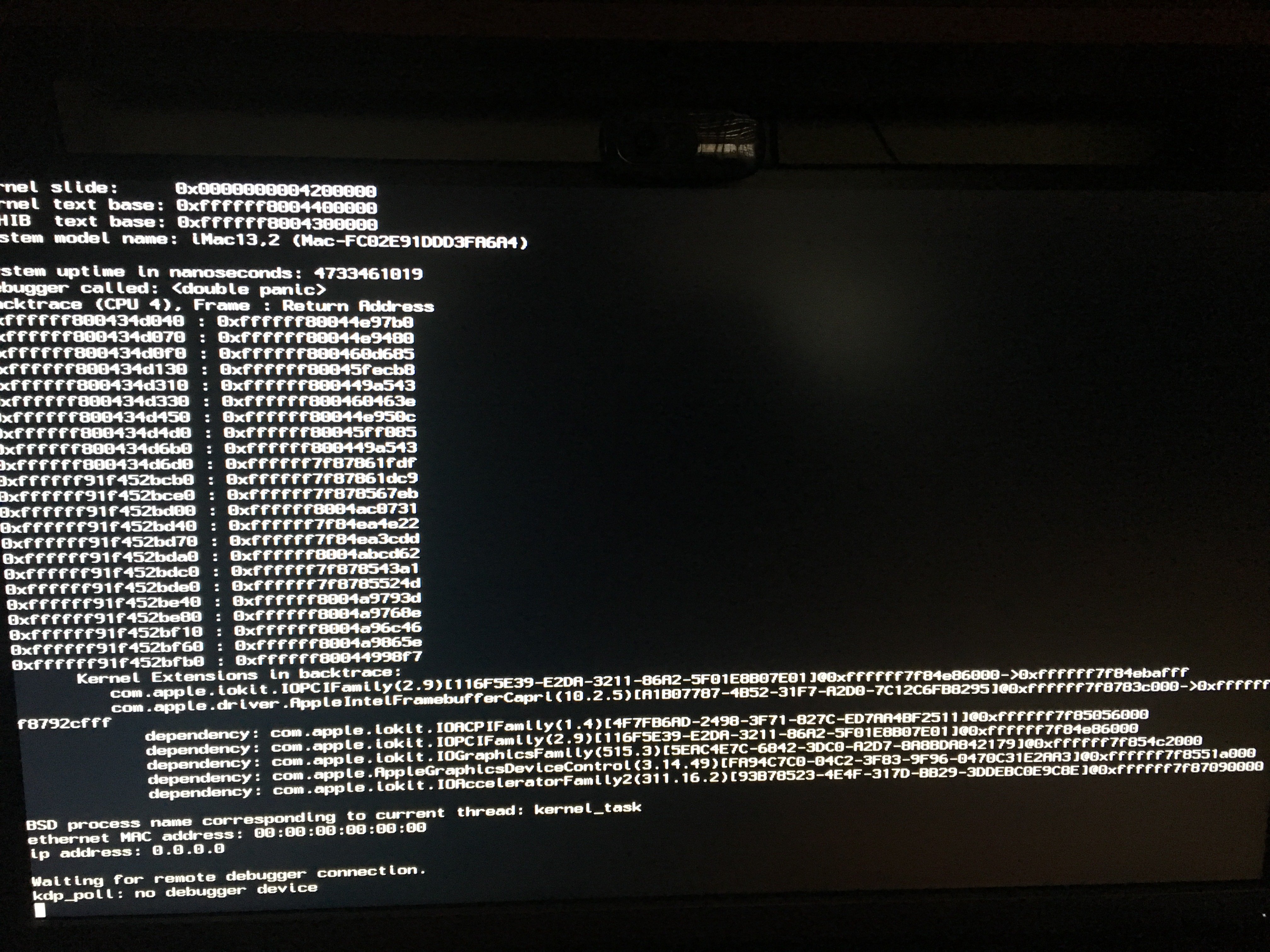

zeuscba Posted October 14, 2018 Share Posted October 14, 2018 I was using macOS Sierra 10.12.6 with Clover r4123 without problems with plans to upgrade to Mojave and now when I upgrade Clover I can't boot on macOS and get this Kernel Panic: My current version of macOS Sierra has been used without problems, it was done through a fork of Github of TheraceMaster, I only have problems when I configure config.plist with Clover Configurator since there is an option: FixRegion_10000000 that changes to FixRegions = True when I apply the changes with CC, and that also breaks the boot of macOS, maybe it is related? Any idea? attach my config.plist My Specs: Motherboard: GA-Z77X-UD5H (F14) Video: Intel HD 4000 and Nvidia 970 SCC Link to comment Share on other sites More sharing options...
Allan Posted October 14, 2018 Share Posted October 14, 2018 Hi and welcome to InsanelyMac. Try clear the NVRam: Link to comment Share on other sites More sharing options...
zeuscba Posted October 14, 2018 Author Share Posted October 14, 2018 Hi and welcome to InsanelyMac. Try clear the NVRam: No, not work Enviado desde mi iPhone utilizando Tapatalk Link to comment Share on other sites More sharing options...
Allan Posted October 14, 2018 Share Posted October 14, 2018 Can you boot with your USB stick? Link to comment Share on other sites More sharing options...
zeuscba Posted October 14, 2018 Author Share Posted October 14, 2018 Can you boot with your USB stick?Yes, no problem booting with USB and back to my older EFI before update, the problem it’s that i can’t upgrade Clover, maybe some .efi file that I don’t upgrade?Enviado desde mi iPhone utilizando Tapatalk Link to comment Share on other sites More sharing options...
Allan Posted October 14, 2018 Share Posted October 14, 2018 Which method are you installing Clover? UEFI or Legacy? This video can help you to install in the right way: Link to comment Share on other sites More sharing options...
zeuscba Posted October 14, 2018 Author Share Posted October 14, 2018 UEFI mode Link to comment Share on other sites More sharing options...
Allan Posted October 14, 2018 Share Posted October 14, 2018 1 minute ago, zeuscba said: UEFI mode In UEFI mode you'll need pay attention in the drivers64UEFI section. Some of them are only for FV2, others are for others types of mobos etc... Link to comment Share on other sites More sharing options...

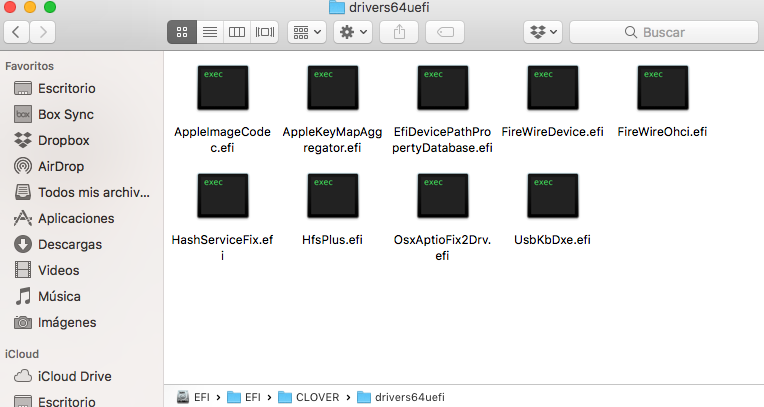

zeuscba Posted October 14, 2018 Author Share Posted October 14, 2018 This is my actual drivers64UEFE folder, I read about a problem with OsxAptionFix2Drv.efi when update Clover but that not help me in all Link to comment Share on other sites More sharing options...
Allan Posted October 14, 2018 Share Posted October 14, 2018 Some drivers inside this folder are only for FV2: https://www.insanelymac.com/forum/topic/329777-clover-problems-report-features-request/?do=findComment&comment=2634377 Replace the OsxAptionFix2Drv.efi to the OsxAptionFix3Drv.efi or AptioMemoryFix-64.efi 1 Link to comment Share on other sites More sharing options...

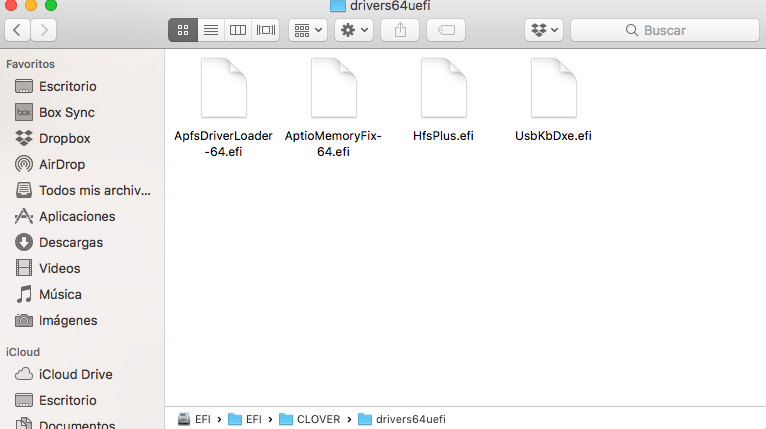

zeuscba Posted October 14, 2018 Author Share Posted October 14, 2018 Obrigado!! Thanks! Now I can boot with Clover r4700!! I only let this files on drivers64UEFI folder, almost one step more to update to Mojave Is any .efi file that maybe need to add before update to Mojave? Again!! Thanks a lot for your help!!! 1 Link to comment Share on other sites More sharing options...

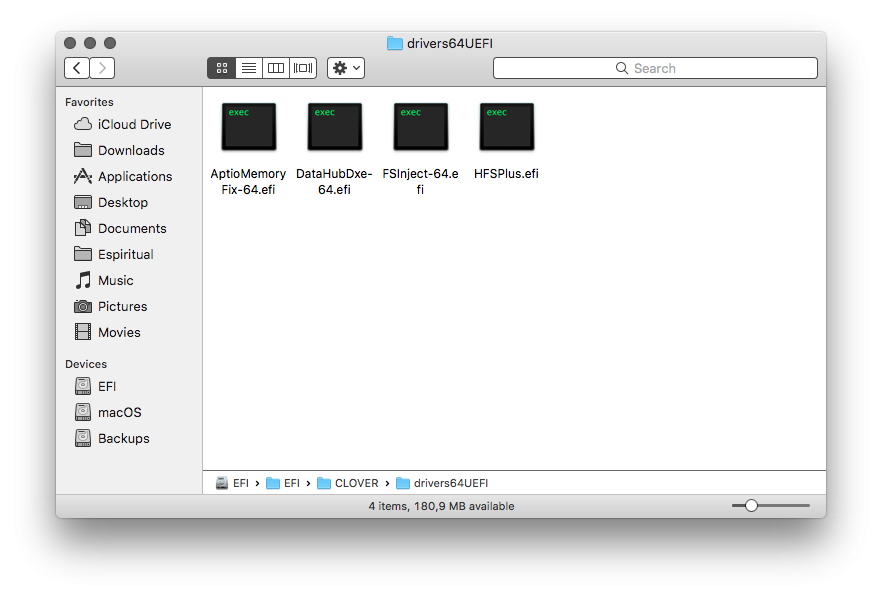

Allan Posted October 15, 2018 Share Posted October 15, 2018 Nice, that's is the right way. Take a look at my folder: And no, after you upgrade to Mojave, the folder will remains the same. Only pay attention if one of this .efi drivers got some update in the future. Link to comment Share on other sites More sharing options...
