tlefko

macOS Mojave XPS 13 Guide + Support

26 posts in this topic

Recommended Posts

macOS-Mojave-XPS13-9350

  • Hello, this is a simple guide to get OS X 10.14 working on any XPS 13 9350 model

  • This guide uses files from (@syscl) (albeit edited) and full credit to him for the Deploy.sh and DSDT patches. However, his Clover folder is unbootable with Mojave and thus has been redone.

  • However, his Deploy is still retained but edited to remove some DSDT patches that break things on Mojave

  • I did my best to keep the guide simple and for the most part it is, it's inteded for the 6200U non iris but should work with others. (credit @syscl)

Issues

  • Wake up via lid is hit or miss (sometimes needs key press)
  • SD Card slot
  • Restarts don't work (endless black screen while turning off but still on)

Usage Notes

  • USB Devices eject upon sleep (USB Patches via Deploy were major issue)
  • Changing board number via Clover Config doesn't work always unless serial is changed (No idea..)
  • Audio is controlled via VoodooHDA however prefpane is not nessacary.
  • Never tested USB C anything. Charging should be fine however I'm not sure about others, don't personally use it)

What Works

  • Everything else!

Setup Notes

  • The new AFPS file system must be used, there is no way to avoid it. Has no noticeable adverse effects except slower boot time
  • It is difficult to repartition AFPS drives and resize them, recommend clean install or you could have one partition smaller than your hard drive that can't be increased unless reformatted
  • Although Volumes will be converted, keep drive as GUID

BIOS Settings

  • Set all SATA operation as AHCI
  • Disable Secure Boot, Fast Boot
  • For Coil Whine improvement disable C-States
  • Enable UEFI Booting (Disable Legacy if easily confused)

Recommended: Clean Install (Preinstall steps)

  • Download latest Mojave version from Mac App store (Register AppleID as developer, enroll your mac, download the preview from the link onsite or google for detailed instructions.
  • Make Bootable media (google how or download app to do it, it's just a terminal command)
  • Download the Latest Clover revision (currently using r4568) and install it to your USB as UEFI and ESP (no need for drivers)
  • Copy The contents of this Github repository into your EFI folder on the USB (Mount the EFI Partition via clover config, efi mounter, etc.) (No Boot Folder in EFI)
  • If you have the same XPS Model as me you can use stock ACPI patched files (6200u, hd 520, 3200x1800,) if not delete contents of both folders (origin, patched) and will fix later via @syscls modified deploy)

Installing Mojave (Clean Install)

  • Boot PC off the USB, select your Installer as your Boot drive from clover menu
  • config is currently set to FAKESERIAL and -v. I believe (@syscl's) deploy generates serial # information
  • Once installer is loaded, go to disk utility and format as a GUID Partition Table with whatever partitions you want (Don't format whole drive to afps make sure it's GUID)
  • Run the Mojave installer to the drive wait for it to finish, then turn off)
  • From Clover, select the name of the Mojave Partition (not preboot, recovery, etc.) and not your USB stick either
  • From here the installation will continue. DO NOT CLICK ON MOUSE OR KEYBOARD (crashes installer shortly after at least for me)

Post Install (Clean Install)

  • Reboot off your USB once again, load up your Mojave drive.
  • First Boot will take long, if your using my ACPI files (from @sysl's deploy, edited) and have same model you should have everything out of box (except wifi)
  • Regardless, run through the installer and set it all up.
  • (without acpi) At this point screen should be fine, mouse, keyboard, no wifi should be present or bluetooth. No brightness control as well.
  • go to terminal to mount EFI or via clover Config, EFI Mounter, etc, of both USB and the internal disk
  • Copy and REPLACE the EFI folder from the USB into your hard drive. Unplug your USB and reboot and you should be able to boot without the USB now
  • Turn off PC, boot into clover. Don't select a drive and press F4 and Fn+F4 a few times, wait a few seconds, then boot back to the drive
  • Plug back in the USB, mount it's EFI, and run the modified Deploy Script on your Hard Drive EFI partition
  • After deploy is finished, there will be VoodooI2C error as I deleted it from Kexts, for me it breaks Trackpad and Keyboard. For now will be using VoodooPS2.

After Modded Deploy

  • You should have no Internet at this point, the following next steps should resolve that. However, your Brightness, lidsleep, USB, bluetooth should be working
  • Using your favourite Kext Installer (Put it on a USB or something to get it on the PC), install (credit @Rehabman's) FAKEPCIID and FAKEPCIID_Broadcomm texts that are included in the ManualKexts Folder
  • Then run "Sudo kextcache -i /" from terminal, reboot, then run it again.
  • By this point your wifi should be fixed, and everything should be done

Post Install Notes

  • Your welcome to transfer whatever other kexts you want to S/L/E, personally I leave them in the CLOVER Folder injected.
  • Doing upgrade via mac app store is similar, just partitioning hard drive is harder. Apart from that same process essentially, not recommended

Credits

  • Credit Hackintosher.com for basic patches (although @syscl) covered some
  • Credit to @syscl (clearly...)
  • Credit to @Rehabman
  • Credit to @syscl Kexts, and his contributers. ex. Lidwake.kext (although not fully compatible)

Support

  • Your welcome to open any issues on this thread, I personally have little DSDT knowledge so I will do my best to help!

Thanks for Reading!

- This is a clone from my GitHub, the link to the repository is below with all files



https://github.com/tlefko/macOS-Mojave-XPS13-9350



- I would really like to hear everyone's experience trying this guide so please let me know in the comments how it worked for you, if you plan to try it, etc.



Checkout our official site here https://twortech.wixsite.com/pcmac

Edited by tlefko
Spelling

Share this post


Link to post
Share on other sites
Advertisement

Hi, a lot of the guide should work, except you would need to patch brightness as well as lid sleep yourself. However, if you follow there rest of the guide most of the other things should work! Let me know if you have any other questions, or if it works. Delete the APCI folder from your CLOVER folder



Cheers,

Edited by tlefko

Share this post


Link to post
Share on other sites

Hi tlefko,



I followed all steps of the “preinstall steps”. I copied all files of your github folder inside the EFI folder in the EFI partition overwriting everything that was already there, but I get the following message at startup “Attempting system restart...” when start system at verbose mode. I don’t reach the installation screen.



Any idea what is happening?



Thank you.



Regards,

Jose


Share this post


Link to post
Share on other sites

Hello, could you attach your EFI partition?


Also, any idea what the last error message is?



Sorry for the late reply @joseferre

Okay, I figured out the issue. You need to make a new folder called EFI in your EFI partition, then copy the contents of EFI into the new EFI folder.

Edited by tlefko

Share this post


Link to post
Share on other sites

@maz-1 That's useful information. My knowledge in patching isn't that great. Any clue how to implement that to the build?

Share this post


Link to post
Share on other sites
On 11/22/2018 at 12:59 AM, tlefko said:

@maz-1 That's useful information. My knowledge in patching isn't that great. Any clue how to implement that to the build?



Edit: I made a hotpatch setup based on the-darkvoid's xps 13 9360 guide, no need to dump and patch dsdt, which makes the installation much easier.



https://github.com/hackintosh-stuff/XPS9350-macOS



everything works except:

* card reader. with Sinetek-rtsx and latest openbsd changes, the memory card can be seen by diskutil, but unable to mount.

* type-c hotplug works, but still need to be detached before sleep and wakeup. And according to xps 15 users, thunderbolt hotplug is probably borken as well.

Edited by maz-1

Share this post


Link to post
Share on other sites

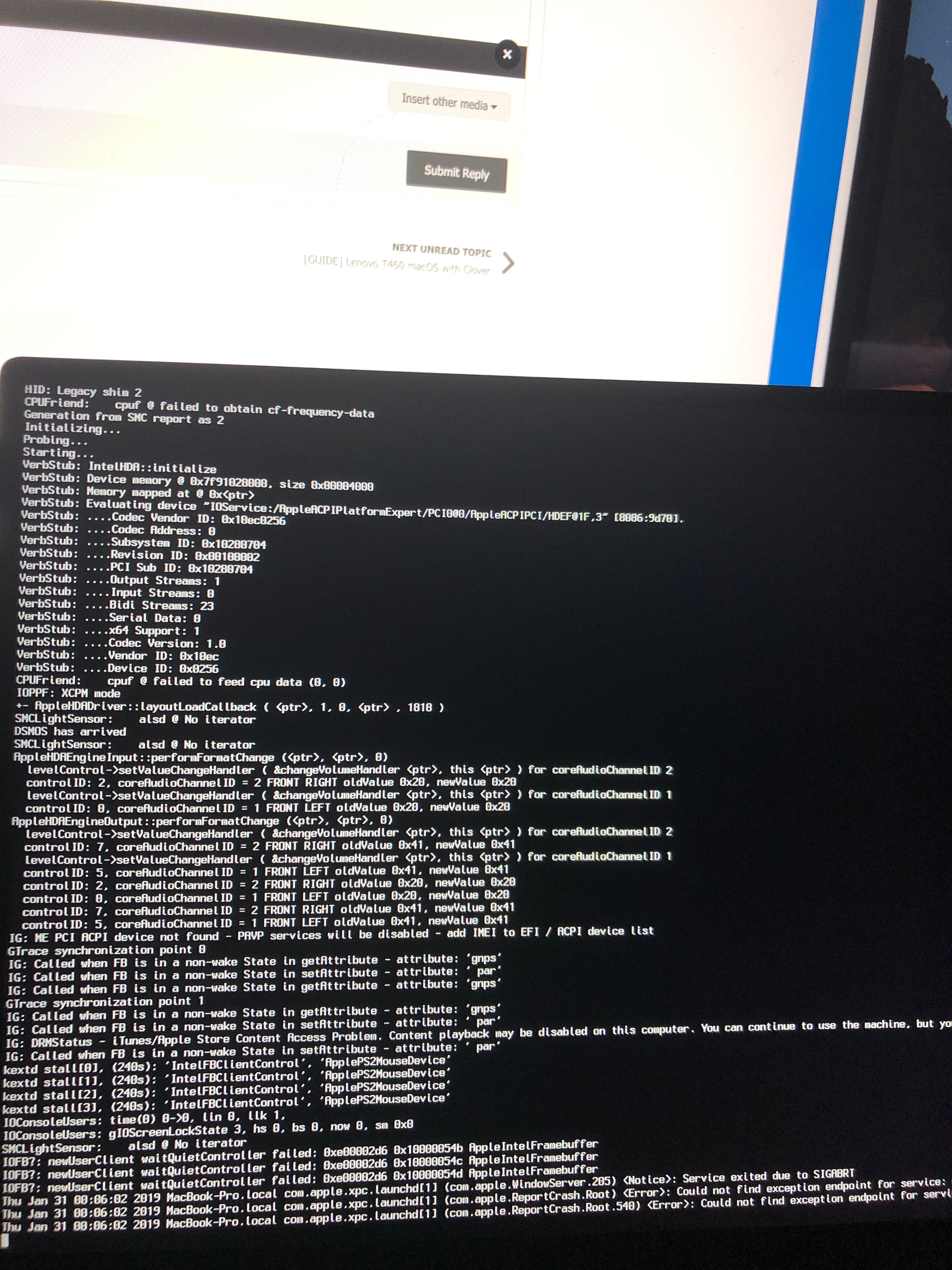

IMG_3725.thumb.jpeg.1a68baec2b221acc3d1b39a093080638.jpegIt continues to loop the (240s): 'IntelFBClientControl', 'ApplePS2MouseDevice" for 3 counts then starts the count over again. Please help

Share this post


Link to post
Share on other sites

Hi Guys I know this post is a tad "old" but I must admit that I need some assistance.
New to this site but I do have experience with desktop hacktintosh before, BUT I have never tried to set up a a laptop before.  The past 2 days i've been trying to get to the installer without any luck on my Dell XPS 9350 i5-6200u with intel-520 and FHD screen.

The BIOS settings of the laptop is: SATA set as ACHI
Fastboot disabled
SecureBoot Disabled
UEFI boot enabled



Also to be noted is that I'm currently using the CLOVER 2.4 r4871 version and the BIOS is updated to 1.9.0.

The attached pictures and EFI folder should be an exact representation of the instructions for this setup, at post#1.

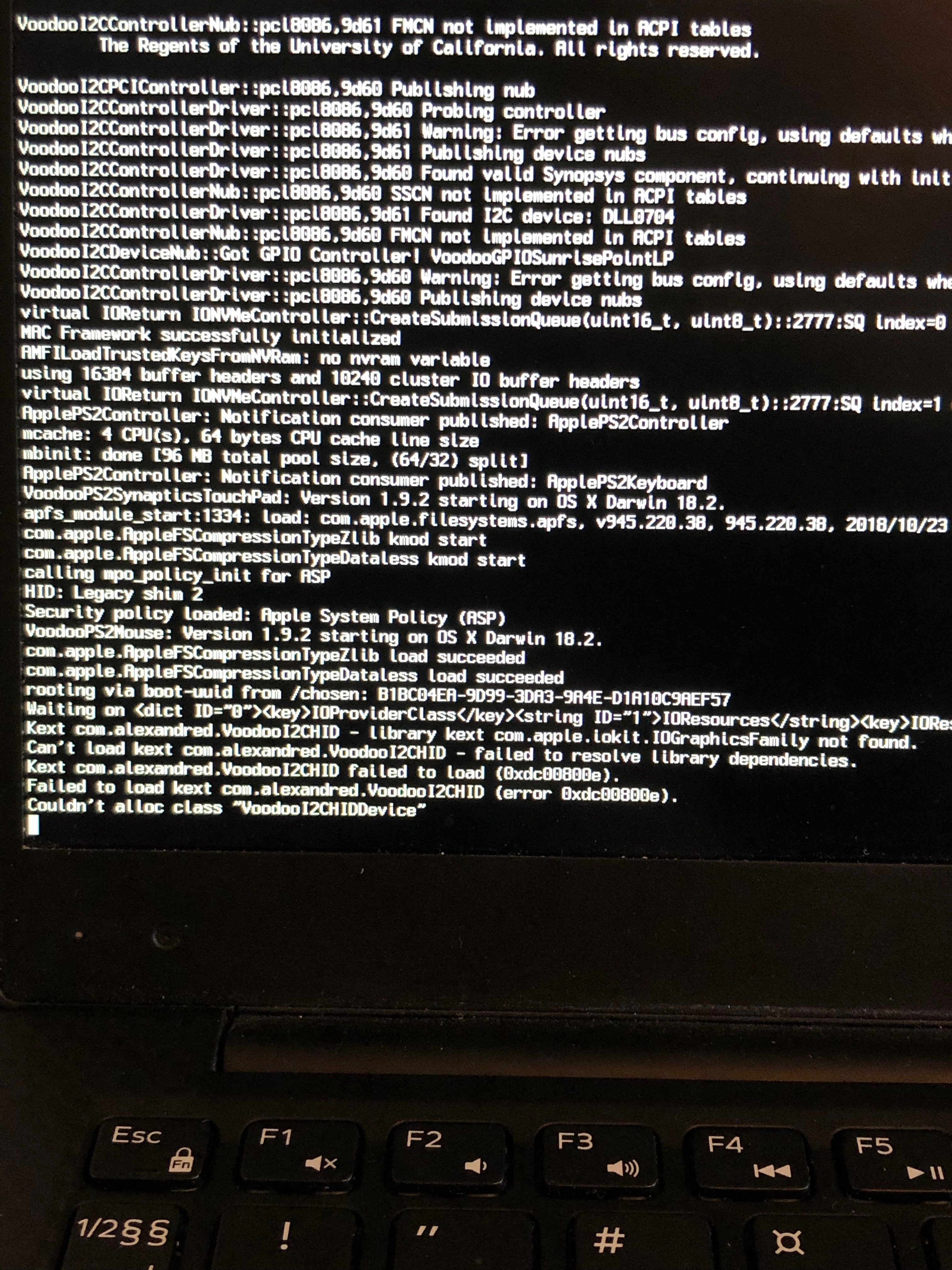

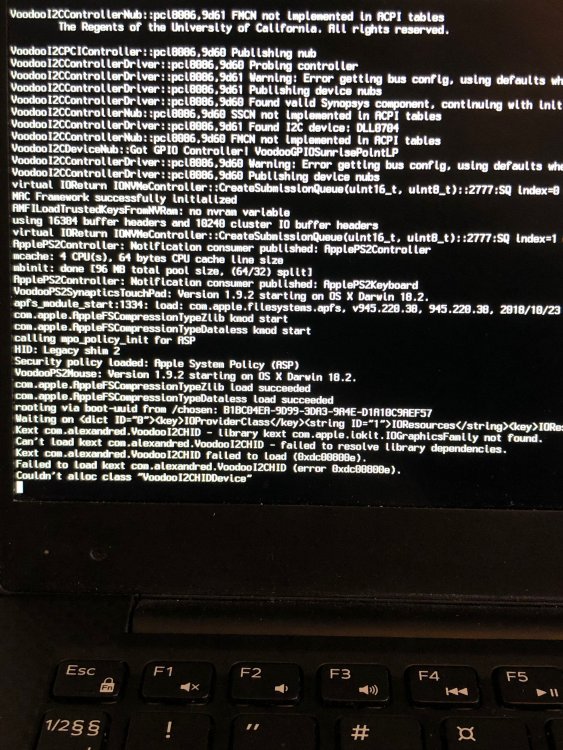

Short after the "Couldn't alloc class "VoodooI2CHIDevice" the installer crashes with the classic "stop sign" thingy.

Any ideers on how to proceed ?
Thanks in advance guys !

EFI.zip


Share this post


Link to post
Share on other sites

Hey all,



I've got the same issue about that "busy timeout: IntelFBClientControl" which won't go away. I've made a dedicated post about that issue here: https://www.insanelymac.com/forum/topic/337971-xps-9350-mojave-intelfbclientcontrol-timeout-framebuffer

This is really not meant as a bump! I just dont want to type all of this again, since I guess that I already did my best to describe my issue. I hope that's okay! :)



I would love to get my Hackintosh running, any help is appreciated!

Edited by HeadKnockr

Share this post


Link to post
Share on other sites

@HeadKnockr -- try my suggestion, let me know the result. we can continue to evaluate

Share this post


Link to post
Share on other sites

Hi Hackintosh Community! Please advise...



1. My specs:
Dell XPS 13 9350 | i5 6200U | Intel HD 520 Graphics | 3200x1800 Display | 8GB RAM | 256GB Samsung SSD | Dell Bios 1.12.2


     2. My Story:


I've been trying to install OSX Mojave 10.14.6 on this machine and am stuck in a weird spot.


I was following this same guide.Created Clover USB using a Virtualbox VM as I don't have access to a real Mac. It booted just fine the first time to the installer, with everything working fine (mouse, keyboard) apart from Wifi which was expected. The UI was scaling well too meaning the graphics were working.


I formatted my drive and the installation began but about 5 mins in, the screen turned black/grey and stayed there. So, I rebooted thinking to start over but now for some reason the installer does not even start. It would neither continue from the SSD using the USB nor through the USB partition itself for the installation to start afresh.  It always reboots saying Attempting System Restart... and then reboots.


Tried multiple guides for Mojave for this XPS but it always does the same reboot.
Thought it was an issue with Mojave, so I made a High Sierra USB and switched to this guide and Clover folder: https://github.com/tlefko/OSX-XPS13-9350

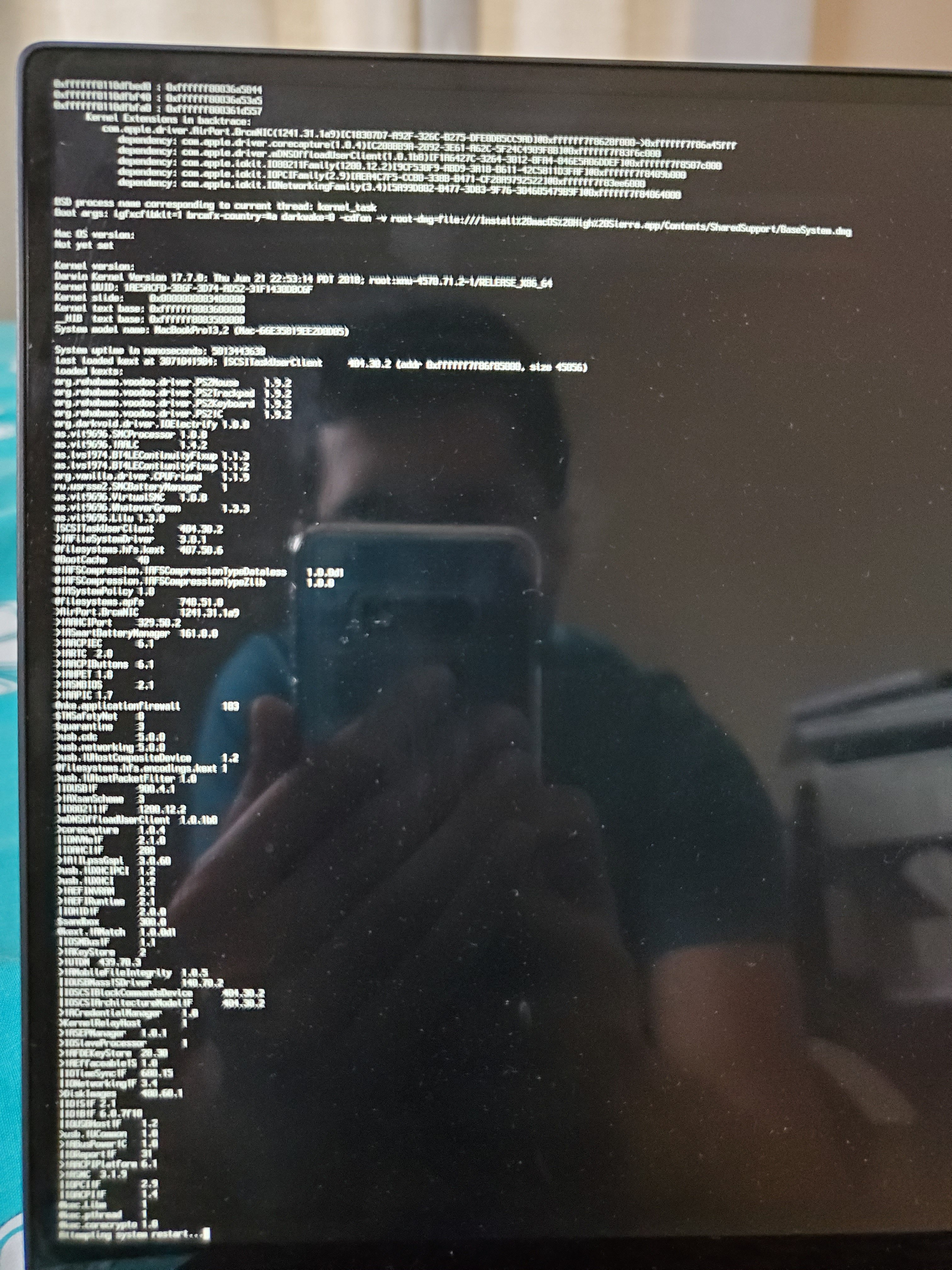

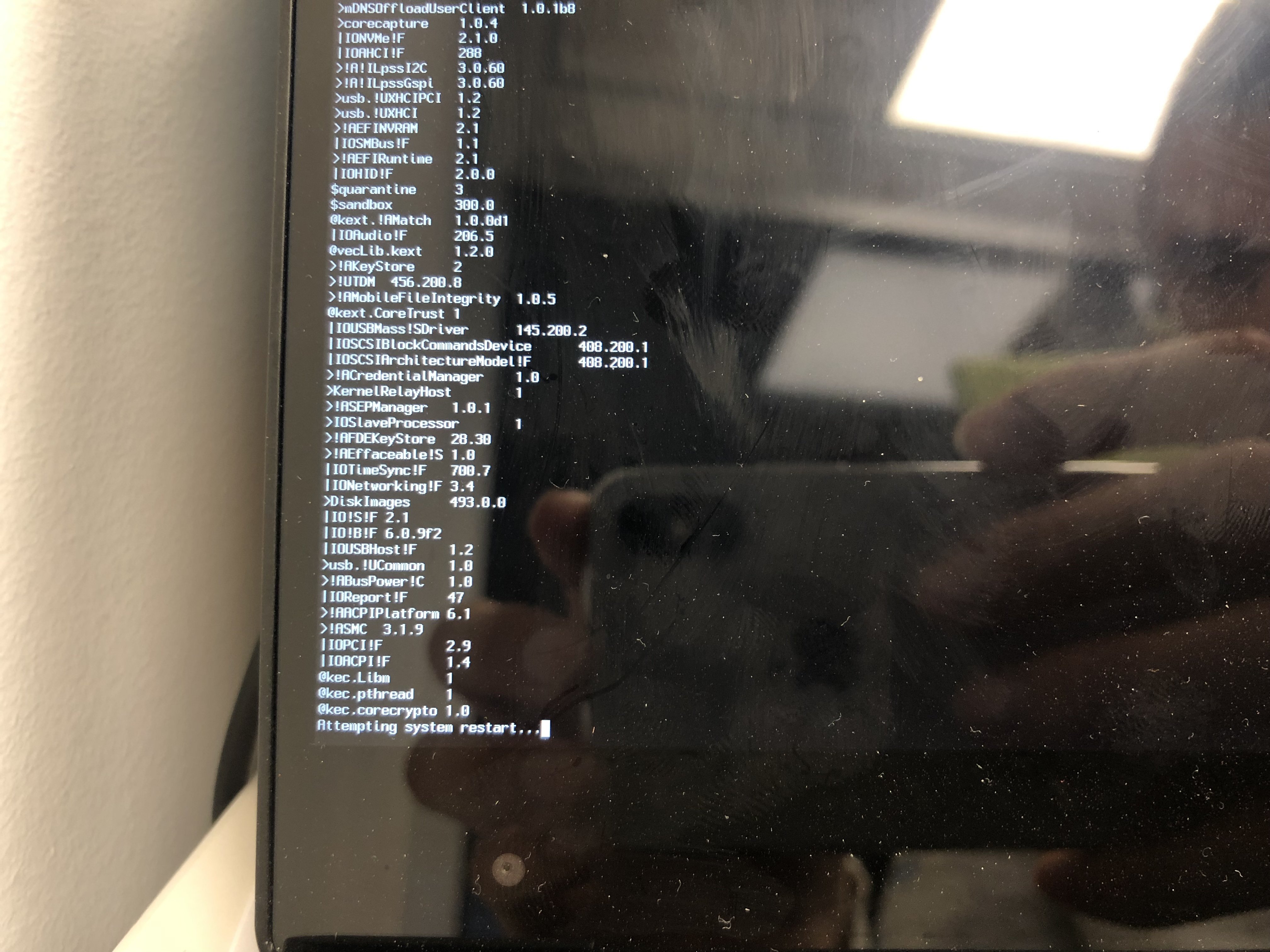

But same reboot loop issue. Some pictures of the verbose output (for High Sierra) are attached at the bottom.


I've tried changing USBs from 3.0 to 2.0, tried multiple guides and Clover folders, but still the same result. This leads me to believe the issue lies somewhere else. I have set the BIOS as advised in the guides btw.


Can you guys debug what the issue can be? It booted fine the first time. What gives? If you need anymore info, I will be happy to help. The Clover folder is the same as in the github account linked above.





Share this post


Link to post
Share on other sites
On 11/5/2018 at 5:56 AM, joseferre said:

Hi tlefko,



I followed all steps of the “preinstall steps”. I copied all files of your github folder inside the EFI folder in the EFI partition overwriting everything that was already there, but I get the following message at startup “Attempting system restart...” when start system at verbose mode. I don’t reach the installation screen.



Any idea what is happening?



Thank you.



Regards,

Jose


Did you solve it? I have the exact same issue and verbose output.

Share this post


Link to post
Share on other sites
On 2/29/2020 at 12:48 PM, saadi93 said:

Hi Hackintosh Community! Please advise...



1. My specs:
Dell XPS 13 9350 | i5 6200U | Intel HD 520 Graphics | 3200x1800 Display | 8GB RAM | 256GB Samsung SSD | Dell Bios 1.12.2


     2. My Story:


I've been trying to install OSX Mojave 10.14.6 on this machine and am stuck in a weird spot.


I was following this same guide.Created Clover USB using a Virtualbox VM as I don't have access to a real Mac. It booted just fine the first time to the installer, with everything working fine (mouse, keyboard) apart from Wifi which was expected. The UI was scaling well too meaning the graphics were working.


I formatted my drive and the installation began but about 5 mins in, the screen turned black/grey and stayed there. So, I rebooted thinking to start over but now for some reason the installer does not even start. It would neither continue from the SSD using the USB nor through the USB partition itself for the installation to start afresh.  It always reboots saying Attempting System Restart... and then reboots.


Tried multiple guides for Mojave for this XPS but it always does the same reboot.
Thought it was an issue with Mojave, so I made a High Sierra USB and switched to this guide and Clover folder: https://github.com/tlefko/OSX-XPS13-9350


But same reboot loop issue. Some pictures of the verbose output (for High Sierra) are attached at the bottom.


I've tried changing USBs from 3.0 to 2.0, tried multiple guides and Clover folders, but still the same result. This leads me to believe the issue lies somewhere else. I have set the BIOS as advised in the guides btw.


Can you guys debug what the issue can be? It booted fine the first time. What gives? If you need anymore info, I will be happy to help. The Clover folder is the same as in the github account linked above.





Hey @Snakkemand, send me a pm if you're still interested I'll try to help you out, I think it's an outdated driver for the hard drive

On 2/29/2020 at 1:00 PM, saadi93 said:

Did you solve it? I have the exact same issue and verbose output.

Feel free to shoot me a message, like I said I believe it could be an issue with the hard disk driver. I also released an updated guide which may help :)

Share this post


Link to post
Share on other sites

Hey guys so I've seen there's a lot of issues with these files (mainly as there to specific for certain models, would you be interested if I released a more general one? I'm happy to do it. Currently I'm running Mojave on my model

Share this post


Link to post
Share on other sites
On 3/21/2020 at 1:08 AM, tlefko said:

Hey @Snakkemand, send me a pm if you're still interested I'll try to help you out, I think it's an outdated driver for the hard drive

Feel free to shoot me a message, like I said I believe it could be an issue with the hard disk driver. I also released an updated guide which may help :)


Hi, thanks for the help. I figured out the issue. The kernal panic was related to the stock DW 1820A wifi card inside. It appeared above as BRCM.NIC in backtrace. I disabled the chip in bios and it booted fine.

Share this post


Link to post
Share on other sites
13 minutes ago, saadi93 said:


Hi, thanks for the help. I figured out the issue. The kernal panic was related to the stock DW 1820A wifi card inside. It appeared above as BRCM.NIC in backtrace. I disabled the chip in bios and it booted fine.

wow that's a great find, I never would've thought of that as I used the DW1560. That's great work!

Share this post


Link to post
Share on other sites
12 minutes ago, tlefko said:

wow that's a great find, I never would've thought of that as I used the DW1560. That's great work!

You should add this as a pre-install step in your new guide for any newby, like me, who is too broke to get a DW1560 and instead goes the route of cheap USB Wifi dongle :D.

It would really help. I was stuck with this for weeks without any clue from anywhere (one place which I can't recall but that did not mention this BRCM.NIC kernel panic being caused because of the chip not being disabled).

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

Announcements

  • Similar Content

    • By tlefko
      Site
      checkout our official site! https://twortech.wixsite.com/pcmac Version Info
      This build is compatible up to Big Sur Beta
      Now Compatible with macOS 11 Please leave feedback with issues or w/o Comitted to Updating up to OS 11 Latest Release Notes
      Fixed Bluetooth and Wifi Stability Issues Improved Preformance and Power Managements Can Provide Files for Display Overrides Additional Patches for 4K Display updated for Big Sur if using unsupported wifi card disable it in bios use config.plist FIXED SLEEP WAKE BUG Exact same functionality as Catalina What Works / Does Not
      Everything works minus in-built mic Some displays may be detected as 40hz (working on fix) Notes
      Never tested USB C over Display Output, everything else works flawlessly USB devices eject on sleep (not really an issue) POST
      run sudo pmset -a hibernatemode 0 If no mouse, install all voodoo kexts using Kext Utility Description
      This esentially an ultra-simplistic version that is stable without the use of a deploy or complicated file installations and copies. You can easily view all the SSDT patches along with configuration files for the bootloader as they are all documented clearly in the files. This does include a copy of Clover, which of course I do not contribute to and am only responsible for the provided files, patches, and kext placements This guide provides a working setup with little knowledge of the topic and without "optimization" (because often they can break things). But, it is fully functional and preforms properly and is stable Make sure you are using DW1560 for wifi or else KP. If not using remove BRCM kexts from CLOVER>kexts>other. BIOS Setup
      Disable Secure Boot INSTALL (VERY IMPORTANT)
      Due to structural changes in the setup of apple's Big sur, this EFI cannot boot the installer it can only boot into a system / device that has already been created and setup. To do this, you need to install Big Sur to a virtual machine (lots of guides online) and then create an dmg of that system, and restore it onto your HDD using the 'dd' command There are various guides online how to get this virtual machine setup complete. You can then use the attached EFI folder to boot and use macOS big Sur You can use this video to show you how to get your macOS pre-installed onto your hard drive https://www.youtube.com/watch?v=HMU3nhcbWHw Boot Entry Setup
      Due to the fact this BIOS is locked down pretty heavily, reccomended to use Windows to find a free tool to add UEFI boot entries Messages and Facetime
      Gnerate your own Serials, Board Numbers, MLB There are various guides online to do this and as default they're set to essentially Null (Fakeserial) This is fairly straightforward and there is lots of external recourses, or you can contact me for support. Headphones and Audio
      All audio from speakers should work perfectly along with Bluetooth and USB audio no internal mic Credits
      MaLd0n for DSDT Patches (HUGE SHOUTOUT) Original Kext Authors Clover Team Finished!
      Congratulations, there really aren't any more steps that are required. Feel free to contact me with any questions. Donations
      Send me a coffee/beer lefkotyler@gmail.com

      *check GitHub for latest releases and faster support https://github.com/tlefko/HP-Envy-13-Big-Sur
      EFI.zip
    • By tlefko
      News
      In light of the recent WWDC, we will begin testing the functionality of our EFI on macOS 11 for this device with the latest developer preview Version Info
      Features and Overview
      Now Compatible with 10.15.6 Please leave feedback with issues or w/o Comitted to Updating up to OS 11 Multitouch Trackpad Support 4K @60 Hz Fixed Bluetooth and Wifi Stability Issues Preformance and Power Management Additional Patches for 4K Display updated for 15.6 rev 1 Sleep Wake is functional for some models ----if screen glitches on wake or reopen lid. If this is a bother just disable sleep. This is issue is resolved in Big Sur Bugs
      Some models may experience screen split in half. If so disable. USB devices eject (external) No Internal Mic What Works
      Everything minus sleep issue above, internal microphone. (audio is fine, headphones / usb mic fine, just not laptop mic) POST
      run sudo pmset -a hibernatemode 0
      Description
      This esentially an ultra-simplistic version that is stable without the use of a deploy or complicated file installations and copies. You can easily view all the DSDT patches along with configuration files for the bootloader as they are all documented clearly in the files. This does include a copy of Clover, which of course I do not contribute to and am only responsible for the provided files, patches, and kext placements This guide provides a working setup with little knowledge of the topic and without "optimization" (because often they can break things). But, it is fully functional and preforms properly and is stable.
      Unsupported Wifi
      Make sure you are using DW1560 or 1820a for wifi or else there is a risk of KP. If not using remove BRCM kexts from CLOVER>kexts>other Styling
      This guide is designed to be literally as thorough as possible to appeal all types of users. It does not cover complex topics like undervolting etc etc only to provide a completely functional system
      Notes
      Never tested USB C except for charging, USB, works great (not sure about DispOut) 4K model has sleep wake issues occasionally, 1080P is fully functional BIOS
      Disable Secure Boot Disable Vt-d Recommended: Clean Install (Preinstall steps)
      Format a USB (16GB) as Journaled and then proceed to download the latest Catalina Installer Patcher Application. Download the latest Catalina installer from within the Patcher App, and select to download a new copy and install to your USB device Download the clover configurator application and mount the EFI of the USB partition, then copy the contents of the Files linked above to A new EFI Folder (that you create) within the EFI partition. ** This is because the App Store installers will often not download a full installer, just an truncated version that downloads the installer files from the interent while installing. Thus, they're not bootable from a USB as they're not complete. That is why you should use this method to make sure the installer is usable for bootable media.
      Boot From USB
      Use f9, copy EFI folder to efi partition of your usb. after installation complete copy EFI to your ssd. Boot Entry Setup
      Reccomend using windows to find a tool to add a UEFI bios entry to boot EFI/Boot/bootx64 Credits
      @MaLd0n for DSDT Patches and support (HUGE SHOUTOUT) Original Kexts Authors Clover Headphones and Audio
      All audio from speakers should work perfectly along with Bluetooth and USB audio Finished!
      Congratulations, there really aren't any more steps that are required. Feel free to contact me with any questions.
      Donations
      Send me a coffee lefkotyler@gmail.com
      EFI Catalina.zip

      **for latest releases and faster replies please refer to GitHub https://github.com/tlefko/HP-ENVY-13-2020-Catalina
    • By tonyx86
      This thread for installing Catalina on the Dell Latitude E6410 WITH NVIDIA GRAPHICS (BIOS A17, NVidia 3100m) will help you install a fresh installation of Catalina on your Dell Latitude E6410, it will help you upgrade from 10.15.2 to 10.15.x (if you originally installed Catalina from this thread) and it will also help you upgrade from Mojave 10.14.6 if you have already installed Mojave by following the instructions here.  The instructions in this first post assume that you are installing Catalina in an APFS container.  If you are curious about the evolution of this solution and how sleep/wake was solved, review the Mojave installation thread.

      Important: This Thread is NOT intended to help you install macOS on a Latitude E6410 with Intel HD Graphics (without Nvidia graphics).  The DSDT attached to this first post (in E6410-Catalina.zip) is VERY SPECIFIC to the Nvidia graphics implementation and has not been edited for HD Graphics - there are elements required for HD Graphics that are missing from the attached DSDT and there are DSDT mods that have not been tested with HD Graphics.  Also, the kexts attached to this first post are specific to a Broadcom Wi-Fi card which must replace the original Intel Wi-Fi card.

      This first post will be modified to reflect lessons learned and to reflect the most current working state of my Latitude E6410 (with NVidia 3100m discrete graphics) running Catalina.  Issues, observations and performance tips are recorded toward the bottom of this first post.  My recommended CLOVER configuration is specified toward the bottom of this first post.

      *** If you want help with your installation, please post your issue along with problem reporting files generated using @black.dragon74's problem reporting tool.  Google 'GENERATE PROPER PROBLEM REPORTING FILES black.dragon74' to find it. ***.  If Catalina's Read-Only protections block your installation of black.dragon74's gen_debug script, please copy the attached gen_debug script to your Desktop, change script properties with the terminal command 'chmod a+x ~/Desktop/gen_debug' and run the script from your Desktop.

      My system is as follows:
      Dell Latitude E6410 (I7-620m, Nvidia 3100M, 8GB DDR3, 512GB SSD, 1440x900 display, BIOS: A17) Wi-Fi: Broadcom BCM 94352HMB (replaced original Wi-Fi card) BIOS (version A17) configured as follows (leave default unless listed here): Boot Sequence: USB, Internal HDD, CD/DVD, Modular Bay HDD; Boot List Option: Legacy; Integrated NIC:Enabled; Parallel Port: Disabled; Serial Port: Disabled; SATA Operation: AHCI; Misc Devices: Enable Modular Bay, Camera, External USB, Microphone, Media Card and 1394; Latitude ON Reader: Disabled; Keyboard Illumination: Auto ALS and Input; Ambient Light Sensor: Enabled; OROM Keyboard Access: Disable; TPM Security: Disable; Computrace:Deactivate; CPU XD Support: Enable; Performance: Enable all options; Power Management: Disable Wake on AC, Disable Wake on LAN/WAN, Express Charge: Standard, Charge Behavior: Enabled; Keypad: Fn Key Only; Mouse/Touchpad: Touchpad/PS-2 Mouse; USB Emulation: Enable Legacy; Fn Key Emulation: Disabled; Fastboot: Thorough; Virtualization: Enable Intel Virtualization, Disable VT for Direct I/O, Disable Trusted Execution; Wireless Switch: Bluetooth and WLAN; Wireless Device Enable: Bluetooth and WLAN;
      Versions of the software used in this installation are listed below the installation steps.  EFI and kexts for Catalina are attached to this first post in E6410-Catalina.zip.  CLOVER configuration is specified below the installation steps.  You MUST BE LOGGED-IN to download attachments from this forum.

      Wi-Fi connection to an Access Point is delayed when using AppleALC for sound.  Do not use Apple ALC.  Use VoodooHDA pkg 2.9.2 v15 for sound.

      Steps to install Catalina on a Dell Latitude E6410 (BIOS A17, NVidia 3100m)

      If you want to upgrade to 10.15.6, see instructions at this post.

      If you want to upgrade to 10.15.5, see instructions at this post.

      If you want to upgrade to 10.15.4, see instructions at this post.

      Follow instructions below for 10.15.2 and 10.15.3.

      Make sure that your system matches my system description above (including BIOS version, Wi-Fi card, BIOS settings) If performing an upgrade from Mojave or a previous version of Catalina, backup your Mojave or Catalina partition! (Carbon Copy or similar) Download Catalina Installer Download DosDude Catalina Patcher Use DosDude Patcher to create Catalina USB Installer Delete LegacyUSBInjector.kext (we're using @RehabMan's USBInjectAll.kext with custom SSDT) and delete SIPManager.kext (CLOVER is managing SIP) from Catalina USB Installer's /Library/Extensions folder Copy all but the FakeSMC sensor kexts in E6410-Catalina.zip (attached) LE folder to the Catalina USB Installer /Library/Extensions (copy all kexts (including FakeSMC.kext) but not the FakeSMC sensor kexts) Install CLOVER Bootloader (Legacy) on USB Installer using the EFI in the E6410-Catalina.zip (attached).  Use the CLOVER configuration specified below.  Be sure to replace the XX-MASKED-XX parameters in the attached config.plist with your own values. Reset your Latitude E6410 NVRAM by doing the following (this may be important if you're making changes to your existing EFI and won't hurt anything if you're not making any changes) turn-off your laptop remove A/C power and main battery press and hold the power button for 30 seconds restore A/C power and battery Boot your Latitude E6410 from the Catalina USB Installer that you created in steps 5-8. Select "Reinstall macOS" (note that I have existing installations of Mojave and High Sierra on my Latitude E6410, so it's possible that this menu item changes to "Install macOS" if you don't have any previous macOS installations). Select your Catalina destination partition (which will be your Mojave or previous Catalina partition if you are upgrading) After the Catalina Installer reboots the first time, boot from the "macOS Installer" partition on the disk that you selected as your Catalina destination (not the macOS installer on the USB) After the Catalina Installer reboots the second time, boot the Catalina macOS Installer on the USB Select the Post Install Patcher utility Select only the following Post Install Patches (no other patches / options) Install Patch Updater Legacy Video After the Post Install Patcher reboots,  boot from the newly installed (or upgraded) Catalina partition and complete the macOS configuration Remove these kexts (if they exist) from /Library/Extensions: LegacyUSBInjector.kext, LegacyUSBVideoSupport.kext and SIPManager.kext If you are performing a fresh installation of Catalina: Install CLOVER (LEGACY - NOT UEFI) on your boot disk and configure EFI using files in the attached E6410-Catalina.zip.  Use the CLOVER configuration below.  Be sure to replace the XX-MASKED-XX parameters in the attached config.plist with your own values. Install all kexts in the attached E6410-Catalina.zip LE folder to your /Library/Extensions folder. Copy HWMonitor from the application folder in the attached E6410-Catalina.zip to your Applications folder. Install VoodooHDA (I installed using the Classic method) Skip to Step 21 If you are upgrading from a previous version of Catalina using the instructions from this thread or from Mojave that you installed using the instructions here: Replace 3rd-party kexts in EFI/Clover/kexts/Other with those in the attached EFI folder.   Replace EFI/Clover config.plist with the attached config.plist (Be sure to replace the XX-MASKED-XX parameters in the attached config.plist with your own values) Replace EFI/Clover/ACPI/patched with the files in the attached EFI/Clover/ACPI/patched Replace 3rd-party kexts in /Library/Extensions with those in the attached LE folder Remove VoodooSDHC.kext from /Library/Extensions Re-install VoodooHDA if necessary (I installed using the Classic method for Catalina) Ensure PROPER kext installation: If you're manually installing kexts in /Library/Extensions, make sure that you execute the following (in terminal) cd /Library/Extensions sudo chown -R root:wheel *.kext sudo chmod -R 755 *.kext sudo kextcache -i / After you execute 'sudo kextcache -i /' you should observe that ALL kexts are allowed.  If not, your kext directory attributes are probably incorrect.  Repeat kext installation and try again. Reboot from your new/upgraded Catalina partition Welcome to macOS Catalina! Change the keyboard type to ISO (System Preferences > Keyboard > Change Keyboard Type) Swap the Command and Option keys (System Preferences > Keyboard > Modifier Keys) Set hibernatemode: In terminal, execute sudo pmset -a hibernatemode 0 sudo rm -f /var/vm/sleepimage sudo touch /var/vm/sleepimage sudo chflags schg /var/vm/sleepimage
      Version Info at the time of this writing:
      Catalina Installer 10.15.6 CLOVER r5119 DosDude Catalina Patcher: v1.4.4 Lilu.kext 1.4.5 AirportBrcmFixup.kext 2.0.7 (not yet included in the attached E6410-Catalina.zip archive.  Get latest version here) BrcmFirmwareData.kext 2.5.3 BrcmBluetoothInjector.kext 2.5.3 BrcmPatchRAM3.kext 2.5.3 IntelMausi.kext 1.0.3 (Not IntelMausiEthernet.kext)
      EFICheckDisabler.kext 0.5
      VoodooHDA.kext 2.9.2 v15 (NOT AppleALC)

      What is not working (that was working in Mojave)
      SD Card Slot (had to remove VoodooSDHC.kext which caused system freeze on wake)
      Known Issues and Their Solutions
      (Not yet included in E6410-Catalina.zip archive attached to Post #1) There is a new version (2.0.7) of AirportBrcmFixup.kext here.  I hadn't noticed any issues with version 2.0.6, so this updated kext will be included in a future update to the E6410-Catalina.zip archive attached to this first post. (Solved - no further work required) Clover r5118 requires the config.plist key <key>NoDefaultProperties</key><false> to permit macOS to boot with Clover's "Inject Nvidia" = True.  See details here.  config.plist in the attached E6410-Catalina.zip archive includes this change. (Solved - no further work required) EFICheck is loaded.  Solution is to install EFICheckDisabler.kext which you can get here.  EFICheck.kext is included in the attached E6410-Catalina.zip archive. (Solved - no further work required) Some users experience display issues.  The solution is to remove Device (PNLF) from the DSDT.  Use the attached DSDT.  Removal of PNLF will disable sleep on lid closure.  Device (PNLF) can be added without modifying the DSDT by enabling the Clover PNLF ACPI patch.  The attached Clover config.plist enables the PNLF DSDT patch.  Disable the Clover PNLF patch if you experience display issues. (Solved - no further work required) USB sleep/wake power IORegistry keys are not injected (not included in Mojave's or Catalina's IOUSBHostFamily.kext).  Solution is to added SSDT-USBX.aml to EFI/CLOVER/ACPI/patched.  The attached SSDT-USBX.aml includes USB sleep/wake properties for MacBookPro6,2 from High Sierra 10.13.6 IOUSBHostFamily.kext. (No solution yet) Brightness slider does not work in System Preferences > Displays.  Brightness is easily controlled with Dell brightness keys.  There is some work on this later in this thread, but I will not be solving this as I'm content with the Dell brightness keys (and Ambient Light Sensor works to auto-adjust brightness). (No intention to solve) Display Settings in System Preferences are "garbled" when bright slider is visible.  This is a known issue with the legacy graphics patch and does not affect laptop operation. I continue to refine the DSDT and CLOVER config.plist to optimize my Latitude E6410 for multi-booting between various macOS versions (High Sierra, Mojave and Catalina at the time of this writing). If you upgrade your Latitude E6410 EFI using my attached EFI, you may find that your Latitude E6410 is stuck in a boot-loop that ends in a white screen and reboots.  Clear your system by doing the following: turn off your laptop, remove A/C power, remove the main battery, press and hold the power button for 30 seconds, restore A/C power and battery, boot normally.  I have only found this to be necessary (very rarely) after making an EFI change, but you may find it helpful if making kext changes in /Library/Extensions as well. (Solved - no further work required) Brcm firmware does not update when using BrcmFirmwareRepo.kext in /Library/Extensions.  Solution is to install BrcmFirmwareData.kext and BrcmPatchRAM3.kext in E/C/k/O with Clover "Inject Kexts" = YES. (Solved - no further work required) Laptop does not sleep when closing lid.  Solution appears to be a combination of adding Notify (LID0) code to Method (BTNV) and adding Device (PNLF) in the DSDT. I am using the same EFI for High Sierra 10.13.6, Mojave 10.14.6 and Catalina 10.15.3 and it works in all three macOSes. (No solution yet) No SD Card Slot (had to remove VoodooSDHC.kext) - I read somewhere that there is a solution that does not require any kexts (just a DSDT edit).  Haven't yet implemented this fix. (Not a problem that needs to be solved - leaving for historical purposes.  I am running Catalina without this.) - IOHWControl does not load under GFX0 (as observed in IORegistryExplorer).  Solution (if it needs to be solved) is to install AppleHWSensor.kext from a DosDude-patched Mojave /S/L/E in Catalina's /L/E.  Copy and install your own or use the kext attached to this post. (Solved - no further work required) Wi-Fi connection is delayed until a minute or so after boot - Use VoodooHDA and NOT AppleALC (Solved - no further work required) External USB ports do not work after waking from sleep (S3) - Upgrade Lilu.kext and replace BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext (in /L/E) with latest BrcmBluetoothInjector.kext, BrcmFirmwareRepo.kext and BrcmPatchRAM3.kext. (Solved - no further work required) Boot and shut-down time of Catalina is slower than Mojave - Upgrade Lilu.kext and replace BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext (in /L/E) with latest BrcmBluetoothInjector.kext, BrcmFirmwareRepo.kext and BrcmPatchRAM3.kext. (Solved - no further work required) Wi-Fi is not immediately available at OS startup - Upgrade Lilu.kext and replace BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext (in /L/E) with latest BrcmBluetoothInjector.kext, BrcmFirmwareRepo.kext and BrcmPatchRAM3.kext. (Solved - no further work required) Laptop freezes on wake - Remove VoodooSDHC.kext from /Library/Extensions
      Tips for Improved Performance (on this and other older systems)
      System Preferences > Spotlight > Search Results: Uncheck all options System Preferences > Spotlight > Privacy: Add all Volumes System Preferences > Accessibility > Display: Check "Reduce motion" System Preferences > Accessibility > Display: Check "Reduce transparency"
      Other tips
      If your fan is always running and temps are good, try pressing Fn + z (I haven't noticed this issue for a while since I completed DSDT edits for Mojave, but keeping this here for historical purposes)
      CLOVER Installation: Use these configuration options (These configuration options configure Clover for LEGACY BIOS - NOT UEFI)
      Install Clover in the ESP Boot Sectors Install boot0af in MBR Clover for BIOS (LEGACY - NOT UEFI) booting Clover EFI 64-bits SATA BIOS Drivers, 64-bit Recommended drivers FSInject File System drivers ApfsDriverLoader Install RC scripts on target volume Themes Choose your desired theme Install Clover Preference Pane After clicking "Continue", if prompted with "This Clover package is incompatible with this version of macOS," install anyway
      After CLOVER installation is complete Copy the following from the attached E6410-Catalina.zip ACPI patched contents config.plist (change XX-MASKED-XX values to your own) kexts/Other (remove all other kext folders) Remove christmas and new year folders from themes (if present)
      Screenshots

      Credits
      Thanks to those who contributed to my Mojave solution and to the DosDude team (for the incredible macOS patchers), I think this Catalina installation was the easiest macOS installation that I have experienced (so far).  Many thanks to @Slice and his team for the incredible work on CLOVER and for continuing to support old legacy systems like this.  Also, thanks to @Mieze and @headkaze and others I'm sure for maintaining the Brcm kexts.  And finally, I still prefer to manually apply patches to the DSDTs in my systems.  CLOVER offers extensive patching functionality, but I'm old-school and like to have an error-free, fully-patched DSDT with a simple CLOVER config.plist.  I think that this manual DSDT patching approach (which required an extensive review and debugging of the original unpatched DSDT in this thread) is the reason that this Latitude E6410 is such a perfect MacBookPro6,2.  Thank you @RehabMan for being a great teacher and for always insisting on problem reporting files .


      AppleHWSensor.kext.zip
      gen_debug
      E6410 Catalina-5v2.zip
    • By Rich_T
      My  PC is  a Dell Optiplex 790
      I am installing  Catalina then hopefully upgrading to Big Sur
      Intel Core i7 2600 @ 3.40GHz (sandy bridge?)
      16.0GB Dual-Channel DDR3 @ 665MHz
      NVIDIA GeForce GT 730
      I have been following the guide at https://dortania.github.io/OpenCore-Install-Guide/installer-guide/mac-install.html
      Currently I’m on step “Gathering files” I’m not to sure which SSDTs I should use for my system to work properly.

      Also this will be dual booting with Windows 10 Pro
×
