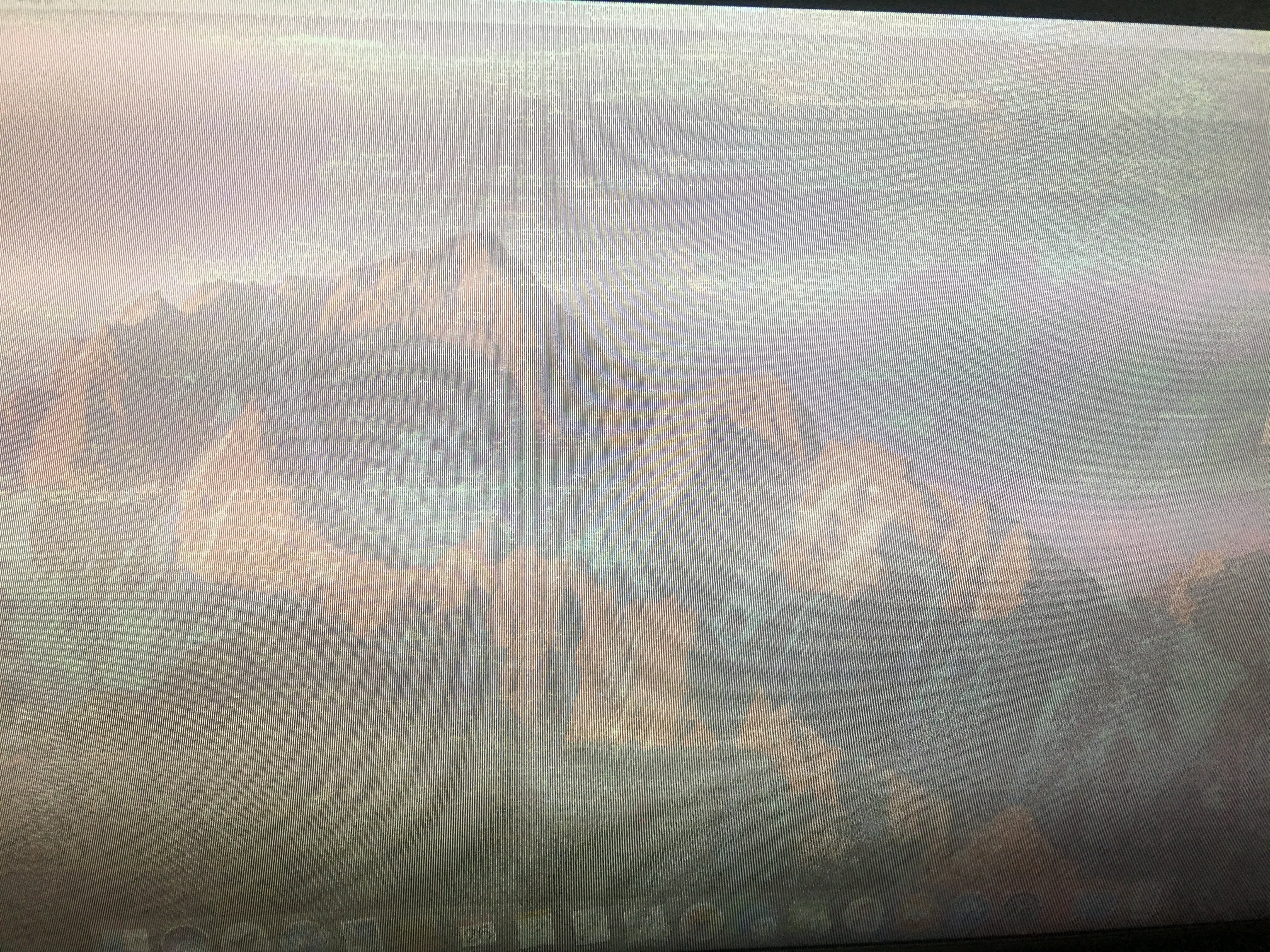

jakgon Posted July 1, 2018 Share Posted July 1, 2018 My system uses i3-2330m, HD3000 with 8GB ram, 1920*1080 builtin display, has radeon internal graphics card (hd6650m) and it's 6-series motherboard. after I installed high Sierra, (during installation included) screen glitch issues occurred. like this. (this image captured in Sierra, but I re installed with high Sierra) I tried to inject edid with dsdt, and I did apple backlight patch. how can I fix this problem? ioreg.zip CLOVER copy.zip Here's my clover efi folder Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/ Share on other sites More sharing options...
artur_pt Posted July 1, 2018 Share Posted July 1, 2018 hello make a fresh install with this dsdt DSDT.aml.zip u have a hybrid lappy , with mix 7 series components good hack Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/#findComment-2623550 Share on other sites More sharing options...
jakgon Posted July 1, 2018 Author Share Posted July 1, 2018 5 minutes ago, artur_pt said: hello make a fresh install with this dsdt DSDT.aml.zip u have a hybrid lappy , with mix 7 series components good hack My motherboard is 7 series? how did you recognize it? Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/#findComment-2623551 Share on other sites More sharing options...
artur_pt Posted July 1, 2018 Share Posted July 1, 2018 hello by ur ioreg good hack Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/#findComment-2623554 Share on other sites More sharing options...
jakgon Posted July 1, 2018 Author Share Posted July 1, 2018 11 minutes ago, artur_pt said: hello by ur ioreg good hack i'm re-installing high sierra with your dsdt files, but installation screen looks like post #1. maybe screen will be same as after installation process ended, then what should i do? Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/#findComment-2623557 Share on other sites More sharing options...
artur_pt Posted July 1, 2018 Share Posted July 1, 2018 hello try to not use pre-made config.plist files u must set a file for ur hardware .. is not generic if u don't know .. don't apply or try to follow clover instructions make it simple .. clover will do that for u config.plist.zip and try to disable the amd graphics good hack Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/#findComment-2623560 Share on other sites More sharing options...
jakgon Posted July 1, 2018 Author Share Posted July 1, 2018 19 minutes ago, artur_pt said: hello try to not use pre-made config.plist files u must set a file for ur hardware .. is not generic if u don't know .. don't apply or try to follow clover instructions make it simple .. clover will do that for u config.plist.zip and try to disable the amd graphics good hack same issues occured with your dsdt files and config files. Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/#findComment-2623566 Share on other sites More sharing options...

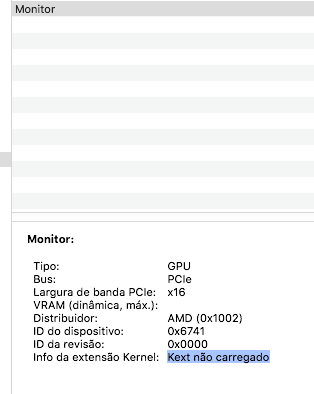

artur_pt Posted July 1, 2018 Share Posted July 1, 2018 hello run this app and upload the result in ur desktop RunMe.app.zip are u using all the kext from the dmg installer files ? good hack Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/#findComment-2623568 Share on other sites More sharing options...

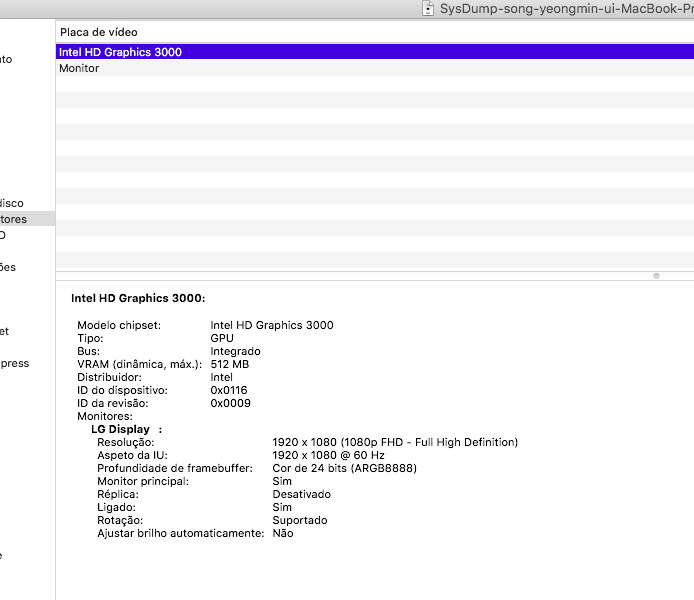

jakgon Posted July 1, 2018 Author Share Posted July 1, 2018 13 minutes ago, artur_pt said: hello run this app and upload the result in ur desktop RunMe.app.zip are u using all the kext from the dmg installer files ? good hack Here is it. i didn't touched anything during installation and just installed 'fakesmc' after installation. Send me song-yeongmin-ui-MacBook-Pro.zip Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/#findComment-2623574 Share on other sites More sharing options...
artur_pt Posted July 1, 2018 Share Posted July 1, 2018 hello new config config.plist.zip see if this ssdt disable the amd graphics SSDT-Disable_DGPU.aml.zip really don't see why ur graphics don't work good hack Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/#findComment-2623598 Share on other sites More sharing options...
jakgon Posted July 1, 2018 Author Share Posted July 1, 2018 (edited) 10 minutes ago, artur_pt said: hello new config config.plist.zip see if this ssdt disable the amd graphics SSDT-Disable_DGPU.aml.zip really don't see why ur graphics don't work good hack not works. additionally, system recognize 512mb correctly and screen saver preview working. also, external monitor (hdmi) works perfectly. and controlling brightness works (internal monitor). only the issue is that glitch screen. Edited July 1, 2018 by jakgon Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/#findComment-2623605 Share on other sites More sharing options...
artur_pt Posted July 1, 2018 Share Posted July 1, 2018 hello I know that what I say is ur amd card .. that will never work .. dual graphics don't work in hackintosh good hack Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/#findComment-2623612 Share on other sites More sharing options...
jakgon Posted July 1, 2018 Author Share Posted July 1, 2018 6 minutes ago, artur_pt said: hello I know that what I say is ur amd card .. that will never work .. dual graphics don't work in hackintosh good hack i don't need amd card and i just want to use hd 3000 for this pc but it not even works. Link to comment https://www.insanelymac.com/forum/topic/334753-hd-3000-builtin-display-glitch-issues/#findComment-2623616 Share on other sites More sharing options...
