Kernel Panic for Unknown Reason? Maybe CPU or MB Problem? Help?

9 posts in this topic

Recommended Posts

Sorry for the vague subject line, but I think I have a hardware issue and I'm having trouble diagnosing it.  This is a LONG post because I'm trying to explain what I tried and to give you all the info that I do have.



History: This has been a successful Hackintosh for 2 years 2 months.  I have not changed the OS (still running 10.11.4) just to avoid any problems.  I have not changed the hardware other than GPU about a year ago, hard drives over time, and RAM about two weeks ago.  (Keep that RAM in mind.)



Hardware:

  • Motherboard: ASRock Z170 OC Formula
  • CPU: Intel i7-6700K
  • RAM: G.SKILL Ripjaws V Series 32GB DDR4 @2400, replaced with Corsair 64GB DDR4 @2133 (but lower CAS latency)
  • GPU: MSI GeForce GTX 970
  • PSU: CORSAIR AX760 760W 80+ Platinum
  • CPU Heatsink:  CORSAIR Hydro Series H105



Problem, Tuesday Night:  Catastrophic death.  Just shut down, couldn't get it up.  I spent over two hours midnight–2am, then another hour after I got up in the AM, determining that the heatsink pump had died.  To make a three hour story short, the errors on the motherboard were all related to RAM, but it had been running fine with the new RAM for 10 days.  I put in the old RAM and got the computer to boot, and then I heard that the fans were going full-tilt and saw the CPU temperature at just under boiling.  And it shut down.  I determined it was the pump and not motherboard because the pump did not turn on when I moved it to a header on the motherboard that had just been powering a fan that was fine.  So I ordered a new CPU cooler and installed it yesterday.



Problem, Sunday Night: It was running fine for a day, after installing the new CPU heat sink.  We had a brown-out in the morning which apparently did NOT trip any UPS in the house, and the computer restarted.  Seemed fine, then tonight (11 hrs after the brownout), I went to make dinner, came back and all the fans were going and the computer wasn't on.  The light on the Corsair pump was flickering.



Trying to Diagnose:  So, with the light flickering, I thought maybe it was the motherboard after all, and the CPU fan 1 was just dead (or dying).  No problem, moved it to CPU fan 2 and moved the fans for the heatsink to chassis 2 and tweaked the fan speeds in the BIOS (I was able to boot to it) and ... couldn't boot.  I can get to the BIOS.  I can start getting to the Mac OS, but I can't actually boot fully.  The motherboard is cycling between error codes 00 and 19, which from what I can find means CPU (00) or RAM (19).  I have tried powering the whole system down (on the PSU) for awhile, going back to the old RAM (works but then same error code on reboot), and even going to a passive heatsink I had in storage.



Why this May Be a Hackintosh Question:  I have a pattern now to diagnose.  After hitting the restart a few times, I can get into the BIOS, no longer getting the 00/19 error on the motherboard.  I can get to the Clover boot menu, at which point the diagnostic LED on the motherboard turns off.  I can start the Mac OS, it spits out a bunch of diagnostic stuff, and then freezes, and the lights on the motherboard turn back on and flash between the 00 and 19 errors and the display shuts off.  I get to the same spot in the Mac OS startup, and that's when it shuts down.  To me, from the zero that I know about this, it looks like it's saying there's a CPU error.  Meaning I may have fried the CPU (or motherboard? or both?) during that initial CPU cooler failure five days ago.  I have attached a screenshot from the video I took of the screen while starting up the last time.

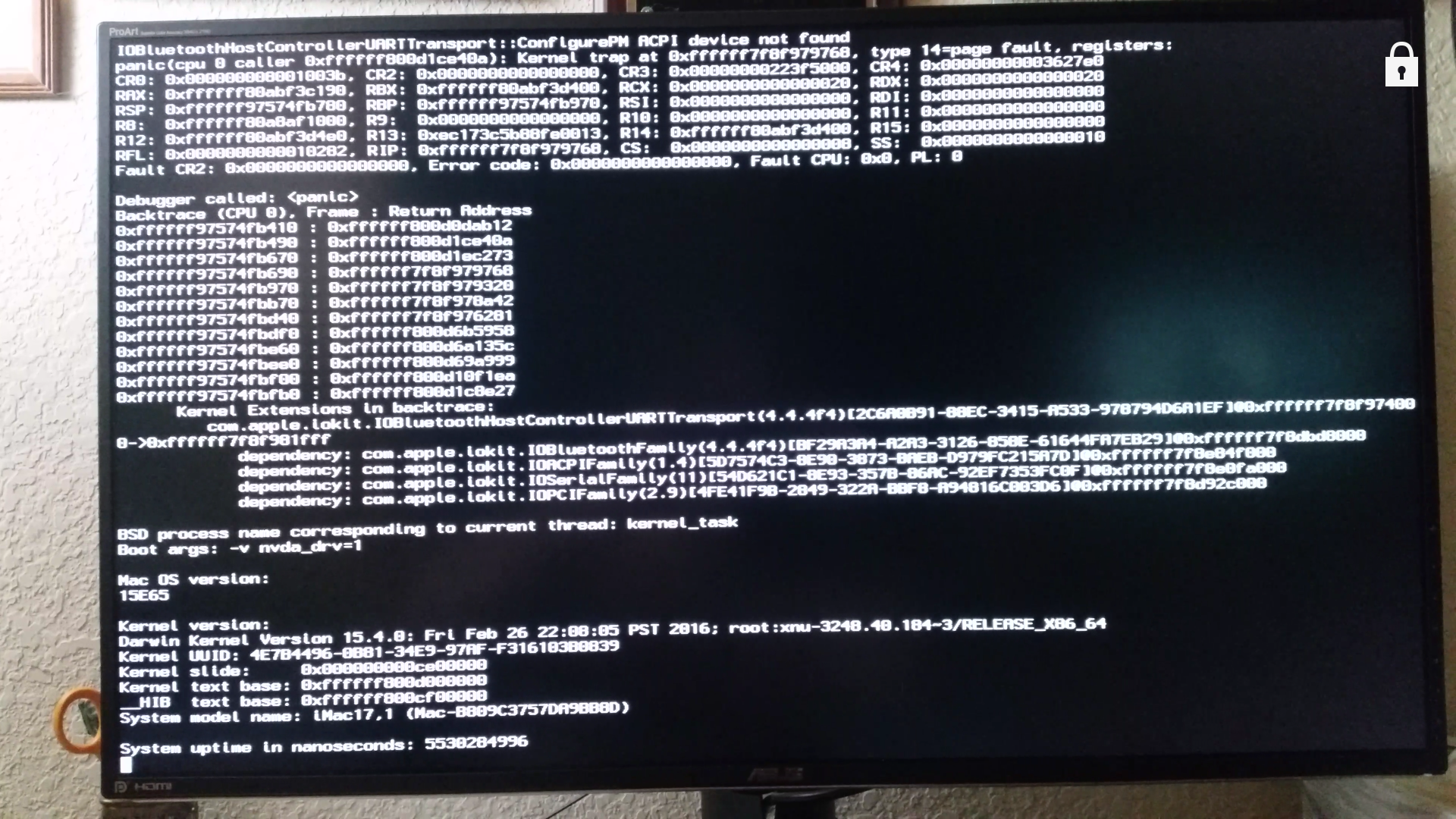

CMOS Reset:  I tried doing this as an addendum, after taking pictures of every screen in the BIOS so I could restore.  The reset definitely reset the BIOS, I got it to boot to the BIOS again, but I'm stuck at the same death point as in the screenshot.  The ONLY difference is that now instead of just stopping there, it goes black for a few seconds and returns to the BIOS option screen (F2 for BIOS, F11 for Boot, etc.), and then tries to boot the Mac OS again.  Fails at the same point again, the only difference each time is that in that "Backtrace (CPU #) ..." line, the # changes, and the com.apple.lokit.IOBluetoothHostController... hex stuff is different.



Help!?  Do I need a new motherboard and CPU?  Fortunately, everything is backed up hourly, and on my laptop, and the HDDs should still be fine.


Edited by astroguy
formatting issue

Share this post


Link to post
Share on other sites
Advertisement

Will try.  I had to leave for a week-long trip just a few hours after the computer died, I get home late Sunday.



Two questions to hopefully head off a delay: (a) Do you know how to disable the serial port in the BIIOS, but chance?  (b) Your application clearly requires the macOS to boot ... if I do disable the serial ports and it still doesn't boot, what should I do?

Share this post


Link to post
Share on other sites

Okay, was able to change that in the BIOS, and it booted into macOS.  Ran the diagnostic, and I've sent you a private message asking how to get it to you.



The computer was up for about 3 hours and shut down again overnight.  Restarted this morning perfectly fine.  I have it up now, but I'm at work for 14 hours today in meetings.  I have a MINIMUM of stuff going on:  E-mail checking, Skype is up, weather server running, and a few downloads.  Other things not needed, like USB external drives, are disconnected.  Will see if it's still up when I get home tonight and will post here regardless.

Share this post


Link to post
Share on other sites

The computer was still going when I got home, but about 10 minutes ago, it froze and restarted and booted fine.  I finally captured the report that Apple generates:



Quote

Anonymous UUID:       6252F72C-1727-A3B3-82D0-CF3F0EBFD3BD

Mon Jun 18 20:54:08 2018

*** Panic Report ***
panic(cpu 2 caller 0xffffff80069b44c4): "Possible memory corruption: pmap_pv_remove(0xffffff80a71ba8a0,0x89740000,0xed7d9d, 0x8000000ed7d9d066, 0xffffff874cda3b74, 0xfffffebce557ba00): null pv_list!"@/Library/Caches/com.apple.xbs/Sources/xnu/xnu-3248.40.184/osfmk/i386/pmap_internal.h:772
Backtrace (CPU 2), Frame : Return Address
0xffffff874cda3a30 : 0xffffff80068dab12
0xffffff874cda3ab0 : 0xffffff80069b44c4
0xffffff874cda3ba0 : 0xffffff80069b4c36
0xffffff874cda3c10 : 0xffffff8006960cc5
0xffffff874cda3d20 : 0xffffff800695626c
0xffffff874cda3d50 : 0xffffff80068fea41
0xffffff874cda3d90 : 0xffffff80068fe870
0xffffff874cda3df0 : 0xffffff80069074c5
0xffffff874cda3e30 : 0xffffff800690b96a
0xffffff874cda3e60 : 0xffffff80068d54c9
0xffffff874cda3ea0 : 0xffffff80069cec4e
0xffffff874cda3ec0 : 0xffffff80069ec23f

BSD process name corresponding to current thread: Unknown
Boot args: -v nvda_drv=1

Mac OS version:
15E65

Kernel version:
Darwin Kernel Version 15.4.0: Fri Feb 26 22:08:05 PST 2016; root:xnu-3248.40.184~3/RELEASE_X86_64
Kernel UUID: 4E7B4496-0B81-34E9-97AF-F316103B0839
Kernel slide:     0x0000000006600000
Kernel text base: 0xffffff8006800000
__HIB  text base: 0xffffff8006700000
System model name: iMac17,1 (Mac-B809C3757DA9BB8D)

System uptime in nanoseconds: 42655023536066
last loaded kext at 38421979867: com.apple.filesystems.smbfs    3.0.0 (addr 0xffffff7f87895000, size 413696)
last unloaded kext at 114327410676: com.kext.HDAEnabler    1.0.0d1 (addr 0xffffff7f8912d000, size 16384)
loaded kexts:
com.Cycling74.driver.Soundflower    1.6.7
com.checkpoint.cpfw    1.0
com.intel.driver.EnergyDriver    2.0
com.nvidia.web.GeForceWeb    10.1.1
com.nvidia.web.NVDAGM100HalWeb    10.1.1
com.nvidia.web.NVDAResmanWeb    10.1.1
com.Logitech.Unifying.HID Driver    1.3.3
com.Logitech.Control Center.HID Driver    3.9.3
com.silabs.driver.CP210xVCPDriver64    3.0.0d1
at.obdev.nke.LittleSnitch    4718
org.hwsensors.driver.LPCSensors    1406
com.insanelymac.IntelMausiEthernet    2.1.0d5
org.hwsensors.driver.GPUSensors    1406
org.hwsensors.driver.CPUSensors    1406
as.vit9696.AppleALC    1.0.8
org.netkas.driver.FakeSMC    1406
com.apple.filesystems.smbfs    3.0.0
com.apple.driver.AGPM    110.21.18
com.apple.driver.ApplePlatformEnabler    2.6.0d0
com.apple.driver.X86PlatformShim    1.0.0
com.apple.driver.pmtelemetry    1
com.apple.iokit.IOUserEthernet    1.0.1
com.apple.iokit.IOBluetoothSerialManager    4.4.4f4
com.apple.Dont_Steal_Mac_OS_X    7.0.0
com.apple.driver.AppleHV    1
com.apple.filesystems.autofs    3.0
com.apple.driver.AppleHDA    274.7
com.apple.driver.AudioAUUC    1.70
com.apple.driver.AppleUpstreamUserClient    3.6.1
com.apple.driver.AppleMCCSControl    1.2.13
com.apple.driver.AppleOSXWatchdog    1
com.apple.driver.AppleIntelPCHPMC    1.1
com.apple.driver.AppleIntelSlowAdaptiveClocking    4.0.0
com.apple.iokit.SCSITaskUserClient    3.7.7
com.apple.iokit.IOAHCIBlockStorage    2.8.5
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless    1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib    1.0.0
com.apple.BootCache    38
com.apple.driver.AppleAHCIPort    3.1.8
com.apple.driver.AppleACPIButtons    4.0
com.apple.driver.AppleRTC    2.0
com.apple.driver.AppleHPET    1.8
com.apple.driver.AppleSMBIOS    2.1
com.apple.driver.AppleAPIC    1.7
com.apple.nke.applicationfirewall    163
com.apple.security.quarantine    3
com.apple.security.TMSafetyNet    8
com.apple.iokit.IOSurface    108.2.1
com.apple.driver.CoreCaptureResponder    1
com.apple.driver.corecapture    1.0.4
com.apple.kext.triggers    1.0
com.apple.driver.DspFuncLib    274.7
com.apple.kext.OSvKernDSPLib    525
com.apple.driver.AppleSMBusController    1.0.14d1
com.apple.iokit.IOSMBusFamily    1.1
com.apple.iokit.IOAcceleratorFamily2    205.3
com.apple.AppleGraphicsDeviceControl    3.12.6
com.apple.iokit.IONDRVSupport    2.4.1
com.apple.driver.AppleHDAController    274.7
com.apple.iokit.IOGraphicsFamily    2.4.1
com.apple.iokit.IOHDAFamily    274.7
com.apple.driver.X86PlatformPlugin    1.0.0
com.apple.driver.AppleSMC    3.1.9
com.apple.driver.IOPlatformPluginFamily    6.0.0d7
com.apple.iokit.IOSlowAdaptiveClockingFamily    1.0.0
com.apple.iokit.IOSCSIMultimediaCommandsDevice    3.7.7
com.apple.iokit.IOBDStorageFamily    1.8
com.apple.iokit.IODVDStorageFamily    1.8
com.apple.iokit.IOCDStorageFamily    1.8
com.apple.iokit.IOAHCISerialATAPI    2.6.2
com.apple.iokit.IOSCSIArchitectureModelFamily    3.7.7
com.apple.driver.AppleUSBAudio    303.3.1
com.apple.iokit.IOAudioFamily    204.3
com.apple.vecLib.kext    1.2.0
com.apple.driver.AppleHIDKeyboard    181
com.apple.driver.usb.IOUSBHostHIDDevice    1.0.1
com.apple.driver.IOBluetoothHIDDriver    4.4.4f4
com.apple.iokit.IOBluetoothFamily    4.4.4f4
com.apple.iokit.IOUSBHIDDriver    900.4.1
com.apple.iokit.IOSerialFamily    11
com.apple.driver.usb.cdc    5.0.0
com.apple.driver.usb.networking    5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice    1.0.1
com.apple.driver.usb.AppleUSBHub    1.0.1
com.apple.iokit.IONetworkingFamily    3.2
com.apple.iokit.IOAHCIFamily    2.8.1
com.apple.driver.usb.AppleUSBXHCIPCI    1.0.1
com.apple.driver.usb.AppleUSBXHCI    1.0.1
com.apple.iokit.IOUSBFamily    900.4.1
com.apple.iokit.IOUSBHostFamily    1.0.1
com.apple.driver.AppleUSBHostMergeProperties    1.0.1
com.apple.driver.AppleEFINVRAM    2.0
com.apple.driver.AppleEFIRuntime    2.0
com.apple.iokit.IOHIDFamily    2.0.0
com.apple.security.sandbox    300.0
com.apple.kext.AppleMatch    1.0.0d1
com.apple.driver.AppleKeyStore    2
com.apple.driver.AppleMobileFileIntegrity    1.0.5
com.apple.driver.AppleCredentialManager    1.0
com.apple.driver.DiskImages    417.2
com.apple.iokit.IOStorageFamily    2.1
com.apple.iokit.IOReportFamily    31
com.apple.driver.AppleFDEKeyStore    28.30
com.apple.driver.AppleACPIPlatform    4.0
com.apple.iokit.IOPCIFamily    2.9
com.apple.iokit.IOACPIFamily    1.4
com.apple.kec.pthread    1
com.apple.kec.Libm    1
com.apple.kec.corecrypto    1.0
Model: iMac17,1, BootROM IM171.0105.B07, 4 processors, Intel Core i7, 4.01 GHz, 64 GB, SMC 2.33f10
Graphics: NVIDIA GeForce GTX 970, NVIDIA GeForce GTX 970, PCIe, 4095 MB
Memory Module: BANK0/DIMM0, 16 GB, DDR4, 2133 MHz, Corsair, Part#
Memory Module: BANK1/DIMM0, 16 GB, DDR4, 2133 MHz, Corsair, Part#
Memory Module: BANK0/DIMM1, 16 GB, DDR4, 2133 MHz, Corsair, Part#
Memory Module: BANK1/DIMM1, 16 GB, DDR4, 2133 MHz, Corsair, Part#
Network Service: Ethernet, Ethernet, en0
Serial ATA Device: WDC WD80EFZX-68UW8N0, 8 TB
Serial ATA Device: ST8000DM005-2EH112, 8 TB
Serial ATA Device: HL-DT-ST BD-RE  WH16NS40
Serial ATA Device: Samsung SSD 850 EVO 1TB, 1 TB
Serial ATA Device: Samsung SSD 840 EVO 1TB, 1 TB
USB Device: USB 3.0 Bus
USB Device: USB2.0 Hub
USB Device: Logitech USB Headset H540
USB Device: USB2.0 Hub
USB Device: USB2.0 Hub
USB Device: USB Receiver
USB Device: ASM107x
USB Device: Keyboard Hub
USB Device: Apple Keyboard
USB Device: CP2102 USB to UART Bridge Controller
USB Device: USB 3.0 Bus
Thunderbolt Bus:



Share this post


Link to post
Share on other sites

Okay, it shut down at 4pm today and would not boot.  RAM check cycling on the motherboard, then 00 and 19 (CPU and RAM, per before).  Took all new RAM out, put in old, same thing.  Then worked in single-module mode.  Worked in dual.  And ... then worked in quad.  However, 17GB is taken up by "Wired" memory, instead of ~3GB per usual.  Now I'm starting to wonder if there was that motherboard surge and it fried not only the old CPU cooler pump, but also fried one of the RAM slots.



Here's the kernel panic report this time:



Quote

Anonymous UUID:       6252F72C-1727-A3B3-82D0-CF3F0EBFD3BD

Tue Jun 19 19:59:49 2018

*** Panic Report ***
panic(cpu 0 caller 0xffffff8015320b4e): "a freed zone element has been modified in zone kalloc.48: expected 0xffffff80bfc2b980 but found 0xffffff80bfc2bb80, bits changed 0x200, at offset 0 of 48 in element 0xffffff80bfc2b3a0, cookies 0x3f001192e9424bee 0x5352161a222cfaf"@/Library/Caches/com.apple.xbs/Sources/xnu/xnu-3248.40.184/osfmk/kern/zalloc.c:503
Backtrace (CPU 0), Frame : Return Address
0xffffff975fb93930 : 0xffffff80152dab12
0xffffff975fb939b0 : 0xffffff8015320b4e
0xffffff975fb93a20 : 0xffffff80153205f6
0xffffff975fb93a60 : 0xffffff801531f282
0xffffff975fb93b90 : 0xffffff801583933b
0xffffff975fb93bb0 : 0xffffff80158538da
0xffffff975fb93be0 : 0xffffff801585e4e2
0xffffff975fb93c30 : 0xffffff801585ea92
0xffffff975fb93c80 : 0xffffff801585e862
0xffffff975fb93cd0 : 0xffffff8015856177
0xffffff975fb93d20 : 0xffffff801583ee23
0xffffff975fb93d60 : 0xffffff8015884a51
0xffffff975fb93d90 : 0xffffff80158dd801
0xffffff975fb93e00 : 0xffffff80153993a9
0xffffff975fb93e30 : 0xffffff80152df283
0xffffff975fb93e60 : 0xffffff80152c28b8
0xffffff975fb93ea0 : 0xffffff80152d2665
0xffffff975fb93f10 : 0xffffff80153b8bda
0xffffff975fb93fb0 : 0xffffff80153eca96

BSD process name corresponding to current thread: WindowServer
Boot args: -v nvda_drv=1

Mac OS version:
15E65

Kernel version:
Darwin Kernel Version 15.4.0: Fri Feb 26 22:08:05 PST 2016; root:xnu-3248.40.184~3/RELEASE_X86_64
Kernel UUID: 4E7B4496-0B81-34E9-97AF-F316103B0839
Kernel slide:     0x0000000015000000
Kernel text base: 0xffffff8015200000
__HIB  text base: 0xffffff8015100000
System model name: iMac17,1 (Mac-B809C3757DA9BB8D)

System uptime in nanoseconds: 77057864765805
last loaded kext at 36238831753: com.apple.filesystems.smbfs    3.0.0 (addr 0xffffff7f96295000, size 413696)
last unloaded kext at 111806227772: com.kext.HDAEnabler    1.0.0d1 (addr 0xffffff7f97b93000, size 16384)
loaded kexts:
com.Cycling74.driver.Soundflower    1.6.7
com.checkpoint.cpfw    1.0
com.intel.driver.EnergyDriver    2.0
com.nvidia.web.GeForceWeb    10.1.1
com.nvidia.web.NVDAGM100HalWeb    10.1.1
com.nvidia.web.NVDAResmanWeb    10.1.1
com.Logitech.Unifying.HID Driver    1.3.3
com.Logitech.Control Center.HID Driver    3.9.3
com.silabs.driver.CP210xVCPDriver64    3.0.0d1
at.obdev.nke.LittleSnitch    4718
com.insanelymac.IntelMausiEthernet    2.1.0d5
org.hwsensors.driver.LPCSensors    1406
org.hwsensors.driver.GPUSensors    1406
org.hwsensors.driver.CPUSensors    1406
as.vit9696.AppleALC    1.0.8
org.netkas.driver.FakeSMC    1406
com.apple.filesystems.smbfs    3.0.0
com.apple.driver.AGPM    110.21.18
com.apple.driver.ApplePlatformEnabler    2.6.0d0
com.apple.driver.X86PlatformShim    1.0.0
com.apple.driver.pmtelemetry    1
com.apple.iokit.IOUserEthernet    1.0.1
com.apple.iokit.IOBluetoothSerialManager    4.4.4f4
com.apple.Dont_Steal_Mac_OS_X    7.0.0
com.apple.driver.AppleHV    1
com.apple.driver.AppleIntelPCHPMC    1.1
com.apple.filesystems.autofs    3.0
com.apple.driver.AppleHDA    274.7
com.apple.driver.AudioAUUC    1.70
com.apple.driver.AppleUpstreamUserClient    3.6.1
com.apple.driver.AppleMCCSControl    1.2.13
com.apple.driver.AppleOSXWatchdog    1
com.apple.driver.AppleIntelSlowAdaptiveClocking    4.0.0
com.apple.iokit.SCSITaskUserClient    3.7.7
com.apple.iokit.IOAHCIBlockStorage    2.8.5
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless    1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib    1.0.0
com.apple.BootCache    38
com.apple.driver.AppleAHCIPort    3.1.8
com.apple.driver.AppleRTC    2.0
com.apple.driver.AppleACPIButtons    4.0
com.apple.driver.AppleHPET    1.8
com.apple.driver.AppleSMBIOS    2.1
com.apple.driver.AppleAPIC    1.7
com.apple.nke.applicationfirewall    163
com.apple.security.quarantine    3
com.apple.security.TMSafetyNet    8
com.apple.iokit.IOSurface    108.2.1
com.apple.driver.CoreCaptureResponder    1
com.apple.driver.corecapture    1.0.4
com.apple.kext.triggers    1.0
com.apple.driver.DspFuncLib    274.7
com.apple.kext.OSvKernDSPLib    525
com.apple.driver.AppleSMBusController    1.0.14d1
com.apple.iokit.IOSMBusFamily    1.1
com.apple.iokit.IOAcceleratorFamily2    205.3
com.apple.AppleGraphicsDeviceControl    3.12.6
com.apple.driver.AppleHDAController    274.7
com.apple.iokit.IOHDAFamily    274.7
com.apple.iokit.IONDRVSupport    2.4.1
com.apple.iokit.IOGraphicsFamily    2.4.1
com.apple.iokit.IOSlowAdaptiveClockingFamily    1.0.0
com.apple.driver.X86PlatformPlugin    1.0.0
com.apple.driver.IOPlatformPluginFamily    6.0.0d7
com.apple.driver.AppleSMC    3.1.9
com.apple.iokit.IOSCSIMultimediaCommandsDevice    3.7.7
com.apple.iokit.IOBDStorageFamily    1.8
com.apple.iokit.IODVDStorageFamily    1.8
com.apple.iokit.IOCDStorageFamily    1.8
com.apple.iokit.IOAHCISerialATAPI    2.6.2
com.apple.driver.AppleUSBAudio    303.3.1
com.apple.iokit.IOAudioFamily    204.3
com.apple.vecLib.kext    1.2.0
com.apple.iokit.IOSCSIBlockCommandsDevice    3.7.7
com.apple.driver.AppleHIDKeyboard    181
com.apple.driver.usb.IOUSBHostHIDDevice    1.0.1
com.apple.driver.IOBluetoothHIDDriver    4.4.4f4
com.apple.iokit.IOBluetoothFamily    4.4.4f4
com.apple.iokit.IOUSBHIDDriver    900.4.1
com.apple.iokit.IOUSBMassStorageDriver    1.0.0
com.apple.iokit.IOSCSIArchitectureModelFamily    3.7.7
com.apple.iokit.IOSerialFamily    11
com.apple.driver.usb.cdc    5.0.0
com.apple.driver.usb.networking    5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice    1.0.1
com.apple.driver.usb.AppleUSBHub    1.0.1
com.apple.iokit.IONetworkingFamily    3.2
com.apple.iokit.IOAHCIFamily    2.8.1
com.apple.driver.usb.AppleUSBXHCIPCI    1.0.1
com.apple.driver.usb.AppleUSBXHCI    1.0.1
com.apple.iokit.IOUSBFamily    900.4.1
com.apple.iokit.IOUSBHostFamily    1.0.1
com.apple.driver.AppleUSBHostMergeProperties    1.0.1
com.apple.driver.AppleEFINVRAM    2.0
com.apple.iokit.IOHIDFamily    2.0.0
com.apple.driver.AppleEFIRuntime    2.0
com.apple.security.sandbox    300.0
com.apple.kext.AppleMatch    1.0.0d1
com.apple.driver.AppleKeyStore    2
com.apple.driver.AppleMobileFileIntegrity    1.0.5
com.apple.driver.AppleCredentialManager    1.0
com.apple.driver.DiskImages    417.2
com.apple.iokit.IOStorageFamily    2.1
com.apple.iokit.IOReportFamily    31
com.apple.driver.AppleFDEKeyStore    28.30
com.apple.driver.AppleACPIPlatform    4.0
com.apple.iokit.IOPCIFamily    2.9
com.apple.iokit.IOACPIFamily    1.4
com.apple.kec.pthread    1
com.apple.kec.Libm    1
com.apple.kec.corecrypto    1.0
Model: iMac17,1, BootROM IM171.0105.B07, 4 processors, Intel Core i7, 4.01 GHz, 64 GB, SMC 2.33f10
Graphics: NVIDIA GeForce GTX 970, NVIDIA GeForce GTX 970, PCIe, 4095 MB
Memory Module: BANK0/DIMM0, 16 GB, DDR4, 2133 MHz, Corsair, Part#
Memory Module: BANK1/DIMM0, 16 GB, DDR4, 2133 MHz, Corsair, Part#
Memory Module: BANK0/DIMM1, 16 GB, DDR4, 2133 MHz, Corsair, Part#
Memory Module: BANK1/DIMM1, 16 GB, DDR4, 2133 MHz, Corsair, Part#
Network Service: Ethernet, Ethernet, en0
Serial ATA Device: WDC WD80EFZX-68UW8N0, 8 TB
Serial ATA Device: ST8000DM005-2EH112, 8 TB
Serial ATA Device: HL-DT-ST BD-RE  WH16NS40
Serial ATA Device: Samsung SSD 850 EVO 1TB, 1 TB
Serial ATA Device: Samsung SSD 840 EVO 1TB, 1 TB
USB Device: USB 3.0 Bus
USB Device: USB2.0 Hub
USB Device: Logitech USB Headset H540
USB Device: USB2.0 Hub
USB Device: USB2.0 Hub
USB Device: USB Receiver
USB Device: ASM107x
USB Device: Keyboard Hub
USB Device: Apple Keyboard
USB Device: USB 3.0 Bus
Thunderbolt Bus:




Share this post


Link to post
Share on other sites

A final update:  The computer has been running continuously for about two weeks now, though I will need to replace the motherboard, I got an RMA and will be replacing the RAM, while I'm replacing the motherboard I might as well replace the CPU (upgrade), and because of what might have happened, I'll be replacing the PSU.



What I think happened:  A surge in the motherboard, either due to a fault in it or the PSU, blew out the connector to the CPU pump, and the CPU pump.  It also blew out one or two RAM slots and at least one of the RAM modules.  Replacing the CPU cooler worked, once I moved the hookups around, and going back to my original RAM before my upgrade has allowed the computer to run without crashing, though the OS thinks half the RAM is used up upon startup which is why I think the RAM sockets are also borked.

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

Announcements

  • Similar Content

    • By Austere.J
      This post is targeted at users who have an Ice Lake-based laptop.

      - Major Updates on Sep 5:
      Both fixes have been integrated into WhateverGreen and will be available as of v1.4.2, so public tests are now over and thanks for your participation.
      I have renamed this post, so feel free to use it as a general discussion thread.

      -----------------------------------------------------------------------------------------------

      Mobile Ice Lake processors can be classified by their integrated graphics card into three categories, G1, G4, and G7.
      You could find information about your processor in the following table.



      Note that Apple uses NG* processors on genuine Macs.
      Even though device IDs of UHD Graphics on G1 series processors are not listed in Info.plist, the driver itself does support the hardware.
      As a result, you need to spoof the device ID (e.g. 0x8A5A) to make UHD Graphics work with full acceleration.

      As far as I know, there are two major issues one might encounter while trying to make the integrated graphics card work on macOS Catalina.
      1) The kernel panic due to an unsupported CD clock decimal frequency can be resolved by adding the boot argument `-igfxcdc`.
      panic: "[IGFB][PANIC][DISPLAY ] " "Unsupported CD clock decimal frequency 0x158\n" @/Library/Caches/com.apple.xbs/Sources/GPUDriversIntel/GPUDriversIntel-14.7.8/IONDRV/ICLLP/AppleIntelFramebuffer/AppleIntelClocks.cpp:348
      2) The kernel panic due to an unsupported ICL SKU is related to DVMT pre-allocated memory.
      You might find something similar to the following lines right above the kernel panic message.
      [IGPU] HWCAPS - GPU Sku: 0 [IGPU] HWCAPS - VEDBOXEnableFuses:0xf00ff VEBox units enabled: 4 VDBox units enabled:8 [IGPU] HWCAPS - NumSlices: 0 SlicesCountFuse:0x0 [IGPU] HWCAPS - NumSubSlices:32 SubSliceCountFuse:0x0 [IGPU] HWCAPS - MaxEUPerSubSlice:8 EUDisableFuses:0x0 ExecutionUnitCount:256 [IGPU] ERROR: Unsupported ICL Sku! You could resolve this issue by changing the DVMT pre-allocated memory to 64MB or above in your BIOS.
      If your BIOS does not provide such options, you could try EFI Shell (setup_var) or RU.EFI to modify BIOS settings.
      If your laptop uses a custom UEFI firmware or has a strict BIOS protection, you should add the boot argument `-igfxdvmt` to solve the problem.

      Once you have applied above fixes, you should be able to boot into desktop with full graphics acceleration.
      If you get stuck in `gIOConsoleUser`, you should try different `ig-platform-id`s and make sure that you have enabled other necessary fixes, for example the Core Display patch (`-cdfon`) for built-in 4K display.

      You need to compile the latest WhateverGreen from the upstream repo (https://github.com/acidanthera/WhateverGreen) until Acidanthera officially releases v1.4.2.

      -----------------------------------------------------------------------------------------------

      3) Apple has removed the assertion of DVMT stolen memory from the framebuffer driver on ICL platforms, but you are strongly encouraged to patch the framebuffer properly to get rid of the insufficient stolen memory error.

      You could find the following line in your kernel log.
      kernel: (AppleIntelICLLPGraphicsFramebuffer) [IGFB][ERROR][DISPLAY ] Insufficient stolen memory You should adjust the size of framebuffer and cursor memory, so that the total amount of required stolen memory is less than the one pre-allocated by BIOS. This might also fix the distorted image around the mouse cursor.

      - FireWolf
    • By Forzenny
      Hi there,

      I managed to install Mojave on my MSI GP62-6QE laptop with somewhat success. The only annoying thing left is that everytime I shut it down it seemingly kernel panics and I get the "Your computer has restarted because of a problem" at startup.

      I tried many different things such as removing emuvariablesuefi64, checking FixShutdown in CloverConfig but it seems the NVRAM is causing this issue.

      I have deleted the nvram file from the EFI partition but it seems stuck somewhere else, I can't clear out the nvram from the terminal or in single user mode as it returns a "Not permitted" error.
      Clearing out the nvram by pressing F11 at the boot menu screen works however.
      crashlog.rtf
    • By IvanOnMac51
      Help!!!

      I was running my MacPro 5,1 happily with GeForce GTX 970 with the n-1'th versions of nvidia web driver / High Sierra for several months, when suddenly, yesterday, whilst using zoom (vidconf), system reboots with kernel panic. So,

      1. I tested GPU RAM and main RAM using Tech Tool Pro, all fine.
      2. I swapped in the original graphics card so I could ..
      3. install latest High Sierra (17G14019) (I had been holding off for several weeks until an nvidia update became available, you know the drill...)
      4. install latest nvidia web driver (387.10.10.10.40.138)
      5. reboot and run Heaven graphics test

      Heaven ran for a few minutes before the kernel panic rebooted the system (attached kernel panic report).
      I managed to get "chat" support from nVidia but the tech was useless, saying there were no drivers for GTX 9series for mac (which actually he seems to be right, as I can't find it listed in the supported cards on their website, but then I and many others have been happily using this for years...).

      Any ideas? The computer keeps crashing with the same kernel panic. I want to keep using my GTX 970 as the stock GPU is deadly slow on any kind of games :-(

      Thanks in advance for your help!
      error log.pdf
    • By ISmokeAir
      I am using opencore. I have an asrock z270 și killer and a core i7 7700k. I don't have a dgpu. I am using the integrated igpu(UHD 630). After booting up I get this kernel Panic.

    • By mavifree
      Sir
      I am new in this, i try to make my hp laptop in hackintosh but i facing some error in clover boot manager while installing but unable to understand it. I really try hard but not able to get there, something i noticed that i facing same kind of error every time. I just watched youtube and visitied so forum like tonymac86, InsanelyMac, Noobsplanate and so on but nothing solved. So Please Please I Request All of You If you can help me to resolve my problem.
      Here Is my Laptop Specs:
      --------------------------------------------------------------------
      Laptop : HP cs2082tx
      Mobo : HP84C1
      Southbridge : Coffee Lake-U/Y PCH
      CPU : Intel Core i5 8265U @ 1.60GHz Kaby Lake- U/Y
      Ram : 8 Gb
      HDD : 256GB SSD & 1TB HDD
      Graphics : Intel UHD Graphic 620 with nvidia MX250
      ----------------------------------------------------------------------

      I even don't is my laptop is compatible or not, and don't have MacBook or Mac Desktop so if you can provide important driver and other stuff for installation. I really be very thankful to you.
      Please Reply me if any other information about my laptop hardware i will attached it i only have this info right now.

      and i here attached my screenshot while installation error in clover.
      Sorry for my English.

      Please Help Me




×
