First Hackintosh ever and first PC build in a very long time. Initial setup worked OOB, but tweaking—especially Thunderbolt—was somewhat painful at times. I hope this helps others too :)



I set this up for video production and image processing, not for gaming, so some parts of the system might look wimpy and others will be overkill. Also, I plan to dial back some of the overclocking; these settings are as far as I could go.



The links are meant to see the exact same product as I used, but are not affiliate links—nor do I endorse anything. I'm just sending you to places where you can see what I tried and used.





CoffeeLake 8700k (5.4 GHz multi-core O.C.)

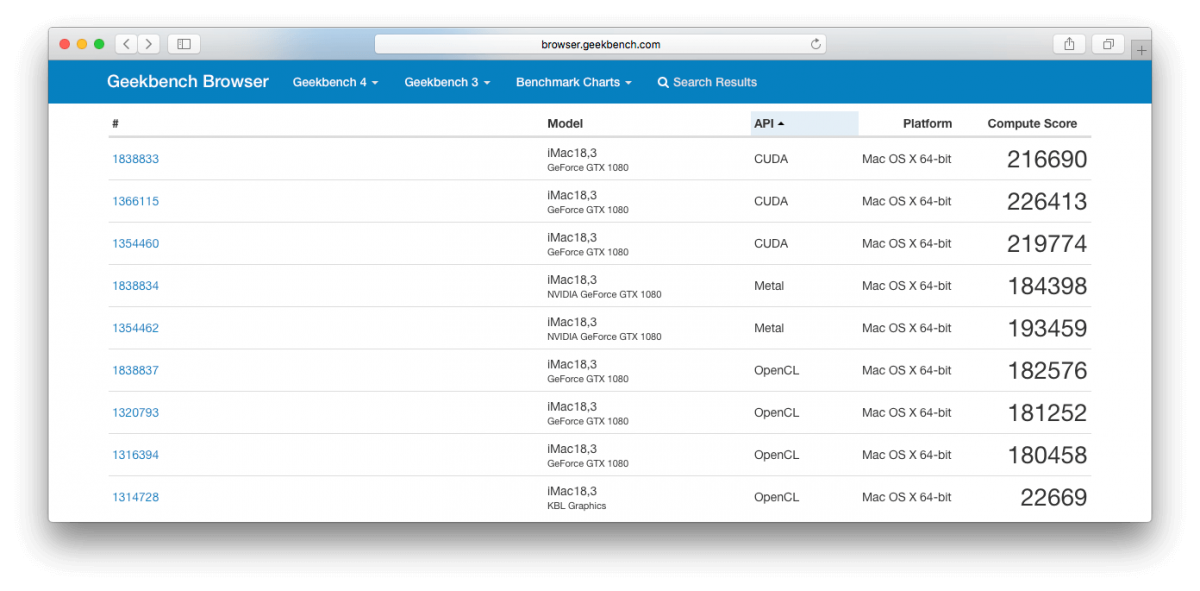

GeekBench scores



Single-core / Multi-core 7,153 / 33,395 (all-time high: 34,110)

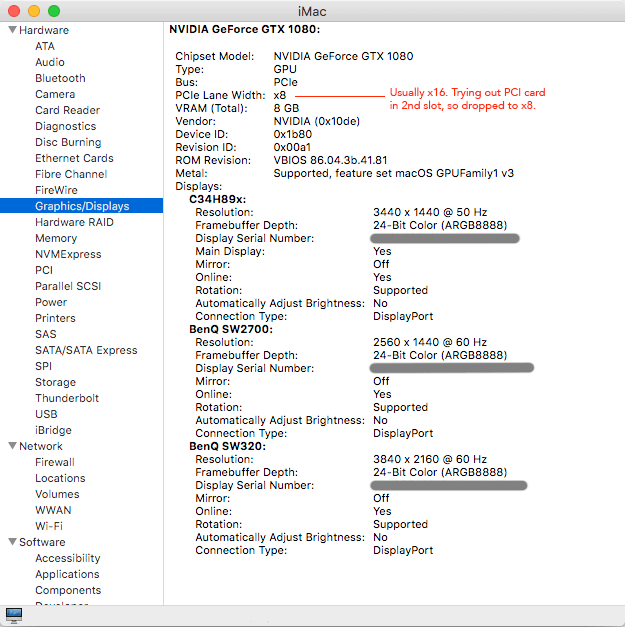

GTX1080 w/ UHD630

OpenCL 182,576

Metal 193,459

CUDA 226,413



post-2298827-0-84987100-1516928936_thumb.pngpost-2298827-0-13155600-1516928923_thumb.png

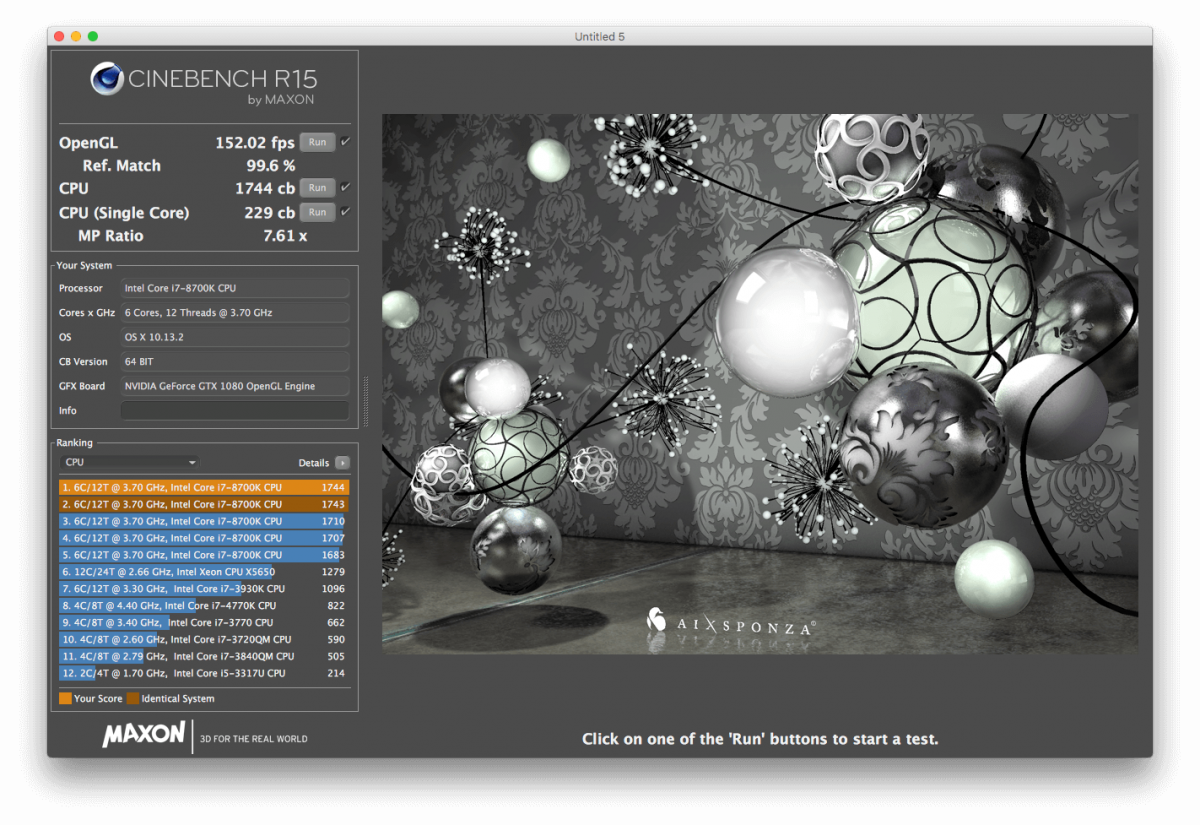

Cinebench R15

160 fps / 1,744 cb / 229 cb

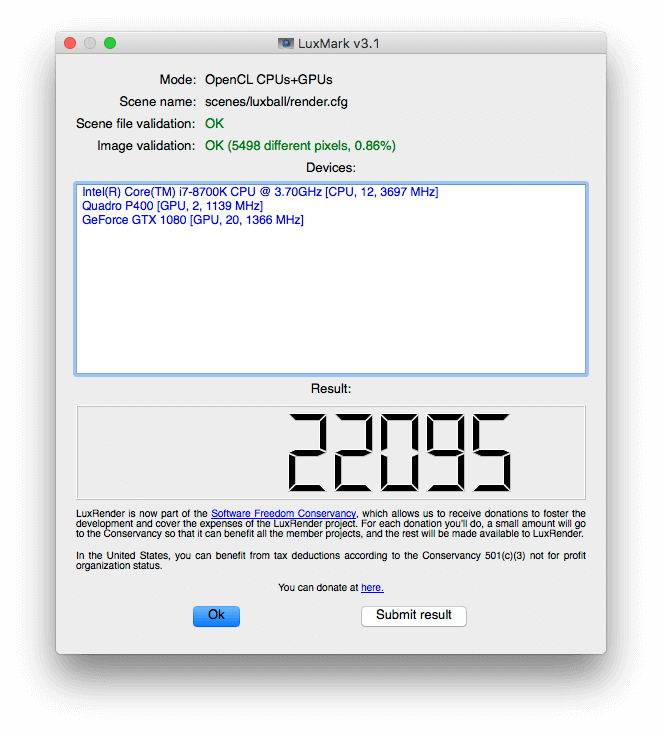

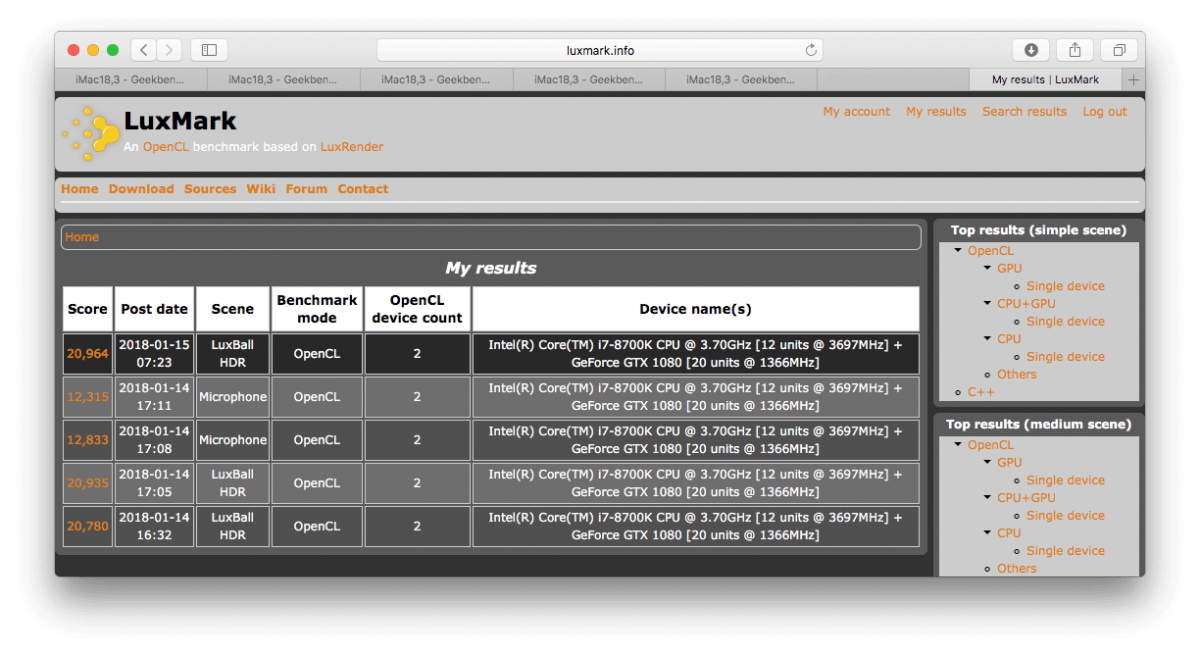

LuxBall (default compiler settings)

20,935

post-2298827-0-05121700-1516929001_thumb.pngpost-2298827-0-86678500-1516929096_thumb.png

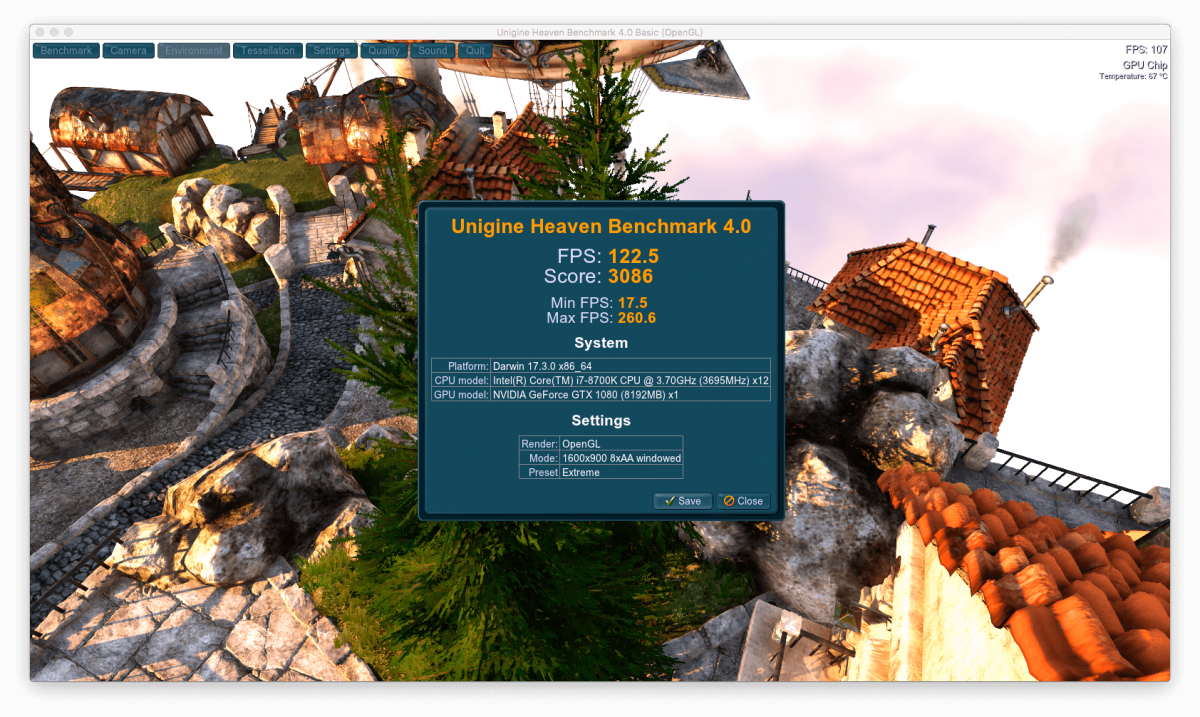

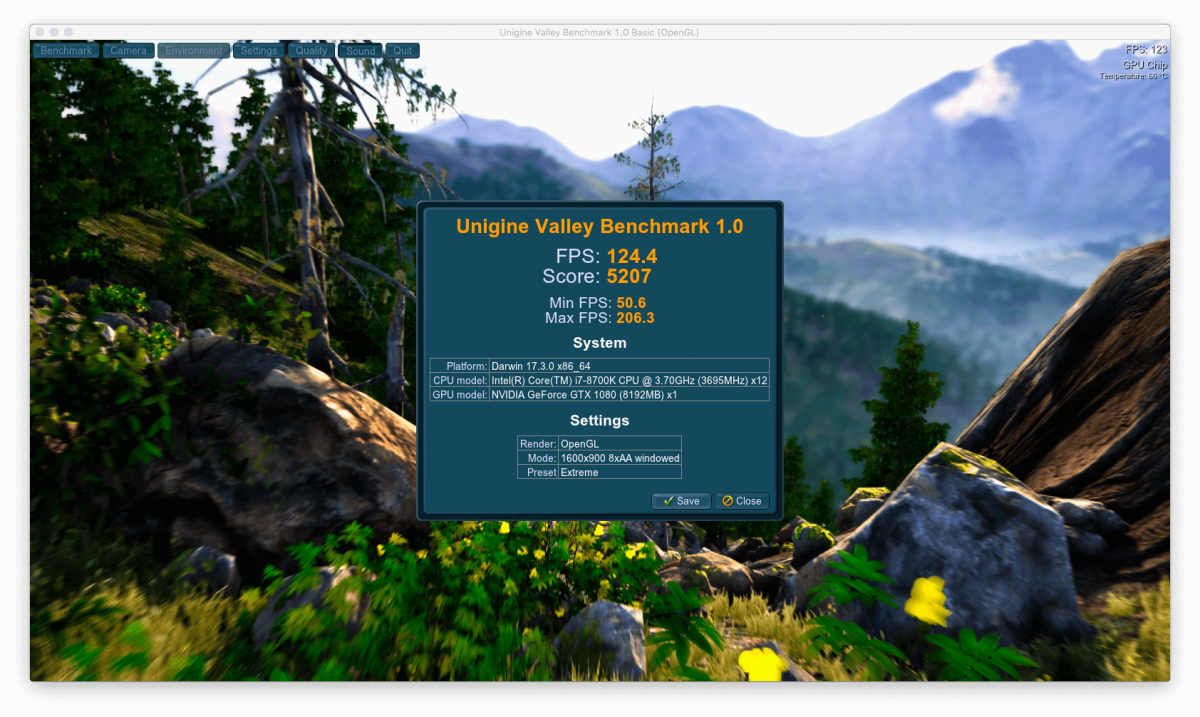

Heaven / Valley

post-2298827-0-85625100-1516929198_thumb.pngpost-2298827-0-57975400-1516928960_thumb.png



Note that all numbers vary a little on each run. Also, my system is not “bare bones,” and I have schedulers and extensions running in the background, which can influence results as well. Cf. screenshots for multiple runs.







Core Build



  1. Intel Core i7-8700K Coffee Lake 6-Core 3.7 GHz (4.7 GHz Turbo) LGA 1151 (300 Series) 95W BX80684I78700K Desktop Processor Intel UHD Graphics 630, https://www.newegg.com/Product/Product.aspx?Item=N82E16819117827, $389.99
  2. Gigabyte Z370 AORUS Gaming 7 rev. 1.0 BIOS F5h, https://www.newegg.com/Product/Product.aspx?Item=N82E16813145036, $219.99
  3. G.Skill TridentZ 4x 16GB DDR4 CL16 — F4-3200C16D-32GTZSK, https://www.newegg.com/Product/Product.aspx?Item=N82E16820232415, $479.99 (total), O.C. at 3300
  4. EVGA GeForce GTX 1080 FTW2 Gaming iCX 11GHz — 08G-P4-6686-KR, https://www.newegg.com/Product/Product.aspx?Item=N82E16814487319, $549.99, top PCIe 16x slot — O.C. 2113 MHz (see note below)
  5. Fenvi FV9801 802.11AC WiFi / Bluetooth PCIe card, https://www.amazon.com/gp/product/B0734FNBW8/ref=oh_aui_search_detailpage?ie=UTF8&psc=1, $17.99, middle PCIe 1x slot





Expanded Build

  1. Vantec 2 Channel 4-Port SATA 6Gbps PCIe — UGT-ST622, https://www.amazon.com/gp/product/B008AEBY1W/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1, $20.60, top PCIe 1x slot
  2. Gigabyte GC-Alpine Ridge Thunderbolt 3 PCIe, https://www.amazon.com/gp/product/B019955RNQ/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1, $70.00, bottom PCIe 16x slot — has to go there and no where else; invalidates lower M.2 slot.

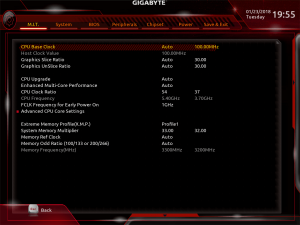

Overclock Settings (Delidded CPU)

  1. Dr. Delid PROFESSIONAL tool for Kaby Lake, Skylake und Coffee Lake processors, https://shop.aquacomputer.de/product_info.php?products_id=3663, $35.20
  2. Arctic Silver Arcticlean Thermal material Remover & Surface Purifier ACN-60ML (2-PC-SET), https://www.newegg.com/Product/Product.aspx?Item=N82E16835100010, $8.99
  3. Thermal Grizzly Conductonaut Thermal Grease Paste - 1.0 Gram, https://www.amazon.com/gp/product/B01A9KIGSI/ref=oh_aui_search_detailpage?ie=UTF8&psc=1, $14.89
  4. Gorilla Super Glue Brush & Nozzle, 10 g, Clear, https://www.amazon.com/gp/product/B01A7AVQKA/ref=oh_aui_search_detailpage?ie=UTF8&psc=1, $3.19

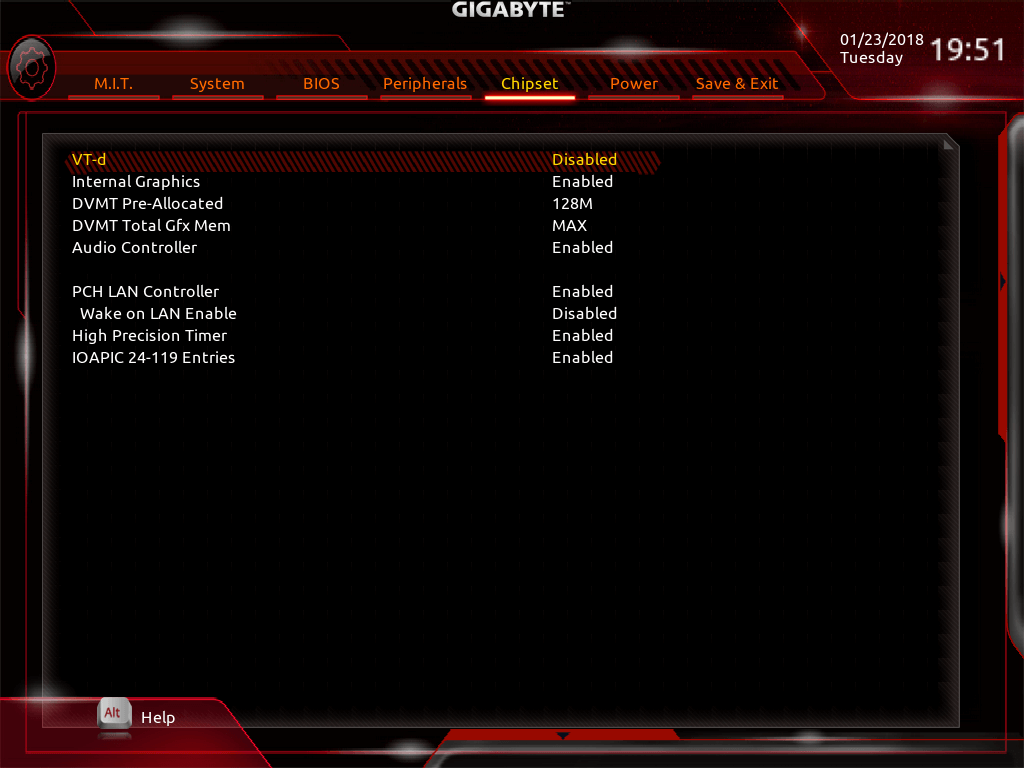

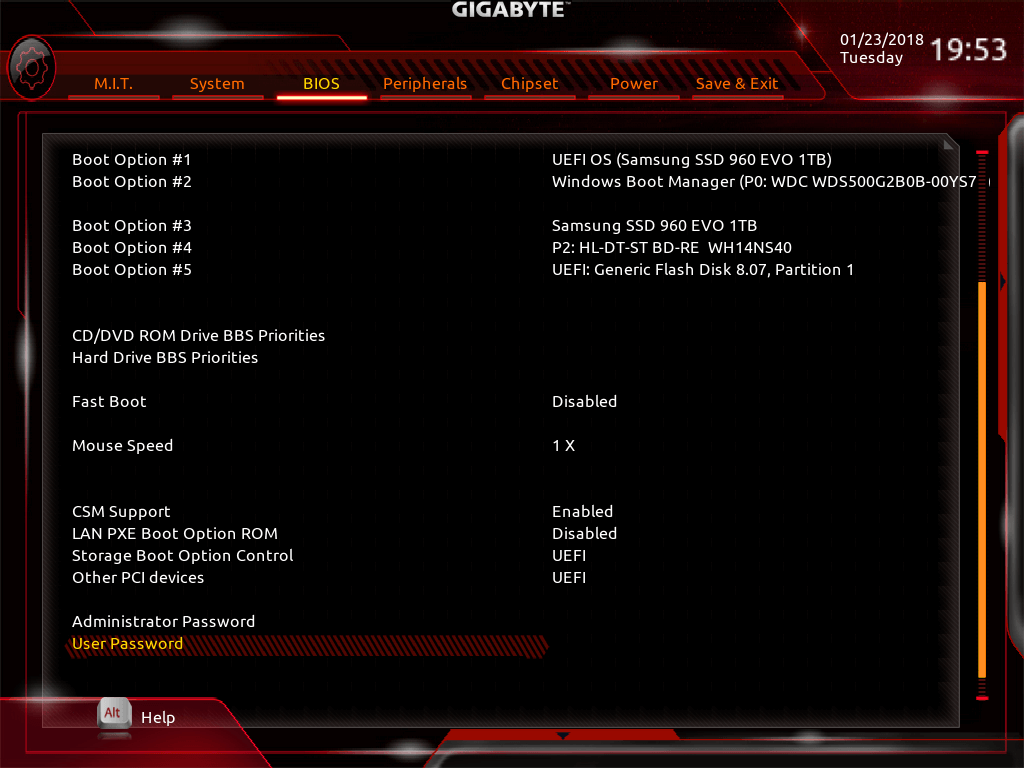

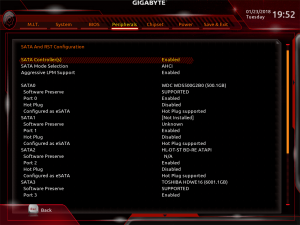

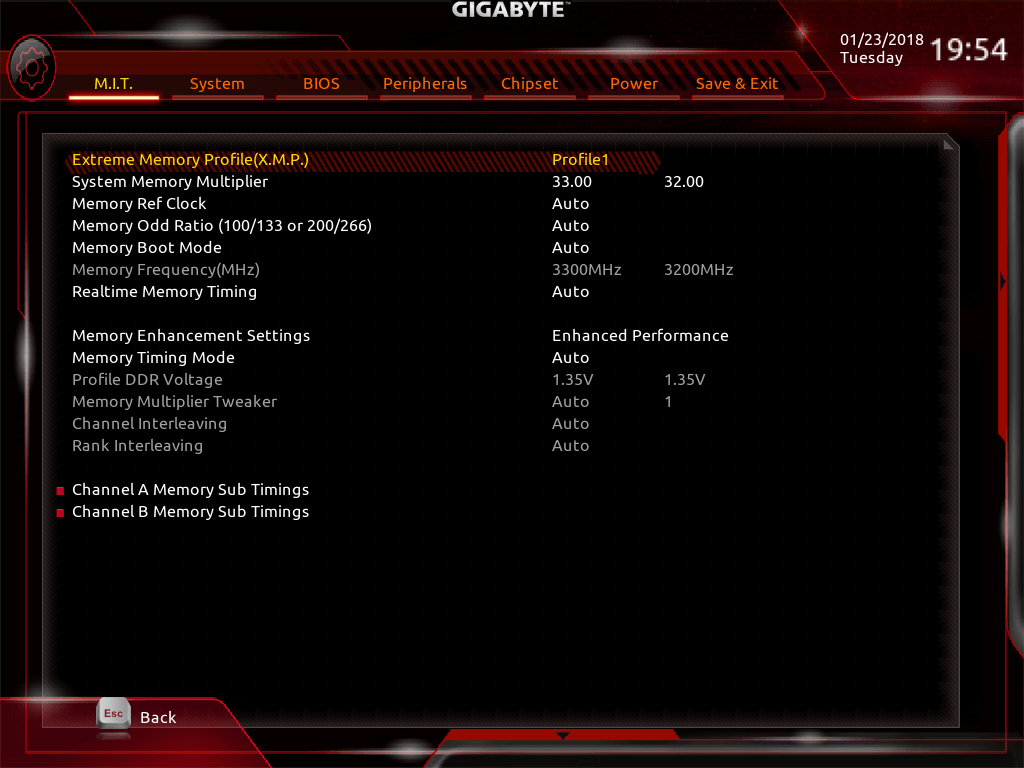

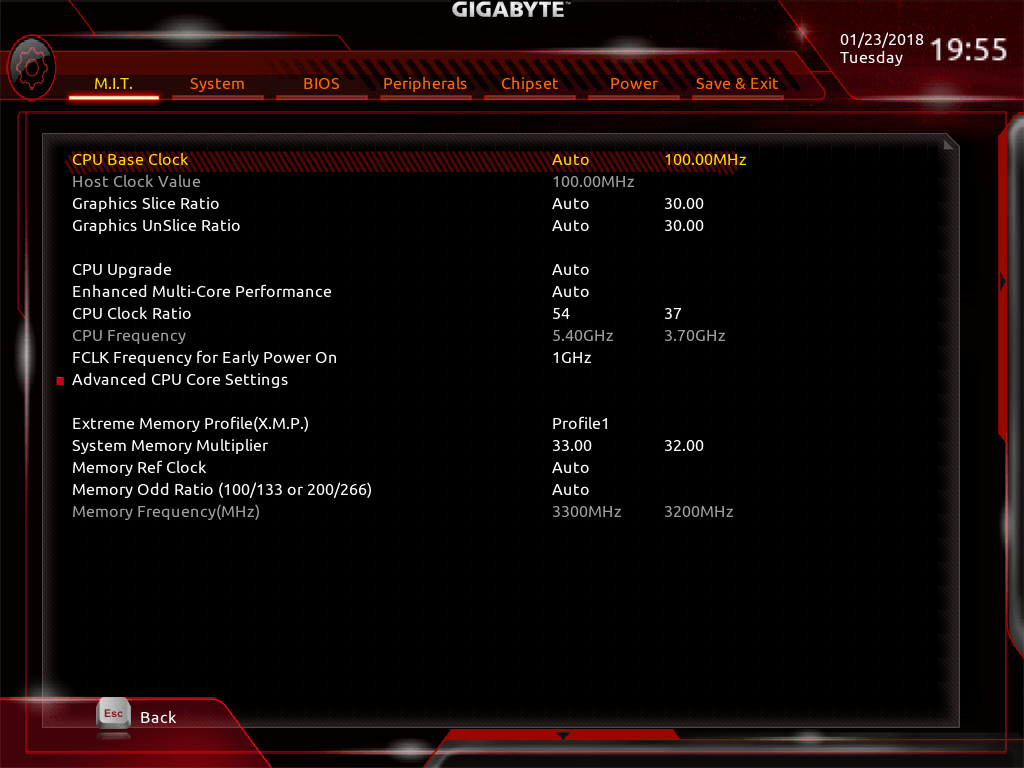

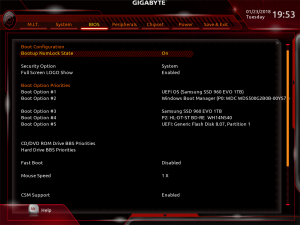

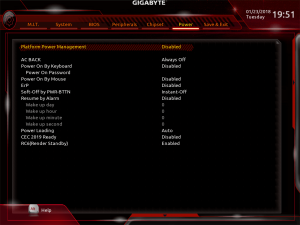

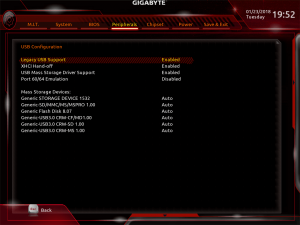

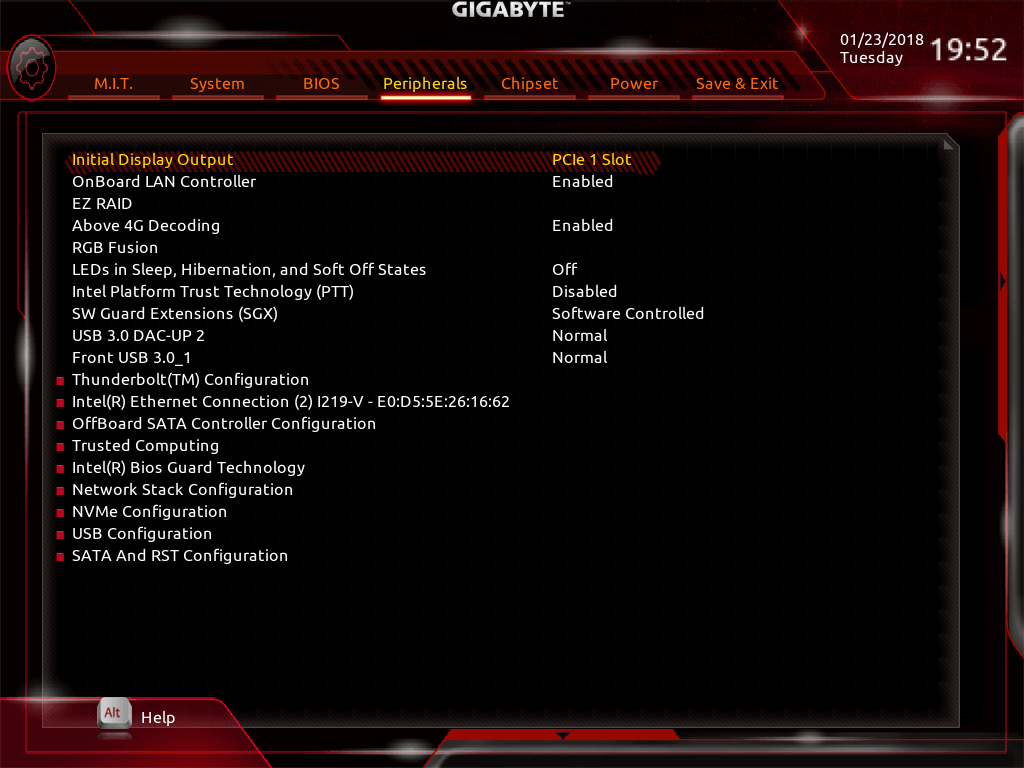

BIOS Settings

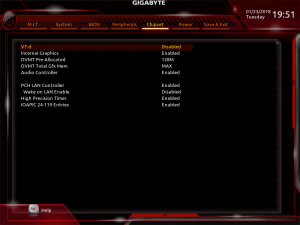

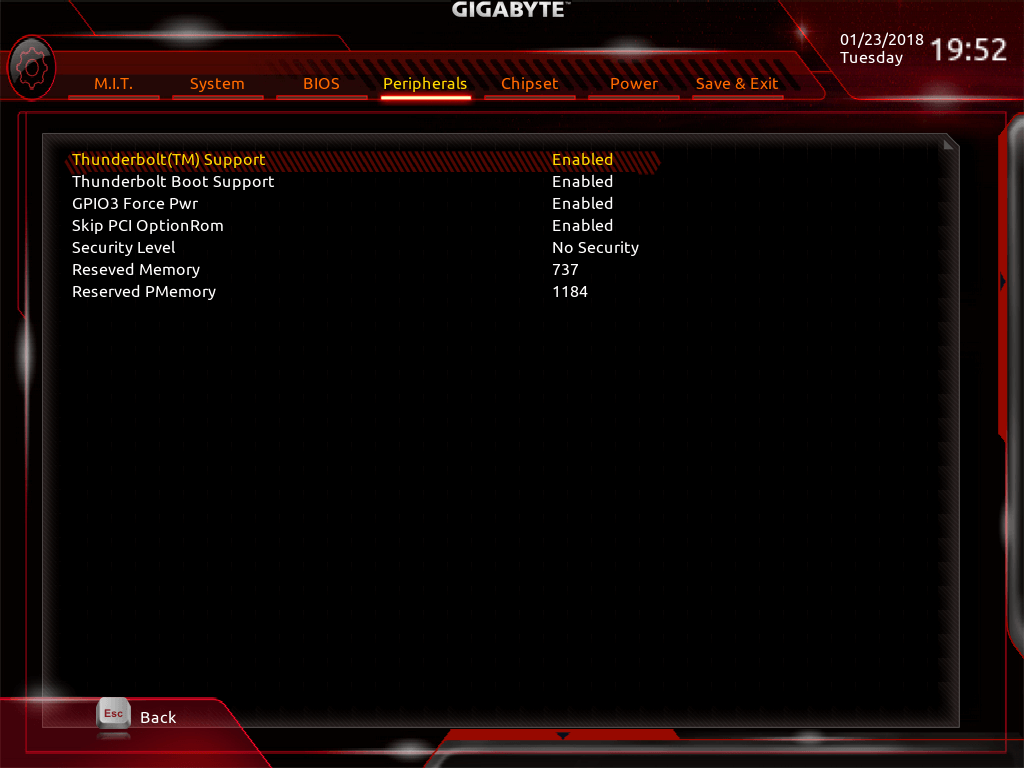

cf. screenshots; I have deliberately not included full O.C. settings; for the record, this is not something that I encourage and I am therefore not responsible in any way, shape, or form for any bad outcomes you may experience. Just sayin’…



post-2298827-0-76495700-1516928709_thumb.pngpost-2298827-0-05839800-1516928721_thumb.pngpost-2298827-0-19531200-1516928727_thumb.pngpost-2298827-0-44312100-1516928737_thumb.pngpost-2298827-0-29118900-1516928750_thumb.pngpost-2298827-0-63950200-1516928758_thumb.pngpost-2298827-0-58098700-1516928770_thumb.pngpost-2298827-0-16181300-1516928779_thumb.pngpost-2298827-0-85216300-1516928793_thumb.pngpost-2298827-0-44574900-1516928802_thumb.png


Drives - Boot

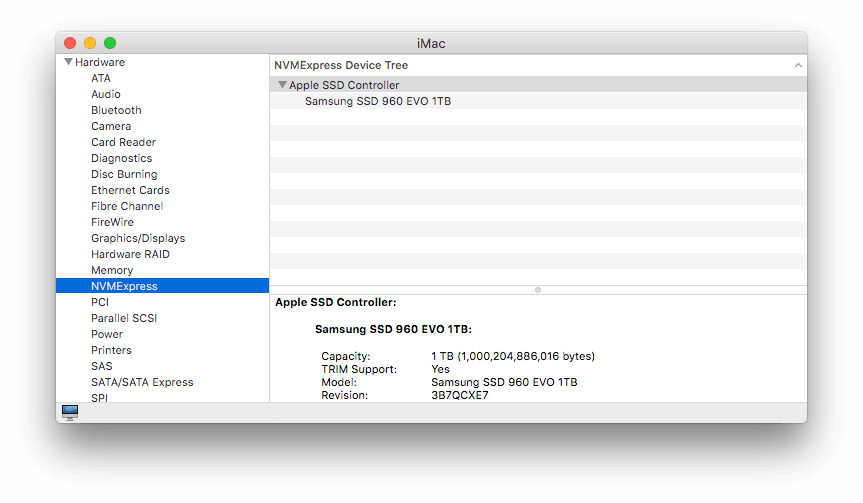

  1. Samsung 960 EVO NVMe M.2 PCIe 1TB — MZ-V6E1T0BW, https://www.newegg.com/Product/Product.aspx?Item=N82E16820147595, $399.99, boot with MacOS, top M.2 slot under thermal shield
  2. WD Blue 3D M.2 SATA 500GB — WDS500G2B0B, https://www.newegg.com/Product/Product.aspx?Item=N82E16820250091, $164.99, boot with Win10, middle M.2 slot
  3. LG 14x SATA Blu-Ray internal burner OEM — WH14NS40, https://www.newegg.com/Product/Product.aspx?Item=N82E16827136250, $19.99, to boot with CDs



Drives - Other

  1. Toshiba OCZ RD400 NVMw M.2 PCIe 256GB — RVD400-M22280-256G, https://www.amazon.com/gp/product/B01G3HLP0C/ref=oh_aui_detailpage_o00_s01?ie=UTF8&psc=1, $134.99
  2. Samsung 850 EVO 500 GB SATA III — MZ-75E500B/AM, https://www.newegg.com/Product/Product.aspx?Item=N82E16820147373, $129.99
  3. Toshiba X300 6TB SATA Internal, https://www.newegg.com/Product/Product.aspx?Item=N82E16822149629, $169.99
  4. StarTech USB 3.0 Internal Multi-Card Reader with UHS-II Support, https://www.amazon.com/gp/product/B011NLXC5O/ref=oh_aui_detailpage_o00_s01?ie=UTF8&psc=1, $29.36
  5. StarTech 3.5-Inch to 5.25-Inch Floppy Mounting Kit Bracket (Black Plastic), https://www.amazon.com/gp/product/B000HLZXH2/ref=oh_aui_detailpage_o00_s01?ie=UTF8&psc=1, $6.26, needed to install Multi-Card reader
  6. COSMOS desktop computer ATX/MATX companion, blank drawer rack (5.25"), for computer accessories/storage devices, https://www.amazon.com/gp/product/B006VAD2C6/ref=od_aui_detailpages00?ie=UTF8&psc=1, $11.74



Case / Power / Cooling

  1. Corsair Carbide 330R Titanium Edition CC-9011071-WW Black Steel, https://www.newegg.com/Product/Product.aspx?Item=N82E16811139053, $79.99
  2. Corsair Carbide Series 300R Left side panel with dual 120mm/140mm fan mounts, black, http://www.corsair.com/en-us/300r-left-side-panel-with-dual-120mm-140mm-fan-mounts-black, $9.99
  3. Corsair HX1200 Platinum — CP-9020140-NA, https://www.newegg.com/Product/Product.aspx?Item=N82E16817139205, $179.99 (overkill, but I got a deal on it)
  4. G.Skill FTB-3500C5-DR, https://www.newegg.com/Product/Product.aspx?Item=9SIA1K64263994, $20.74, on DDR4
  5. Corsair Hydro Series H115i Extreme Performance Liquid CPU Cooler, w/ Liquid Metal (see Delid note), https://www.amazon.com/gp/product/B019955RNQ/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1, $139.99, under top lid
  6. Corsair ML140 CO-9050044-WW 140mm Premium Magnetic Levitation PWM Fan BLACK (2-Pack), https://www.newegg.com/Product/Product.aspx?Item=N82E16835181111, $29.99
  7. 3x Phanteks PH-CB-Y4P 4.3" 4 Pin PWM- Y Splitter Fan Cable Female to Male, https://www.newegg.com/Product/Product.aspx?Item=N82E16812987008, $14.97 (total)
  8. SilverStone 140mm Fan Filter with Magnet for Case Fan/Power Supply Fan and Panel Air Vent FF141B (Black), https://www.amazon.com/gp/product/B004GGUASG/ref=oh_aui_search_detailpage?ie=UTF8&psc=1, $10.97, screwed onto the outside of the ventilated 300R panel
  9. SilverStone 21-Inch x 15-Inch 4mm Thick 2-Piece Sound Dampening Acoustic EP0M Silent Foam SF01 (Black), https://www.amazon.com/gp/product/B0040JHMH6/ref=oh_aui_search_detailpage?ie=UTF8&psc=1,$15.99, stuck on inside of 300R ventilated panel for sound proofing (original 330R panel has foam on it)
  10. 6 x 140mm Corsair fans (including H115i), 1 x 120mm Corsair fan, PSU has own built-in fan



Mistakes / Lessons Learned

  • CORSAIR Hydro Series H60 (CW-9060007-WW) High Performance Water / Liquid CPU Cooler. 120mm; not a real mistake, but I got a better deal on the H115i, which has a very high thermal capacity, so I decided to future-proof.
  • WBTUO LM900 Micro USB3.0 TO M.2 PCI-E SSD Enclosure NGFF M-KEY PCIE Support AHCI for 2230 2242 2260 2280 SSD; I got it for an extra M-key PCIe SSD that I had. It turns out that this item cannot host NVMe, which wasn’t stated up front.
  • PwrLink Adpt Graphics Cd Acces 600-PL-2816-LR ; angled power-bracket for EVGA 1080, worked great with regular 330R panel, but when I decided to install a ventilated 300R panel with fans, the bracket and the fans interfered. So I took it out.
  • The bottom PCI 1x slot shares/blocks a SATA connector. That is not documented in the manual and I therefore got the Vantec card to compensate for the lost SATA Ports
  • Installing the Alpine Ridge card essentially voids the lower M.2 slot. It should share bandwidth, but apparently the Alpine Ridge card only runs at 4x, so you have to leave the lower M.2 slot empty for Thunderbolt to work.
  • Installing a USB 3.1 Gen 2 header cable (https://www.newegg.com/Product/Product.aspx?Item=9SIAE4P6PP9074) will deactivate Thunderbolt. Not only that, it will reset any driver memory. If you have Thunderbolt working, do not touch that connector. Just don’t.
  • Mailiya PCI-E to Type-C + A 5-Port USB 3.0 PCI Express Card and 15-Pin Power Connector, Mini PCI-E USB 3.0 Hub Controller Adapter with Internal 20-Pin Connector; https://www.amazon.com/Mailiya-Express-Connector-Controller-Internal/dp/B01MQ5R7I1; crashed MacOS or isn’t recognized at all, depending on BIOS settings. Uses NEC uPD720201 chipset.
  • ORICO USB 3.0 PCI Express Card Hub Controller Adapter Card with 2 Rear USB 3.0 Hosts and Internal USB 3.0 with 15PIN Power Connector, https://www.newegg.com/Product/Product.aspx?Item=9SIA1DS0DV6321; crashes windows at boot with blue screen; ORICO paid lip service and were useless. Likely uses ViaLab VLI chipset.
  • SilverStone USB 3.1 Gen 2.0 PCIe with internal 19-pin connector — ECU05, ˚https://www.amazon.com/gp/product/B01HZ0XVJO/ref=od_aui_detailpages00?ie=UTF8&psc=1, $47.99, middle PCIe 16x slot (needs 2x slot or above, based on ASMedia ASM1142 controller) needed to power multi-card reader in addition to Carbide 330R front panel ports. Great card, highly recommended, but in my case, it took a slot that dropped the GPU to 8x, so I had to find a 1x PCI solution.
  • Thunderbolt: boot into Windows and connect a Thunderbolt device; I used an OWC TB 2 dock. When recognized, reboot into Mac OS X; I used a G-Drive TB 2 drive for that, as the OWC didn’t show up. Once the G-Drive showed up, I was able to hot-add the dock. No issues since (aside from using the internal USB 3.1 Gen 2 header, which led to a big mess; see next item). Note that if you disconnect the computer from power, you will have to boot into Windows again and connect a Thunderbolt device again prior to booting into Mac OS X.
  • Chenyang USB 3.1 Front Panel Header to USB 3.0 20Pin Header Extension Cable 20cm for ASUS Motherboard, https://www.newegg.com/Product/Product.aspx?Item=9SIAE4P6PP9074&ignorebbr=1, $18.88; replaced SilverStone board for internal 19-pin, freeing up one 16x PCIe slot. This disables the Thunderbolt header, as reported in other forums (and if you even try that port, you will have to go through the whole Thunderbolt install process again…). I also tried a header splitter cable, https://www.moddiy.com/products/20%252dPin-USB-3.0-Internal-Header-Y-Splitter-Cable-%2812cm%29.html, but that didn't work either.





Systems / OS

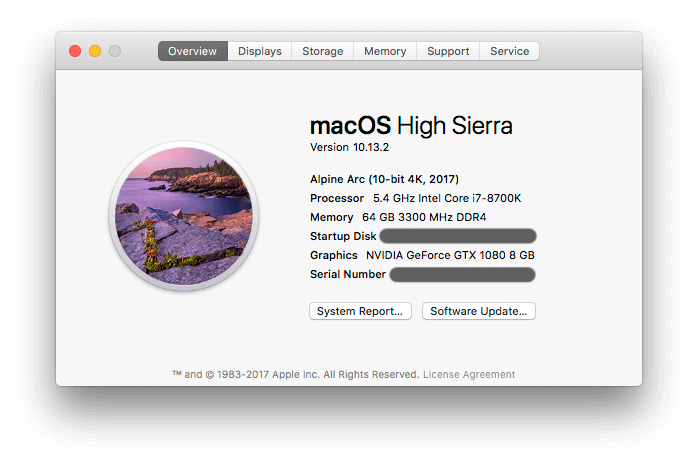

MacOS 10.13.2 [17C205] “High Sierra” — all Mac drives are Journaled Extended MacOS (JHFS+); no APFS. [uPDATE: now on 10.13.3 [17D47; see below about issues]

Windows 10 Pro 64-bit

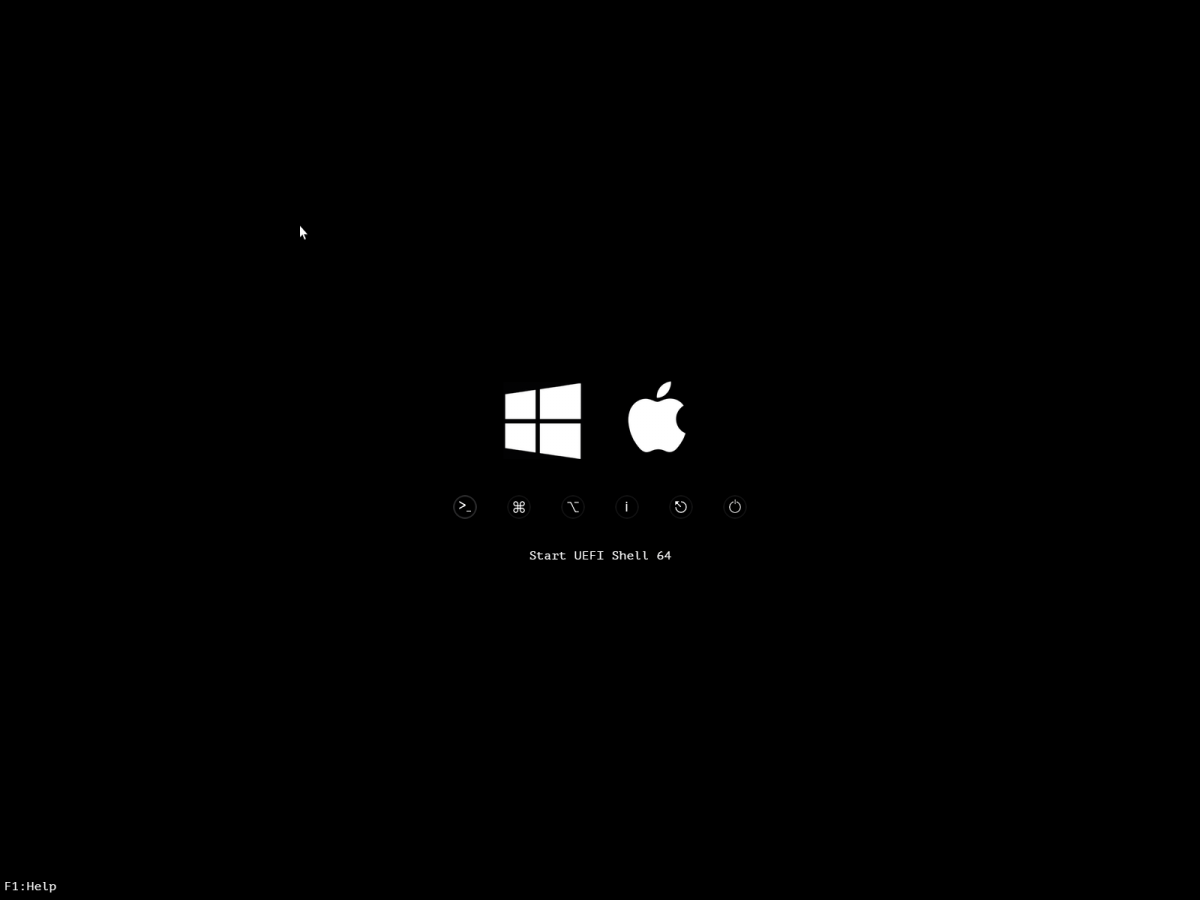

Clover

Clover Bootloader 2.4 4269 [uPDATE: now 4380 and OsxAptioFix3Drv]

Clover Configurator 4.60.0.0



Running as: iMac 18,3

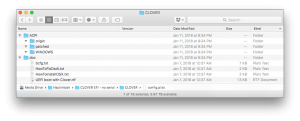

EFI attached (sans Serial #)



To get TB running without boot process freezing, I had to add:

Remove EmuVariableUefi

Connect only one screen (add all you want later)

Acpi: FixRegions: True

Boot: slide=0 [KSLR disabled]



Manual addition of kexts to 'other' folder.

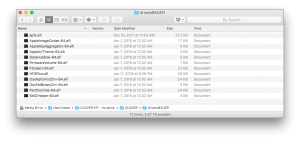

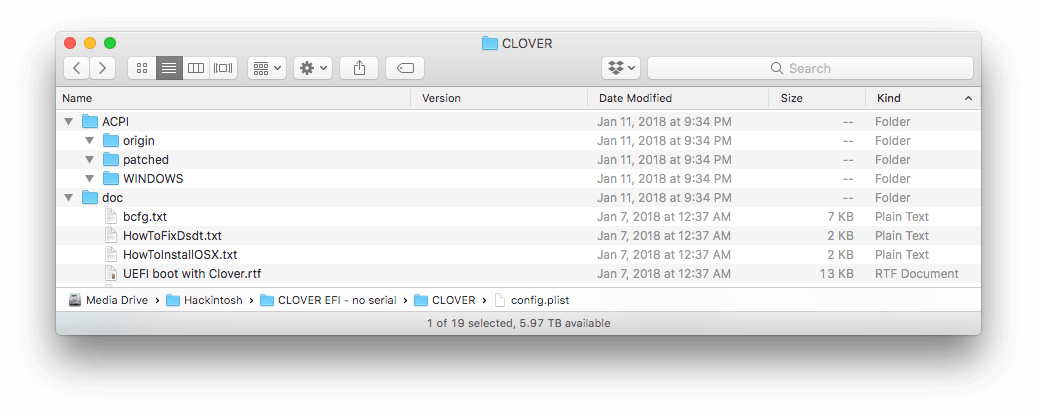

post-2298827-0-24851200-1516928677_thumb.pngpost-2298827-0-86246200-1516928877_thumb.pngpost-2298827-0-05543600-1516928986_thumb.png


Other Tools that Saved my Skin

SoftRAID, https://www.softraid.com, for my external RAID5 backup server.

DiskWarrior, https://www.alsoft.com/DiskWarrior/, as I had quite a few corrupted directories during crashes. Also, the main reason I will not switch to APFS for now.

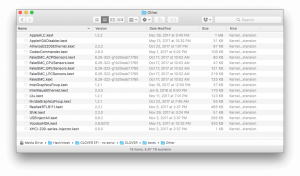

Kexts (all in EFI/Clover/kexts/Other) [uPDATE: Since then running all latest versions; will not not be updating this list]



AppleALC.kext 1.2.2

AtherosE2200Ethernet.kext 2.2.2

CodecCommander.kext 2.6.3

FakeSMC_ACPISensors.kext 6.26-322-g1b20eab7.1765

FakeSMC_CPUSensors.kext 6.26-322-g1b20eab7.1765

FakeSMC_GPUSensors.kext 6.26-322-g1b20eab7.1765

FakeSMC_LPCSensors.kext 6.26-322-g1b20eab7.1765

FakeSMC.kext 6.26-322-g1b20eab7.1765

IntelGraphicsFixup.kext 1.2.1

IntelMausiEthernet.kext 2.3.0

Lilu.kext 1.2.1

NvidiaGraphicsFixup.kext 1.2.1

RealtekRTL8111.kext 2.2.1

Shiki.kext 2.2.0

USBInjectAll.kext 0.6.2

XHCI-200-series-injector.kext 0.5.0





Works

  1. WiFi

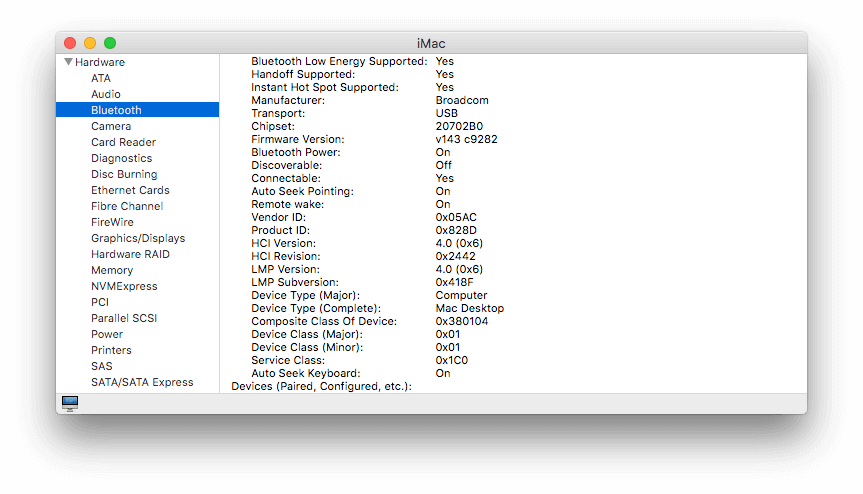

  2. Bluetooth (with Apple keyboard and MagicTrack Pad 2; see note below)
  3. Logitech Anywere MX mouse (with receiver)

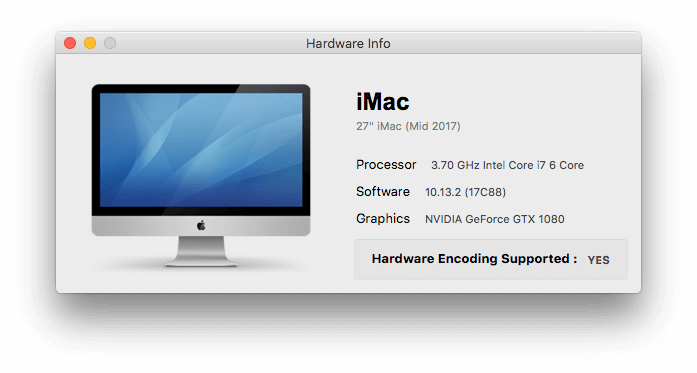

  4. UHD630 Acceleration (see image)

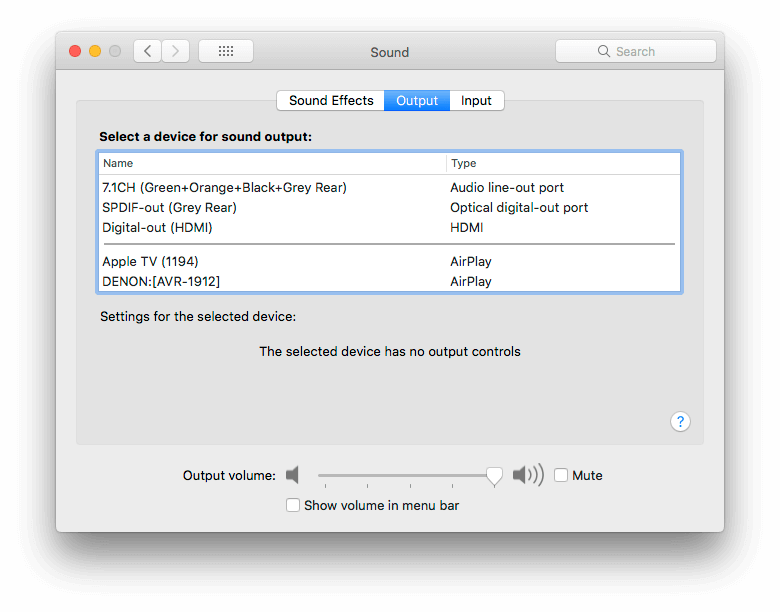

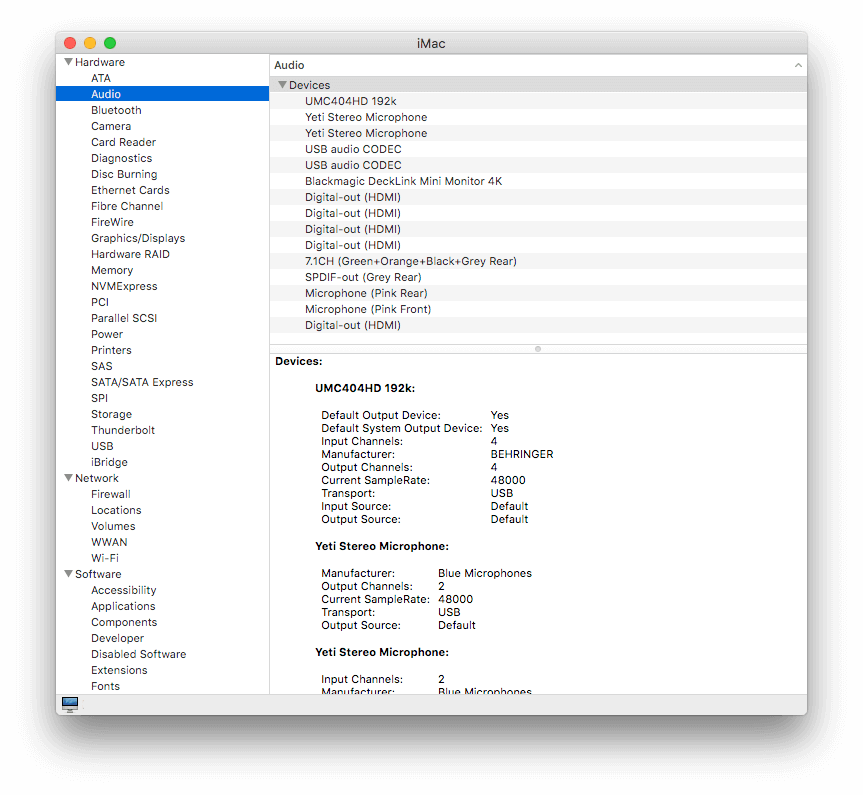

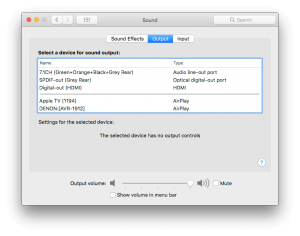

  5. Audio (back panel and front panel)
  6. USB 3.0; tested with BlackMagic Disk Speed Test and Samsung Portable T3 SSD 1TB
  7. iMessage
  8. iCloud
  9. FaceTime
  10. Continuity / Handoff
  11. AppStore
  12. Universal Copy/Paste
  13. Eject key with DVD reader
  14. Thunderbolt
  15. Dual Boot

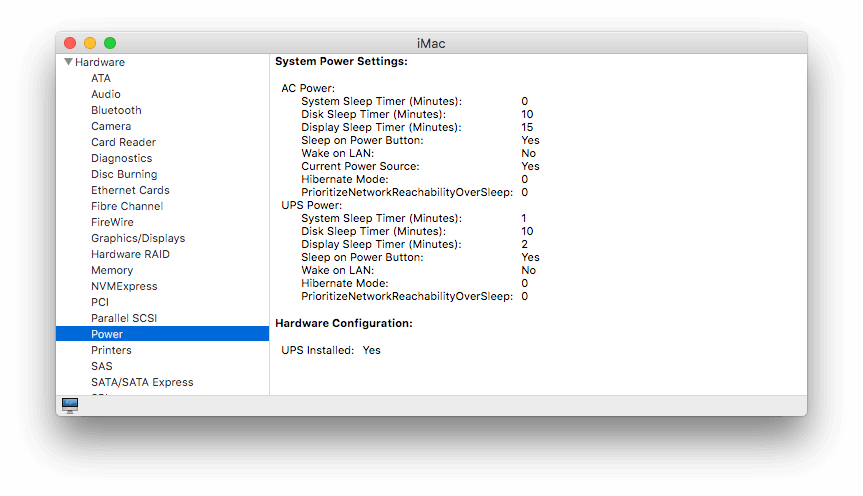

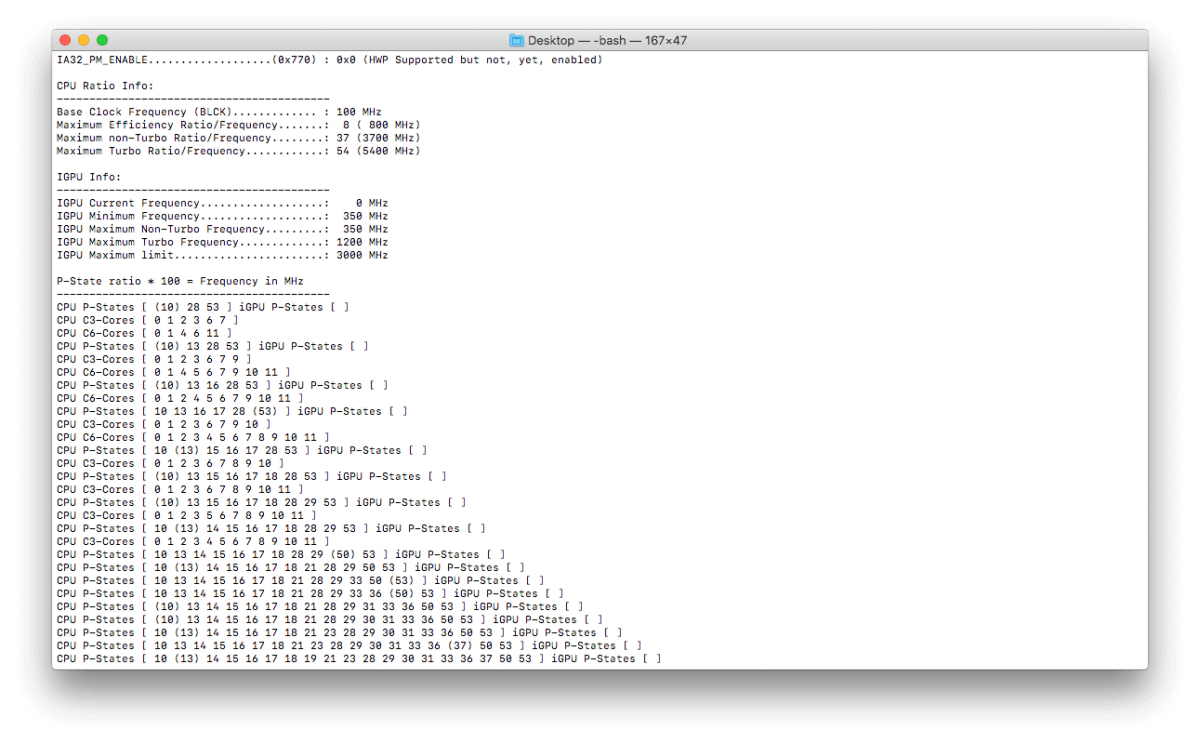

  16. Power Management
  17. UPS (mine is a CyberPower)

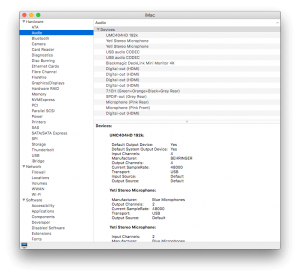

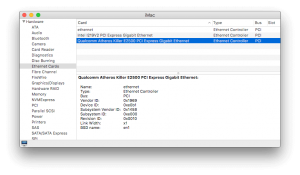

post-2298827-0-27366300-1516928813_thumb.pngpost-2298827-0-87318500-1516928694_thumb.pngpost-2298827-0-17150100-1516928686_thumb.pngpost-2298827-0-28058400-1516928888_thumb.pngpost-2298827-0-21194800-1516928900_thumb.pngpost-2298827-0-02322800-1516928914_thumb.pngpost-2298827-0-53319300-1516928836_thumb.pngpost-2298827-0-38554600-1516928950_thumb.pngpost-2298827-0-45604200-1516929180_thumb.pngpost-2298827-0-17257100-1516929172_thumb.pngpost-2298827-0-13417300-1516929161_thumb.pngpost-2298827-0-17310000-1516929111_thumb.pngpost-2298827-0-23209600-1516929125_thumb.pngpost-2298827-0-88430200-1516929153_thumb.png



Not Working

  1. Overclocking on EVGA 1080 FTW 2; see note below.
  2. Cannot get a signal on the iGPU connectors (in ig-platform 0x5912000 config); ghost monitor appears in Displays and monitor turns out, but remains dark. Currently running with ig-plaftform 0x5912003.
  3. PCI boards shows as pci8xxx in Profiler; no names. Don’t think GPU shows either.
  4. Thunderbolt does not appear in profile.
  5. 10-bit display; perhaps need Vega FE for that. [uPDATE: added a Quadro P400; all good now with OpenGL display]



Jury Still Out

  1. Sleep / Hibernate; the System Preferences : Energy panel is rather minimalistic. For example, Power Nap doesn’t show up. [update: was told that that might be because I am connected via Wi-Fi and not RJ45; either way, I don't need it and set Darkwake=no]

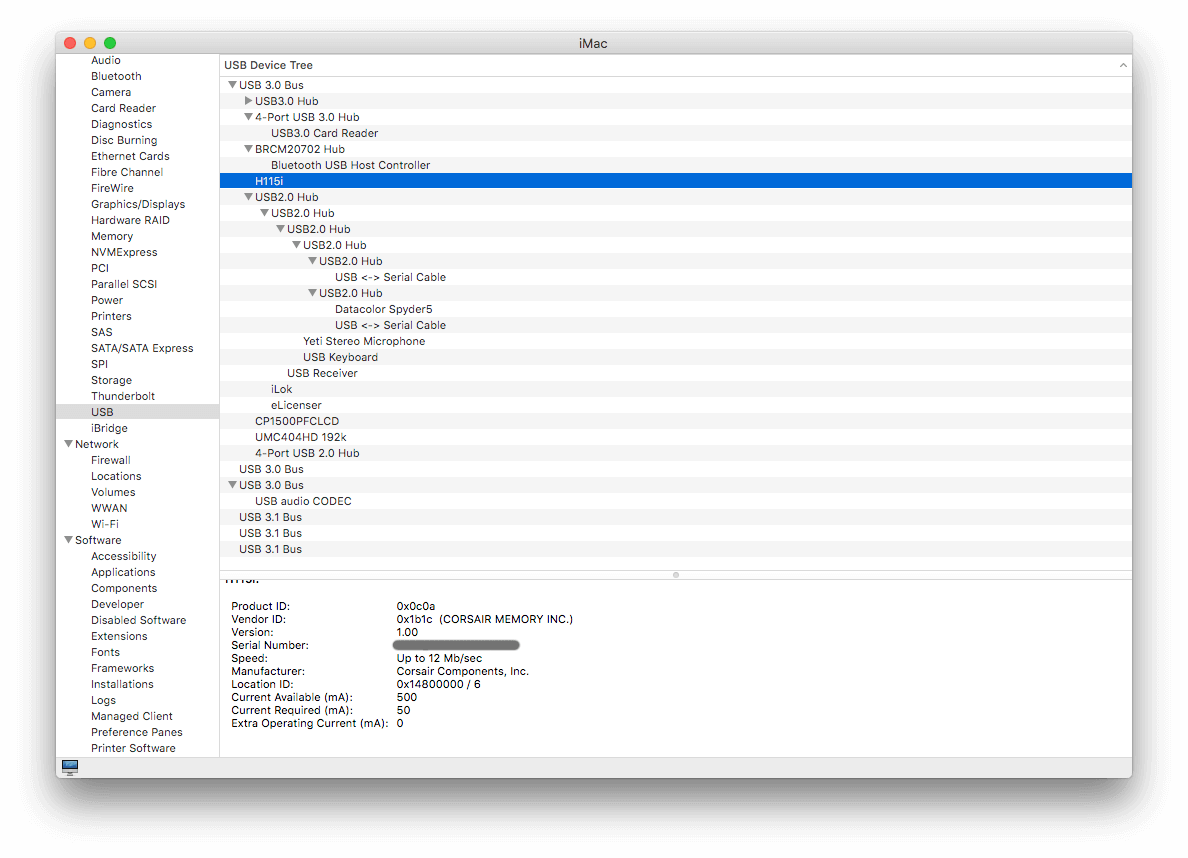

  2. USB ports; still have to map out unused out; my Anker USB hub shows as a 2.0, but I thought it was a 3.0. Need to investigate that further. [update: hub works fine; what I was seeing was—correctly—a USB 2.0 device plugged into it; 3.0 devices work as they should.]
  3. Booting with all 3 monitors on sometimes causes the 1080 to flicker and then hang. If I boot with two of them and then turn on the SW320 after login (I can leave it connected though), all is fine.



Notes

  1. TrackPad 2 doesn’t allow me to tap-drag. I can double tap, but I have to click-drag.
  2. NVIDIA 378.10.10.10.25.104 & CUDA 387.99. Installed NVIDIA web drivers using SIP procedure. Later installed CUDA 8.x and updated through CUDA System Pane (Control Panel). [uPDATE: Updated MacOS to 10.13.3 and driver 156; hangs on boot; reverted to 104 with nvdiaweb_patcher and all good now; even recognized both Quadro and GeForce]
  3. Pump was configured with CorsairLink in Windows and settings saved to device. Works for me, but use at your own peril!
  4. EVGA 1080 apparently doesn’t store OC settings in memory; you have to either ( a ) reset every time or ( b ) flash to BIOS.  For ( a ) there is no software that I can find for MacOS; maybe someone knows how to port Nvidiux or similar utilities for command-line setup. For ( b ), NVIDIA apparently have locked Pascal boards for BIOS mods, so you can’t set up the board in Windows, flash it, and maintain settings in MacOS X.



Benchmarks, snapshots, BIOS settings (partial), and config (serial changed) are attached.





Many thanks to @joevt for advice and ideas while dealing with Thunderbolt and to @glasgood for a terrific guide when it came to fine-tuning.




































config-changed serial.plist.zip

Edited by outdoormagic

Share this post


Link to post
Share on other sites
Advertisement

Hi. I am currently building a Hackintosh with the same processor and motherboard.



Everything is working fine and still needs adjustments, except for the sound.

I have noticed that you have on one list a VoodooHDA.kext (on the screenshot), but not on your final textual list of kexts ... What is the status ?



I only installed the RealtekRTL8111.kext version 2.2.1 and after trying all the possible injection code 11, 1, 2, 5, 7, I came up only with stereo sound. I would like to get the 5.1 output on the rear motherboard jacks but cannot get it. I have seen on your screenshot that you did get 7.1 output. How did you did it ?



All I've seen in the details of my installation is only stereo sound across all type of output including digital optical.



I have the 5.1 speakers from Logitec and they don't take optical sound in.



Do you have some insight to share on how you got the 7.1 output from the motherboard ? Is it related to the voodoo  kext ?



Thanks for your possible help.

Share this post


Link to post
Share on other sites

Hi,

Nice setup!



I was wondering, does the WebGL Water demo run smoothly for you? (also curious to hear from others with 10 series NVIDIA cards on Sierra / High Sierra)

http://madebyevan.com/webgl-water/



I'm seeing subtle lags/stutter as described in my post here: http://www.insanelymac.com/forum/topic/332311-partial-success-but-with-random-graphics-lags-video-included-coffeelake-1080-ti/

Share this post


Link to post
Share on other sites

Hi. I am currently building a Hackintosh with the same processor and motherboard.



Everything is working fine and still needs adjustments, except for the sound.

I have noticed that you have on one list a VoodooHDA.kext (on the screenshot), but not on your final textual list of kexts ... What is the status ?



I only installed the RealtekRTL8111.kext version 2.2.1 and after trying all the possible injection code 11, 1, 2, 5, 7, I came up only with stereo sound. I would like to get the 5.1 output on the rear motherboard jacks but cannot get it. I have seen on your screenshot that you did get 7.1 output. How did you did it ?



All I've seen in the details of my installation is only stereo sound across all type of output including digital optical.



I have the 5.1 speakers from Logitec and they don't take optical sound in.



Do you have some insight to share on how you got the 7.1 output from the motherboard ? Is it related to the voodoo  kext ?



Thanks for your possible help.



Yes, I installed Voodoo HDA following Glasgood's guide (pinned in forums), rebooted, and the ports appeared. I have not physically hooked up that setup, so I cannot guarantee that 7.1 actually would output 7.1. All I can say is that I now see the ports.

Hi,

Nice setup!



I was wondering, does the WebGL Water demo run smoothly for you? (also curious to hear from others with 10 series NVIDIA cards on Sierra / High Sierra)

http://madebyevan.com/webgl-water/



I'm seeing subtle lags/stutter as described in my post here: http://www.insanelymac.com/forum/topic/332311-partial-success-but-with-random-graphics-lags-video-included-coffeelake-1080-ti/



Thanks! I'll have to try. For now, I ran into issues when updating to 10.13.3 with NVIDIA 156. Had to revert to 13.3 and 104, but now I get occasional black screens on boot (in Muti-Screen mode) and yesterday, Airdrop, iMessages, and Handoff suddenly disappeared. I'll try WebGL after I figure out how to boot back into the hack and get Airdrop going :)





Update: I tried the WebGL page. Maybe I have too many tabs open and maybe I don't have the right extensions. It plays for about 2 seconds and then displays "script error". Tried it in Safari.

Share this post


Link to post
Share on other sites

Cool! Does Bluetooth keyboard work in bios with your BT/wifi module?



Nope. Note that I use a Logitech Flow Keyboard and Mouse (via BT), so that might have something to do with it.

Share this post


Link to post
Share on other sites

Nope. Note that I use a Logitech Flow Keyboard and Mouse (via BT), so that might have something to do with it.



Ok i see. Then i gonna go for this one i think:

http://www.osxwifi.com/apple-broadcom-bcm94360cd-802-11-a-b-g-n-ac-bluetooth-4-0-with-adapter-for-pc-hackintosh



Supports Apple bluetooth keyboard in BIOS/UEFI or Bootloader

NO spare keyboard needed to be able to get to BIOS/UEFI or in Bootloader

Native Airdrop Support



Next is to get TB3 working. Need to get the Alpine card first.

Share this post


Link to post
Share on other sites

Hi, I used your config to start my new hackintosh.
Same mobo, RAM, CPU, but the GPU is a 1070 instead. But I'm not doing any OC by now.
I bought the same pci cards (I really need e-sata for external HDDs and thunderbolt for a blackmagic intensity extreme and a lacie external HDD).
I could make the install without major issues. Newest clover and your listed kexts and High Sierra .4. Same BIOS version and settings.
My issues now:

- CG Alpine Ridge not recognized. I saw you booted in windows before, I'll begin my windows installation soon, but I need another HDD. But I saw in another forum a guy could boot into mac directly and the card works. Do you have any updates?



- Can't use my external HDDs from e-sata card. I put in the PCIe 1x lane 1 as you said and tried different slots. no success.



- the fenvi wi-fi/BT doesn't works too. But I tested it in another hack with sierra and doesn't works there too. I think it's a faulty card.


- my back panel audio is not working. I have audio in the front panel, but it's not a major issue because my main audio output is through balckmagic (when I put the thunderbolt to work...)

I really appreciate any help!

Thanks in advance













Edited by Carungaua

Share this post


Link to post
Share on other sites
On 1/23/2018 at 4:22 PM, outdoormagic said:

To get TB running without boot process freezing, I had to add:

Remove EmuVariableUefi

Connect only one screen (add all you want later)

Acpi: FixRegions: True

Boot: slide=0 [KSLR disabled]

Hey man!



Great build, I have a very similar setup and I'm fighting with my intermittent Thunderbolt. I have the exact issue that you had of having to boot into Windows to have the device recognized, then relogin to macos.



Could you explain the above steps for me in a little more detail? This being my first dip into Hackintosh I'm not sure what you're referring to here.



Thanks in advance!

Andrew

Share this post


Link to post
Share on other sites
On 5/10/2018 at 11:57 AM, Carungaua said:

Hi, I used your config to start my new hackintosh.
Same mobo, RAM, CPU, but the GPU is a 1070 instead. But I'm not doing any OC by now.
I bought the same pci cards (I really need e-sata for external HDDs and thunderbolt for a blackmagic intensity extreme and a lacie external HDD).
I could make the install without major issues. Newest clover and your listed kexts and High Sierra .4. Same BIOS version and settings.
My issues now:

- CG Alpine Ridge not recognized. I saw you booted in windows before, I'll begin my windows installation soon, but I need another HDD. But I saw in another forum a guy could boot into mac directly and the card works. Do you have any updates?



I have not tried booting directly, although I have heard that some MSI cards can do that. Just got into the habit of booting in Win10 first. I'll have to try a direct boot again, as I have made changes to my system.





On 5/10/2018 at 11:57 AM, Carungaua said:

- Can't use my external HDDs from e-sata card. I put in the PCIe 1x lane 1 as you said and tried different slots. no success.



One issue I had is that I had to leave the bottom 1x slot empty, as it shares the bandwidth with SATA internal connectors (disables 0 or 1, don't remember exactly). The TB slot (bottom) also shares lanes with M.2 connector, so you cannot put anything in the bottom M.2 slot.





On 5/10/2018 at 11:57 AM, Carungaua said:

- the fenvi wi-fi/BT doesn't works too. But I tested it in another hack with sierra and doesn't works there too. I think it's a faulty card.




I have moved to an OSX Wifi card, as I was having lag issues. Turned out that my Fenvi was indeed fine, but interference with BT came from USB drives. (if you search forums, you will find it). I moved the external drives and things are better. No issues with WiFi side on either card.





On 5/10/2018 at 11:57 AM, Carungaua said:

- my back panel audio is not working. I have audio in the front panel, but it's not a major issue because my main audio output is through balckmagic (when I put the thunderbolt to work...)



I used Voodoo HDA. Some say it isn't required, but I don't see the ports without it. Note that I don't have a 5.1 system, so I haven't been able to check every connector, but most work and show up in the sound menu. My main audio, however, is a Behringer UDC404 USB interface.



On 5/10/2018 at 11:57 AM, Carungaua said:


I really appreciate any help!

Thanks in advance

Screen Shot 2018-05-10 at 12.56.14.png

Screen Shot 2018-05-10 at 12.56.42.png

Screen Shot 2018-05-10 at 12.56.54.png





For future reference, you might want to consider blacking out your serial number. :)





12 hours ago, Orks11 said:

Hey man!



Great build, I have a very similar setup and I'm fighting with my intermittent Thunderbolt. I have the exact issue that you had of having to boot into Windows to have the device recognized, then relogin to macos.



Could you explain the above steps for me in a little more detail? This being my first dip into Hackintosh I'm not sure what you're referring to here.



Thanks in advance!

Andrew



Could you give me a little more information? What is your build are what is "similar?"



Which steps do you need more information on?



I will say that I recently switched to a Vega card and that solved many of my boot issues.





Share this post


Link to post
Share on other sites

Hi, thanks for your answer.

Actually the problem with the sata card was just a matter of jumpers! I was trying to use the external esata ports so I just changed the jumpers in the board and everything works fine now. my mistake, sorry.

I tried the audio with the latest voodoohda but just worked for me with a previous version.

I think the only issue now is the shutdown. the system reboots after the shutdown. the same happens in Windows!

I think I had to edit the dsdt but it's a new world for me. do you have this shutdown problem?

thanks again for your post, helped a lot.



Share this post


Link to post
Share on other sites

I have tried searching for the issue with USB 3.1 Gen2 header disabling thunderbolt. Is this specific to Hackintosh or does it happen in windows too?

Share this post


Link to post
Share on other sites

Bonjour,



 The link towards config-changed_serial is dead, in post 1. Could you please refresh it, or post a new one ?

Thanks,   G.G.

Share this post


Link to post
Share on other sites

Hello, i have Aorus Gaming 3 and Titan Ridge. I cannot enter Osx with TR plugged in. Any suggestions?



I followed this guide by the book. I have a custom DSDT.

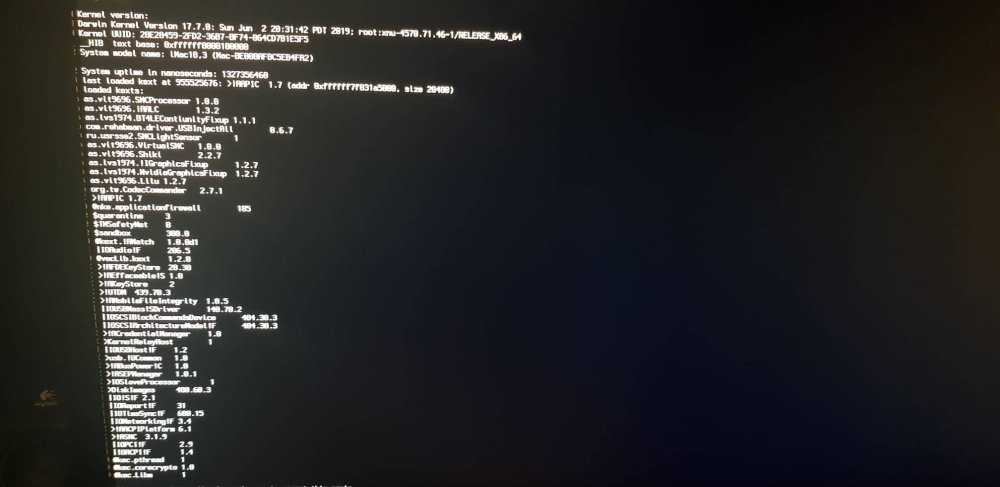

Card works fine in windows but no matter what i always get the same error when trying to boot osx.



High Sierra 10.13.6


Here is my CLOVER folder.....

CLOVER.zip

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By tonyx86
      This thread for installing Catalina on the Dell Latitude E6410 WITH NVIDIA GRAPHICS (BIOS A17, NVidia 3100m) will help you install a fresh installation of Catalina on your Dell Latitude E6410, it will help you upgrade from 10.15.2 to 10.15.3 (if you originally installed Catalina from this thread) and it will also help you upgrade from Mojave 10.14.6 if you have already installed Mojave by following the instructions here.  The instructions in this first post assume that you are installing Catalina in an APFS container.  If you are curious about the evolution of this solution and how sleep/wake was solved, review the Mojave installation thread.

      Important: This Thread is NOT intended to help you install macOS on a Latitude E6410 with Intel HD Graphics (without Nvidia graphics).  The DSDT attached to this first post (in E6410-Catalina.zip) is VERY SPECIFIC to the Nvidia graphics implementation and has not been edited for HD Graphics - there are elements required for HD Graphics that are missing from the attached DSDT and there are DSDT mods that have not been tested with HD Graphics.  Also, the kexts attached to this first post are specific to a Broadcom Wi-Fi card which must replace the original Intel Wi-Fi card.

      This first post will be modified to reflect lessons learned and to reflect the most current working state of my Latitude E6410 (with NVidia 3100m discrete graphics) running Catalina.  Issues, observations and performance tips are recorded toward the bottom of this first post.  My recommended CLOVER configuration is specified toward the bottom of this first post.

      *** If you want help with your installation, please post your issue along with problem reporting files generated using @black.dragon74's problem reporting tool.  Google 'GENERATE PROPER PROBLEM REPORTING FILES black.dragon74' to find it. ***.  If Catalina's Read-Only protections block your installation of black.dragon74's gen_debug script, please copy the attached gen_debug script to your Desktop, change script properties with the terminal command 'chmod a+x ~/Desktop/gen_debug' and run the script from your Desktop.

      My system is as follows:
      Dell Latitude E6410 (I7-620m, Nvidia 3100M, 8GB DDR3, 512GB SSD, 1440x900 display, BIOS: A17) Wi-Fi: Broadcom BCM 94352HMB (replaced original Wi-Fi card) BIOS (version A17) configured as follows (leave default unless listed here): Boot Sequence: USB, Internal HDD, CD/DVD, Modular Bay HDD; Boot List Option: Legacy; Integrated NIC:Enabled; Parallel Port: Disabled; Serial Port: Disabled; SATA Operation: AHCI; Misc Devices: Enable Modular Bay, Camera, External USB, Microphone, Media Card and 1394; Latitude ON Reader: Disabled; Keyboard Illumination: Auto ALS and Input; Ambient Light Sensor: Enabled; OROM Keyboard Access: Disable; TPM Security: Disable; Computrace:Deactivate; CPU XD Support: Enable; Performance: Enable all options; Power Management: Disable Wake on AC, Disable Wake on LAN/WAN, Express Charge: Standard, Charge Behavior: Enabled; Keypad: Fn Key Only; Mouse/Touchpad: Touchpad/PS-2 Mouse; USB Emulation: Enable Legacy; Fn Key Emulation: Disabled; Fastboot: Thorough; Virtualization: Enable Intel Virtualization, Disable VT for Direct I/O, Disable Trusted Execution; Wireless Switch: Bluetooth and WLAN; Wireless Device Enable: Bluetooth and WLAN;
      Versions of the software used in this installation are listed below the installation steps.  EFI and kexts for Catalina are attached to this first post in E6410-Catalina.zip.  CLOVER configuration is specified below the installation steps.

      Wi-Fi connection to an Access Point is delayed when using AppleALC for sound.  Do not use Apple ALC.  Use VoodooHDA pkg 2.9.2 v14 for sound.

      Steps to install Catalina on a Dell Latitude E6410 (BIOS A17, NVidia 3100m)
      Make sure that your system matches my system description above (including BIOS version, Wi-Fi card, BIOS settings) If performing an upgrade from Mojave or a previous version of Catalina, backup your Mojave or Catalina partition! (Carbon Copy or similar) Download Catalina Installer Download DosDude Catalina Patcher Use DosDude Patcher to create Catalina USB Installer Delete LegacyUSBInjector.kext (we're using @RehabMan's USBInjectAll.kext with custom SSDT) and delete SIPManager.kext (CLOVER is managing SIP) from Catalina USB Installer's /Library/Extensions folder Copy all but the FakeSMC sensor kexts in E6410-Catalina.zip (attached) LE folder to the Catalina USB Installer /Library/Extensions (copy all kexts (including FakeSMC.kext) but not the FakeSMC sensor kexts) Install CLOVER Bootloader (Legacy) on USB Installer using the EFI in the E6410-Catalina.zip (attached).  Use the CLOVER configuration specified below.  Be sure to replace the XX-MASKED-XX parameters in the attached config.plist with your own values. Reset your Latitude E6410 NVRAM by doing the following (this may be important if you're making changes to your existing EFI and won't hurt anything if you're not making any changes) turn-off your laptop remove A/C power and main battery press and hold the power button for 30 seconds restore A/C power and battery Boot your Latitude E6410 from the Catalina USB Installer that you created in steps 5-8. Select "Reinstall macOS" (note that I have existing installations of Mojave and High Sierra on my Latitude E6410, so it's possible that this menu item changes to "Install macOS" if you don't have any previous macOS installations). Select your Catalina destination partition (which will be your Mojave or previous Catalina partition if you are upgrading) After the Catalina Installer reboots the first time, boot from the "macOS Installer" partition on the disk that you selected as your Catalina destination (not the macOS installer on the USB) After the Catalina Installer reboots the second time, boot the Catalina macOS Installer on the USB Select the Post Install Patcher utility Select only the following Post Install Patches (no other patches / options) Install Patch Updater Legacy Video After the Post Install Patcher reboots,  boot from the newly installed (or upgraded) Catalina partition and complete the macOS configuration Remove these kexts (if they exist) from /Library/Extensions: LegacyUSBInjector.kext, LegacyUSBVideoSupport.kext and SIPManager.kext If you are performing a fresh installation of Catalina: Install CLOVER on your boot disk and configure EFI using files in the attached E6410-Catalina.zip.  Use the CLOVER configuration below.  Your EFI Clover/kexts/Other folder needs only FakeSMC.kext, IntelMausiEthernet.kext, USBInjectAll.kext and VoodooPS2.kext.  Be sure to replace the XX-MASKED-XX parameters in the attached config.plist with your own values. Install all kexts in the attached E6410-Catalina.zip LE folder to your /Library/Extensions folder.  NOTE: These instructions assume installation of Brcm kexts in /Library/Extensions.  Read the Brcm install instructions if you're installing kexts in EFI/Clover/kexts/Other, since your installation and at least one kext WILL BE DIFFERENT. Copy HWMonitor from the application folder in the attached E6410-Catalina.zip to your Applications folder. Install VoodooHDA (I installed using the Classic method) Skip to Step 21 If you are upgrading from a previous version of Catalina using the instructions from this thread or from Mojave that you installed using the instructions here: Update Lilu.kext and replace BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext (in /Library/Extensions) with latest BrcmBluetoothInjector.kext, BrcmFirmwareRepo.kext and BrcmPatchRAM3.kext. NOTE: These instructions assume installation of Brcm kexts in /Library/Extensions.  Read the Brcm install instructions if you're installing kexts in EFI/Clover/kexts/Other, since your installation and at least one kext WILL BE DIFFERENT. Update IntelMausiEthernet.kext Remove VoodooSDHC.kext from /Library/Extensions Re-install VoodooHDA if necessary (I installed using the Classic method) Ensure PROPER kext installation: If you're manually installing kexts in /Library/Extensions, make sure that you execute the following (in terminal) cd /Library/Extensions sudo chown -R root:wheel *.kext sudo chmod -R 755 *.kext sudo kextcache -i / After you execute 'sudo kextcache -i /' you should observe that ALL kexts are allowed.  If not, your kext directory attributes are probably incorrect.  Repeat kext installation and try again. Reboot from your new/upgraded Catalina partition Welcome to macOS Catalina! Change the keyboard type to ISO (System Preferences > Keyboard > Change Keyboard Type) Swap the Command and Option keys (System Preferences > Keyboard > Modifier Keys) Set hibernatemode: In terminal, execute sudo pmset -a hibernatemode 0 sudo rm -f /var/vm/sleepimage sudo touch /var/vm/sleepimage sudo chflags schg /var/vm/sleepimage
      Version Info at the time of this writing:
      Catalina Installer 10.15.3 CLOVER v2.5k r5103 DosDude Catalina Patcher: v1.3.0 Lilu.kext 1.4.1 AirportBrcmFixup.kext 2.0.6 BrcmFirmwareRepo.kext 2.5.1 BrcmBluetoothInjector.kext 2.5.1 BrcmPatchRAM3.kext 2.5.1 IntelMausiEthernet.kext 2.5.0
      VoodooHDA.kext 2.9.2 v14 (NOT AppleALC)

      What is not working (that was working in Mojave)
      SD Card Slot (had to remove VoodooSDHC.kext which caused system freeze on wake)
      Known Issues and Their Solutions
      (No solution yet) Brightness slider does not work in System Preferences > Displays.  Brightness is easily controlled with Dell brightness keys.  There is some work on this later in this thread, but I will not be solving this as I'm content with the Dell brightness keys (and Ambient Light Sensor works to auto-adjust brightness). I continue to refine the DSDT and CLOVER config.plist to optimize my Latitude E6410 for multi-booting between various macOS versions (High Sierra, Mojave and Catalina at the time of this writing). If you upgrade your Latitude E6410 EFI using my attached EFI, you may find that your Latitude E6410 is stuck in a boot-loop that ends in a white screen and reboots.  Clear your system by doing the following: turn off your laptop, remove A/C power, remove the main battery, press and hold the power button for 30 seconds, restore A/C power and battery, boot normally.  I have only found this to be necessary (very rarely) after making an EFI change, but you may find it helpful if making kext changes in /Library/Extensions as well. (Work-around - no permanent solution yet) Cannot turn on Bluetooth after shutting-down with Bluetooth off.  Work-around is to leave Bluetooth on.  I don't use Bluetooth and don't mind, so this will likely be solved by someone else.  If you experience this issue and can't turn-on Bluetooth, I have found that putting the laptop to sleep (Fn-F1) and then waking the laptop restores proper operation of Bluetooth.  I have posted a problem description, logs and problem reporting files in this thread for help with this problem. (Solved - no further work required) Laptop does not sleep when closing lid.  Solution appears to be a combination of adding Notify (LID0) code to Method (BTNV), adding Device (PNLF) and adding the definition for pwm-info in the DSDT.  No surprise that the Latitude E6410 has yet another incomplete ACPI implementation.  I am using the same EFI for High Sierra 10.13.6, Mojave 10.14.6 and Catalina 10.15.3 and it works in all three macOSes. (No solution yet) No SD Card Slot (had to remove VoodooSDHC.kext) - I read somewhere that there is a solution that does not require any kexts (just a DSDT edit).  Haven't yet implemented this fix. (Not a problem that needs to be solved - leaving for historical purposes.  I am running Catalina without this.) - IOHWControl does not load under GFX0 (as observed in IORegistryExplorer).  Solution (if it needs to be solved) is to install AppleHWSensor.kext from a DosDude-patched Mojave /S/L/E in Catalina's /L/E.  Copy and install your own or use the kext attached to this post. (Solved - no further work required) Wi-Fi connection is delayed until a minute or so after boot - Use VoodooHDA and NOT AppleALC (Solved - no further work required) External USB ports do not work after waking from sleep (S3) - Upgrade Lilu.kext and replace BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext (in /L/E) with latest BrcmBluetoothInjector.kext, BrcmFirmwareRepo.kext and BrcmPatchRAM3.kext. (Solved - no further work required) Boot and shut-down time of Catalina is slower than Mojave - Upgrade Lilu.kext and replace BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext (in /L/E) with latest BrcmBluetoothInjector.kext, BrcmFirmwareRepo.kext and BrcmPatchRAM3.kext. (Solved - no further work required) Wi-Fi is not immediately available at OS startup - Upgrade Lilu.kext and replace BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext (in /L/E) with latest BrcmBluetoothInjector.kext, BrcmFirmwareRepo.kext and BrcmPatchRAM3.kext. (Solved - no further work required) Laptop freezes on wake - Remove VoodooSDHC.kext from /Library/Extensions
      Tips for Improved Performance (on this and other older systems)
      System Preferences > Spotlight > Search Results: Uncheck all options System Preferences > Spotlight > Privacy: Add all Volumes System Preferences > Accessibility > Display: Check "Reduce motion" System Preferences > Accessibility > Display: Check "Reduce transparency"
      Other tips
      If your fan is always running and temps are good, try pressing Fn + z (I haven't noticed this issue for a while since I completed DSDT edits for Mojave, but keeping this here for historical purposes)
      CLOVER Installation: Use these configuration options
      Install Clover in the ESP Boot Sectors Install boot0af in MBR Clover for BIOS (legacy) booting Clover EFI 64-bits SATA BIOS Drivers, 64-bit Recommended drivers FSInject File System drivers ApfsDriverLoader Install RC scripts on target volume Themes Choose your desired theme Install Clover Preference Pane After clicking "Continue", if prompted with "This Clover package is incompatible with this version of macOS," install anyway
      After CLOVER installation is complete Copy the following from the attached E6410-Catalina.zip ACPI patched contents config.plist (change XX-MASKED-XX values to your own) kexts/Other (remove all other kext folders) Remove christmas and new year folders from themes (if present)
      Credits
      Thanks to those who contributed to my Mojave solution and to the DosDude team (for the incredible macOS patchers), I think this Catalina installation was the easiest macOS installation that I have experienced (so far).  Many thanks to @Slice and his team for the incredible work on CLOVER and for continuing to support old legacy systems like this.  Also, thanks to @Mieze and @headkaze and others I'm sure for maintaining the Brcm kexts.  And finally, I still prefer to manually apply patches to the DSDTs in my systems.  CLOVER offers extensive patching functionality, but I'm old-school and like to have an error-free, fully-patched DSDT with a simple CLOVER config.plist.  I think that this manual DSDT patching approach (which required an extensive review and debugging of the original unpatched DSDT in this thread) is the reason that this Latitude E6410 is such a perfect MacBookPro6,2.  Thank you @RehabMan for being a great teacher and for always insisting on problem reporting files .



      AppleHWSensor.kext.zip

      gen_debug
      E6410-Catalina-3v5.zip
    • By tonyx86
      *** I have started another thread for installing Catalina on the Dell Latitude E6410.  If you were thinking of installing Mojave, but would prefer to skip right to Catalina, click here. ***

      I was inspired by @duduclx post here for installing El Capitan on a Dell Latitude E6410, so I decided to install Mojave 10.14.5 and subsequently 10.14.6.  Everything works perfectly (including sleep).  I'm starting this thread hoping to help others install Mojave on their E6410s.  A brief installation guide is provided later in this first post.  The interested reader is encouraged to read the other posts in this thread to see how this solution evolved and to learn additional tips/details not provided in this first post (including dual-booting with macOS and Windows).

      My system is as follows:
      Dell Latitude E6410 (I7-620m, Nvidia 3100M, 8GB DDR3, 512GB SSD, 1440x900 display, BIOS: A17) MacOS: Mojave 10.14.6 (APFS) (Patched with DosDude Mojave Patcher 1.3.3) MacModel: MacBookPro 6,2 (LPCB._DSM.Name "pci8086,3b09") Kexts: Lilu 1.3.6, VoodooHDA 2.9.2, AirportBrcmFixup 2.0.0, IntelMausiEthernet 2.4.1d1, ACPIBatteryManager 1.90.1, BrcmPatchRam2.kext, BrcmFirmwareRepo.kext, VoodooPS2Controller (the "Refined ALPS Touchpad" version - release 6 developed by @Dr. Hurt and compiled by @bronxteck), not the original version), USBInjectAll (with custom SSDT-UIAC), VoodooSDHC.kext (configured as shown here). Wi-Fi: Broadcom BCM 94352HMB (with AirportBrcmFixup.kext) CLOVER (Legacy): R4961
      Configuration items that may be different from what you have seen in other E6410 configurations
      Addition of _OFF and _ON methods to _PTS and _WAK methods respectively (to control discrete graphics in order to enable sleep/wake) LPCB._DSM patched with device-id "3b09" AND "name", "pci8086,3b09" for native Nehalem power management with MacBookPro 6,2 ECDV renamed to EC so that AppleBusPowerController loads AGP.VID._DSM patched with device-id "0a29" so that AppleGraphicsPowerManagement loads No CLOVER Generate P or Generate C States (with the correct LPCB._DSM and MacBookPro 6,2, these CLOVER options are unnecessary for this architecture and only limit max multiplier and reduce number of P states) DSDT patched to include HDAU device (device-id 0x0be3)
      What is NOT working:
      Display brightness can be controlled with keyboard keys, but cannot be controlled with slider in Display settings. Graphics Power Management - AGPM loads (because 10de,0a29 device is injected), but there's no evidence that 3100m frequency and voltage is changing.
        What is NOT tested:
      Smartcard Reader eSata (I have this disabled in my BIOS) Firewire Port (it does appear in the Network settings, just haven't tried it) Microphone Jack PC Card Slot (I have this disabled in my BIOS)
      What IS working:
      SLEEP IS WORKING! Everything else not mentioned above.   Speedstep/CPUPowerManagement is perfect, system temps are low, CPU multiplier operates as expected, battery life is long Shutdown is fast Display/graphics acceleration is perfect (thanks to DosDude's Mojave patcher) Brightness (adjusted with brightness keys on keyboard) works perfectly Battery Manager works (battery status is displayed in menu bar) simply by installing ACPIBatterManager.kext. Wi-Fi (after changing to Broadcom BCM94352HMB and installing AirportBrcmFixup.kext) Audio (volume adjustable, volume indicator appears in menu bar).  Switched to VoodooHDA from AppleALC after AppleALC caused slow boot due to "IOHDACodecFunction timeout." Ethernet port (with IntelMausiEthernet.kext) Broadcom BCM20702A0 Bluetooth (with BrcmPatchRam2.kext and BrcmFirmwareRepo.kext) Optical Drive External VGA (with corrected NVCAP.  Need NVCAP 04000000 00000100 0E000000 00000007 00000000 (credit: here) for working external VGA display. Headphone jack Display Port (tested using DP > HDMI adapter) Camera SD Card Reader
      Known issues and their solutions (These issues have all been resolved, with the solutions incorporated into the attached config files.  The issues are listed here for historical purposes and no further work is needed unless stated otherwise).
      Laptop does not sleep on lid close.  Solution is to add Notify (LID0) code to Method (BTNV) in the DSDT.  This is solved in the attached DSDT. Leaving this for historical purposes, but the CLOVER USBFix is no longer necessary after finding that I had incorrectly applied the DSDT _DSM patch for Device (EHC1).  The CLOVER USBFix is not needed after fixing the DSDT..  AAPL,clock-id and device_type do not appear in IORegistry for EHC1.  Solution is to use CLOVER on-the-fly patching/fixing/renaming for EHC1 and EHC2.  Thank you, @feartech, for this tip. ALPS trackpad performance is not good with the "standard" VoodooPS2Controller.kext that I initially used.  Switching to the "Refined ALPS TouchPad driver" is a big improvement.  I've implemented and tested this on my system.  The ALPS version of VoodooPS2Controller.kext mixes up a few keys.  Need to switch the Command and Option keys (System Preferences > Keyboard > Modifier Keys) and change keyboard type to ISO European. This configuration (captured in the attached config files) uses an injected device-id (10de,0a29) for NVidia 3100m to get AGPM to load.  While I haven't observed any performance differences, a better approach may be to inject AGPM properties for device 10de,0a6c (the actual device-id for the 3100m).  This AGPM method is discussed later in this thread.  I have briefly tested this "FakeSMC.kext method" for injecting AGPM attributes without any noticeable changes in laptop/graphics behavior. IOHWControl is not loaded under AGPM (Should be AGP > VID > NVDA,Display-A@0 > NVDATesla > AGPM > gpu-control > IOHWControl as viewed in IORegistryExplorer).  It is loaded on a real MacBookPro6,2 running Mojave and is loaded on this Dell Latitude E6410 running High Sierra.  If I "Inject NVidia" via CLOVER, IOHWControl loads properly. The Dell Latitude DSDT (BIOS A17) has a bug in Method (GNOT).  In the method, the expression  If (LOr (LGreater (OSYS, 0x07D0), LLess (OSYS, 0x07D6))) always evaluates to TRUE, so the patched DSDT has no dependency on the value of OSYS.  I suspect that LOr should be replaced with LAnd, so that this expression is TRUE for variants of Windows 2001 and False for any other OS.  While this may have no affect on MacOS, it makes one wonder how such an obvious bug made it through Dell QA and is still present in BIOS A17.  Also makes one wonder whether the sleep problem (which no one has solved) was fixed in Windows to address another DSDT bug. The assigned value of ACOS and OSYS in the DSDT are conditional on the operating system.  There is no condition for "Darwin."  The solution is to add a condition for "Darwin" (making it equivalent to one of the defined operating systems (e.g. Linux, Win7, etc).  The attached config hard-codes ACOS and OSYS values equivalent to those for Linux.  Another way to handle this (different from the method employed in the attached config files) might be to override _OSI with XOSI (defined in a custom SSDT). The portType of the Internal Bluetooth device is portType=0 which, according to Rehabman's comments in SSDT-UIAC-All.dsl, is an external USB 2 port.  This should be an internal USB port (portType=2).  I learned through trial and error that the HUB1 and HUB2 definitions in Rehabman's SSDT-UIAC-ALL.dsl apply to the ports on the EHCx USB hubs.  The solution is to include the HUB1 definition in SSDT-UIAC.dsl and change portType to 2 for HP15.  This change doesn't appear to affect/fix sleep, but it may prevent instant wake if we get sleep working. There are minor differences between a real MacBookPro6,2 IORegistry dump and this HackBookPro6,2 IORegistry dump that can be resolved with simple DSDT edits.  I am now running with these changes, but haven't found these changes to make any difference in operational behavior.
      Rename Device (AC) -> Device (ADP1) Remove UID from Device (HPET) Add compatible ID "PNP0C01" to Device (HPET) Change ADP1:_STA from 0x0F to 0xFFFFFFFF Enable Ambient Light Sensor and renamed to Device (ALS0) from Device (ALS) Add compatible ID "smc-als" to ALS0 Rename LID -> LID0 Change "name" definitions to Buffers in _DSM methods Rename Device (PBTN) to PWRB Rename Device (SBTN) to (SLPB) Change HDAU.hda-gfx from "onboard-1" to "onboard-2" Change GFX0.hda-gfx from "onboard-1" to "onboard-2" Sleep / Wake does not work with the basic DSDT edits.  I have discovered that Sleep / Wake can be made to work by adding discrete graphics _OFF and _ON methods to _PTS and _WAK methods respectively (borrowed the concept and code from a working E6430 DSDT: Credit here: https://osxlatitude.com/forums/topic/9248-working-sleep-on-intel-hd-and-nvidia-nvs-on-dell-latitude-e6430-optimus-enabled-or-disabled/page/6/. The Clover boot arg should be changed to "darkwake=0" for reasons explained by @holyfield in this thread.  Leaving this for historical purposes: LCD screen is blank when waking laptop by opening lid (screen is not blank when waking with power button).  Solution is to add darkwake=8 to CLOVER boot args.  Thank you @Hervé for this tip.
      Brief Installation Guide:
      Configure BIOS (version A17) as follows (leave default unless listed here): Boot Sequence: USB, Internal HDD, CD/DVD, Modular Bay HDD; Boot List Option: Legacy; Integrated NIC: Enabled; Parallel Port: Disabled; Serial Port: Disabled; SATA Operation: AHCI; Misc Devices: Enable Modular Bay, Camera, External USB, Microphone, Media Card and 1394; Latitude ON Reader: Disabled; Keyboard Illumination: Auto ALS and Input; Ambient Light Sensor: Enabled; OROM Keyboard Access: Disable; TPM Security: Disable; Computrace: Deactivate; CPU XD Support: Enable; Performance: Enable all options; Power Management: Disable Wake on AC, Disable Wake on LAN/WAN, Express Charge: Standard, Charge Behavior: Enabled; Keypad: Fn Key Only; Mouse/Touchpad: Touchpad/PS-2 Mouse; USB Emulation: Enable Legacy; Fn Key Emulation: Disabled; Fastboot: Thorough; Virtualization: Enable Intel Virtualization, Disable VT for Direct I/O, Disable Trusted Execution; Wireless Switch: Bluetooth and WLAN; Wireless Device Enable: Bluetooth and WLAN;  Create your MacOS installer USB (Use DosDude's Mojave Patcher for Mojave) (start with High Sierra and not Mojave if you're new to hackintosh). Install CLOVER (Legacy) on installer USB using attached EFI as your guide for patched ACPI, kexts and config.plist Install MacOS to your SSD.  When you run DosDude's Mojave Patcher, DO NOT install LegacyUSBInjector.kext - you're going to use Rehabman's USBInjectAll.kext.  Also, do not install the DosDude SIP kext (you're using CLOVER to manage SIP). Install the following kexts in /Library/Extensions:  ACPIBatteryManager.kext, AirportBrcmFixup.kext, BrcmFirmwareRepo.kext, BrcmPatchRAM2.kext, FakeSMC.kext, FakeSMC_ACPISensors.kext, FakeSMC_CPUSensors.kext, FakeSMC_GPUSensors.kext, FakeSMC_LPCSensors.kext, IntelMausiEthernet.kext, Lilu.kext, USBInjectAll.kext, VoodooPS2Controller.kext (the "Refined ALPS Touchpad driver," not the original), VoodooSDHC.kext (configured as shown here). Switch Command and Option keys to compensate for Refined ALPS driver issue (System Preferences > Keyboard > Modifier Keys).  Also change keyboard type to ISO European to fix the [ ` ~ ] key (to the left of the "1" (one) key. Install VoodooHDA Install HWMonitor application
      Tips for Improved Performance (on this and other older systems)
      System Preferences > Spotlight > Search Results: Uncheck all options System Preferences > Spotlight > Privacy: Add all Volumes System Preferences > Accessibility > Display: Check "Reduce motion" System Preferences > Accessibility > Display: Check "Reduce transparency"
      Other tips
      If your fan is always running and temps are good, try pressing Fn + z After applying Mojave updates, HWMonitor may not display discrete graphics attributes.  On systems with multiple displays, a second (or third display) may not be active after applying the Mojave update.  The solution to this is to run "sudo kextcache -i /" (in a terminal window) and reboot.  This will usually fix the issue.  If the issue is not fixed, run DosDude's Post Install Utility, apply the Legacy Graphics Patch, reboot and then run "sudo kextcache -i /" if necessary.
      Credits
      In addition to those mentioned in this first post and in subsequent posts in this thread, much of this solution for the Latitude E6410 was made possible by the numerous contributions of @RehabMan.  I hope he's doing well, wherever he is.  Hopefully he has long since forgotten what a PIA I was (and still am) as I was (and still am) learning hackOS.




      E6410-Mojave-6v3.zip
    • By TomZanna
      Hi, I'm trying to install Mac Os Catalina on a HP 550-132NL.
      The system has:
      i7-6700
      RAM 12 GB
      GT 730
      LAN Realtek RTL8161
      ALC3863

      It passes the verbose phase but after the Apple logo goes away, it gets stuck on a grey screen and I can only move the pointer.
      Can I try to boot with the iGPU?

      origin.zip
      CLOVER_dGPU_USB_3.zip
    • By NoEnd
      Hi team,

      I'm looking for the best route to achieve this upgrade, so I have been stuck with HS since Nvidia drivers stopped being supported on newer MacOS releases. Now I'm having an AMD 5700 xt on the way and want to plan the upgrade properly. I have added some information below and questions that might help with your recommendation.

      Current GPU 1080 ti with Nvidia webdrivers installed. So should I uninstall the webdriver before adding the new GPU? Clover is being used and EFI attached. Any kext must be removed? or parameters adjusted MacOS HS 10.13.6, should I upgrade before using the new GPU? CPU: 9900K Motherboard:ROG MAXIMUS XI HERO (WI-FI) Dual Monitors I have a Time machine backup, Do you recommend a fresh install? and If I did, will I be able to restore my data/apps as-is?
      Please let yourself free to explore further aspects to considers.
      EFI-20200204.zip
×
