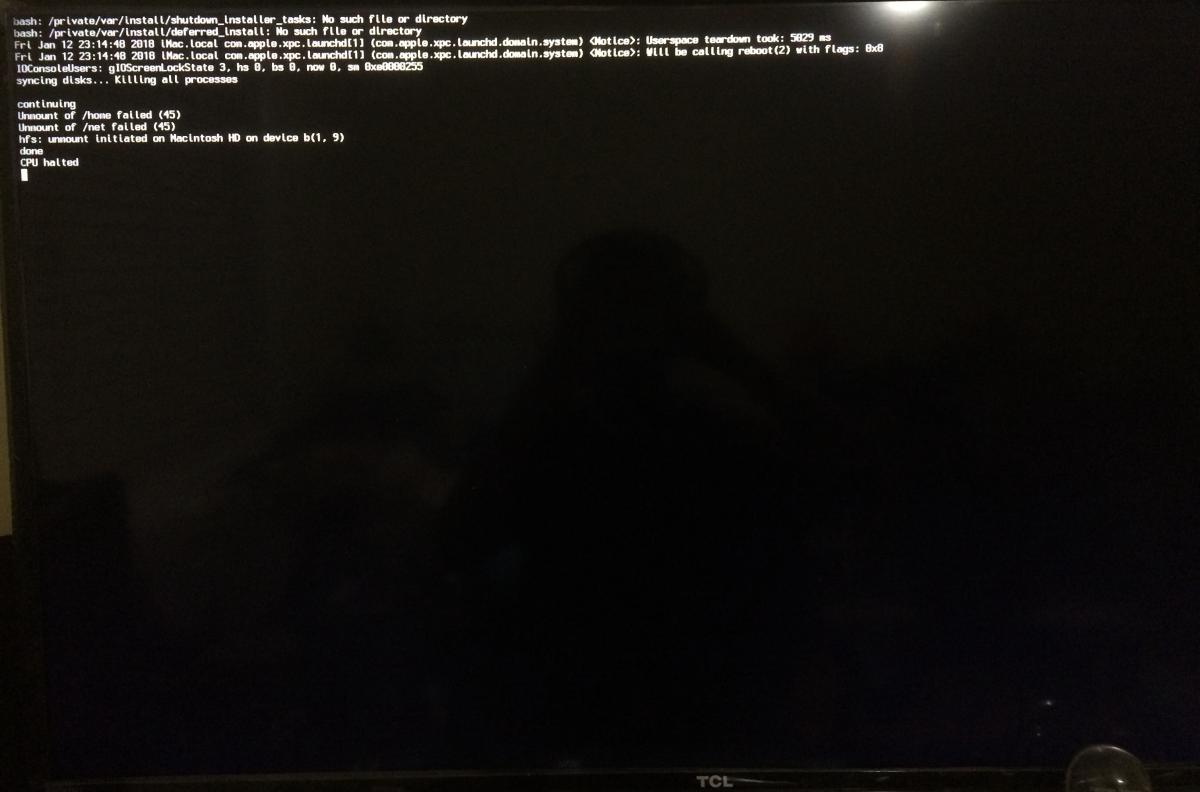

Rval1 Posted January 14, 2018 Share Posted January 14, 2018 How's it going everyone? I made posts on r/hackintosh as well as the tonymac forums to no avail. Since I already have everything type out from those posts I'm just going to copy and paste and attach the relevant files. Any help is greatly appreciated, thank you. "Hello everyone, I recently got a High Sierra up and running (first time setting up a hackintosh). It's essentially running perfectly except for the fact that shut down does not work. When I go to shut down the system ends up rebooting instead. There is also the issue of the system rebooting when I leave it untouched for too long. I have attached an image of the verbose output when shutting down. I have also, hopefully, attached the necessary/needed files. My profile also has all the relevant hardware information (hopefully I did this part right). I believe I have the correct bios settings. They are as follows:XHCI Mode: AutoXHCI hand-off: enabledEHCI hand-off: disabled (have also tried enabled)Wake On Lan: disabledVt-d: disabledSerial IO: disabledBoot mode: UEFI OnlyOS Type: Other OSOn Mac my system preference for Energy Saver are set to:Prevent computer from sleeping automatically when display is off: uncheckedPut hard disks to sleep when possible: checkedWake for network access: uncheckedEnable Power Nap: checkedI greatly appreciate any help offered, thank you. P.S I want to go ahead and apologize ahead of time for an ignorant decisions or choices I may have made in regards to my setup, as well as any potential frustration it may cause. And again thank you." debug_4800.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted January 14, 2018 Share Posted January 14, 2018 replace full clover folder, reboot, send me new ioreg with new files CLOVER.zip Link to comment Share on other sites More sharing options...
Rval1 Posted January 14, 2018 Author Share Posted January 14, 2018 replace full clover folder, reboot, send me new ioreg with new files CLOVER.zip I cannot boot into the system. The log runs then it reboots Link to comment Share on other sites More sharing options...
MaLd0n Posted January 14, 2018 Share Posted January 14, 2018 press barspace and use nvdisabler=1 put ur bios in defaul, disable only IntelHdGraphics Link to comment Share on other sites More sharing options...
Rval1 Posted January 14, 2018 Author Share Posted January 14, 2018 press barspace and use nvdisabler=1 put ur bios in defaul, disable only IntelHdGraphics I don’t see nvdisabler I see nv_disable. Is that it? Should I disable nvda_drv?Edit: I have reset bios to default and disabled intel had graphics. nv_disable=1 is also set but the problem persists Link to comment Share on other sites More sharing options...
MaLd0n Posted January 14, 2018 Share Posted January 14, 2018 ye, is disable ok i put new driver AptioMemoryFix.efi boot from USB, remove AptioMemoryFix.efi and use default driver from Clover, OsxAptioFix2Drv-64.efi Link to comment Share on other sites More sharing options...
Rval1 Posted January 14, 2018 Author Share Posted January 14, 2018 ye, is disable ok i put new driver AptioMemoryFix.efi boot from USB, remove AptioMemoryFix.efi and use default driver from Clover, OsxAptioFix2Drv-64.efi Ok, just to be certain I follow proper instructions. I should install clover onto a USB and use OsxAptioFix2Drv-64.efi then remove AptioMemoryFix.efi when I get in? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 14, 2018 Share Posted January 14, 2018 boot from usb stick, go to ur clover folder in HDD/SSD, remove AptioMemoryFix.efi and put OsxAptioFix2Drv-64.efi 1 Link to comment Share on other sites More sharing options...
Rval1 Posted January 14, 2018 Author Share Posted January 14, 2018 boot from usb stick, go to ur clover folder in HDD/SSD, remove AptioMemoryFix.efi and put OsxAptioFix2Drv-64.efi I am able to boot in but even after swapping out the files I still cannot boot without usb. When I installed clover I chose EmuVariableUefi-64, PartitionDxe-64, and OsxAptioFix2Drv-64. I also do not have a SSD so I did not include apfs.efi in my install. I am not sure if this information is relevant or helpful but I figured I would let you know. I included a link to an image of my two drivers64uefi folders the one on the left is on my HDD the one on the right is from my USB. https://imgur.com/a/fmMo5 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 14, 2018 Share Posted January 14, 2018 use ur old files, but with DSDT and kexts Lan by Mieze CLOVER.zip Link to comment Share on other sites More sharing options...
Rval1 Posted January 14, 2018 Author Share Posted January 14, 2018 use ur old files, but with DSDT and kexts Lan by Mieze CLOVER.zip The DSDT.aml located in clover/acpi/origin/ correct? Link to comment Share on other sites More sharing options...
MaLd0n Posted January 14, 2018 Share Posted January 14, 2018 Clover/Acpi/Patched, use only DSDT, u can remove SSDT.aml i put all in correct local in folder above, just replace Link to comment Share on other sites More sharing options...
Rval1 Posted January 14, 2018 Author Share Posted January 14, 2018 Clover/Acpi/Patched, use only DSDT, u can remove SSDT.aml i put all in correct local in folder above, just replace I replaced the files. However this did not fix the issue. When I shut down this is the output I get from -v before the system reboots https://imgur.com/a/Ugilh When the system boots again I get a pop up window telling me I shut down the system because there was a problem. Link to comment Share on other sites More sharing options...
MaLd0n Posted January 14, 2018 Share Posted January 14, 2018 send me one ioreg, extract new boot is normal? Link to comment Share on other sites More sharing options...
Rval1 Posted January 14, 2018 Author Share Posted January 14, 2018 send me one ioreg, extract new boot is normal? When I boot, this is what I am met with https://imgur.com/a/94GfN I also attached the ioreg file ioreg.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 14, 2018 Share Posted January 14, 2018 click in Open and ignore check remove AppleIntelE1000e, use IntelMausiEthernet.kext remove ALXEthernet, try with AtherosE2200Ethernet.kext LAN.zip Update Clover Bootloader https://sourceforge.net/projects/cloverefiboot/files/Installer/Clover_v2.4k_r4369.zip/download run KextUtility one time Kext Utility.app.zip reboot 1 Link to comment Share on other sites More sharing options...
Rval1 Posted January 15, 2018 Author Share Posted January 15, 2018 click in Open and ignore check remove AppleIntelE1000e, use IntelMausiEthernet.kext remove ALXEthernet, try with AtherosE2200Ethernet.kext LAN.zip Update Clover Bootloader https://sourceforge.net/projects/cloverefiboot/files/Installer/Clover_v2.4k_r4369.zip/download run KextUtility one time Kext Utility.app.zip reboot Ok, I have tried both my EFI/Clover folder with the kext replacements as well as the DSDT patch and your EFI/Clover folder with my config.plist only (what I am currently using). I had no success with either. I then followed your previous posts instructions however I was already using your EFI/Clover folder with your provided kexts so I didn't remove or add anything since everything was already in place. I just reinstalled/updated clover (already up to date) and then I ran kext utility once and rebooted. I booted in fine but still encountered the pop ups which I ignored like last time and tested shut down. Unfortunately, I was met with the same output and reboot as the above image I linked. When the system rebooted I tried to shutdown from login screen and that rebooted as well. When I put it the screen goes black but my pc stays on. If I move the mouse or hit enter on my keyboard it turns on to the login screen. Could there be something wrong with my config.plist? Link to comment Share on other sites More sharing options...
MaLd0n Posted January 15, 2018 Share Posted January 15, 2018 k if u can try a fresh install -check here http://www.insanelymac.com/forum/topic/323052-sierra-on-intel-5-6-7-8-9-and-10-chipset-series -after install system, install Clover with these options -after install Clover, replace folder CLOVER Rval1.zip -install web driver Nvidia -reboot here too http://www.insanelymac.com/forum/topic/324080-guide-macos-sierra-1012x-on-ga-h97m-ds3p-dsdt/ How did you create the installer? Link to comment Share on other sites More sharing options...

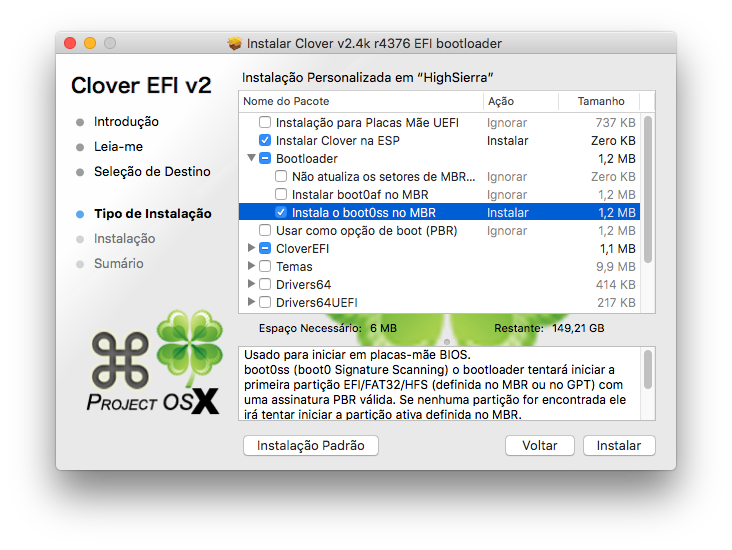

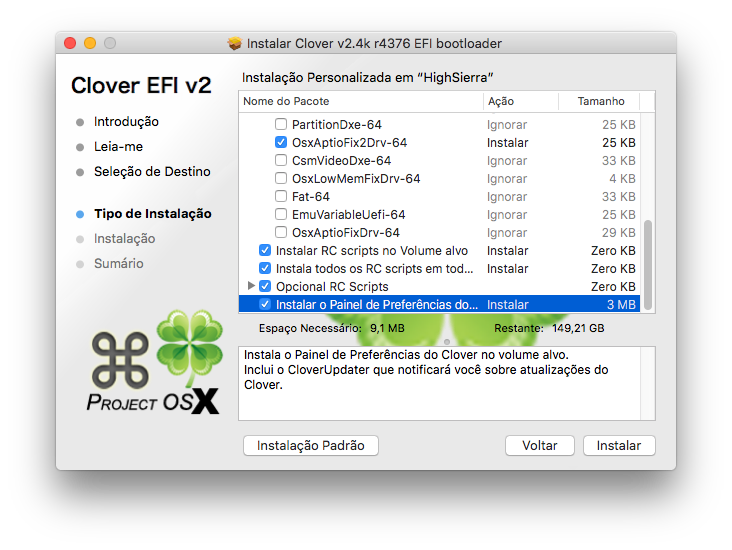

Rval1 Posted January 15, 2018 Author Share Posted January 15, 2018 k if u can try a fresh install -check here http://www.insanelymac.com/forum/topic/323052-sierra-on-intel-5-6-7-8-9-and-10-chipset-series -after install system, install Clover with these options 01.png 02.png -after install Clover, replace folder CLOVER Rval1.zip -install web driver Nvidia -reboot here too http://www.insanelymac.com/forum/topic/324080-guide-macos-sierra-1012x-on-ga-h97m-ds3p-dsdt/ How did you create the installer? I followed this guide to install Sierra: http://www.rampagedev.com/install-mac-os-x/ after I got it to install I then used the follow up guide for post-installation: http://www.rampagedev.com/downloads/haswell-dmg/ while following the post installation guide I chose the standard non-nvidia plist due to being unable to upgrade to High Sierra from the App Store. After a few installs and reinstalls of Sierra I was finally able to install High Sierra by updating Clover and kexts and making sure that I did not have any Nvidia related things installed. After I booted into high Sierra I followed this guide to install Nvidia web drivers: https://hackintosher.com/guides/properly-install-nvidia-drivers-high-sierra-10-13/ Everything was pretty much functional so then I used this guide for iMessage: last thing I needed to do was get wifi/bluetooth working so I bought this an AzureWave Broadcom BCM94352HMB from amazon and followed this guide to get it working: https://github.com/the-darkvoid/BrcmPatchRAM I figured this shutdown problem was minor so I left it till the end. I guess I was a bit wrong. Also thank you for helping me I really do appreciate it. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 15, 2018 Share Posted January 15, 2018 the process is simple Install system, install clover, replace with my folder, install web driver(dont need remove nothing), reboot have a something wrong, not a normal 1 Link to comment Share on other sites More sharing options...
Rval1 Posted January 15, 2018 Author Share Posted January 15, 2018 the process is simple Install system, install clover, replace with my folder, install web driver(dont need remove nothing), reboot have a something wrong, not a normal Yeah after many reinstalls and google searches I realized that all I really need to do is install OS onto USB > Install Clover onto USB > Download kexts and add to appropriate folder > configure SMBIOS (still unsure if this is 100% necessary) and config.plist > add additional kexts to S/L/E or L/E and thats it. I would really rather not have to redo do this as I already have All my usual programs installed and ready to go but it seems that I may have to. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 15, 2018 Share Posted January 15, 2018 btw u can use all kexts in Clover/kexts/Other Just use InjectKexts option in config.plist ur system stay Clean 1 Link to comment Share on other sites More sharing options...

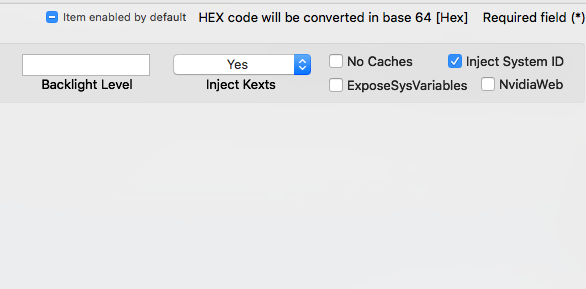

Rval1 Posted January 15, 2018 Author Share Posted January 15, 2018 btw u can use all kexts in Clover/kexts/Other Just use InjectKexts option in config.plist MaLd0n 2018-01-14 às 23.52.58.png ur system stay Clean Awesome, thank you. Can I use that when I do my fresh install or is that only used later when adding additional kexts. Also do I need an SSDT or DSDT patch? is that required? I'm about to do a fresh install but that's the only thing I'm unsure about as I've seen people say you need a DSDT patch to have your system running properly and and same for SSDT. I currently have clover with kexts and default config.plist. I was planning on doing a completely vanilla install then editing the config after I install clover onto the HDD. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 15, 2018 Share Posted January 15, 2018 some patches is mandatory for a good work, some ppl use SSDTs, other patches in Clover, i prefer DSDT, essentials, cosmetics patches, etc is a full solution i patched ur DSDT, have all u need here http://www.insanelymac.com/forum/topic/331625-shutdown-and-sleep-result-in-restart/?p=2569417 if u can try a new driver, ill send complete folder to u tell me if u can test 2 Link to comment Share on other sites More sharing options...
Rval1 Posted January 15, 2018 Author Share Posted January 15, 2018 some patches is mandatory for a good work, some ppl use SSDTs, other patches in Clover, i prefer DSDT, essentials, cosmetics patches, etc is a full solution i patched ur DSDT, have all u need here http://www.insanelymac.com/forum/topic/331625-shutdown-and-sleep-result-in-restart/?p=2569417 if u can try a new driver, ill send complete folder to u tell me if u can test Ok, thank you. a new driver? sure I'll test it. I'm about to do the fresh install now. What do I need to do? 1 Link to comment Share on other sites More sharing options...
