heptas Posted December 30, 2017 Share Posted December 30, 2017 Olá a todos. fiz o Upgrade do Sierra para o HS e estou com quase tudo ok. Já tentei muitas coisas para fazer a LAN funcionar e nada. no Sierra funcionava de Boa com a Kext AtherosL1cEthernet.kext em EFI/CLOVER/KEXT/OTHER Ja tentei: AtherosL1cEthernetSierra.kext AtherosE2200Ethernet.kext ALXEthernet.kext (essa da pal e nem boota) ja tentei por o device id em fake lan , já tentei outro device id Estou mandando o config.plist e IOREG (com e sem DSDT ) e DSDT.aml estou no 10.13.1 Quem tiver alguma sugestão eu agradeço. abraço e feliz 2018 EFI.zip 1 Link to comment Share on other sites More sharing options...
matmagico1 Posted January 24, 2018 Share Posted January 24, 2018 Boa noite usa a kext AtherosE2200Ethernet.kext mas coloca ela na /System/Library/Extensions/AtherosE2200Ethernet.kext ou instala ela com o kext utility. Na minha depois que eu troquei de Sierra para o HS, tbem não funcionava. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 24, 2018 Share Posted January 24, 2018 usa na Library/Extensions, bem melhor que na S/L/E que tem 300+ kexts coloca a kext na pasta e roda o kext utility Link to comment Share on other sites More sharing options...
artur_pt Posted January 24, 2018 Share Posted January 24, 2018 olá teu device id é 1083 ? está na kext AtherosE2200Ethernet.kext mas essa kext precisa de dependências da ionetworkingfamilly.kext que se encontra em /System/Library/Extensions no ioreg mostra que a kext está sendo carregada bom hack 1 Link to comment Share on other sites More sharing options...
enryson Posted February 12, 2018 Share Posted February 12, 2018 Ola tenho o mesmo problema meu wifi funciona sem problema, mas a AR8151 V1969 D1083 nao vai! Quero fazer ela funcionar pq com o wifi so pego 41mb ja no cabo eu pegaria os 70mb da internet. Tentei ALXEthernet, AtherosE2200Ethernet, AtherosL1cEthernet. e nada... nenhuma mostra no IOREG. tenho apenas wifi.nao sei se o problema ta no DSDT..caso alguem possa ajudar. m17xr4.zip 1 Link to comment Share on other sites More sharing options...

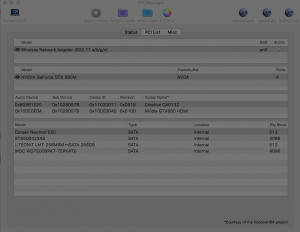

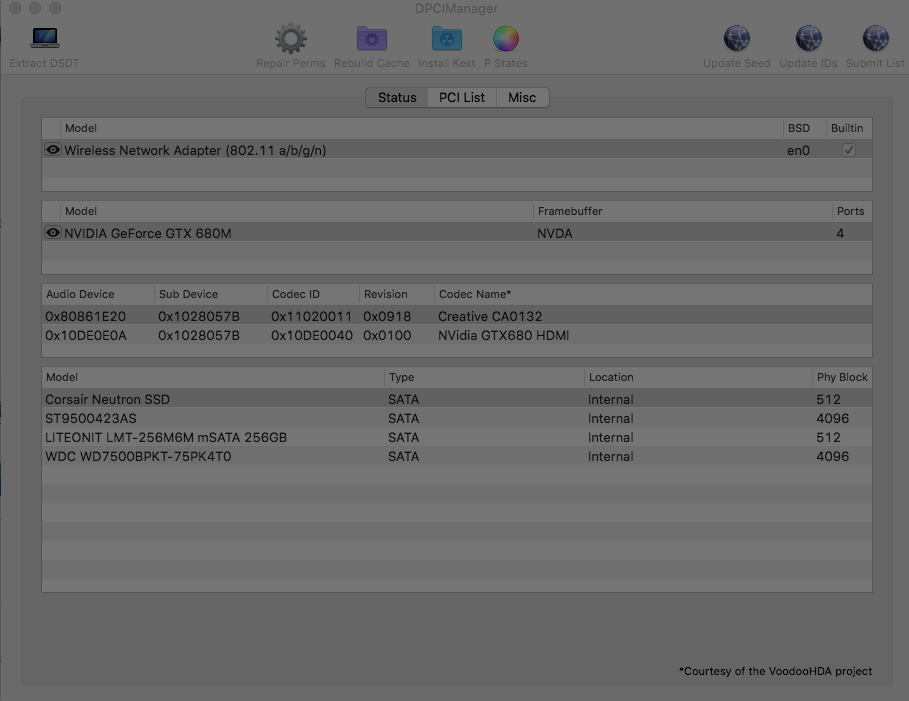

MaLd0n Posted February 12, 2018 Share Posted February 12, 2018 usa o dpcimanager e confere DPCIManager.app.zip Link to comment Share on other sites More sharing options...
enryson Posted February 12, 2018 Share Posted February 12, 2018 usa o dpcimanager e confere DPCIManager.app.zip Nada... so wifi.. Link to comment Share on other sites More sharing options...

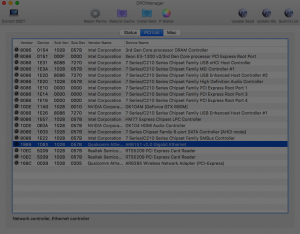

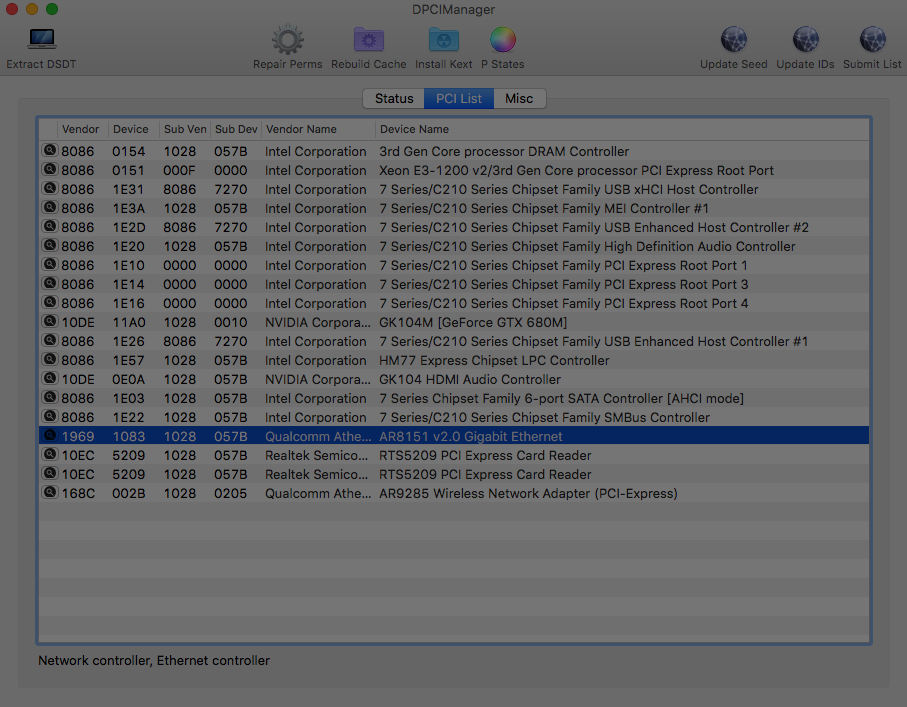

MaLd0n Posted February 12, 2018 Share Posted February 12, 2018 é na aba PCI List, confere lá Link to comment Share on other sites More sharing options...
enryson Posted February 12, 2018 Share Posted February 12, 2018 é na aba PCI List, confere lá Link to comment Share on other sites More sharing options...
enryson Posted February 15, 2018 Share Posted February 15, 2018 Update... esperimentei essa kext https://github.com/andyvand/AtherosE2200EthernetInstalei ela a 1 vez no /S/L/E e tambem uma copia na pasta EFI e nada..porem ao modificar ela nos campos <key>OSBundleLibraries</key> etc..(eu sei que nao adianta muita coisa mudar o info.plist da kext, mas nao custa tentar) ela carrega e mostra no IOREG mas ainda nao funciona nem mostra o dispositivo no system preferences. A Kext desse link parece promissora ja que a original AtherosE2200Ethernet nao suporta o chip AR815Xacho que deve ser preciso recompilar ela pro high Sierra. To enviando uns prints e o IOREG e a kext. OBS ainda to usando o 10.13.1 Archive.zip Link to comment Share on other sites More sharing options...
artur_pt Posted February 16, 2018 Share Posted February 16, 2018 olá tenta esta kext AtherosE2200Ethernet.kext.zip é + 1 tentativa www.insanelymac.com/forum/topic/284119-experimental-atheros-ar813132515261627172-driver-for-107108/ essa ai tem teu dev id e vender id .. mas o projecto penso que está meio abandonado bom hack Link to comment Share on other sites More sharing options...
enryson Posted February 16, 2018 Share Posted February 16, 2018 olá tenta esta kext AtherosE2200Ethernet.kext.zip é + 1 tentativa www.insanelymac.com/forum/topic/284119-experimental-atheros-ar813132515261627172-driver-for-107108/ essa ai tem teu dev id e vender id .. mas o projecto penso que está meio abandonado bom hack mesma coisa. Mostra bonitinho na lista de dispositivos PCI, mas nada... Link to comment Share on other sites More sharing options...
heptas Posted March 30, 2018 Author Share Posted March 30, 2018 On 24/01/2018 at 8:54 AM, artur_pt said: olá teu device id é 1083 ? está na kext AtherosE2200Ethernet.kext mas essa kext precisa de dependências da ionetworkingfamilly.kext que se encontra em /System/Library/Extensions no ioreg mostra que a kext está sendo carregada bom hack Meu device id é: 1090. Link to comment Share on other sites More sharing options...

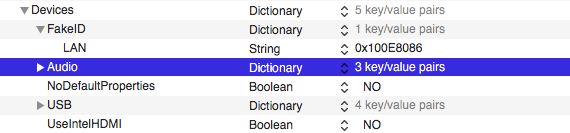

artur_pt Posted March 31, 2018 Share Posted March 31, 2018 olá estes são os que estão na kext de atheros2200 0x10901969 0x10911969 0x10A01969 0x10A11969 0xE0911969 0xE0A11969 0xE0B11969 podes tentar com clover fake id da lan bom hack Link to comment Share on other sites More sharing options...
enryson Posted March 31, 2018 Share Posted March 31, 2018 6 hours ago, artur_pt said: olá estes são os que estão na kext de atheros2200 0x10901969 0x10911969 0x10A01969 0x10A11969 0xE0911969 0xE0A11969 0xE0B11969 podes tentar com clover fake id da lan bom hack posso ate tentar. mas no proprio git do projeto da atheros2200 o dev fala que a kext nao suporta a ar81xx.. como eu falei antes esse dev id (1083)so vi ser suportado no mavericks. depois disso nao vi mais. (não com sucesso) Link to comment Share on other sites More sharing options...
heptas Posted March 31, 2018 Author Share Posted March 31, 2018 já tentei com fake id, apenas uma correção. a placa de rede não é AR8151, mas sim AR8162. não sei de onde eu tirei esse AR8151. o id que passei, 1090 é o ID correto mesmo. Vendor : 1969 Device :1090 SubVen:1028 Vendor Name: Qualcomm Atheros Link to comment Share on other sites More sharing options...
