Need help: High Sierra + MSI Z370M Gaming Pro AC + i7-8700K

18 posts in this topic

Recommended Posts

Hello, guys!



I have new PC build with configuration below and I can't get even to High Sierra installation process.



System components:



- Mother board: MSI Z370m Gaming Pro AC

- Processor: Intel i7-8700K

- Video: onboard

- RAM: Corsair DDR4-3000 2x8GB

- SSD M2 Samsung 960PRO 512GB



I can't even get to the installer.

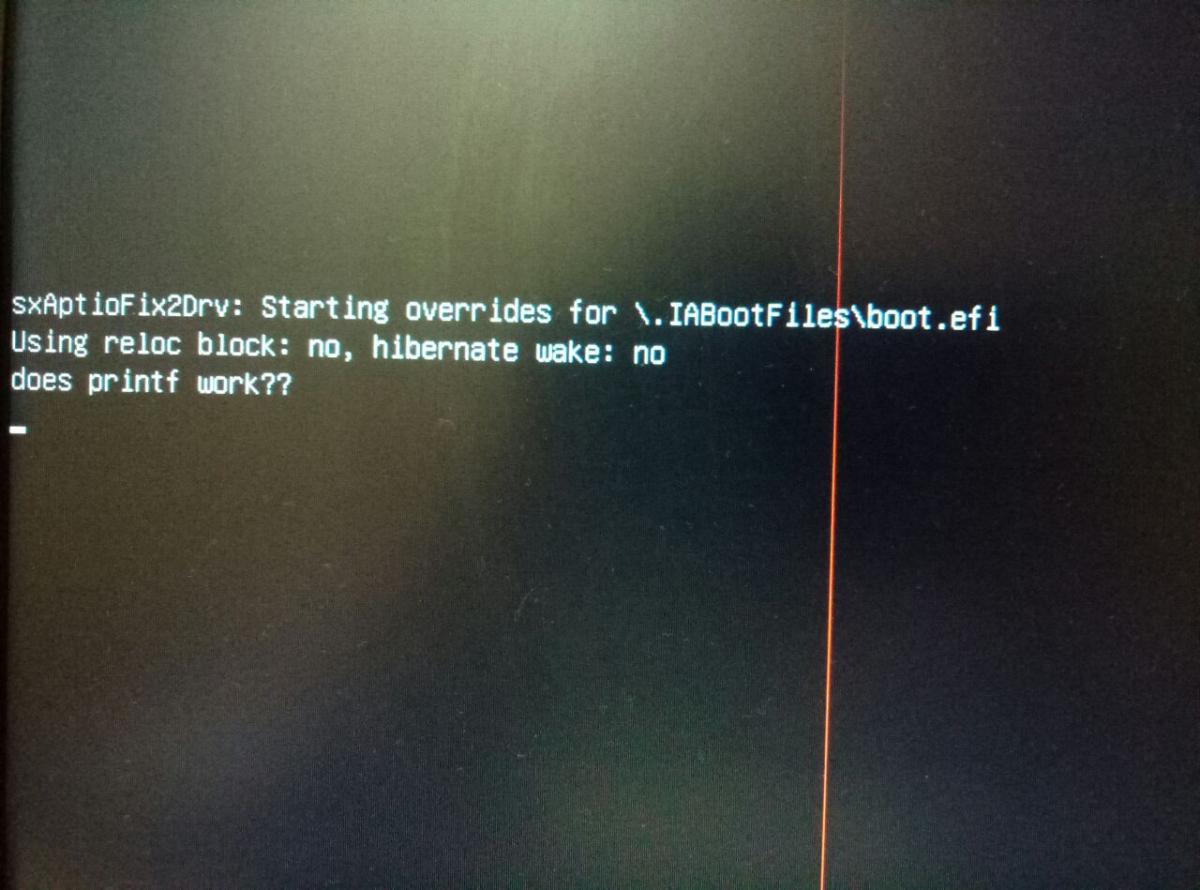

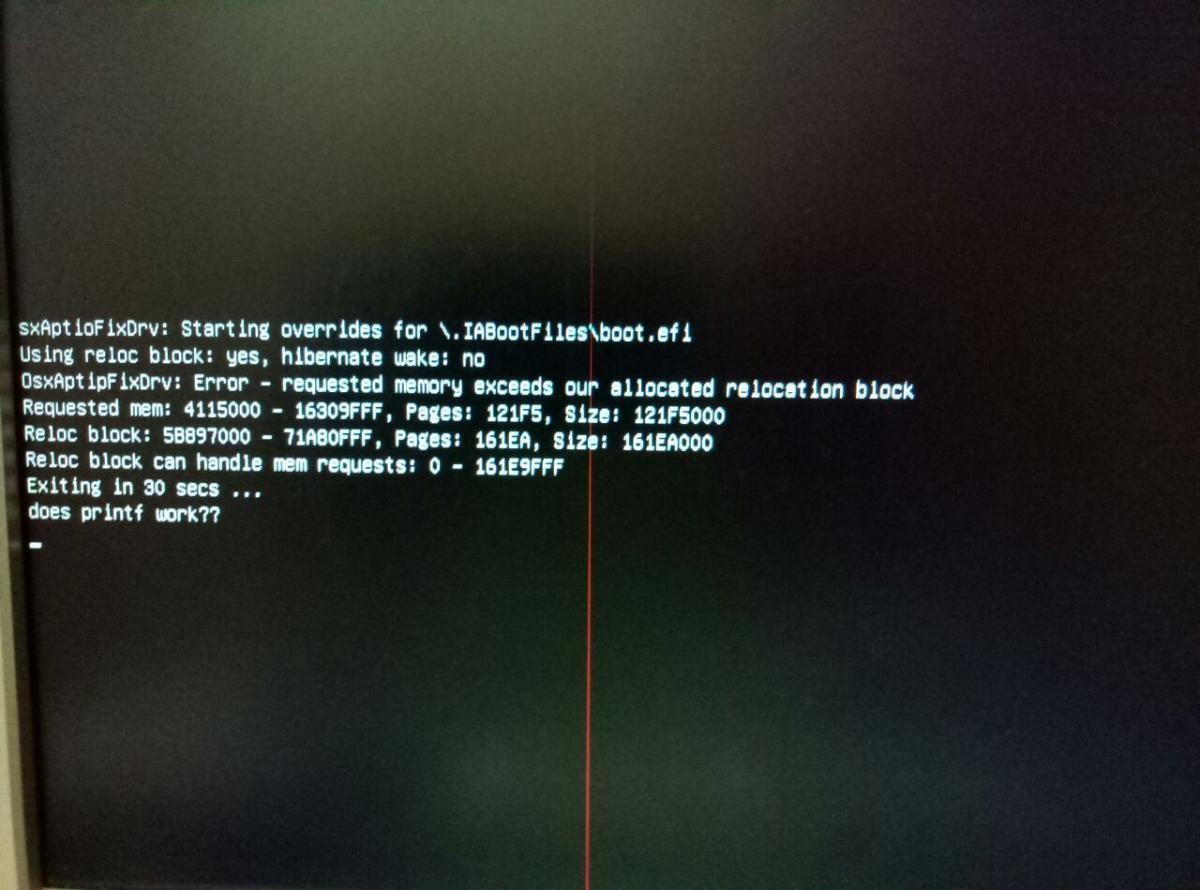

I'm tried with two ways - with OsxAptioFixDrv and OsxAptioFixDrv2 with practically same results, with different clover configurations but in root I think it's same problem. I have error - Does printf work?



Clover folder also attached.



How to solve this issue?



P.S. Please excuse me for my English...



CLOVER.zip

Share this post


Link to post
Share on other sites
Advertisement

Wow! Thank you so much!

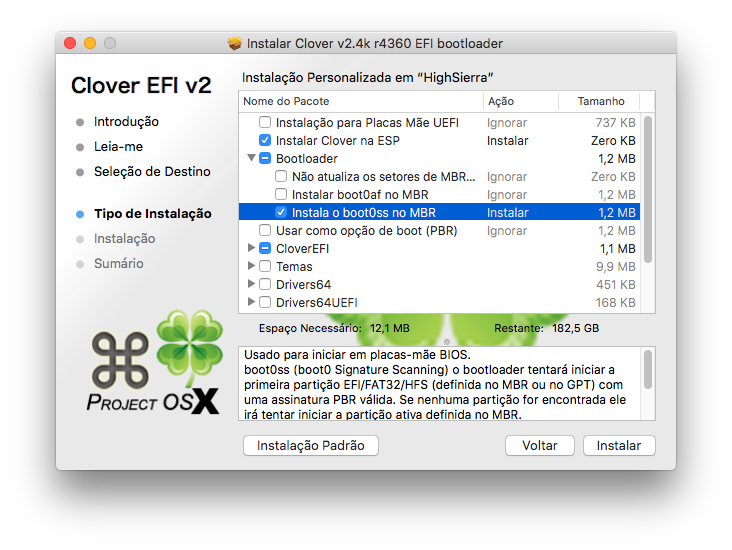

attachicon.gifCaptura de Tela 2017-12-24 às 14.31.13.png]

I need to use mbr instead UEFI in clover?

I'm used your clover files with UEFI and now I can go through installation process, but have error on first reboot - The path /System/Installation/Packages/OSInstall.mpkg appears to be missing or damaged.

What I'm doing wrong? Maybe my Mac OS image corrupted, because I'm downloaded it from torrents.

Thank you

Share this post


Link to post
Share on other sites

Now I'm successfully installed OS and with your configuration works - graphics acceleration, sound, ethernet network and also Bluetooth (it's work properly, but disable button isn't active).



Now I have problem with sleep - when hack going to sleep it's reboots.



How a can fix it?

Share this post


Link to post
Share on other sites

It's good



test itunes and sleep, btw update system if have updates



sleep with intelhd fail in many cases ;) prepare urself :P



Dear friend! Now everything work like a charm - sleeping, iTunes without crashes and also desktop experience now is smoother.



You are genius. Thank you so much!

Share this post


Link to post
Share on other sites

Welcome!

Enjoy!



After few weeks of testing I have great system thanks to you. And also I have one little problem - playing videos in Safari, often when I playing videos in high resolutions, especially in 4k, I have desktop freezes and after that artefacts on whole desktop and helps only rebooting of system.



Maybe do you know how to solve this issue?

Share this post


Link to post
Share on other sites

idk

u can try a Chrome?

test and let me know

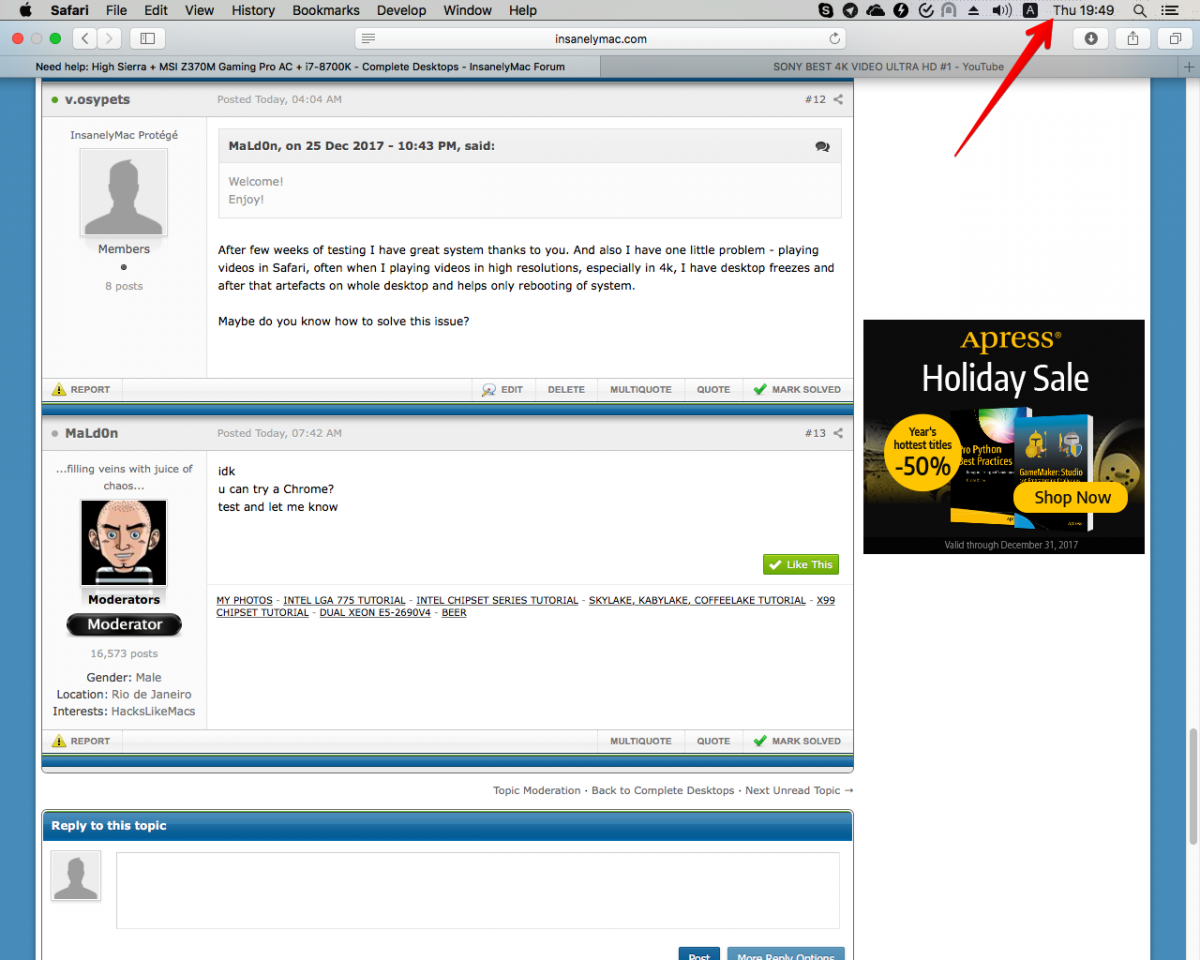

it's happened periodically. Also I have some dots on toolbar (see attached screen). And sometimes, when system is booting it can reboot, when apple logo blinking.



In Chrome everything is ok, but and in Safari everything ok, but I didn't anything.



Maybe it's some power management related issues? It's possible to check CPU and GPU power management functionality?



Thank you


Share this post


Link to post
Share on other sites

@MaLd0n, I'm updated my mobo BIOS to latest version also I'm installed WiFi + bluetooth PCIe card and I think, I need to create new DSDT file for that. Can you help me with this? I'm tried to do it by myself according to your Coffee Lake manual, but I can't find all of fixes in your DSDT task list.

Can you help me with that?

Share this post


Link to post
Share on other sites

hello

suddenly i have the same issue with my rig

does your problem solved?

Share this post


Link to post
Share on other sites
