needlen Posted December 21, 2017 Share Posted December 21, 2017 Hi there, i tried for 3 nights to get the Instsaller running but had no luck.Anybody got a working Clover folder for the following setup or can help me getting trough the process?I didnt use Hackintosh since Kalyway and Leo4all 10.5.I made an USB stick from an VMWare Macintosh that didnt show me the Install osx option at all in Clover.I also got a premade raw file that i have written on my USB stick with w32imagewriter. That one shows me the installer but i just sits there with an blinking cursor until my PC turns itself off.So much for the Pre-Story, this is my Setup:CPU: Intel Core i7 7700 Kaby Lake ( Socket 1151 )RAM: 2x 8192MBytes Crucial DDR4-2133 on Slot 1 and Slot 3 in Dual Channel ModeMB: Gigabyte H110M-S2HP-CFBIOS: F20 YGGPU: Nvidia GeForce GTX680 ( GK104 )If anybody has experience with that Setup, i am thankful for help.Greetings Link to comment Share on other sites More sharing options...
MaLd0n Posted December 21, 2017 Share Posted December 21, 2017 http://www.insanelymac.com/forum/topic/321872-guide-sierra-on-gigabyte-mobos-serie-200-kabylake-dsdt/ Link to comment Share on other sites More sharing options...
needlen Posted December 21, 2017 Author Share Posted December 21, 2017 With that Clover-Folder I get the following error when trying to launch installer: This Version of Mac OS X is not supported on this platform! Reason: Mac-F42C88C8 Link to comment Share on other sites More sharing options...
gengik84 Posted December 21, 2017 Share Posted December 21, 2017 Set smbios on config.plist --> iMac 18.x now you are using macpro 3.1, this is no longer supported and completely wrong for your hardware Link to comment Share on other sites More sharing options...
needlen Posted December 21, 2017 Author Share Posted December 21, 2017 Hey gengik, I just set it by using Clover Configurator, same Error just a different number after Mac. Link to comment Share on other sites More sharing options...
gengik84 Posted December 21, 2017 Share Posted December 21, 2017 please post your efi's folder Link to comment Share on other sites More sharing options...
needlen Posted December 21, 2017 Author Share Posted December 21, 2017 Mhh i just looked into my config.plist, it seems like the Clover-Configurator did not properly change it. I can still see it saying Mac 1,1. Let me try to change that somehow. Link to comment Share on other sites More sharing options...
gengik84 Posted December 21, 2017 Share Posted December 21, 2017 see this post #6 or post only Config.plist...if you want.. Link to comment Share on other sites More sharing options...
needlen Posted December 21, 2017 Author Share Posted December 21, 2017 Hey, just tried new config.plist created by Clover Configurator. Same Error. This is my EFI Folder. EFI.zip Link to comment Share on other sites More sharing options...
gengik84 Posted December 21, 2017 Share Posted December 21, 2017 Try config.plist.zip Link to comment Share on other sites More sharing options...
needlen Posted December 21, 2017 Author Share Posted December 21, 2017 Hi, getting the same error. Just double checked my install-media. Seems like the one i got because my old one did not work is Only Sierra not, High Sierra. Could it be that "old" Sierra is not supported by iMac 18,x ? Link to comment Share on other sites More sharing options...
gengik84 Posted December 21, 2017 Share Posted December 21, 2017 Sierra? this topic is in high Sierra... try iMac 17.1... Link to comment Share on other sites More sharing options...
needlen Posted December 21, 2017 Author Share Posted December 21, 2017 Sierra? this topic is in high Sierra... try iMac 17.1... Sorry, i have messed so much with the bootable clover installer i oversaw it I will make a new config with 17.1 now and try it. 1 Link to comment Share on other sites More sharing options...
gengik84 Posted December 21, 2017 Share Posted December 21, 2017 btw you don't need: nullcpu intelGraphicsDVMTFixup WhateverGreen.kext IntelMausiEthernet.kext AtherosE2200Ethernet.kext ATH9KFixup.kext VoodooPS2Controller.kext ?? why do you have all these kext in efi? Link to comment Share on other sites More sharing options...

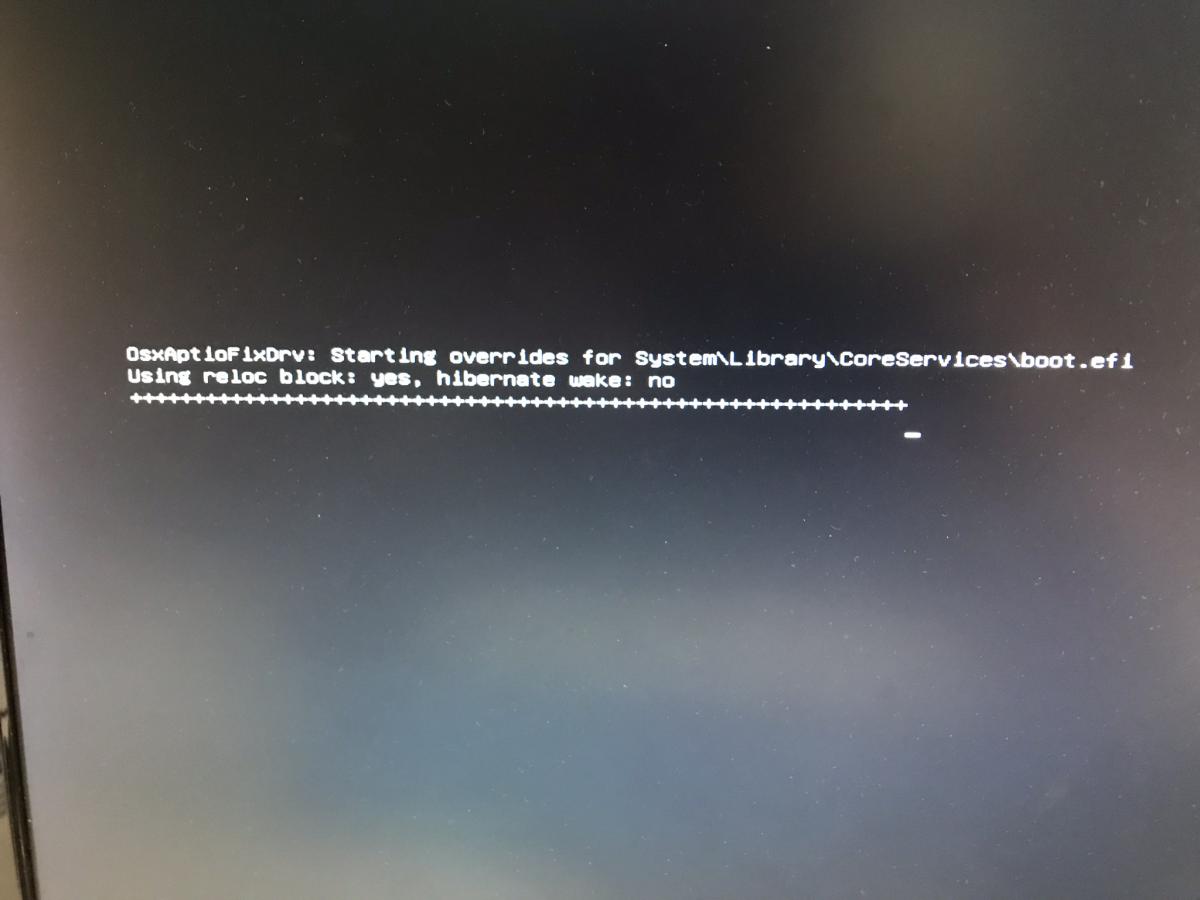

needlen Posted December 21, 2017 Author Share Posted December 21, 2017 Since the Installer-USB i made in OSX did not even show up hte Installer Icon in the Clover Menu i used an Sierra Raw Image and changed the config.plist with the one from the second post. We are making Progress btw. It is now sitting there doing nothing, the error is gone. Check Screenshot. Link to comment Share on other sites More sharing options...
gengik84 Posted December 21, 2017 Share Posted December 21, 2017 these tools not supported by this forum Please read the rules See this post #2 and make a new usb... I suggest to use official installers .. You avoid many possible problems Link to comment Share on other sites More sharing options...
