Hello forum! I come asking for help.

I am a programming student and am currently learning Java and Swift, including MySQL and HTML & CSS and some others, so it really is important to have a working stable build.
I have achieved this!

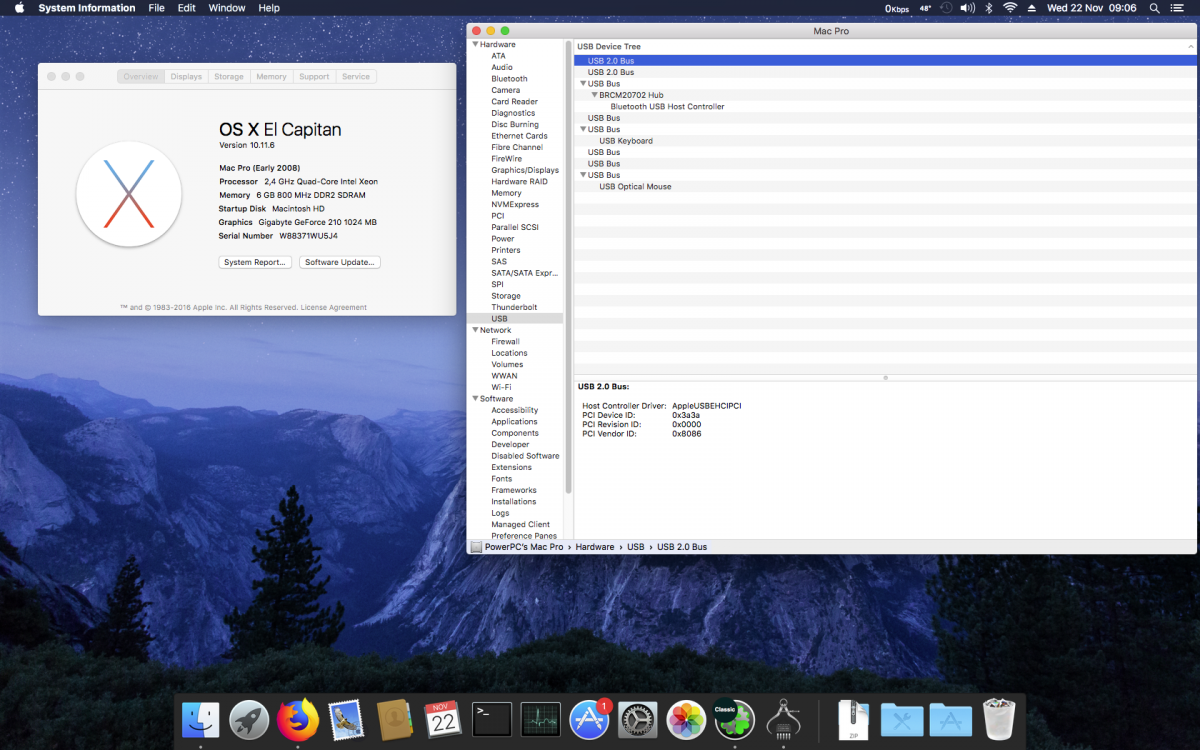

Am currently rocking my Gigabyte EP45 UD3LR with a beautifully working DSDT, with everything working, except sleep.
My computer successfully sleeps, but reboots soon after waking from sleep. I am quite sure I have achieved Native CPU power management, since all required kexts are loaded, here are my specs anyway

GIGABYTE EP45-UD3LR
Intel Core Q6600
Nvidia Geforce 210
BCM94360CD with adapter
6GB RAM






I dont know what I can do anymore to fix the sleep reboot problem. Any help apreciated.
Here is my current EFI



EP45-UD3lR.zip



Thanks so much for this beautiful forum we all came to love

Share this post


Link to post
Share on other sites
Advertisement

my RTC device looks exactly like your solution proposes.

   Device (RTC)
                {
                    Name (_HID, EisaId ("PNP0B00") /* AT Real-Time Clock */)  // _HID: Hardware ID
                    Name (_CRS, ResourceTemplate ()  // _CRS: Current Resource Settings
                    {
                        IO (Decode16,
                            0x0070,             // Range Minimum
                            0x0070,             // Range Maximum
                            0x00,               // Alignment
                            0x02,               // Length
                            )
                    })
                }

I have also applied USB PRW patch to find it only speeds up the sleep , but still reboots.

I have AppleRTC fix checked in my config.plist... should i maybe try disabling that????

Share this post


Link to post
Share on other sites

Thanks to vandroiy2012 my PowerHack as I like to call it is completely working!!!

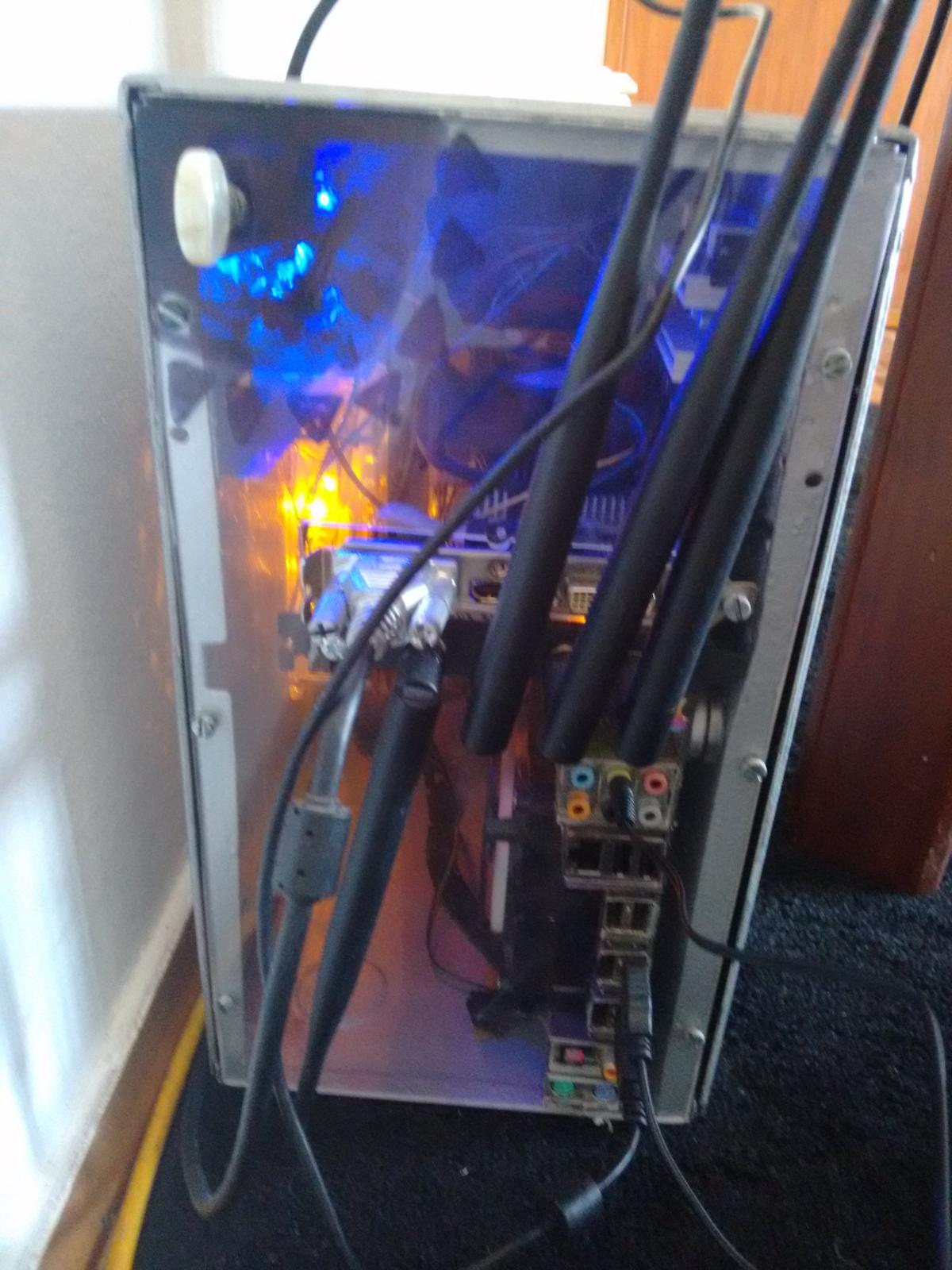

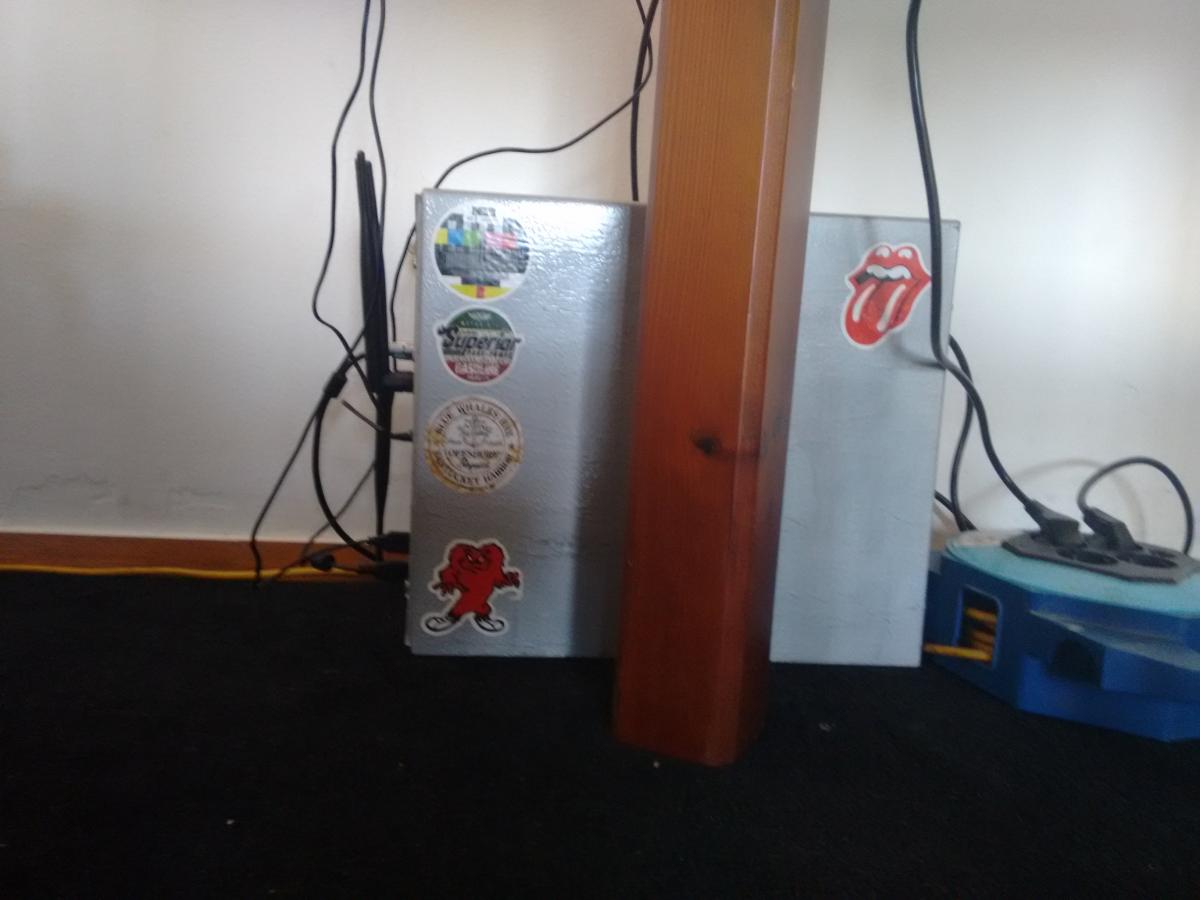

I will make a post of the build! Less than 200€ hihih and works superbly now








Thanks so much


Share this post


Link to post
Share on other sites

Thanks to vandroiy2012 my PowerHack as I like to call it is completely working!!!

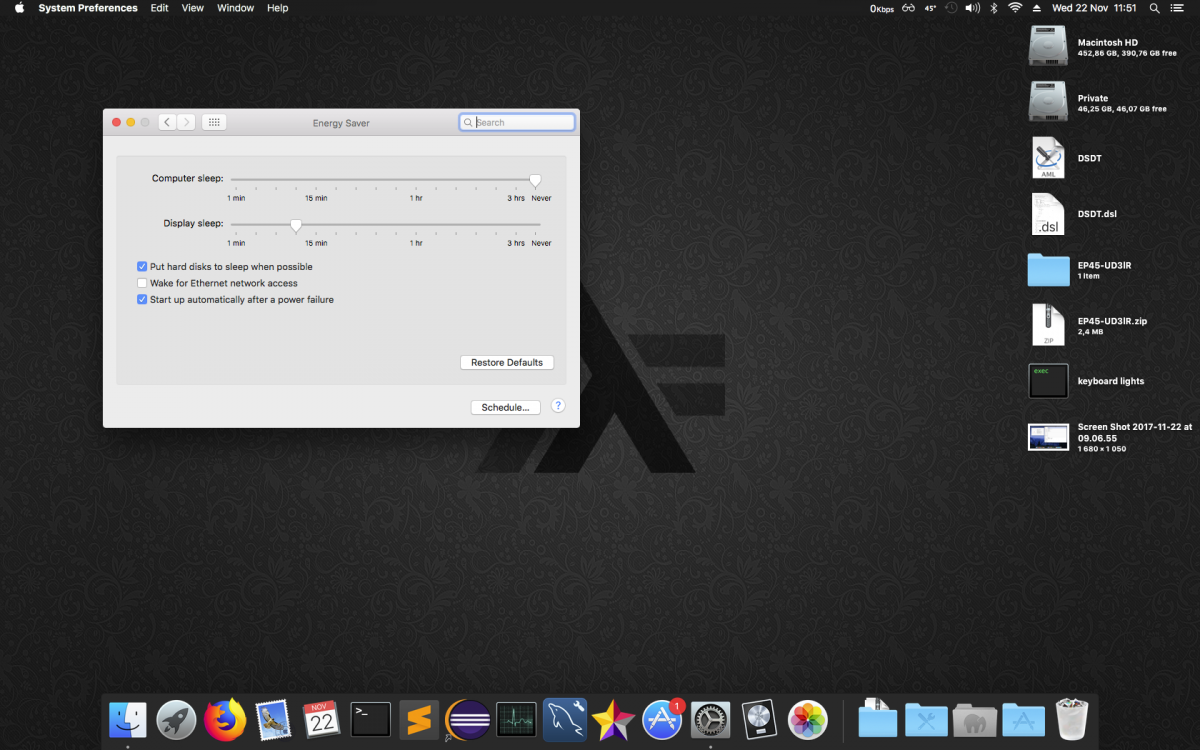

attachicon.gifScreen Shot 2017-11-22 at 11.51.31.png





I will make a post of the build! Less than 200€ hihih and works superbly now








Thanks so much







And what was the Solution to your Problem ?? Maybe should be posted so others can look it up too.



Thanks

Share this post


Link to post
Share on other sites

The fix was the checkbox Start up automatically after a power failure, that did the trick, together with configuring the RTC device the way above specified.

Share this post


Link to post
Share on other sites

u can add it in Low Pin Count, in a old Gigabytes mobos is a PX40 device

OperationRegion (LPC0, PCI_Config, 0xA4, 0x02)
                Field (LPC0, ByteAcc, NoLock, Preserve)
                {
                    AG3E,   1
                }

and it in Prepare To Sleep

Store (Zero, \_SB.PCI0.LPCB.AG3E)

my old DSDT Mobo GA P35-DS3

MaLd0n DSDT.aml.zip
