wikedone Posted November 20, 2017 Share Posted November 20, 2017 Hi im new here and need some help, I have the install usb created but OSX wont boot,i have followed this guide up til the Clover configurator step as im confused on how to continue with that step.. Laptop specs from cpuz: Cpu - intel core i5 7200u mainboard - manufacture - KBL Model - Charmander_KL chipset intel Kabylake rev.02 southbridge Intel Coffee lake-U/Y pch rev21 Memory DDR4 Graphics Intel HD Graphics 620 If you need any other information let me know Quote Link to comment Share on other sites More sharing options...
wikedone Posted December 6, 2017 Author Share Posted December 6, 2017 Ok so new usb made boots up to the clover screen cant boot past the OSXaptiofix2drv. I attached my clover acpi origin folder after pressinf f4 at the clover screen i also attached the clover config.plist which is default i havent changed anything origin.zip config.zip Quote Link to comment Share on other sites More sharing options...
Gigamaxx Posted December 6, 2017 Share Posted December 6, 2017 Try using clover boot screen menu to remove all the ACPI dsdt fixes, uncheck all the boxes. Use cursor arrows to go to “ options” tab. Also, go to CPU Tuning and uncheck everything but C6, then go to Binaries and uncheck everything but C6. Go to graphics section and check Inject Intel, and add ig platform 0x59120001, or 0x59120003. See if that gets you past the kernel loading ++++++++++++++++++++++++++ signs. Hit space bar once before booting and select verbose and keep symbols and don’t reboot on panic. Quote Link to comment Share on other sites More sharing options...
foskvs Posted December 6, 2017 Share Posted December 6, 2017 Attach the entire Clover folder. Quote Link to comment Share on other sites More sharing options...
wikedone Posted December 7, 2017 Author Share Posted December 7, 2017 Attach the entire Clover folder. ok here is the entire clover folder CLOVER.zip Quote Link to comment Share on other sites More sharing options...
foskvs Posted December 7, 2017 Share Posted December 7, 2017 Remove VoodooPS2Daemon. HWMonitor app should be placed in /Applications folder and not in EFI/CLOVER/kexts/Other. Why are you using FakePCIID_Intel_HD_Graphics.kext? Your config.plist is a mess. Replace it with this one. config.plist.zip Quote Link to comment Share on other sites More sharing options...

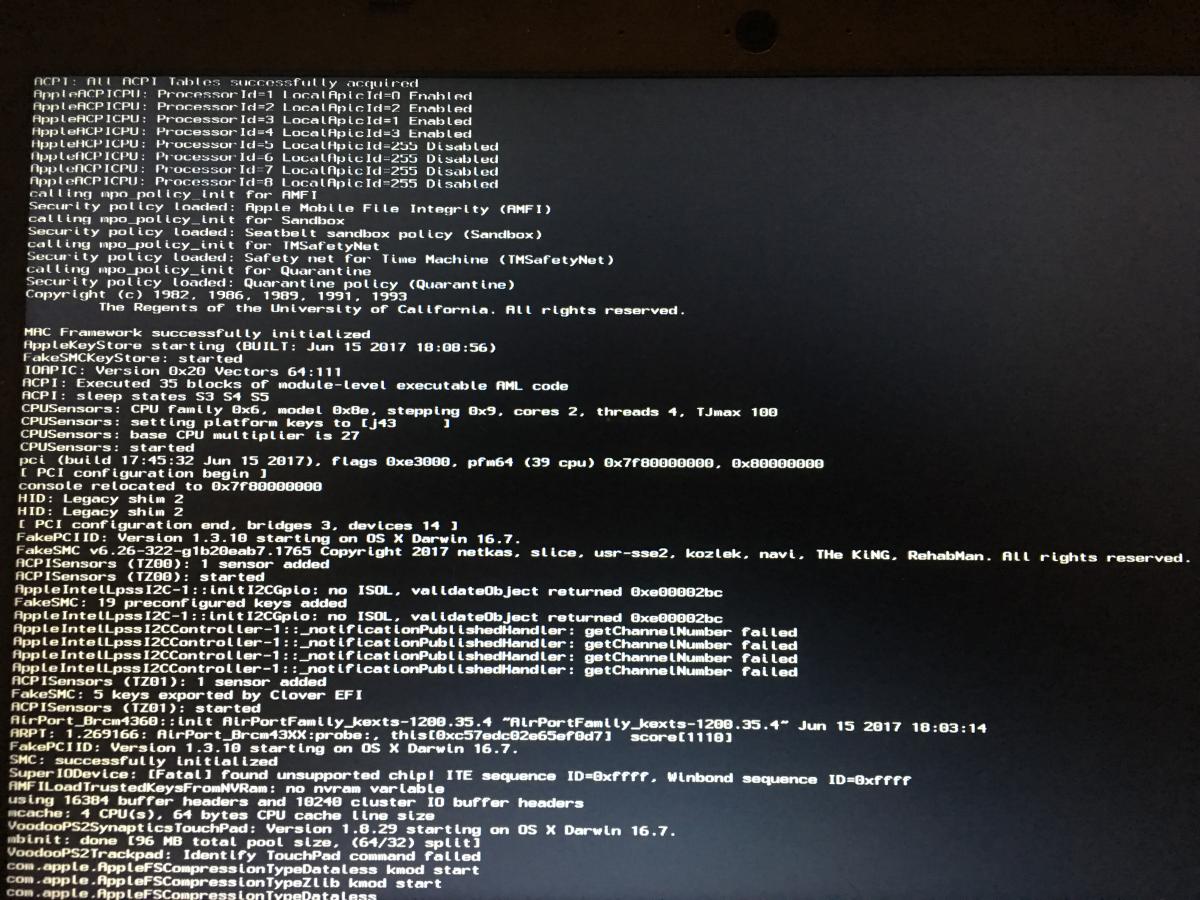

wikedone Posted December 7, 2017 Author Share Posted December 7, 2017 Ok so get past the osxaptio, removed the hwmonitor and voodoo daemon and used the config file you provided and this is where it’s at now Update: So I did google searching for the issue at the end and everything I found points to checking usb ownership in clover but when I do that it go s past that part loads what looks like a bunch xpc issues but I also noticed that when I check usb ownership it makes airport_brcm4360 fail Quote Link to comment Share on other sites More sharing options...
foskvs Posted December 8, 2017 Share Posted December 8, 2017 Where does it stop now? Quote Link to comment Share on other sites More sharing options...
wikedone Posted December 8, 2017 Author Share Posted December 8, 2017 If I check usb ownership it continues all the way to the installer but I noticed no WiFi loading when I check that is that ok? Also touchpad don’t work but usb mouse will Quote Link to comment Share on other sites More sharing options...
foskvs Posted December 8, 2017 Share Posted December 8, 2017 If you have I2C devices (a few new trackpads), you can try VoodooI2C.kext -> https://github.com/alexandred/VoodooI2C You can fix WiFi after the installation. Quote Link to comment Share on other sites More sharing options...
wikedone Posted December 9, 2017 Author Share Posted December 9, 2017 I’m installing it now I’m using a usb mouse atm update: Sierra is installed no wifi trackpad is working with basic functionality no sound graphics looks to be working, ethernet is working, so whats next to install clover to the drive right? Quote Link to comment Share on other sites More sharing options...
foskvs Posted December 9, 2017 Share Posted December 9, 2017 Sierra is installed no wifi trackpad is working with basic functionality no sound graphics looks to be working, ethernet is working, so whats next to install clover to the drive right? Copy EFI folder (located in EFI partition on the usb) to the EFI partition on internal drive. To get wifi working, try to install FakePCIID.kext and FakePCIID_Broadcom_WiFi.kext to L/E. Remove them from EFI, rebuild kernel cache and reboot. Quote Link to comment Share on other sites More sharing options...
wikedone Posted December 9, 2017 Author Share Posted December 9, 2017 Is it the efi backup folder because I’m not seeing a efi folder and what’s the commands for kernel cache I can’t remember if the top of my head I know it’s sudo touch something Quote Link to comment Share on other sites More sharing options...
foskvs Posted December 9, 2017 Share Posted December 9, 2017 Is it the efi backup folder because I’m not seeing a efi folder Mount EFI partition with Clover Configurator. what’s the commands for kernel cache I can’t remember if the top of my head I know it’s sudo touch something sudo kextcache -i / Quote Link to comment Share on other sites More sharing options...
wikedone Posted December 9, 2017 Author Share Posted December 9, 2017 Ok do I merge or replace the efi folder? I have a window that says A folder named “EFI” already exist in this location do you want to merge or replace it with the one your copying? Merge will combine the two folders, preserving all the newer items such as “BOOT” and 492 other items Quote Link to comment Share on other sites More sharing options...
foskvs Posted December 9, 2017 Share Posted December 9, 2017 Merge. Quote Link to comment Share on other sites More sharing options...
wikedone Posted December 9, 2017 Author Share Posted December 9, 2017 Ok to install the kexts do I just move the kexts to the L/E folder or install with a kext utility? Quote Link to comment Share on other sites More sharing options...
foskvs Posted December 9, 2017 Share Posted December 9, 2017 Ok to install the kexts do I just move the kexts to the L/E folder or install with a kext utility? If can keep them to EFI/CLOVER/kexts/10.13 or you can install them with kext utility. If you want to install them, do it properly. Quote Link to comment Share on other sites More sharing options...
wikedone Posted December 9, 2017 Author Share Posted December 9, 2017 But you want me to put the wifi kext in the L\E folder right or in the 10.12 folder because right now they are in the other folder, and if I install the wifi kext with kext utility it puts the wifi kext in /S/L/E Quote Link to comment Share on other sites More sharing options...
foskvs Posted December 9, 2017 Share Posted December 9, 2017 But you want me to put the wifi kext in the L\E folder right or in the 10.12 folder because right now they are in the other folder, and if I install the wifi kext with kext utility it puts the wifi kext in /S/L/E Place wifi kext in S/L/E. S/L/E and L/E are basically the same. Apple's kexts are in S/L/E and third party kext are usually located in L/E. If you want to install wifi kext to L/E you can do this: from terminal (supposing that FakePCIID_Broadcom_WiFi.kext is in Downloads folder) cd ~/Downloads cp -R FakePCIID_Broadcom_WiFi.kext /Library/Extensions/FakePCIID_Broadcom_WiFi.kext sudo kextcache -i / Quote Link to comment Share on other sites More sharing options...
wikedone Posted December 9, 2017 Author Share Posted December 9, 2017 Place wifi kext in S/L/E. S/L/E and L/E are basically the same. Apple's kexts are in S/L/E and third party kext are usually located in L/E. If you want to install wifi kext to L/E you can do this: from terminal (supposing that FakePCIID_Broadcom_WiFi.kext is in Downloads folder) cd ~/Downloads cp -R FakePCIID_Broadcom_WiFi.kext /Library/Extensions/FakePCIID_Broadcom_WiFi.kext sudo kextcache -i / Ok so they are in /L/E and this is the terminal output Gregs-MacBook-Pro:Desktop greg$ sudo kextcache -i / Password: FakePCIID_Broadcom_WiFi.kext has incorrect permissions; omitting. FakePCIID.kext has incorrect permissions; omitting. KernelCache ID: 6BF3EF2723BDA4E6E8023AF3448D75F7 Gregs-MacBook-Pro:Desktop greg$ Quote Link to comment Share on other sites More sharing options...
foskvs Posted December 9, 2017 Share Posted December 9, 2017 Place wifi kext in S/L/E. S/L/E and L/E are basically the same. Apple's kexts are in S/L/E and third party kext are usually located in L/E. If you want to install wifi kext to L/E you can do this: from terminal (supposing that FakePCIID_Broadcom_WiFi.kext is in Downloads folder) cd ~/Downloads cp -R FakePCIID_Broadcom_WiFi.kext /Library/Extensions/FakePCIID_Broadcom_WiFi.kext sudo kextcache -i / Ok so they are in /L/E and this is the terminal output Gregs-MacBook-Pro:Desktop greg$ sudo kextcache -i / Password: FakePCIID_Broadcom_WiFi.kext has incorrect permissions; omitting. FakePCIID.kext has incorrect permissions; omitting. KernelCache ID: 6BF3EF2723BDA4E6E8023AF3448D75F7 Gregs-MacBook-Pro:Desktop greg$ From terminal sudo chmod -R 755 /Library/Extensions/FakePCIIDBroadcom_WiFi.kext sudo chown -R 0:0 /Library/Extensions/FakePCIIDBroadcom_WiFi.kext sudo kextcache -i / The same for the other kext. Quote Link to comment Share on other sites More sharing options...
wikedone Posted December 9, 2017 Author Share Posted December 9, 2017 From terminal sudo chmod -R 755 /Library/Extensions/FakePCIIDBroadcom_WiFi.kext sudo chown -R 0:0 /Library/Extensions/FakePCIIDBroadcom_WiFi.kext sudo kextcache -i / The same for the other kext. Ok after that wifi isn't working still can't boot without checking USB ownership which makes wifi not load if I don't check usb ownership wifi loads but booting stops Quote Link to comment Share on other sites More sharing options...
foskvs Posted December 9, 2017 Share Posted December 9, 2017 What Clover version are you using? Quote Link to comment Share on other sites More sharing options...
wikedone Posted December 9, 2017 Author Share Posted December 9, 2017 current booted revision : 4318 remote available revision : 4334 Quote Link to comment Share on other sites More sharing options...
