A little help with XFX 6770 on Sierra

2013alanr

By 2013alanr,
in ATi

 Share
42 posts in this topic

Recommended Posts

2013alanr
2013alanr
Posted
Posted

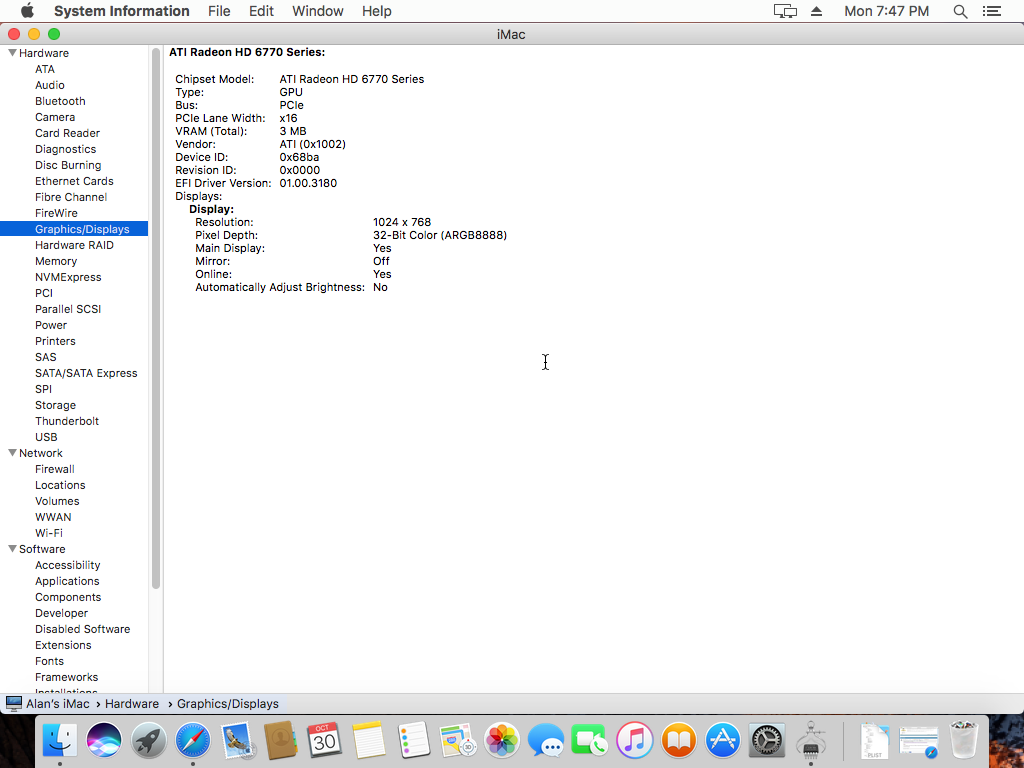

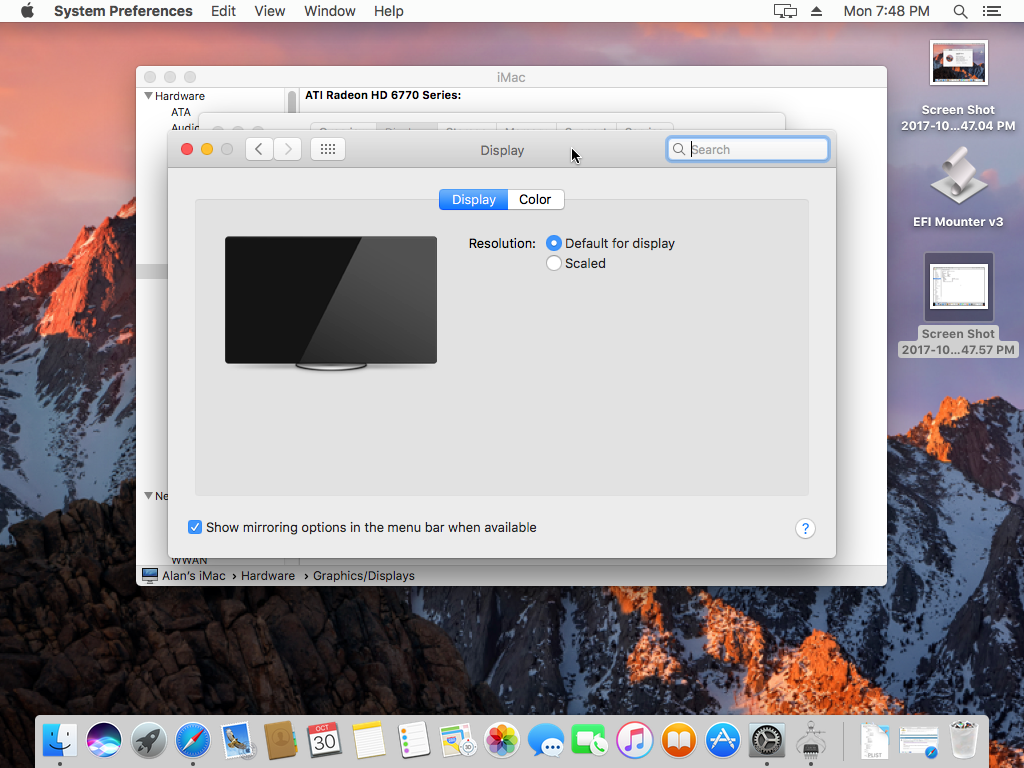

Hi everyone,





I am struggling to make my ATI XFX 6770 to work decently on my hackintosh running Sierra, I've tried everything that I saw about it but with no results.



I would like to ask someone's help of what I should do to have this card working and if it's possible show me where I can get kext of it, because I've downloaded so many of it that I don't know if it's not working because i'm using the wrong kexts. I've tried inject FakeID and lot's of other things that i saw.

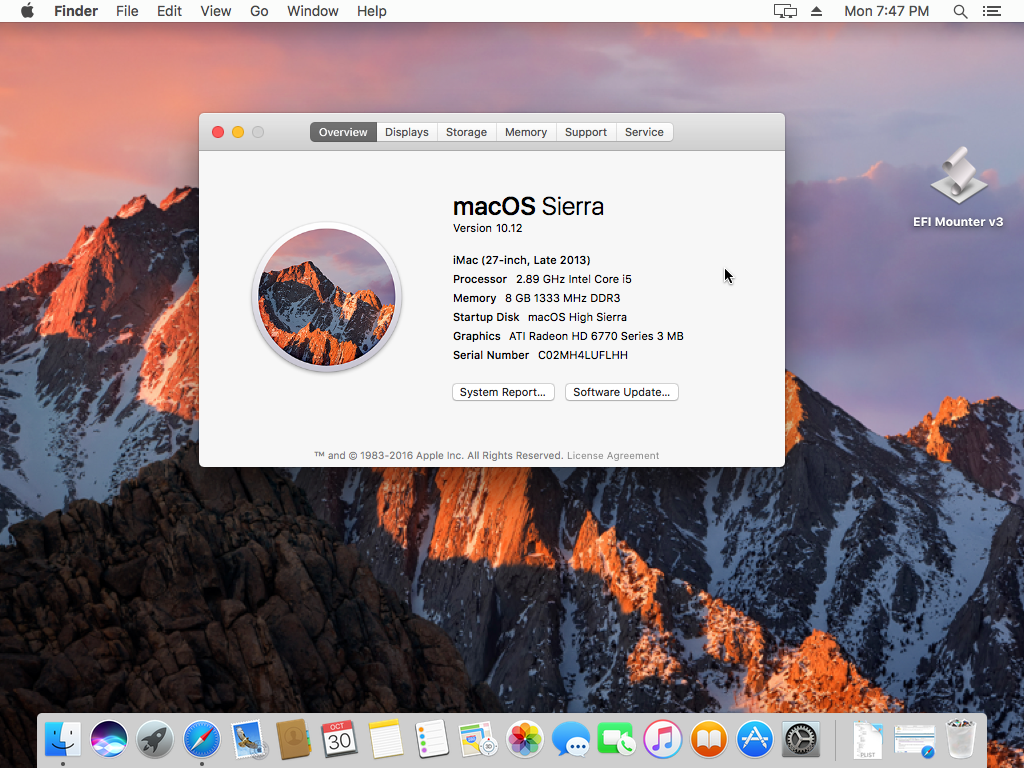

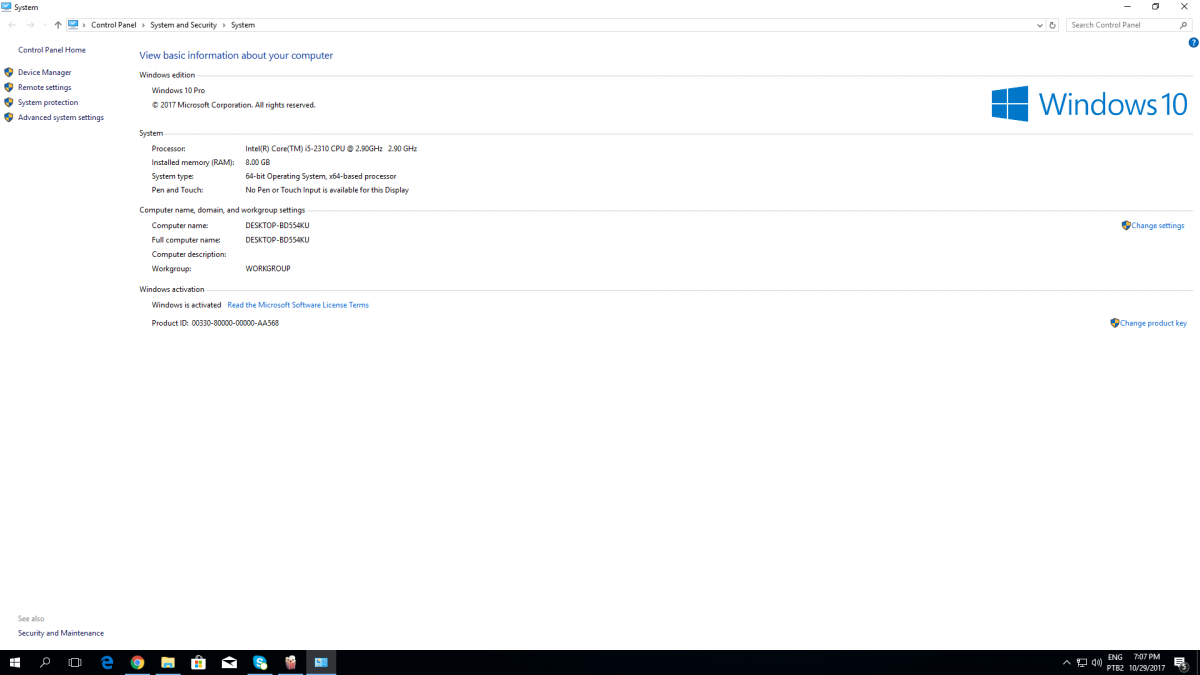

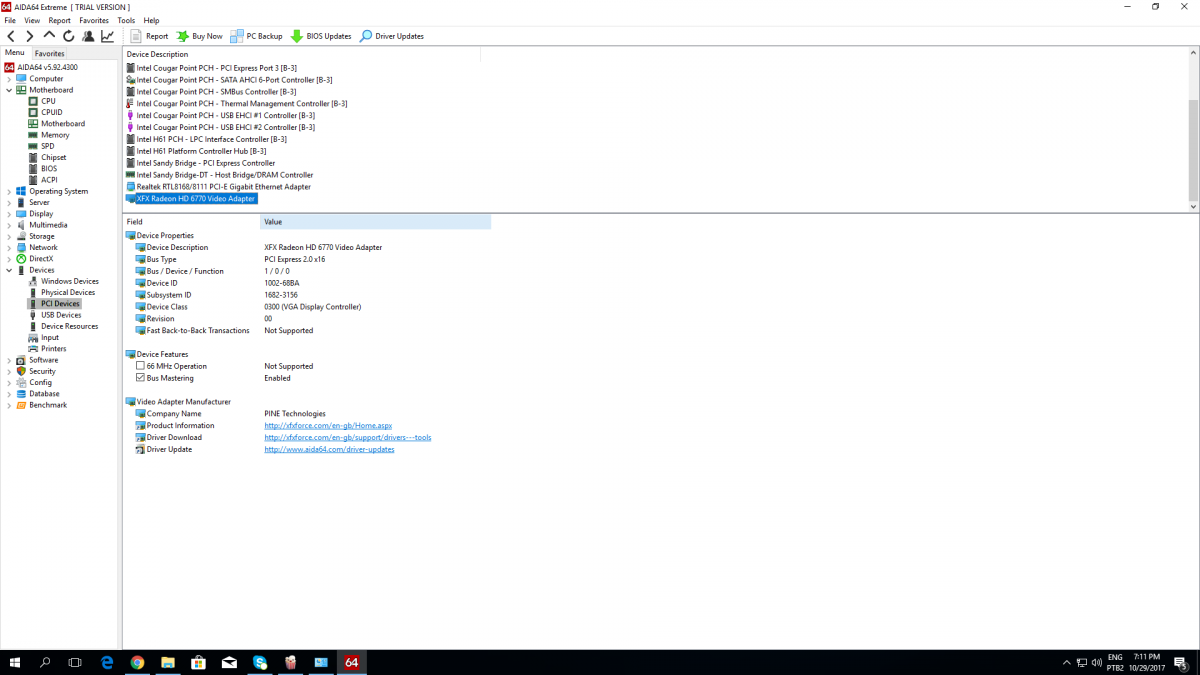

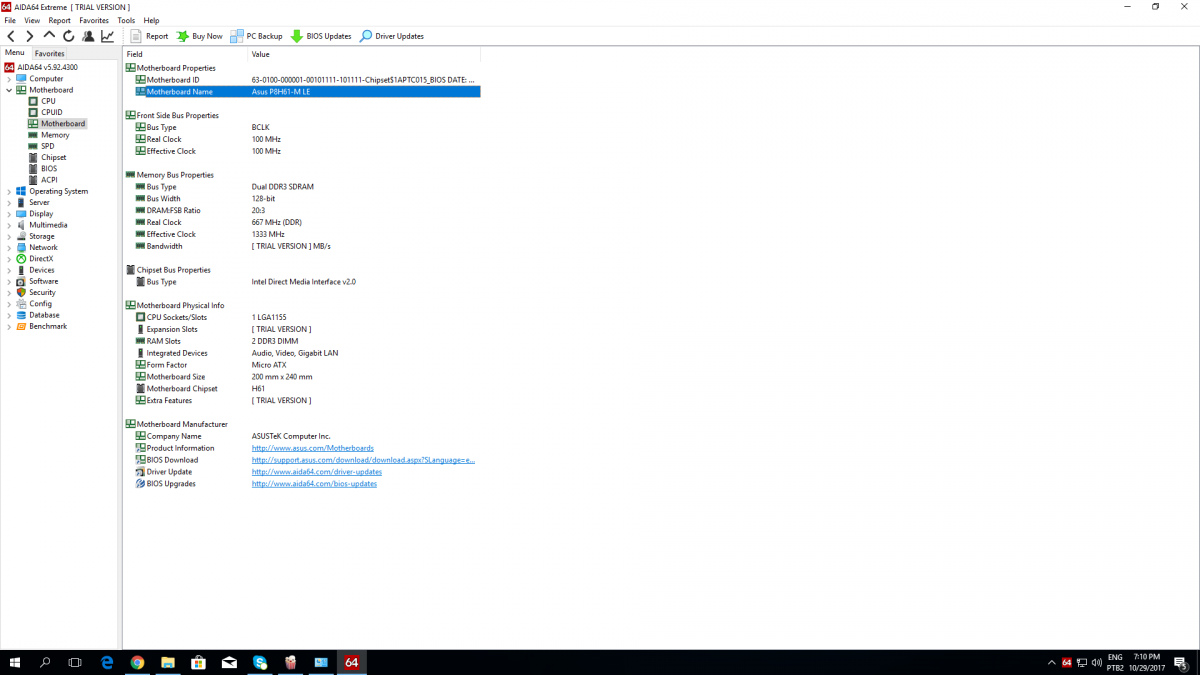

I will post my setup (it's on windows but I just want you to know my setup)









I would be so grad with someone's help.





Thank you very muc in advance!








2013alanr
2013alanr
Posted
  • Author
Posted



Marzillo,



I've tried it again and I couldn't make it work. Probably I'm doing something wrong, but I can't find what :-(



I'll post what I have so far:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP_0001</key>
				<false/>
				<key>AddHDMI_8000000</key>
				<false/>
				<key>AddIMEI_80000</key>
				<false/>
				<key>AddMCHC_0008</key>
				<false/>
				<key>AddPNLF_1000000</key>
				<false/>
				<key>DeleteUnused_400000</key>
				<false/>
				<key>FIX_ACST_4000000</key>
				<false/>
				<key>FIX_ADP1_800000</key>
				<false/>
				<key>FIX_INTELGFX_100000</key>
				<false/>
				<key>FIX_RTC_20000</key>
				<false/>
				<key>FIX_S3D_2000000</key>
				<false/>
				<key>FakeLPC_0020</key>
				<false/>
				<key>FiX_TMR_40000</key>
				<false/>
				<key>FiX_WAK_200000</key>
				<false/>
				<key>FixAirport_4000</key>
				<false/>
				<key>FixDarwin_0002</key>
				<false/>
				<key>FixDisplay_0100</key>
				<false/>
				<key>FixFirewire_0800</key>
				<false/>
				<key>FixHDA_8000</key>
				<false/>
				<key>FixHPET_0010</key>
				<false/>
				<key>FixIDE_0200</key>
				<false/>
				<key>FixIPIC_0040</key>
				<false/>
				<key>FixLAN_2000</key>
				<false/>
				<key>FixRegions_10000000</key>
				<false/>
				<key>FixSATA_0400</key>
				<false/>
				<key>FixSBUS_0080</key>
				<false/>
				<key>FixShutdown_0004</key>
				<false/>
				<key>FixUSB_1000</key>
				<false/>
				<key>NewWay_80000000</key>
				<false/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>HaltEnabler</key>
		<false/>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>dart=0</string>
		<key>DefaultVolume</key>
		<string>macOS High Sierra</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Log</key>
		<true/>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>3</integer>
		<key>XMPDetection</key>
		<string>NO</string>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>1</string>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IMEI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
		<key>UseIntelHDMI</key>
		<false/>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Hide</key>
		<array>
			<string>Windows</string>
			<string>\EFI\BOOT\BOOTX64.EFI</string>
		</array>
		<key>Language</key>
		<string>en:0</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<true/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<string>First</string>
			<key>Tool</key>
			<true/>
		</dict>
		<key>ScreenResolution</key>
		<string>1920x1080</string>
		<key>Theme</key>
		<string>tonymacx86</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>FBName</key>
		<string>Hoolock</string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<true/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
		<key>VideoPorts</key>
		<integer>3</integer>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>#FakeCPUID</key>
		<string>0x010676</string>
		<key>AppleRTC</key>
		<true/>
		<key>AsusAICPUPM</key>
		<true/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelHaswellE</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Find</key>
				<string>0x68B81002</string>
				<key>InfoPlistPatch</key>
				<true/>
				<key>Name</key>
				<string>AMDRadeonX3000</string>
				<key>Replace</key>
				<string>0x68BA1002</string>
			</dict>
			<dict>
				<key>Find</key>
				<string>0x68B81002</string>
				<key>InfoPlistPatch</key>
				<true/>
				<key>Name</key>
				<string>AMD5000Controller</string>
				<key>Replace</key>
				<string>0x68BA1002</string>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x3</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>09/03/2013</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>IM142.88Z.0118.B00.1309031249</string>
		<key>Board-ID</key>
		<string>Mac-27ADBB7B4CEE8E61</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>13</string>
		<key>Family</key>
		<string>iMac</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>Mobile</key>
		<false/>
		<key>ProductName</key>
		<string>iMac14,2</string>
		<key>SerialNumber</key>
		<string>C02MH4LUFLHH</string>
		<key>Trust</key>
		<false/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Yes</string>
		<key>InjectSystemID</key>
		<true/>
		<key>NoCaches</key>
		<true/>
	</dict>
</dict>
</plist>






2013alanr
2013alanr
Posted
  • Author
Posted

Try liukext and Whatevergreenkext these go in Clover EFI folder in Kexts folder "Other".



I tried it. But nothing happen :-(

your efi please

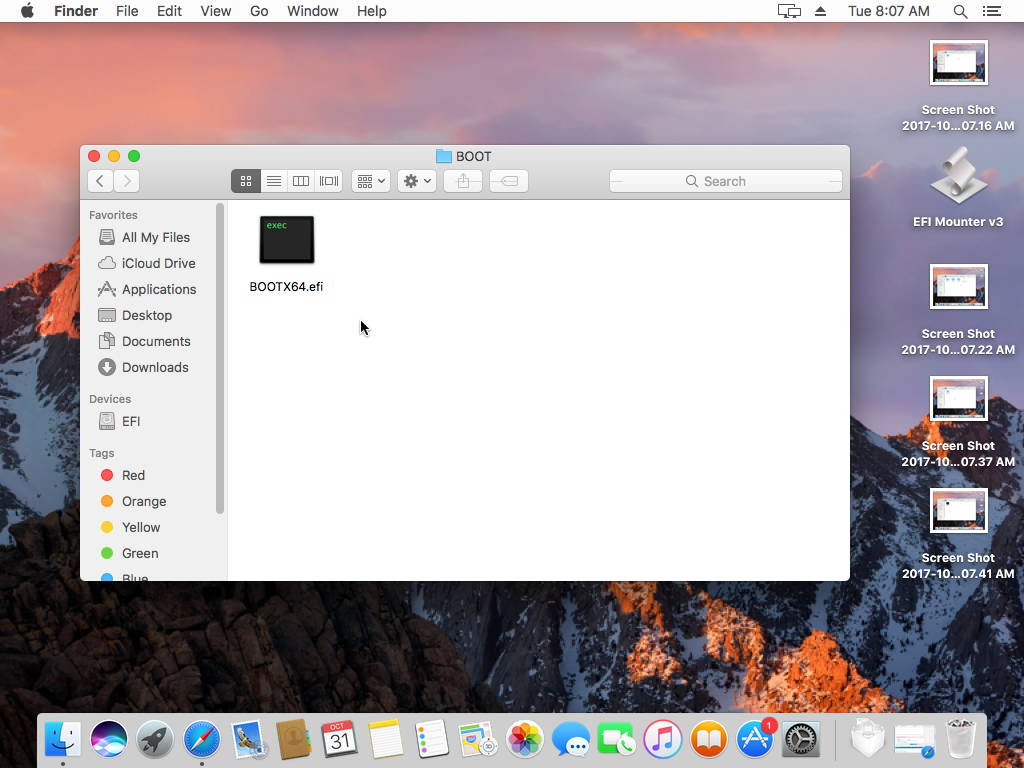

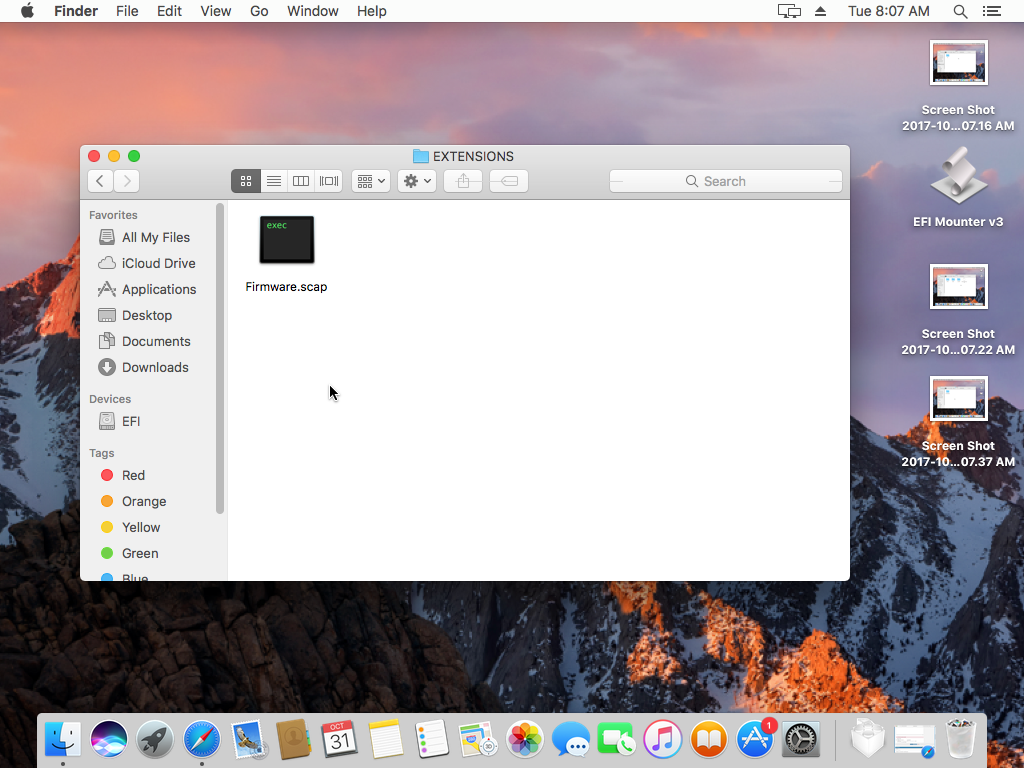

Here it goes:







( I could't upload it here)



https://mega.nz/#!97xTER6D!E-m6p3ih96WjxlFg39P7M46lB10CNN4yLg1GEYiUTjo

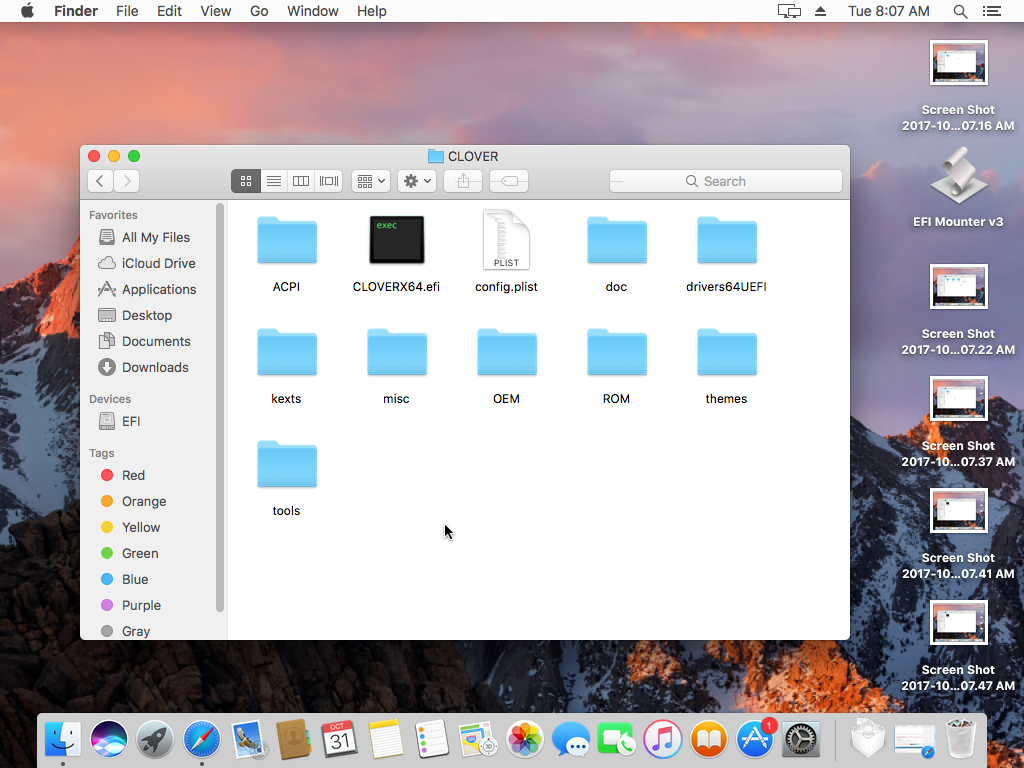

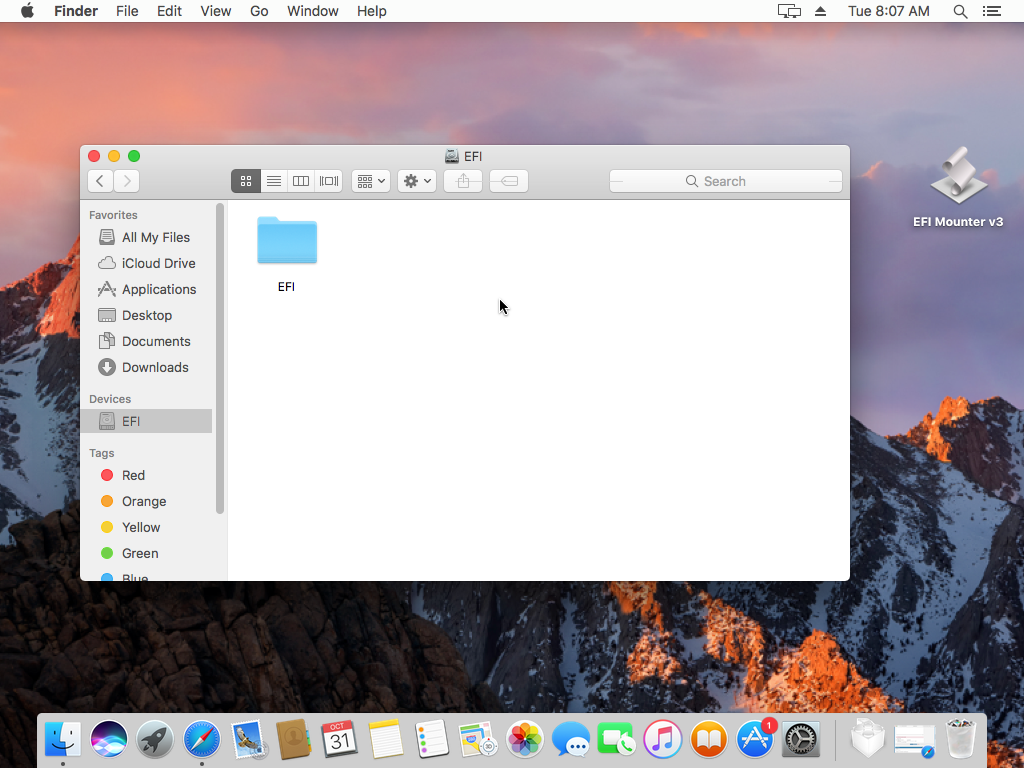

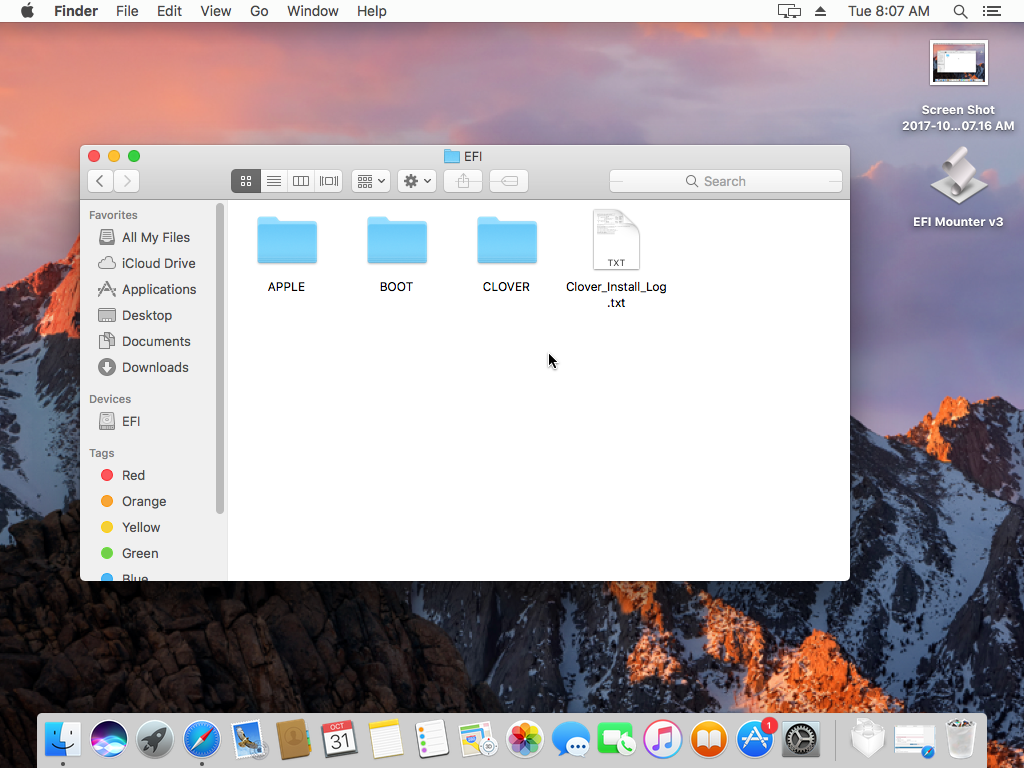

It's my whole EFI folder.



Thank you for your help!








2013alanr
2013alanr
Posted
  • Author
Posted

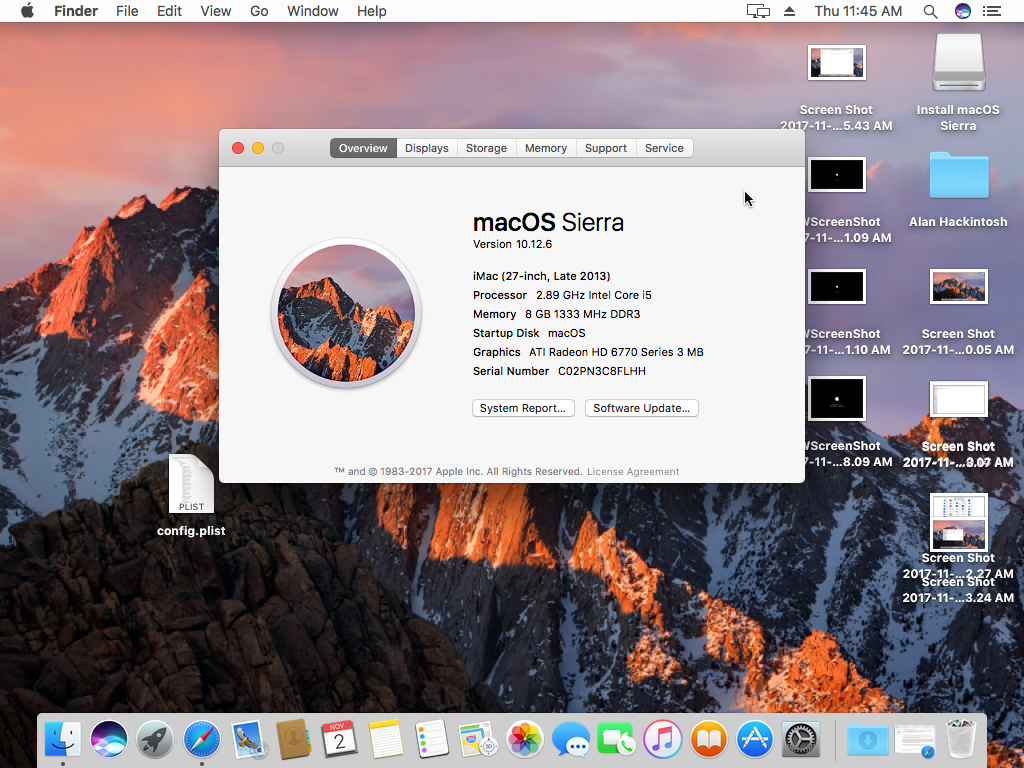

Sorry for the delay to answer but I was running a few tests. Actually I was successful in "Sierra with no update" using http://www.insanelymac.com/forum/files/file/565-hd6770-qe-ci-patch/ as you mentioned. But if I update it for the last version of Sierra 10.12.6 it does't work anymore and I needed at least this last version of sierra :-(

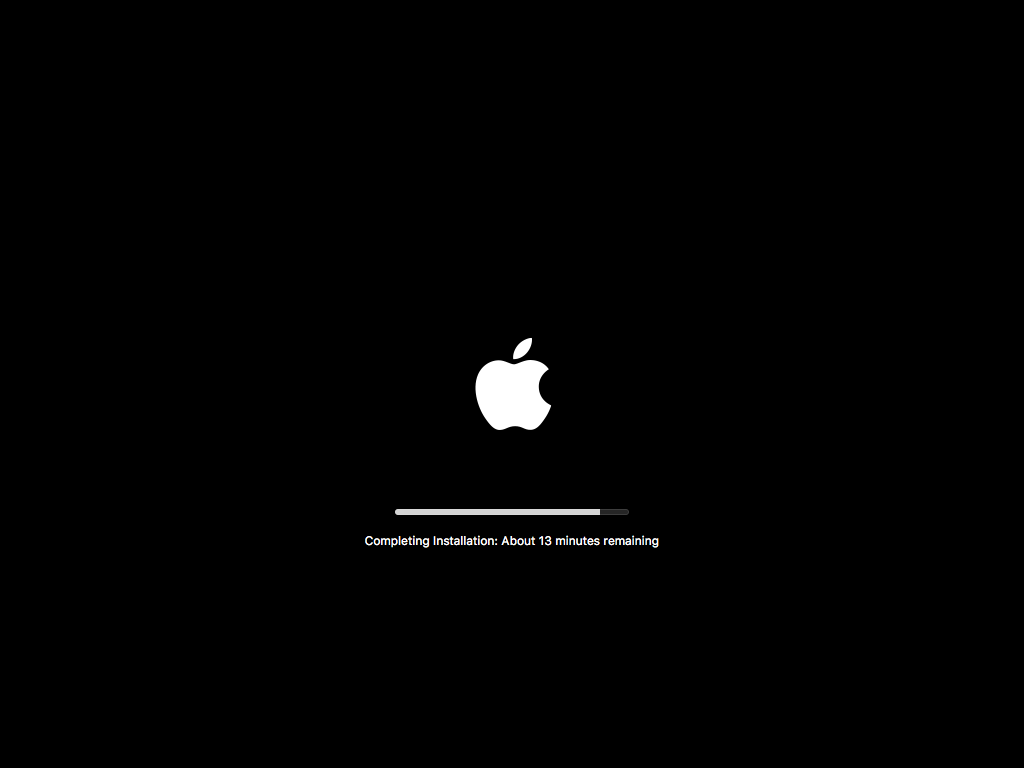

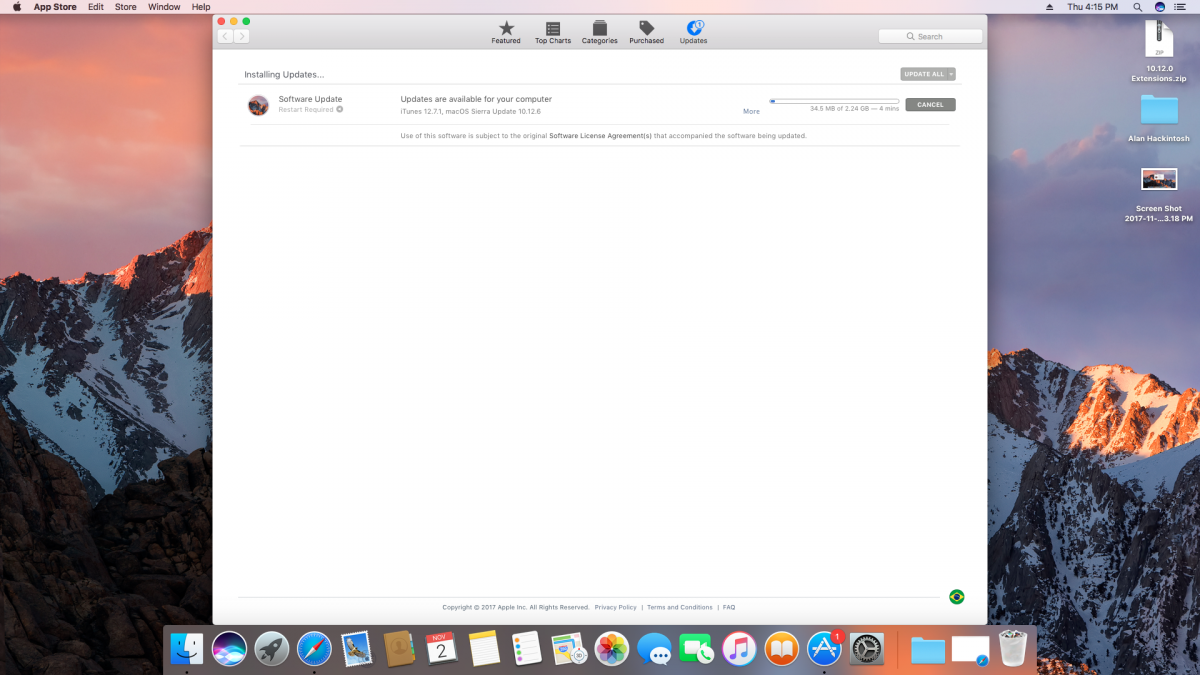

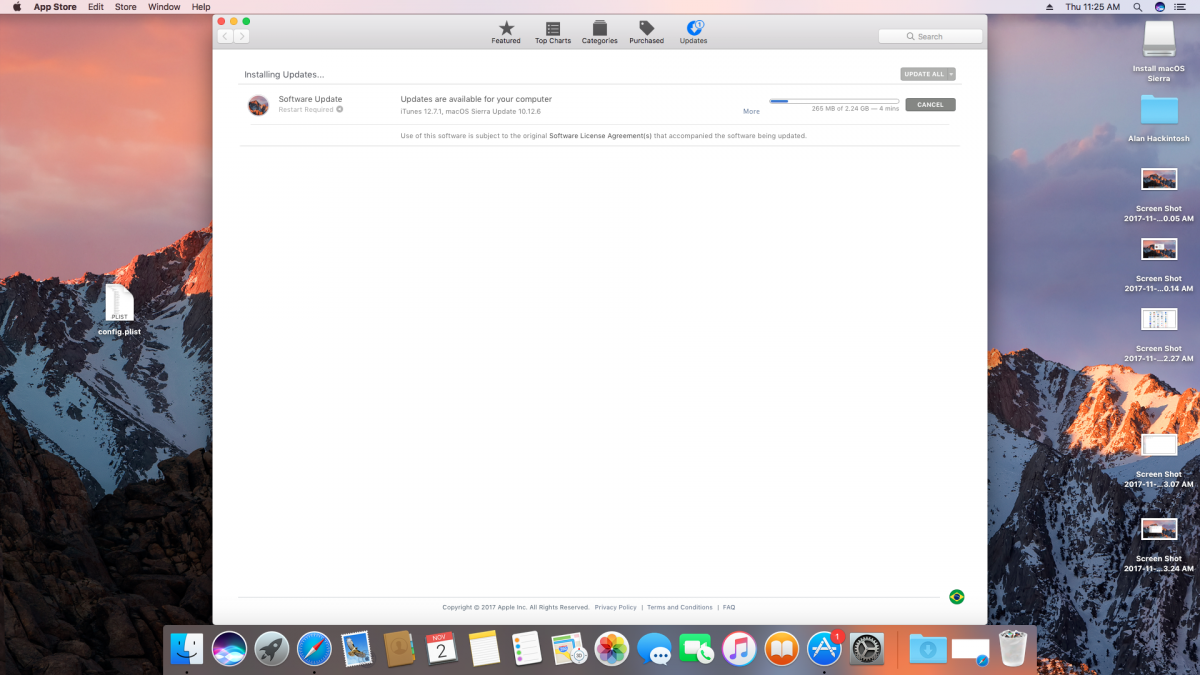

I also tried update for the High Sierra and try to use this > http://www.insanelymac.com/forum/files/file/749-hd6770-qe-ci-patch/but it didn't work.



I don't mind in using Sierra and not the high Sierra but for Sierra I needed it to be at least 10.12.6 update.



I did not finish looking for the other link you posted and I will look at it when I got home (I'm in my lunch time) but if you have some point about it I would love to hear it.



One more time, thank you very much for your help! :-)

MARZILLO
MARZILLO
Posted
Posted

try this solution but I do not guarantee the result .... take kext of patch 12.10.5 (AMD5000Controller.kext, AMDRadeonX3000.kext)

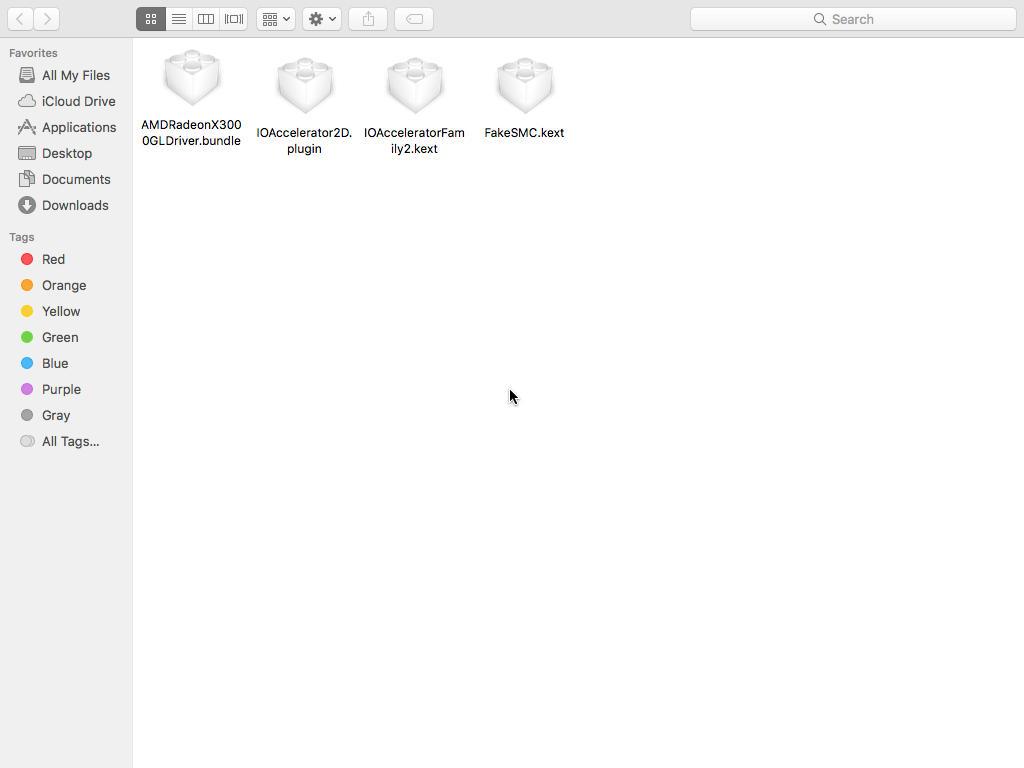

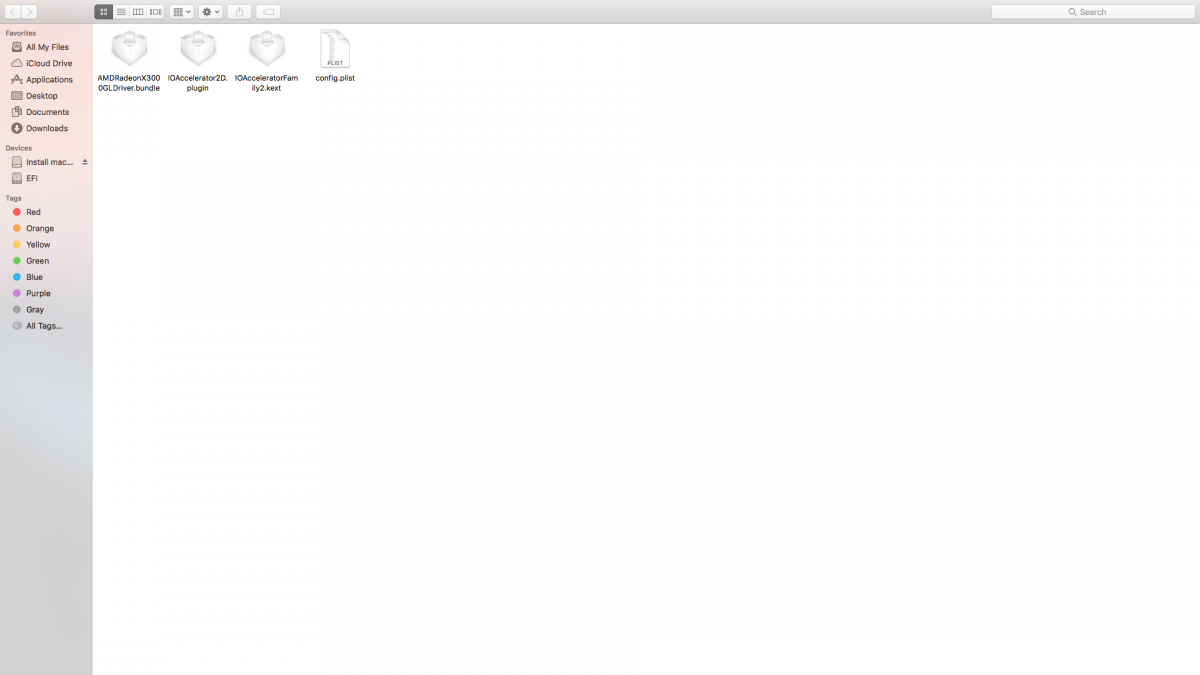

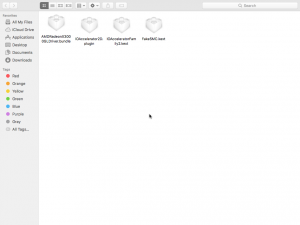

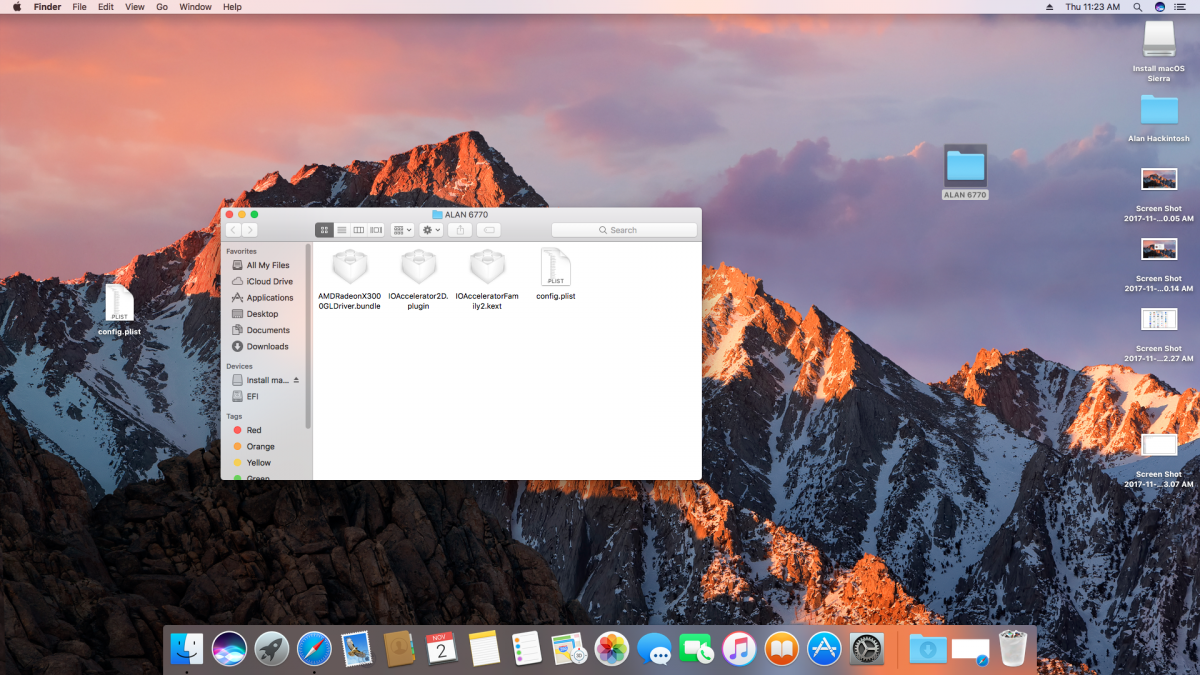

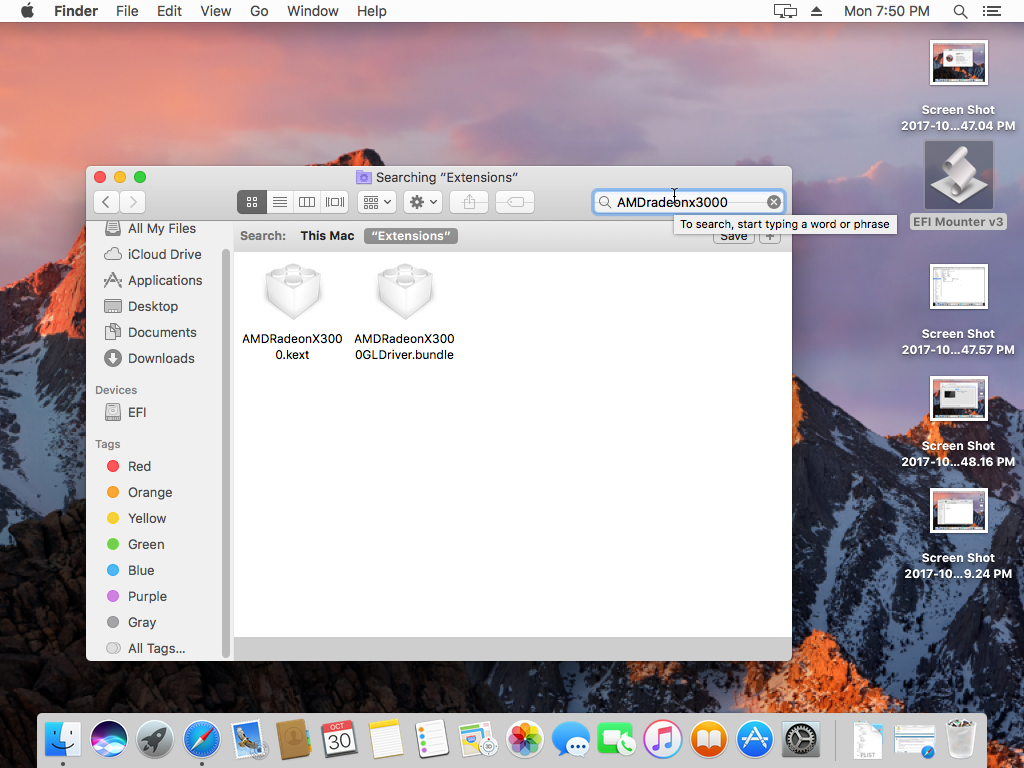

then you  take these kext from sierra 10.12.5 (  AMDRadeonX3000GLDriver.bundle, IOAccelerator2D.plugin, IOAcceleratorFamily2.kext )  replace them all in s\l\e of sierra 10.12.6 with kext wizard



 then launch command from terminal:

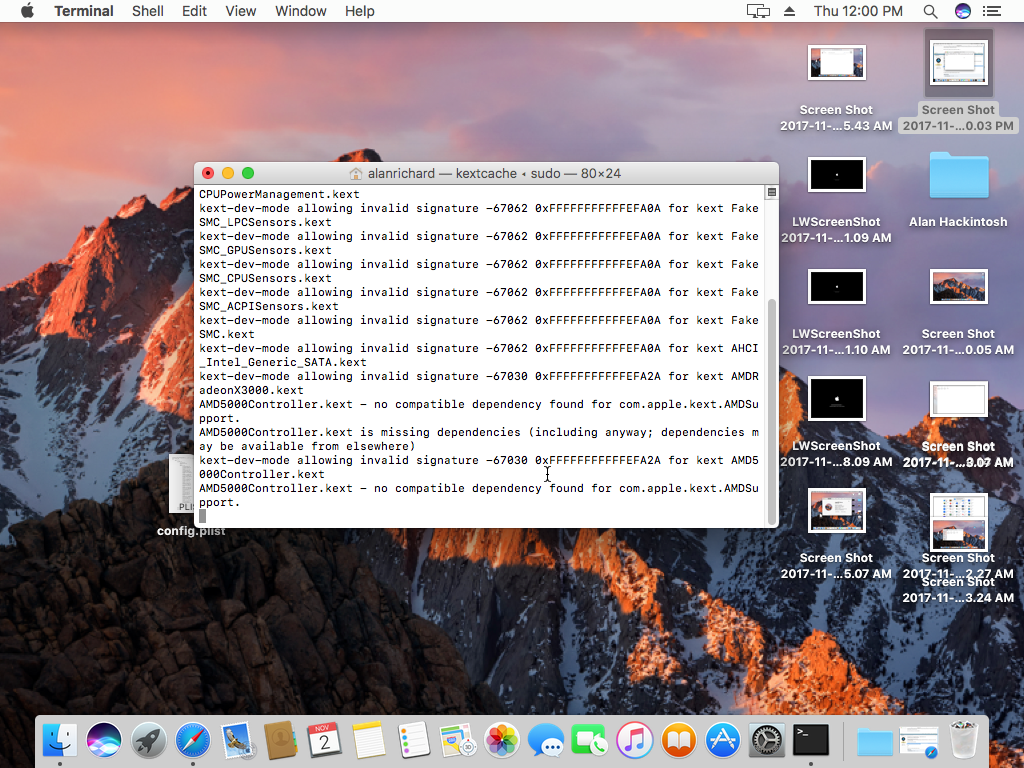

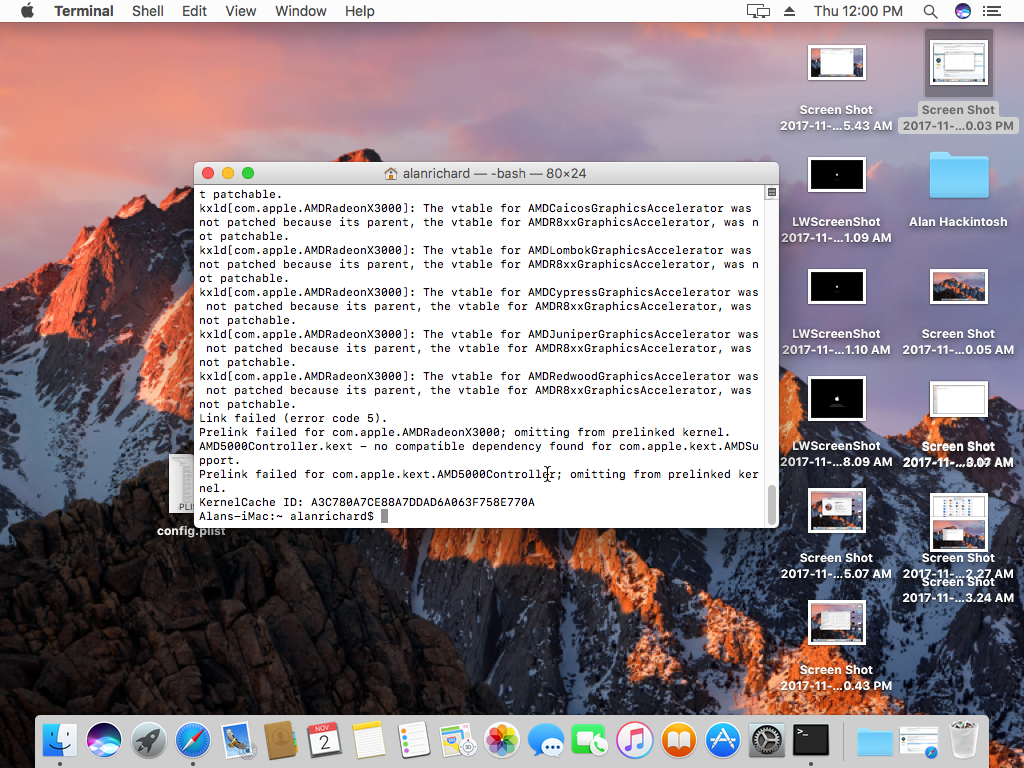

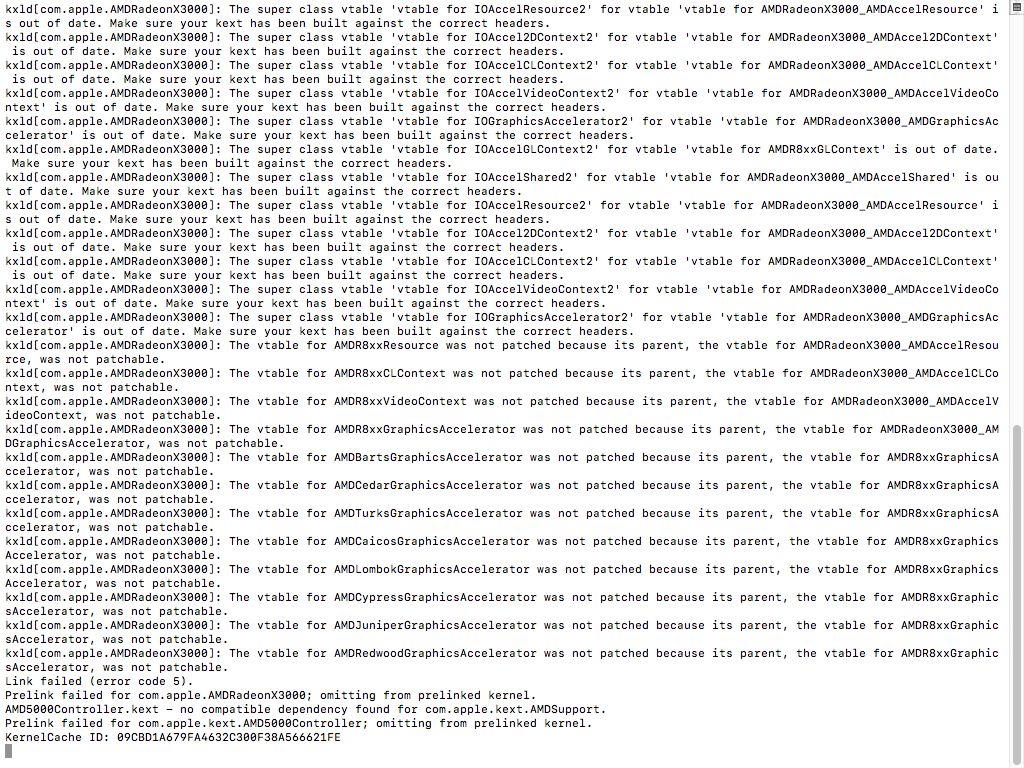

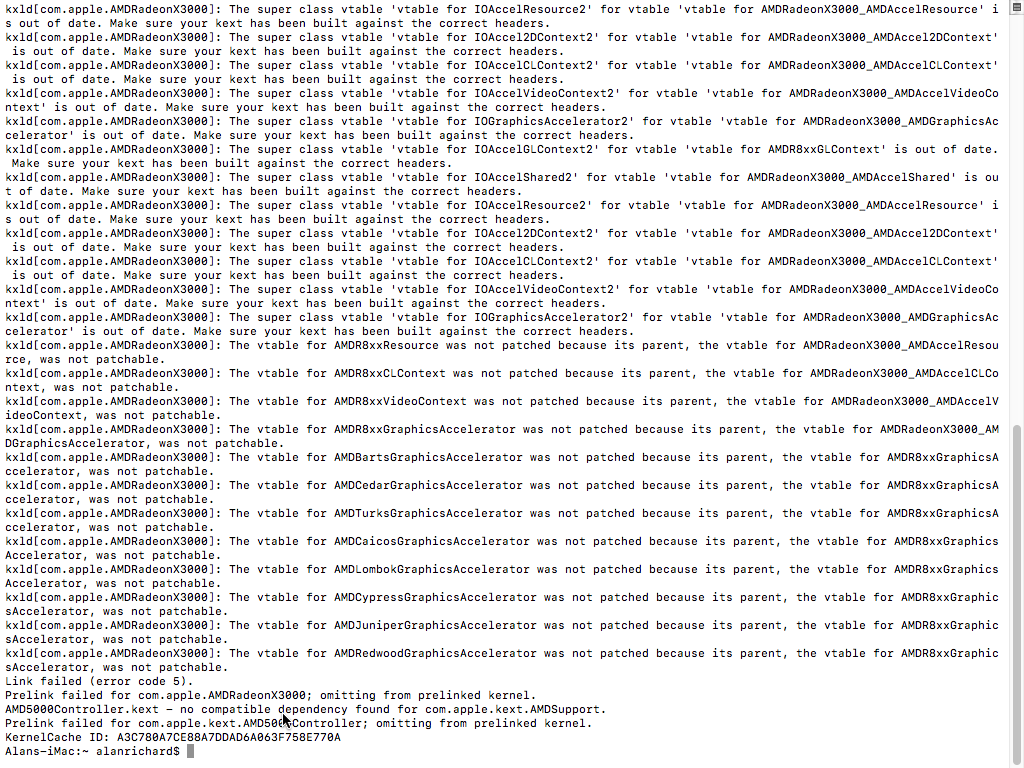

sudo rm -f /System/Library/Caches/com.apple.kext.caches/Startup/kernelcache && sudo touch /System/Library/Extensions && sudo kextcache -u /



restart



p.s.



be careful, your pc might not start anymore or work

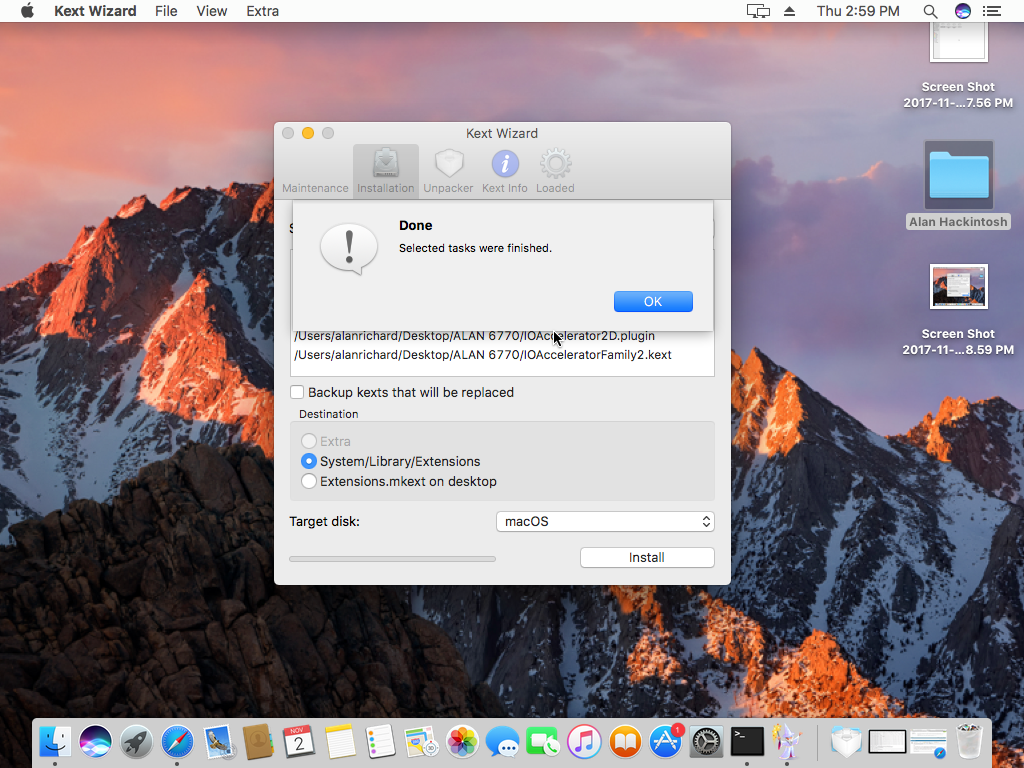

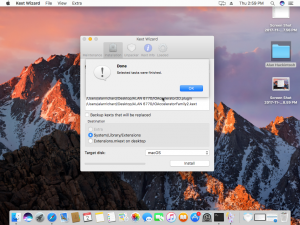

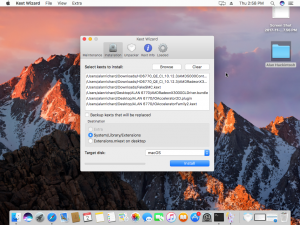

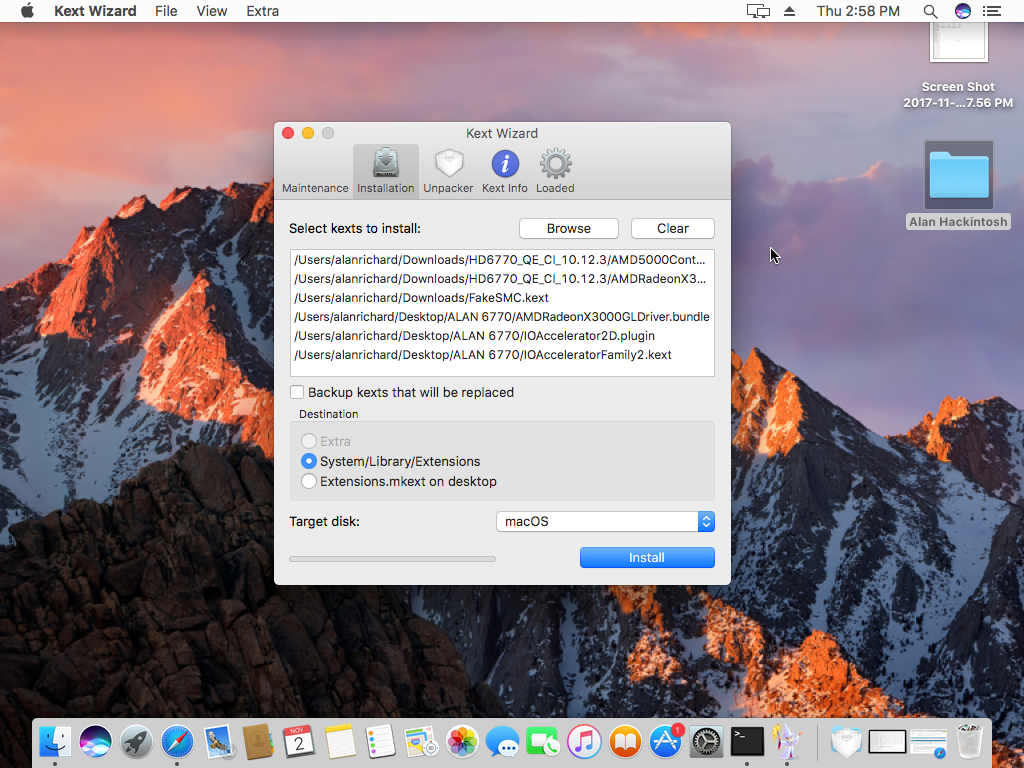

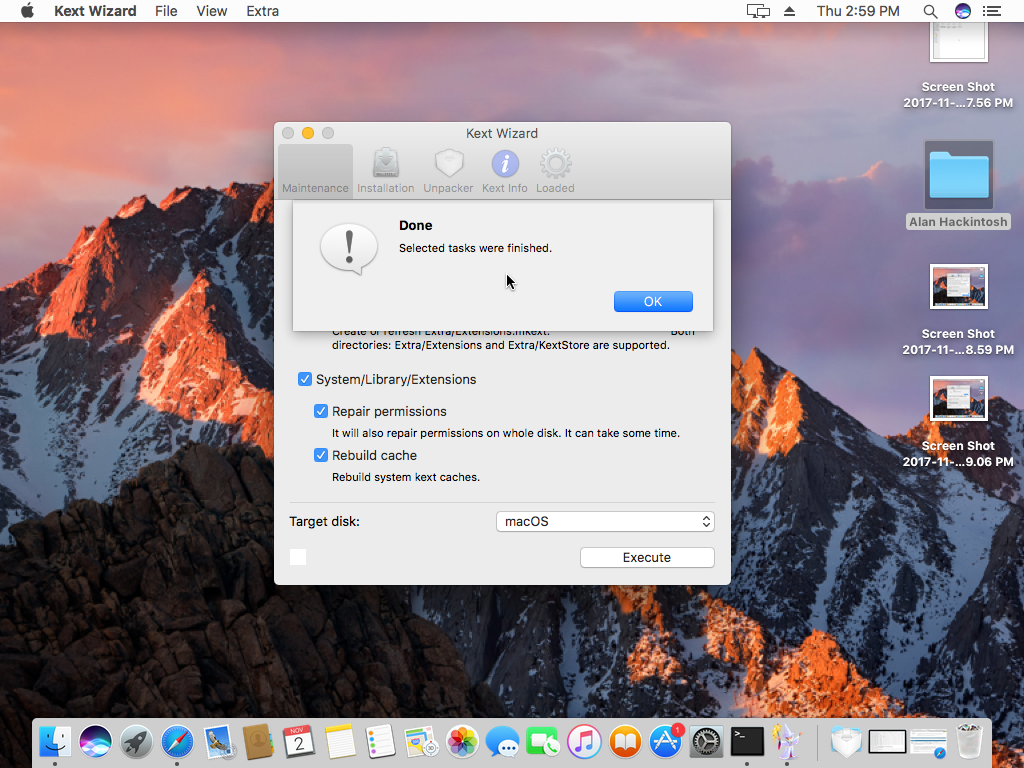

Kext Wizard.zip

2013alanr
2013alanr
Posted
  • Author
Posted (edited)

try this solution but I do not guarantee the result .... take kext of patch 12.10.5 (AMD5000Controller.kext, AMDRadeonX3000.kext)



then you  take these kext from sierra 10.12.5 (  AMDRadeonX3000GLDriver.bundle, IOAccelerator2D.plugin, IOAcceleratorFamily2.kext )  replace them all in s\l\e of sierra 10.12.6 with kext wizard

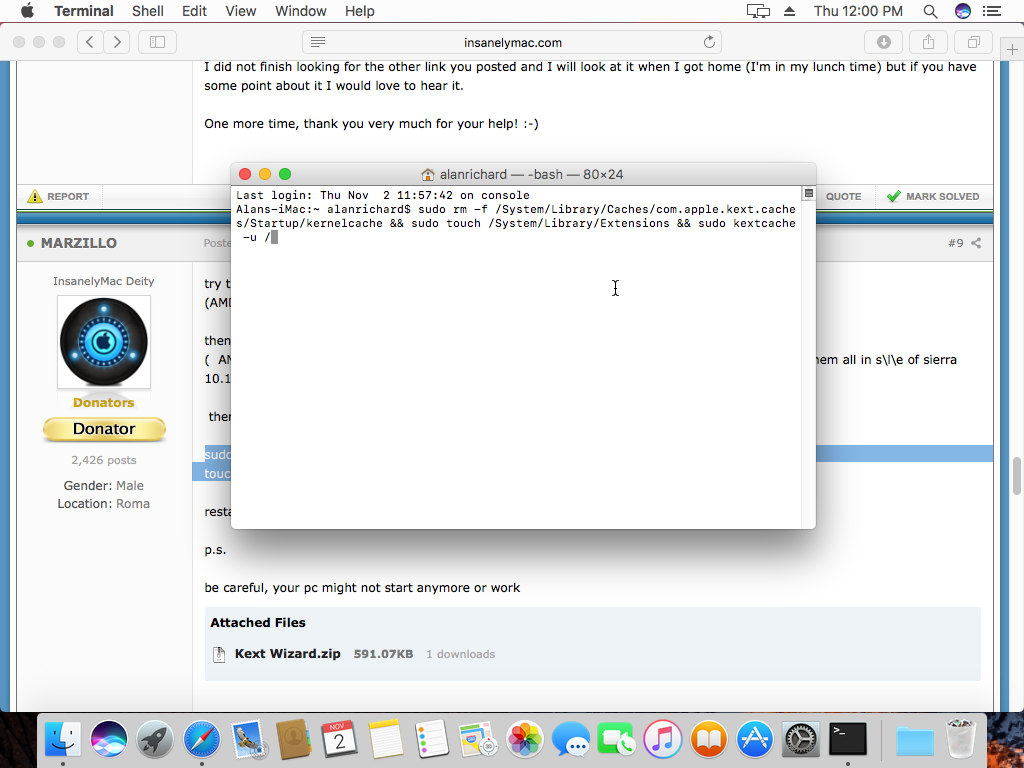

 then launch command from terminal:

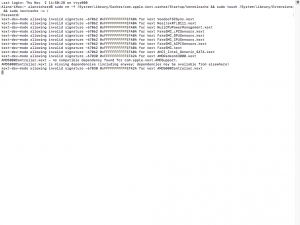

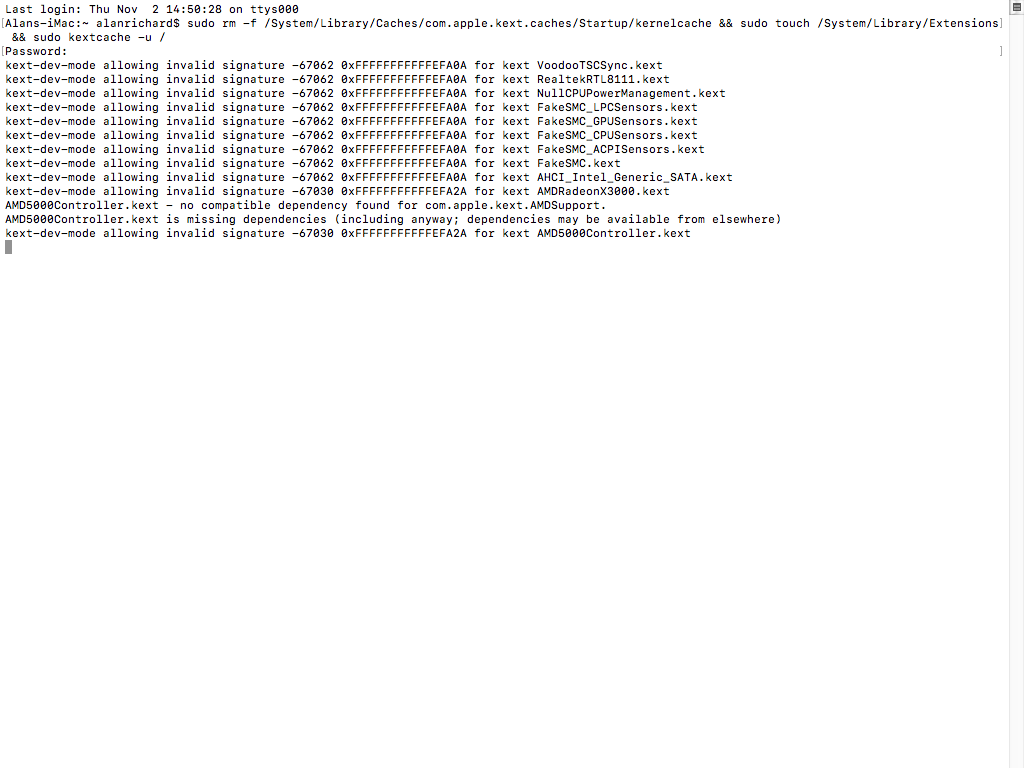

sudo rm -f /System/Library/Caches/com.apple.kext.caches/Startup/kernelcache && sudo touch /System/Library/Extensions && sudo kextcache -u /



restart



p.s.



be careful, your pc might not start anymore or work



I'm home now and I'm gonna start it. But I have a question first:



There's no "patch 12.10.5" just 12.10.3 > http://www.insanelymac.com/forum/files/download/565-hd6770-qe-ci-patch/Or 12.13.1 > http://www.insanelymac.com/forum/files/file/749-hd6770-qe-ci-patch/



So I am alite confuse of how I should do it.





This is my Boot log

0:100  0:100  MemLog inited, TSC freq: 2892704640
0:100  0:000
0:100  0:000  Now is 1.11.2017,  21:11:6 (GMT)
0:100  0:000  Starting Clover revision: 4268 on American Megatrends EFI
0:100  0:000  Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.12.6 | XCODE: 9.0.1]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)\HD(1,GPT,EB4FC801-59EB-4E6D-BEA2-F9BE176DD13B,0x28,0x64000) @BCED598
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 2
0:100  0:000  Type 17 Index = 0
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/1, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 1333MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = Kingston
0:100  0:000  SmbiosTable.Type17->SerialNumber = 8C283E4C
0:100  0:000  SmbiosTable.Type17->PartNumber = 99U5471-012.A00LF
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1333MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 0000
0:100  0:000  SmbiosTable.Type17->SerialNumber = 65206C13
0:100  0:000  SmbiosTable.Type17->PartNumber = 9905471-006.A00LF
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'System Product Name' with board 'P8H61-M LE'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=206A7
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i5-2310 CPU @ 2.90GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40004
0:100  0:000  MSR 0xE2 before patch 1E008403
0:100  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:100  0:000  MSR 0xCE              00001000_60011D00
0:100  0:000  MSR 0x1A0             00850089
0:100  0:000  corrected FLEX_RATIO = 80000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 100 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 29.0/16
0:100  0:000  Turbo: 30/31/31/32
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 4
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 2900 MHz
0:100  0:000  TSC: 2900 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  PCI (00|00:00.00) : 8086 0100 class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 0101 class=060400
0:100  0:000  PCI (00|01:00.00) : 1002 68BA class=030000
0:100  0:000   - GFX: Model=ATI Radeon HD 6770 Series (ATI/AMD)
0:100  0:000  PCI (00|01:00.01) : 1002 AA58 class=040300
0:100  0:000   - HDMI Audio:
0:100  0:000  PCI (00|00:16.00) : 8086 1C3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:1A.00) : 8086 1C2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1C20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1C10 class=060400
0:100  0:000  PCI (00|00:1C.02) : 8086 1C14 class=060400
0:100  0:000  PCI (00|03:00.00) : 10EC 8168 class=020000
0:100  0:000   - LAN: 0 Vendor=Realtek
0:100  0:000  PCI (00|00:1C.04) : 8086 244E class=060401
0:100  0:000  PCI (00|04:00.00) : 1B21 1080 class=060401
0:100  0:000  PCI (00|00:1D.00) : 8086 1C26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 1C5C class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 1C02 class=010601
0:100  0:000  PCI (00|00:1F.03) : 8086 1C22 class=0C0500
0:100  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:100  0:000  === [ GetDefaultSettings ] ================================
0:100  0:000  Clover load options size = 0 bytes
0:105  0:004  EFI\CLOVER\config.plist loaded: Success
0:105  0:000  === [ GetListOfThemes ] ===================================
0:107  0:002  - [00]: EMBEDDED
0:109  0:001  - [00]: RANDOM
0:110  0:001  === [ Found config plists ] ===============================
0:110  0:000  - config.plist
0:110  0:000  === [ GetEarlyUserSettings ] ==============================
0:110  0:000  timeout set to 3
0:110  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:110  0:000  KextsToPatch: 2 requested
0:110  0:000   - [00]: AMDRadeonX3000 (NoLabel)[ERROR] bin2hex '0x68B81002' syntax error
0:110  0:000  [ERROR] bin2hex '0x68BA1002' syntax error
0:110  0:000   - invalid Find/Replace data - skipping!

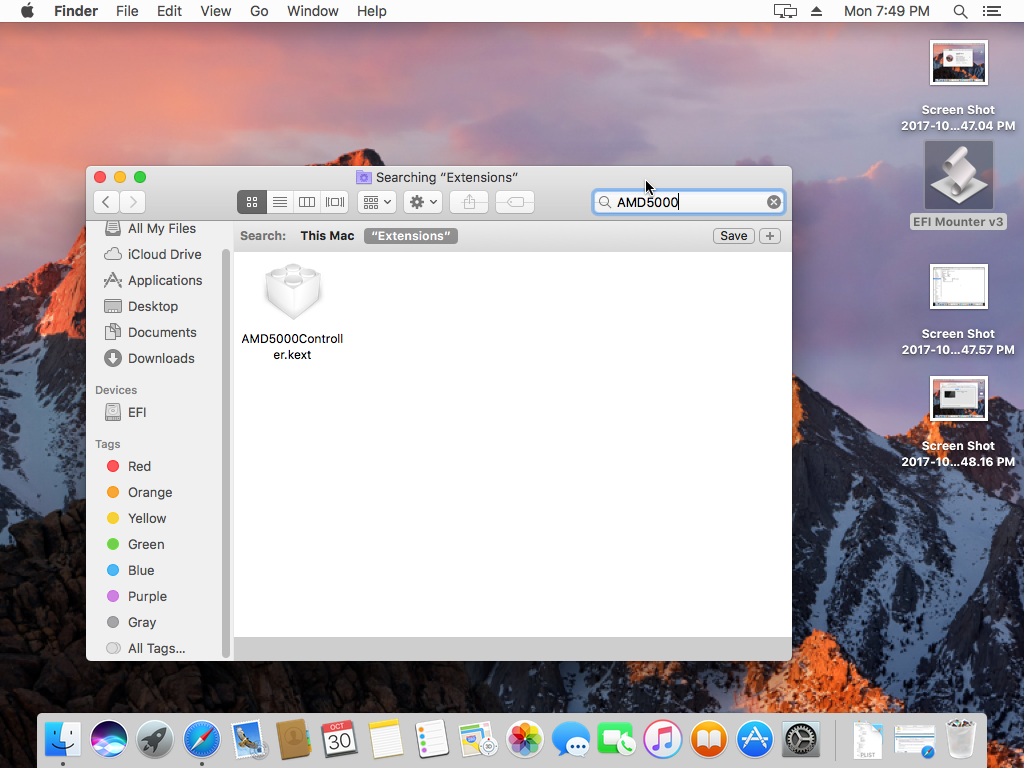

0:110  0:000   - [01]: AMD5000Controller (NoLabel)[ERROR] bin2hex '0x68B81002' syntax error
0:110  0:000  [ERROR] bin2hex '0x68BA1002' syntax error
0:110  0:000   - invalid Find/Replace data - skipping!
0:110  0:000  Default theme: embedded
0:110  0:000  Hiding entries with string Windows
0:110  0:000  Hiding entries with string \EFI\BOOT\BOOTX64.EFI
0:110  0:000  === [ LoadDrivers ] =======================================
0:112  0:001  Loading AppleImageCodec-64.efi  status=Success
0:112  0:000  Loading AppleKeyAggregator-64.efi  status=Success
0:113  0:000  Loading AppleUITheme-64.efi  status=Success
0:114  0:000  Loading DataHubDxe-64.efi  status=Success
0:128  0:014  Loading FirmwareVolume-64.efi  status=Success
0:129  0:001  Loading FSInject-64.efi  status=Success
0:130  0:000  Loading OsxAptioFix2Drv-64.efi  status=Success
0:130  0:000  Loading OsxFatBinaryDrv-64.efi  status=Success
0:131  0:000  Loading SMCHelper-64.efi  status=Success
0:132  0:000  Loading VBoxHfs-64.efi  status=Success
0:133  0:001   - driver needs connecting
0:133  0:000  1 drivers needs connecting ...
0:133  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:133  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
0:233  0:100  === [ InitScreen ] ========================================
0:233  0:000  SetScreenResolution: 1920x1080 - not found!
0:233  0:000  SetMaxResolution: found best mode 2: 1024x768
0:362  0:129  Video mode change to mode #2: Success
0:362  0:000   - set
0:362  0:000  Console modes reported: 3, available modes:
0:362  0:000   - [01]: 80x25 (current mode)
0:362  0:000   - [03]: 100x31
0:539  0:176  SetScreenResolution: 1024x768 - already set
0:539  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)\HD(1,GPT,EB4FC801-59EB-4E6D-BEA2-F9BE176DD13B,0x28,0x64000)
0:540  0:000  Using embedded font: Success
0:540  0:000  === [ GetMacAddress ] =====================================
0:540  0:000  === [ ScanSPD ] ===========================================
0:541  0:000  SMBus device : 8086 1C22 class=0C0500 status=Success
0:541  0:000  SMBus CmdReg: 0x3
0:541  0:000  Scanning SMBus [8086:1C22], mmio: 0xF7F05004, ioport: 0xF000, hostc: 0x1
0:541  0:000  Slots to scan [8]...
0:541  0:000  SPD[0]: Type 11 @0x50
0:560  0:018  DDR speed 1333MHz
0:560  0:000  Slot: 0 Type 24 4096MB 1333MHz Vendor=Kingston PartNo=99U5471-012.A00LF SerialNo=080C0208030E040C
0:560  0:000  SPD[2]: Type 11 @0x52
0:579  0:018  Bad parity bank=0x00 code=0x00
0:579  0:000  DDR speed 1333MHz
0:579  0:000  Slot: 2 Type 24 4096MB 1333MHz Vendor=NoName PartNo=9905471-006.A00LF SerialNo=06050200060C0103
0:580  0:000  === [ GetAcpiTablesList ] =================================
0:580  0:000  Get Acpi Tables List from RSDT:
0:580  0:000   - [00]: FACP  A M I len=132
0:580  0:000   - [01]: APIC  A M I len=114
0:580  0:000   - [02]: MCFG  A M I len=60
0:580  0:000   - [03]: HPET  A M I len=56
0:580  0:000   - [04]: SSDT  SataTabl len=877
0:580  0:000   - [05]: SSDT  Cpu0Ist len=2408
0:580  0:000   - [06]: SSDT  CpuPm len=2706
0:580  0:000   - [07]: BGRT  A M I len=56
0:580  0:000  Calibrated TSC Frequency = 2892704640 = 2892MHz
0:580  0:000  === [ GetUserSettings ] ===================================
0:580  0:000  USB FixOwnership: no
0:580  0:000   - final DSDT Fix mask=00000000
0:580  0:000  Using ProductName from config
0:580  0:000  ProductName: iMac14,2
0:580  0:000  Using latest BiosVersion from clover
0:580  0:000  BiosVersion: IM142.88Z.0123.B00.1708211454
0:580  0:000  BiosReleaseDate: 08/21/2017
0:580  0:000  Using FirmwareFeatures from clover
0:580  0:000  FirmwareFeatures: 0xE00FE137
0:580  0:000  Using FirmwareFeaturesMask from clover
0:580  0:000  FirmwareFeaturesMask: 0xFF1FFF3F
0:580  0:000  Using PlatformFeature from clover
0:580  0:000  PlatformFeature: 0x1
0:580  0:000  Board-ID set from config as Mac-27ADBB7B4CEE8E61
0:580  0:000  BoardType: 0xA
0:580  0:000  ChassisType: 0xD
0:587  0:006  === [ ScanVolumes ] =======================================
0:587  0:000  Found 5 volumes with blockIO
0:587  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
0:587  0:000          Found optical drive
0:587  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)
0:587  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)\HD(1,GPT,EB4FC801-59EB-4E6D-BEA2-F9BE176DD13B,0x28,0x64000)
0:588  0:000          Result of bootcode detection: bootable unknown (legacy)
0:598  0:009          This is SelfVolume !!
0:598  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)\HD(2,GPT,C774090F-C26B-4632-AC2A-F21E4387E265,0x64028,0xDDFAC40)
0:598  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)\HD(3,GPT,9137D1EA-06F8-464A-BA35-5B13B988D6F4,0xDE5EC68,0x135F20)
0:599  0:000  === [ InitTheme ] =========================================
0:599  0:000   using embedded theme
0:599  0:000  Using embedded font: Success
0:599  0:000  Choosing theme <null string>
0:600  0:000  after NVRAM boot-args=dart=0
0:600  0:000  Scanning legacy ...
0:600  0:000  === [ Dump SMC keys from NVRAM ] ==========================
0:600  0:000  found AppleSMC protocol
0:692  0:092  === [ ScanLoader ] ========================================
0:692  0:000  - [02]: 'EFI'
0:692  0:000  - [03]: 'macOS'
0:699  0:006          AddLoaderEntry for Volume Name=macOS
0:702  0:002      Check if volume Is Hibernated:
0:702  0:000      Check sleep image 'by signature':
0:716  0:014      using default sleep image name = \private\var\vm\sleepimage
0:720  0:004      sleepimage not found -> Not Found
0:720  0:000      hibernated: no - sign
0:721  0:000  Icon 17 decoded, pointer 0
0:721  0:000          [!] Icon 17: Text <internal_hfs> rendered
0:722  0:001  - [04]: 'Recovery HD'
0:723  0:001          AddLoaderEntry for Volume Name=Recovery HD
0:724  0:000  Icon 20 decoded, pointer 0
0:724  0:000          [!] Icon 20: Text <recovery> rendered
0:724  0:000  === [ AddCustomTool ] =====================================
0:724  0:000  Icon 8 decoded, pointer C288218
0:725  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
0:725  0:000  Checking EFI partition Volume 2 for Clover
0:726  0:000   Found Clover
0:726  0:000  Icon 2 decoded, pointer C288018
0:726  0:000  Icon 1 decoded, pointer C6E7998
0:726  0:000  Icon 0 decoded, pointer C6E7918
0:726  0:000  Icon 5 decoded, pointer C6E7898
0:726  0:000  Icon 6 decoded, pointer C6E7818
0:726  0:000  === [ GetEfiBootDeviceFromNvram ] =========================
0:726  0:000  Default boot entry not found
0:726  0:000  DefaultIndex=-1 and MainMenu.EntryCount=8
0:726  0:000  Icon 21 decoded, pointer C6E7718
0:747  0:020  Icon 22 decoded, pointer C6E7598
0:747  0:000  Icon 23 decoded, pointer C6E7518
0:751  0:004  Icon 11 decoded, pointer C6E7118
0:751  0:000  GUI ready
1:373  0:622  Icon 7 decoded, pointer C6E7798
22:238  20:864  Boot option Boot0000 not found
22:238  0:000  === [ StartLoader ] =======================================
22:238  0:000  Finally: ExternalClock=24MHz BusSpeed=99748kHz CPUFreq=2893MHz PIS: hw.busfrequency=96000000Hz
22:238  0:000  Loading boot.efi  status=Success
22:329  0:091  GetOSVersion: 10.12.6 (16G1036)
22:329  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS
22:329  0:000  Will not patch boot.efi
22:329  0:000  === [ PatchSmbios ] =======================================
22:329  0:000  insert table 9 for dev 0:0
22:329  0:000  insert table 9 for dev 0:1
22:329  0:000  insert table 9 for dev 0:0
22:330  0:000  Detected alternating SMBIOS channel banks
22:330  0:000  Channels: 2
22:330  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
22:330  0:000  SMBIOS Type 17 Index = 0 => 0 0:
22:330  0:000  BANK 0 DIMM0 1333MHz 4096MB
22:330  0:000  SMBIOS Type 17 Index = 1 => 1 2:
22:330  0:000  BANK 1 DIMM0 1333MHz 4096MB
22:330  0:000  mTotalSystemMemory = 8192
22:330  0:000  NumberOfMemoryDevices = 2
22:330  0:000  Type20[0]->End = 0x3FFFFF, Type17[0] = 0x1000
22:330  0:000  Type20[1]->End = 0x7FFFFF, Type17[1] = 0x3000
22:330  0:000  === [ PatchACPI ] =========================================
22:330  0:000  RSDT 0xDF396028
22:330  0:000  FADT from RSDT: 0xDF3960E8
22:330  0:000  XSDT 0xDF396078
22:330  0:000  FADT from XSDT: 0xDF3A0360
22:330  0:000  Xsdt reallocation done
22:330  0:000  old FADT length=F4
22:330  0:000  Apply DsdtFixMask=0x00000000
22:330  0:000     drop _DSM mask=0x0000
22:330  0:000  === [ FixBiosDsdt ] =======================================
22:330  0:000  VideoCard devID=0x68BA1002
22:330  0:000  DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0
22:330  0:000  USBADR[0] = 0x1A0000 and PCIe = 0xFFFE
22:606  0:275  Audio HDA (addr:0x1B0000) setting specified layout-id=1 (0x1)
22:606  0:000  USBADR[1] = 0x1D0000 and PCIe = 0xFFFE
22:606  0:000  first CPU found at 68EF offset 68F2
22:606  0:000  score candidate at 68EB
22:606  0:000  score inserted in acpi_cpu_score _PR_
22:606  0:000  Found ACPI CPU: CPU0 | CPU1 | CPU2 | CPU3 | CPU4 | CPU5 | CPU6 | CPU7 , within the score: _PR_
22:606  0:000  Found PCIROOTUID = 0
22:606  0:000  === [ ACPIDropTables ] ====================================
22:606  0:000  === [ PatchAllSSDT ] ======================================
22:606  0:000  Patch table: SSDT  SataTabl len=0x36D
22:606  0:000  Patch table: SSDT  Cpu0Ist len=0x968
22:606  0:000  Patch table: SSDT  CpuPm len=0xA92
22:606  0:000  Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
22:606  0:000   Xsdt has tables count=8
22:606  0:000  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=4
22:606  0:000  === [ RestSetup macOS ] ===================================
22:606  0:000  EdidDiscovered size=128
22:606  0:000  ------- EDID Table
22:606  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  41  0C
22:606  0:000  010  |  D0  C0  6D  C8  00  00  0B  19  01  03
22:606  0:000  020  |  80  33  1D  78  2A  DD  45  A3  55  4F
22:606  0:000  030  |  A0  27  12  50  54  BD  4B  00  D1  C0
22:606  0:000  040  |  95  00  95  0F  B3  00  81  C0  81  80
22:606  0:000  050  |  01  01  01  01  02  3A  80  18  71  38
22:606  0:000  060  |  2D  40  58  2C  45  00  FD  1E  11  00
22:606  0:000  070  |  00  1E  00  00  00  FF  00  46  58  34
22:606  0:000  080  |  31  35  31  31  30  35  31  33  30  39
22:606  0:000  090  |  00  00  00  FC  00  50  48  4C  20  32
22:606  0:000  100  |  33  33  56  35  0A  20  20  20  00  00
22:606  0:000  110  |  00  FD  00  38  4C  1E  53  11  00  0A
22:606  0:000  120  |  20  20  20  20  20  20  00  87
22:606  0:000  Framebuffer @0xE0000000  MMIO @0xF7E20000 I/O Port @0x0000E000 ROM Addr @0xF7E00000
22:606  0:000  PCI region 1 = 0x00000000, region3 = 0x00000000, region5 = 0x00000000
22:606  0:000  BIOS_0_SCRATCH=0x00000004, 1=0x000000FF, 2=0x00000000, 3=0x00000000, 4=0x00000000, 5=0x00000000, 6=0x00000000
22:606  0:000  RADEON_CRTC2_GEN_CNTL == 0x00000000
22:606  0:000   card posted because CONFIG_MEMSIZE=0x400
22:606  0:000  ATI card POSTed,
22:606  0:000  Set VRAM for Juniper =1024Mb
22:606  0:000  ATI: get_vram_size returned 0x40000000
22:606  0:000  ATI Radeon EVERGREEN+ family
22:606  0:000  Users config name Hoolock
22:606  0:000   use N ports setting from config.plist: 3
22:606  0:000  (AtiPorts) Nr of ports set to: 3
22:606  0:000  ATI Juniper ATI Radeon HD 6770 Series 1024MB (Hoolock) [1002:68BA] (subsys [1682:3156]):: PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)
22:606  0:000   setting specified layout-id=1 (0x1)
22:607  0:000  stringlength = 3290
22:607  0:000  CurrentMode: Width=1024 Height=768
22:607  0:000  Beginning FSInjection
22:607  0:000  Blocking kext caches
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: BCED298
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: BCED298
22:610  0:003  Use origin smbios table type 1 guid.
22:617  0:006  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
22:617  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12
22:617  0:000  Custom boot is disabled
22:618  0:000  Closing log
Edited by 2013alanr
MARZILLO
MARZILLO
Posted
Posted

you said:So I am alite confuse of how I should do it.



sorry....i meant patch 12.10.3....


repeat again :)



try this solution but I do not guarantee the result .... take kext of patch 12.10.3 (AMD5000Controller.kext, AMDRadeonX3000.kext)



then you  take these kext from sierra 12.10.3 o 12.10.5(  AMDRadeonX3000GLDriver.bundle, IOAccelerator2D.plugin, IOAcceleratorFamily2.kext )  replace them all in s\l\e of sierra 10.12.6 with kext wizard



 then launch command from terminal:



sudo rm -f /System/Library/Caches/com.apple.kext.caches/Startup/kernelcache && sudo touch /System/Library/Extensions && sudo kextcache -u /



restart



p.s.



be careful, your pc might not start anymore or work

Gigamaxx
Gigamaxx
Posted
Posted

I couldn't find (  AMDRadeonX3000GLDriver.bundle, IOAccelerator2D.plugin, IOAcceleratorFamily2.kext ) in my system there's nothing like it here. neither I could get it from any of those patches.



:-(



These will be in the Main Partition or main drive in System then open Library then Extensions, now scroll to these kexts.



Start by going to top tool bar and select 'Finder" then go to "Preferences" check the box next to Hard Disk.    This will show your Hard drives on the desktop and make working on things easier.



Clock on the drive icon and open folder, go to "System" then "Library" Then "Extensions" and scroll to the desired kexts that are working now in 10.12.3 or 10.12.5 and drag copies to the desktop.   Don't worry they will stay in the "Extensions" folder.    These copies can be added to your new Sierra 10.12 6 or latest version by following the same method or path and dragging them form the desktop to the 'Extensions" folder just follow the replace prompts and after adding them make sure to run Kext Wizard to repair permissions and rebuild caches BEFORE you reboot or test.





One other major consideration is the reputation of XFX graphics cards in Hackintosh.    They are known to have incompatible vbios, but if you got it working in Sierra 10.12.3 then the kext replacement method should work.

2013alanr
2013alanr
Posted
  • Author
Posted

These will be in the Main Partition or main drive in System then open Library then Extensions, now scroll to these kexts.



Start by going to top tool bar and select 'Finder" then go to "Preferences" check the box next to Hard Disk.    This will show your Hard drives on the desktop and make working on things easier.



Clock on the drive icon and open folder, go to "System" then "Library" Then "Extensions" and scroll to the desired kexts that are working now in 10.12.3 or 10.12.5 and drag copies to the desktop.   Don't worry they will stay in the "Extensions" folder.    These copies can be added to your new Sierra 10.12 6 or latest version by following the same method or path and dragging them form the desktop to the 'Extensions" folder just follow the replace prompts and after adding them make sure to run Kext Wizard to repair permissions and rebuild caches BEFORE you reboot or test.





One other major consideration is the reputation of XFX graphics cards in Hackintosh.    They are known to have incompatible vbios, but if you got it working in Sierra 10.12.3 then the kext replacement method should work.



So I finished running this tests but with no success. I did take so many prints as I could to help you guys to help me. I did reinstalled my Sierra with no update and the driver worked as you can see in my prints attached but when I update for the 10.12.6 version of Sierra it stops working :-(



When I was with Sierra with no updates the only code that was needed in my "config.plist" was the following:

<key>Graphics</key>
	<dict>
		<key>FBName</key>
		<string>Hoolock</string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<true/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
		<key>VideoPorts</key>
		<integer>3</integer>
	</dict>

without this codes it worked also but the resolution was lite strange but when I used this it was just perfect (as you can see in my prints)

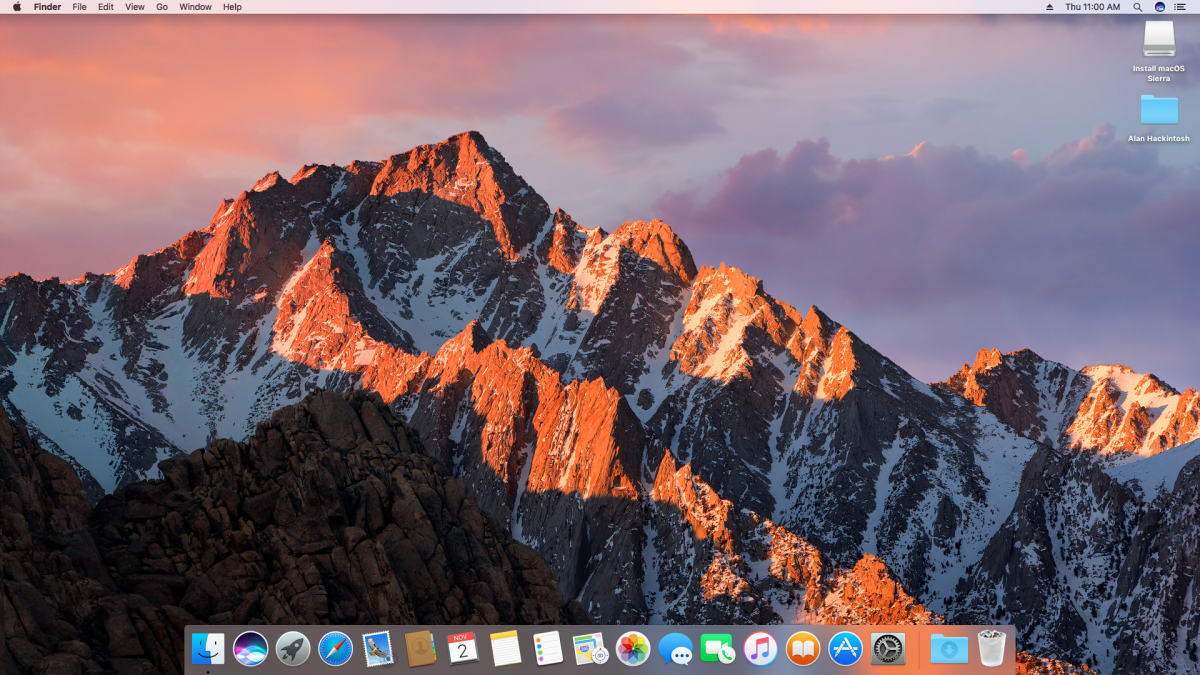

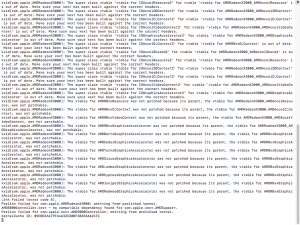

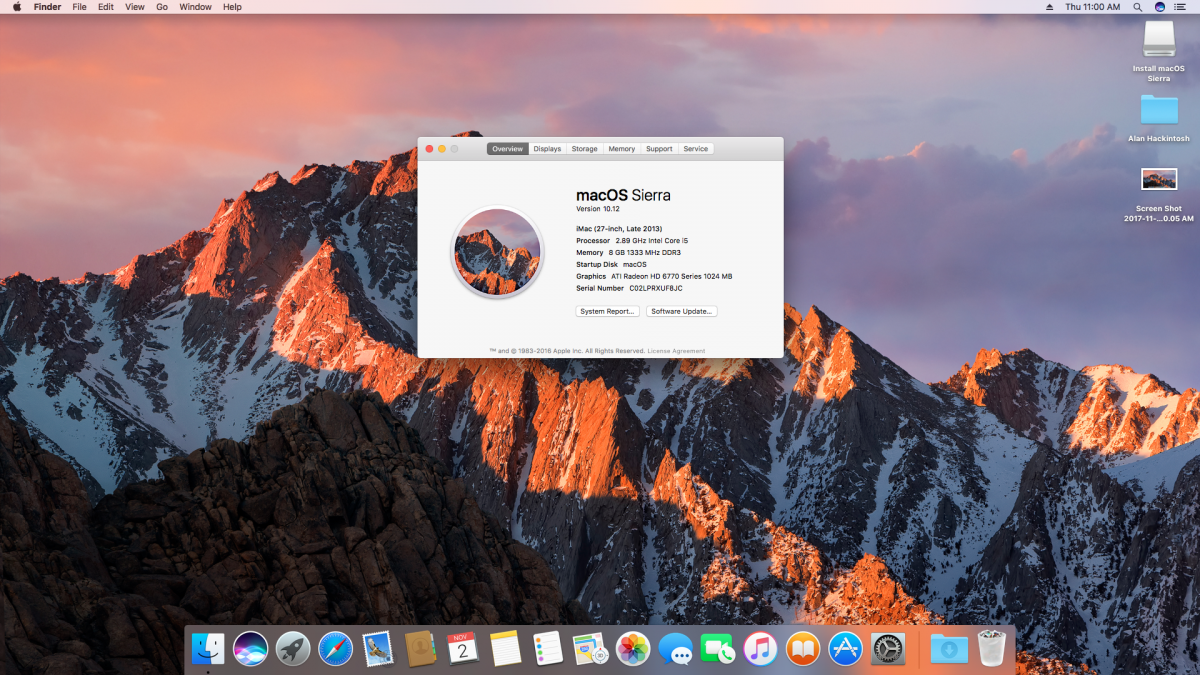

Please, see the prints that I did and try to figure out what I am doing wrong.





One more time, thank you very much for you time and afford toward helping me!
















2013alanr
2013alanr
Posted
  • Author
Posted

your efi please



Sure,



I couldn't upload it here so I did here:



 https://mega.nz/#!l7InQJpR!OPq2JYSgpqc5M73iKzCmYlxT953eQ0kDYSpcqbkqhuA



(USE THE WHOLE LINK ABOVE)



And this is my "config.plist":

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP_0001</key>
				<false/>
				<key>AddHDMI_8000000</key>
				<false/>
				<key>AddIMEI_80000</key>
				<false/>
				<key>AddMCHC_0008</key>
				<false/>
				<key>AddPNLF_1000000</key>
				<false/>
				<key>DeleteUnused_400000</key>
				<false/>
				<key>FIX_ACST_4000000</key>
				<false/>
				<key>FIX_ADP1_800000</key>
				<false/>
				<key>FIX_INTELGFX_100000</key>
				<false/>
				<key>FIX_RTC_20000</key>
				<false/>
				<key>FIX_S3D_2000000</key>
				<false/>
				<key>FakeLPC_0020</key>
				<false/>
				<key>FiX_TMR_40000</key>
				<false/>
				<key>FiX_WAK_200000</key>
				<false/>
				<key>FixAirport_4000</key>
				<false/>
				<key>FixDarwin_0002</key>
				<false/>
				<key>FixDisplay_0100</key>
				<false/>
				<key>FixFirewire_0800</key>
				<false/>
				<key>FixHDA_8000</key>
				<false/>
				<key>FixHPET_0010</key>
				<false/>
				<key>FixIDE_0200</key>
				<false/>
				<key>FixIPIC_0040</key>
				<false/>
				<key>FixLAN_2000</key>
				<false/>
				<key>FixRegions_10000000</key>
				<false/>
				<key>FixSATA_0400</key>
				<false/>
				<key>FixSBUS_0080</key>
				<false/>
				<key>FixShutdown_0004</key>
				<false/>
				<key>FixUSB_1000</key>
				<false/>
				<key>NewWay_80000000</key>
				<false/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>HaltEnabler</key>
		<false/>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>dart=0</string>
		<key>DefaultVolume</key>
		<string>macOS</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Log</key>
		<true/>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>3</integer>
		<key>XMPDetection</key>
		<string>NO</string>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>1</string>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IMEI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
		<key>UseIntelHDMI</key>
		<false/>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Hide</key>
		<array>
			<string>Windows</string>
			<string>\EFI\BOOT\BOOTX64.EFI</string>
		</array>
		<key>Language</key>
		<string>en:0</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<true/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<string>First</string>
			<key>Tool</key>
			<true/>
		</dict>
		<key>ScreenResolution</key>
		<string>1920x1080</string>
		<key>Theme</key>
		<string>embedded</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>FBName</key>
		<string>Hoolock</string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<true/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
		<key>VideoPorts</key>
		<integer>3</integer>
	</dict>

	<key>KernelAndKextPatches</key>
	<dict>
		<key>#FakeCPUID</key>
		<string>0x010676</string>
		<key>AppleRTC</key>
		<true/>
		<key>AsusAICPUPM</key>
		<true/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelHaswellE</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>External icons patch</string>
				<key>Find</key>
				<data>
				RXh0ZXJuYWw=
				</data>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>
				SW50ZXJuYWw=
				</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x3</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>09/03/2013</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>IM142.88Z.0118.B00.1309031249</string>
		<key>Board-ID</key>
		<string>Mac-27ADBB7B4CEE8E61</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>13</string>
		<key>Family</key>
		<string>iMac</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>Mobile</key>
		<false/>
		<key>ProductName</key>
		<string>iMac14,2</string>
		<key>SerialNumber</key>
		<string>C02PN3C8FLHH</string>
		<key>Trust</key>
		<false/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Detect</string>
		<key>InjectSystemID</key>
		<true/>
		<key>NvidiaWeb</key>
		<false/>
	</dict>
</dict>
</plist>
2013alanr
2013alanr
Posted
  • Author
Posted

try this

but you kext are in s\l\e\? fakesmc ecc ecc



Yes,



In (system\Library\Extensions) I have from “HD6770_QE_CI_10.12.3” ( http://www.insanelymac.com/forum/files/file/565-hd6770-qe-ci-patch/ ) kext "AMDRadeonX3000.kext and AMD5000Controller.kext) ,



from Sierra 10.12 (with no update) I have (AMDRadeonX3000GLDriver.bundle , IOAccelerator2D.plugin and  IOAcceleratorFamily2.kext)



And also "FakeSMC.kext", and I did it using kext wizard as you can see in my print.


And the efi you sended me








2013alanr
2013alanr
Posted
  • Author
Posted

ok ... i asked for fantomas help 1 ... we wait

can you restore all the original kexts in s \ l \ e 12.10.6 and only use my config? repairs the permissions from the terminal before restarting



Sure I can,



But I will have to reinstall Sierra and update it but it's fine I'm gonna do it right now..



Just one question, should I leave it without kext or just with the one that work in 10.12 (no update) or its last driver 10.12.3: http://www.insanelymac.com/forum/files/download/565-hd6770-qe-ci-patch/



?



I'm gonna start reinstalling it...

MARZILLO
MARZILLO
Posted
Posted

do so ...
install sierra 12.10.5 ..
you make a copy on the desktop of the extension folder (system \ library \ extension) .. then do the update to 12.10.6 and try my config ... if it does not work we expect the help of fantomas1 ... for now in sierra 12.10.6 keep all the original kexts

fantomas
fantomas
Posted
Posted

Hi everyone!   ^_^



@2013alanr



To be sure we're doing things properly, I suggest you (re)do a proper macOS Sierra install (10.12.6 installer) with Clover's config.plist strictly minimal essentials features for your config.



Once it is done, we'll continue.   ^_^

2013alanr
2013alanr
Posted
  • Author
Posted

Hi everyone!   ^_^



@2013alanr



To be sure we're doing things properly, I suggest you (re)do a proper macOS Sierra install (10.12.6 installer) with Clover's config.plist strictly minimal essentials features for your config.



Once it is done, we'll continue.   ^_^



I just installed Sierra (Using 10.12.0) then updated to 10.12.6.



I used the kext HD6770_QE_CI_10.12.0.zip from here: http://www.insanelymac.com/forum/files/download/565-hd6770-qe-ci-patch/

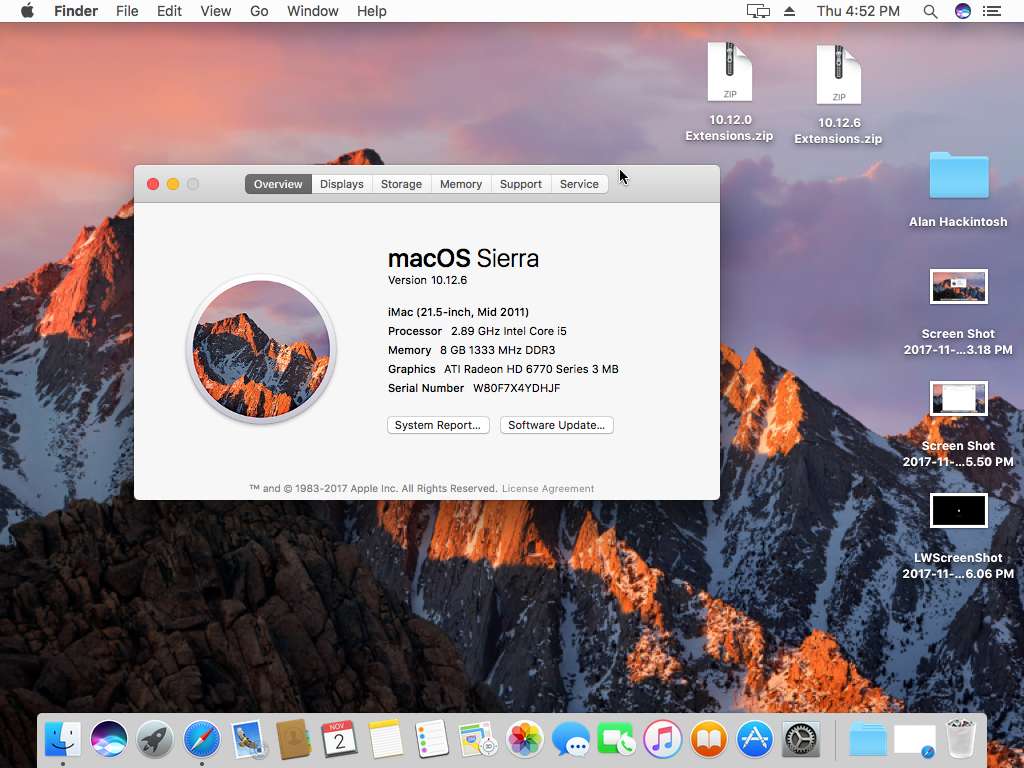

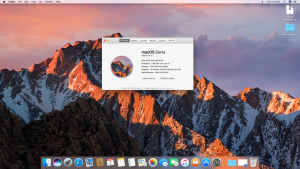

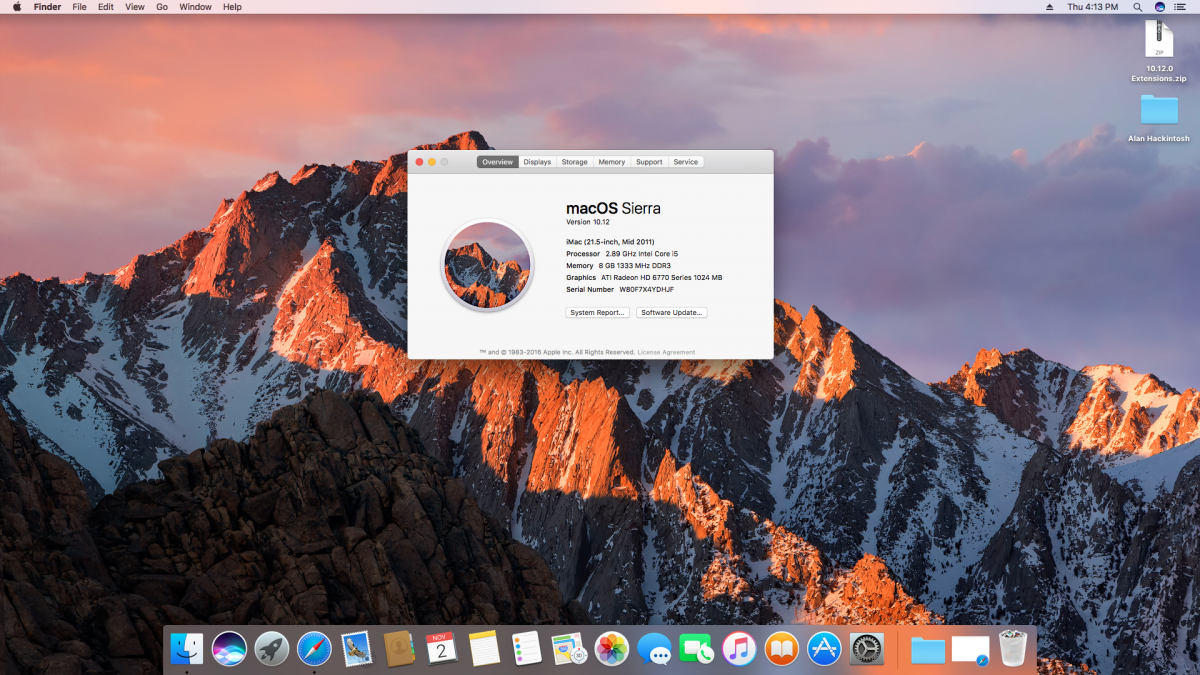

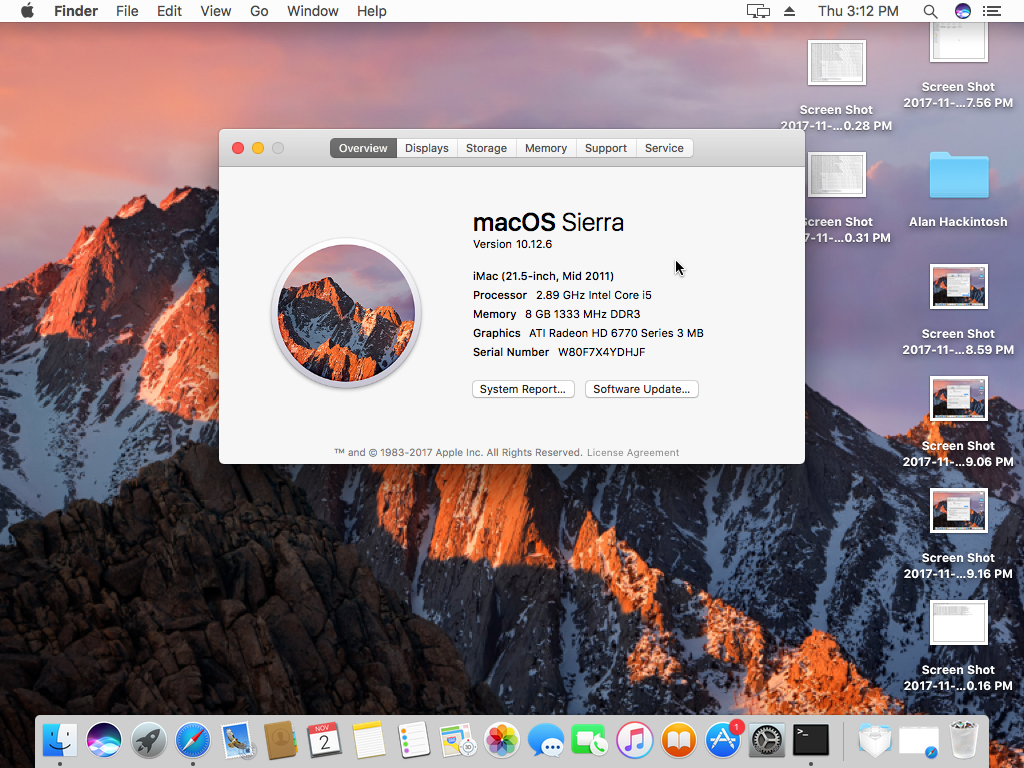

Then the graphs worked as you can see on the prints.



But then updated it and it's stoped working so I did what MARZILLO suggested but no success.



Do you think I should reinstall Sierra directly from a installer 10.12.6 so I will not need to update ?





FYI:



I'm using clover v2.4k r4268



EFI: https://mega.nz/#!5ihDwajR!zkoKO3ZS_Xg340TUsfpo06zO1x0RnFr3_xolo58SONg



Thank you :-)





 Share
Go to topic listing
×
×
  • Create New...
