Meowthra

Qualcomm Atheros AR9565 Wireless for OS X 10.8 - 10.14

30 posts in this topic

Recommended Posts

Atheros AR9565 Wireless for OS X  10.8.x/10.9.x / 10.10.x / 10.12.6/10.13.6/10.14



# Install Atheros AR9565 Driver for MacOS  10.8 - 10.14

curl -O https://raw.githubusercontent.com/kalifans/Darwin/Driver/ar956x-drv-osx.tar.gz
tar zxvf ar956x-drv-osx.tar.gz
cd ar956x-drv-osx
./ar956x-inst.sh



Reboot





Preview























Edited by Meowthra

Share this post


Link to post
Share on other sites
Advertisement
On 1/23/2019 at 9:31 AM, Meowthra said:








Dear Meowthra



ATHREOS AR 956x worked perfectly,

I installed kext in S/L/E  Bluetooth not working any solution ?

Edited by majoract100

Share this post


Link to post
Share on other sites
Posted (edited)
On 2/22/2019 at 7:53 AM, majoract100 said:

Bluetooth not working any solution

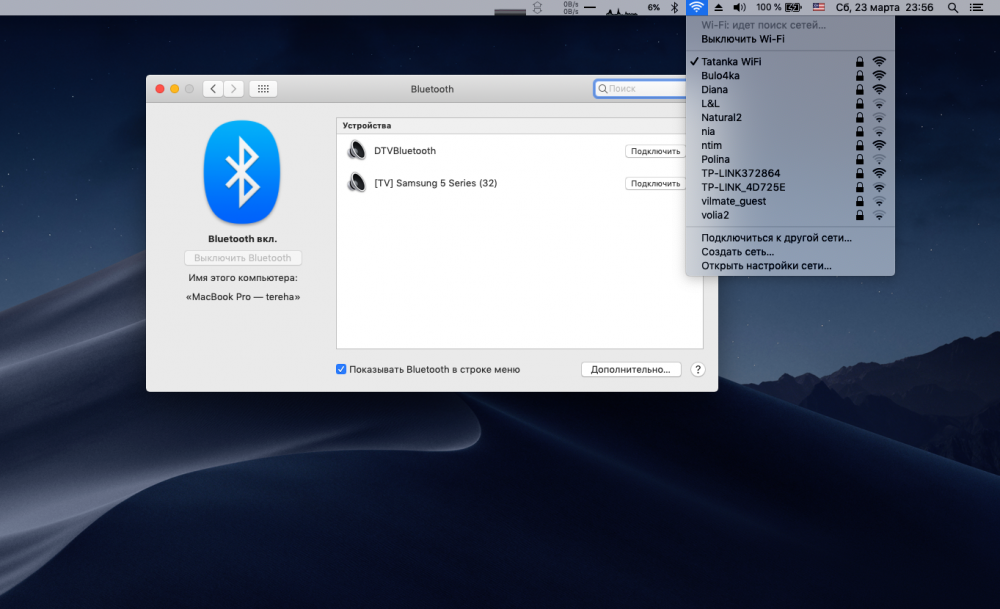

For Bluetooth I use this kexts, just put they to /EFI/CLOVER/kexts/Other/ directory (unzip they before)

BrcmFirmwareRepo.kext.zip

BrcmPatchRAM2.kext.zip



Integrated bluetooth device found other devices but I didn't try to connect they.


Edited by Tatanka

Share this post


Link to post
Share on other sites
On 3/23/2019 at 5:51 PM, Tatanka said:

For Bluetooth I use this kexts, just put they to /EFI/CLOVER/kexts/Other/ directory (unzip they before)

BrcmFirmwareRepo.kext.zip

BrcmPatchRAM2.kext.zip



Integrated bluetooth device found other devices but I didn't try to connect they.


Could not find other devices (not discoverable) using Brcm kexts in Clover.  WiFi works very well.

Share this post


Link to post
Share on other sites

I can't get the bluetooth to work - the "turn off" button is greyed out, and while it says it's scanning, no devices show up and the device isn't discoverable itself. Any ideas?

Share this post


Link to post
Share on other sites
On 2/18/2019 at 7:57 PM, majoract100 said:

Excellent Work for me with your kext thanks Meowthra :thumbsup_anim:

Screen Shot 2019-02-18 at 10.51.45 PM.png

Wich kext did u use and which version of osx?

because I have exactly the same card and never get it worked

Share this post


Link to post
Share on other sites

thank you @Meowthra so much for the work done, it works great on mojave 10.14.6, what do you think about catalina?

Share this post


Link to post
Share on other sites
Posted (edited)

Thanks for the script!

Based on your script made mini GUI application (in Russian): https://vk.com/wall-135785821_1712

Also, I noticed that it is better to run the KextUtility program after running the script, so that the cache is rebuilt for sure.



P.S. the speed Limit is 11 Mb, I have not noticed, I have speedtest gave 24 Mbps for download and upload.



https://www.speedtest.net/result/8522447498



P. P. S.


Tried just AirPortAtheros40.kext (AR9565.10.13.v21)throw in /Other, rebuild cache and restart Hackintosh - WiFi is not working. Similarly, only threw a text in KextUtility.
Tried already working IO80211Family.kext (inside of which / Plugins contains AirPortAtheros40.kext) throw in /Other (in /S/L/E lay not patched), rebuilt the cache, restarted the Hackintosh, but WiFi was also not recognized. In config.plist parameter InjectKexts=Yes. It's weird, I thought Clover kext from /Other would put "on top" of that kext that in /S/L/E.

Edited by Drovosek

Share this post


Link to post
Share on other sites
kxld[com.apple.driver.AirPort.Atheros40]: The vtable 'vtable for AirPort_AtherosNewma40' is malformed. Make sure your kext has been built against the correct headers.
kxld[com.apple.driver.AirPort.Atheros40]: The vtable 'vtable for AtherosNewma40P2PInterface' is malformed. Make sure your kext has been built against the correct headers.
kxld[com.apple.driver.AirPort.Atheros40]: The vtable 'vtable for AirPort_AtherosNewma40' is malformed. Make sure your kext has been built against the correct headers.
kxld[com.apple.driver.AirPort.Atheros40]: The vtable 'vtable for AtherosNewma40P2PInterface' is malformed. Make sure your kext has been built against the correct headers.
Link failed (error code 5).
Prelink failed for com.apple.driver.AirPort.Atheros40; omitting from prelinked kernel.

I tried using the Mojave kext in Catalina, but no dice. Any plans to support Catalina?
