wesleycguirra

Intel HD5500 Sierra doesn't boot when check inject intel

9 posts in this topic

Recommended Posts

Hi all,



I'm doing a mackintosh in a EliteBook 840 G2.



it has an Intel HD 5500 Graphics Card.

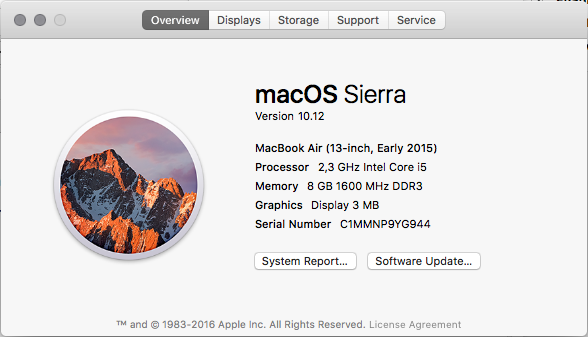

and I can't figure out how to make it work properly, when I check Inject intel on clover I get this loop below, it keep looping over these two different lines:

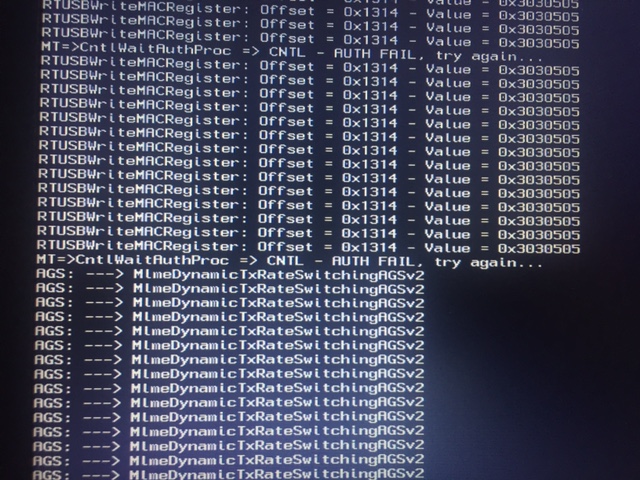

RTUSBWriteMACRegister: Offset = 0x1314 - Value 0x3030505
...
AGS: ---> MlmeDynamicTxRateSwitchingAGSv2
...
RTUSBWriteMACRegister: Offset = 0x1314 - Value 0x3030505
...
AGS: ---> MlmeDynamicTxRateSwitchingAGSv2




here is my CLOVER folder with my current config.plist:

CLOVER.zip



if someone can help me with this I'll be so glad.

Share this post


Link to post
Share on other sites
Advertisement

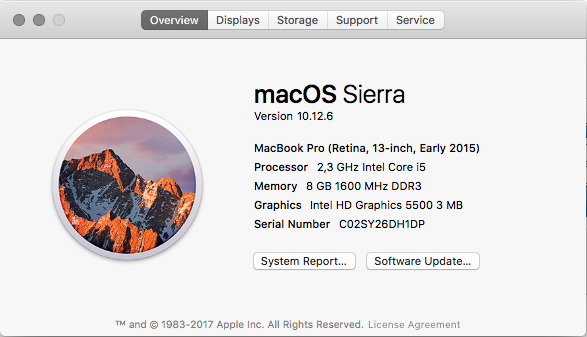

I've changed the ig-platform-id to 0x16160006 and now the system boots with Inject Intel but still not video acceleration.






some can help with this?

Share this post


Link to post
Share on other sites

I've changed the ig-platform-id to 0x16160006 and now the system boots with Inject Intel but still not video acceleration.



attachicon.gifScreen Shot 2017-09-22 at 11.18.46.png



some can help with this?

Hi, try using ig-platform-id=0x16160002. Delete .dsl files in acpi/patched as they are useless. kext-dev-mode=1 hasn't been used since El Capitan.

Run IORegistryExplorer. Go to File -> Save As... and attach the file created.

IORegistryExplorer.zip

Share this post


Link to post
Share on other sites

Hi, try using ig-platform-id=0x16160002. Delete .dsl files in acpi/patched as they are useless. kext-dev-mode=1 hasn't been used since El Capitan.

Run IORegistryExplorer. Go to File -> Save As... and attach the file created.





Hey, thanks for reply!



I'm using ig-platform-id=0x16160006, the system doesn't boot with 0x16160002, I deleted .dsl and removed kext-dev-mode,



here is the file that you request:

Wesley’s MacBook Pro.zip

My DVMT is already on 512mb so I guess that I don't need to apply patch for prealloc is it right?

Share this post


Link to post
Share on other sites

Hey, thanks for reply!



I'm using ig-platform-id=0x16160006, the system doesn't boot with 0x16160002, I deleted .dsl and removed kext-dev-mode,



here is the file that you request:

attachicon.gifWesley’s MacBook Pro.zip

My DVMT is already on 512mb so I guess that I don't need to apply patch for prealloc is it right?

Yeah, you need to apply it only if you cannot change the dvmt in bios settings.

From your ioreg, it seems the broadwell's framebuffer is not loaded.

Try to take a look at this guide, as i don't know any other way to help you: http://www.insanelymac.com/forum/topic/305710-guide-intel-hd-graphics-5500-on-os-x-yosemite-10103/

Share this post


Link to post
Share on other sites

Yeah, you need to apply it only if you cannot change the dvmt in bios settings.

From your ioreg, it seems the broadwell's framebuffer is not loaded.

Try to take a look at this guide, as i don't know any other way to help you: http://www.insanelymac.com/forum/topic/305710-guide-intel-hd-graphics-5500-on-os-x-yosemite-10103/



I'm trying to solve this by two days.



Doesn't what more I can do.

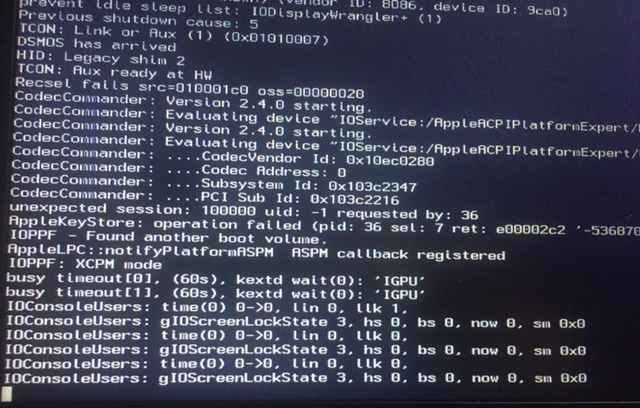

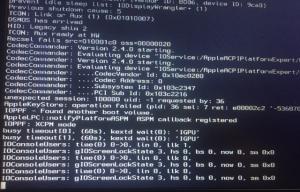

when set ig-platform-id=0x16160002 the last text that I see is this:

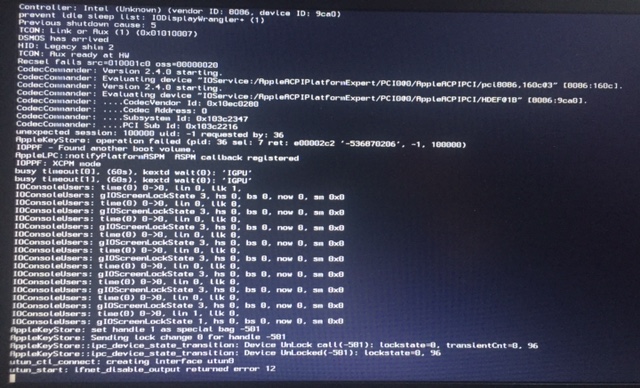

then I type my user password and screen is updated:




There's a way to I know why the Broadwell's Framebuffer isn't loading?



I've read the guide that you provided but no clarification of how can I solve this.

Share this post


Link to post
Share on other sites

There's a way to I know why the Broadwell's Framebuffer isn't loading?

Check IORegistryExplorer, under IGPU.

Another way is to look at About This Mac -> System Report -> Graphics/Displays



Share this post


Link to post
Share on other sites

Check IORegistryExplorer, under IGPU.

Another way is to look at About This Mac -> System Report -> Graphics/Displays

 so, I see but what should be loaded "AppleIntelAzulController"?

Share this post


Link to post
Share on other sites
