Cyberdevs Posted September 20, 2017 Share Posted September 20, 2017 ok can you enable those patches and reboot and then send me another file? You need to send me two different files as well, I need you to plug a USB device in each USB port available and send me another IOReg file so I can map your USB 3.0 ports and create a custom SSDT for the USB ports. Link to comment Share on other sites More sharing options...
jisnight Posted September 20, 2017 Author Share Posted September 20, 2017 Do i need to plug working stuff? (usb2 devices everywhere?) Link to comment Share on other sites More sharing options...
Cyberdevs Posted September 20, 2017 Share Posted September 20, 2017 Do i need to plug working stuff? (usb2 devices everywhere?) It's better to plug a USB device in the USB 2.0 port and a USB 3.0 device in the USB 3.0 port, but if that's not possible you can plug as many as you can so I can see which ports are active to create the SSDT. Link to comment Share on other sites More sharing options...
jisnight Posted September 20, 2017 Author Share Posted September 20, 2017 I think this is ok: MHMs iMac2.zip On USB2 ports: Apple keyb, mouse, PS4 controler (all usb 2 stuff) On usb 3 ports: Adata usb flash drive (usb 2), Seagate hard drive (usb3), and samsung hard drive (usb2) Nothing connected to the keyboard usb ports (never used them, and no more stuff to connect lol!) ps: and the two lines are enabled in clover configurator. Link to comment Share on other sites More sharing options...
Cyberdevs Posted September 20, 2017 Share Posted September 20, 2017 I see those devices are connected, Do you have USB header ports on your case or you just have the back panel ports? according to the manual of your mainboard you have 5 USB ports on the back panel 2xUSB 2.0 ports, 2 USB 3.0 ports and 1 USB Type-C. I see 5 USB devices on 4 ports, Unless you are using USB ports on your Apple Keyboard?? Link to comment Share on other sites More sharing options...
jisnight Posted September 20, 2017 Author Share Posted September 20, 2017 Oh no, the PS4 controller and samsung drive are on front panel. i don't use the usb-c port, i have nothing to plug in :/ Here is a recap: On USB2 ports (mainboard)(2slots): Apple keyb, mouse (all usb 2 stuff) On usb 3 ports (mzinboard)(2slots): Adata usb flash drive (usb 2), Seagate hard drive (usb3) On USB2 ports (front panel)(1 slot): PS4 controler (all usb 2 stuff) On usb 3 ports (front panel)(1 slot): samsung hard drive (usb2) on keyboard USB 2 ports (2slots): nothing on mainboard usb-c (1 slot): Nothing Do you need me to unplug stuff on front panel ports? Link to comment Share on other sites More sharing options...
Cyberdevs Posted September 20, 2017 Share Posted September 20, 2017 can you plug something in the keyboard usb hubs as well? I need all the ports available to be occupied, except the USB Type C which you have no compatible device for. Link to comment Share on other sites More sharing options...
jisnight Posted September 20, 2017 Author Share Posted September 20, 2017 I connected my phone and an old hp bluetooth adapter i've found on keyboard usb ports. MHMs iMac3.zip I don't know if keyboard ports are usb2 or usb1. It's a very old mac keyboard i bought long time ago for a macpro i needed to use for work. Felt in love with this keyboard, and never changed since Link to comment Share on other sites More sharing options...

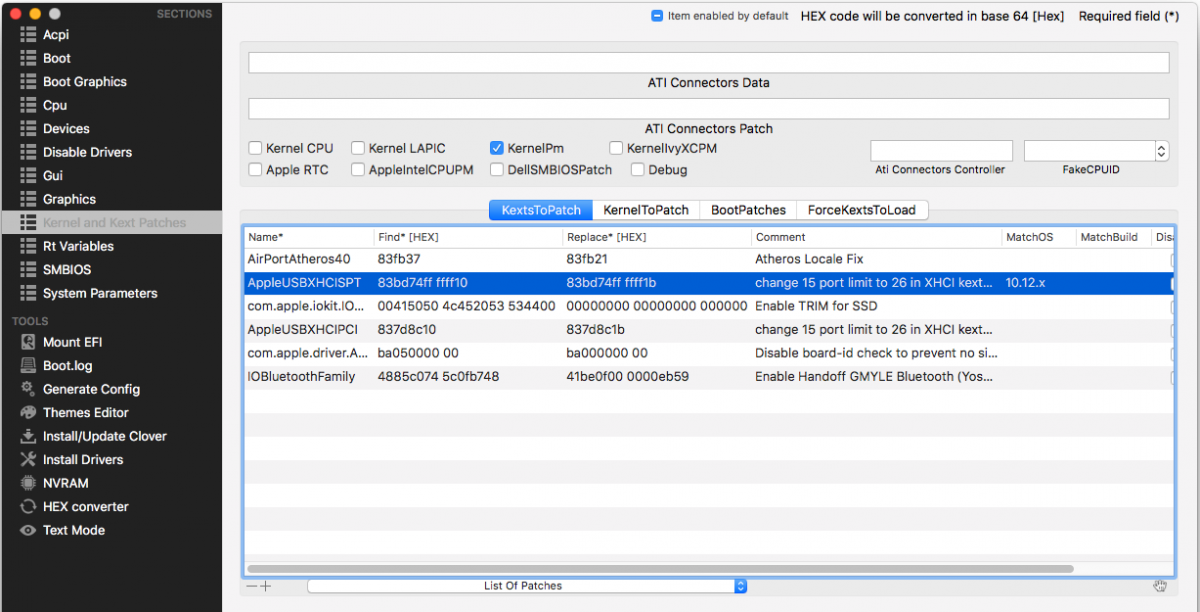

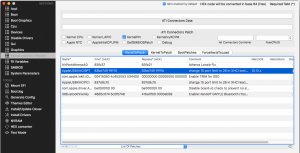

Cyberdevs Posted September 20, 2017 Share Posted September 20, 2017 Your Bluetooth and I phone don't show the XHCI ports, The seagate USB 3.0 isn't working. Before we go any further add this path in the config.plist Name: AppleUSBXHCISPT Find: 83bd74ff ffff10 Replace: 83bd74ff ffff1b Comment: change 15 port limit to 26 in XHCI kext and see if it makes a difference you can also add the SSDT-UIAC inside /efi/clover/acpi/patched and reboot. SSDT-UIAC.zip Link to comment Share on other sites More sharing options...
jisnight Posted September 20, 2017 Author Share Posted September 20, 2017 The seagate usb 3 still not working (on usb 3 port) :_( I did both things (config.plist and SSDT) Link to comment Share on other sites More sharing options...
Cyberdevs Posted September 20, 2017 Share Posted September 20, 2017 send me you efi folder that you are currently using, remove the "Apple" folder we don't need it. Link to comment Share on other sites More sharing options...
jisnight Posted September 20, 2017 Author Share Posted September 20, 2017 lol ^^ EFI.zip Link to comment Share on other sites More sharing options...
Cyberdevs Posted September 20, 2017 Share Posted September 20, 2017 is xhci hand off enabled in your BIOS? Link to comment Share on other sites More sharing options...
jisnight Posted September 20, 2017 Author Share Posted September 20, 2017 Yes edit: oh... ehhhh maybe yes maybe no! I think that EHCI hand off is enabled, and i never found the xhci option. Link to comment Share on other sites More sharing options...
Cyberdevs Posted September 20, 2017 Share Posted September 20, 2017 well, that's a little bit weird, I have an old Asus rig which I use for testing, and without any patches or even without the a custom-SSDT all my USB 2.0 and 3.0 ports are working, Just with the USBInjectAll.kext and the kext patches. It has Intel USB 3.0 chipset, although it has an intel H77 Series Chipset and you have an Intel Z270 Series chipset. So we might be doing something wrong. Besides I used the same folder on an ASUS Prime Z270-A and all the USB 3.0 ports were functional. So I suggest you take another look on your BIOS Settings and make sure all the USB related settings are correct. I just tested this folder and it works. Give it a try. Before you do make a copy of your working EFI folder and then try to boot your system with this one. Let me know. EFI.zip Link to comment Share on other sites More sharing options...
jisnight Posted September 20, 2017 Author Share Posted September 20, 2017 Ok i'll first take a look to my bios settings one more time, and then try your efi folder. My bad, i was going to write but i've seen my mistake: i have this: Legacy USB support: enabled XHCI Hand-off: Enabled and in sub menu "usb single port control" everything is enabled. I was 100% sure that i've seen EHCI and not XHCI .... anyway it is enabled Link to comment Share on other sites More sharing options...
jisnight Posted September 21, 2017 Author Share Posted September 21, 2017 Sorry for the late reply, i've been busy with children yesterday. I've just tried the EFI folder you posted, and it looks like it's working. It didn't on the first boot, but changing the efi folder disabled the nvidia driver. I enabled it and rebooted and then my hard drive worked on USB3 ports. Everything seems to run smoothly, excepted some "bugs", for example when coming back from sleep mode, the hackintosh is running verrrrryyyyyy low for a couple of minutes. But this is not really a problem. Thank you so much for your precious help, I would have never been able to make it without you! It is such a pleasure to find dedicated people like you around the web! 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted September 21, 2017 Share Posted September 21, 2017 Sorry for the late reply, i've been busy with children yesterday. I've just tried the EFI folder you posted, and it looks like it's working. It didn't on the first boot, but changing the efi folder disabled the nvidia driver. I enabled it and rebooted and then my hard drive worked on USB3 ports. Everything seems to run smoothly, excepted some "bugs", for example when coming back from sleep mode, the hackintosh is running verrrrryyyyyy low for a couple of minutes. But this is not really a problem. Thank you so much for your precious help, I would have never been able to make it without you! It is such a pleasure to find dedicated people like you around the web! I'm glad that I was able to help you sort things out with your new hackintosh There is a link in my signature nvram, kext cache cleaner and prelinkedkernel rebuild, run it and once it's done reboot the computer and see if that solves the sleep problem. And thanks for your kind words Cheers! Link to comment Share on other sites More sharing options...
jisnight Posted September 21, 2017 Author Share Posted September 21, 2017 I will give it a try. Just a little problem, when i enable nvidia web drivers and reboot, it's going back to osx driver. If i understood correctly what we have done until now, i must open config.plist and add the nvda_drv=1 flag? Link to comment Share on other sites More sharing options...
Cyberdevs Posted September 21, 2017 Share Posted September 21, 2017 I will give it a try. Just a little problem, when i enable nvidia web drivers and reboot, it's going back to osx driver. If i understood correctly what we have done until now, i must open config.plist and add the nvda_drv=1 flag? it appears that the nvda_drv=1 is deprecated in macOS Sierra, but you can give it a try and if it didn't work install RC-Scripts using clover installer. Link to comment Share on other sites More sharing options...
jisnight Posted September 21, 2017 Author Share Posted September 21, 2017 Nvda flag didn't worked. I can't select "rc script" only on clover installer, will it erase my actual efi folder? Link to comment Share on other sites More sharing options...
Cyberdevs Posted September 21, 2017 Share Posted September 21, 2017 Nvda flag didn't worked. I can't select "rc script" only on clover installer, will it erase my actual efi folder? You can update the existing clover using the installer, if you don't change the anything it will only update the bootloader and the things you select. Just to stay safe make a backup of your existing EFI folder just in case. Select the drive that you installed macOS Sierra onto The following items must be selected: 1. Install for UEFI booting only 2. Install Clover in the ESP 3. Drivers64 UEFI 1. EmuVaraiableUEFI.efi 2. OsxAptioFixDrv-64 4. Install RC scripts on the target volume Click install and reboot. Here is the latest version of clover. Clover_v2.4k_r4214.pkg.zip Link to comment Share on other sites More sharing options...
jisnight Posted September 21, 2017 Author Share Posted September 21, 2017 awesome!! Fully working i'll make a full backup of this installation. Just in case... lol Thanks a lot again!!! I'll put a picture of you on the desk! Link to comment Share on other sites More sharing options...
Cyberdevs Posted September 21, 2017 Share Posted September 21, 2017 That's awesome Enjoy your hackintosh Link to comment Share on other sites More sharing options...
