patrnap Posted September 1, 2017 Share Posted September 1, 2017 My mac os not find HDMI audio, how resolve it?I have tried with voodooHDA and not work, my gpu is r9 270x Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/ Share on other sites More sharing options...
ydeng Posted September 1, 2017 Share Posted September 1, 2017 My mac os not find HDMI audio, how resolve it? I have tried with voodooHDA and not work, my gpu is r9 270x Try Attached HDMIAudio.kext HDMIAudio-1.0.dmg.zip Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2488477 Share on other sites More sharing options...
patrnap Posted September 2, 2017 Author Share Posted September 2, 2017 Try Attached HDMIAudio.kext Not work bro Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2488973 Share on other sites More sharing options...
ydeng Posted September 2, 2017 Share Posted September 2, 2017 Not work bro There's a newer version, here. Hope it works for you. https://forums.macrumors.com/threads/guide-hdmi-audio.1499797/page-15#post-21599093 Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2489074 Share on other sites More sharing options...
patrnap Posted September 3, 2017 Author Share Posted September 3, 2017 Not work Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2489255 Share on other sites More sharing options...
patrnap Posted September 3, 2017 Author Share Posted September 3, 2017 codec?How find codec? Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2489317 Share on other sites More sharing options...
patrnap Posted September 3, 2017 Author Share Posted September 3, 2017 In clover audio tuning find the ati capa Verde controller HDMI Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2489335 Share on other sites More sharing options...
patrnap Posted September 3, 2017 Author Share Posted September 3, 2017 The motherboard have realtek alc1220 codec but the HDMI is connected to gpu Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2489407 Share on other sites More sharing options...
ydeng Posted September 3, 2017 Share Posted September 3, 2017 Not work make sure you do this after copy the kext. sudo touch /System/Library/Extensions && sudo kextcache -u / Not work It stopped working for me but when I rebuilt kext cache it worked. This card is R9 280x. Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2489446 Share on other sites More sharing options...

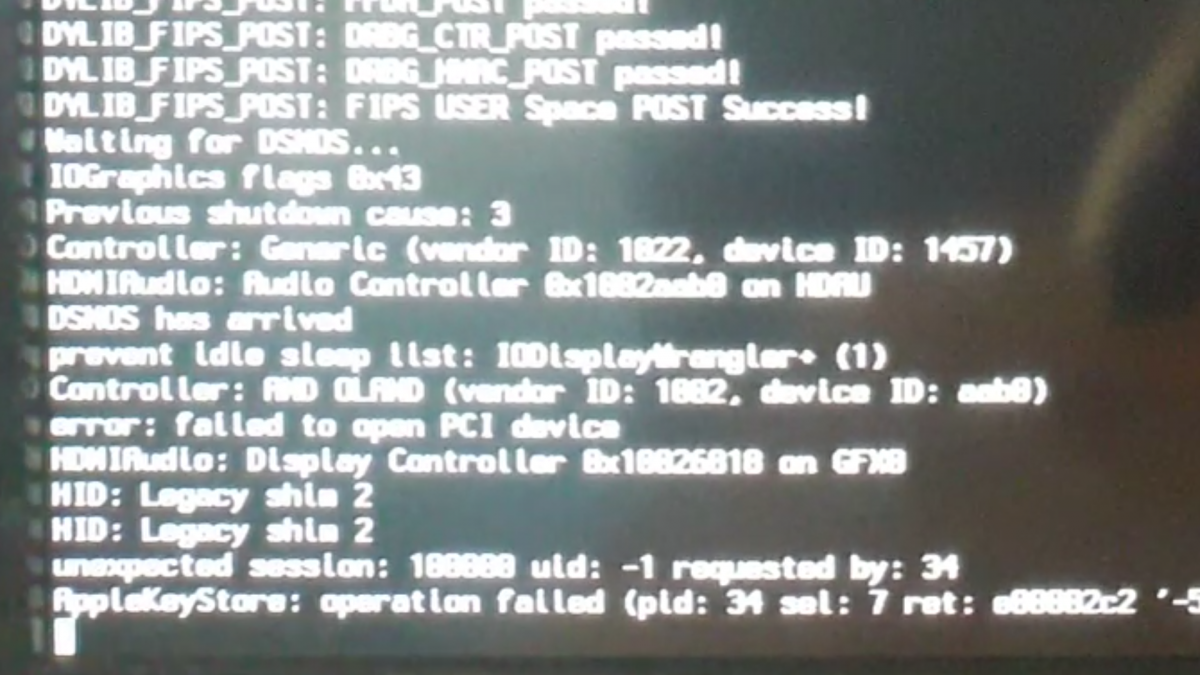

patrnap Posted September 4, 2017 Author Share Posted September 4, 2017 when turn on the pc show this (Amd oland is the hdmi audio output)... HDMIAudio not work Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2489605 Share on other sites More sharing options...

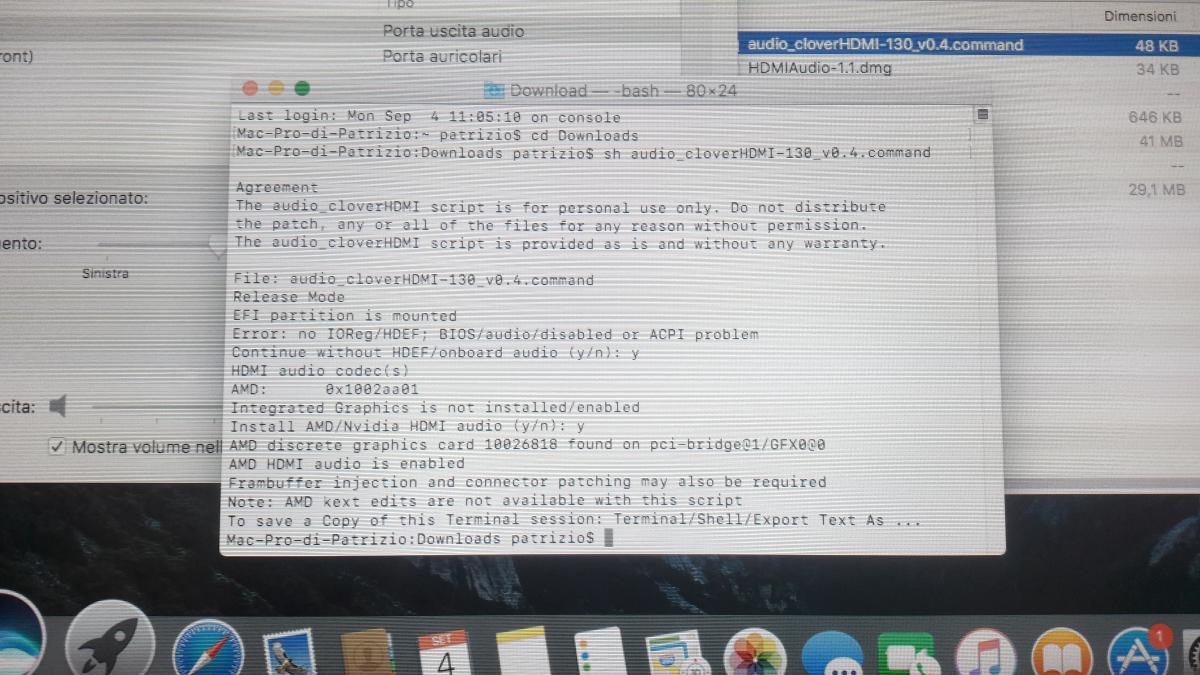

patrnap Posted September 4, 2017 Author Share Posted September 4, 2017 when turn on the pc show this (Amd oland is the hdmi audio output)... HDMIAudio not work I have tried toleda cloverHDMI command and this is the output Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2489612 Share on other sites More sharing options...
ydeng Posted September 4, 2017 Share Posted September 4, 2017 I have tried toleda cloverHDMI command and this is the output15045164214481666367838.jpg Strange, you should get sound assertion from HDAController right after HDMIAudio loaded, like below. HDMIAudio: Audio Controller 0x1002aaa0 on pci1002,aaa0 HDMIAudio: Audio Controller 0x10024383 on SBAZ Sound assertion in AppleHDAController at line 946 But you seem to get pci device error. Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2489734 Share on other sites More sharing options...
patrnap Posted September 4, 2017 Author Share Posted September 4, 2017 How resolve? I use the Futomaki framebuffer and fake Id 0x68181002 Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2489735 Share on other sites More sharing options...
Gigamaxx Posted September 4, 2017 Share Posted September 4, 2017 How resolve? I use the Futomaki framebuffer and fake Id 0x68181002 Did you try 0x68101002? Also, maybe Hamachi frame buffer? Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2489828 Share on other sites More sharing options...
patrnap Posted September 5, 2017 Author Share Posted September 5, 2017 Did you try 0x68101002? Also, maybe Hamachi frame buffer? I have tried and not work Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2489920 Share on other sites More sharing options...
toleda Posted September 6, 2017 Share Posted September 6, 2017 I have tried toleda cloverHDMI command and this is the output\ Motherboard? Cannot run cloverHDMI with HDMIAudio.kext installed. Remove HDMIAudio.kext. Restart. Run cloverHDMI Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2490244 Share on other sites More sharing options...

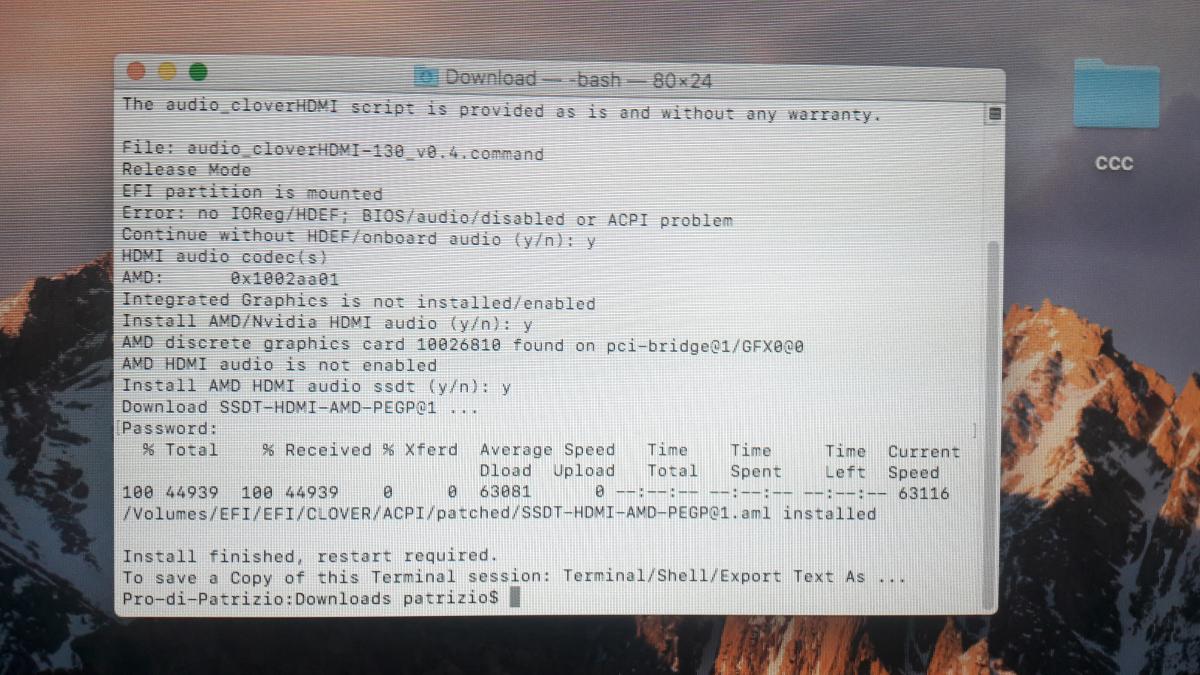

patrnap Posted September 6, 2017 Author Share Posted September 6, 2017 I have removed HDMIAudio.kext and show this but non work HDMI audio Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2490344 Share on other sites More sharing options...
toleda Posted September 6, 2017 Share Posted September 6, 2017 non work HDMI audio 2nd request, motherboard. Attach IOReg. Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2490676 Share on other sites More sharing options...
patrnap Posted September 6, 2017 Author Share Posted September 6, 2017 2nd request, motherboard. Attach IOReg. Mobo is gigabyte ab350 gaming 3. How attach IOReg? Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2490682 Share on other sites More sharing options...
ydeng Posted September 6, 2017 Share Posted September 6, 2017 Mobo is gigabyte ab350 gaming 3. How attach IOReg? AMD motherboard? HDMIAudio.kext is the best bet. I tried all of the DSDT, HDA patches, none of them work. How resolve? I use the Futomaki framebuffer and fake Id 0x68181002 If video works with default Radeonframebuffer, HDMIAudio.kext might work. 1 Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2490685 Share on other sites More sharing options...
patrnap Posted September 6, 2017 Author Share Posted September 6, 2017 AMD motherboard? HDMIAudio.kext is the best bet. I tried all of the DSDT, HDA patches, none of them work. If video works with default Radeonframebuffer, HDMIAudio.kext might work. Need to set fakeID 0x68181002 and set Radeonframebuffer? Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2490691 Share on other sites More sharing options...
ydeng Posted September 6, 2017 Share Posted September 6, 2017 Need to set fakeID 0x68181002 and set Radeonframebuffer? Set GraphicsEnabler to No if you use Enoch. Likewise with Clover. I don't know if you need to fake pci id. People say 270x works out of the box, http://www.insanelymac.com/forum/topic/305543-does-the-r9-270x-work-on-yosemite-10103/?p=2126955 Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2490703 Share on other sites More sharing options...
toleda Posted September 6, 2017 Share Posted September 6, 2017 How attach IOReg? IORegistryExplorer (select View Raw) Double click IORegistryExplorer/File/Save a Copy As ... Compress copy Attach copy.zip Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2490713 Share on other sites More sharing options...
patrnap Posted September 7, 2017 Author Share Posted September 7, 2017 IORegistryExplorer (select View Raw) Double click IORegistryExplorer/File/Save a Copy As ... Compress copy Attach copy.zip In the zip there are IORegistry copy and the config.plist file Set GraphicsEnabler to No if you use Enoch. Likewise with Clover. I don't know if you need to fake pci id. People say 270x works out of the box, http://www.insanelymac.com/forum/topic/305543-does-the-r9-270x-work-on-yosemite-10103/?p=2126955 not work for me IORegistry and config.zip Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2490850 Share on other sites More sharing options...
toleda Posted September 7, 2017 Share Posted September 7, 2017 IORegistry copy and the config.plist file ssdt is working. edit: not working, see Post #27 Two choices (select one choice, remove before trying other choice): 1. remove config.plist/Graphics/FBName/Futomaki, save, restart 2. edit Futomaki famebuffer per this guide Case_Studies]_AMD-HD7xxx_HDMI_Audio_v3.pdf.zip (try Dashmaki or adapt guide to Futomaki, steps are the same), save, restart edited Quote Link to comment https://www.insanelymac.com/forum/topic/326735-hdmi-audio-not-work/#findComment-2491033 Share on other sites More sharing options...
