thefiredragon Posted July 21, 2017 Share Posted July 21, 2017 Hey there, I'm running into a little problem, perhaps here can someone help me.I'm trying to patch my ACPI Tables.So over clover it's to complicate for me to determinate which one are copies and which one not.I had copied my tables from ubuntu to use this for disassembly and patching. For disassembly I had use the refs.txt and got syntax errors on my ssdt table 5. I had try to delete the are where the errors are and copied the files to my patched folder from clover and ticked "drop gem" But it's not working. On the copied tables from ubuntu which is named "dynamic" with the tables SSDT13 - 15 which I had not used. Perhaps here someone could help me?Are there some tips how I can check my extracted files from clover which are copies ? The file sizes are not equal so I could see this by checking this. Thanks Dan disassemble.zip Link to comment https://www.insanelymac.com/forum/topic/325504-yoga-dsdt-ssdt-fixes/ Share on other sites More sharing options...

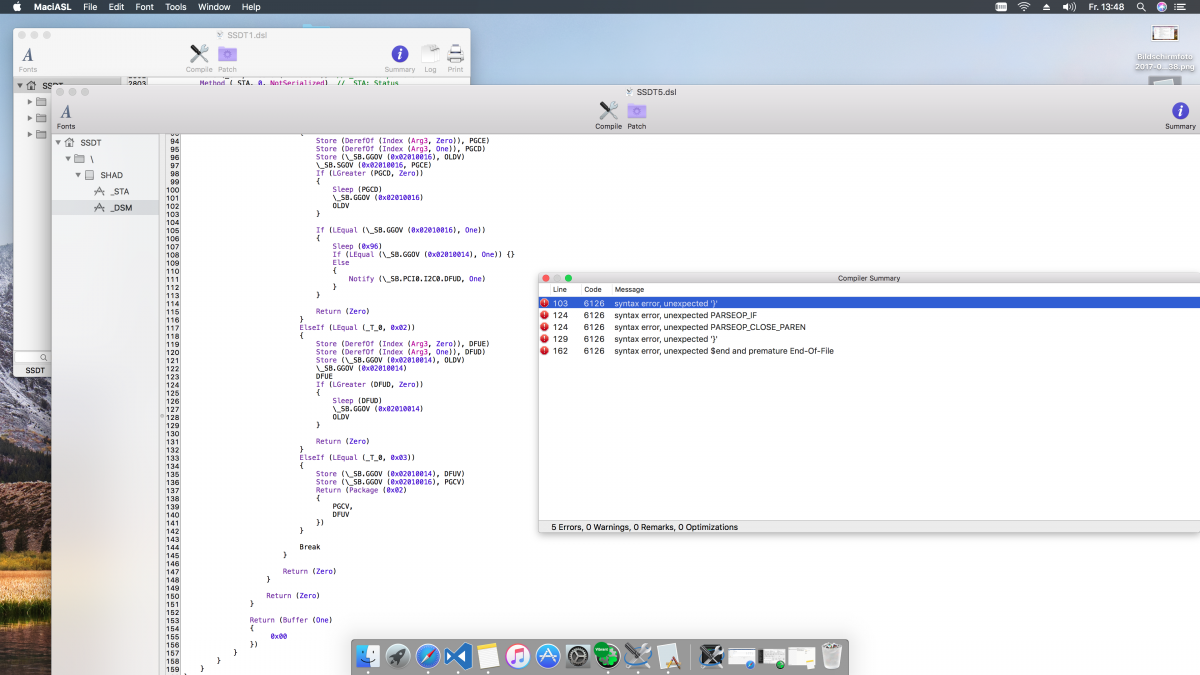

mnfesq Posted July 21, 2017 Share Posted July 21, 2017 Hey there, I'm running into a little problem, perhaps here can someone help me. I'm trying to patch my ACPI Tables. So over clover it's to complicate for me to determinate which one are copies and which one not. I had copied my tables from ubuntu to use this for disassembly and patching. For disassembly I had use the refs.txt and got syntax errors on my ssdt table 5. Bildschirmfoto 2017-07-21 um 13.48.54.png I had try to delete the are where the errors are and copied the files to my patched folder from clover and ticked "drop gem" But it's not working. On the copied tables from ubuntu which is named "dynamic" with the tables SSDT13 - 15 which I had not used. Perhaps here someone could help me? Are there some tips how I can check my extracted files from clover which are copies ? The file sizes are not equal so I could see this by checking this. Thanks Dan Hi Dan Your DSDT compiles OK so you can start using that for patching as needed. For your SSDT, I recommend using Pike R. Alpha's ssdtPRGen script. You can get it here: https://github.com/Piker-Alpha/ssdtPRGen.sh Put your customized DSDT.aml and SSDT.aml in Clover/ACPI/Patched. Good luck. Link to comment https://www.insanelymac.com/forum/topic/325504-yoga-dsdt-ssdt-fixes/#findComment-2466971 Share on other sites More sharing options...
thefiredragon Posted July 21, 2017 Author Share Posted July 21, 2017 I had try it, but I can't boot up, with my patched tables. At the attachments I have upload all files. base uncompiled include patches and fixed errors.base compiled only saved as binary. tabels raw without changes and errors. When I drop oem and try to start the system I can't boot up. And I can't find the issues.I tried to use own compiled iasl. With that I got more issues with the versions from bitbucket. I have take a video from verbose boot up, I'll can upload this if this could help.I think I have do something wrong perhaps someone could take a look? I'm running High Sierra, cause 10.12.5 I can't install. But it would be great, if I could get native power management working.. Last login: Fri Jul 21 22:19:06 on console Dans-MacBook-Pro:~ dan$ cd /Users/dan/Desktop/tables/origin Dans-MacBook-Pro:origin dan$ ls DSDT.aml SSDT-11x.aml SSDT-2.aml SSDT-6.aml refs.txt SSDT-0.aml SSDT-12x.aml SSDT-3.aml SSDT-7.aml SSDT-1.aml SSDT-13x.aml SSDT-4.aml SSDT-8.aml SSDT-10x.aml SSDT-17.aml SSDT-5.aml SSDT-9.aml Dans-MacBook-Pro:origin dan$ iasl -da -dl -fe refs.txt DSDT.aml SSDT*.aml Intel ACPI Component Architecture ASL+ Optimizing Compiler version 20161210-64(RM) Copyright (c) 2000 - 2016 Intel Corporation Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 47 external control methods, reparsing with new information Pass 1 parse of [DSDT] ACPI Error: [BNUM] Namespace lookup failure, AE_ALREADY_EXISTS (20161210/dsfield-732) ACPI Error: [NBMO] Namespace lookup failure, AE_ALREADY_EXISTS (20161210/dsfield-732) ACPI Error: [ADPT] Namespace lookup failure, AE_ALREADY_EXISTS (20161210/dsfield-732) Pass 2 parse of [DSDT] ACPI Warning: NsLookup: Type mismatch on NBMO (FieldUnit), searching for (RegionField) (20161210/nsaccess-732) ACPI Warning: NsLookup: Type mismatch on ADPT (FieldUnit), searching for (RegionField) (20161210/nsaccess-732) Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: DSDT.dsl - 898498 bytes iASL Warning: There were 47 external control methods found during disassembly, but only 39 were resolved (8 unresolved). Additional ACPI tables may be required to properly disassemble the code. This resulting disassembler output file may not compile because the disassembler did not know how many arguments to assign to the unresolved methods. Note: SSDTs can be dynamically loaded at runtime and may or may not be available via the host OS. In addition, the -fe option can be used to specify a file containing control method external declarations with the associated method argument counts. Each line of the file must be of the form: External (<method pathname>, MethodObj, <argument count>) Invocation: iasl -fe refs.txt -d dsdt.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 15 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-0.dsl - 82683 bytes iASL Warning: There were 15 external control methods found during disassembly, but only 13 were resolved (2 unresolved). Additional ACPI tables may be required to properly disassemble the code. This resulting disassembler output file may not compile because the disassembler did not know how many arguments to assign to the unresolved methods. Note: SSDTs can be dynamically loaded at runtime and may or may not be available via the host OS. In addition, the -fe option can be used to specify a file containing control method external declarations with the associated method argument counts. Each line of the file must be of the form: External (<method pathname>, MethodObj, <argument count>) Invocation: iasl -fe refs.txt -d dsdt.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 16 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-1.dsl - 92749 bytes Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 10 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-10x.dsl - 12703 bytes Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 13 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-11x.dsl - 11913 bytes Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 10 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-12x.dsl - 8642 bytes Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 10 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-13x.dsl - 3008 bytes Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 15 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-17.dsl - 108158 bytes Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 10 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-2.dsl - 20706 bytes Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 10 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-3.dsl - 4228 bytes Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 12 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-4.dsl - 6280 bytes Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 15 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-5.dsl - 7244 bytes Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 10 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-6.dsl - 40357 bytes Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 13 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-7.dsl - 16168 bytes Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) External object resolution file SSDT-9.aml Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 14 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-8.dsl - 14411 bytes Input file SSDT-9.aml, Length 0xEDE (3806) bytes ACPI: SSDT 0x0000000000000000 000EDE (v02 LENOVO CB-01 00000001 ACPI 00040000) External object resolution file SSDT-8.aml Input file SSDT-8.aml, Length 0x10DE (4318) bytes ACPI: SSDT 0x0000000000000000 0010DE (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-7.aml Input file SSDT-7.aml, Length 0x51E (1310) bytes ACPI: SSDT 0x0000000000000000 00051E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-6.aml Input file SSDT-6.aml, Length 0x3002 (12290) bytes ACPI: SSDT 0x0000000000000000 003002 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-5.aml Input file SSDT-5.aml, Length 0x346 (838) bytes ACPI: SSDT 0x0000000000000000 000346 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-4.aml Input file SSDT-4.aml, Length 0x29F (671) bytes ACPI: SSDT 0x0000000000000000 00029F (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-3.aml Input file SSDT-3.aml, Length 0x1BC (444) bytes ACPI: SSDT 0x0000000000000000 0001BC (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-2.aml Input file SSDT-2.aml, Length 0xB2C (2860) bytes ACPI: SSDT 0x0000000000000000 000B2C (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-17.aml Input file SSDT-17.aml, Length 0x4947 (18759) bytes ACPI: SSDT 0x0000000000000000 004947 (v01 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-13x.aml Input file SSDT-13x.aml, Length 0x18A (394) bytes ACPI: SSDT 0x0000000000000000 00018A (v02 PmRef ApCst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-12x.aml Input file SSDT-12x.aml, Length 0x3FF (1023) bytes ACPI: SSDT 0x0000000000000000 0003FF (v02 PmRef Cpu0Cst 00003001 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-11x.aml Input file SSDT-11x.aml, Length 0x65C (1628) bytes ACPI: SSDT 0x0000000000000000 00065C (v02 PmRef ApIst 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-10x.aml Input file SSDT-10x.aml, Length 0x651 (1617) bytes ACPI: SSDT 0x0000000000000000 000651 (v02 PmRef Cpu0Ist 00003000 INTL 20160527) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-1.aml Input file SSDT-1.aml, Length 0x3E9E (16030) bytes ACPI: SSDT 0x0000000000000000 003E9E (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file SSDT-0.aml Input file SSDT-0.aml, Length 0x3115 (12565) bytes ACPI: SSDT 0x0000000000000000 003115 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] External object resolution file DSDT.aml Input file DSDT.aml, Length 0x1C3C3 (115651) bytes ACPI: DSDT 0x0000000000000000 01C3C3 (v02 LENOVO CB-01 00000001 ACPI 00040000) Pass 1 parse of [DSDT] Pass 2 parse of [DSDT] refs.txt: Importing method external (1 arguments) MDBG refs.txt: Importing method external (0 arguments) _GPE.MMTB refs.txt: Importing method external (2 arguments) _SB.PCI0.LPCB.H_EC.ECWT refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECRD refs.txt: Importing method external (1 arguments) _SB.PCI0.LPCB.H_EC.ECMD refs.txt: Importing method external (2 arguments) _SB.PCI0.PEG0.PEGP.SGPO refs.txt: Importing method external (1 arguments) _SB.PCI0.GFX0.DD02._BCM refs.txt: Importing method external (4 arguments) _SB.PCI0.SAT0.SDSM refs.txt: Importing method external (3 arguments) _GPE.VHOV refs.txt: Importing method external (2 arguments) _SB.PCI0.XHC.RHUB.TPLD ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.PEG0.PEGP.SGPO] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [_SB_.PCI0.XHC_.RHUB.TPLD] (20161210/dmextern-1012) ACPI Exception: AE_ALREADY_EXISTS, while adding external to namespace [MDBG] (20161210/dmextern-1012) refs.txt: Imported 10 external method definitions Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Found 10 external control methods, reparsing with new information Pass 1 parse of [SSDT] Pass 2 parse of [SSDT] Parsing Deferred Opcodes (Methods/Buffers/Packages/Regions) Parsing completed Disassembly completed ASL Output: SSDT-9.dsl - 20073 bytes Dans-MacBook-Pro:origin dan$ "Fix _WAK Arg0 v2" "HPET Fix" "SMBUS Fix" "IRQ Fix" "RTC Fix" "OS Check Fix" "Fix Mutex with non-zero SyncLevel" "Fix PNOT/PPNT" (use only if you're dropping CPU related SSDTs) /*"Add IMEI" (do not use if your DSDT or SSDTs already have IMEI/HECI/MEI device)*/ _DSM to XDSM GFX0 to IGPU The base folder contain the ssdt.aml for the cpu. insanelymac.zip Link to comment https://www.insanelymac.com/forum/topic/325504-yoga-dsdt-ssdt-fixes/#findComment-2467031 Share on other sites More sharing options...
mnfesq Posted July 21, 2017 Share Posted July 21, 2017 You config.plist was a mess. You were not using any of your ACPI tables. You were using Clover's. I made a DSDT and config.plist for you to try out. The DSDT goes in Clover/ACPI/patched. The config.plist goes in Clover. Try it and report back. Take a photo of your screen if you get a KP. I don't think you should be trying to install 10.13 beta as your first installation. I would try using 10.12.6. Your DSDT will need more patching but I wanted to remove as much as possible before we start adding new patches. I am assuming that this is for the Clover installation on your laptop and not for a USB installer. If that is not correct, let me know. You may need to change some of the USB options I returned to default. Archive.zip Link to comment https://www.insanelymac.com/forum/topic/325504-yoga-dsdt-ssdt-fixes/#findComment-2467052 Share on other sites More sharing options...
thefiredragon Posted July 22, 2017 Author Share Posted July 22, 2017 On my old yoga I was able to running older Mac OS, I had try out a lot to got the installer starting without result. With the beta I was able to got an installation. So I had also got fixed graphics sound an more.So I had take a look to your changes, with this I will loose my functions that I have got working.It would be great to to fix my tables for power management. What I don't understand is, why I can't start witch drop oem I tried out ssdtPRGen.sh and the alternativ method for x86 power management. So I'll want to stay at the beta. Thanks for your work, but you're not dropping the DSDT which you created? Also the other tables are missing.The problem is not that the system don't start.And Clover is installed on the machine. (So I don't need to boot up with a stick.) Link to comment https://www.insanelymac.com/forum/topic/325504-yoga-dsdt-ssdt-fixes/#findComment-2467240 Share on other sites More sharing options...
mnfesq Posted July 22, 2017 Share Posted July 22, 2017 The tables that are located in Clover/ACPI/origin will not load. You need to put the tables you want to use into patched. The way you have your Clover set up, you are not using a custom DSDT. You are using your OEM DSDT and patching it on the fly with Clover. That's fine if that's what you want to do but I thought you wanted to customize your DSDT and SSDT, not just use Clover. You posted this in the wrong section for Clover fixes. Good luck. Link to comment https://www.insanelymac.com/forum/topic/325504-yoga-dsdt-ssdt-fixes/#findComment-2467592 Share on other sites More sharing options...
thefiredragon Posted July 23, 2017 Author Share Posted July 23, 2017 Oh, I'm sorry, perhaps the thread can be moved to the right place?I'll try out your dsdt.I want to fix sleep and Skylake lpc so that I can also use the native power management. I really hope I'll get it working Link to comment https://www.insanelymac.com/forum/topic/325504-yoga-dsdt-ssdt-fixes/#findComment-2467735 Share on other sites More sharing options...
MaLd0n Posted July 23, 2017 Share Posted July 23, 2017 Dont use repository, fail in skylake/kabylake, diff patches and _ADR u apple sbus into hdef, e.g, ofc DSDT.thefiredragon.zip Link to comment https://www.insanelymac.com/forum/topic/325504-yoga-dsdt-ssdt-fixes/#findComment-2468159 Share on other sites More sharing options...
cyrhex Posted October 2, 2017 Share Posted October 2, 2017 Dont use repository, fail in skylake/kabylake, diff patches and _ADR u apple sbus into hdef, e.g, ofc DSDT.thefiredragon.zip can u help me to fix my dsdt,i want to disable the gt 630m discrete grphics,TIA here is my dsdt link:acer aspire v3 471g dsdt Link to comment https://www.insanelymac.com/forum/topic/325504-yoga-dsdt-ssdt-fixes/#findComment-2506747 Share on other sites More sharing options...
