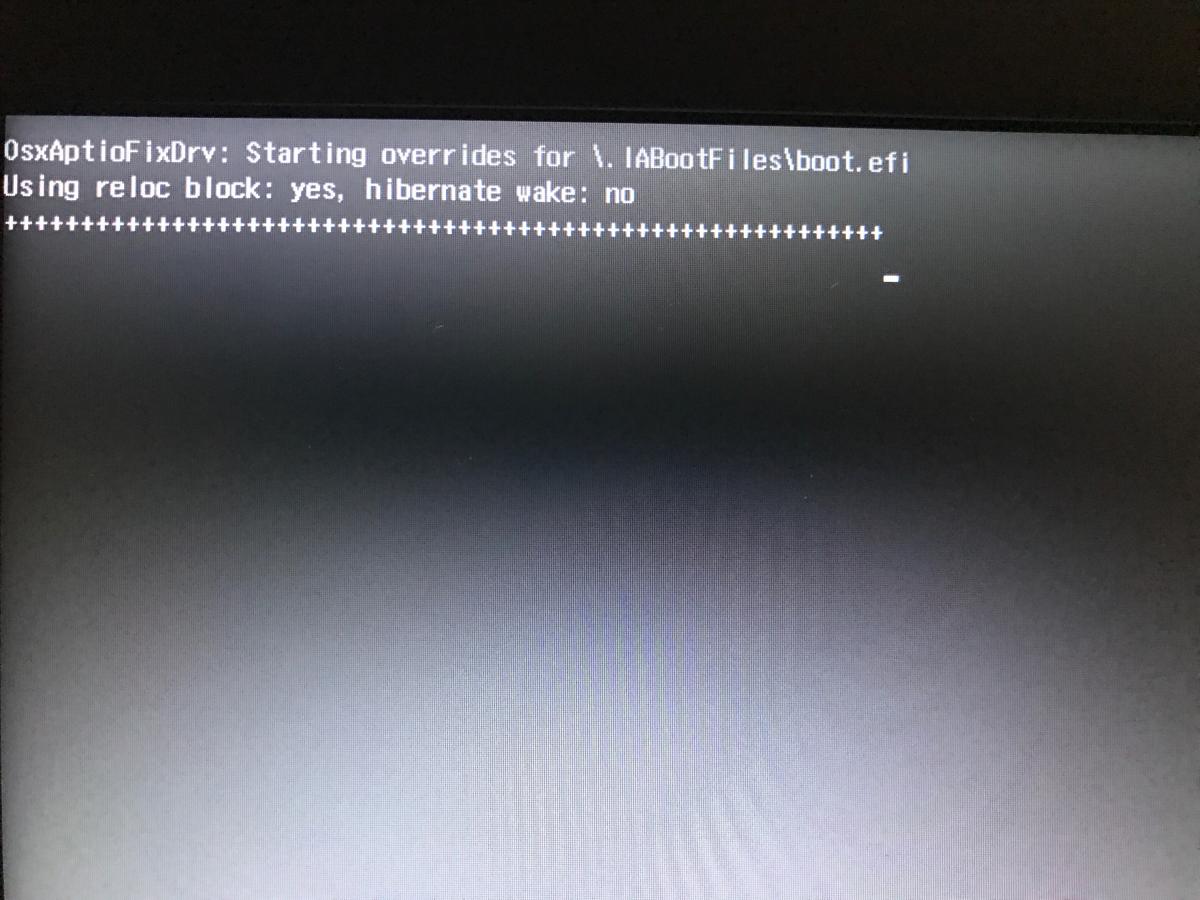

packrobottom Posted June 29, 2017 Share Posted June 29, 2017 I just got an Acer Aspire E5-575G-57D4 (intel 620 graphics and kabylake 7200u) I'm getting stuck right after trying to enter the installer from clover. In the past on desktop builds I've fixed these kinds of issues by changing to aptiofixdrv to 1 or 2. but neither option is working. Any help would be greatly appreciated. 1 Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/ Share on other sites More sharing options...
Allan Posted June 29, 2017 Share Posted June 29, 2017 Try use AptioFixDrv2, and remove the AptioFixDrv 1 Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2453516 Share on other sites More sharing options...
MaLd0n Posted June 29, 2017 Share Posted June 29, 2017 Use FakeCPUID 0x0506e3, check KernelPM too Kabylake processor with intel hd520? 1 Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2453520 Share on other sites More sharing options...
checked Posted June 29, 2017 Share Posted June 29, 2017 Use FakeCPUID 0x0506e3, check KernelPM too Kabylake processor with intel hd520? Intel® HD Graphics 620 =)) 1 Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2453570 Share on other sites More sharing options...
packrobottom Posted June 29, 2017 Author Share Posted June 29, 2017 yes 620 typo sorry. I've tried aptio2 Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2453588 Share on other sites More sharing options...
MaLd0n Posted June 29, 2017 Share Posted June 29, 2017 post ur clover folder inside usb or hdd here Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2453594 Share on other sites More sharing options...

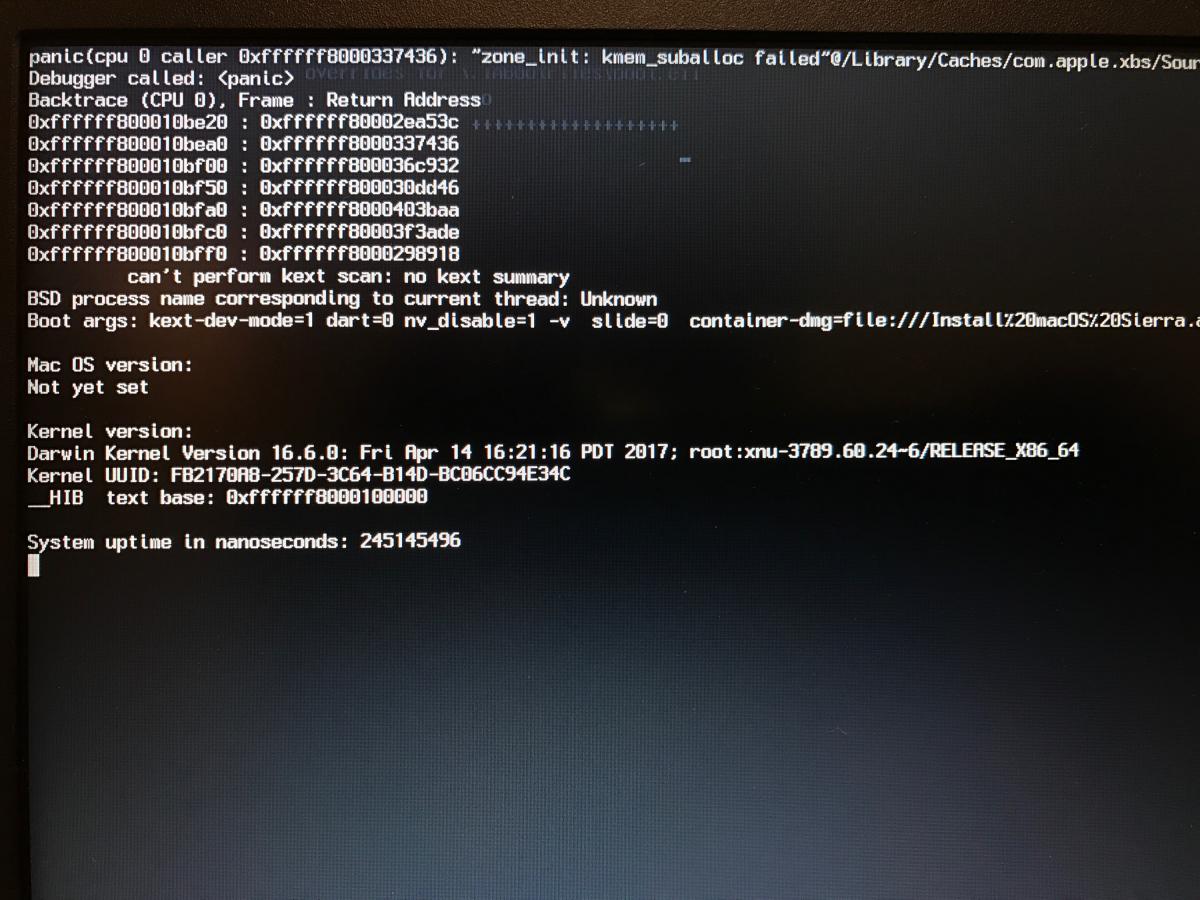

packrobottom Posted June 29, 2017 Author Share Posted June 29, 2017 I'm getting a kernel panic now here is my EFI zipped and a screenshot of the panic I also dumped logs at clover screen here is my exact laptop hardware 7th Generation Intel Core i5-7200U 15.6" Full HD Widescreen Comfy View LED-backlit Display supporting Acer Color Blast technology NVIDIA GeForce 940MX with 2GB of GDDR5 Video Memory 8GB DDR4 Memory, 256GB SSD EFI.zip Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2453664 Share on other sites More sharing options...
MaLd0n Posted June 29, 2017 Share Posted June 29, 2017 try CLOVER.zip Use last Clover version Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2453685 Share on other sites More sharing options...
packrobottom Posted June 29, 2017 Author Share Posted June 29, 2017 Thx Maldon. Can I just overwrite EFI or do I need to install previous clover as well Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2453741 Share on other sites More sharing options...
MaLd0n Posted June 29, 2017 Share Posted June 29, 2017 replace folder update clover 1 Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2453867 Share on other sites More sharing options...

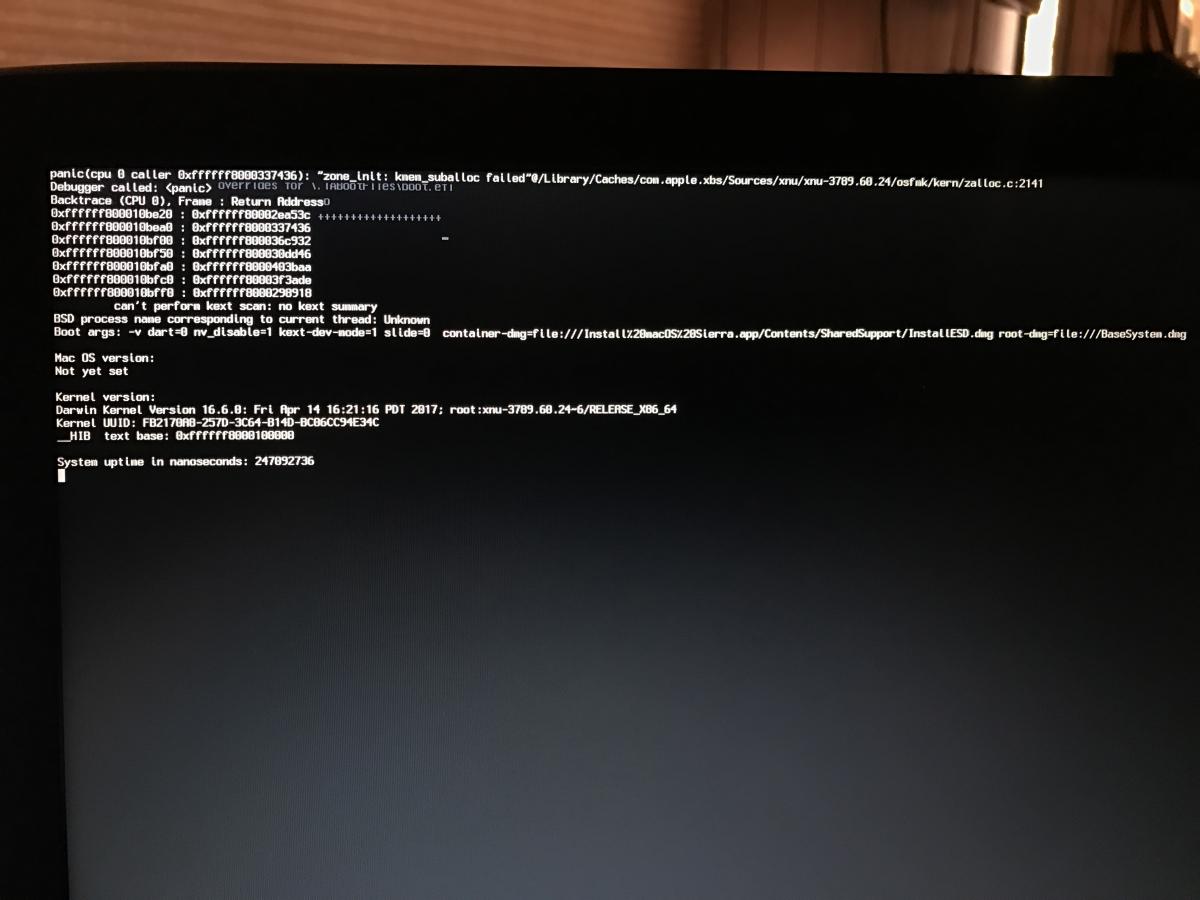

packrobottom Posted June 30, 2017 Author Share Posted June 30, 2017 Done I get this panic 1 Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2454632 Share on other sites More sharing options...
MaLd0n Posted June 30, 2017 Share Posted June 30, 2017 follow it for create usbstick i think ur installer is miado http://www.insanelymac.com/forum/topic/321872-guide-sierra-on-gigabyte-mobos-serie-200-kabylake-dsdt/ Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2454695 Share on other sites More sharing options...
packrobottom Posted June 30, 2017 Author Share Posted June 30, 2017 miado? created installer from terminal on my desktop will try the link Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2454698 Share on other sites More sharing options...
packrobottom Posted June 30, 2017 Author Share Posted June 30, 2017 ok followed link created new installer same kernel panic. clover 4097 using the above efi zip Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2454731 Share on other sites More sharing options...
packrobottom Posted July 1, 2017 Author Share Posted July 1, 2017 any other suggestions? Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2455443 Share on other sites More sharing options...

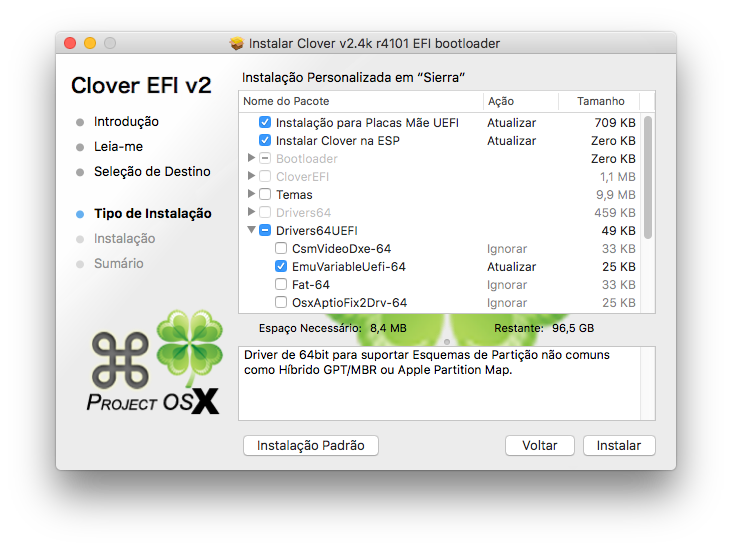

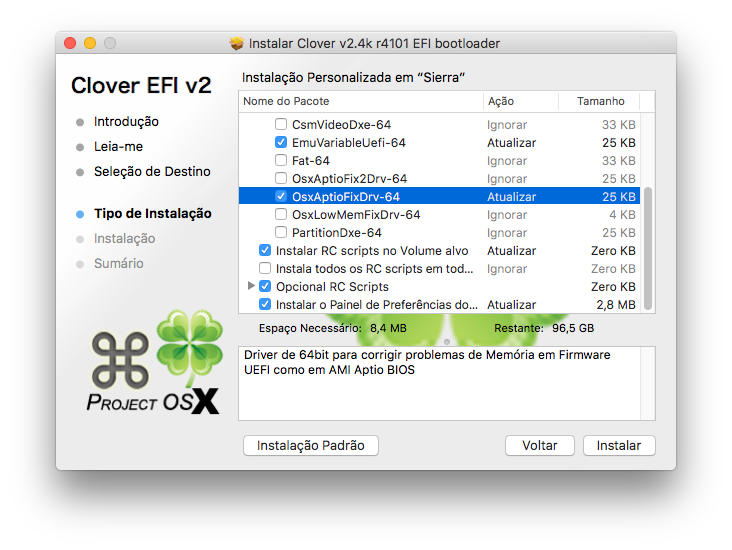

MaLd0n Posted July 1, 2017 Share Posted July 1, 2017 bro, i think the problem is ur installer, check error in ur screenshot above create usb stick follow my guide install clover in usb stick with these options replace folder and try Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2455449 Share on other sites More sharing options...
packrobottom Posted July 1, 2017 Author Share Posted July 1, 2017 yah as I said above already recreated installer using your guide same kernel panic. I'll try again tho Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2455508 Share on other sites More sharing options...
MaLd0n Posted July 1, 2017 Share Posted July 1, 2017 hmmm download from appstore? Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2455515 Share on other sites More sharing options...
checked Posted July 2, 2017 Share Posted July 2, 2017 Done I get this panic i think problem from CLOVER, it not load kext 1 Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2455592 Share on other sites More sharing options...
packrobottom Posted July 2, 2017 Author Share Posted July 2, 2017 maldon, yah downloaded it from my osx desktop 1 Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2455820 Share on other sites More sharing options...
MaLd0n Posted July 2, 2017 Share Posted July 2, 2017 very strange try other sierra installer, i dont use from appstore Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2455842 Share on other sites More sharing options...
packrobottom Posted July 2, 2017 Author Share Posted July 2, 2017 ok solved it I needed to move ram from slot 1 to slot 2 installer boots. Now I need a guide and link to buy a wifi replacement card for the atheros Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2456006 Share on other sites More sharing options...
checked Posted July 3, 2017 Share Posted July 3, 2017 ok solved it I needed to move ram from slot 1 to slot 2 installer boots. Now I need a guide and link to buy a wifi replacement card for the atheros TPLINK WDN4800 (native for mac) TPLINK W725N v2 (kext download from homepage tplink ) Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2456174 Share on other sites More sharing options...
packrobottom Posted July 4, 2017 Author Share Posted July 4, 2017 everything working right now except QE/CI what do I need to do for HD620 to get accel working? do I have to install fakepciiD and fake pcIID_intel_HD_graphics kexts in clover or s/l/e Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2456780 Share on other sites More sharing options...
MaLd0n Posted July 4, 2017 Share Posted July 4, 2017 Use fake IntelGFX too 0x19168086 Link to comment https://www.insanelymac.com/forum/topic/324851-acer-aspire-e5-575g-57d4-uefi-help/#findComment-2456802 Share on other sites More sharing options...
