trickymast3r Posted June 13, 2017 Share Posted June 13, 2017 Please help my issue , Im using AGDPfix.app , was try lilu.kext and nvidiafixup I was SSDT injecting for add GFX1 Device to SSDT-1.aml and placed them to EFI/CLOVER/ACPI/patched . My Computer Specs : ASUS Z9PA-D8 - BIOS version 5602 . 2 x E5-2670 2.6Ghz V1 4 x 8G Samsung 1333 Mhz Clover r4077 with DSDT patched by stinga . SSDT-1.aml inject NP3/GFX1 suggested by Shiloh . But screen still no signal and restart after boot . Please help me debug what problem with my system . 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 13, 2017 Share Posted June 13, 2017 -Post ur full Clover folder with original tables, press F4 in Clover Boot Screen, files generate in Clover/Acpi/origin -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=235412 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 1 Link to comment Share on other sites More sharing options...
trickymast3r Posted June 13, 2017 Author Share Posted June 13, 2017 I will post it when I roll back to last state ... now I'm trying to Digg more I don't know why when system boot I see this : 0:100 0:000 PCI (00|03:00.00) : 10DE 1402 class=030000 0:100 0:000 - GFX: Model=MSI GeForce GTX 950 family 126 (Nvidia) But it's still load my vga to NPE3 ( 00020000 ) ( All SSDT patch disable , inject Nvidia True to get info from IOReg ) I think It could be NPE7 (00030000) ... This file is current state : Nvidiaweb = false , SSDT patch removed , Inject Nvidia = true . I'm trying to get correct info with gfxutil about port ... Send me Hien’s Mac Pro.zip ioreg-20170613.zip ACPI.zip 1 Link to comment Share on other sites More sharing options...
Allan Posted June 13, 2017 Share Posted June 13, 2017 In the next time, just open 1 topic. You already had opened one here: Z9PA-D8 and MSI GTX 950 Problems ! Black screen and restart ! Look our Rules: #Only post your post once (1). This keeps the forum cleaner and makes it easier to find what you are looking for. 2 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 13, 2017 Share Posted June 13, 2017 I will post it when I roll back to last state ... now I'm trying to Digg more I don't know why when system boot I see this : 0:100 0:000 PCI (00|03:00.00) : 10DE 1402 class=030000 0:100 0:000 - GFX: Model=MSI GeForce GTX 950 family 126 (Nvidia) But it's still load my vga to NPE3 ( 00020000 ) ( All SSDT patch disable , inject Nvidia True to get info from IOReg ) I think It could be NPE7 (00030000) ... This file is current state : Nvidiaweb = false , SSDT patch removed , Inject Nvidia = true . I'm trying to get correct info with gfxutil about port ... post ur clover folder too, need check 1 Link to comment Share on other sites More sharing options...
trickymast3r Posted June 13, 2017 Author Share Posted June 13, 2017 In the next time, just open 1 topic. You already had opened one here: Z9PA-D8 and MSI GTX 950 Problems ! Black screen and restart ! Look our Rules: #Only post your post once (1). This keeps the forum cleaner and makes it easier to find what you are looking for. ok sorry , because first issue I thinks is about os Sierra 10.11 but now I found it is Graphics Issue ! post ur clover folder too, need check I put all kext to CLOVER so ... it's large than forum allowed . I attach my ACPI.zip or if u need I will upload it separated Link to comment Share on other sites More sharing options...
trickymast3r Posted June 13, 2017 Author Share Posted June 13, 2017 @MaLd0n My CLOVER folder in attachment ... thanks you CLOVER.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 13, 2017 Share Posted June 13, 2017 @MaLd0n My CLOVER folder in attachment ... thanks you Replace folder, install web driver, reboot CLOVER.zip u need a native PM, check it 1 Link to comment Share on other sites More sharing options...
trickymast3r Posted June 13, 2017 Author Share Posted June 13, 2017 Thanks ... but it's look something wrong . My mobo is Z9PA-D8 WS ... using 2 x Intel® 82574L + 1 x Mgmt LAN : So they need IntelE1000 kext and don't have realtek audio controller in mobo ... Please check again , thanks . Anyway i will try ur help ... I already try your CLOVER.zip and this result . Link to comment Share on other sites More sharing options...
MaLd0n Posted June 13, 2017 Share Posted June 13, 2017 u need to update Clover boot from usb stick and update Clover_v2.4k_r4087.pkg.zip 1 Link to comment Share on other sites More sharing options...

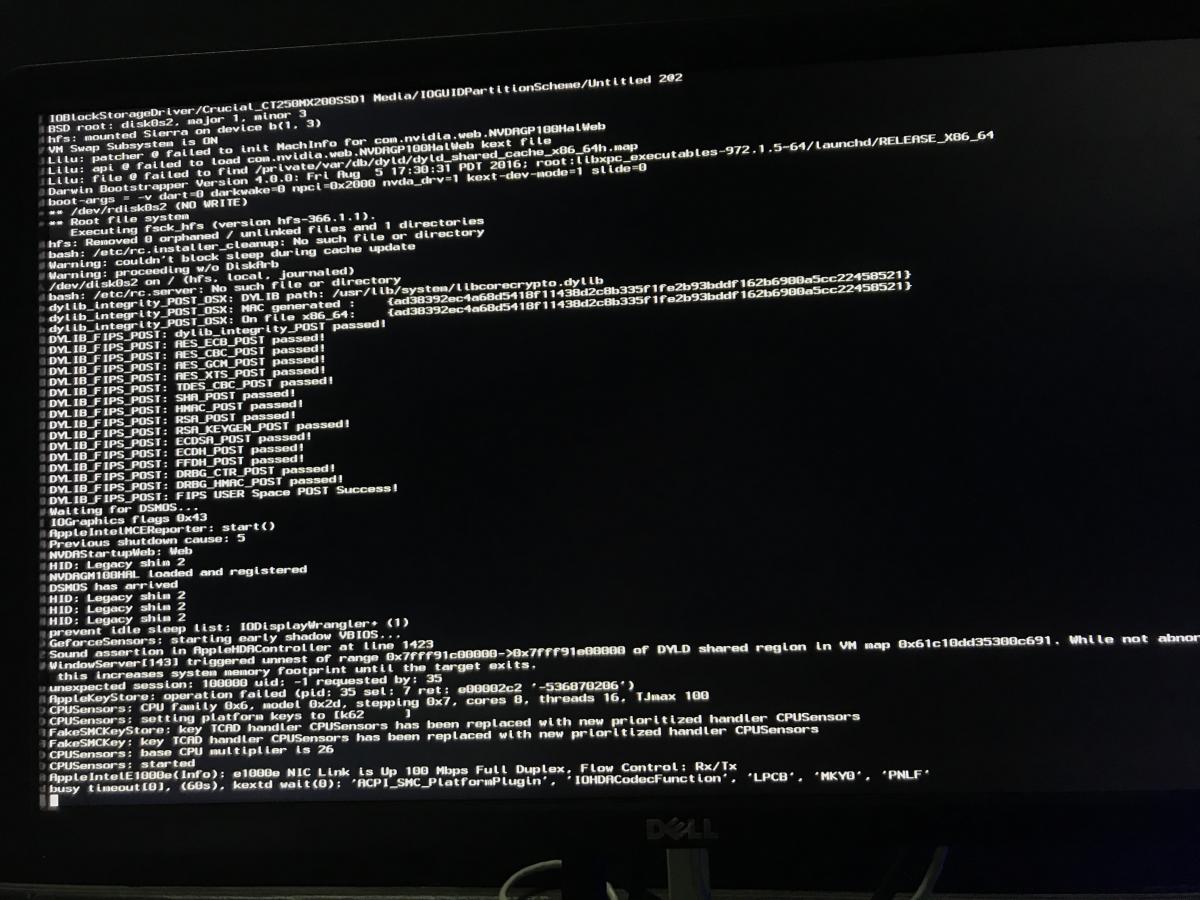

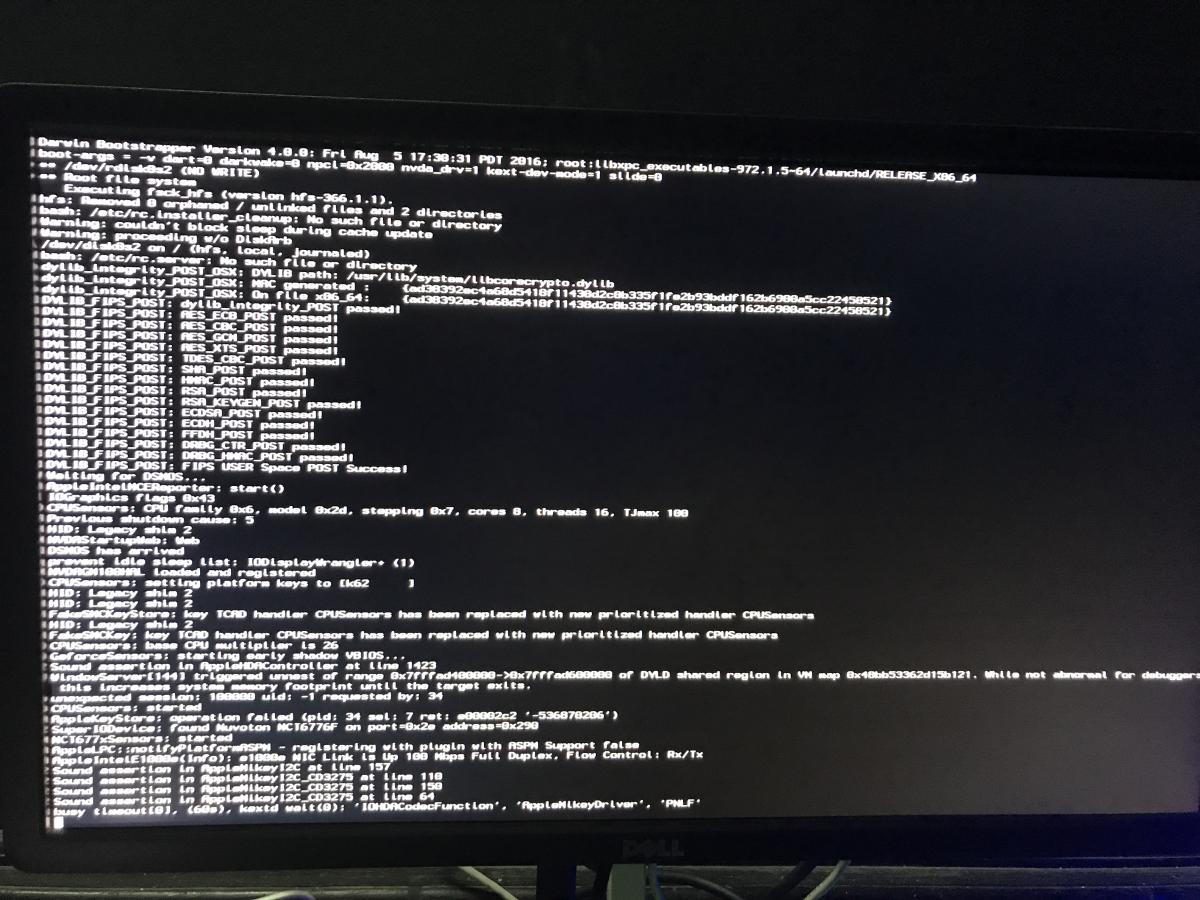

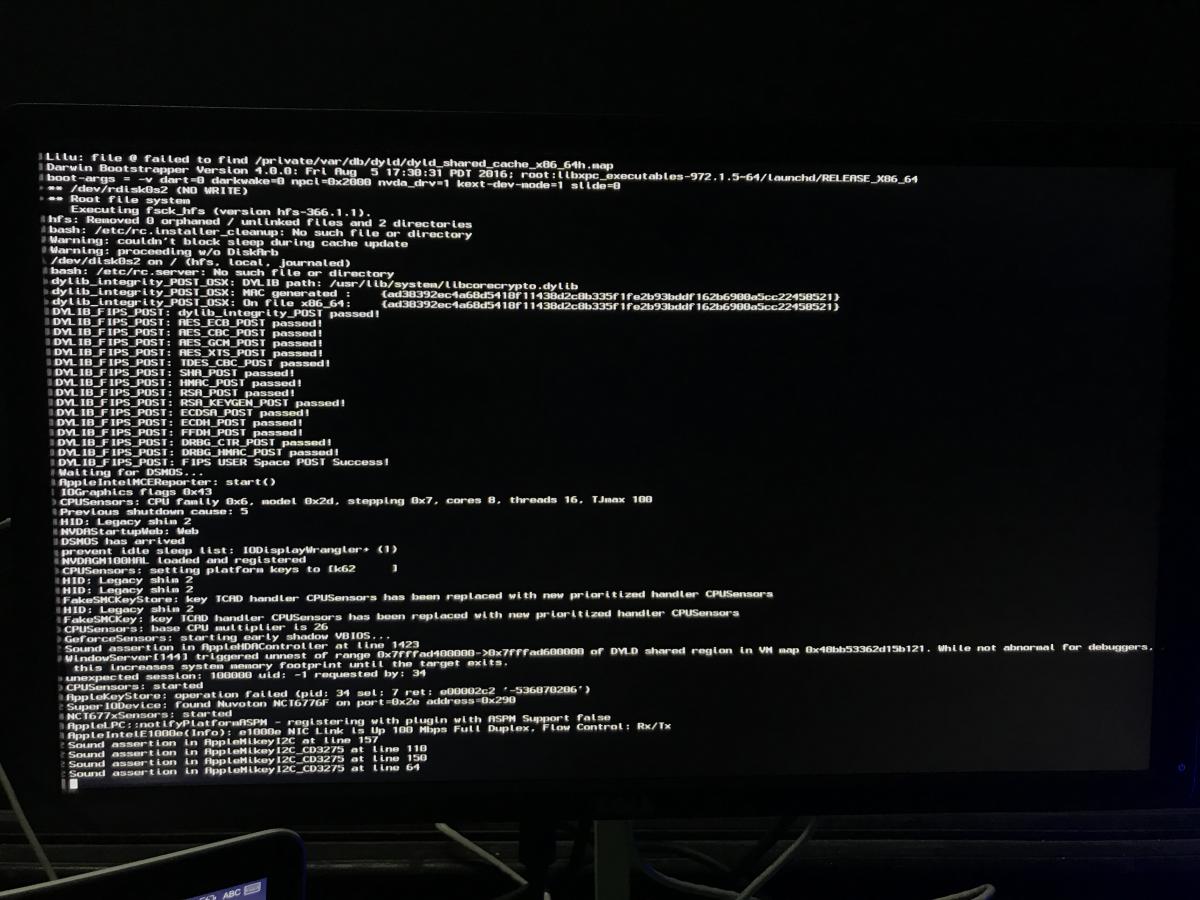

trickymast3r Posted June 13, 2017 Author Share Posted June 13, 2017 I updated Clover r4087 and now result . I was recorded the screen when it booting ... . Link to comment Share on other sites More sharing options...
MaLd0n Posted June 13, 2017 Share Posted June 13, 2017 i think u have many kexts in l/e or s/l/e use only clover folder, clover/kexts/other fakesmc sensors, etc back to old clover folder or use only clover/kexts/other Link to comment Share on other sites More sharing options...

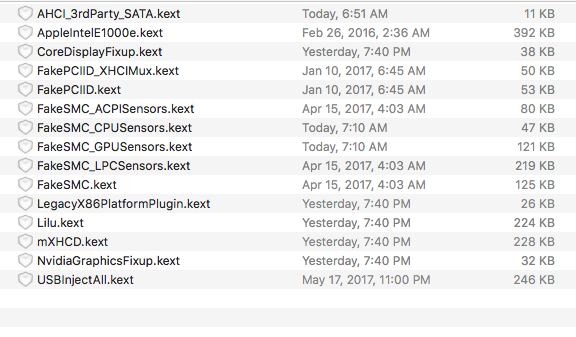

trickymast3r Posted June 13, 2017 Author Share Posted June 13, 2017 All Kext Im using ... Please suggest me delete or keep whic of them Link to comment Share on other sites More sharing options...
trickymast3r Posted June 14, 2017 Author Share Posted June 14, 2017 Please help @MaLd0n Link to comment Share on other sites More sharing options...

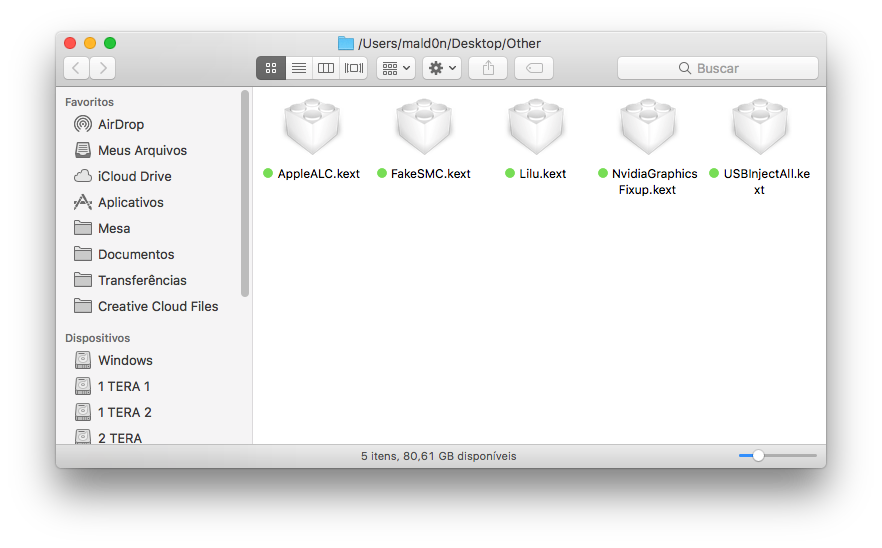

MaLd0n Posted June 14, 2017 Share Posted June 14, 2017 use it + ur lan kext Link to comment Share on other sites More sharing options...
trickymast3r Posted June 14, 2017 Author Share Posted June 14, 2017 ok , im already use all ur kext and clover folder but nothing happen ... Today i try some fix and now my computer restarting after "IO Console Users: gIOScreenLockState 3, hs 0, bs 0, now 0, sm 0x0" Please , watch my recorded when start computer . @MaLd0n https://youtu.be/bd3ryVjXJqE Hi @stinga11 , can u help me with this problem ? Link to comment Share on other sites More sharing options...
MaLd0n Posted June 15, 2017 Share Posted June 15, 2017 the boot work with nv_disable=1? 1 Link to comment Share on other sites More sharing options...
trickymast3r Posted June 15, 2017 Author Share Posted June 15, 2017 yes @MaLd0n , i boot success with nv_disable=1 or inject Nvidia = true . with nv_disable=1 ,injectNvidia=false About Mac -> Nvidia Chip Model 5 MB with injectNvidia=true,nvidiaweb=false,nv_disable=0 About Mac -> MSI Geforce GTX 950 0 MB Web Driver no detect 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted June 15, 2017 Share Posted June 15, 2017 send me ur clover folder in use now is a sierra system? Link to comment Share on other sites More sharing options...
trickymast3r Posted June 15, 2017 Author Share Posted June 15, 2017 hi @MaLd0n Yes im using Sierra This is my latest clover folder . CLOVER 3.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted June 15, 2017 Share Posted June 15, 2017 It's ok, have flags and emuvariable, if u install web driver and dont work, no idea. u can try without emuvariable driver Link to comment Share on other sites More sharing options...
trickymast3r Posted June 15, 2017 Author Share Posted June 15, 2017 bad news ... I was try remove emuvariable efi before ... anyway thanks you so much ... Rampagedev said i met kernel panic ... Do u know how to debug it ? Link to comment Share on other sites More sharing options...
MaLd0n Posted June 15, 2017 Share Posted June 15, 2017 man, very strange things if u have time, try a fresh install and use ur clover folder try to use ur kexts in L/E, put there and run KextUtility 1 Link to comment Share on other sites More sharing options...
trickymast3r Posted June 15, 2017 Author Share Posted June 15, 2017 Ok , Thanks u so much ! Link to comment Share on other sites More sharing options...
sunnyboy958 Posted June 6, 2018 Share Posted June 6, 2018 https://www.tonymacx86.com/threads/ssdt-gpu-graphics-card-injection.183354/#post-1183909 Maybe this guide could give you some help, your ssdt-gfx1 maybe was wrong. Link to comment Share on other sites More sharing options...
