soumaxetuirk Posted April 7, 2017 Share Posted April 7, 2017 (edited) After my last successful build with Sandybridge,I am starting to build a new one with Kabylake. I managed to avoid CPU Panic by fake CPU iD of 6th gen Skylake.But I am still not able to work on Intel HD graphics with clover. I will glad if someone can guide me with Clover Installation. Lenovo Idealpad 310 Intel i5-7200 Intel HD 620 Nvidia 920MX UPDATE : (17.10.2019 - OSX Catalina ) I have managed fine-tune everything . CPU is idling as 0.50 GHz with working iMessage, sleep & Wifi. I have attached my clover folder.Feel free to use and comment Complete list: 1. Sleep is working properly with average of 1% battery per hour. 2. Lid Brightness, HDMI & VGA are working with whatevergreen. 3.Native power management working with HWP enabled. 4.All USB port are fixed to work seamlessly with sleep. 5. Bluetooth and wifi working with card BCM94352Z.(including handoff and iPhone hotspot feature) 6.Not required but still LPC and SMBUS are patched to load proper apple kext. 7.ADP0 is renamed to load ACPIAdapter kext. (To enable battery status and power nap feature) 8.Audio card is working with AppleALC (audio layout ID 3) 6. VirtualSMC is installed with sensors. 7.Gigabit ethernet (RTL6168) and USB 3.0 are working . 8.imessage ready (I have activated mine, You need to call Apple support) 9.All media keys and hot keys are configured in VoodooPS2.( media stop, Printscreen are configured as F17,F18 for custom shortcut) 10. Common devices are renamed in DSDT ( TIMR, RTC,SATA,EC,XHC......) 11. DSDT is mostly fixed. few things are patched in clover for the presence of ACPI hot patches. 12. MacBook Pro 14,1 SMbios is used.No commands needed in boot argument section. RAM properties needs to be updated as required. Used kext: Lilu.kext VirtualSMC.kext VoodooPS2Controller.kext Whatevergreen.kext AirportbrcmFixup.kext AppleALC.kext USBInjectAll.kext VoodooTSCSync.kext Credits: Credits for some Awsome tutorials which helped me to learn and reach this far. https://www.insanelymac.com/forum/topic/321021-guide-hwpintel-speed-shift-enable-with-full-power-management/ https://www.insanelymac.com/forum/topic/325987-whatevergreen-support-topic/ https://github.com/acidanthera/ https://www.tonymacx86.com/threads/macos-native-cpu-igpu-power-management.222982/ https://www.insanelymac.com/forum/topic/335292-virtualsmc-—-smc-emulator/?do=findComment&comment=2644012 https://www.insanelymac.com/forum/topic/339175-brcmpatchram2-for-1015-catalina-broadcom-bluetooth-firmware-upload/ Guide: How to Fix iMessage Version 2.1 (By Jaymonkey) Rehabman for all SSDT hot patches and kexts Acidanthera for MaciASL,VoodooPS2.... Meld0n , Artur_pt (...Good Hack) , Mirone and all other members who guided me throughout last 8 years here. Piker for MSRIdle patch and FrequencyVector discoveries CLOVER.zip Edited October 21, 2019 by soumaxetuirk All issue resolved Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/ Share on other sites More sharing options...
MaLd0n Posted April 7, 2017 Share Posted April 7, 2017 need fake intelgfx too, if dont work need dvmt 64/96(need test) or patch in config.plist Name com.apple.driver.AppleIntelSKLGraphicsFramebuffer Find 8945c839 c67651 Replace 8945c839 c6eb51 Comment Disable minStolenSize less or equal fStolenMemorySize assertion, 10.12.x ( (based on Austere.J patch) -IntelGFX 0x19168086 -Inject Intel -ig-platform-id 0x19160000 1 Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2400287 Share on other sites More sharing options...
soumaxetuirk Posted April 8, 2017 Author Share Posted April 8, 2017 Thank you so much.I changed as you said.Also patched framedbuffer (rehabman HD620 plist followed). I can boot in to OS with full resolution but no QE-CI .also I can boot with one core only (cpus=1) 1 Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2400695 Share on other sites More sharing options...
MaLd0n Posted April 8, 2017 Share Posted April 8, 2017 try it to avoid cpus=1 VoodooTSCSync.kext.zip Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2400704 Share on other sites More sharing options...
soumaxetuirk Posted April 8, 2017 Author Share Posted April 8, 2017 try it to avoid cpus=1 VoodooTSCSync.kext.zip I am sorry,I did not think about TSCSync before.Thank you But as I said I am still getting issue with Intel HD 620.No QE-CI and Its only showing 7MB VRAM.I have attached DSDT and clover config I made,followed by you and Rehabman. Please guide...and thank you again. DSDT.zip config.plist.zip 1 Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2400843 Share on other sites More sharing options...
MaLd0n Posted April 8, 2017 Share Posted April 8, 2017 CLOVER.zip 1 Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2400864 Share on other sites More sharing options...

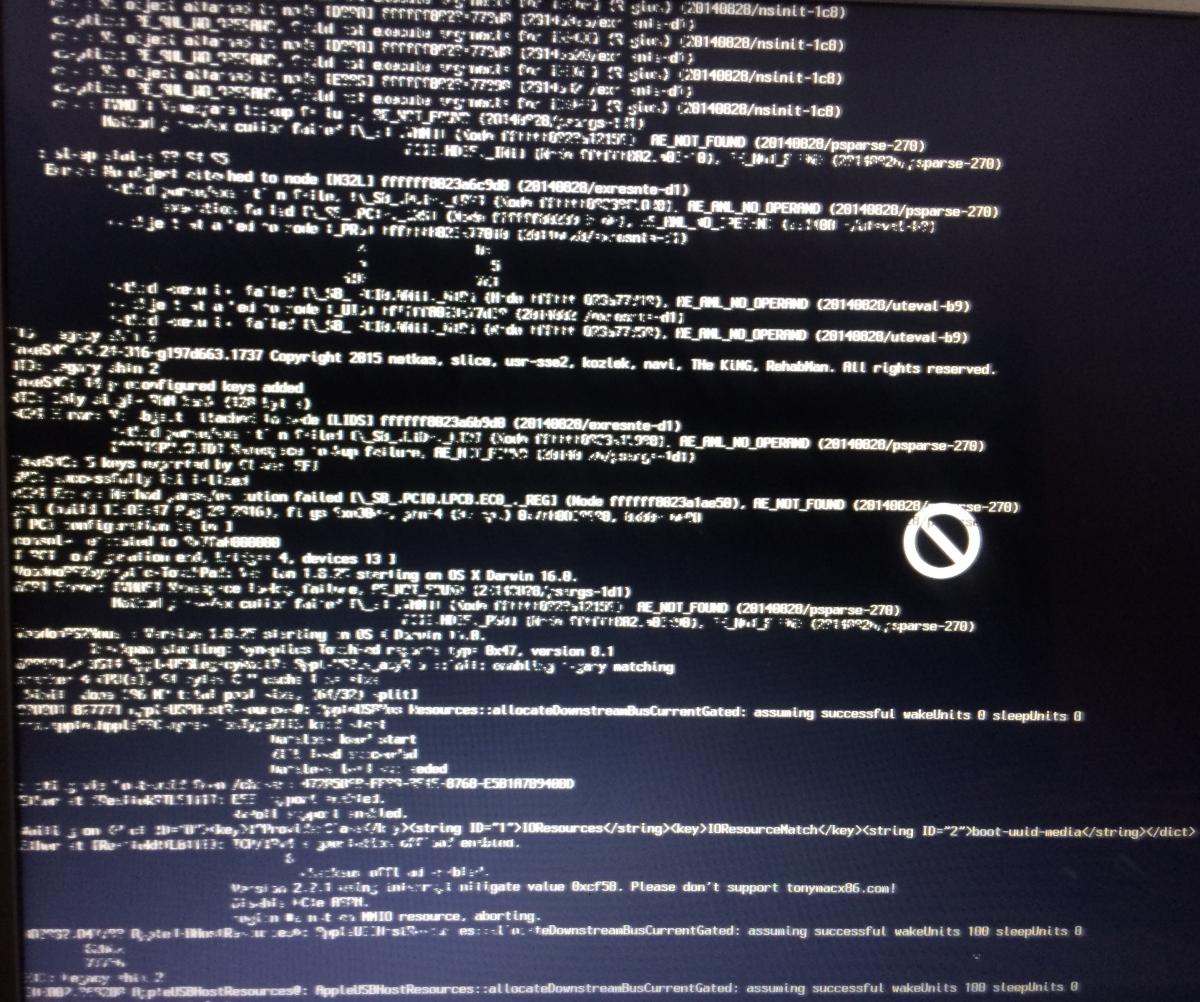

soumaxetuirk Posted April 8, 2017 Author Share Posted April 8, 2017 Thank you so much.Everything working fine without DSDT. With DSDT failed to boot.(Image is not blur but the total letters of screen become blur) DSDTorg.aml.zip Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2400905 Share on other sites More sharing options...
MaLd0n Posted April 8, 2017 Share Posted April 8, 2017 we need some tests i dont like without DSDT, many essencial patches, but if work and u like, done! Replace DSDT and test without pnlf and battery DSDT.02.zip lets take some tests 1 Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2400915 Share on other sites More sharing options...
soumaxetuirk Posted April 9, 2017 Author Share Posted April 9, 2017 we need some tests i dont like without DSDT, many essencial patches, but if work and u like, done! Replace DSDT sand test without pnlf and battery DSDT.02.zip lets take some tests This DSDT working good.Had to add a PNLF device for brightness(Rehabman brightness control ). Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2400963 Share on other sites More sharing options...
MaLd0n Posted April 9, 2017 Share Posted April 9, 2017 Battery work? Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2400966 Share on other sites More sharing options...
soumaxetuirk Posted April 9, 2017 Author Share Posted April 9, 2017 Not yet,I am trying to fix the dsdt for Rehabman's ACPIBatterymanager.kext. I guess native power management will not work with fake cpuid,Tried skylake and kabylake SSDT but it always panics. with minor changes with AppleALC.kext audio is working. Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2401125 Share on other sites More sharing options...

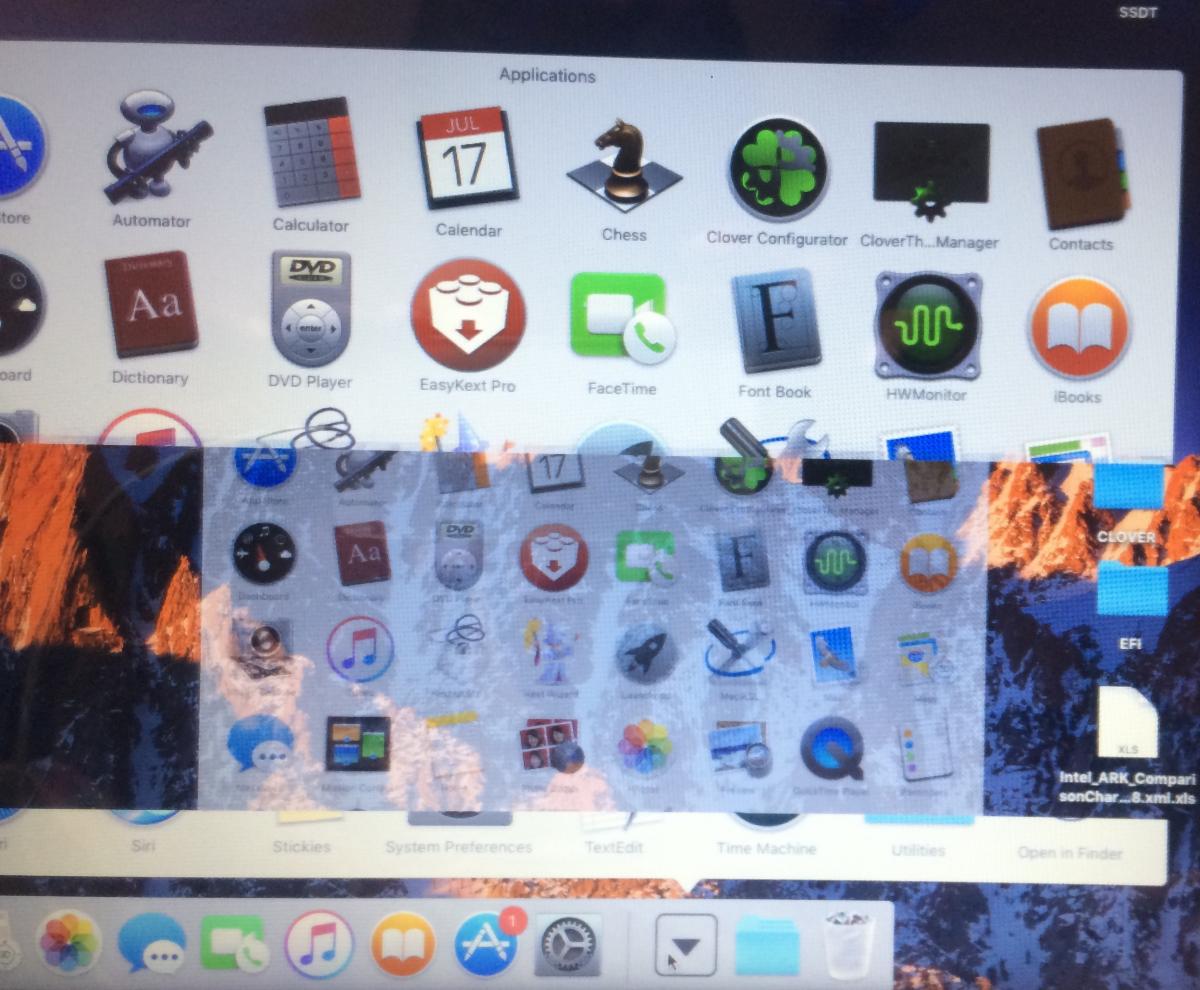

soumaxetuirk Posted April 9, 2017 Author Share Posted April 9, 2017 Battery work? After patching DSDT followed by previous post of NicoM4491.Battery is working after moving the kext to S/L/E. Only few glitches with dock animations. Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2401139 Share on other sites More sharing options...
MaLd0n Posted April 9, 2017 Share Posted April 9, 2017 I think the patch solve glitches Devices/AddProperties Device IntelGFX Key AAPL,GfxYTile Value 01000000 Value Type DATA By Piker Send me one ioreg Extract with IoregExplorer IORegistryExplorer 3.app.zip Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2401227 Share on other sites More sharing options...
soumaxetuirk Posted April 9, 2017 Author Share Posted April 9, 2017 I already tried this but same issue. Here is IOreg output. IOdevice.zip Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2401235 Share on other sites More sharing options...
MaLd0n Posted April 9, 2017 Share Posted April 9, 2017 Have a full patched in Devices Check here config.plist.zip use patch rename HECI to IMEI and GFX0 to IGPU Have in Acpi Section, just add Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2401236 Share on other sites More sharing options...
soumaxetuirk Posted April 9, 2017 Author Share Posted April 9, 2017 Still having the same issue. Have a full patched in Devices Check here config.plist.zip use patch rename HECI to IMEI and GFX0 to IGPU Have in Acpi Section, just add Like I said about Audio Kext, I moved FakeCPUID and FakePCIID Intel HD to S/L/E then everything works fine.Seems Kext are unable to load from EFI Partition. config.plist.zip IO Updated.zip 1 Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2401248 Share on other sites More sharing options...
MaLd0n Posted April 9, 2017 Share Posted April 9, 2017 i think u need smbios MacBookPro13(skylake), kabylake need fake skylake IDs Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2401253 Share on other sites More sharing options...
soumaxetuirk Posted April 9, 2017 Author Share Posted April 9, 2017 I was just checking different Smbios,MACBookPro13 is bootable only after using -no_compat_check Is there any reason why Clover fails to read kexts from EFI partition?? Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2401259 Share on other sites More sharing options...
MaLd0n Posted April 9, 2017 Share Posted April 9, 2017 now i used all kexts in Clover/Kexts/other 10.xx folder fail for me too Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2401266 Share on other sites More sharing options...
MaLd0n Posted April 10, 2017 Share Posted April 10, 2017 u can try a rehabman kext Pasta Sem Título.zip Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2401596 Share on other sites More sharing options...

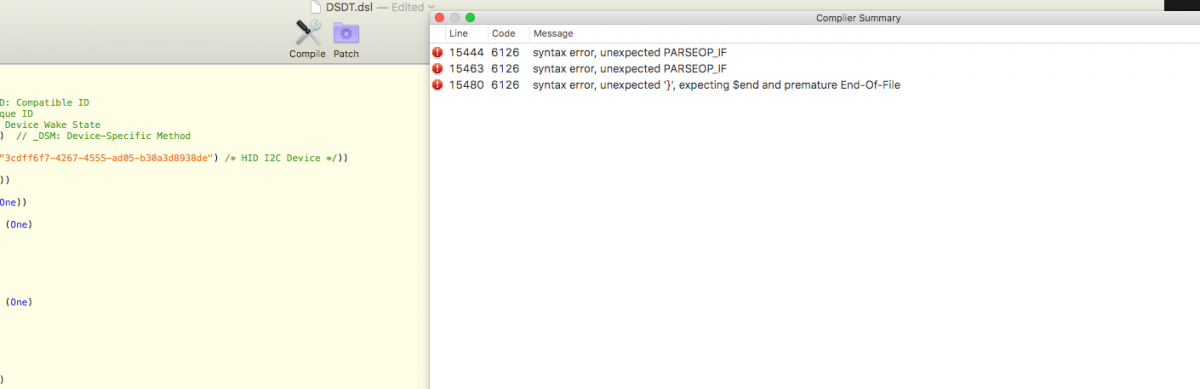

gulios Posted June 27, 2017 Share Posted June 27, 2017 Hi,spec:wifi: replaced to Broadcom BCM94352Z M.2 NGFFCPU: Kaby Lake i7-7500U Intel HD Graphics 620RAM: 8GBHDD: 512 GB SSD M.2I'm trying to install macOS 10.12.5 but i stucked at boot installer so i'm trying to patch DSDT first fromI've extracted(via clover F4) files without any problems but when i'm trying to compile DSDT via Macials it gives me errors(attachments) which i cannot fix ;( no matter which version i use.Second problem is that when i force installer to run my keyboard and trackpad did not work(config.plist+kext in attachments) and i don;t see my HDD M.2In the past i didn't have a problems with hack Maximus VII and Asus g551jx but now with that one i stucked on installer ;(Can you help me with this?Thank you Archive.zip ASUS-UX430.zip 1 Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2452538 Share on other sites More sharing options...
MaLd0n Posted June 27, 2017 Share Posted June 27, 2017 Hi, spec: wifi: replaced to Broadcom BCM94352Z M.2 NGFF CPU: Kaby Lake i7-7500U Intel HD Graphics 620 RAM: 8GB HDD: 512 GB SSD M.2 I'm trying to install macOS 10.12.5 but i stucked at boot installer so i'm trying to patch DSDT first from I've extracted(via clover F4) files without any problems but when i'm trying to compile DSDT via Macials it gives me errors(attachments) which i cannot fix ;( no matter which version i use. Second problem is that when i force installer to run my keyboard and trackpad did not work(config.plist+kext in attachments) and i don;t see my HDD M.2 In the past i didn't have a problems with hack Maximus VII and Asus g551jx but now with that one i stucked on installer ;( Can you help me with this? Thank you DSDT.gulios.zip Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2452554 Share on other sites More sharing options...
gulios Posted June 27, 2017 Share Posted June 27, 2017 Thx, but MaciASL doesn't want to open that file for editing ;( so i will not be able to patch it. 1 Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2452571 Share on other sites More sharing options...
MaLd0n Posted June 27, 2017 Share Posted June 27, 2017 use acpi6.1 https://bitbucket.org/RehabMan/os-x-maciasl-patchmatic/downloads/RehabMan-MaciASL-2016-0423.zip the DSDT is full patched, put in folder, reboot and test Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2452581 Share on other sites More sharing options...
gulios Posted June 27, 2017 Share Posted June 27, 2017 Ok, thank you i can edit it with newer version. I've passed througth installer and now trying to boot on HDD but again another strange issue"AppleLMUController::start Error: Could not get SMCProvider" ;( The newest FakeSMS is in kextx folder. 1 Link to comment https://www.insanelymac.com/forum/topic/322611-lenovo-ideapad-310-7th-gen-i5-intel-hd-620/#findComment-2452595 Share on other sites More sharing options...
