Yurlamum Posted March 24, 2017 Share Posted March 24, 2017 Hello Since i had to update Clover for sierra it takes over 1 minute to go from the bios screen to the apple splash logo.around 30 second till "Welcome to clover xxxx" appears and then another 30 seconds or so "scanning for ..." etc. And then around 20 seconds till the apple logo appears.I installed the latest version r4035, i tried the -BiosBlockIO thingie, no difference.I am using legacy clover.I got an intel 7 series and asmedia sata chipset, tried disabling the asmedia, no differnceon an asrock B75 pro 3 mainboard.Help me please. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 -Post ur full Clover folder -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 U have a SSD? Link to comment Share on other sites More sharing options...
Yurlamum Posted March 24, 2017 Author Share Posted March 24, 2017 -Post ur full Clover folder -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 U have a SSD? Thanks for the quick reply. yes i got 2 ssds, the boot ssd is connected to the intel chipset sata 3 port, while the other is connected to the asmedia sata3 port. This sounds very stupid now, but i did not find how i could attach files to my post. No upload option under "my media" 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 Use Mega or other Link to comment Share on other sites More sharing options...
Yurlamum Posted March 24, 2017 Author Share Posted March 24, 2017 Use Mega or other yes to ssd and here are the requested files clover https://mega.nz/#!StF3SL4B!rErL50IyaRy2impe0U4GE61-If4SkCmjyM_uBcHCMqY ioreg https://mega.nz/#!6s0myA6A!X0-uavdidrj0DQniRr6FzfaznmWApOSY91KaO2HRd7k runme https://mega.nz/#!XhUVFD6D!HatY23gbMeivis5jbfWfJ-fh7XnNiACP3YJhN3BfvB0 (no idea whats up with the red colour) 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 What ur processor? Link to comment Share on other sites More sharing options...
Yurlamum Posted March 24, 2017 Author Share Posted March 24, 2017 What ur processor? Intel® Core i5-3550 Tried to post in Clover forum, but not allowed to post there 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 Replace full folder CLOVER.zip remove FakePCIID, FakePCIID.XHCIMux, RealtekRTL8111, i think in System/Library/Extensions Use all kexts in Clover/Kexts/10.12 after remove kexts, run it Olarila.command.zip Generate ur SSDT for Native PM with Pike Script run it ssdtPRGen.command.zip save and compile, put SSDT.aml in Clover/Acpi/Patched what Nvidia u use? Link to comment Share on other sites More sharing options...
Yurlamum Posted March 24, 2017 Author Share Posted March 24, 2017 @Hervé Tried without trim, no change @MaLd0n nvidia geforce 760 GTX with default driver from macOS. what do you mean by "use all kexts in clover/Kext/10.12" And whats Pike Script? Edit: ok pike script gets downloaded in the ssdtprg.command. I'll do it and report back, if my machine still boots Edit2: getting this error Warning: 'cpu-type' may be set improperly (0x0604 instead of 0x0704) - Clover users should read https://clover-wiki.zetam.org/Configuration/CPU#cpu_type Error: board-id [Mac-27ADBB7B4CEE8E61] not supported by Ivy Bridge – check SMBIOS data / use the -target option Do you want to continue (y/n)? y patched/ has another file as well: DSDT.aml* ssdt.aml* Thats fine? Rebooting now, lets see 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 use smbios ivy bridge iMac13,2 is Ivy Link to comment Share on other sites More sharing options...
Yurlamum Posted March 24, 2017 Author Share Posted March 24, 2017 Replace full folder CLOVER.zip remove FakePCIID, FakePCIID.XHCIMux, RealtekRTL8111, i think in System/Library/Extensions Use all kexts in Clover/Kexts/10.12 after remove kexts, run it Olarila.command.zip Generate ur SSDT for Native PM with Pike Script run it ssdtPRGen.command.zip save and compile, put SSDT.aml in Clover/Acpi/Patched what Nvidia u use? So whatever wizardry you did with my clover folder it worked. I had a kernel panic the first boot, but now it boots fine and fast thank you! One little thing changed though, my cpu does not clock down while idle, constantly runs in turbo boost now at ~ 3.5ghz instead of clocking down to 1.xGHZ. use smbios ivy bridge iMac13,2 is Ivy i think i used 14.x because Half of my usb ports would not work with 13.x, ill give it a try and report back 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 i think the k.p is a AppleAlc for audio use smbios 13,2, reboot and generate SSDT with script u dont have PM, see for usb in imac13,2, replace DSDTDSDT.usb.zip after reboot, send me new ioreg but remove kexts FakePCIID, FakePCIID.XHCIMux, RealtekRTL8111, i think in System/Library/Extensions or Library/Extensions Link to comment Share on other sites More sharing options...

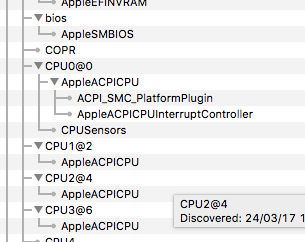

Yurlamum Posted March 24, 2017 Author Share Posted March 24, 2017 (edited) i think the k.p is a AppleAlc for audio use smbios 13,2, reboot and generate SSDT with script u dont have PM, see MaLd0n 2017-03-24 às 19.06.49.png for usb in imac13,2, replace DSDTDSDT.usb.zip after reboot, send me new ioreg but remove kexts FakePCIID, FakePCIID.XHCIMux, RealtekRTL8111, i think in System/Library/Extensions or Library/Extensions Ok did everything, usb worked without your dsdt.usb.zip, but i copied it anyways, boots very fast now and CPU clocks down to 1.58ghz now. Thank you! Sleep does not work, any chance you have any insight in that as well? ioreg is attached Edit: seems attaching did not work that well here is a mega link https://mega.nz/#!a5lWCSCa!VgngkQzhBfwlQYiA2T5LocwSgK8EXIDh_Wx-glpSEvw Edited March 24, 2017 by Yurlamum 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 what happens with sleep? use mega for ioreg u use hdmi audio? work native or not? Link to comment Share on other sites More sharing options...
Yurlamum Posted March 24, 2017 Author Share Posted March 24, 2017 what happens with sleep? use mega for ioreg u use hdmi audio? work native or not? edited the mega link into my last post. I don't use hdmi audio. When i sleep my PC, displays get shut off, for around 30 seconds, fans still running. If i wake it then, everything is fine, about after 30 seconds fans start to spin down, power led starts blinking, indicating sleep. When i wake the PC then, it just reboots. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 ok Let's try some things. native PM now see Pike script is amazin'! Link to comment Share on other sites More sharing options...
PMheart Posted March 24, 2017 Share Posted March 24, 2017 Sleep for less than 30 sec is not really sleeping, in this period the system is basically working the same as normal but with no signal on screen. This is designed to prevent misuses deliberately by Apple. What 3rd-part kexts did you use? And post some logs about your reboot. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 ok lets test to avoid reboot after sleep DSDT.01.zip Link to comment Share on other sites More sharing options...
Yurlamum Posted March 24, 2017 Author Share Posted March 24, 2017 (edited) ok lets test to avoid reboot after sleep DSDT.01.zip You want me to replace my DSDT.aml? or in addition? ok lets test to avoid reboot after sleep DSDT.01.zip Still rebooting. Sleep for less than 30 sec is not really sleeping, in this period the system is basically working the same as normal but with no signal on screen. This is designed to prevent misuses deliberately by Apple. What 3rd-part kexts did you use? And post some logs about your reboot. what kind of logs do you want, and where can i find those. kext wise, hmm ALC892, RealtekRTL8111, 7/8/9 Series USB Support, FakeSMC Plugin, all from xxxxxxxxx Edited April 30, 2017 by carlo_67 Please read the rules please, Forbidden to imitate the tool 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 kext wise, hmm ALC892, RealtekRTL8111, 7/8/9 Series USB Support, FakeSMC Plugin, all from [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url]. if ur mobo have thirt party USB, like asmedia(normal in asrock mobos), u need disable it in bios. Link to comment Share on other sites More sharing options...
PMheart Posted March 24, 2017 Share Posted March 24, 2017 (edited) what kind of logs do you want, and where can i find those. kext wise, hmm ALC892, RealtekRTL8111, 7/8/9 Series USB Support, FakeSMC Plugin, all from #####. Ok. You can try this: 1 - Run the command in Terminal sudo log erase --all This will remove all of your logs, which provides convenience for further debugging. 2 - Restart 3 - Reproduce the problem. (Sleep for a while and let the system reboot unexpectedly.) Edit: The exact logs added. 4 - You may encounter a window which says that something like "You shut down your computer because of a problem." and click either "Cancel" or "Open", then there is one more window shows that "Your computer was restarted because of a problem", and click "Report", after that show the log to me. (May consider copying/pasting in a plain text file.) 5 - Also run this and give the log.txt on your Desktop to me. log show --predicate 'process == "kernel"' --start "`date -v -10M "+%Y-%m-%d %H:%M:%S"`" > ~/Desktop/log.txt Note: This will dump the last 10 min logs. Edited March 24, 2017 by PMheart 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 Bro, i delete ur other post http://www.insanelymac.com/forum/topic/322137-sleep-not-working/ We will continue here trying the solution 1 Link to comment Share on other sites More sharing options...
Yurlamum Posted March 24, 2017 Author Share Posted March 24, 2017 blowup.gif if ur mobo have thirt party USB, like asmedia(normal in asrock mobos), u need disable it in bios. disabled asmedia sata controller, still reboots. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 http://www.insanelymac.com/forum/topic/322136-clover-takes-about-1min-20-seconds-to-boot/?p=2390972 1 Link to comment Share on other sites More sharing options...
Yurlamum Posted March 24, 2017 Author Share Posted March 24, 2017 Ok. You can try this: 1 - Run the command in Terminal sudo log erase --all This will remove all of your logs, which provides convenience for further debugging. 2 - Restart 3 - Reproduce the problem. (Sleep for a while and let the system reboot unexpectedly.) Edit: The exact logs added. 4 - You may encounter a window which says that something like "You shut down your computer because of a problem." and click either "Cancel" or "Open", then there is one more window shows that "Your computer was restarted because of a problem", and click "Report", after that show the log to me. (May consider copying/pasting in a plain text file.) 5 - Also run this and give the log.txt on your Desktop to me. log show --predicate 'process == "kernel"' --start "`date -v -10M "+%Y-%m-%d %H:%M:%S"`" > ~/Desktop/log.txt Note: This will dump the last 10 min logs. no windows popped up, so can only give you the log produced by log show https://mega.nz/#!asED2TJR!a5SomNEWDy4nIz7olNdDt-E5FwpjyZxTM1r1tuzN7TM 1 Link to comment Share on other sites More sharing options...
