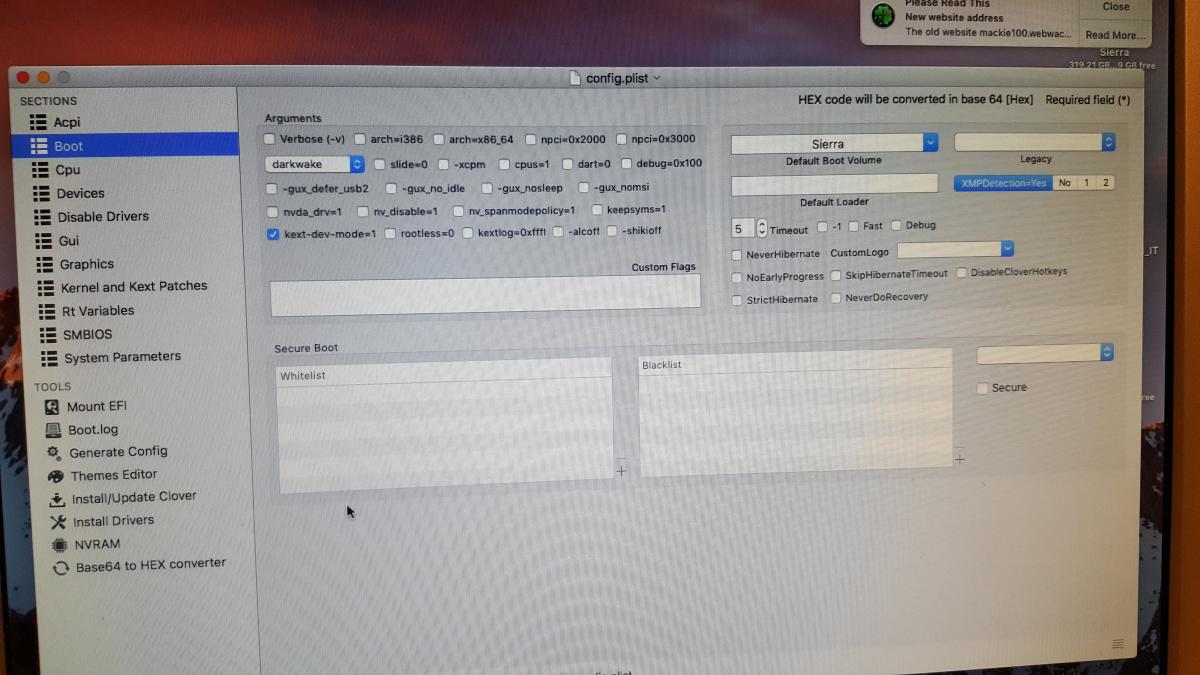

ej1 Posted March 15, 2017 Share Posted March 15, 2017 Hi, this was supposed to be weekend project,well not so much now, I'm throwing in the towel... for now. I have a perfectly working sierra box, network, video, etc. BUT I can't get clover to boot from the HD without using the flash drive. I have tried moving kelts around, multibeasts tweaks, you name it, can anybody see what I'm missing? orig specs: BIOS Brand American Megatrends Inc. Version P1.10 Date 1/3/2013 video: ATI AMD RADEON HD 6450 mobo:ASRock B75M-DGS R2.0 (CPUSocket) Intel Core i3 2100 @ 3.10GHz 39 °C Sandy Bridge 32nm Technology please look at my attached jpegs, help appreciated!! (sorry can't get them rotated) 1 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/ Share on other sites More sharing options...
MaLd0n Posted March 15, 2017 Share Posted March 15, 2017 send me ur files, boot from usb... -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files, generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 1 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2384550 Share on other sites More sharing options...
ej1 Posted March 15, 2017 Author Share Posted March 15, 2017 will do in the am! thanks! 1 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2384553 Share on other sites More sharing options...
MaLd0n Posted March 15, 2017 Share Posted March 15, 2017 i have a same mobo here, is a retired mobo, but i will buy processor lga 1155 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2384555 Share on other sites More sharing options...
marco.pisellonio80 Posted March 15, 2017 Share Posted March 15, 2017 Supposing you have just installed clover in the Hd/ssd, try booting using pendrive, go to "clover boot options" and select "add clover options for all entries". Start, shutdown, remove pendrive and try volume boot 2 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2384657 Share on other sites More sharing options...
ej1 Posted March 15, 2017 Author Share Posted March 15, 2017 Supposing you have just installed clover in the Hd/ssd, try booting using pendrive, go to "clover boot options" and select "add clover options for all entries". Start, shutdown, remove pendrive and try volume boot Did it, still none of them worked unless I chose efi flash drive. 1 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2384780 Share on other sites More sharing options...
ej1 Posted March 15, 2017 Author Share Posted March 15, 2017 send me ur files, boot from usb... -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files, generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 here you go, thanks! Send me BenchPC’s iMac.zip 1 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2384816 Share on other sites More sharing options...

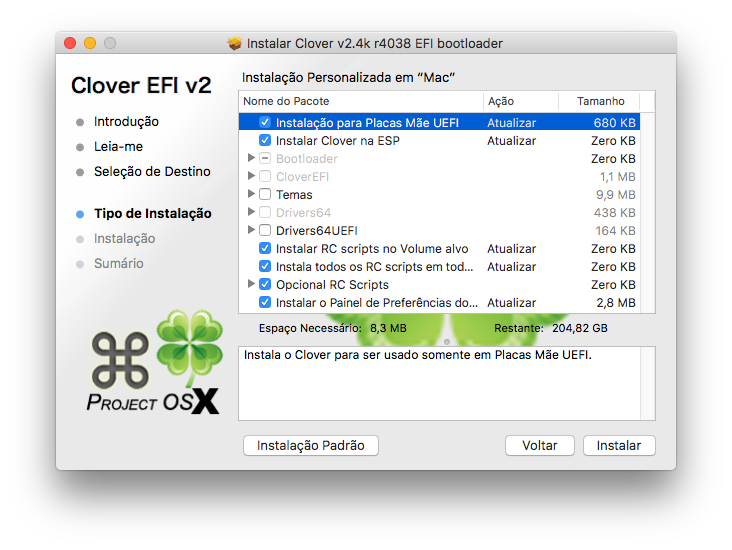

MaLd0n Posted March 15, 2017 Share Posted March 15, 2017 Install Clover in UEFI mode with config Replace full folder CLOVER.zip Activate ur video if u have problems, boot with -x 1 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2384834 Share on other sites More sharing options...
ej1 Posted March 15, 2017 Author Share Posted March 15, 2017 Install Clover in UEFI mode with config MaLd0n 2017-03-15 às 10.48.36.png Replace full folder CLOVER.zip Activate ur video if u have problems, boot with -x ok, so I booted with the flash, reinstalled clover to the sierra hd with the checked ones you show, mounted the efi and pasted your clover to overwrite. Rebooted, still no go. What do you mean by -x? 1 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2384961 Share on other sites More sharing options...
MaLd0n Posted March 15, 2017 Share Posted March 15, 2017 -x = safe mode what happens with boot? Have photo with error? dont use UEFI, try with in clover installer but dont replace full folder, only kexts, dsdt e config.plist the folder is for uefi mode only 1 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2384973 Share on other sites More sharing options...

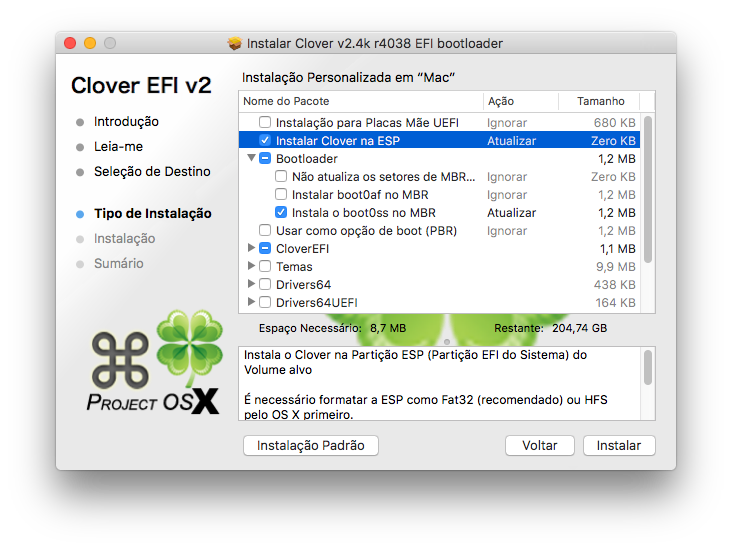

ej1 Posted March 15, 2017 Author Share Posted March 15, 2017 -x = safe mode what happens with boot? Have photo with error? dont use UEFI, try with in clover installer MaLd0n 2017-03-15 às 14.43.42.png but dont replace full folder, only kexts, dsdt e config.plist the folder is for uefi mode only -x = safe mode what happens with boot? Have photo with error? dont use UEFI, try with in clover installer MaLd0n 2017-03-15 às 14.43.42.png but dont replace full folder, only kexts, dsdt e config.plist the folder is for uefi mode only SUCCESS!! Thanks man! I mounted the efi and deleted the whole clover folder, then I reinstalled clover with just the boxes checked as shown here, and as advised only overwrote the kexts and config.plist then pasted the dsdt.ami into the clover>acpi>patched folder. 2 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2385149 Share on other sites More sharing options...
MaLd0n Posted March 15, 2017 Share Posted March 15, 2017 Good!!! tell me what work or not work Audio ok? Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2385164 Share on other sites More sharing options...
MaLd0n Posted March 15, 2017 Share Posted March 15, 2017 load optmized defaultsde boot key asrock i think is f9 or f11, try it send me full Clover folder Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2385201 Share on other sites More sharing options...
ej1 Posted March 15, 2017 Author Share Posted March 15, 2017 load optmized defaultsde boot key asrock i think is f9 or f11, try it send me full Clover folder I will, but now I got in a couple laptops to clean up. Have to do real work once in a while 1 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2385248 Share on other sites More sharing options...
MaLd0n Posted March 15, 2017 Share Posted March 15, 2017 ohh! it's good! Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2385251 Share on other sites More sharing options...
ej1 Posted March 16, 2017 Author Share Posted March 16, 2017 ohh! it's good! no sound, I tried to add a couple audio kexts, heres another zip Send me 2BenchPC’s iMac.zip Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2385494 Share on other sites More sharing options...
MaLd0n Posted March 16, 2017 Share Posted March 16, 2017 replace DSDT and test, go to SystemPreferences/Sound DSDT.id 5.zip remove kext NullcpuPM run Pike script and generate ur SSDT for native PM just run and save file, compile if u can post file here ssdtPRGen.command.zip 2 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2385510 Share on other sites More sharing options...
ej1 Posted March 19, 2017 Author Share Posted March 19, 2017 replace DSDT and test, go to SystemPreferences/Sound DSDT.id 5.zip remove kext NullcpuPM run Pike script and generate ur SSDT for native PM just run and save file, compile if u can post file here ssdtPRGen.command.zip Hi again, set bios defaults. still no sound, under system info it shows Intel HD audio device, but if I open sound it says no output device. The jack works fine in ubuntu and windows. I replaced the dsdt but couldn't find any nullcpupm kext, ran your ssdt command, heres a copy ssdt copy.txt 1 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2387231 Share on other sites More sharing options...
MaLd0n Posted March 19, 2017 Share Posted March 19, 2017 Strange sound, no problem, go to tests, if can, we use AppleHdaPatcher try id 11 put ssdt and dsdt into folder Clover/acpi/patched and kexts AppleAlc into clover/kexts/10.xx Arquivo Comprimido.zip Post new Ioreg after reboot, i need check PM sandy bridge with Pike SSDT, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2387255 Share on other sites More sharing options...
ej1 Posted March 19, 2017 Author Share Posted March 19, 2017 somehow I figured it out! I download the applehdapatcher and picked a desktop Realtek driver 6xx close to mine, mine was Realtek ALC662 made the patch then basically followed video here and managed to get it going! Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2387337 Share on other sites More sharing options...
MaLd0n Posted March 19, 2017 Share Posted March 19, 2017 confirm for me ur audio codec, i think is alc662 run it and send me files generate in desktop RunMe.app.zip Link to comment https://www.insanelymac.com/forum/topic/321875-exhausted-sierra-hackintosh-will-only-boot-from-usb-still/#findComment-2387354 Share on other sites More sharing options...
